Product Type	RF/IR Remote Control Receiver
Brand	PHILIPS
Model	SBC LI 805
Power Supply	Mains 230-240 V AC, 50 Hz
Infrared Carrier Frequency	32 – 40 kHz
RF Reception	433.92 MHz
Maximum RF Range	15 meters
Compatibility	RU 885 RF remote control, SBC LI 800 extension set
Light Indicators	Green LED (power), red LED (reception)
Approximate Dimensions	10 × 5 × 3 cm (estimated)
Approximate Weight	100 g (estimated)
Maintenance	Clean with a dry or slightly damp cloth, disconnect before cleaning
Safety Precautions	Do not expose to moisture, water splashes, or extreme heat sources
Included Accessories	Power adapter, infrared extension cable with 3 LEDs
Repairability	Do not attempt to repair yourself, contact after-sales service
General Information	Allows controlling infrared equipment via RF without direct line of sight

Frequently Asked Questions - SBCLI805 PHILIPS

How to install the SBC LI 805 receiver?

Place the receiver facing the equipment to be controlled, connect the provided power adapter to a 230-240 V AC outlet. The green LED lights up to indicate power on.

The receiver does not work, what should I check?

Ensure the receiver is plugged into a 230-240 V AC mains socket, the RU 885 remote has good batteries, the distance does not exceed 15 meters, and no large metal obstacle blocks the RF signal.

What is the maximum range of the RF signal?

The RF range between the RU 885 remote and the receiver is a maximum of 15 meters.

Can I use the receiver with any infrared equipment?

The receiver works with most infrared equipment, except for some brands like Bang & Olufsen, Nokia (some satellite receivers), Sagem and Pace.

How to use the infrared extension cable?

Connect the cable to the receiver, remove the adhesive tape from the IR LEDs and attach them to the infrared sensor of the equipment to be controlled. If the exact location is unknown, place the LEDs 5-10 cm from the front.

What to do if the red LED does not blink when sending a command?

Check that the RF function of the RU 885 remote is active, the batteries are good, and the receiver is in line of sight of the equipment. If the problem persists, consult the RU 885 user guide.

Can I clean the receiver with water?

No, use a dry or slightly damp cloth. Always disconnect the receiver before cleaning. Avoid any excessive water.

Is the receiver compatible with the SBC LI 800 extension set?

Yes, the SBC LI 805 can be used as an additional receiver in the SBC LI 800 extension set. Refer to the LI 800 user guide for more details.

Can I repair the receiver myself in case of failure?

No, any attempt at repair will void the warranty. Contact your dealer or after-sales service, whose numbers are listed on page 2 of the manual.

What are the technical specifications of the receiver?

Power supply: 230-240 V AC / 50 Hz. IR carrier frequency: 32-40 kHz. RF reception: 433.92 MHz.

USER MANUAL SBCLI805 PHILIPS

wireless remote control link

SBC LI 805

Instructions for use

Let's make things better.

PHILIPS

Helpline

België & Luxemburg

Belgien & Luxemburg

European regulations

This product has been designed, tested and manufactured according to the European R&TTE directive 1999/5/EC. Following this Directive, this product can be brought into service in the following states:

SBC LI 800/00

R&TTE Directive 1999/5/EC

BE √	DK √	GR √	ES √	FR √
IRE ✘	IT √	LU √	NL √	AT √
PT √	FI √	SE √	UK ✘	NO√
DE √	CH √

SBC LI 800/05

R&TTE Directive 1999/5/EC

BE ✗	DK ✗	GR ✗	ES ✗	FR ✗
IRE √	IT ✗	LU ✗	NL ✗	AT ✗
PT ✗	FI ✗	SE ✗	UK √	NO ✗
DE ✗	CH ✗

CE0682

4 ENGLISH

Receiver SBC LI 805

Receiver

The Philips SBC LI 805 receiver can be used as receiver for the SBC RU 885 R(adio) F(requency) remote control as well as additional receiver for the SBC LI 800 Remote Control extender set. When used in conjunction with the RU 885 you can operate most IR driven equipment (e.g. Hi-Fi sets, VCRs, Sat-receivers, etc.) from anywhere in your house without actually seeing the equipment or aiming the remote control at it. For operation with the LI 800 extender set, see the User Guide of the set.

The RU 885 is able to send RF (radio frequency) signals that go through walls or, if your equipment is located in a cabinet, through the cabinet door. When receiving a signal from the RU 885, the receiver re-converts the RF-signal to a appropriate IR signal and sends it to the equipment you wish to operate.

In case you wish to control equipment in different rooms you can extend your equipment with more LI 805 receivers.

IR extension cord

The extension cord can be connected if the receiver is located in a cabinet or if you do not want to place the unit in front of your equipment. The cord has three IR lights that allow you to operate three devices simultaneously.

Adapter

For connecting the receiver to the mains supply.

To ensure you get the best performance from your receiver please read this manual carefully.

Important information

Read these instructions. All operating instructions and safety precautions should be read before using the receiver.

Safety precautions

• Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

• The receiver is powered once it is connected to a 230-240 VAC mains supply. Disconnect the receiver from the mains supply when not in use.

• Do not use the receiver in moist places or close to water.

• Do not expose the receiver to extreme heat or light.
• When cleaning the receiver, first disconnect from the mains supply. Rub it with a dry or slightly moist towel, never use excessive amounts of water on the unit.

Contents

Helpline 2

General 4

Important information 4

Installation 5

Operation 6

Troubleshooting 7

Installation

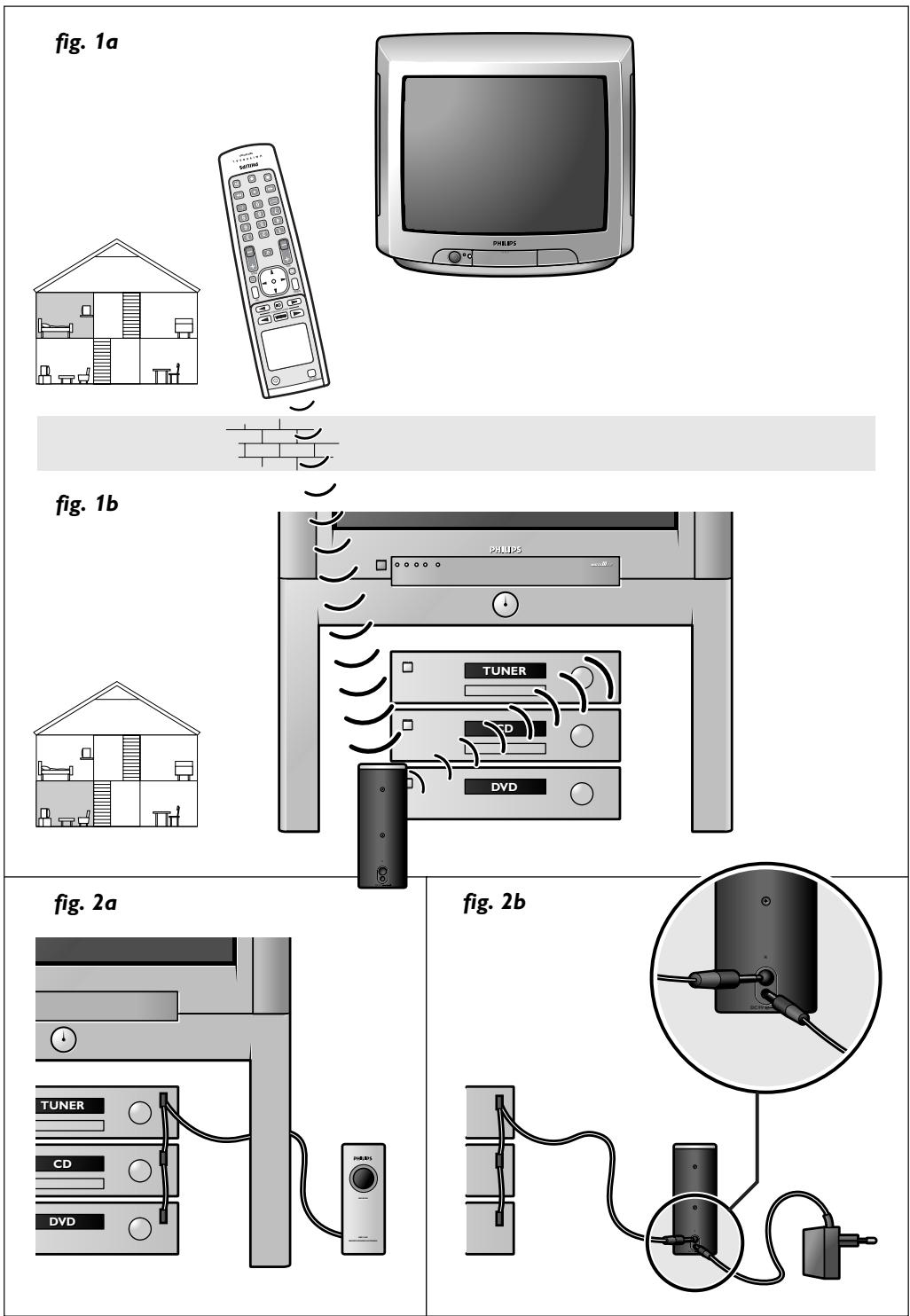

Receiver - fig. 1b

1 Place the receiver in front of the equipment you want to control.
The receiver should be facing the equipment with its front window, or with its back; the receiver is able to transmit IR signals through its dark rear side.
2 Connect the adapter supplied to the receiver and connect the adapter to the mains supply (230-240 VAC).

The green light will light up in the window on the front.

Extension cord - fig. 2

1 Connect the extension cord to the receiver and position the receiver beside or behind the equipment you want to control.
2 Remove the adhesive tape from the IR light(s) and affix the IR light(s) on the IR sensor(s) of the equipment you wish to control.

Notes:

• For the location of the IR receiver(s) on your equipment, check the appropriate manuals.
• If the location of the IR receiver(s) is not exactly known you can place the IR lights 5-10 cm away from the front of the equipment you wish to control.

6 ENGLISH

Operation

Operation with RU 885 RF remote control

1 Make sure the RF functionality of the RU 885 is enabled.
2 Select the equipment you wish to operate.
3 Point the remote control in the direction of the receiver and press the required function button.

The receiver will confirm reception by the flashing of the red light in the window on the front and your equipment will respond.
- For detailed operating instructions see the RU 885 User Guide.

Operation in the SBC LI 800 Remote Control extender set

• Once installed, the receiver can be used as additional receiver in the SBCLI 800 Remote Control extender set.
• For detailed operating instructions see the LI 800 User Guide.

Notes:

• The distance between remote control and receiver should not be greater than 15 meters.
  – The set may not work properly or may not work at all with devices of the following brands:
• Bang & Olufsen;
  – Nokia (some satellite receivers);
  – Sagem (some satellite receivers);
• Pace (some satellite receivers).

Troubleshooting

If a fault occurs, first check the points listed below. If you are unable to remedy a problem by following these hints, contact the helpline (see page 2) or consult your dealer. Under no circumstances should you try to repair the receiver yourself as this will invalidate the guarantee.

The receiver should work with almost any equipment except for some brands mentioned in the previous paragraph. In case the receiver does not work, check the following points:

• Is the receiver connected to the mains supply?
• Does the remote control have fresh batteries?
• Is the distance between remote control and receiver less than 15 meters?
• Is the receiver in line of site and facing the equipment to operate? If this is not possible, connect the extension cord.
• When using the extension cord: check if IR lights are properly attached to the IR sensors of your equipment.
• Is the RF functionality of the RU 885 is enabled? See RU 885 User Guide.
• Make sure no massive metal parts are between the remote control and the receiver. Metal will reduce or even block the RF signal.

Technical specifications

Power supply: 230-240 VAC / 50 Hz

IR carrier frequency: 32-40 kHz

RF receptance: 433.92 MHz

Need Help?

In case you have any questions about the LI 805, please contact our help-line for assistance! You can find the number in the list on page 2.

Before you call, please read this manual carefully. You will be able to solve most of your problems.

The model number of the remote control extender is SBC LI 805.

Date of purchase: ____ /____ /____ day month year
