Series 3 3000BT - Shaver BRAUN - Free user manual and instructions

USER MANUAL Series 3 3000BT BRAUN

S3 BRAUN 3030s

Type 5415, 5413

www.braun.com

3030

3020

3000

Deutsch 6

English 10

Français 14

Español 18

Português 22

Italiano 26

Nederlands 30

Dansk 34

Norsk 38

Svenska 42

Suomi 46

Polski 50

Český 55

Slovenský 59

Magyar 63

Hrvatski 67

Slovenščina 71

Türkçe 75

Română (RO/MD) 81

Ελληνικά 85

Български 89

Русский 93

Українська 99

109

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

PL 801 127 286

801 1 BRAUN

CZ 221 804 335

SK 02/5710 1135

HU (06-1) 451-1256

HR 01/6690330

SI 080 2822

TR 0850 220 09 11

RO 021.224.30.35

GR 210-9478700

BG 0800 11 003

RU 8 800 200 20 20

UA 0 800 505 000

Braun GmbH

Close-up of a black textured roller with mesh outer layer (no visible text or symbols)

3D rendered image of a black mechanical component with mesh texture and curved base (no text or symbols)

Black industrial brush holder with labeled components (S3, BRAUN, 300CBT) and a small connector on top (no readable text beyond labels)

Close-up of a black plastic brush head with serrated edges and a small number '7' on the base (no text or symbols)

Close-up of a black hair clip with serrated edges and a small number '2' on the base (no text or symbols beyond the number)

Black plastic comb with ribbed texture and a small number '3' on the base (no text or symbols on the comb itself)

Close-up of a black plastic kerchief with ribbed grille (no text or symbols visible)

Black plastic object with ribbed texture and a small number 7 on the side (no text or symbols)

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

This appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-492-C, you can use it with any Braun power supply coded 492-XXXX.

Do not use the appliance with a damaged foil, trimmer or cord.

The built-in rechargeable batteries can only be replaced by an authorized Braun Service center.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

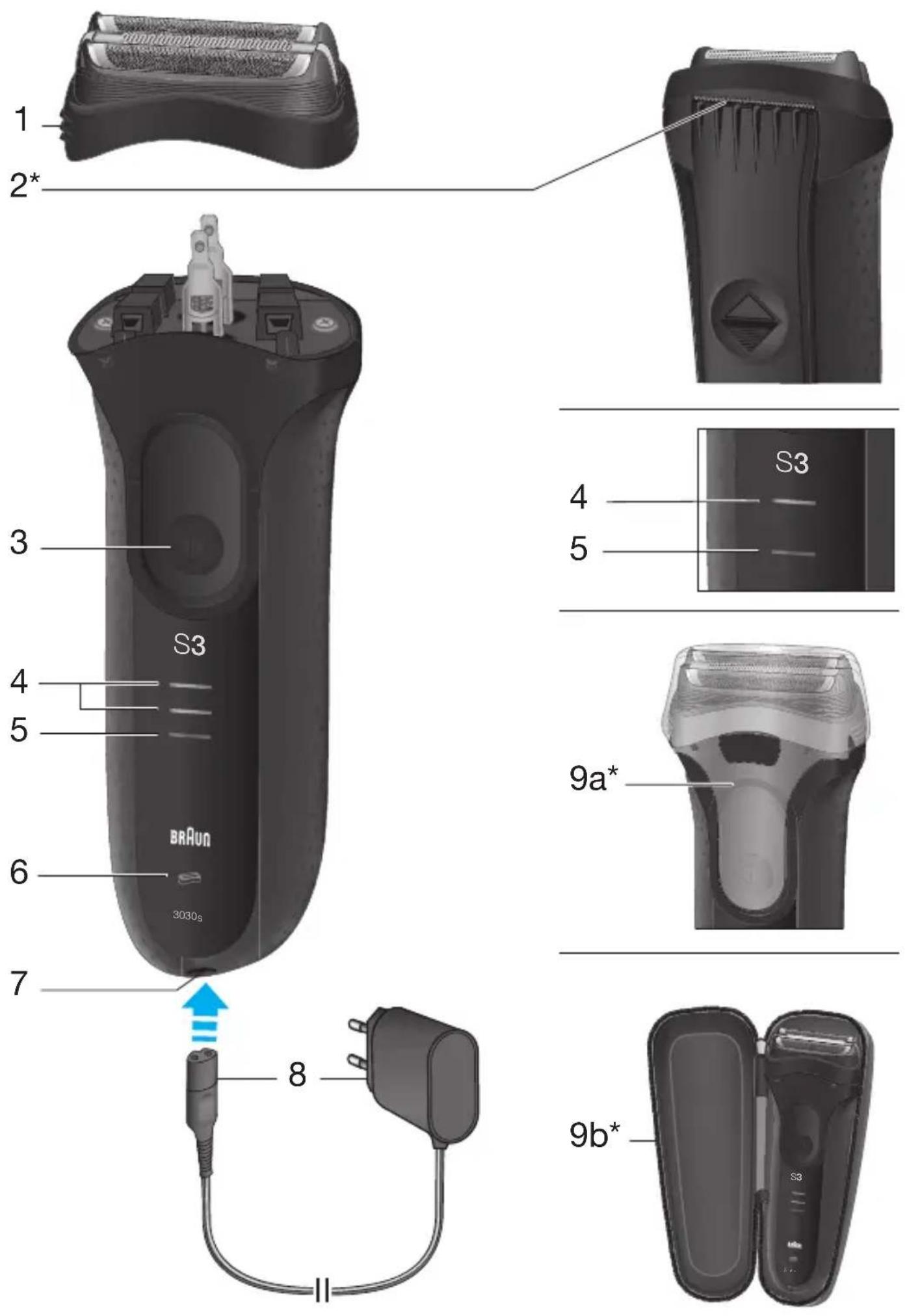

Description

1 Foil & Cutter cassette
2 Long hair trimmer*
3 On/off switch
4 Green charging light(s)
5 Red low-charge light
6 Replacement light for shaving parts
7 Shaver power socket
8 Special cord set (design can differ)
9a Protection cap*

9b Travel pouch*

10 Beard trimmer head with 5 combs (BT32) ^*

* not with all models

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (8), connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth. Maximum battery capacity will only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a shave.
• If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set.

Charging light(s) (4)

The green charging light shows the charge status of the batteries.

The green charging light blinks when the shaver is being charged or switched on.

When the battery is fully charged, all green charging lights shine permanently, provided the shaver is connected to an electrical outlet.

Low-charge light (5)

The red low-charge light flashes when the battery is running low. You should be able to finish your shave.

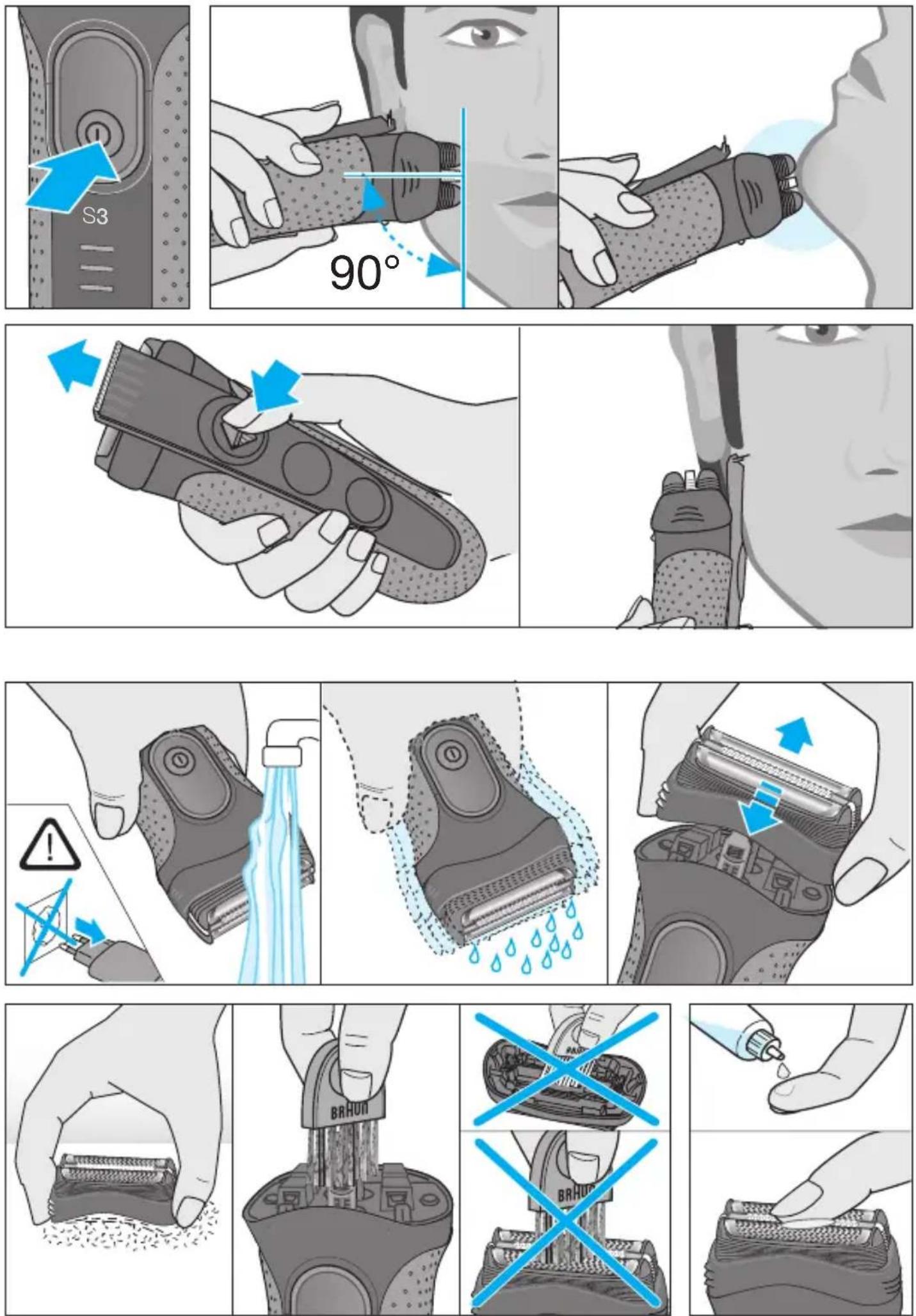

Shaving

Press the on/off switch (3) to operate the shaver.

The flexible shaving foils automatically adjust to every contour of your face.

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Tips for a perfect dry shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

Regular cleaning ensures better shaving performance.

Cleaning under running water:

• Switch the shaver on (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the Foil & Cutter cassette (1) and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer (2) and Foil & Cutter cassette (1).

Cleaning with a brush:

• Switch off the shaver. Remove the Foil & Cutter cassette and tap it out on a flat surface.
• Using a brush, clean the inner area of the shaver head. However, do not clean the Foil & Cutter cassette with a brush as this may damage it.

Keeping your shaver in top shape

Replacement light for shaving parts / Reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when the replacement light for shaving parts (6) comes on after about 18 months or when worn.

The replacement light will remind you during the next 7 shaves to replace the

Foil & Cutter cassette. Then the shaver will automatically reset.

After you have replaced the Foil & Cutter cassette (1), press the on/off switch (3) for at least 5 seconds to reset the counter.

While doing so, the replacement light blinks and goes off when the reset is complete.

The manual reset can be done at any time.

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged by shaving every 6 months approximately. Then recharge the shaver to full capacity.

Accessories

Foil & Cutter cassette: 32S/32B

Styling attachment for Series 3 shavers*: BT32

* Fits all Series 3 shavers with Foil & Cutter cassette 32S/32B

(Types 5416/5415/5414/5413/5412/5411)

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I.Pavlall.17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone]

(u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS))

[e-mail], ili nazovite Call centar singuli: 072 700 707

Slovenščina

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "427" – The product was manufactured in week 27 of 2014.

بلد الصنع: ألمانيا

تاريخ الصنع

Close-up of a mechanical component with textured surfaces and mounting brackets (no visible text or symbols)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

32S/32B

Three identical rectangular panels with a diagonal line in the center, no text or symbols present.
