USER MANUAL 1535 BISSELL

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM.

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories.
» Use indoors only.
» For dry pick up only.
Do not leave machine when it is plugged in.
» Do not service machine when it is plugged in.
Do not use with damaged cable or plug.
» If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
Do not handle unit with wet hands.
» Do not pull or carry by cable, use cable as a handle,

CAUTION

THIS HOSE CONTAINS ELECTRICAL CONNECTIONS:

DO NOT USE TO SUCK UP WATER
DO NOT IMMERSE IN WATER FOR CLEANING
- THE HOSE SHOULD BE CHECKED REGULARLY AND MUST NOT BE USED IF DAMAGED

close door on cable, pull cable around sharp corners or edges, run appliance over cable, or expose cable to heated surfaces.
Do not unplug by pulling on cable. Unplug by grasping plug.
Do not run appliance over cable.
» Do not handle plug or appliance with wet hands.
Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.
Do not pick up hot or burning objects such as cigarettes, matches, or hot ashes.
Do not pick up flammable or combustible materials (lighter fluid, petrol, kerosene, etc.) or use in the presence of explosive liquids or vapours.
Do not use appliance in an enclosed space filled with vapours given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapours.
Remove plug from electrical socket before cleaning or maintaining the appliance.
Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, petrol, etc.).
Do not use for any purpose other than described in this User's Guide.
» Use only manufacturer's recommended attachments.
» Keep appliance on a level surface
Turn off all controls before unplugging.
» Be extra careful when cleaning stairs.
This appliance is provided with double insulation. Use only identical replacement parts.
Pay close attention when working around children.
Do not use to suck up water (for vacuum cleaners only)
» Do not immerse in water for cleaning
The hose should be checked regularly and must not be used if damaged
Do not use outdoors or on wet surfaces
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Do not use without dust container and/or filters in place
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

FOR OPERATION ON A 220-240 VOLT A.C. 50/60 HZ POWER SUPPLY ONLY.

This model is for household use only.

Thanks for buying a BISSELL vacuum

We're glad you purchased a BISSELL vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.

Your BISSELL vacuum is well made, and we back it with a limited two-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Care department, so, should you ever have a problem, you'll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high-quality homecare products like your BISSELL vacuum.

Thanks again, from all of us at BISSELL.

Mark J. Bissell

Chairman & CEO

Symbol Definitions

	WARNING	AN ACTION OR ATTENTION IS NEEDED TO THIS AREA IN ORDER TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR INJURY
	TIP	NOTE OR HINT WHICH IS NOT ESSENTIAL BUT MAY IMPROVE USABILITY
	GUIDE	READ USER GUIDE FOR COMPLETE SAFETY AND USER INSTRUCTIONS
	WEEE	DO NOT THROW THE APPLIANCE AWAY WITH THE NORMAL HOUSHOLD WASTE AT THE END OF ITS LIFE, BUT HAND IT IN AT AN OFFICIAL COLLECTION POINT FOR RECYCLING. BY DOING THIS YOU WILL HELP TO PRESERVE THE ENVIRONMENT.

Before cleaning under low furniture, check area first for objects that might harm the unit or block the hose.
Hair, string and small objects can block the hose and tools. Check them occasionally for obstructions.

» Use the air flow regulator to reduce air flow as needed when using the tools.
For maximum cleaning performance, check the filters often and clean or replace if necessary.

A

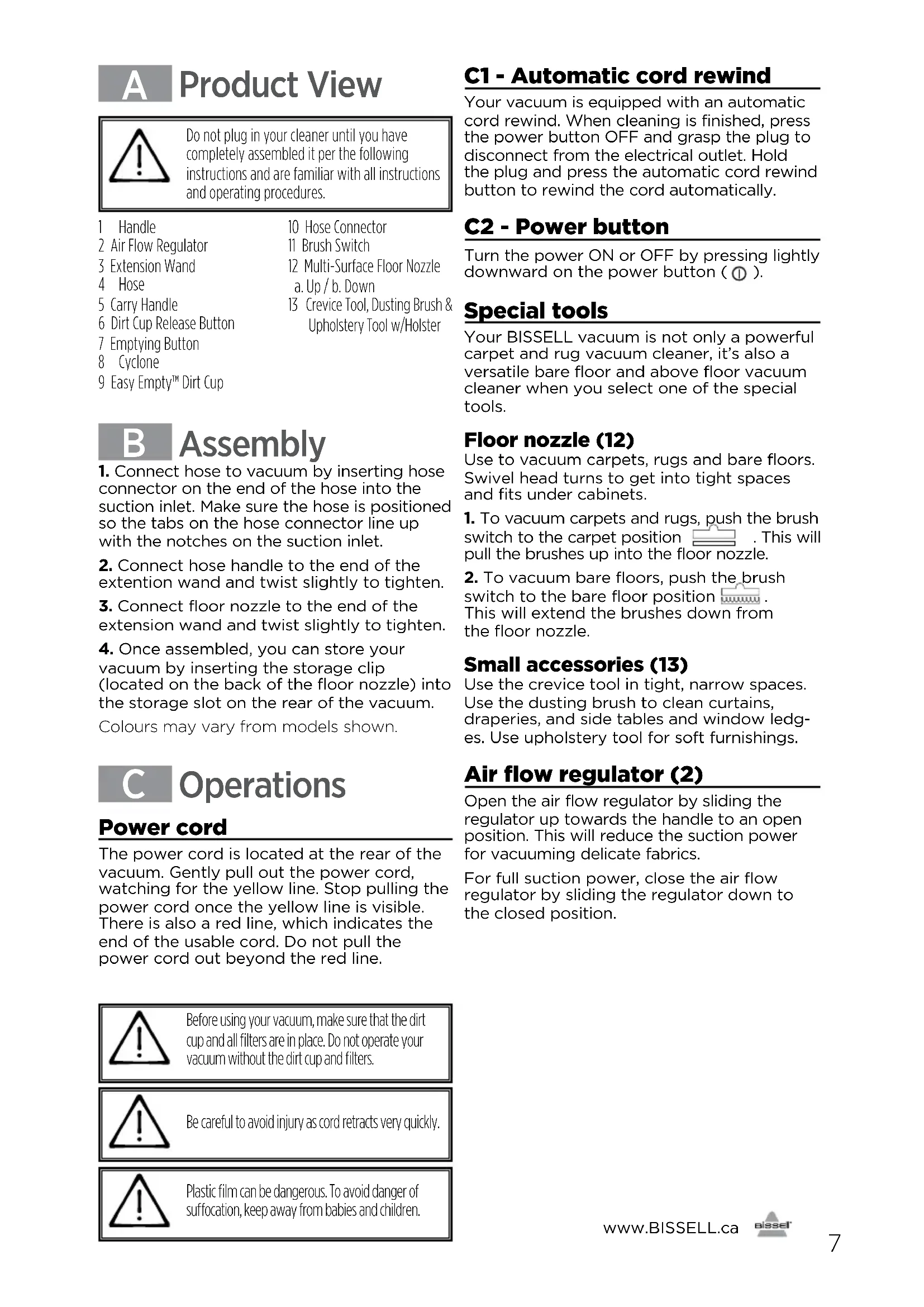

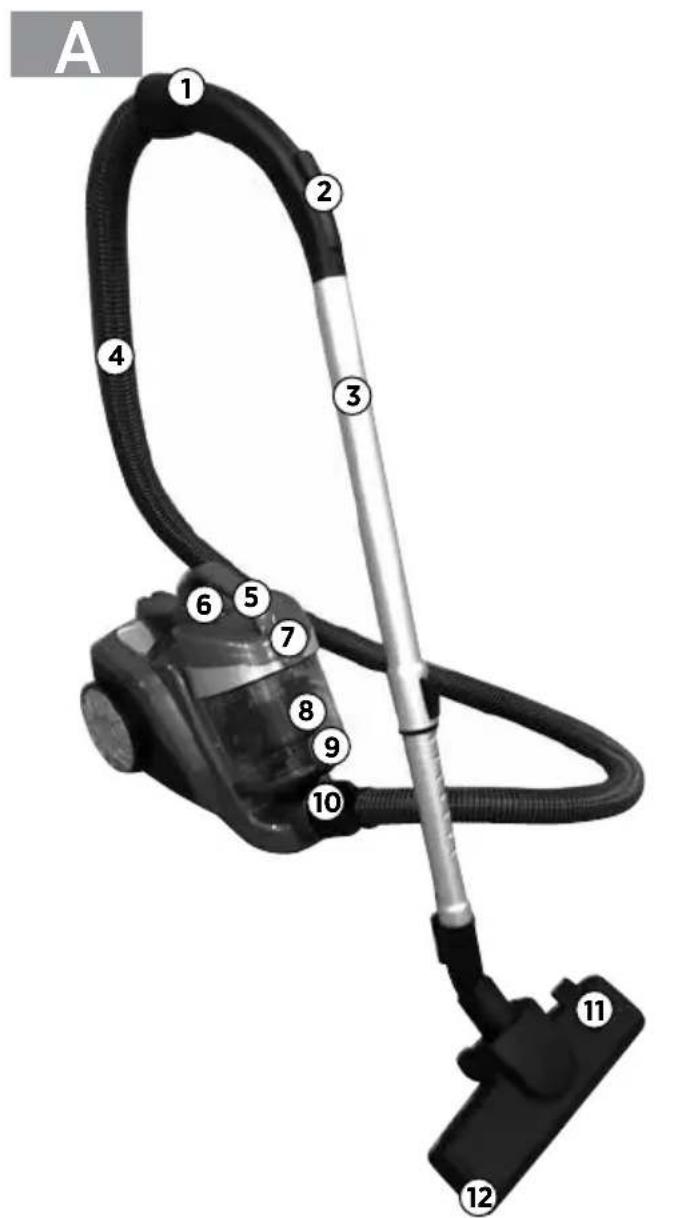

Product View

Do not plug in your cleaner until you have completely assembled it per the following instructions and are familiar with all instructions and operating procedures.

1 Handle
2 Air Flow Regulator
3 Extension Wand
4 Hose
5 Carry Handle
6 Dirt Cup Release Button
7 Emptying Button
8 Cyclone
9 Easy Empty™ Dirt Cup

10 Hose Connector
11 Brush Switch
12 Multi-Surface Floor Nozzle a. Up / b. Down
13 Crevice Tool, Dusting Brush & Upholstery Tool w/Holster

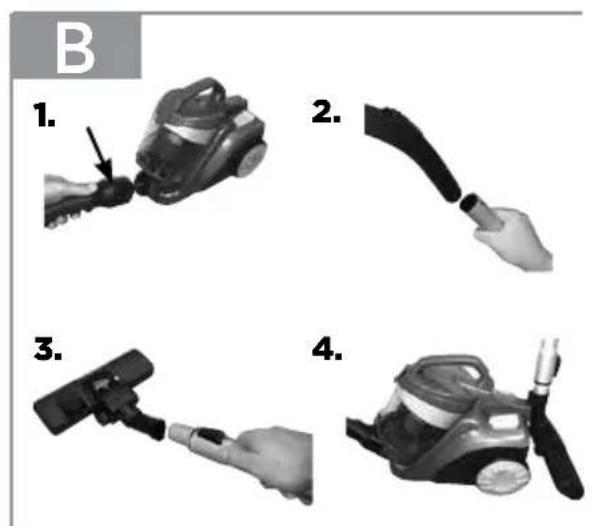

B Assembly

1. Connect hose to vacuum by inserting hose connector on the end of the hose into the suction inlet. Make sure the hose is positioned so the tabs on the hose connector line up with the notches on the suction inlet.
2. Connect hose handle to the end of the extention wand and twist slightly to tighten.
3. Connect floor nozzle to the end of the extension wand and twist slightly to tighten.
4. Once assembled, you can store your vacuum by inserting the storage clip (located on the back of the floor nozzle) into the storage slot on the rear of the vacuum.

Colours may vary from models shown.

C

Operations

Power cord

The power cord is located at the rear of the vacuum. Gently pull out the power cord, watching for the yellow line. Stop pulling the power cord once the yellow line is visible. There is also a red line, which indicates the end of the usable cord. Do not pull the power cord out beyond the red line.

Before using your vacuum, make sure that the dirt cup and all filters are in place. Do not operate your vacuum without the dirt cup and filters.

Be careful to avoid injury as cord retracts very quickly.

Plastic film can be dangerous. To avoid danger of suffocation, keep away from babies and children.

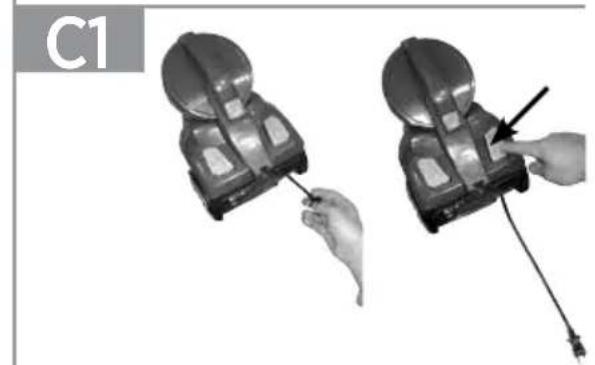

C1 - Automatic cord rewind

Your vacuum is equipped with an automatic cord rewind. When cleaning is finished, press the power button OFF and grasp the plug to disconnect from the electrical outlet. Hold the plug and press the automatic cord rewind button to rewind the cord automatically.

C2 - Power button

Turn the power ON or OFF by pressing lightly downward on the power button ( ① ) .

Special tools

Your BISSELL vacuum is not only a powerful carpet and rug vacuum cleaner, it's also a versatile bare floor and above floor vacuum cleaner when you select one of the special tools.

Floor nozzle (12)

Use to vacuum carpets, rugs and bare floors. Swivel head turns to get into tight spaces and fits under cabinets.

1. To vacuum carpets and rugs, push the brush switch to the carpet position . This will pull the brushes up into the floor nozzle.
2. To vacuum bare floors, push the brush switch to the bare floor position. This will extend the brushes down from the floor nozzle.

Small accessories (13)

Use the crevice tool in tight, narrow spaces. Use the dusting brush to clean curtains, draperies, and side tables and window ledges. Use upholstery tool for soft furnishings.

Air flow regulator (2)

Open the air flow regulator by sliding the regulator up towards the handle to an open position. This will reduce the suction power for vacuuming delicate fabrics.

For full suction power, close the air flow regulator by sliding the regulator down to the closed position.

D Care & Storage

D1 - Empty the dirt cup

Empty the dirt cup as soon as the dirt reaches the "FULL" lines on the sides of the dirt cup.

1. Unplug the vacuum from the electrical outlet.
2. Press the dirt cup release button on the carry handle and lift up to remove the dirt cup.
3. Choose an emptying method. Method #2 is recommended for allergy suffers.

Method #1 - Hold the dirt cup over a rubbish bin and push the emptying button to open the bottom. Close the bottom after the dirt empties.

Method #2 - Place a plastic bag over the bottom of the dirt cup. Push the emptying button through the plastic to open the bottom. After the dust settles, close the bottom and remove the bag to discard.

1. Replace the dirt cup by placing it back into the vacuum and pushing down on the carry handle until it snaps back into place.

To reduce the risk of electric shock, turn power switch off and disconnect plug from electrical socket before performing maintenance or care.

Do not operate cleaner with damp or wet filters or without all filters in place.

This product is intended for household use only and not for commercial or industrial use. Vacuuming of dust from products like plaster, concrete or ashes will damage the motor and void the warranty.

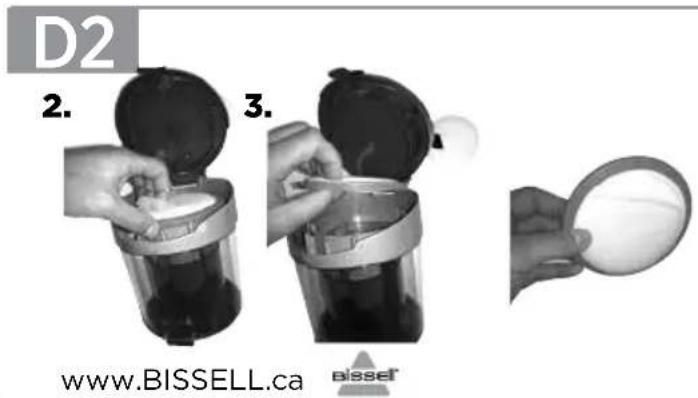

D2 - Cleaning the dirt cup filter

Use only BISSELL replacement filters in your vacuum

1. Unplug the vacuum from the electrical outlet.
2. The dirt cup filter can be reached by removing the dirt cup from the vacuum, and unclipping the dirt cup lid then pivoting backwards. Pull filter upwards to remove.

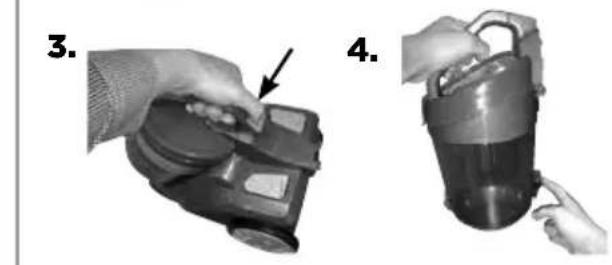

3. Remove the cyclone screen by gripping the two tabs revealed by the filter removal, and then pulling straight up.
4. The cyclone filter screen and dirt cup filter can be can be hand washed in cold water with a mild detergent. Rinse well and air dry thoroughly before placing back onto the filter frame base.
5. Attach cyclone filter screen into dirt cup by placing back into position.
6. Place the premotor filter on top with mesh tab facing up.
7. Close dirt cup lid and replace dirt container back onto product.

D3 - Replacing the post-motor filter

The post-motor filter assists in the filtration process to return cleaner air to the room. Use only BISSELL replacement filters.

1. Unplug the vacuum from electrical outlet.
2. Remove the filter door (located on the back of the vacuum) by pushing down on the tab and pulling out and away from the vacuum.
3. The post-motor filter can be hand washed in cold water with a mild detergent. Rinse well and air dry thoroughly before placing back into the vacuum.
4. Replace the filter door by placing the tabs on the bottom of the filter door into the notches on the bottom of the post-motor filter compartment and pushing the tab forward back into the vacuum to lock into place.

Clearing clogs from the dirt cup

1. Unplug the vacuum from electrical outlet.
2. Remove the dirt cup from the vacuum, following steps 1-3 of Emptying the dirt cup on page 6.
3. Remove the dirt cup filter assembly from the dirt cup, following step 2 of Cleaning the dirt cup filter on page 6.

4. Tap the dirt cup filter assembly over a garbage container to remove any dirt or debris from the cyclone screen that surrounds the dirt cup filter.

5. Reach up into the dirt cup to clear any dirt or debris from the dirt cup.

6. Check to see if there are any clogs in the suction inlet.
7. After clearing any dirt or debris from the dirt cup, replace the dirt cup filter assembly back in the dirt cup following step 8 of Cleaning the dirt cup filter on page 6.

Replacement Parts

These items are available for purchase as accessories for your BISSELL vacuum: To purchase visit www.BISSELL.ca.

PART # PART NAME PART # PART NAME
160-5246 Dirt Cup Filter		160-5635 Multi-Surface Floor Nozzle
160-5247 Post-Motor Filter 160-3060 Dusting Brush
160-3057 Hose with Handle 160-5245 Extension Wands (2)
160-3058 Crevice Tool 160-3061 Tool Holster
160-3059 Upholstery Tool

Warranty

If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL. Consumer Care by E-mail, telephone as described below, or contact your local in country distributor.

Limited Two-year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL's option, free of charge from the date of purchase by the original purchaser, for five year any defective or malfunctioning part.

See "BISSELL Consumer Care" information below.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User's Guide is not covered.

If your BISSELL product should require service:

Contact BISSELL Consumer Care to locate a BISSELL Authorized Service Center in your area.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Care. BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL'S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER

WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTY

WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO THE TWO-YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Service

If your BISSELL product should require service or to claim under our Limited Two-year Warranty, please visit:

Website or E-mail:

www.BISSELL.com or

www.BISSELL.ca

Or Call:

U.S. Consumers: 1-800-237-7691

Canada Consumers: 1-800-263-2535

Monday - Friday 8am - 10pm ET

Saturday 9am - 8pm ET

Sunday 10am - 7pm ET
