SS550 - Coffee grinder Sogo - Free user manual and instructions

Product type	Coffee grinder
Brand	Sogo
Model	SS550
Power supply	220-240 V ~ 50/60 Hz
Power	150 W
Maximum coffee capacity	36 g
Recommended grinding time	20 to 30 seconds depending on quantity
Indicative quantities and times	12 g: max. 20 s; 24 g: max. 25 s; 36 g: max. 30 s
Safety	Do not immerse; lid with safety system; 60 min pause after 3 uses
Maintenance and cleaning	Unplug before cleaning; interior with damp cloth; lid washable with soapy water
Included accessories	Cleaning brush
Body material	Plastic
Blade type	Stainless steel blades (estimated)
Intended use	Grind coffee beans only
Compliance	European directives: low voltage, EMC, RoHS, eco-design
After-sales service	www.sogosat.com / [e-mail] / [phone]

Frequently Asked Questions - SS550 Sogo

How to use the Sogo SS550 coffee grinder?

Measure the amount of coffee (max 36 g), pour into the reservoir, close the lid, then press the grind button on the base. Release when the grind is satisfactory. Do not exceed 60 seconds of continuous operation.

What amount of coffee can I grind?

The maximum capacity is 36 g. For best results, use 12 g (20 seconds), 24 g (25 seconds), or 36 g (30 seconds).

How long should I grind?

The recommended time varies by quantity: 20 seconds for 12 g, 25 seconds for 24 g, 30 seconds for 36 g. Do not hold the button for more than 60 seconds.

Can I grind other foods besides coffee?

No, this appliance is designed only for grinding coffee. Using other foods may damage the blades and void the warranty.

How to clean the grinder?

Always unplug the appliance before cleaning. Clean the interior of the reservoir with a slightly damp cloth and dry it. The lid can be washed with soapy water. Never immerse the body in water.

What to do if the grinder does not work?

Check that the lid is properly closed (safety). Ensure the appliance is plugged in and the outlet works. If the problem persists, contact after-sales service.

Can I immerse the grinder in water?

No, never immerse the appliance in water. Only the lid can be washed with soapy water. The body must be cleaned with a damp cloth.

Is the grinder safe for children?

The appliance can be used by children aged 8 and older under supervision. Children should not play with the appliance. Keep it out of reach of children under 8.

What is the power of the grinder?

The power is 150 W, with a power supply of 220-240 V ~ 50/60 Hz.

Where can I download the manual?

The manual is available free of charge in PDF format on notice-facile.com or on the official website www.sogo.es.

USER MANUAL SS550 Sogo

Caution: please read and preserve these important instructions

ref. SS-550

This instruction manual can also be downloaded from our web page www.sogo.es

BEFORE USING THE APPLIANCE, PLEASE READ ALL INSTRUCTIONS.

1. This manual can also be downloaded from our website www.sogo.es
2. Do not place a defective appliance into operation.
3. To assure safe operation of the appliance, assemble it only according to the information given in the operating instructions and connect it and operate it as directed on the nameplate.
4. Remove the mains plug from the wall socket: If problems occur during using the appliance or When not in use and during cleaning.
5. In case of a defect, separate the appliance from the mains (pull out the mains plug).
6. Do not pull on the connection 'cord', but rather on the plug, to separate the appliance from the mains.
7. Avoid contacting moving parts.
8. The use of attachments not recommended or sold by the manufacture may cause fire, electric shock or injury.
9. Do not pull the connection cord over sharp edges, avoid hot surface (including the stove) or open flames and do not use it for carrying.
10. Have repairs and manipulations on

the appliance performed by our customer service.

1. Do not use outdoors.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. Grind only coffee in this appliance.
6. After you have used the appliance three times without interruption, a pause of around 60 minutes is necessary.
7. Clean appliance only with a dry or a moist cloth, making sure that you pull out the mains plug first without fail. Never immerse the appliance into water. Sharp blades-handle carefully-unplug before inserting or removing parts-Do not put motor end in water.
8. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than

8 years and supervised.
19. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children aged less than 8 years.
20. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

DESCRIPTION

Measure all up to 36 gms of coffee beans into the grinder lid. Pour desired quantity (Max. 36 g) into the grinder chamber till the coffee beans is full of the chamber. Replace the lid, and turn left to the Lock way, and make sure that it fits snugly into the grinder base.

PLUG-IN

Activate the grinder by pressing the button located on the base and put a finger to press lightly on the top of the lid until the desired consistency is achieved. Remove the plug from outlet.

LIFT THE LID

Pour the grounds into the filter basket of your coffee maker. To prevent the grinder from operating properly use the brush to clean the consistency of the coffee grounds, ensure that the inner rim is free of coffee particles.

The following parameter is provided as a general guide. Some experimentation with quantities and grinding time will help you achieve your own preferred coffee flavour. Recommend to grind the coffee (36 g) for 30 seconds each time. You will achieve ideal effect. This will vary according to the quantity of coffee beans used and the desired fineness of the grind.

Amount of coffee to grind

12g: max. 20 seg.

24g: max. 25 seg.

36g: max. 30 seg.

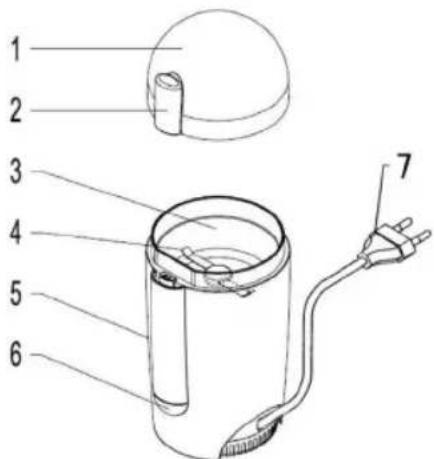

1. Transparent lid
2. Safety switch
3. Container for grinding
4. Grinding blades (fixed)
5. Casing
6. Pilot lamp
7. Power cord with plug

Do not grind over 60 seconds each time. There should be 45-60 seconds to stop the grinder between two times, this will make your grinder more durable.

CAUTION: ALWAYS ENSURE THE BLADE HAS STOPPED REVOLVING BEFORE REMOVIDING THE LID. AFTER FINISHING GRINDING, REPLACE TO BOX OR PLASTIC BAG ONLY AFTER 30 MINUTES.

CLEANING

Remove mains plug. Clean the container and lid with a brush or dry cloth. The lid may also be washed in cold or tepid water. Wipe the casing with a damp cloth.

Technical Information: 220-240V~ 50/60Hz, 150W

NORMES IMPORTANTES DE SECURITÉ

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DECLARATION DE CONFORMITE

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2.2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034 902 222 161
