Product Type	Weight Bench
Brand	Tunturi
Model	Platinum FG60
Maximum Load	300 kg (including user weight)
Dimensions (assembled)	167 x 60 x 65 cm
Device Weight	Approx. 45 kg
Backrest Inclination Adjustment	Yes, via adjustment bar and toothed plates
Vertical Seat Position Adjustment	Yes, via adjustment bar and toothed plates
Main Material	Steel
Intended Use	Domestic, private
Number of Simultaneous Users	1
Included Accessories	Hardware kit, wrenches (not included), manual
Optional Accessories	Extended handrails (ref. 22PTFG6020)
Warranty	According to current legislation on consumer goods
Recommended Maintenance	Check bolts every 3 months; loosen then retighten after 10 hours of use
Safety Precautions	Use alone, keep children and animals away, do not wear loose clothing
Disposal	Recycle according to WEEE directive

Frequently Asked Questions - Platinum FG60 TUNTURI

How do I assemble the Platinum FG60 bench?

Assembly must be carried out by at least two people. Use two adjustable wrenches (not provided) and follow the steps in order as indicated in the manual. See illustrations from description A to D and figure D-8 for accessories.

What is the maximum weight capacity of the bench?

The maximum load is 300 kg, including the user's weight and additional weights. Never exceed this limit.

How do I adjust the backrest inclination?

Slightly tilt the backrest, then tilt the adjustment bar out of the toothed plates. Move the backrest to the desired position and replace the bar into the toothed plates to secure it. See adjustment range fig. E.

How do I adjust the vertical seat position?

Slightly tilt the seat and tilt the adjustment bar out of the toothed plates. Move the seat to the desired position and replace the bar into the toothed plates to secure it. See adjustment range fig. E.

What safety precautions should I take?

Read all safety instructions. Use the bench alone, keep children and animals away, wear appropriate sportswear and shoes, warm up before exercise, and stop if you experience any abnormal symptoms. Consult a doctor before starting any exercise program.

Can I use additional weights with this bench?

Yes, you can use weights. Ensure you use sufficient locking devices to secure the weights. Never exceed the maximum weight capacity of the bar or bench.

How do I maintain my weight bench?

Regularly check bolts and nuts (at least every 3 months). After the first 10 hours of use, loosen then retighten all fixings to ensure optimal performance.

What should I do if a part is missing?

Check that small parts are not hidden in the polystyrene protections. If a part is missing, contact your dealer.

What is the warranty for the Platinum FG60 bench?

The consumer is protected by current legislation regarding the trade of consumer goods. The warranty is valid if the product is used in the recommended environment and maintained according to instructions. The user manual is available online.

Where can I download the full user manual?

The full user manual is available on the site manuals.tunturi.com. You can also download the instructions from the device page on notice-facile.com.

USER MANUAL Platinum FG60 TUNTURI

Download Free Tunturi Training App

Attention, Achtung, Attention, Attentie, Attenzione, Atencion, Giv akt, Huomio

• Please read this assembly manual carefully prior to assembling this product.
• Lesen Sie sich vor der Montage des Produkts these Montageanleitung sorgfaltig durch.
• Veuillez dire attentivement le present manuel d'assemblage avant de monter ce produit.
• Lees deze montagehandleiding zorgvuldig voordat u dit product in elkaar gaat zetten.
• Leggere attentamente quello manuale di montaggio prima di montare il prodotto.
• Antes de montar este producto, lea atentamente estemanual de montaje.
• Läs den HAR monteringshandboken noggrant fore användning av den HARprodukten.
• Lue tāmā asennusohje huolellisesti ennen tāmān tuotteen asennusta.

A

B

C

D-00

D-1

D-2

D-3

D-4

D-5

D-6

D-7

Platinum FG60 Utility Bench

E

F

USER MANUAL ON OUR WEBSITE

To reduce the impact on the environment, you will only find the assembly steps in this manual. To learn how to use and maintain this product, please download the user manual from:

manuals.tunturi.com

Index

Welcome 13

Important safety notice. 13

Important assembly information .... 14

Before you start. 14

Description illustration A. 14

Description illustration B. 14

Description illustration C. 14

Description illustration D. 14

Accessories (fig. D-7) 15

Free area (Fig. D-0) 15

Additional environmental information 15

Use. 15

Using weight plates. 15

Adjusting the backrest inclination. 15

Adjusting the vertical seat position 15

Warranty. 16

Weight capacity and dimension.....16

Disclaimer 16

Welcome

Important Safety Instructions

This manual is an essential part of your training equipment please read all instructions in this manual before you start using this equipment. The following precautions must always be followed:

Important safety notice

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions:

• Keep children and pets away from the equipment at all times. DO NOT leave children unattended in the same room with the equipment.
• Only one person at a time should use the equipment.
• If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

Position the equipment on a clear, levelled surface. DO NOT use the equipment near water or outdoors.

• Keep hands away from all moving parts.
• Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the equipment. Running or aerobic shoes are also required when using the equipment.

Use the equipment only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.

• Do not place any sharp object around the equipment.
• Disabled person should not use the equipment.
• Before using the equipment to exercise, always do stretching exercises to properly warm up.
• Never operate the equipment if the equipment is not functioning properly.
• A spotter is recommended during exercise.

English

• This equipment is designed and intended for home and consumer use only, not for commercial use.

Warning:

Before beginning any exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

Read all instructions before using any fitness equipment.

Tunturi New fitness bv. assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Save these instructions!

Important assembly information

Before you start

We recommend to use two adjustable wrenches to assemble your product. If you have metric sized wrenches in correct size this is fine too.

NOTE

• Suitable (adjustable) wrenches are "NOT" provided with the product, neither included in the assembly kit.
  It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.

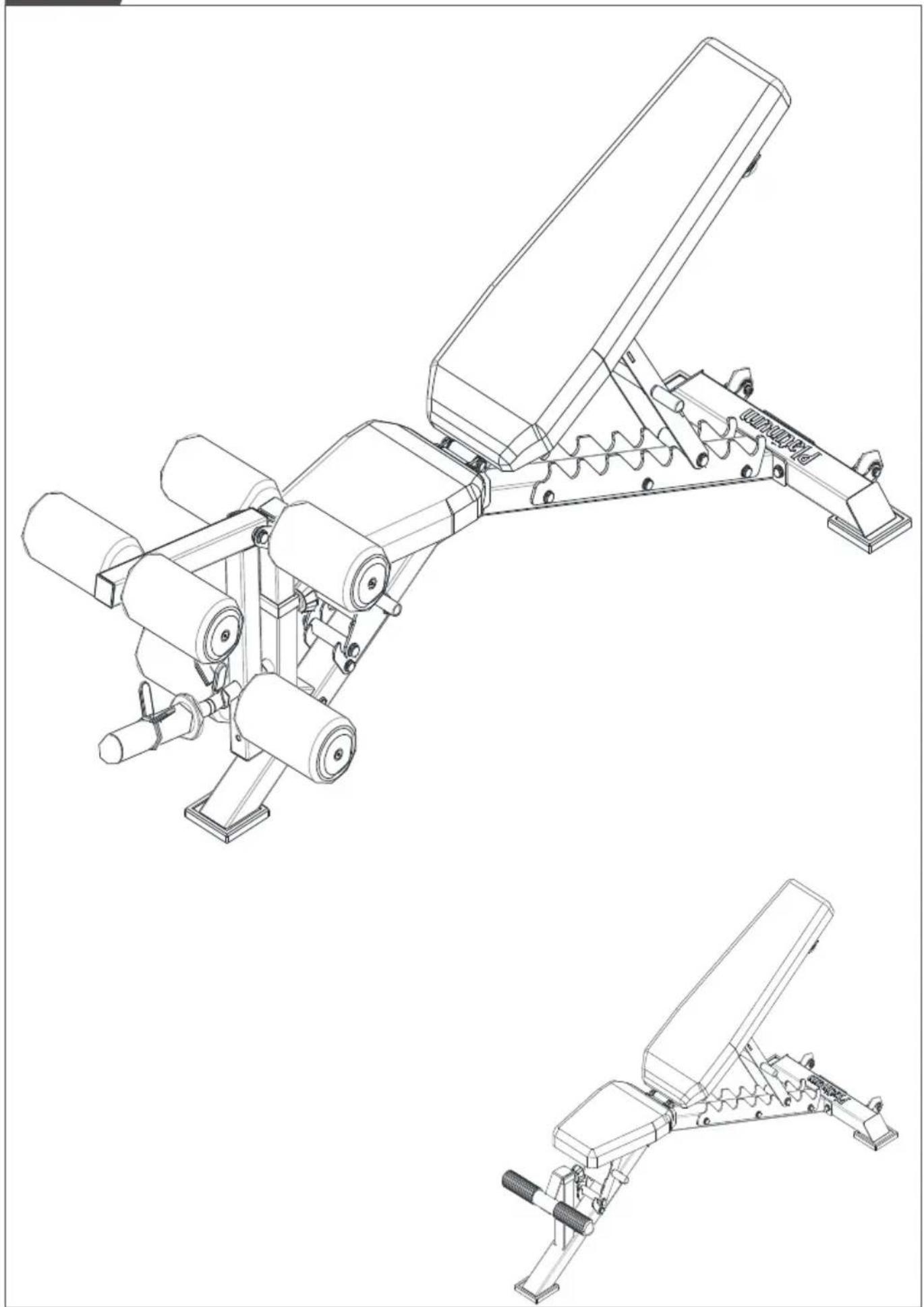

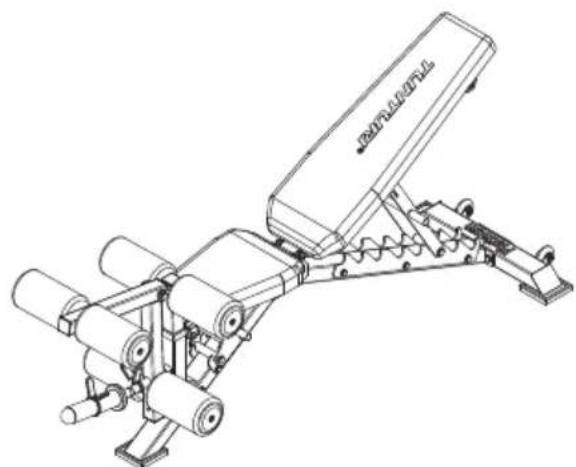

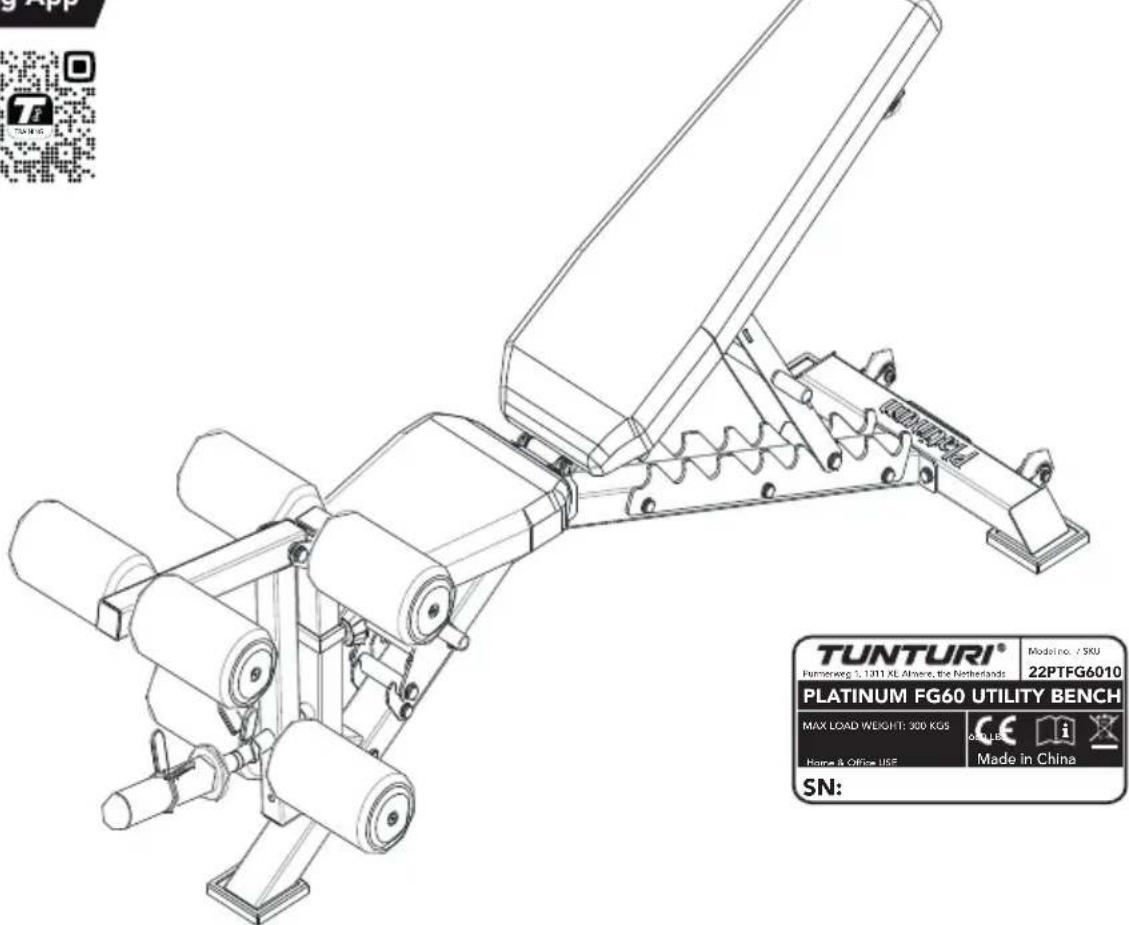

Description illustration A

The illustration shows what the trainer will looks like after the assembly is completed. You can use this as a reference during your assembly, but do follow the assembly steps always in the correct sequence as showed in the illustrations.

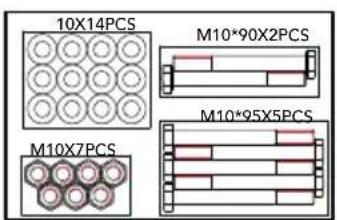

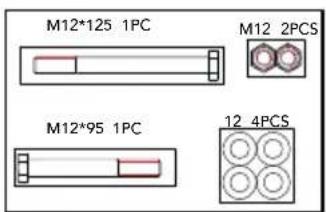

Description illustration B

The illustration shows what components and parts you should find when un-boxing your product.

NOTE

• Small parts can be hidden/ packed in hollow spaces in the Styrofoam product protection
  If a part is missing, contact your dealer.

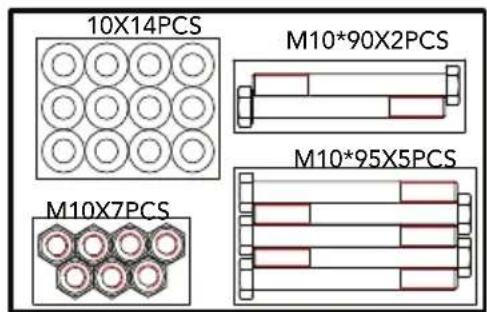

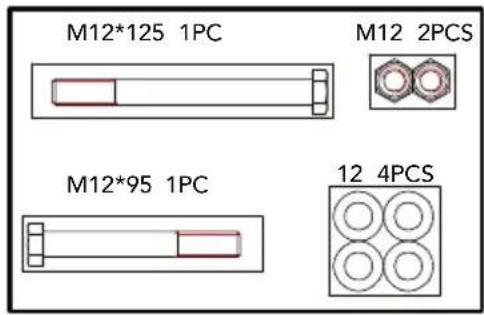

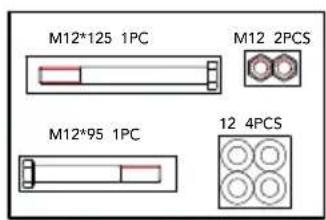

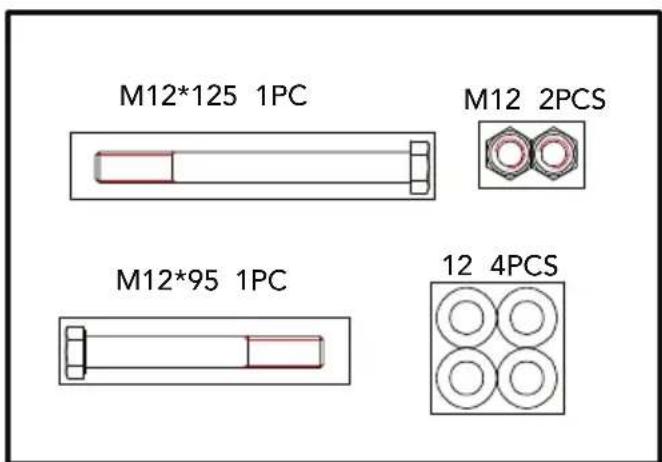

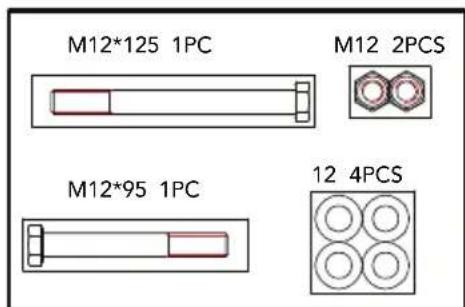

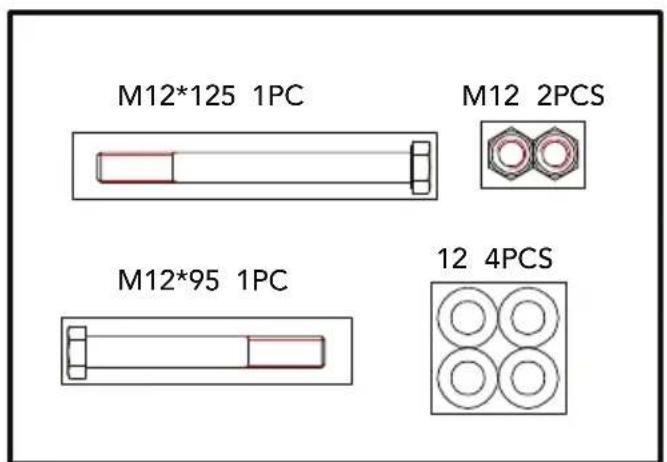

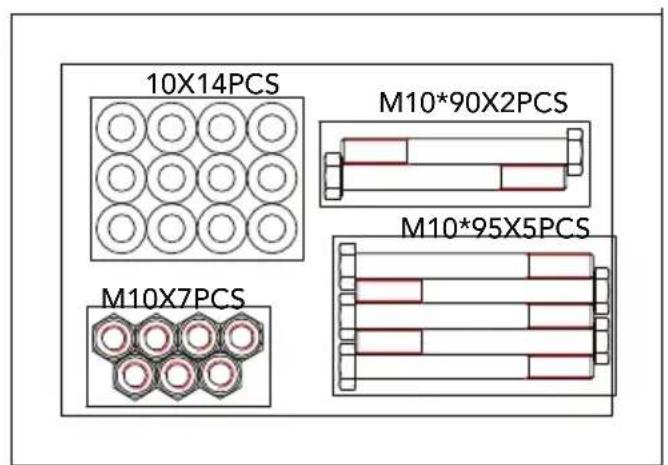

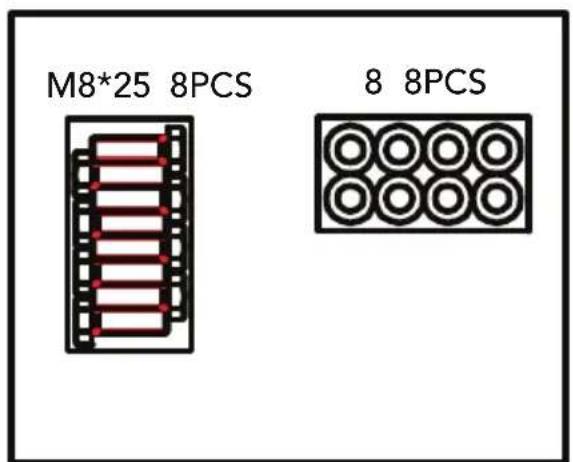

Description illustration C

The illustration shows the hardware kit that comes with your product.

The hardware kit contains bolts, washers, screws, nuts etc. and the required tools to properly fit your trainer.

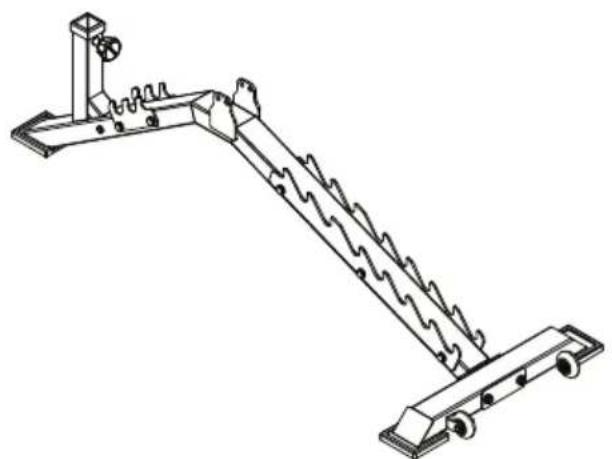

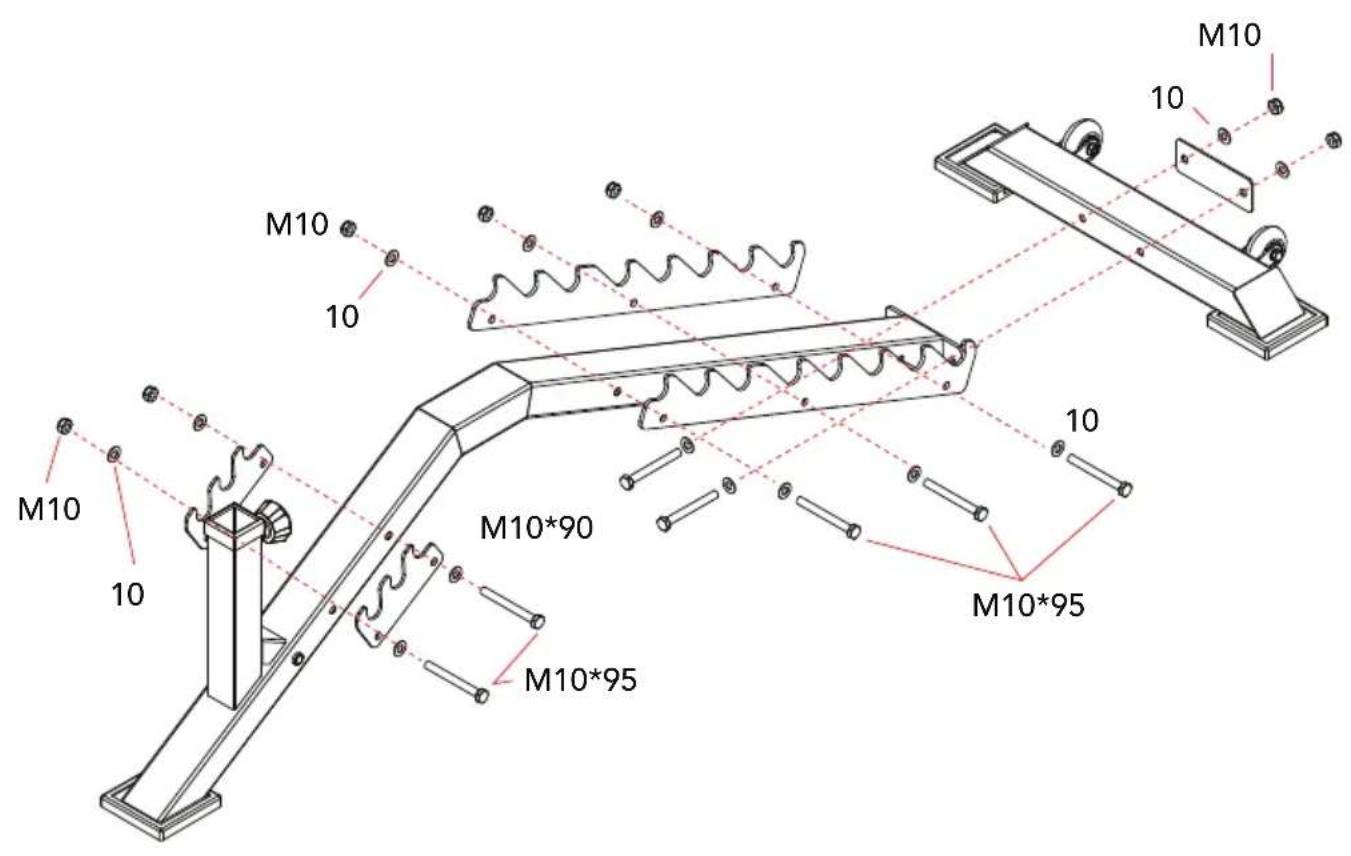

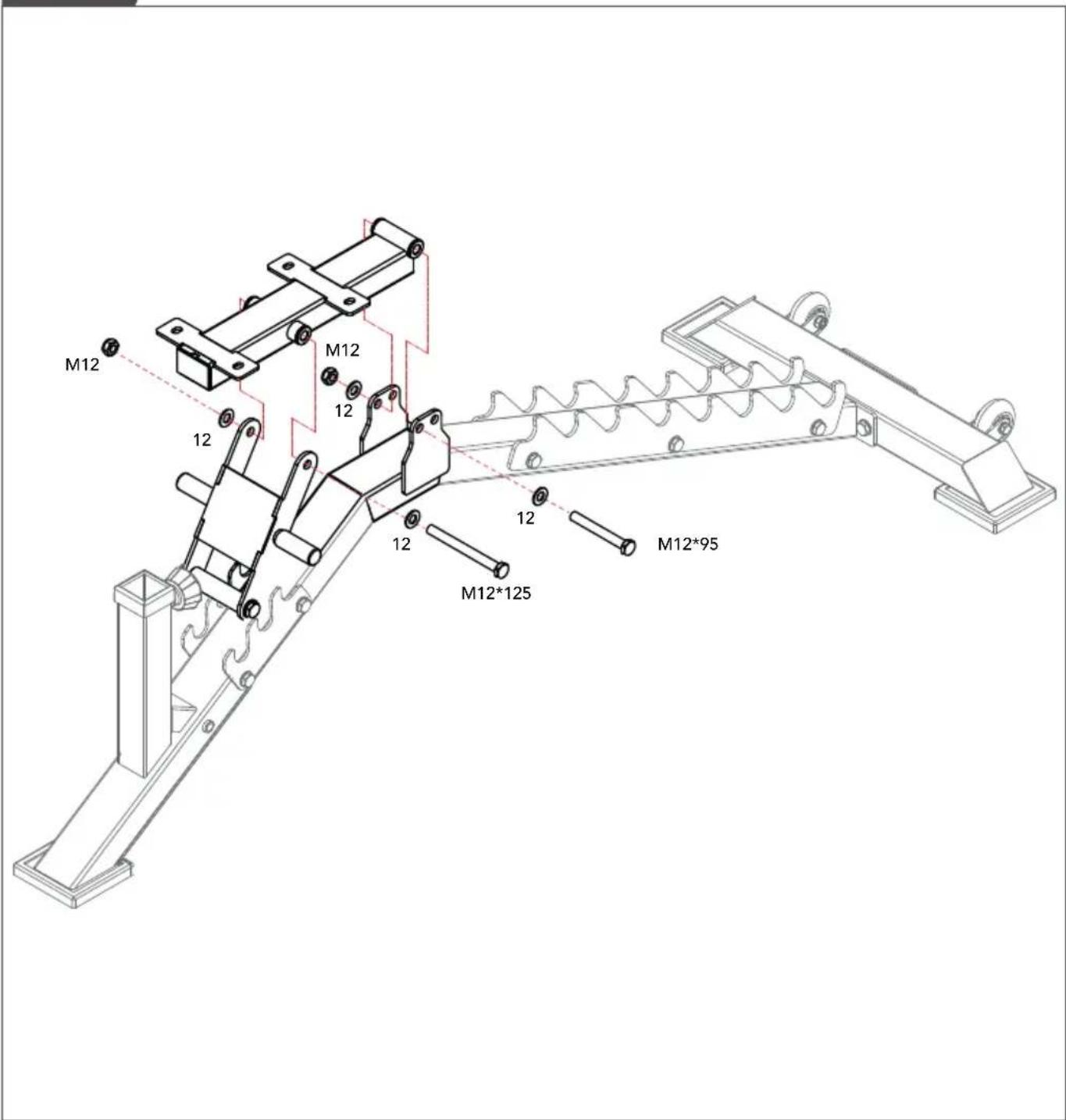

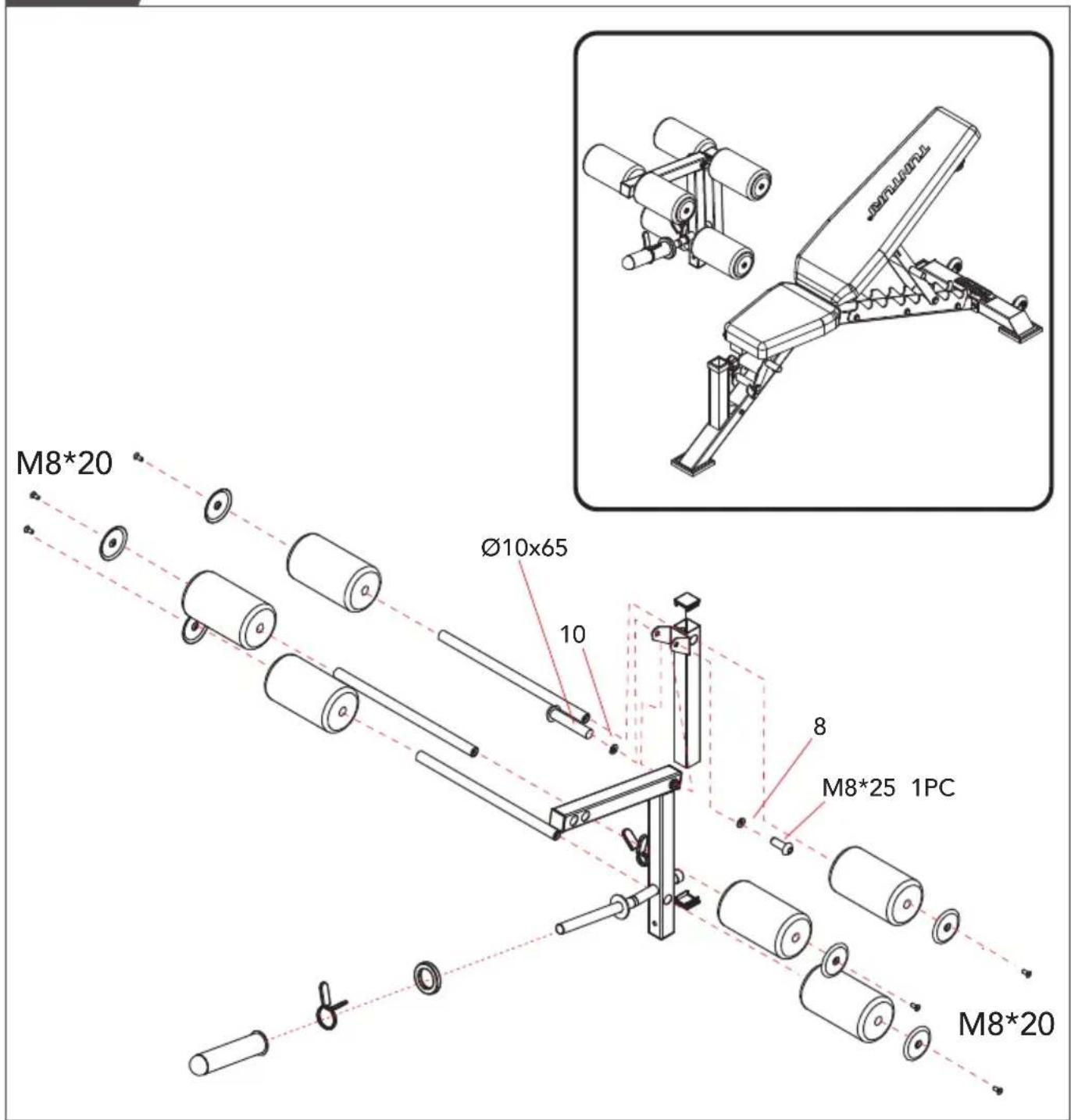

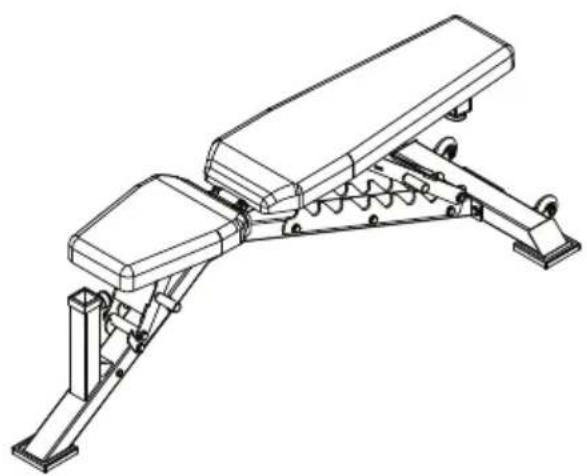

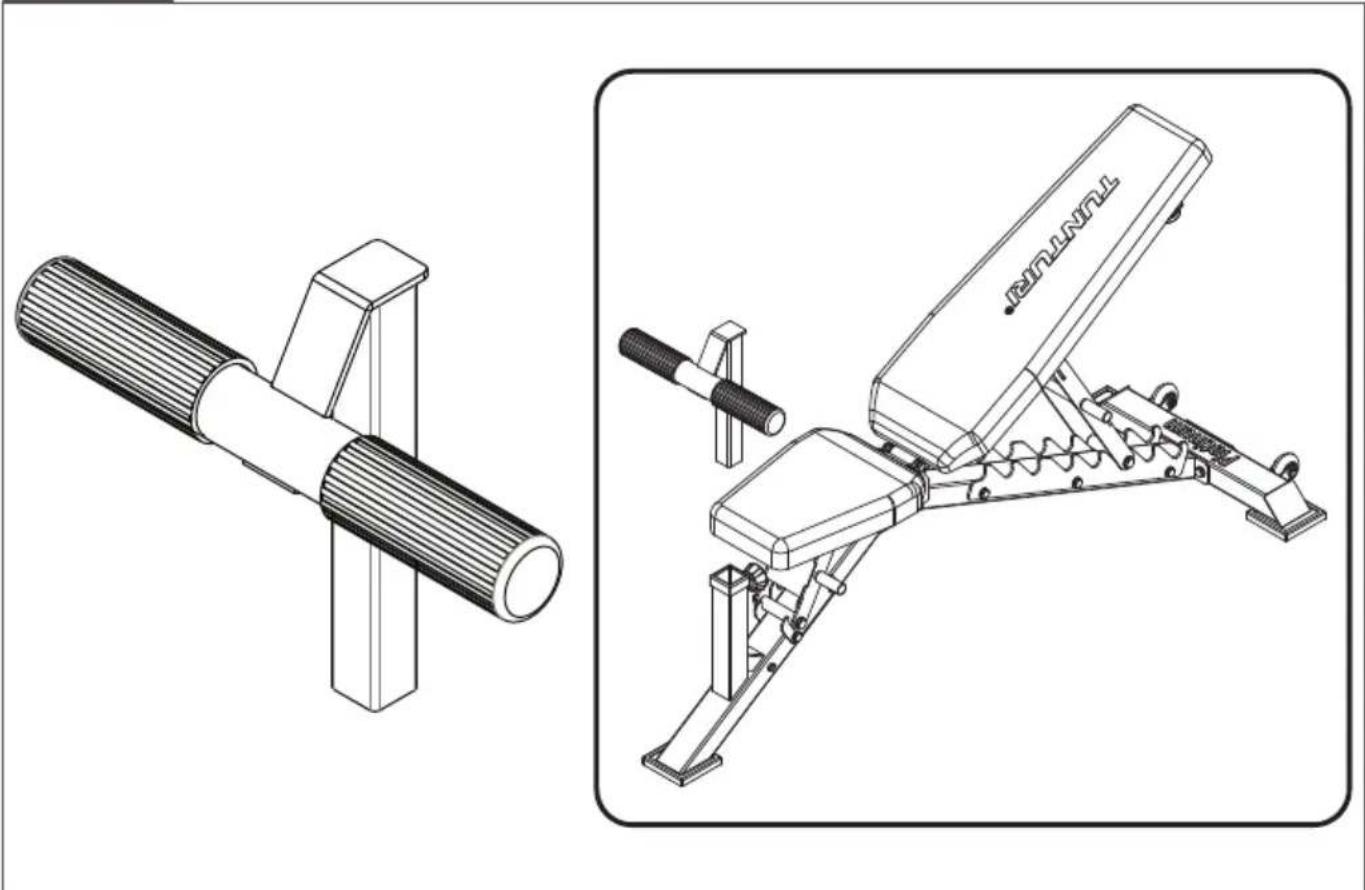

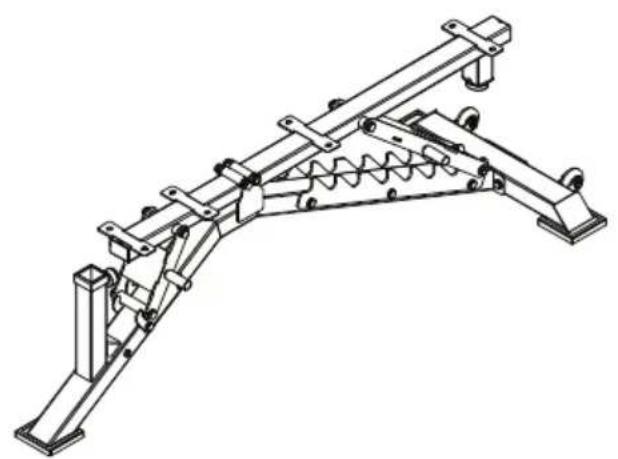

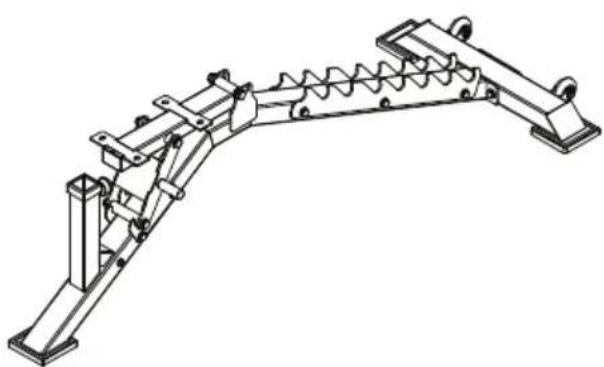

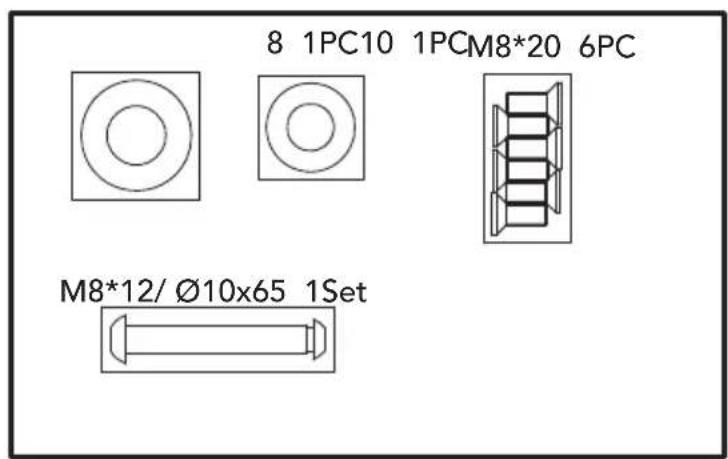

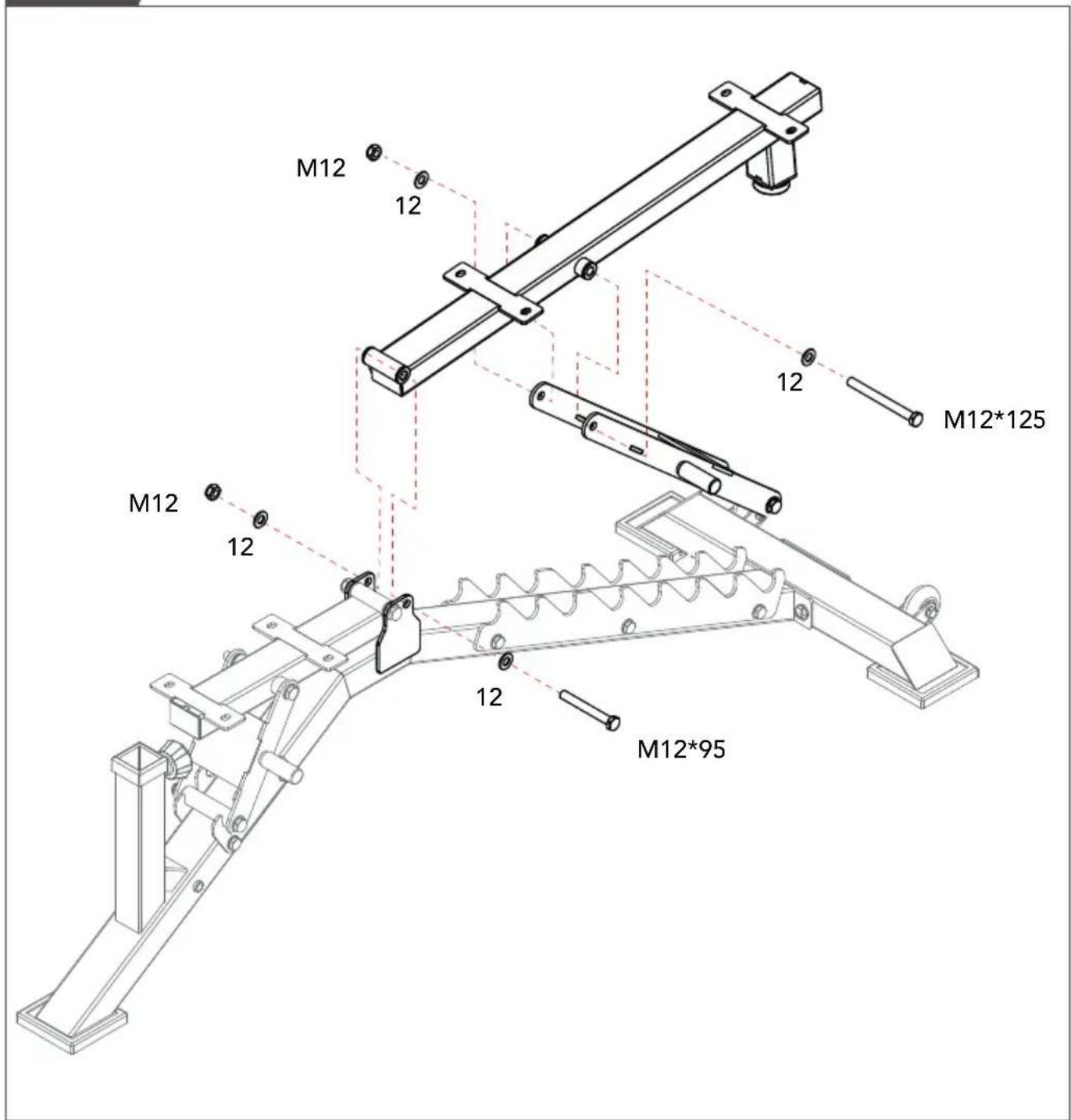

Description illustration D

The illustrations show you in the correct following order how to assembly your trainer best.

NOTE

• Part numbers shown in the assembly steps are commencing with the spare part drawing that can be found in the online full version user manual.

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
  Refer to the illustrations for the correct assembly of the equipment.

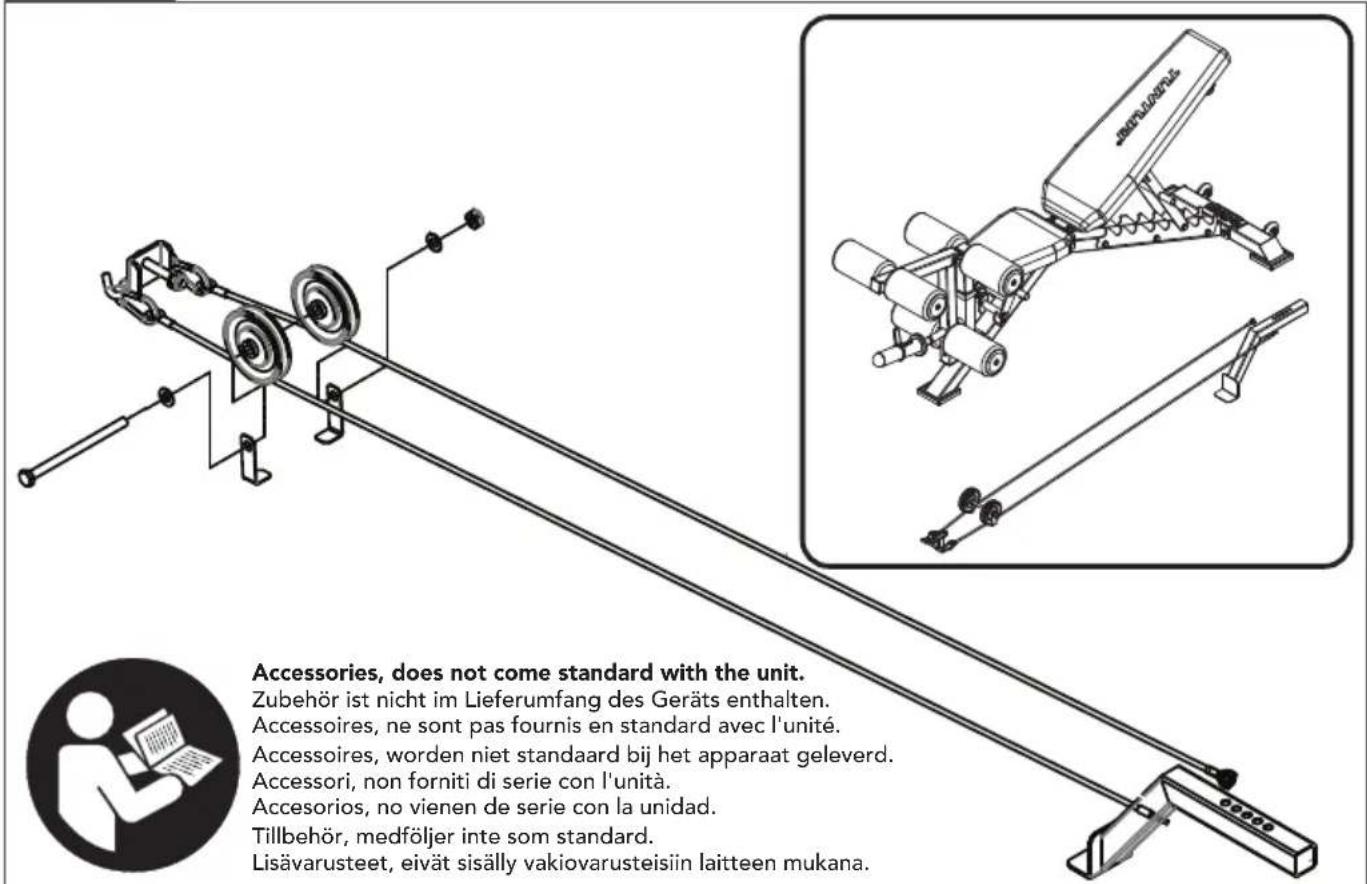

Accessories (fig. D-7)

NOTE

The shown illustration shows how the trainer will look with the suitable Platinum FG60 Utility Bench Connector Set
- The additional Platinum FG60 Utility Bench Connector Set can be purchased as an accessory.
Article nr: 22PTFG6020

Contact your dealer for further information.

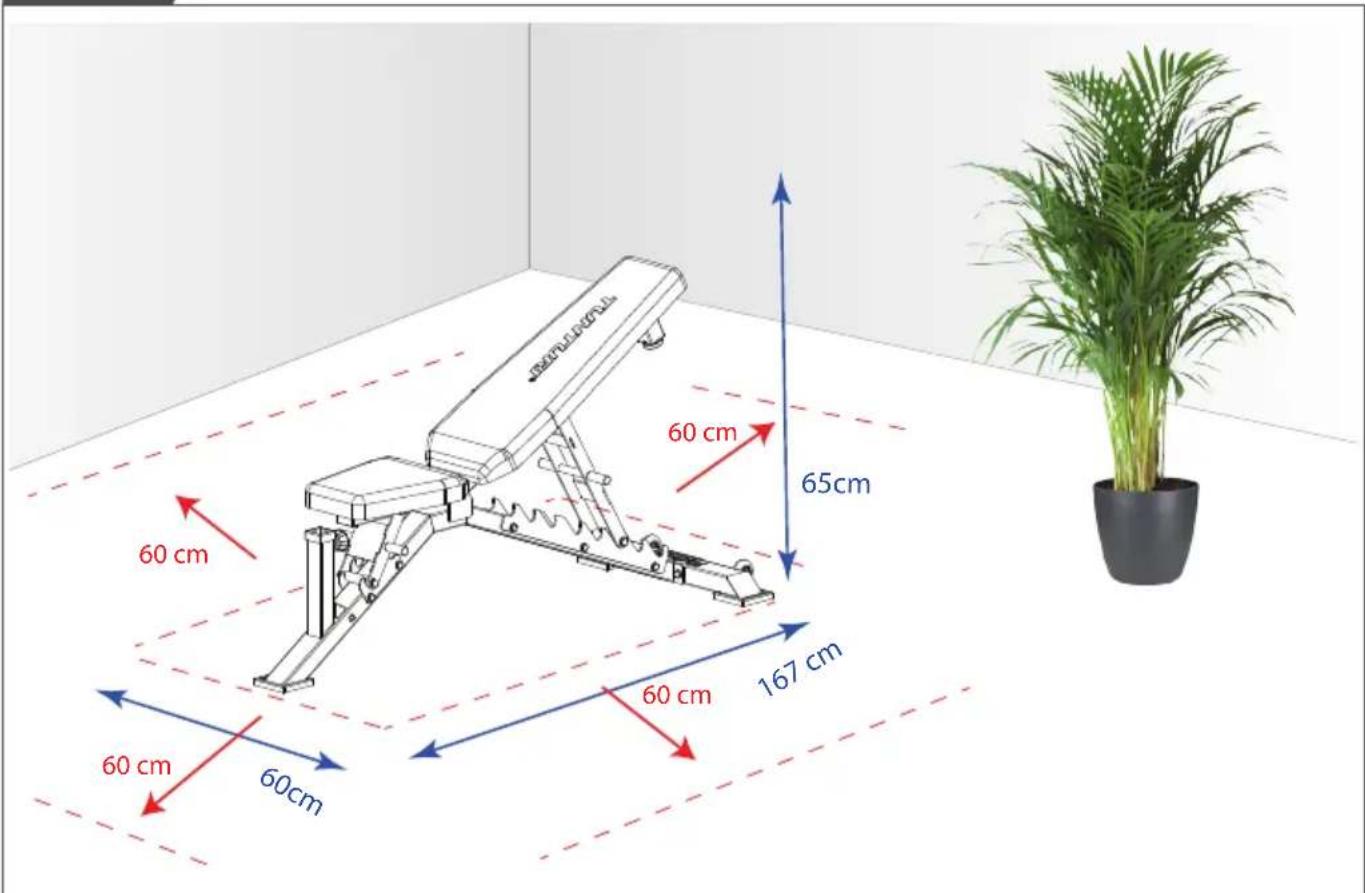

Free area (Fig. D-0)

Adequate space is a prerequisite for use.

The free area should be no less than 0.6m greater than the *training area in the directions from which the equipment is accessed.

The free area must also include the area for emergency dismount. Where equipment is positioned adjacent to each other, the value of the free area may be shared.

*Training area is the maximum length/width/height of the trainer, including moving parts, been measured to its maximum length/width/height during use.

IMPORTANT

Because your trainer will/ can set in the first using hours, we recommend you do a quick check on the hardware you have fitted during your assembly.

We suggest tightening all bolts and nuts once again after the first few workout sessions (approximate 10 hours).

Just to assure the bolts and nuts are still tightened well for your trainer's best performance.

NOTE

• We recommend checking the hardware regularly, at least once every 3 months.

Additional environmental information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Use

Using weight plates

• When using weight plates, do make sure to use sufficient locking supports to secure your weight plates at all times before use.
• Never exceed the maximum weight capacity of the barbell bar and or bench.

To take not of your own body weight too.

Adjusting the backrest inclination

• Tilt the backrest slightly and tilt the adjusting bar out of the toothed plates.
• Move the backrest into the required position.
• Position the adjusting bar in the toothed plates to secure it.

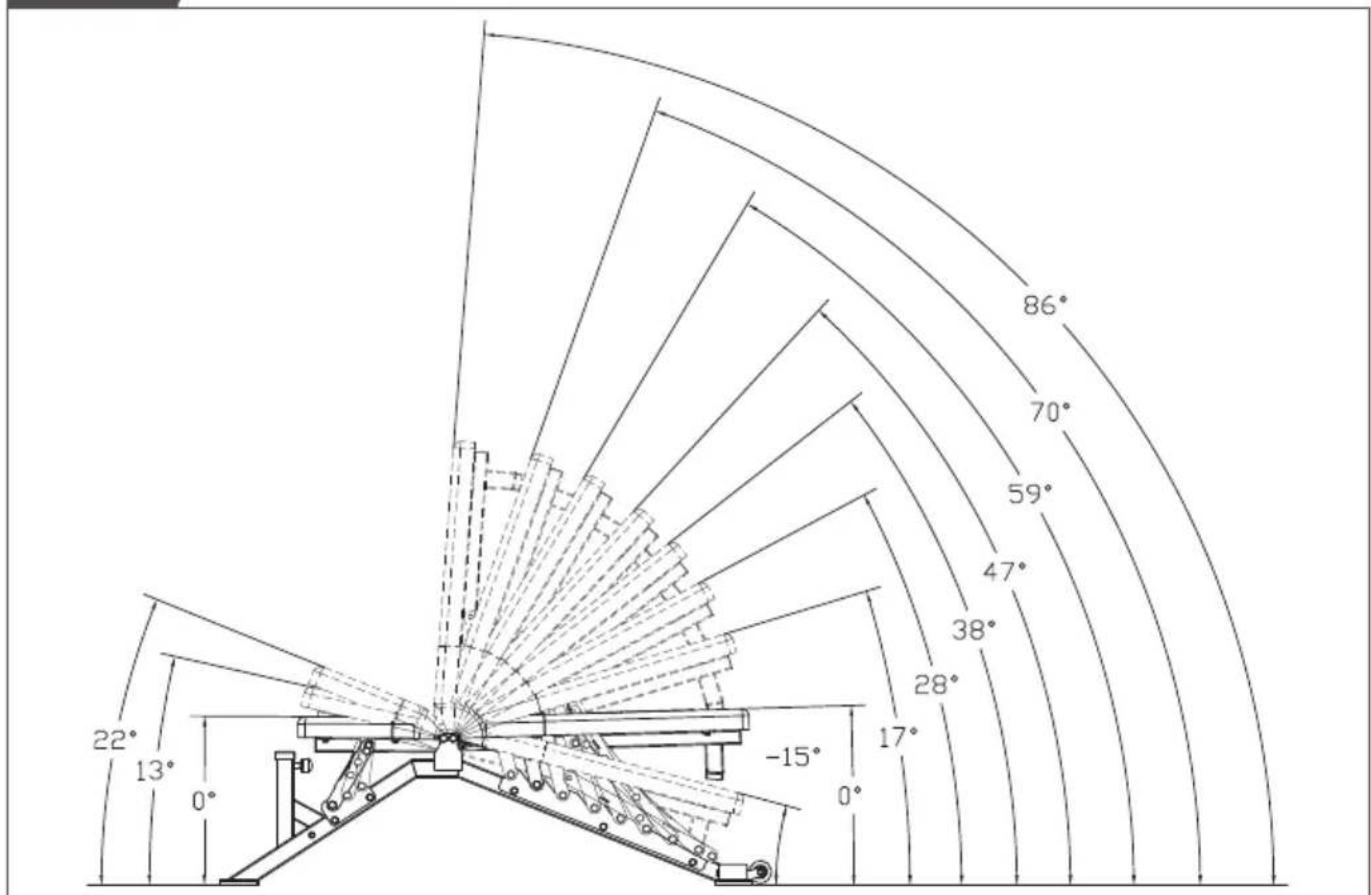

See adjustment option range Fig E

Adjusting the vertical seat position

• Tilt the seat slightly and tilt the adjusting bar out of the toothed plates.
• Move the seat into the required position.
• Position the adjusting bar in the toothed plates to secure it.

See adjustment option range Fig E

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website. http://manuals.tunturi.com

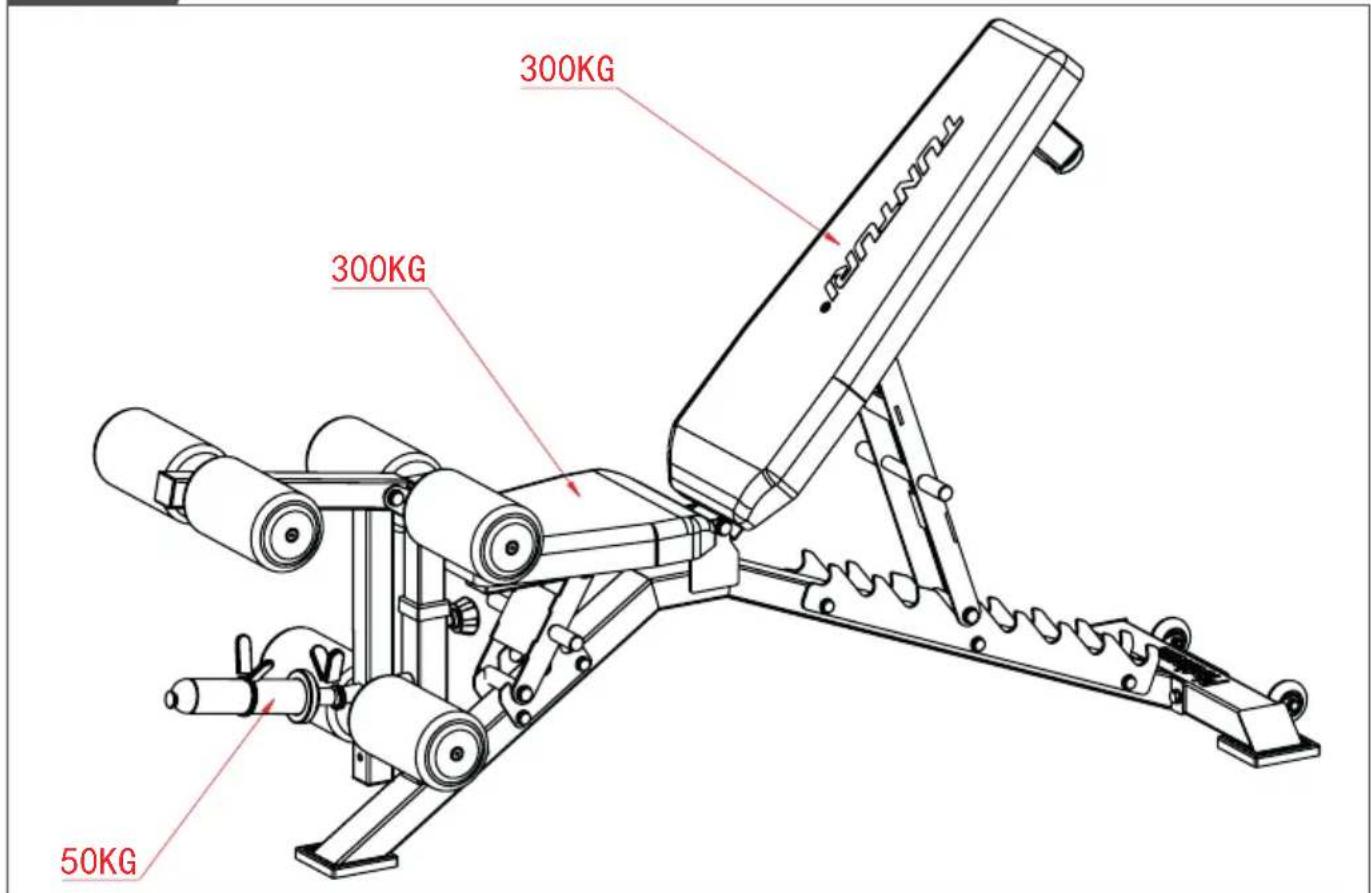

Weight capacity and dimension

(Fig. F)

• Maximum load weight: 300kg Assembled Dimension: 167× 60× 65cm

Disclaimer

© 2023 Tunturi New Fitness BV All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.
