USER MANUAL 305011 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

LED Bike Lights

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Micro USB

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• LED Bicycle Light Set
- User manual

2. Technical data

Power supply • 3.7 V, 2600 mAh NiMh battery (headlight)• 3.7 V, 180 mAh NiMh battery (tail light)

Weight• about 126 g (headlight)• about 50 g (tail light)

Features • Battery operation• Simple assembly

3. Product details

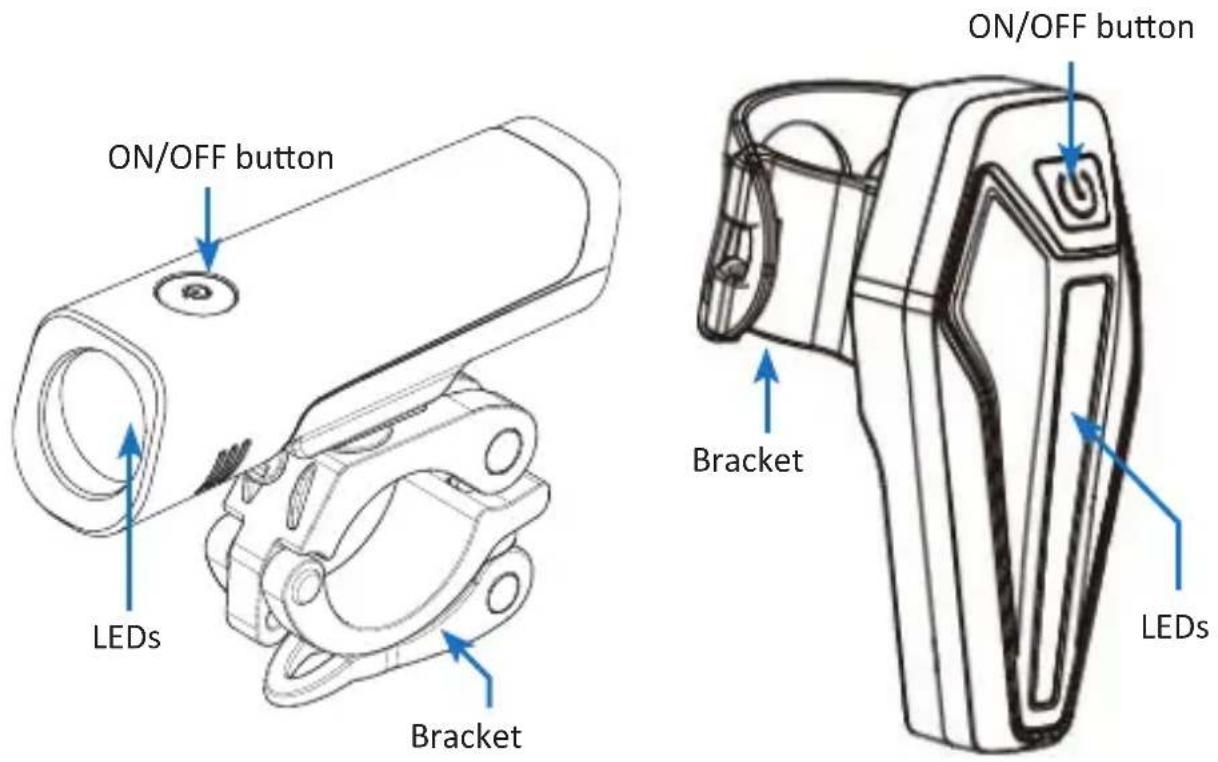

ON/OFF button LEDs Bracket ON/OFF button Bracket LEDs

4. Assembly

According to the StVZO §67, lighting devices must be installed properly and firmly and be ready for use at any time. Lighting devices should not be covered.

1. 2. 3. A

Assemble the headlight as shown on the handlebar and the tail light on the rear part of the frame.

4.1 Headlight

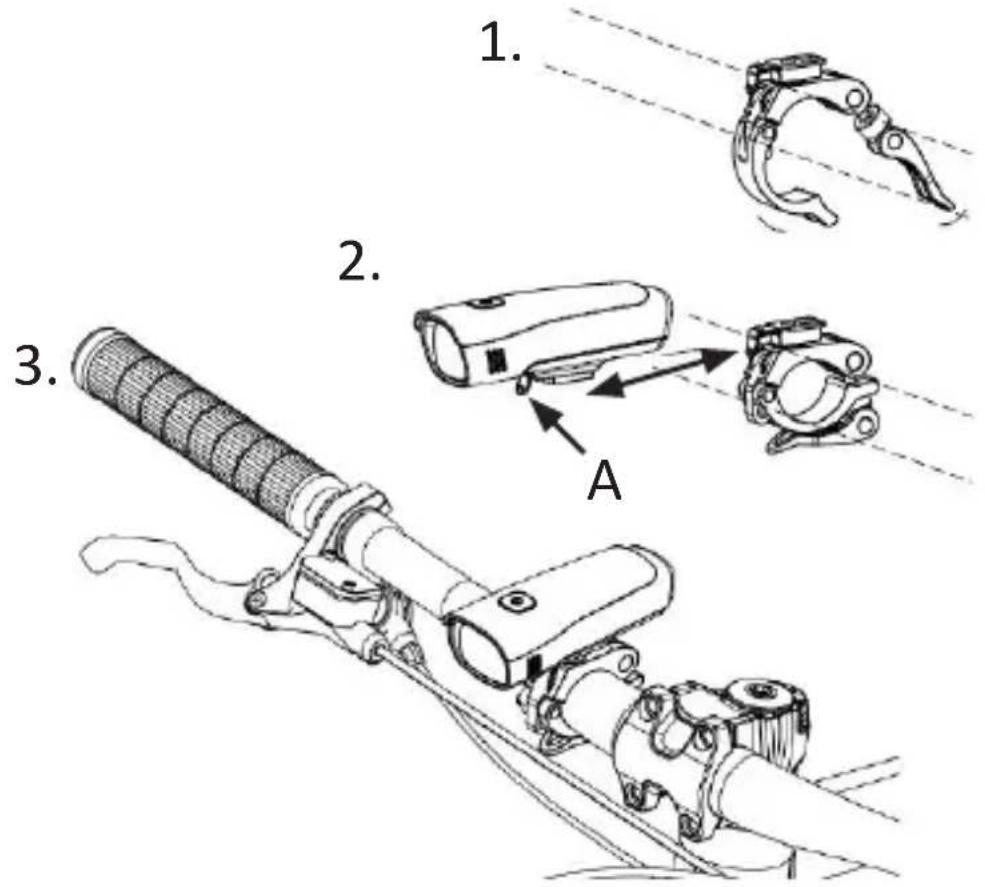

Open the clamp for mounting the headlight and fix it accordingly. The headlight can be removed from the bracket and replaced easily after assembly thanks to the snap lock mechanism.

To do this, press the lever (A) down and remove the light as shown in the figure above.

4.2 Tail light

Bezugsachse parallel Zur Fahrbahn 20°

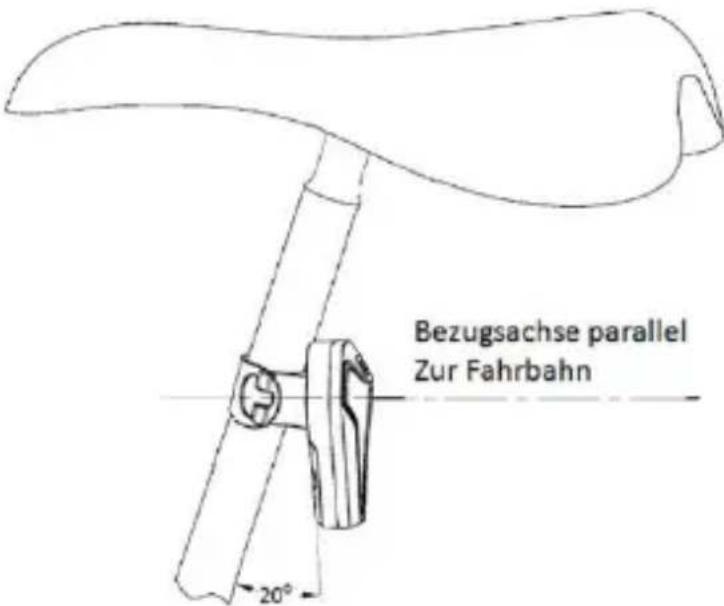

For installing the tail light, e.g., on a seat support, proceed as follows:

• The upper housing surface should be parallel to the ground and to the longitudinal axis.

• The installation height of the tail light should be at least 250 mm and a maximum of 1200 mm above the ground.

• For assembling, fix the bracket of the tail light to the seat support using the rubber rings.

• For this purpose, place the rubber bracket around the seat support and attach it to the other side of the tail light bracket.

Make sure that the tail light is fixed firmly and mounted correctly before you start using the bicycle.

5. Initial use

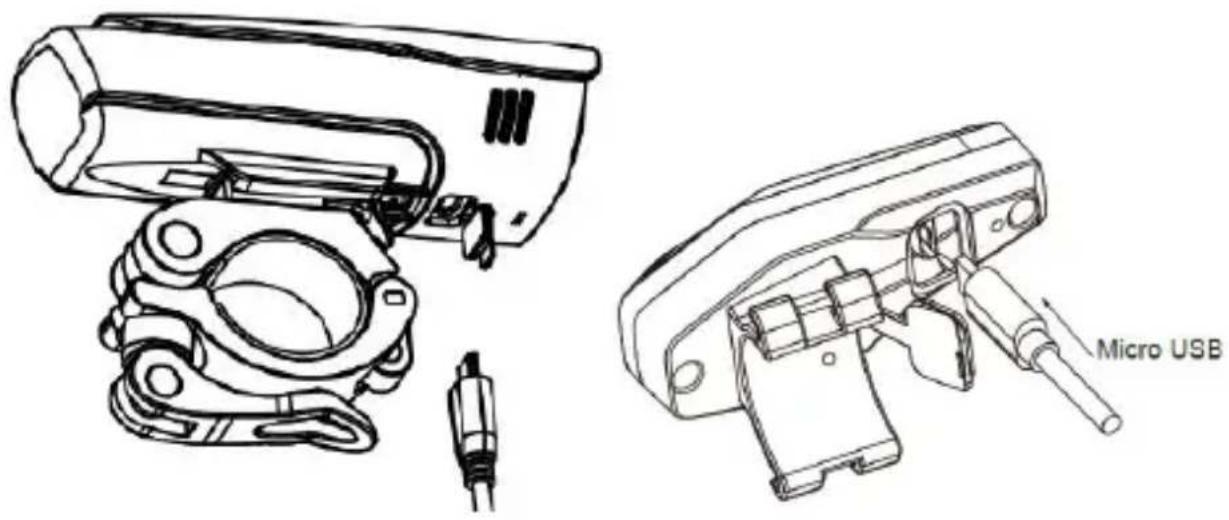

To start using the LED bicycle light set, first charge the batteries of the headlight and tail light. For this purpose, open the covers of the charging port and charge the device using a USB cable connected to a 5V DC power source such as the charger of a smartphone.

Micro USB

If the battery indicator of the device glows in red, they need to be charged. The battery indicator of the headlight is integrated into the On / Off switch. And the battery indicator of the tail lamp is located on the front of the device.

To turn the lights on and off, press the respective On / Off button.

6. Cleaning and Care

Clean the devices using a dry cloth. Never use any aggressive or chemical cleaning agents for cleaning. Keep the device away from heat.

7. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations.

With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305011/20200923FS029 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
