USER MANUAL TRIXIG 105.642.11 IKEA

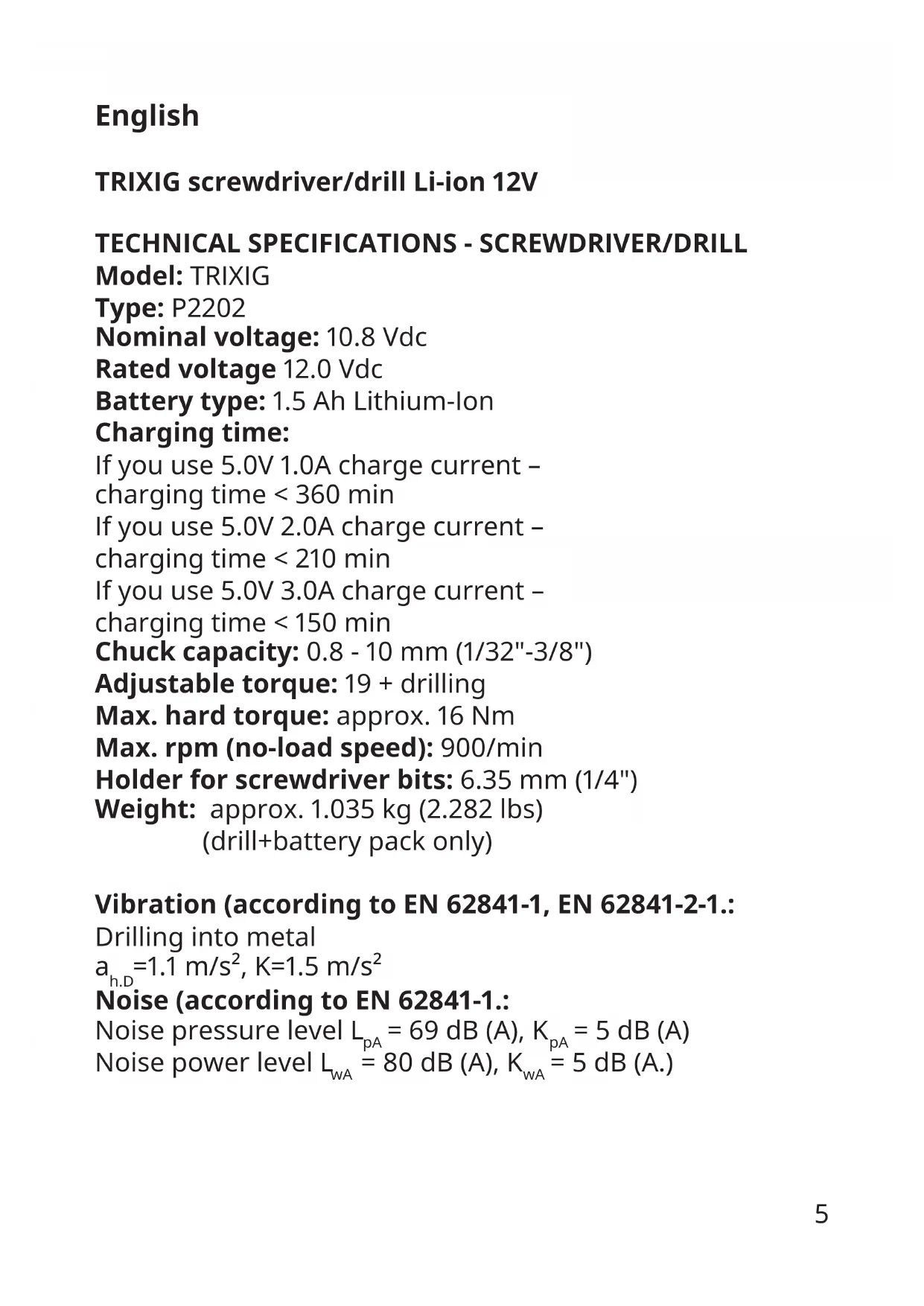

Model: TRIXIG Type: P2202 Nominal voltage: 10.8 Vdc Rated voltage 12.0 Vdc Battery type: 1.5 Ah Lithium-Ion Charging time: If you use 5.0V 1.0A charge current – charging time < 360 min If you use 5.0V 2.0A charge current – charging time < 210 min If you use 5.0V 3.0A charge current – charging time < 150 min Chuck capacity: 0.8 - 10 mm (1/32"-3/8") Adjustable torque: 19 + drilling Max. hard torque: approx. 16 Nm Max. rpm (no-load speed): 900/min Holder for screwdriver bits: 6.35 mm (1/4") Weight: approx. 1.035 kg (2.282 lbs) (drill+battery pack only) Vibration (according to EN 62841-1, EN 62841-2-1.: Drilling into metal

= 5 dB (A) Noise power level L

= 5 dB (A.)6 Technical data Type: ICBL 10.8-16-USBC-P1 Capacity: 1.5Ah Lithium-Ion, 16.2Wh Rechargeable Li-Ion battery cell inside. (Three INR19/66 Li-ion cells connected to a group in series) INDOOR USE ONLY. Recommended charging ratings:

5.0 Vdc / 1.0-3.0A (type C),

charging temperature 0-50℃ (32-122F) Product features The numbering of the product features shown refers to the illustration of the screwdriver/drill on the graphic page.

3. Innitely variable speed control/trigger

8. Magnetic bit holder

NOTE! USB-C cable and USB charger are not included. There is an additional storage compartment inside the screwdriver/drill’s box for a supplementary TRIXIG battery pack.

This cordless screwdriver/drill may be used for drilling in wood, plastic and soft metal materials, and for tightening/ loosening screws.7 This appliance is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

GENERAL SAFETY INSTRUCTIONS

General safety instructions for power tools WARNING! Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. Work area safety a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gasses8 or dust. Power tools create sparks which may ignite the dust of fumes. c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety a. Stay alert, watch what you are doing and use9 common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting: Ensure that the switch is in the o-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore10 tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source and/or the battery pack before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.11 g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation. h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b. Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re. c. When battery pack is not in use, keep it away from other metal objects, like paperclips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e. Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behaviour, resulting in re, explosion or risk of injury.12 f. Do not expose a battery pack or tool to re or excessive temperatures. Exposure to re or a temperature above 130 °C may cause an explosion. g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. Service a. Have your power tool serviced by a qualied repair person using only identical replacements parts.This will ensure that the safety of the power tool is maintained. b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

MACHINE-SPECIFIC SAFETY INSTRUCTION

Safety warnings for drills and screwdrivers

1. Safety instructions for all operations

a. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. b. Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory or fasteners may contact hidden wiring. The cutting accessory or fasteners contacting a “live" wire may make exposed metal parts of the power tool conductive and could give the operator an electric shock.13

2. Safety instructions when using long drill bits

a. Never operate at a higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. b. Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. c. Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury. Use appropriate detectors to determine if utility lines are hidden in the work area or call your local utility company for assistance. Contact with electric lines can lead to re and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock. Switch o the power tool immediately when the tool becomes blocked or stuck. Be prepared for high reaction torque that can cause kickback. The tool becomes blocked when:

• the power tool is subjected to overload

• or it becomes wedged in the workpiece. Hold the machine with a rm grip. High reaction torque can briey occur while driving in and loosening screws.14 Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode. Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Avoid unintentional switching on. Ensure the trigger is in the o position before inserting battery pack. Carrying the power tool with your nger on the trigger or inserting the battery pack into power tools that have the switch on invites accidents. Safety Warnings for battery chargers For indoor use only. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. Do not charge other batteries. The battery charger is suitable only for charging the batteries that were supplied with your power tool. Otherwise there is danger of re and explosion. Keep the battery charger clean. Contamination can lead to danger of an electric shock.15 Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualied technician. Damaged battery chargers, cables and plugs increase the risk of an electric shock. Do not operate the battery charger on easily inammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a re hazard.

VIBRATION AND NOISE INFORMATION

Vibration and noise level The vibration and noise emission level stated in this instruction manual has been measured in accordance with a standardised test in EN 62841. It may be used to compare one tool with another and as a preliminary assessment of exposure to vibration and noise when using the tool for the applications mentioned in this manual. However, using the tool for dierent applications, or with dierent or poorly maintained accessories, may signicantly increase the exposure level. An estimation of the level of exposure to vibration and noise should also take into account the times when the tool is switched o or when it is running but not being used, as this may signicantly reduce the exposure level over the total working period. Protect yourself against the eects of vibration and noise by maintaining the tool and its accessories, keeping your hands warm and organising your work.16 Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all other risk factors. The following hazards may arise in connection with the power tool’s construction and design: Damage to lungs if an eective dust mask is not worn. Damage to hearing if eective hearing protection is not worn. Damages to health resulting from vibrations if the power tool is being used over longer period of time or not properly handled and maintained. WARNING! This power tool produces an electromagnetic eld during operation. Under some circumstances, this eld may interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.17 ASSEMBLY Before any work on the machine (e.g. maintenance, tool change, etc.) as well as during transport and storage, set rotational direction switch to the centre position. Unintentional actuation of the trigger can lead to injuries. Charging the screwdriver/drill First read the safety instructions and then follow the charging instructions. Connect USB-C cable end to USB-C port on the battery pack (Pic. 2)(A). Connect the other USB cable end to a USB- charger or USB-outlet that can provide sucient power to charge the screwdriver/drill. When the battery pack is connected to the power supply, the diodes on the back of the battery pack light up to indicate the charging status: - Pulsating light - charging in progress - Steady light for two minutes/no light - charging completed Make sure that there are no knots or sharp bends in the cable. After the battery pack is fully charged and the battery pack remains connected to the power supply, the diodes will stay lit for two minutes and then turn o. When the charging is completed, disconnect the charging cable and then slide the battery pack into the holder of the screwdriver/drill. The screwdriver/drill is now ready to use. When the screwdriver/drill is not in use, disconnect the battery pack from the screwdriver/drill and store it in a suitable place. Under normal conditions of use the screwdriver can be recharged several hundred times.18 ATTENTION! The recharging process generates heat in the battery. It is not advisable to recharge the battery in temperatures below freezing. The battery will gradually lose its charge over a period of time, even if the tool is not used. Checking the power status on battery pack You can check the battery pack’s power status by briey pushing on the button located on the back of the battery pack. The diodes will light up to indicate the remaining power status: - 3 diodes light up - full charge - 2 diodes light up - medium charge - 1 diode lights up - low charge Shortly after, the diodes will turn o. Note: The battery that is supplied with the screwdriver/drill has been charged for test purposes only and must be fully recharged before rst time use. TRIXIG screwdriver/drill and TRIXIG battery pack have been designed to be used together. NEVER use this battery pack to power cordless tools from other manufacturers. The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched o by means of a protective circuit: The inserted tool no longer rotates.19 WARNING Do not continue to press the On/O switch after the machine has been automatically switched o. The battery can be damaged. WARNING! Recharge the battery on a non-ammable surface. Do not recharge the battery for more than eight hours.

INSTRUCTIONS FOR USE

Using the tool Note: Sparks may be visible through the slots in the motor housing during operation. The sparks are a normal reaction of the motor when in use and are created by the components inside the motor moving against each other. The function of the power tool is not aected by this. We do however recommend not to use the power tool near any ammable liquids, gases or dust, which the sparks may ignite. Keyless chuck Your drill has a keyless chuck so that you can simply tighten or release screwdriver/drill bits. Hold the front sleeve and push on the speed control/trigger to open/close the chuck.20 Mounting bits and drills Before any work on the machine (e.g. maintenance, tool change, etc.) as well as during transport and storage, set rotational direction switch to the centre position. Unintentional actuation of the trigger can lead to injuries. Rotate the front sleeve to adjust the chuck until the opening is slightly larger than the shaft of the screwdriver/ drill bit that you wish to use. Insert the screwdriver/drill bit into the chuck. Tighten the chuck against the screwdriver/ drill as described above (Keyless chuck). Regulating the shaft speed It is possible to regulate both shaft speeds from zero to maximum by altering the pressure applied to the trigger. This enables you to choose the optimum speed for the task you are working on. Reversing the direction of rotation You can reverse the direction of rotation by using the rotational direction switch (4). To lock the trigger, set the selector to the mid position between the right and left options. Adjusting the tightening moment Turn the torque regulator (2) to the desired position. Settings 1-19 are used for tightening/loosening screws (the higher the value, the greater the tightening moment). Select the drill symbol before using the tool for drilling. Magnetic bit holder You can place the bits and drills you are currently using on the magnetic bit holder (8) on top of your screwdriver/drill to keep them close at hand while you are working.21 LED work light The screwdriver has a built-in LED work light to illuminate the work area. The LED work lights up every time the trigger switch is squeezed and then turns o when the trigger switch is released.

WARNING: RISK OF TRAPPING

Do not hold the front sleeve of the chuck with one hand at the same time as you open or close the jaws of the chuck with the help of the screwdriver/drill's motor. Maintenance and cleaning Keep the screwdriver/drill clean and dry at all times to ensure proper and safe operation. Wipe o any debris using a soft cloth moistened with water. Do not use any cleaning agents or solvents. For safe and proper working, always keep the machine and ventilation slots clean. This product is intended for domestic use in the home, not for commercial or qualied measurements carried out by professionals. Keep this manual for future use. Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN22 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the quipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:23

• Reorient or relocate the receiving

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Batteries and rechargeable batteries are not household waste! As a consumer, you are required by law to dispose of all batteries and accumulators, whether they contain harmful substances* or not, at a collection point in your municipality/ neighbourhood or via a commercial entity oering battery disposal so that they can be disposed of in an environmentally sound manner.

• marked with: Cd = cadmium, Hg = mercury, Pb = lead The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-ll and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.24 Français TRIXIG visseuse/perceuse, Li-Ion 12V
