USER MANUAL CompQ 42CWQ122 KICKER
Owner's Manual | English
Variable Cross Section Elastomeric Surrouces (Increased Excursor)
Material:envolverte elastomerico transversal variable (mayor variaion)
Sliced Surround & Confor Maxum Bond Sringin
Mounting Hardware Covers for a Clear Financed Installation
Laser-Fired Polymer Components for Improved Bond
Bue-Lace" Spider for Improved Control & Durability
Amaasn Blue-Lace para un major control de la cuestion
See pages 24-25 for wiring instructions and diagrams.
US Patent - www.kicker.com
FFA Colimited Motor Structures for Increased Power Handling
COMPQ SUBWOOFER OWNER'S MANUAL
Models:
CWQ10|CWQ12|CWQ15
Authorized KICKER Dealer:
Purchase Date:
Speaker Model Number:
Speaker Serial Number:
Note: All specifications and performance figures are subject to change. Please visit
www.kicker.com for the most current information. To get the best performance from your new KICKER Subwoofof, we recommend using genuine KICKER Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum performance.
Sound Check: Poor bass response? Check the system phasing by reversing the positive and negative spooker connections on the subwoofer. If the bass improves, then the subwoofer was out of phase in reference to the rest of the audio system.
SPECIFICATIONS
| Model CWQ10 | CWQ12 | CWQ15 | ||
| Rated Impedance [Ω] 2 or 4, 2 or 4, 2 or 4 | ||||
| Fs [Hz] | 38 | 37 | ||
| Sensitivity [1W, 1m] 85.7 86.2 88.8 | ||||
| Qts | 0.437 | 0.546 | 0.472 | |
| Qms | 6.916 | 8.878 | 9.672 | |
| Qos | 0.46 | 0.582 | ||
| Re [Ω] | 6.52 | 5.94 | ||
| Vas [1°, L] 59, 16.75 | 91.26 | 2.5, 70.747 | ||
| Continuous Power Handling [Watts RMS] 700 | 850 | 1100 | ||
| Outer Frame Dimension [in, cm] | 10-11/16, 27.2 | 12-1/2, 31.8 | 15-3/8, 39.1 | |
| Mounting Depth [in, cm] | 6-3/8, 16.2 | 7-1/8, 18.1 | 8-15/16, 22.6 | |
| Mounting Output [in, cm] | 9-3/16, 23.4 | 11-1/16, 28.1 | 13-7/6, 35.2 | |
| Frequency Response [Hz] | 24-100 | 20-100 | 18-100 | |
SEATED ENCLOSURE APPLICATIONS
CompQ wooters perform well in any size sealed enclosure between the minimum and maximum volume recommendations. These systems will exhibit benefits of both dosigns: Minimum produces high impact bass, and maximum generates low bass frequency protection. Overall, the system will sound more like the recommended enclosure design it is closest to in enclosure volume. These enclosure recommendations have been calculated with the airspace inside the enclosure and include the displacement of the woater. All sealed-enclosure airspace should be filled to 50% loose poly-fill (polyester fiberfill) stuffing. Do not make the airspace greater than the maximum enclosure volume recommendation.
Minimum Sealed
| Model | Volume " (L) | Flower Handling |
| CWQ10 | .66 (18.7) | 700 RMS |
| CWQ12 | .88 (24.92) | 850 RMS |
| CWQ15 | 1.5 (42.6) | 1100 RMS |
Maximum Sealed
| Model | Volume ft3(L) | Power Handling |
| CWQ10 | 1.25 (35.4) | 700 RMS |
| CWQ12 | 2 (56.64) | 850 RMS |
| CWQ15 | 6 (169.9) | 1100 RMS |
Panel Dimensions for Minimum Sealed Enclosures using 3/4" (1.9cm) thick MDF
| Model | Box Volume [ft3, L] | Panel A [in, cm] | Panel B [in, cm] | Panel C [in, cm] |
| CWQ10 | .66 (18.7) | 12x12, 30.5x30.5 | 12x10.5, 30.5x26.7 | 10.5x10.5, 26.7x26.7 |
| CWQ12 | .88 (24.92) | 13.5x13.5, 34.3x34.3 | 13.5x10.5, 34.3x26.7 | 12x10.5, 30.5x26.7 |
| CWQ15 | 1.5 (42.5) | 16.5x16.5, 41.9x41.9 | 18.5x11.5, 41.9x29.2 | 15x11.5, 38.1x29.2 |
VENTED ENCLOSURE APPLICATIONS
These boxes are the enclosure of choice for outrageous bass, so it space is not a problem and you want to get the most from your CompQ, try one of these vented designs. CompQ subwoofoers will handle massive amounts of power in any of the recommended enclosures, minimum or maximum. The smaller enclosures are best for use in limited space applications. The larger recommended enclosures will yield slightly more bass at the lowest frequencies.
The vented minimum design increases bass efficiency and it's in many space-limited applications. Although it is the smallest recommended vented enclosure, the output from 30Hz-80Hz will be considerably higher than that of a sealed box. The maximum vented design has even more output in this frequency band. The maximum vented enclosure is the largest and most efficient design.
| Vented Minimum CWQ10 | CWQ12 | CWQ15 | ||||
| Box Volume [ft3], L | 1.25, 35.4 | 1.75, 49.6 | 3.0, 85 | |||
| Port Opening [in x in, cm x cm] | 2.5x11.25, 6.4x29 | 2.5x13.25, 6.4x34 | 2.5x16.25, 6.4x41 | |||
| Port Length [in, cm] | 19.75, 50 | 22.5, 57 | 19.5, 50 | |||
| Power Handling [Watts RMS] | 700 | 850 | 1100 | |||
| Vented Maximum CWQ10 | CWQ12 | CWQ15 | ||||
| Box Volume [ft3], L | 2.25, 63.7 | 3.25, 92 | 6.0, 170 | |||
| Port Opening [in x in, cm x cm] | 3x11.25, 7.6x29 | 3x13.25, 7.6x34 | 3.5x16.25, 8.9x41 | |||
| Port Length [in, cm] | 18, 46 | 14.5, 37 | 13.75, 35 | |||
| Power Handling [Watts RMS] | 700 | 850 | 1100 | |||
BOX BUILDING NOTES
Use 3/4" (1.8cm) or thicker MDF (medium density floorboard) and seal the joints with silicone. Use the "template" inside your CompQ's shipping carton to mark the mounting hole, then cut directly on the line. See Figure 1.

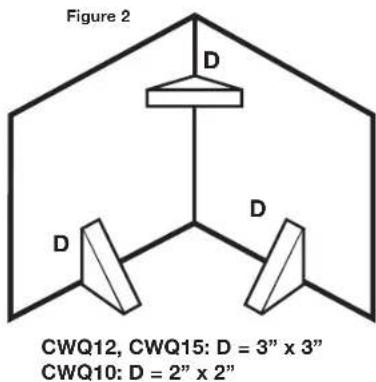

These designs need internal bracing. Add triangular bracing between each of the larger unsupported panels. See Figure 2.

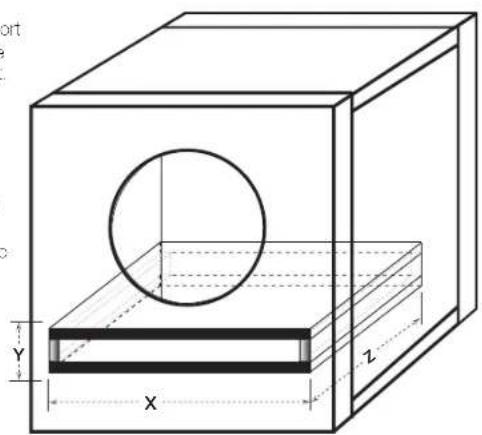

All the cubic feet (L) measurements in this manual include the displacement of the woolfer. For the vented enclosures, the displacement of the port must be calculated and added to the internal volume of the final design. Use the outer dimensions of the vent and multiply "X X Y X Z", and convert to cubic feet, for example the CWC12 Ventao Minimum design's external vent dimensions are, using 3/4" (1.9cm) MDF:
[ \left[ (13.25'' + 1.5'' \text{total MDF wall thickness}) \times (2.5'' + 1.5'' \text{total MDF wall thickness}) \times 22.5'' \right] \times (1 \, \text{ft}^3 / 1728 \, \text{in}^3) = .77 \, \text{ft}^3 ]
Add this number to the internal volume of the enclosure. The CWQ12 is:
1.75 ft³ + .77 ft³ = 2.52 ft³
Due to the necessary length of those vents, you may want to fold the vent along the bottom and back walls. It will be impractical to use round vents for these designs. Do not install a vent opening against a solid surface, such as an internal brace, back-panel or trunk wall, seat or interior panel of your vehicle. The vent opening must remain unobstructed. Use the smallest dimension of the rectangular vent as the minimum amount of space between the vent opening and any solid surface to insure unrestricted airflow.
If you prefer an ultra-smooth bass response, you should loosely fill your CompQ enclosure with poly f I stuffing. Ventod dosigns will require covering the end of the port (located inside the box) with grill cloth, chicken wire, or expanded metal to prevent the poly-f I from exiting the port. The use of poly-f I will slightly decrease efficiency, but will deepen and extend the low frequency output.
For more advice on box building, refer to your Authorized Kicker Dealer, or click on the Support tab on the Kicker homepage, www.kicker.com. Please e-mail support@kicker.com or call Technical Support at (405) 624-8583 for specific or unanswered questions.
WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.
IMPORTANT SAFETY WARNING - PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER IN A DISTORTED OR CLIPPED MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS AND/OR VEHICLE.
KICKER MANUAL DEL PROPIETARIO DE ALTAVOZ SUBWOOFER COMPQ
Modelos: CWQ10 | CWQ12 | CWQ15
APPLICATIONS DU CAISSON VENTILE
Use the push terminals to wire your subwoofer in series or parallel.
CompO subwooters are available with dual 20 (ohm) or dual 4Ω voice coil. Both coils must be connected to a source of amplification. The dual 20 woofer will generate a 10-cad I the coils are wired in parallel or a 40 loss in series. The dual 40 woofer will provide a 2Ω load wind in parallel or 8Ω load wired in series. The terminals with the white dots are for the first voice coil. The terminals with solid-arc and solid-black markings are for the second voice coil.
Pro tip: wth a KICKER IQ amplifier, a pair of KICKER GS speakers, and a few KICKER cables, you're looking at a full system upgrade that will dominate! KICKER amplifiers and accessories make it easy to upgrade with your existing or stock a coker unit. Ask your dealer about KICKER amplifiers and speaker upgrades to complete your system!
Consejo profesioal: Con a amplificator KICKER IQ, um par do atwockos KICKER GS y aspecios cables KICKER, oceovora un actualizacion de todo o. astrosa ou commando Los amplificaciones y ococococoes KICKER simplificado a usacion excelsion e en atocic, Prgirise u sot diu ciorso (e amplificacoes KICKR y as acupulatonas de alavcero para complie a situlienl)
WARNING: if you are using multiple subwoofer, that are wired in series to one another, each subwoofer must be in a separate chamber. If not the subwoofer could become damaged, resulting in loss of warranty
ADVERTENCA: 1
e
A
Q-CLASS ACOUSTICS LIMITED WARRANTY
When purchased from an Authorized KICKER Dealer, KICKER warrants Q-Class KICKER products to be free from defects in material and workmanship for THREE (3) YEARS from date of original purchase with receipt. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period. KICKER will repair or replace (a, his discoloration) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blamishes. Discontinued products may be replaced with more current equivalent products.
This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the excess warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; Incorors those exclusions may not apply to you. This warranty gives you specific legal rights; however you may have officer rights that vary from state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
detive mchdshd be rtoy ool Aorized Sldwter Design (Kicker) Deer for warty service. Assisston in locat an Aortized Dealer can be found at wwwkdencom or by continging Sillwater Design directly. You can confirm that a cder is auorized by asking to see a current authorized deater window docl. If it becomes necessary for you to return defective merchandise directly to Sllwater Design (Kicker), call the Kicker Customer Service Department at (405) 624-8510 for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to:
Stillwater Design, St.00 North Husband Road, Stillwater, OK 74075
The HRM number must be clearly marked on the outside of the package. Please return only defective components. The return of functioning items increases your return freight charges. Non-selective items will be returned freight-collect to you. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customers name, Dees' name and invoice number, and product purchased. Warranty expiration on items without proof of purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent: freight-collect, or COD, will be refused.
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover
Damage due to improper installation 1 Weight Damage Subsequent damage to other components Speakers damage due to amplifier clipping or distortion. Return at
Any costs or expense related to the removal or installation of product Products returned without a Return Merchandise Authorization (FMA) number items, previously repaired or modified by any unauthorized repair facility
Return shipping on non-selective items
Products with tampered or missing barcode tags
Products purchased from an UNAUTHORIZED dealer
Service performed by anyone other than KCKER Products with tampered or missing serial numbers The cost of shipping product to KCKER
Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse
HOW LONG WILL IT TAKE?
Stillwaterdesigns
Kicker stivns to maitain a gost of one week for turrourund on service of all acoustics subwooers, midrange and coaxial drivers, tweeters, crosavers etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service Department at (405) 624-8510.
P.O.Box459 • Stillwater, Oklahoma 74078 • USA • (405) 624-8510
20141222-B-41GWQ
International Warranty
Contact your International Kicker dealer or distributor concerning specific procedures for your country's warranty policies.
Our goods come with guanee that cannot be exuied under the Australian Consumer Law You are entled to a repaement or return for a mair failure and for compensation for any other reasonably koreestble loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
