USER MANUAL Pinguino PACEX370LN6ALBK DELONGHI

Instructions for use. Keep these instructions Visit www.delonghi.com for a list of service centers near you. ELECTRIC CHARACTERISTICS 115 V~ 60 Hz

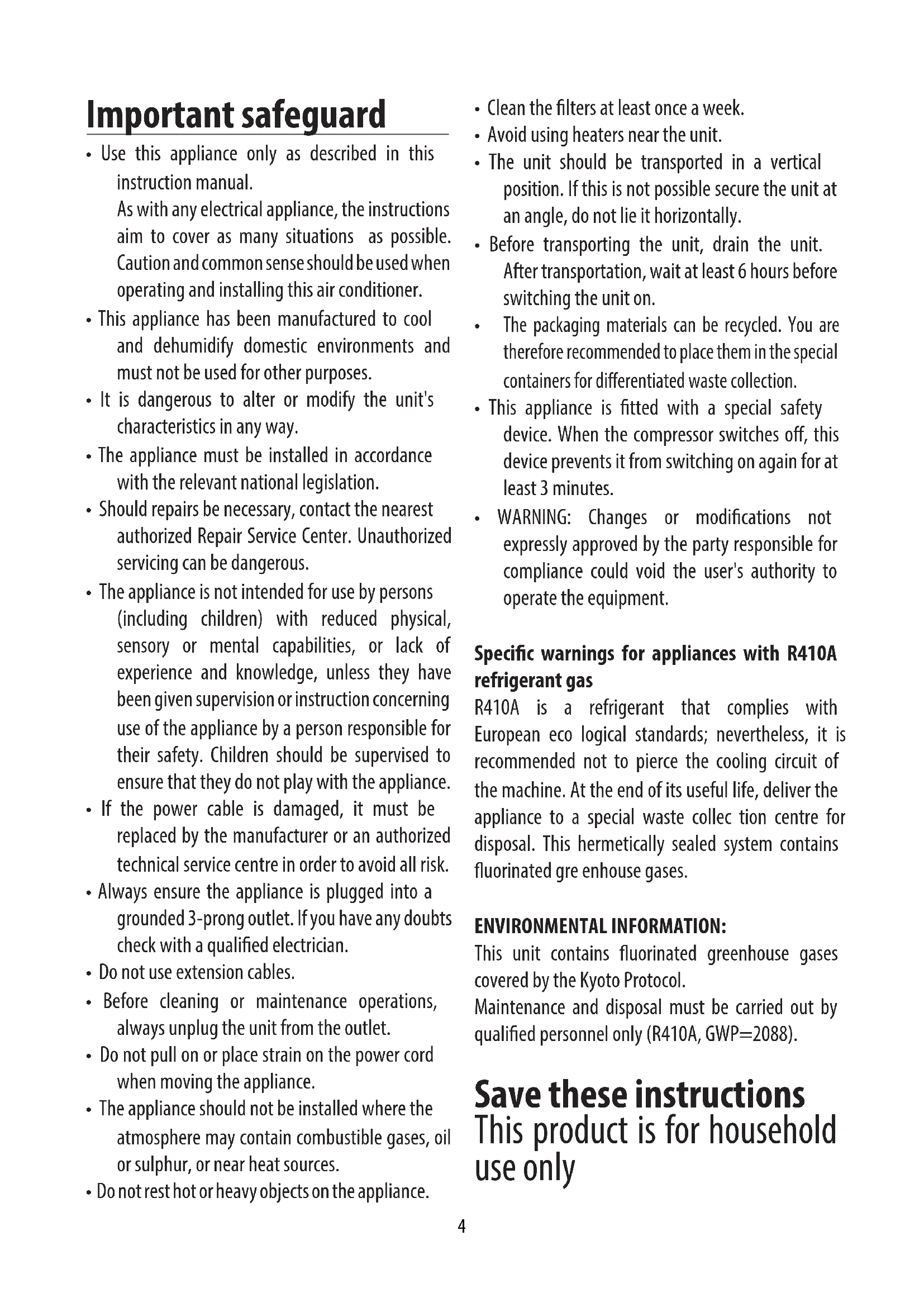

• Use this appliance only as described in this instruction manual. As with any electrical appliance, the instructions aim to cover as many situations as possible. Caution and common sense should be used when operating and installing this air conditioner.

• This appliance has been manufactured to cool and dehumidify domestic environments and must not be used for other purposes.

• It is dangerous to alter or modify the unit's characteristics in any way.

• The appliance must be installed in accordance with the relevant national legislation.

• Should repairs be necessary, contact the nearest authorized Repair Service Center. Unauthorized servicing can be dangerous.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the power cable is damaged, it must be replaced by the manufacturer or an authorized technical service centre in order to avoid all risk.

• Always ensure the appliance is plugged into a grounded 3-prong outlet. If you have any doubts check with a qualied electrician.

• Do not use extension cables.

• Before cleaning or maintenance operations, always unplug the unit from the outlet.

• Do not pull on or place strain on the power cord when moving the appliance.

• The appliance should not be installed where the atmosphere may contain combustible gases, oil or sulphur, or near heat sources.

• Do not rest hot or heavy objects on the appliance.

• Clean the lters at least once a week.

• Avoid using heaters near the unit.

• The unit should be transported in a vertical position. If this is not possible secure the unit at an angle, do not lie it horizontally.

• Before transporting the unit, drain the unit. After transportation, wait at least 6 hours before switching the unit on.

The packaging materials can be recycled. You are therefore recommended to place them in the special containers for dierentiated waste collection.

• This appliance is tted with a special safety device. When the compressor switches o, this device prevents it from switching on again for at least 3 minutes.

• WARNING: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Specic warnings for appliances with R410A refrigerant gas R410A is a refrigerant that complies with European eco logical standards; nevertheless, it is recommended not to pierce the cooling circuit of the machine. At the end of its useful life, deliver the appliance to a special waste collec tion centre for disposal. This hermetically sealed system contains uorinated gre enhouse gases. ENVIRONMENTAL INFORMATION: This unit contains uorinated greenhouse gases covered by the Kyoto Protocol. Maintenance and disposal must be carried out by qualied personnel only (R410A, GWP=2088). Save these instructions This product is for household use only5 INTRODUCTION Thank you for choosing a De’Longhi product. Please take a few moments to read the instructions to avoid risks or damage to the appliance. DESCRIPTION Description of the appliance (see page 3 - A) A1 air outlet A2 control panelA3 handlesA4 castorsA5 air filterA6 air intake grille A7 air exhaust hose housingA8 air intake grilleA9 power cableA10 drainage hose with capA11 remote control compartmentA12 remote control signal receiver Description of the accessories (see page 3 - B) B1 adapter for window bracketB2 air exhaust hoseB3 hose adaptorB4 additional window bracketB5 window bracket with wing nutB6 window bracket capB7 remote control B8 end of season accessories bag (*not on all models) B9 end of season dust cover (*not on all models) B10 stripping foam ELECTRICAL CONNECTION Before plugging the appliance into the outlet, check that:• The outlet’s power supply corresponds to the value indicated on the rating label on the back of the appliance.• The outlet and electrical circuit are adequate for the appliance.• The outlet is a 3-hole grounded outlet . If this is notthe case, you must choose another outlet. Failure to follow these important safety instructions absolves the manufac-turer of all liability.If it becomes necessary, the power cable must be re-placed by a qualied professional only. USE The instructions below will enable you to prepare your air con-ditioner for operation as eciently as possible. Before use, make sure the air intake and air outlet ap are unobstructed.Please note: This appliance is provided with an auto-evapora-tion feature for condensate removal during cooling and dehu-midifying modes.

AIR CONDITIONING INSTALLATION

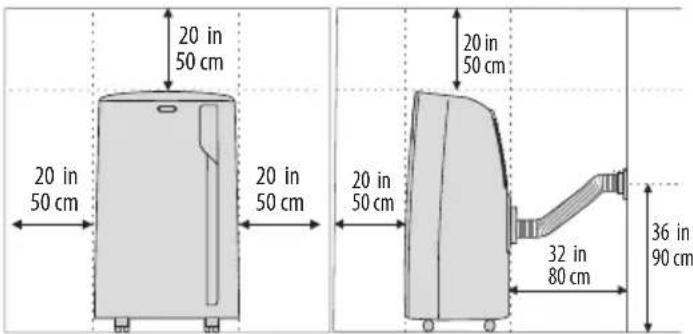

For optimal results see the gures below for the suggested minimum distances. DOUBLEHUNG WINDOW

• Place the window bracket (B5) in the window sill, extend the bracket fully within the window frame (g. 1). max 33ft~

• Fix the bracket into place by tightening the wing nut (g. 2). Attach the provided stripping foam (B10) to the top of the window bracket and then lower the window onto the bracket. (Should the window bracket be too large for the window the plastic can be cut with a saw by a qualied professional. max 33ft~

• If the windows are large, use additional window bracket(B4) to cover your window opening, extending it to therequired length, then securing it with the locking wing nut supplied (g. 3). max 33ft~

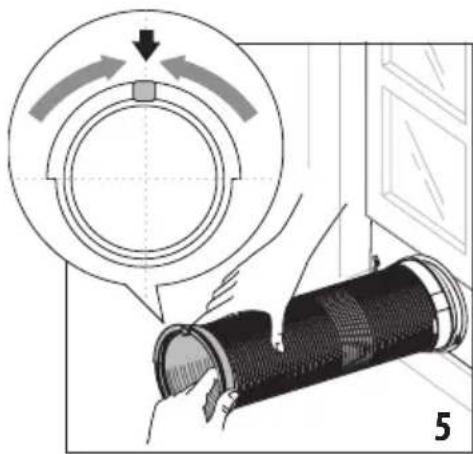

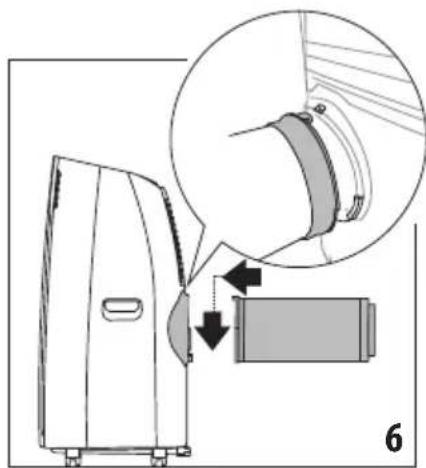

• Insert and lock the accessory for window bracket (B1) al-ready attached to the air exhaust hose, into the slot of the window bracket (g. 4).• At the other end, be sure hose adapter’s tab is straight up (like the 12 position on a clock) as shown in g. 5. max 33ft~

SLIDING WINDOWS• Thanks to the locking wing nut, it’s possible to use the win-dow bracket also for sliding windows. Position the hole of the window bracket in the lower corner to allow for correct installation of the exhaust hose.

TURNING THE APPLIANCE ON AND OFF

Insert the plug in the socket. Two dashes appear on the display indicating that the appliance is in stand-by. Touch the (C1) key to turn on the appliance. The ap (A1) will open after few seconds. When the appliance comes on, it will start with the last function set before it was shut o. Please note: If start-up is not continued, after a few minutes the display light dims in order to reduce energy consumption. To turn the appliance o, touch the key and remove the plug from the outlet. Please note: Never turn o the air conditioner by simply pulling the plug. Touch the key in order to put your air conditioner in stand-by and wait a few minutes before pulling the plug. In this manner, the appliance can perform the operating status checks. MODES SELECTION To select desired operating mode, touch repeatedly the MODE key (C2) until the desired function is selected.

AIR CONDITIONING MODE

This is ideal for hot and humid weather when the room needs to be cooled. This function also helps to dehumidify the air. To correctly set this mode:

• Touch repeatedly the MODE key (C2) until the air condition- ing symbol appears. The display will show the desired temperature.

• To change the desired temper- ature, touch the (C3) or (C4) key.

• Select the desired air ow by touching the (C5) key. The speeds available are: Minimum air ow: when maximum quiet operation is desired. Medium air ow: when the noise level needs to be low but with a good comfort level. Maximum air ow: for maximum performance. Auto: the appliance automatically chooses the best air ow based on the temperature selected and the environmental conditions. DEHUMIDIFYING MODE This is ideal for reducing humidity in the room (spring and autumn, damp rooms, rainy periods, etc). For this type of use, the appliance must be set up same as in the air conditioner mode. That is, the air exhaust hose (B2) must be tted to the appliance to allow the humidity to be discharged outside. To correctly set this mode:

• Touch repeatedly the MODE key (C2) until the dehumidify- ing symbol appears.

• The appliance will automatically choose the best air ow. FAN MODE When using this mode, the air ex- haust hose (B2) does not need to be attached to the appliance. To correctly set this mode:

• Touch repeatedly the MODE (C2) key until the fan sym- bol appears.

• Select the desired air ow by touching button (C5). The air ows available are: Minimum air ow: when quiet operation is de- sired. Medium air ow: when the noise level needs to be low but with a good comfort level. Maximum air ow: for maximum performance.8

SELECT THE TEMPERATURE SCALE

The temperature can be dis-played in °C or °F. To change the temperature unit of measure touch both the increase (C3) or decrease C4) keys for about 10 seconds.

• Remove the cover on the rear of the remote control;• Insert or replace the batteries with two new LR03 “AAA” 1.5V batteries, inserting them correctly (see the directions inside the battery compartment) (g. 7);• Replace the cover.

max 23ft/7 metersPlease note: If the remote control unit is replaced or discarded, the batteries must be removed and disposed of in accordance with current legislation as they are harmful to the environment. Do not mix old and new batteries.Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Do not dispose of batteries in re. Batteries may explode or leak. If the remote control is not be used for a certain length of time, remove the batteries.

USING THE REMOTE CONTROL

• Point the remote control at the receiver no more than 23feet (7 meters) away from the appliance (g. 7) withoutobstacles between the remote control and the receiver.• The remote control must be handled with care. Do not drop it or expose it to direct sunlight or sources of heat.Please note: The remote control can be safely stored in the ap-propriate compartment (A11).

• Plug into the outlet.• Press the C1C2

button (D1) to turn the unit on.When turned on, the air conditioner starts operating in the same mode as when it was turned o .• To switch the appliance o, press the C1C2

button (D1) .Please note: Never switch the appliance o by removing the plug. Always switch it o by pushing the C1C2

button and waiting a few minutes before removing the plug. Only in this way will the appliance be able to perform its standard checks.

SELECTING THE OPERATING MODES

To select the desired operating mode, press repeatedly theMODE button (D6) until the desired function is selected. Most of the commands available on the remote control corre-spond to those on the appliance control panel (C).

SELECTING THE TEMPERATURES

In air conditioning mode, press (D3) and (D4) keys to de-crease/increase the desired temperature.

SELECTING THE AIR FLOW

In air conditioning and fan modes, press (D5) button on re-mote control to increase/decrease the desired air ow.

SWING FUNCTION The swing button (D6) activates and deactivates the swing fun- ction. When the internal fan is running, the swing function di- stributes the air evenly into the room moving the ap forwards and backwards alternatively. If pressed again, the ap will be locked into its current position. NOTE: If the internal fan is not running, the swing function will also not operate. In order to avoid damaging the internal mechanisms, the ap must not be moved manually.

The timer allows the delayed start up or shut down of the appli- ance. This function will prevent wasting electricity by optomiz- ing the operating periods. How to program delayed shut down

• While the appliance is on in any operating mode, delayed shut down can be programmed.

timer button (D7), the timer symbol (C13) and hours (C14) light up.

• Press the (D3) and (D4) buttons until the desired number of hours to shut down appears on the display. A few seconds after the timer is set, the setting is memorized and the display shows the operating mode and the timer symbol stays lit. Once the set time is elapsed, the air conditioner goes into standby. To cancel the timer program, press the C1C2

timer button (D7) twice. The timer symbol (C13) will go o. Note: Once the timer has been activated, by pressing the timer button only one time, the remaining hours until shut down will be displayed. How to program delayed start up

• Plug in the appliance and set to standby.

timer button (D7), the timer symbol (C13) and hours (C14) light up.

• Press the (D3) and (D4) buttons until the desired number of hours to start up appears. Start up can be pro- grammed at any time in the next 24 hours. When the set time is elapsed, the appliance will start to operate in the same operating mode that was previously set. To cancel the timer program, press the timer button (D7) twice. The timer symbol (C13) will go o. Note: Once the timer has been activated, by pressing the timer key only one time, the remaining hours to the start up will be displayed. Note:

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residen- tial installation.

• This equipment generates, uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dier- ent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modications not expressly approved by the party responsible for compliance could void the user’s au- thority to operate the equipment.

• This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) this de- vice may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation.

• This Class B digital apparatus complies with Canadian CAN ICES-3 (B) / NMB-3 (B). FCC Responsible party: De Longhi America Upper Saddle River NJ 07452 201-919-400010

TIPS FOR CORRECT USE

To ensure optimal results from your air conditioner, follow these recommendations:

• Close the windows and doors where air conditioner will be used. When installing the air conditioner semi-perma- nently, you should leave a door slightly open (as little as 1/2 inch - 1 cm) to guarantee proper ventilation.

• Never use the appliance in very damp rooms (laundries for example).

• Protect the room from direct exposure to the sun by par- tially closing curtains and/or blinds to make the appliance much more economical to run.

• Never use the appliance outdoors.

Make sure there are no heat sources in the room.

• Make sure the air conditioner is standing on a level surface.

• Never rest objects of any kind on the air conditioner.

• Never obstruct the air intake or air outlet ap (see gure below). do not cover the appliance CLEANING Before cleaning or maintenance, turn the appliance o by using the C1C2

button, then unplug from the outlet.

CLEANING THE CABINET

You should clean the appliance with a slightly damp cloth then dry with a dry cloth. For safety reasons, never wash the air conditioner with water. Attention! Never use petrol, alcohol or solvents to clean the appliance. Never spray insecticide liquids or similar. SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of warning/malfunctions. Error messages are displayed on the appliance display. IF ... IS DISPLAYED, IF ... IS DISPLAYED, IF ... IS DISPLAYED, IF ... IS DISPLAYED, IF ... IS DISPLAYED, “Low Temperature” (Frost prevention) “High Temperature” “Low humidity” “Probe Failure” (Probe damaged) “High Level” (Internal tray full) ..WHAT SHOULD I DO? ..WHAT SHOULD I DO? ..WHAT SHOULD I DO? ..WHAT SHOULD I DO? ..WHAT SHOULD I DO? The appliance is tted with a frost protection device to avoid exces- sive formation of ice. The appliance starts up again automatically when the defrosting process is completed. The appliance is tted with an overheating device which in case of operating conditions with excessive room tempe- rature for a long period, will switch the appliance to ven- tilate only. The appliance will be automatically restored as soon as the temperature will be close to the operating limit conditions. This message will only be displayed when in Real Feel function, indicating that the room humidity level is extremely low. To resume operation, switch the unit to any other mode other than the Real Feel function. If this is displayed, con- tact our toll free custo- mer service number. Empty the internal safety tank following the instructions in the section “End of season operations”11

CLEANING THE AIR FILTER

If the lter is dirty, air circulation is compromised and the e-ciency of the appliance decreases. It is therefore good practice to clean the lter at regular intervals. The frequency depends on the duration and conditions of operation. If the unit is used constantly or systematically, you are recommended to clean the lter once a week. The lter is housed in the intake grille.To clean the lter, remove as shown in g. 8. max 33ft~

Use a vacuum cleaner to remove the dust collected on the lter. If it is very dirty, immerse in warm water and rinse a number of times. The water should never be hotter than 104°F.After washing the lter, allow it to dry completely before repositioning it.The lter helps capture dust and pollen.

START OF SEASON CHECKS

Make sure the power cable and plug are undamaged and the ground system is sucient.Follow the installation instructions precisely.

END OF SEASON OPERATIONS

To drain all water from the circuit, remove the external cap by unscrewing it in the counter clockwise direction and allow the water to drain out into a basin (g. 9). max 33ft~

When the appliance is empty, replace the caps. Clean the lter and dry thoroughly before putting back.In order to properly storage the appliance at the end of the sea-son, we suggest you cover it with the supplied end of season dust cover (B9) and you put the accessories in the relevantend of season accessories bag (B8). TECHNICAL SPECIFICATIONS Power supply voltage see rating label Max. absorbed power during air conditioning “Refrigerant “Cooling capacity “

ONLY FOR SERVICE CENTERS USE

THE WIRING DIAGRAM IS LOCATED INSIDE THE UNIT. LIMIT CONDITIONS Room temperature for air conditioning 61° ÷ 95°F (16-35 °C)Maximum relative humidity 80% RHPlease note: outside of these conditions, the unit will take longer or may not reach the cooling temperature that is set.Transport, lling, cleaning, recovery and disposal of refrigerant should be performed by a technical service centre appointed by the manufacturer only.The appliance should be disposed of by a specialist centre appointed by the manufacturer only.Attention! TO AVOID DAMAGE TO THE UNIT: NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit has been on its side, oil needs to return to the compressor to en-sure proper function. Without allowing the unit this time (6-24 hours) the unit may function for only a short time, and then the compressor will break down from lack of oil.12 TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The air conditioner does not come on it is not plugged into the outlet plug into the outlet there is no power wait for the current to return the internal safety device has tripped call the toll free customer service number The air conditioner works for a short time only there are bends or kinks in the air exhaust hose position the air hose correctly, keeping it as short and free of curves as possible to avoid bottlenecks something is preventing the air from being discharged check and remove any obstacles obstructing air discharge The air conditioner works, but does not cool the room windows, doors and/or curtains open close doors, windows and curtains, bearing in mind the “TIPS FOR CORRECT USE” given above there are heat sources in the room (oven, hairdryer, etc minimize heat sources impact by setting on low or unplugging unnecessary sources the air exhaust hose is detached from the appliance t the air exhaust hose in the housing at the back of the appliance (g. 1). lter clogged clean or replace the lter as described above During operation, there is an unpleasant smell in the room lter clogged or dirty clean the lter as described above (g. 8) The air conditioner does not operate for about three minutes after restarting it an internal safety device prevents the appliance from being restarted until three minutes have elapsed since it was last turned o wait. This delay is part of normal operation. One of the following messages is displayed: Lt/ Ht / Lh / PF / HL the appliance has a self diagnosis system to identify a number of malfunctions. see the SELF-DIAGNOSIS chapter13 Précautions importantes
