USER MANUAL 304831 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

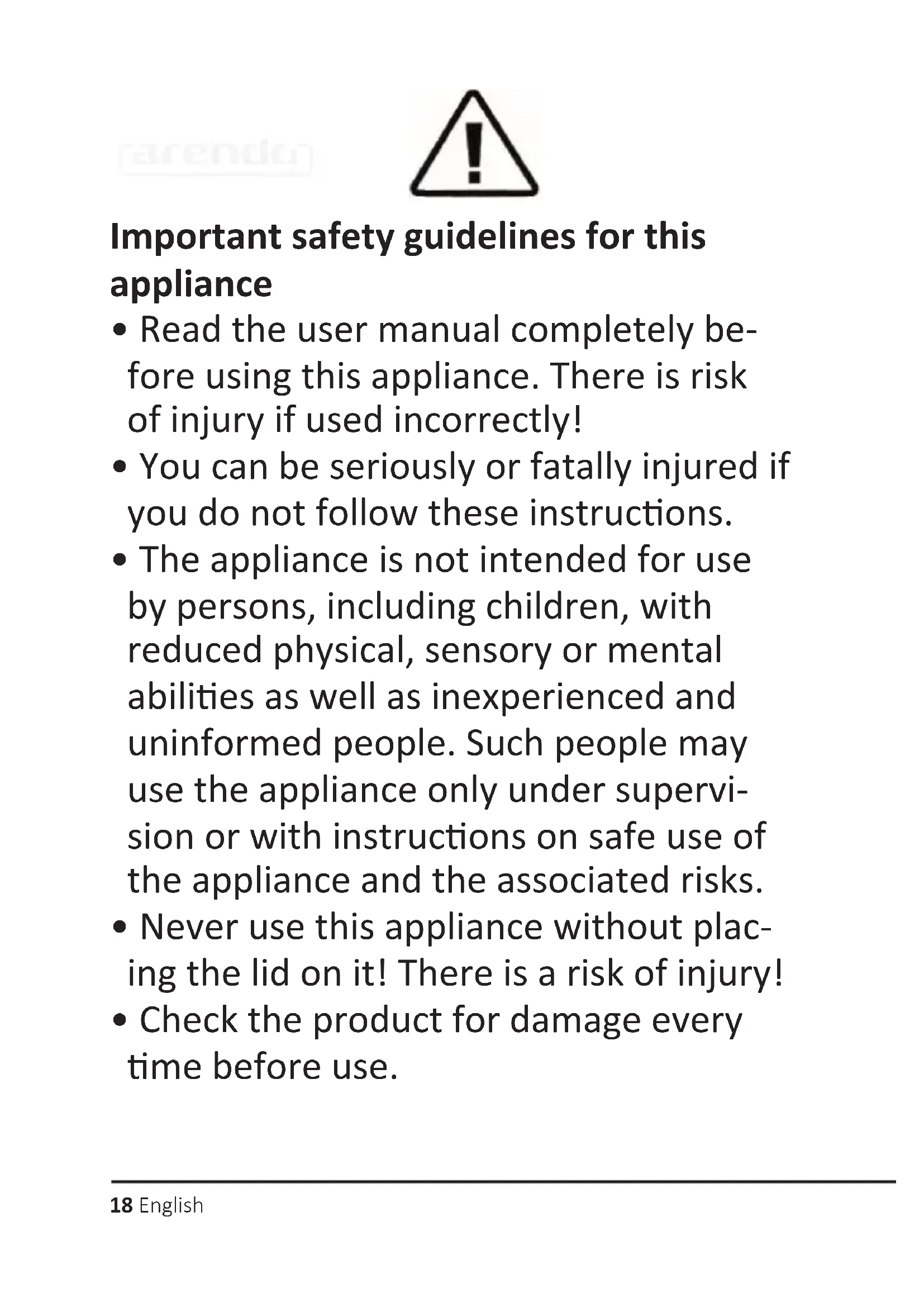

Important safety guidelines for this appliance

• Read the user manual completely before using this appliance. There is risk of injury if used incorrectly!
  • You can be seriously or fatally injured if you do not follow these instructions.
• The appliance is not intended for use by persons, including children, with reduced physical, sensory or mental abilities as well as inexperienced and uninformed people. Such people may use the appliance only under supervision or with instructions on safe use of the appliance and the associated risks.
• Never use this appliance without placing the lid on it! There is a risk of injury!
• Check the product for damage every time before use.

Do not operate the appliance if the cable, the plug or the appliance show any visible signs of damage.

• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Plug the appliance only into a properly installed power socket!
• Never leave the blender unattended and choose a location in which the appliance is out of reach of animals and/or children.
• Children should not play with the appliance.
• Keep the appliance out of the reach of children under 8 years of age.
• Keep it on an suitable surface so that it does not tip over.
• Do not keep the blender next to heat sources (e.g., electric stove).

arend

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Do not move the appliance when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• Keep the entire appliance away from water or other liquids.
• The product should not be used by children.

Keep this appliance and the power plug out of reach of children.

• Switch off the appliance and pull the power plug when you want to replace any accessories or to move the appliance to another location.
• Do not allow the power cable to protrude over edges (e.g., table edge or edge of a countertop, etc.).
• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.

• Do not remove the expansion cover. This function is not supported.

• Do not insert any body parts or objects that they are not intended for the purpose, into the mixer or into the spiral drive behind the expansion cover.

• Avoid contact with moving parts of the appliance. During mixing or if the appliance is turned on, all the body parts as well as hair, clothes and all utensils have to be kept away from the appliance to avoid the risk of injury and damage to the appliance.
• Only use accessories recommended by the manufacturer.
• This product is intended for personal use only!

• Connect the cable to a properly installed and earthed socket. Do not use an extension cable, adapter or power strip.

• Please do not use outdoors.

• Close supervision is required if the appliance is used by children or near children.
• Be careful when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Brief operation! Use the appliance for a maximum of 3 minutes at a time!
• Allow the appliance to cool down completely (at least 10-15 minutes) after use, before reusing it!

Thank you for choosing an Arendo product. Please read the following user manual carefully to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Base station
• User manual
• 1x blender jar + lid
• Blade unit

2. Technical data

Power supply 220-240V AC 50-60 Hz
Power consumption 1500 W
Dimensions (H x W x D) approx. 20 cm	x 18 cm x 44 cm
Weight approx. 4500 g
Capacity (blender jar) about 1.5 l (1.4 litre liquid)
Features • Non-slip base	• Safety lock • 3 different modes ("Ice Crush", "Smoothie", "Pulse")

3. Initial use

Take the appliance out of the packaging and remove all the packaging material. Clean the blender jar and the blade unit. You can clean the blender jar and the blender lid in the dishwasher or in soapy water. The blade unit is not suitable for dishwashers. Do not use any aggressive or strong cleaning agents.

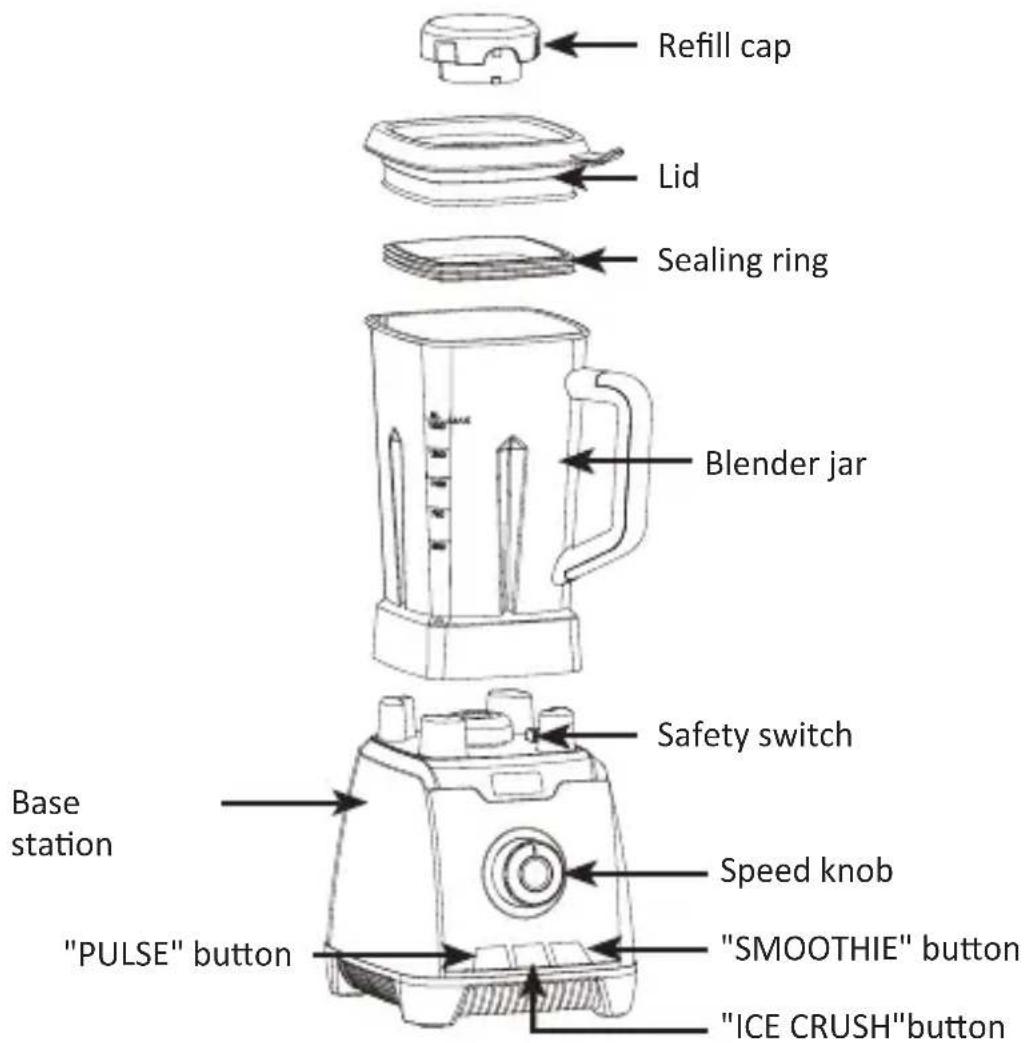

4. Product details

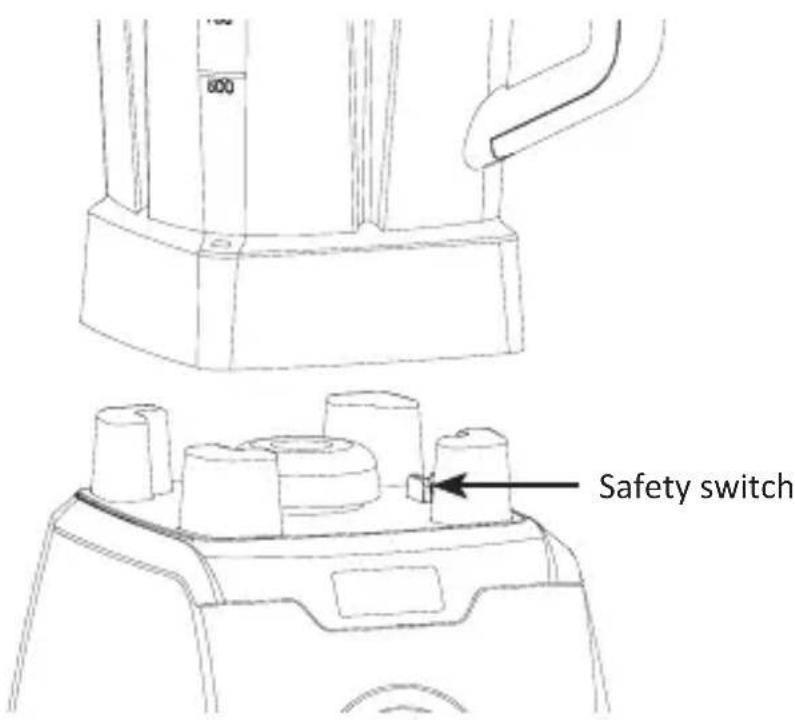

5. Safety switch

The appliance can be operated only if the blender jar is fixed in place. Make sure the container is properly fixed. Only then can the appliance be started.

6. Brief operation

The appliance is designed only for brief periods of operation. You can use the blender continuously for about 2-3 minutes. After this time, you must allow the motor to cool down for approx. 10-15 minutes.

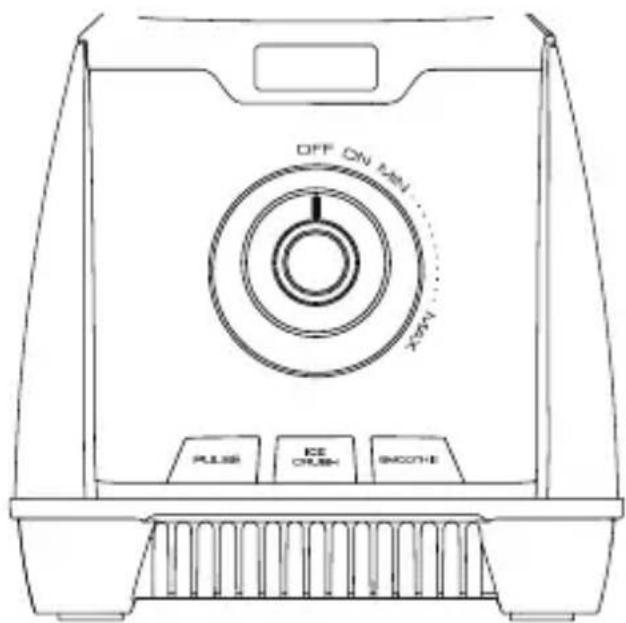

7. Operating controls

Turn the knob to the position "OFF" to switch off the appliance.

The speed increases if you turn the knob towards "Max". The speed decreases if you turn the knob towards "Min". If you want to use a program mode, then press one of the program buttons to start the corresponding program.

PULSE	Pressing this put the appliance in maximum speed (max. 3 minutes)
ICE CRUSH	0.15 seconds of blade rotation followed by 0.9 seconds of rest period (max. 40-46 seconds)
SMOOTHIE	Smooth start for 15 seconds followed by acceleration till maximum speed is reached (max. 2 minutes)
MIN speed	Low speed to mix sensitive food items with a folding movement; particularly suitable for combining wet and dry ingredients
Medium speed	(The medium setting is between Max and Min settings): Medium speed level and better control for mixing coarse items with having coarse textures.
MAX speed	High speed is ideal for mixing ingredients for making cock-tails and other finely-mixed blends

Notes on operation:

• You can press "PULSE" at any time to increase the motor speed to maximum. If you do not use the appliance for 3 minutes, it switches off automatically. Allow it to cool down completely before using it again.
• Press the "PULSE" button during the "ICE CRUSH" and "SMOOOTHIE" programs and release it to end the process prematurely. The appliance switches to standby mode.
• Pressing the "ICE CRUSH" and "SMOOOTHIE" buttons does not affect the operation of the "Speed knob". Press the "PULSE" button and release it again or turn the "Speed knob" to the "OFF" position to end the program prematurely during operation.
• The speed of the motor unit is changed according to the setting of the "Speed knob" by turning the "Speed knob" during the "ICE CRUSH" and "SMOOTHIE" programs. Then turn the knob to the OFF position to stop the operation.
• Turn the "Speed knob" to OFF position to stop a program during operation and to switch off the appliance.

8. Initial use

Connect the power plug of the appliance into a properly installed power socket.

Place the blender jar with the blade unit on the base unit. (Make sure that the jar is correctly placed on the safety switch (seen from the front: Handle to the right).

Now open the top of the blender jar and put in the required ingredients. The refill cap can be removed from the lid.

Do not use dry ingredients and ensure that there is enough liquid in the blender jar. Add liquid if required.

Select the required operating mode. The blender will then start to blend the ingredients.

Adhere to the prescribed operating time. Do not exceed the blending time under any circumstances.

After completing the blending process, please remove the blending jar from the base unit and disconnect the plug from the socket.

Note: The appliance is designed only for brief periods of operation. Allow the appliance to cool down for approx. 2 or 3 minutes of continuous operation before you reuse it (about 10-15 minutes)!

9. Cleaning and Care

Unplug the power cord from the mains outlet. Clean the base unit with a slightly dampened soft cloth. Caution! Do not use liquids to clean the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents. You can clean the blender jar, the lid and the blade unit in soapy water. The blender jar and the lid can also be cleaned in a dishwasher.

To clean the appliance quickly and immediately after use, fill the blender jar with warm water up to about 60% , add some detergent and let the appliance run briefly. Then, take the blender jar and shake it. Finally, rinse only the blender jar and the blade unit using clean water until all residue and traces of the detergent are removed. Allow all parts of the appliance to dry completely!

10. Important safety guidelines for this appliance

• Never use this appliance without placing the lid on it! There is a risk of injury!
• Do not use dry ingredients and ensure that there is enough liquid in the blender jar.
• Never operate the appliance in a dry condition.
• Check the appliance for damage every time before use. Do not operate the appliance if the cable, the plug or the appliance show any visible signs of damage.
• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Plug the appliance only into a properly installed power socket!
• Never leave the blender unattended and choose a location in which the appliance is out of reach of animals and/or children.
  Children should not play with the appliance.
• This appliance can be operated by children from 8 years of age and

above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Keep the blender out of reach of children under 8 years of age.
• Keep it on an suitable surface so that it does not tip over.
• Do not keep the blender next to heat sources (e.g., electric stove).
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Do not move the appliance when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• The appliance should not be used by children. Keep this appliance and the power plug out of reach of children.
• Switch off the appliance and pull the power plug when you want to replace any accessories or to move the appliance to another location.
• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Never insert body parts, or objects which are not defined for it, in the blender.

11. Troubleshooting

Error Cause	Troubleshooting
The appliance is not working correctly	·Appliance is not connected to the power supply ·Appliance is not switched on ·The appliance is overheating ·Too much content in the blender jar ·Appliance is defective	·Connect the power supply to the appliance ·Switch on the appliance ·Allow the appliance to cool down adequately after use ·Remove some contents from the blender jar ·Contact our customer service in case of defects
The blade unit is rotating slowly	·Too much content in the blender jar ·Not enough liquid in the blender jar (appl-ance is overheating)	·Remove some contents from the blender jar ·Allow the appliance to cool down adequately after use
The content is not blended properly	·Large pieces in the blender jar ·Too much content in the blender jar	·Remove some contents from the blender jar ·Chop the content into smaller pieces if required
The blender jar is leaking	·Parts are not mounted properly ·sealing ring is not present on the lid ·damaged sealing ring on the lid	·Check and mount the parts carefully ·Mount the sealing ring ·Replace the sealing ring with a new and proper sealing ring

12. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow.

Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

13. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304831/20200725FS027 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
