USER MANUAL AL C20D Yard Force

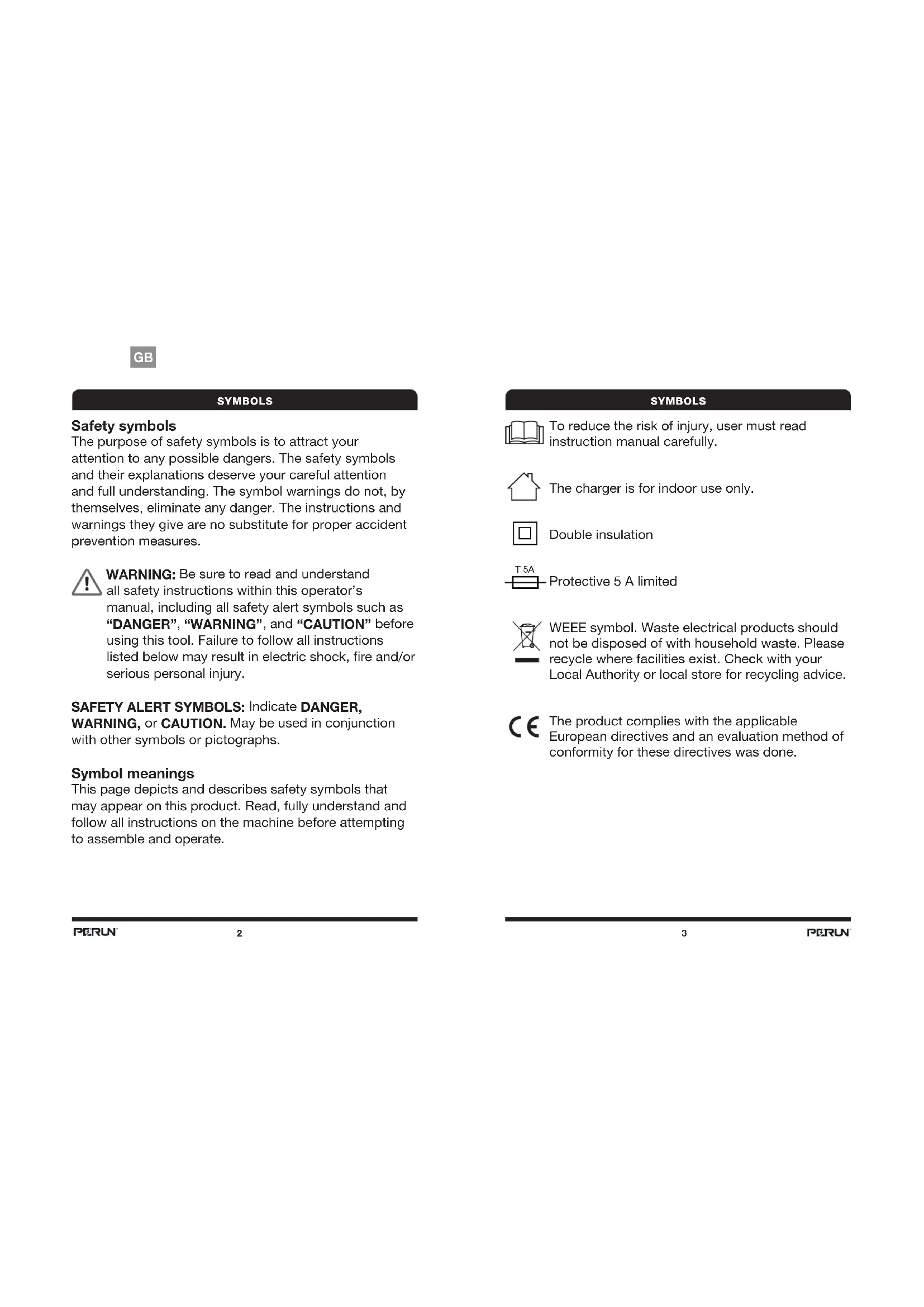

SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.

Be sure to read and understand all safety instructions within this operator’s manual, including all safety alert symbols such as “DANGER”

“WARNING” , and “CAUTION” before using this tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious personal injury. SAFETY ALERT SYMBOLS: Indicate DANGER, WARNING,

CAUTION. May be used in conjunction with other symbols or pictographs. Symbol meanings This page depicts and describes safety symbols that may appear on this product. Read, fully understand and follow all instructions on the machine before attempting to assemble and operate. SYMBOLS To reduce the risk of injury, user must read instruction manual carefully. The charger is for indoor use only. Double insulation Protective 5 A limited WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. T 5A GB4 5

vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. - Supervise children during use, cleaning and maintenance. This will ensure that children do not play with the charger. - This tool is not intended for use by persons (including children) with reduced physical, sensory or mental ca- pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con- cerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance of the battery charger shall not be made by children without supervision. - Do not cover off the battery charger. Otherwise, the battery charger can overheat and no longer operate properly. - In addition, observe the safety instructions for the battery. - This is a class I unit and may only be connected to properly earthed power sources. Products sold in GB only: Your prod- uct is tted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug tted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The

GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS

Read all safety warnings and all instructions. Fail- ure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save these instructions for later use. Use the battery charger only when you fully understand and can perform all functions without limitation, or have re- ceived appropriate instructions. - Only charge PERUN lithium-ion batteries. The battery voltage must match the battery charging voltage of the charger. Otherwise there is danger of re and explosion. - Keep the battery charger clean. Contamination can lead to danger of an electric shock. - Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualied technician and only using original spare parts. Damaged battery chargers, ca- bles and plugs increase the risk of an electric shock. - Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the charger. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or en- tangled cords increase the risk of electric shock. - Do not operate the battery charger on easily inammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a re hazard. - In case of damage and improper use of the battery, GB6 7

INTENDED USE Battery charger Model AL C20DInput 220-240 V ～, 50/60 Hz 120 WOutput 21 V , 4 AProtection class II Charging the battery pack NOTE: Remove the battery pack from the charger after it has been fully charged. NOTE: Battery should be fully charged before rst use.NOTE: Make sure the mains voltage is the same as rating label which is located on the charger. 1. Connect the charger to a power supply. The red LEDwill light up.2. To insert the battery pack into the charger, align theraised ribs of the battery pack with the grooves of thecharger then push it in.3. The green LED light of the charger will ashcontinuously during normal charging.4. After charging is complete, the green LED will light up. TECHNICAL DATA OPERATION The contained charger is intended for use with PERUN battery pack. Maintenance and Cleaning Occasionally clean the battery using a soft, clean and dry brush. Disposal Battery chargers, accessories and packaging should be sorted for environmental-friendly recycling.Do not dispose of battery chargers into household waste!Only for EC countries:According to the European Guideline 2012/19/EU for Waste Electrical and Elec- tronic Equipment and its implementation into national right, battery chargers that are no longer usable must be collected sepa- rately and disposed of in an environmental correct manner.

severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. To the provisions of Council Directives MEROTEC GmbHOtto-Brenner-Str. 847877 Willich, GermanyDeclare that the product:Machine Description: 20V ChargerAL C20DB0Q-SP07-2040ZA / B0Q-SP07-2040ZBFunction: Charging batteryComplies with the essential health and safety requirements of the following directives:Low Voltage Directive 2014/35/EUElectromagnetic Compatibility Directive 2014/30/EU EC Directive 2011/65/EU and its amendment Directive (EU) 2015/863 (RoHS)Standards and technical specification referred to :EN 60335-1: 2012+A11+A13 EN 60335-2-29: 2004+A2+A11EN 55014-1: 2017 EN 55014-2: 2015 EN 55014-1:2006+A1+A2EN 61000-3-2: 2014 EN 61000-3-3: 2013EN 50581: 2012 EN62233: 2008Authorized SignatoryDate: 24.03.2020Signature:________________________Place: WillichName: Roland MenkenGeneral Manager The object of the declaration described above satises the provisions of directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harm- ful substances in electrical and electronic appliances. CE DECLARATION GB8 9
