USER MANUAL AR5BR41PB ARDES
3. Safety screw of the fan
5. Lock ring of the back grille
16. Weight of the plastic base
17. Lock ring for weight xing

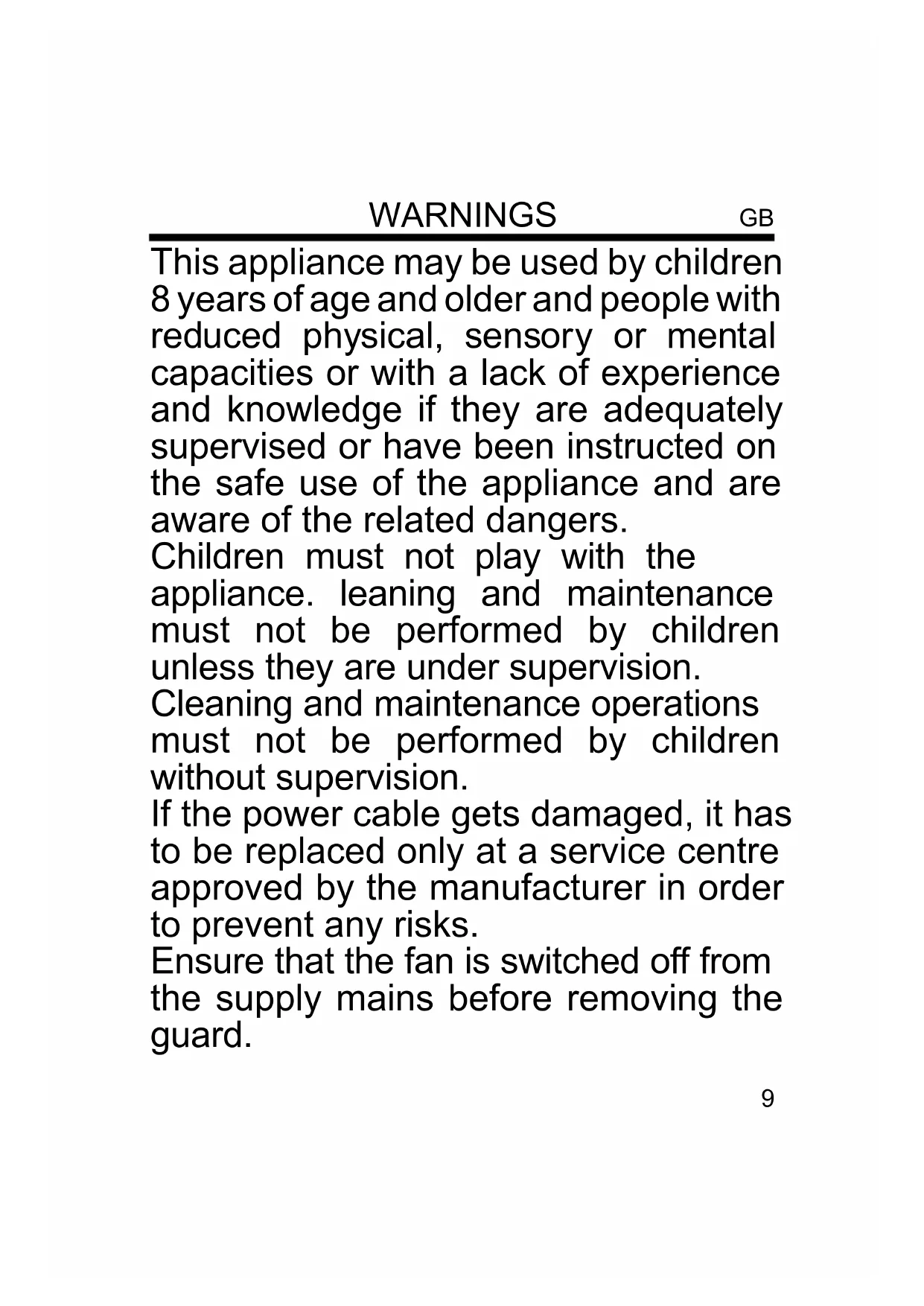

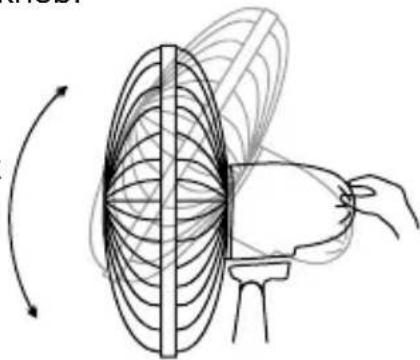

A-B. Locking pin for the rear grille13 Before carrying out the regular cleaning operations turn o the fan and unplug it. Ensure that the fan is switched o from the supply mains before removing the guard. For external cleaning use a soft and dry cloth. DO NOT dip the device in water, or splash it with any other liquids. DO NOT use solvents or any other chemical products for cleaning it. Reinstall the guard after cleaning and before connecting the plug tot he mains. When you do not use it, after cleaning it, store the fan in a dry place. MAINTENANCE Place the fan on a at, dry and stable surface, and insert the plug of the fan in a socket. Select the desired speed by pressing the buttons on the control panel (10): 0 = o 1 = minimum speed 2 = medium speed 3 = maximum speed OSCILLATION: For the automatic oscillation from right to left press the knob (8) placed on top of the motor. To disable it, pull up the knob. VERTICAL SLOPE: You can vertically point the front of the fan choosing the desired angle. It is sucient to move the front of the fan up or down according to the desired slope. ADJUSTMENT HEIGHT Loosen the height adjustment knob (13), then set the desired height for the fan. Tighten rmly the knob after adjusting the rod. N.B: this operation must always be carried out while the fan is turned o.
