JB197 - Blender Brentwood - Free user manual and instructions

Product Type	Personal Travel Blender/Mixer
Brand	Brentwood
Model	JB197
Usage	Indoor household use only
Power Supply	120 V AC, 60 Hz, polarized plug
Mixing Function	Pulse action, lock on base
Maximum Mixing Time per Cycle	1 minute
Recommended Rest Time	3 minutes between cycles
Blade Material	Stainless steel
Dishwasher-safe Components	Lid, cup and blade assembly
Motor Base Cleaning	Wipe with a damp cloth
Safety	Very sharp blades, do not immerse base
Power Cord	Short, extension cord use not recommended
Warranty	See page 5 of the manual
Package Contents	Motor base, travel cup, lid, blade assembly

Frequently Asked Questions - JB197 Brentwood

How do I use my Brentwood JB197 blender for the first time?

Before first use, wash the cup, lid and blade assembly with warm soapy water. Rinse and dry. Then assemble by following the instructions: align the white dot with the dash - on the base, then turn clockwise to lock. Plug in and blend using pulse action.

Can I blend hot liquids with the JB197 blender?

No, it is not recommended to blend hot liquids. The cup is not designed to withstand heat and blending could cause splattering or damage the appliance.

What if my blender does not start?

Check that the cup is properly locked onto the base (turned clockwise until it clicks). Make sure the plug is inserted into a 120 V AC outlet. If the problem persists, check the condition of the cord and plug. Do not attempt to repair yourself.

How do I clean the blades of the JB197 blender?

The blades are very sharp. Unplug the appliance. Remove the blade assembly from the cup and wash it in the dishwasher or with warm soapy water. Use a small nylon brush to dislodge residue. Rinse and dry thoroughly.

Can I use an extension cord with the Brentwood JB197 blender?

Use of an extension cord is not recommended. If absolutely necessary, choose an extension cord with a power rating at least equal to that of the appliance and place it to avoid tripping hazards.

The blender makes noise and a slight odor during first use, is this normal?

Yes, a slight odor or smoke may be emitted during first use due to chemical reaction of heating elements. This will disappear quickly. Ensure to use the appliance in a well-ventilated area.

What is the maximum continuous operating time of the JB197 blender?

Do not operate the blender for more than one minute per cycle. After each minute of blending, let the motor rest for at least 3 minutes before using again to avoid overheating.

How do I properly assemble the cup and blades?

Place ingredients in the cup (do not exceed the MAX line). Screw the blade assembly onto the cup by turning clockwise until tight. Turn the cup over and insert it into the motor base aligning the notches, then turn the cup clockwise to lock.

Where can I find replacement parts for the Brentwood JB197?

The product contains no user-serviceable parts. For replacement parts, please contact the manufacturer or refer to the warranty policy on page 5 of the manual. Do not attempt to repair yourself.

What if the power cord is damaged?

If the cord or plug is damaged, do not use the appliance. Do not attempt to repair it yourself. Contact a qualified professional or refer to the warranty for replacement.

USER MANUAL JB197 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

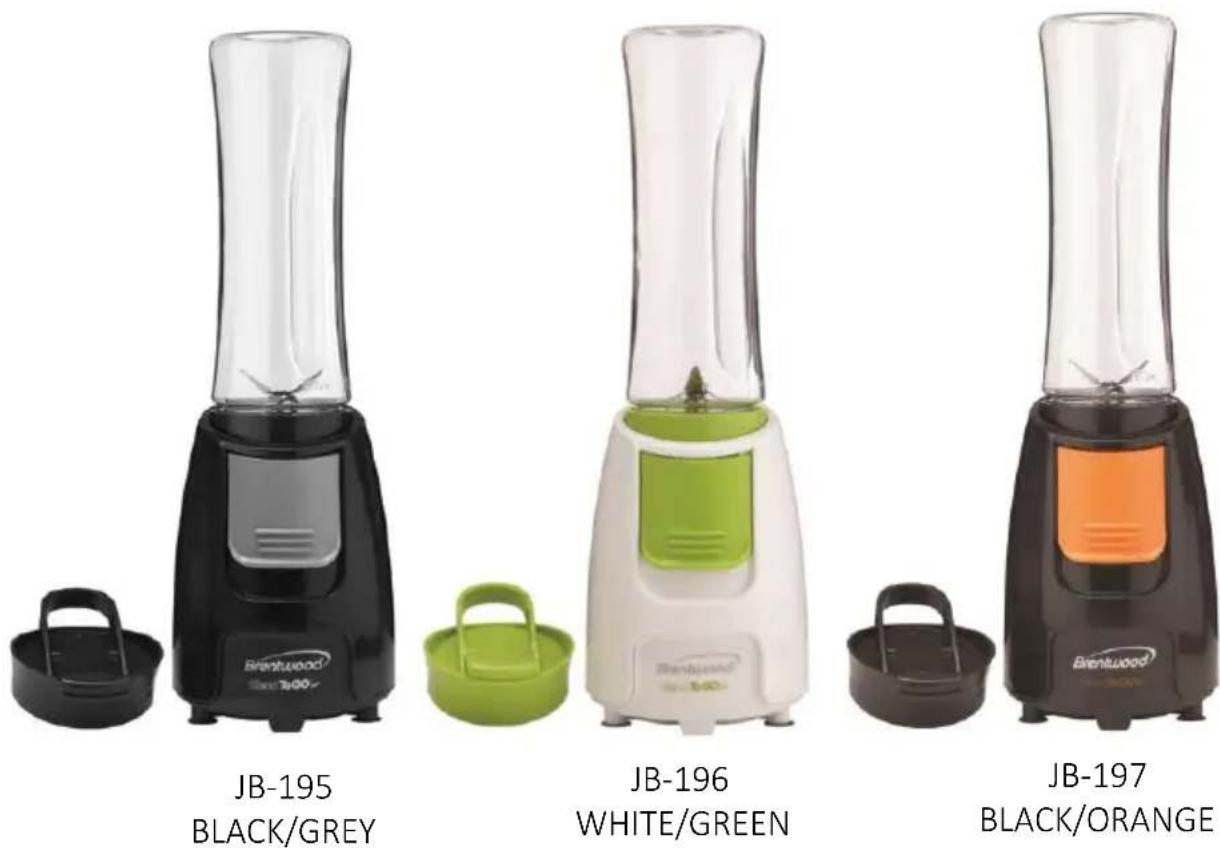

BLEND-TO-GO BLENDER LICUADORA BLEND-TO-GO / MÉLANGEUR DE VOYAGE

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

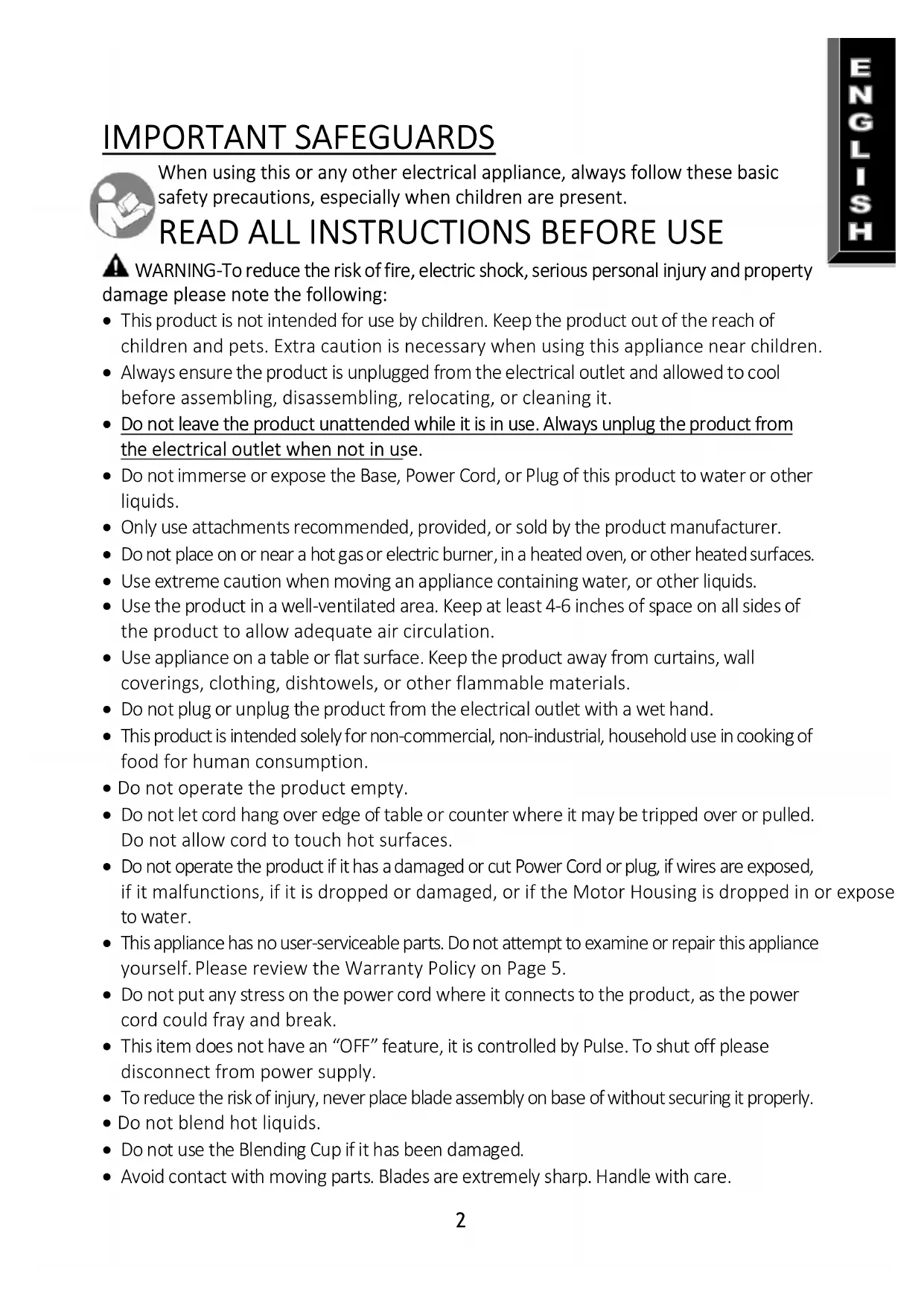

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this product to water or other liquids.
• Only use attachments recommended, provided, or sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing water, or other liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption.
• Do not operate the product empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or expose to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 5.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.
• This item does not have an “OFF” feature, it is controlled by Pulse. To shut off please disconnect from power supply.
• To reduce the risk of injury, never place blade assembly on base of without securing it properly.
• Do not blend hot liquids.
• Do not use the Blending Cup if it has been damaged.
• Avoid contact with moving parts. Blades are extremely sharp. Handle with care.

SPECIAL INSTRUCTIONS:

- Do not use for Ice Crushing only. Do not overfill or add to much ice or frozen fruits. This can cause the Blending Cup to Chip or Break.

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if or must be used:

— The marked electrical rating must be at least as great as that of the product.

- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter plug. Do not attempt to defeat the safety purpose of the polarized plug.

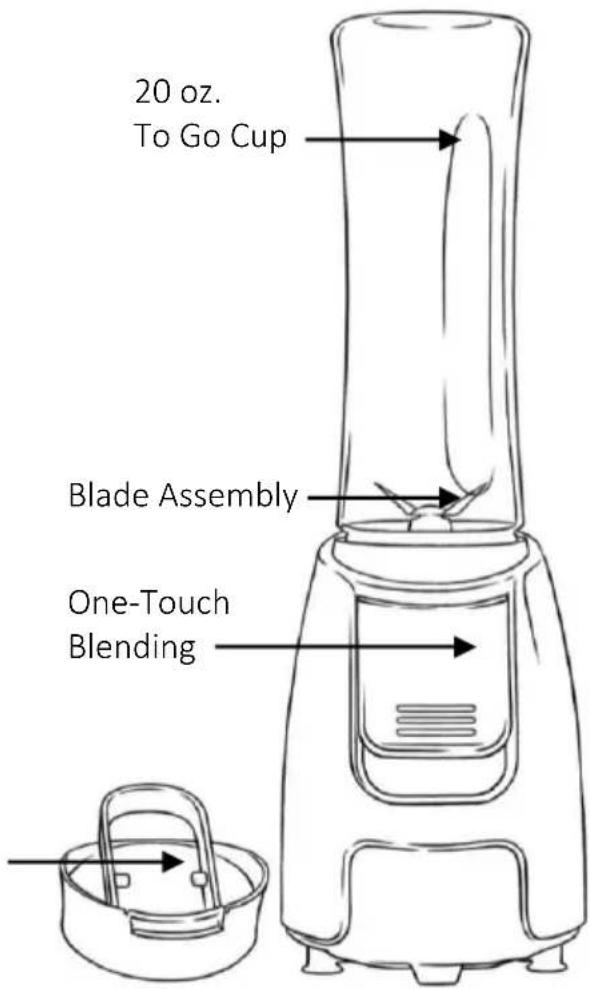

Parts:

Technical line drawing of a mechanical component with no visible text or symbols

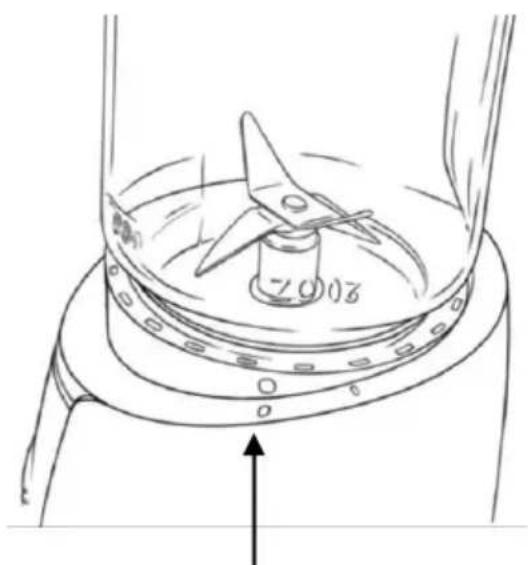

Line up "White Dot" with "-" , then turn clockwise so the Dot lines up with the Dot • on the motor base. Cup is now secure.

Travel Lid

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material. Make sure to handle the Blade attachment by its collar only.

WARNING: Blades are extremely sharp. Use extreme care when handling.

- Before your first use, wash the Travel Lid, Blend To Go-Blender Cup and Blade assembly using warm soapy water. Rinse thoroughly and dry before assembling the blending jar.

- Do not rush while washing the Blade Assembly. The blades are extremely sharp and can easily cause injury if not handled carefully.

Using Your Blend-To-Go Blender:

WARNING: Avoid contact with moving parts.

1. Place the Motor Base on a clean, flat surface.
2. Fill your clean Blend-To-Go Cup with your favorite ingredients, leaving at least a 1-inch rim and do not fill past the Max line. This will allow the Blade Assembly to be inserted without overfilling the Cup.
3. Place the Blade Assembly and tighten by turning clockwise until it completely secured.
4. Turn the bottle over and insert into the motor base until the slots are in place. (See image above) Turn the Cup clockwise to lock it in place.
5. Connect Plug to the nearest electrical outlet. Pulse your beverage to the consistency of your preference.

CAUTION: Pulse no longer than 1 minute straight. Allow motor to rest 3 minutes before continuing. 1 minute can overheat the motor.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. When you have finished blending, disconnect the appliance from the outlet and turn the blending cup counterclockwise to remove from the base.

2. Lift and position the cup right side up and carefully remove the Blade assembly and add the Travel Lid.

Cleaning Your Blend-To-Go Blender:

WARNING: Always unplug the product and allow it to cool before cleaning or storing it.

NOTICE: Never immerse the motor base, plug or cord in water or any other liquid.

• It is recommended to rinse parts immediately after use to make cleaning easier.
• Handle blades with extreme caution. You may use a small nylon bristle brush to remove food that has adhered to the Blade assembly.
• Travel Lid, To-Go Cup and Blade assembly are dishwasher safe. Or can be washed using warm soapy water. Do not use abrasive cleaners or pads.
• Rinse thoroughly and dry. Reassemble and store.
• The motor base may be wiped with a damp cloth.

NOTE: NEVER IMMERSE THE BASE IN ANY WATER OR LIQUID

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
