UC0501 - Vacuum Cleaner Vacmaster - Free user manual and instructions

Product type	Bagless Stick Vacuum Cleaner
Brand	Vacmaster
Model	UC0501
Rated voltage	120 V AC
Rated frequency	60 Hz
Rated current	7.5 A
Filter types	Felt filter, primary filter, pre-filter, foam filter
Included accessories	3-in-1 Multi-Accessory (crevice tool, dusting brush, furniture brush)
Main functions	Stick vacuuming, accessory mode, motorized roller brush
Regular maintenance	Emptying dust cup, cleaning filters, replacing belt, cleaning roller brush
Safety	Automatic shut-off in case of overheating, protection against electric shock (polarized plug)
Warranty	1 year against material and workmanship defects
Replacement parts	Felt/primary filter (571029102), foam filter (571029103), belt (571029105), roller brush (571029104), hose (571029101), 3-in-1 tool (571029106)
Intended use	Household use only

Frequently Asked Questions - UC0501 Vacmaster

What to do if my vacuum cleaner does not turn on?

First, check that the plug is fully inserted into the wall outlet. Press the power button to start. If it still doesn't work, the motor may be overheating: unplug and let it cool for 50 minutes. If the problem persists, contact customer service at 1-866-384-8432.

How to improve suction power?

Check that the dust cup is not full and empty it if necessary. Clean the filters (felt filter, primary filter, pre-filter) with cold water and let dry for 24 hours. Ensure the hose and accessories are not clogged. If suction is still weak, replace the filters or belt.

Dust is escaping from the vacuum, why?

This may be due to a poorly installed dust cup or missing or incorrectly positioned filters. Check that the cup is properly clicked in and that the felt filter, primary filter, and pre-filter are correctly placed and undamaged. Replace filters if necessary.

The roller brush does not turn or smells burnt, what to do?

Turn off and unplug the vacuum. Check that the roller brush is not blocked by debris (hair, strings). Clean it with scissors. Inspect the belt: if worn or broken, replace it. Ensure the belt is properly routed around the motor shaft and brush.

How to clean the filters of my vacuum?

Remove the dust cup. For the felt filter and primary filter, tap them to remove debris, then rinse with cold water without detergent. Gently squeeze and let dry for 24 hours. For the pre-filter, tap it over a trash can and rinse if needed. The foam filter washes with cold water, hand-squeeze and let dry for 24 hours. Never use detergents or a dishwasher.

How often should I empty the dust cup?

For optimal performance, empty the dust cup after each use. Press the release button to remove the cup, open the lid, and empty contents into a trash can. Shake the cup to clear the pre-filter before reinstalling.

How to replace the belt of my vacuum?

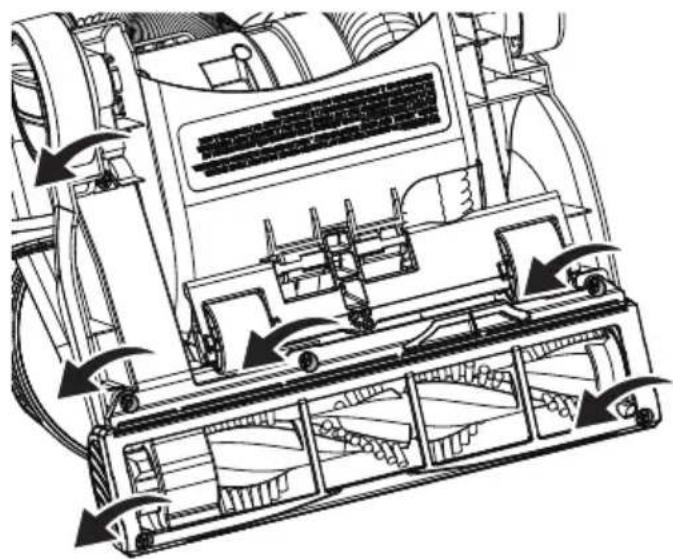

Unplug the vacuum. Turn the appliance over and remove the six screws from the bottom plate with a Phillips screwdriver. Lift the plate, remove the roller brush and worn belt. Place the new belt around the motor shaft and in the brush channel. Reinstall the brush, bottom plate, and screws. Do not overtighten.

How to use the accessories (3-in-1 tool)?

To use the 3-in-1 multi-accessory, release the hose from the lower connector and insert it into the upper connector. Detach the tube, then attach the chosen tool. Three modes: crevice tool for tight spaces, dusting brush for curtains, furniture brush for fabrics. After use, return the hose to upright position.

How to unclog the hose if blocked?

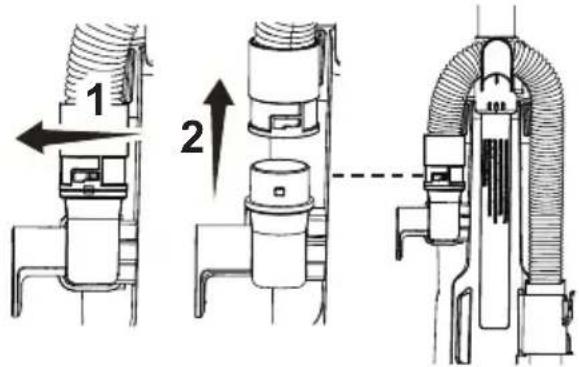

If suction drops suddenly, check for blockages. Remove the ends of the hose from the main body and lower connector. Use a long object to clear the blockage. Also check the connection hose by removing a screw if necessary. Reinstall the hose after cleaning.

What to do if the vacuum turns off by itself?

This may be due to an accidental disconnection of the power cord. Check that the plug is fully inserted into the outlet and avoid pulling on the cord. If the appliance overheats, unplug it and let it cool for 50 minutes. If the problem persists, the motor may be damaged: contact customer service at 1-866-384-8432.

USER MANUAL UC0501 Vacmaster

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Bagless Upright Vacuum Cleaner / Aspirateur Vertical Sans Sac / Aspiradora de Pie Sin Bolsa

Important Safety Instructions....3

Warranty....4

Technical Data....4

Getting To Know Your Vacuum.... 5

General Assembly Instructions.... 7

Operating Instructions....10

Maintaining Your Vacuum....16

Troubleshooting....27

Thank you for purchasing this Vacmaster ^® vacuum cleaner. With it you are obtaining a high-quality product that is engineered for optimal performance.

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual and your sales check (receipt) in a safe place for future reference.

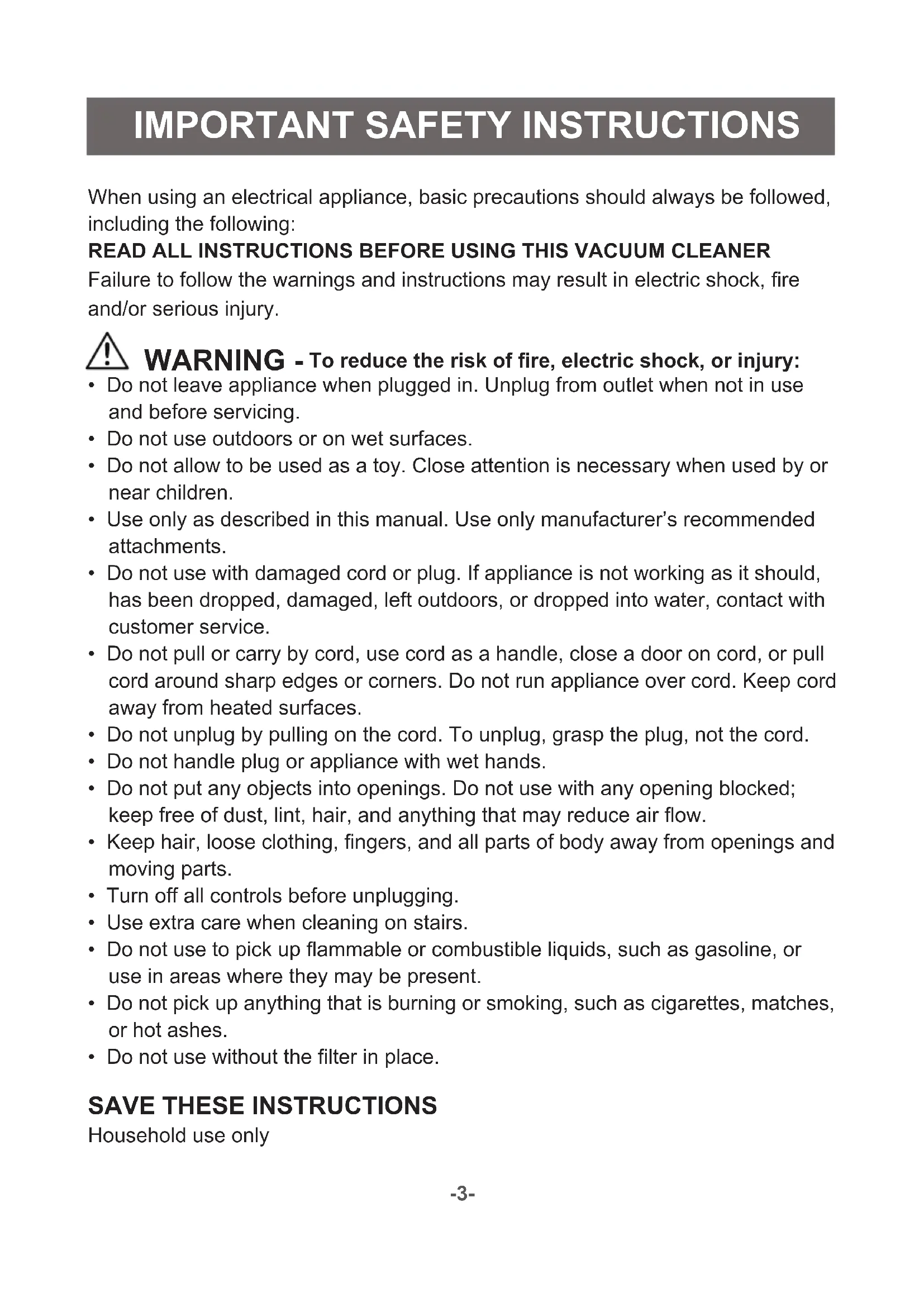

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, contact with customer service.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without the filter in place.

SAVE THESE INSTRUCTIONS

Household use only

WARRANTY

FOR ONE YEAR from the date of sale, this product is warranted against defects in material or workmanship when it is assembled, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call 1-866-384-8432.

• This warranty does not cover filters or belt, which are expendable parts that can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household purposes.
• This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TECHNICAL DATA

Bagless Upright Vacuum Cleaner

Model: UC0501

Rated Voltage: 120V AC

Rated Frequency: 60Hz

Nominal Current: 7.5A

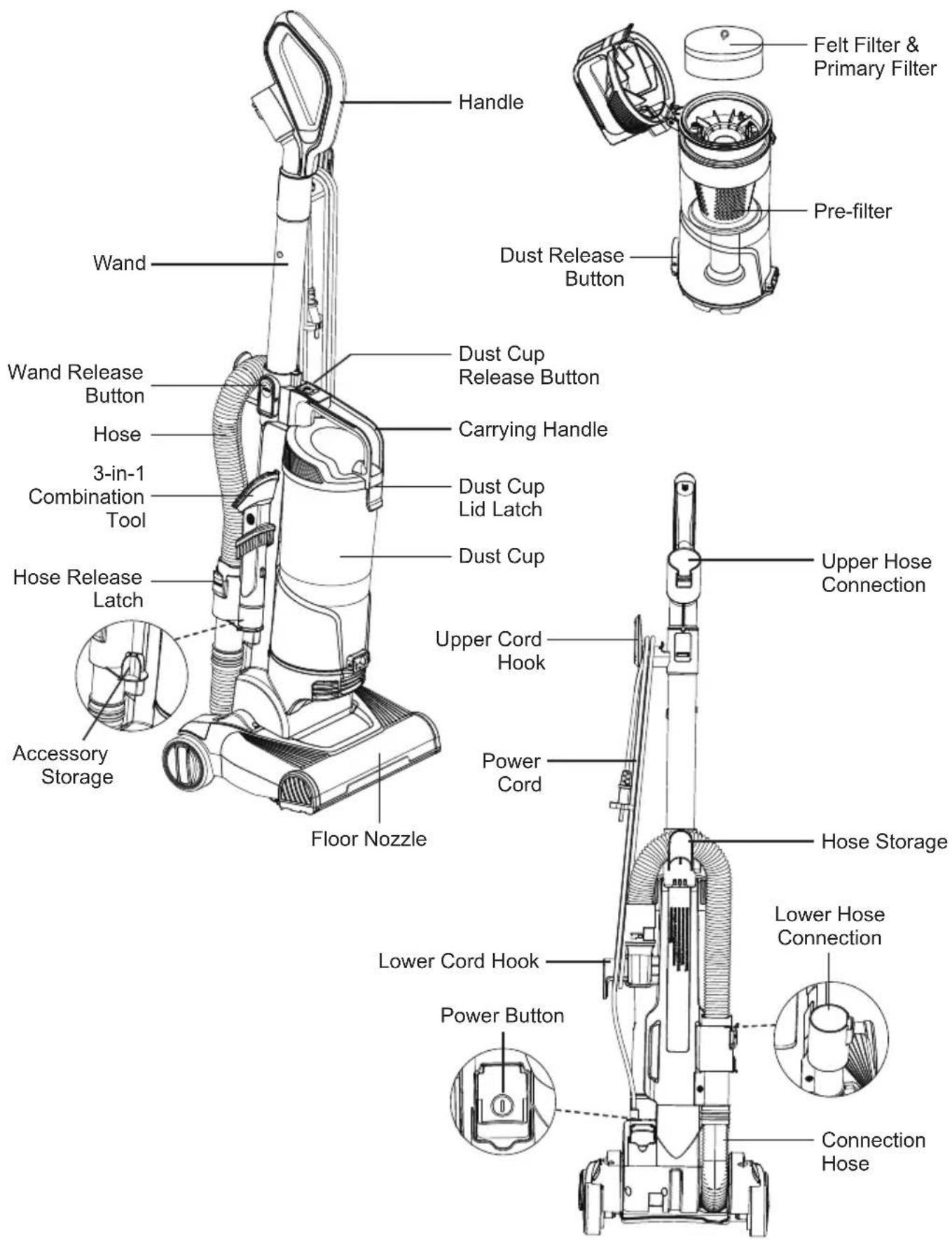

GETTING TO KNOW YOUR VACUUM

Handle Felt Filter & Primary Filter Pre-filter Dust Release Button Wand Dust Cup Release Button Wand Release Button Carrying Handle Hose 3-in-1 Combination Tool Dust Cup Lid Latch Dust Cup Hose Release Latch Upper Hose Connection Upper Cord Hook Power Cord Hose Storage Lower Hose Connection Floor Nozzle Power Button Lower Cord Hook Connection Hose

Replacement Parts

Item Part No.
Felt Filter & Primary Filter 571029102
Foam Filter 571029103
Belt 571029105
Brushroll 571029104
Hose 571029101
3-in-1 Combination Tool 571029106

Available online at www.vacmaster.com or call 1-866-384-8432.

GENERAL ASSEMBLY INSTRUCTIONS

1. Insert the wand into the main body until you hear a 'click'.

Wand

1. Install the hose onto the main body. Align the locking end of the hose with the main body as shown, and lock the end of the hose by rotating to the left. Then run the hose over the hose storage. Insert the other end of the hose into the lower hose connection as shown until you hear a 'click'.

1 2 3 4 Lower Hose Connection

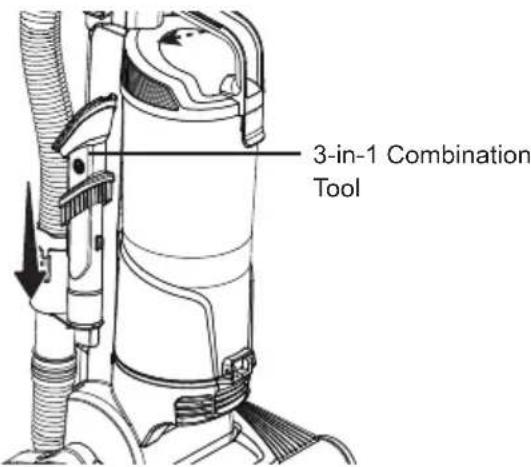

1. Insert the combination tool onto the accessory storage as shown.

3-in-1 Combination Tool

1. Make sure the upper cord hook is in the upright position as shown. Wrap the power cord loosely around the upper and lower cord hooks.

Upper Cord Hook Lower Cord Hook

1. Lock power cord plug onto the power cord.

Power Cord Plug Power Cord

WARNING

Wrapping the cord too tightly with excessive stress on the cord may cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

OPERATING INSTRUCTIONS

Using Your Upright Vacuum Cleaner

NOTE: Make sure the vacuum cleaner is completely assembled and the dust cup is empty before using. Do not operate vacuum cleaner without filters in place.

1. Turn the upper cord hook to either side to release the power cord.

Mechanical diagram showing a linkage mechanism with bidirectional arrows indicating motion (no text or symbols)

1. Detach the power cord plug from the power cord.

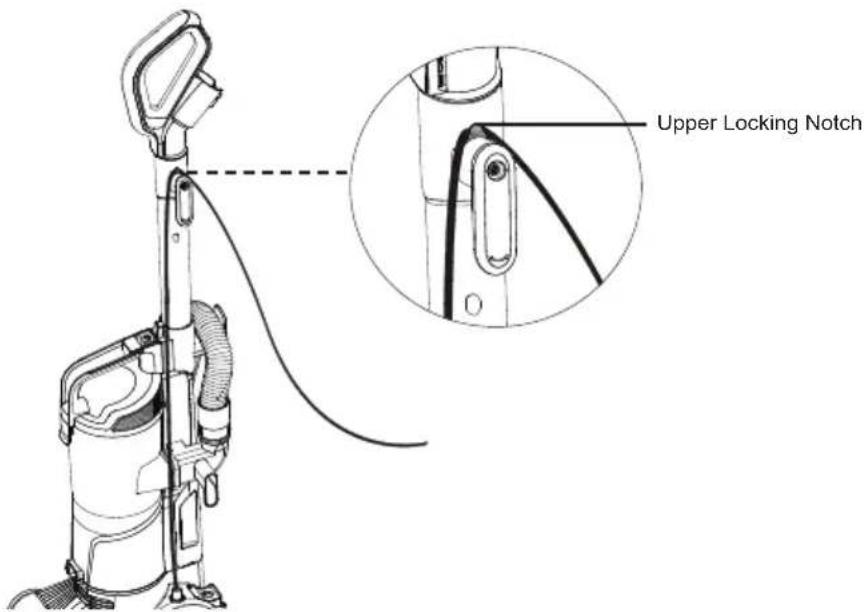

2. Be sure the power cord is locked into the upper locking notch as shown. This will help manage the power cord when operating the vacuum cleaner.

Upper Locking Notch

1. Plug the power cord into an outlet located near the floor.

Illustration of a plug plugged into a socket with arrows indicating direction (no text or symbols)

WARNING

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

1. Release the handle by placing foot on the floor nozzle and pull back to change the handle position.

Line drawing of a vacuum cleaner's side arm and base, showing mechanical components without any text or symbols

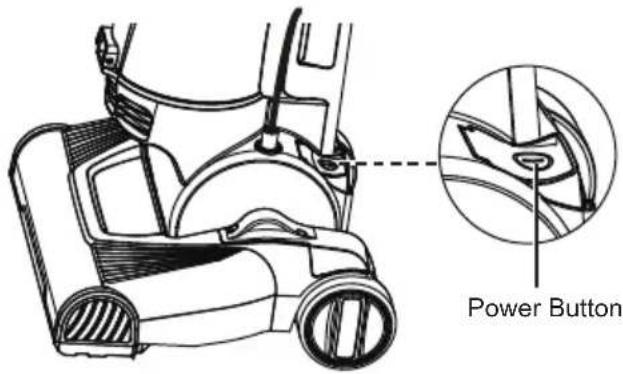

1. Press the power button with your foot to turn the vacuum cleaner on.

Power Button

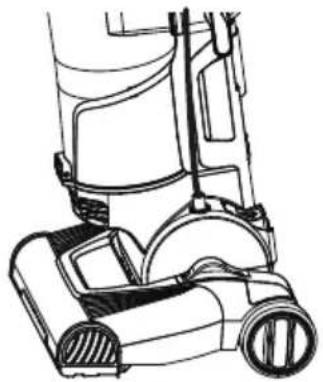

1. Once you have completed vacuuming, press the power button again. Return the handle to the fully upright position by pushing the handle forward until the vacuum body is locked down in place. Unplug the power cord from the power outlet.

Line drawing of a vacuum cleaner with attached housing (no text or symbols)

1. To store power cord after use, turn the upper cord hook to the upright position. Then wrap cord loosely around cord hooks.

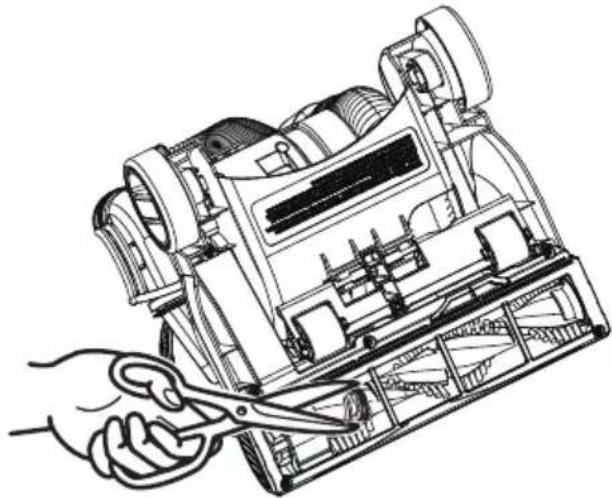

NOTE: Always keep the brushroll free of carpet fiber, string, or hair build-up to maintain a longer life of the brushroll belt. If the brushroll is entangled by any string or hair, stop using and clean the brushroll immediately.

CAUTION

Do not allow the vacuum cleaner to remain in one spot for any length of time when the brushroll is turning. Damage to carpet may occur.

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll in the floor nozzle when the vacuum is on. Contacting the brushroll while it is rotating can cause injuries. Disconnect electrical supply before servicing or cleaning the vacuum cleaner. Use caution when operating near children.

Diagram of a hand holding a rubber hose with a prohibition symbol (no text or labels present)

Using Your Vacuum Cleaner with Accessory

NOTE: Brushroll continues to rotate when using the vacuum with accessories. DO NOT place the vacuum on the deep pile carpet to avoid damage to carpet.

1. Place vacuum cleaner in the upright locked position.

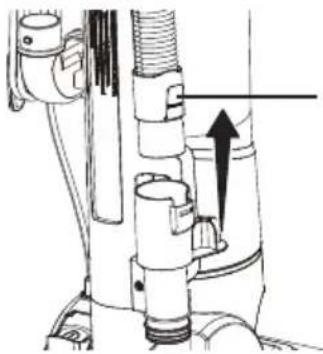

2. Press the hose release latch and release the lower hose end from the lower hose connection.

2 Hose Release Latch 1

1. Insert the hose end into the upper hose connection as shown until you hear a 'click'.

Upper Hose Connection

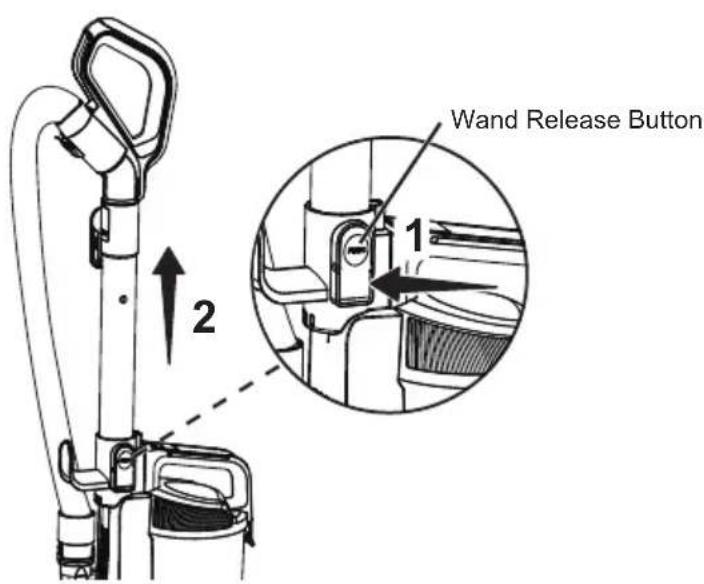

1. Press the wand release button and lift up the wand.

Wand Release Button 1 2

1. Choose the desired accessory and insert into the wand.

3-in-1 Combination Tool

NOTE: You can also choose to use your vacuum cleaner by inserting the combination tool directly into the hose.

3-in-1 Combination Tool

1. Plug the power cord into an outlet located near the floor.

Illustration of a plug plugged into a socket with arrows indicating direction (no text or symbols)

1. Press the power button to turn the vacuum cleaner on.

2. Once you have completed vacuuming, press the power button again. Remove the accessory and unplug the power cord plug from the outlet.

IMPORTANT: Make sure to re-insert the hose end into the lower hose connection before using the vacuum in upright mode.

CAUTION

When using accessories, be careful not to overextend the hose when reaching to avoid tipping the vacuum over.

CAUTION

DO NOT pull the vacuum cleaner around the room by the hose. Property damage or personal injury could result.

Accessory

3-in-1 Combination Tool

The 3-in-1 combination tool can be attached to the end of the wand and the hose.

Use the 3-in-1 combination tool in crevice tool mode for cleaning in tight spaces such as furniture, between cushions, and stairs.

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Set the combination tool in dusting brush mode by pressing the release button and sliding the dusting brush side of the brush tool to the end of the combination tool. Use in dusting brush mode for cleaning loose surfaces such as drapes.

Dusting Brush Release Button

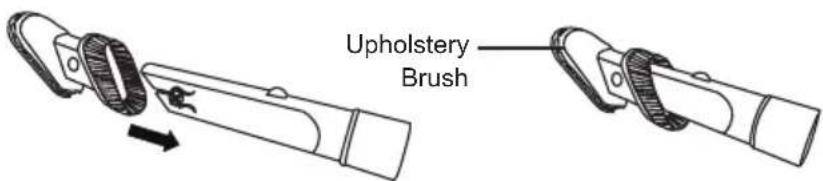

Press the release button to remove the brush tool. Set the combination tool in upholstery brush mode as shown. Use in upholstery brush mode for cleaning fabric surfaces such as fabric sofa.

Upholstery Brush

To return the combination tool to crevice tool mode, press the release button and slide the brush tool down the combination tool.

NOTE: Always clean accessory before using on fabrics.

Storing your vacuum

1. Ensure the hose is locked into place and the accessory is stored on-board.

2. Gather the cord and wrap it loosely around the upper and lower cord hooks. Lock the power cord plug onto the power cord.

3. Store the vacuum cleaner in a dry, indoor area, on the floor with the handle locked in the upright position.

MAINTAINING YOUR VACUUM

CAUTION

To reduce the risk of shock, turn off and disconnect the power cord before performing any service or maintenance.

NOTE: Use dry cloth to clean the outside of the unit. Do not allow any kind of liquid to enter the unit. Wash the accessory in warm soapy water, rinse and air dry. Do not clean in dishwasher.

Emptying the Dust Cup

NOTE: For best performance, empty dust cup after every use. Never operate vacuum cleaner without dust cup and filters in place.

1. Press the dust cup release button to remove the dust cup from the main body.

1 Dust Cup Release Button 2 Dust Cup

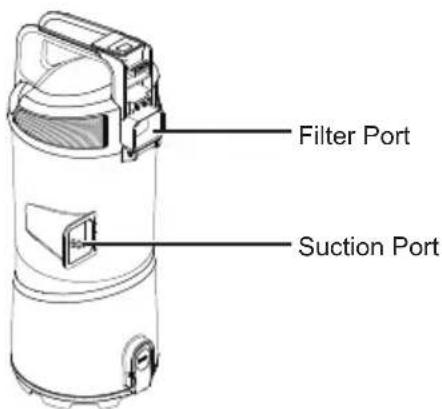

1. Remove any clogs that might be located in the suction port or filter port area.

Filter Port Suction Port

1. Position dust cup area of vacuum over a waste receptacle. Press down on the dust release button to open dust lid and allow contents to drop into waste receptacle.

Dust Release Button

1. Shake the dust cup to release any debris that might hang in the pre-filter.

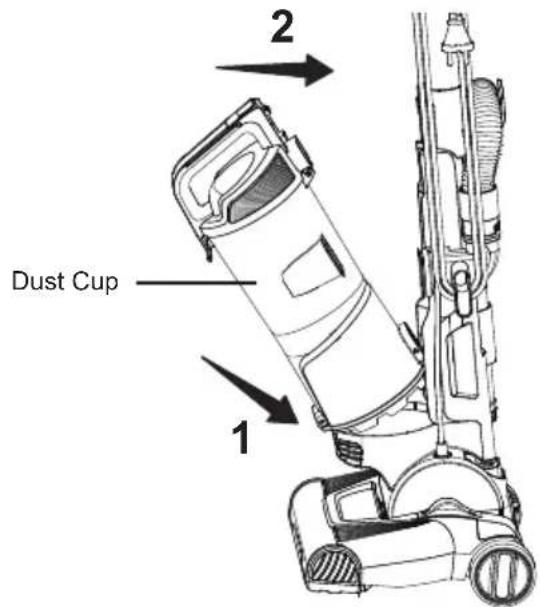

2. Reinstall and insert the dust cup into the slots on the bottom of the main body, then press the dust cup into locked slot and click into place.

Dust Cup 1 2

Cleaning the Felt Filter and Primary Filter

The felt filter and primary filter are fixed together and located inside the dust cup lid.

It is recommended to clean the felt filter and primary filter with cold water at least once a month. Check the felt filter and primary filter frequently and clean when dirty.

1. Remove the dust cup as outlined in the Emptying the Dust Cup.

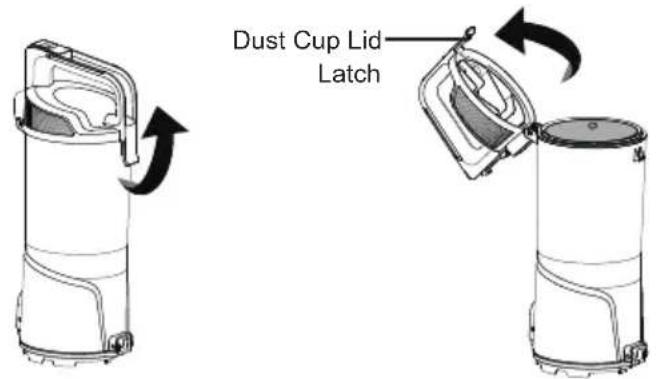

2. Hold the dust cup, pull the dust cup lid latch and open the lid.

Dust Cup Lid Latch

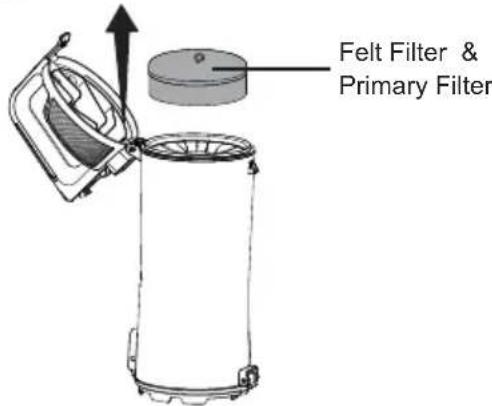

1. Remove the felt filter and primary filter from the dust cup using the small tab attached on the filter.

Felt Filter & Primary Filter

1. Use a soft brush to brush loose debris from the felt filter and primary filter then rinse with cold water. DO NOT use detergent or soap. Rinse and gently squeeze dry the filters. Set them aside and allow to air dry for 24 hours.

IMPORTANT: The filters must dry completely before reuse.

1. Place the primary filter and felt filter back into the dust cup.

Felt Filter & Primary Filter

1. Close the dust cup lid until you hear a click.

Diagram of a cylindrical device with internal components and a downward arrow indicating direction (no text or symbols)

1. Reinstall the dust cup into the main body. See installation instructions in the Emptying the Dust Cup.

Cleaning the Pre-filter

The pre-filter is located inside the dust cup. Check the pre-filter frequently and clean when dirty.

NOTE: Make sure the dust cup is free of any debris before opening.

1. Open the dust cup lid and remove the felt filter and primary filter as outlined in the Cleaning the Felt Filter and Primary Filter.
2. Lift up the pre-filter from the dust cup using the two tabs.

Tabs

1. Clean off hair and other debris wrapped around the pre-filter. Clean the pre-filter by gently tapping over a trash container. Tap on several sides to ensure best cleaning.

Technical line drawing of a mechanical component with no visible text or symbols

1. If necessary, rinse the pre-filter with cold water only. Do not use detergent or soap. Set the pre-filter aside and allow to air dry for 24 hours.

Do not wash in the dishwasher. Do not install damp.

IMPORTANT: The filters must dry completely before reuse.

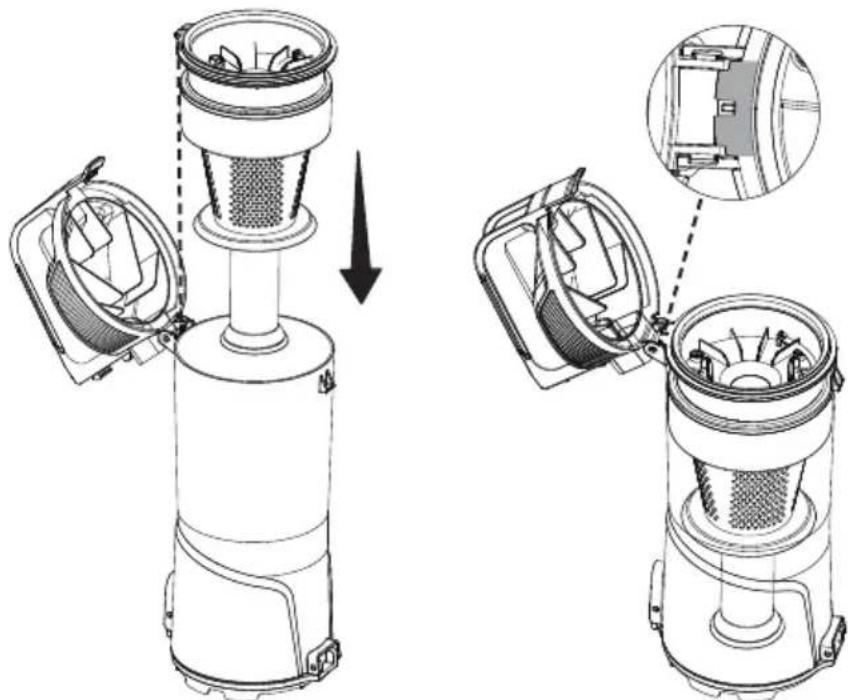

1. Reinstall the pre-filter back into the dust cup. Make sure the pre-filter is set into place as shown.

Technical line drawing of a vacuum cleaner with internal components and a close-up view of its internal structure (no text or symbols)

1. Reinstall the primary filter and felt filter. See installation instructions in the Cleaning the Felt Filter and Primary Filter.

Cleaning the Foam Filter

It is recommended to clean the foam filter with cold water every three months.

NOTE: When the cleaning of the foam filter no longer restores vacuum cleaner suction to full power, or the filter is worn or broken, replace the filter.

Regularly clean and replace the filter to keep the vacuum's suction power optimal.

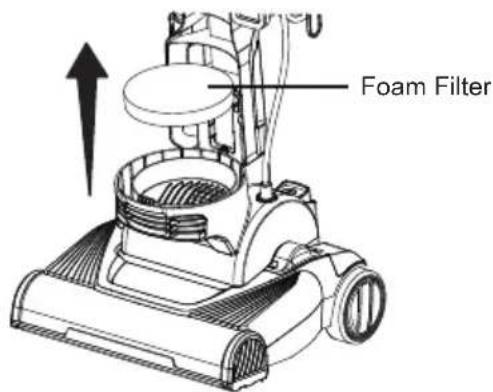

1. Remove the dust cup as outlined in the Emptying the Dust Cup.

2. Remove the foam filter.

Foam Filter

1. Wash with cold water only, DO NOT use detergent or soap. Squeeze by hand and allow to air dry. Allow all filters to dry 24 hours before putting back into vacuum cleaner.

NOTE: DO NOT operate without foam filter installed.

DO NOT wash in the dishwasher.

DO NOT install the foam filter if damp.

1. Replace foam filter into the vacuum cleaner.

Foam Filter

1. Reinstall the dust cup. See installation instructions in the Emptying the Dust Cup.

Changing the Belt

Replace the belt whenever a burning rubber smell caused by excessive slippage occurs.

WARNING

Always unplug the power cord from an electrical outlet before performing maintenance to the vacuum cleaner.

1. Lay vacuum cleaner on floor with the bottom up and the floor nozzle flat.
2. Use a Phillips head screwdriver to remove the six screws from the lower plate.

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

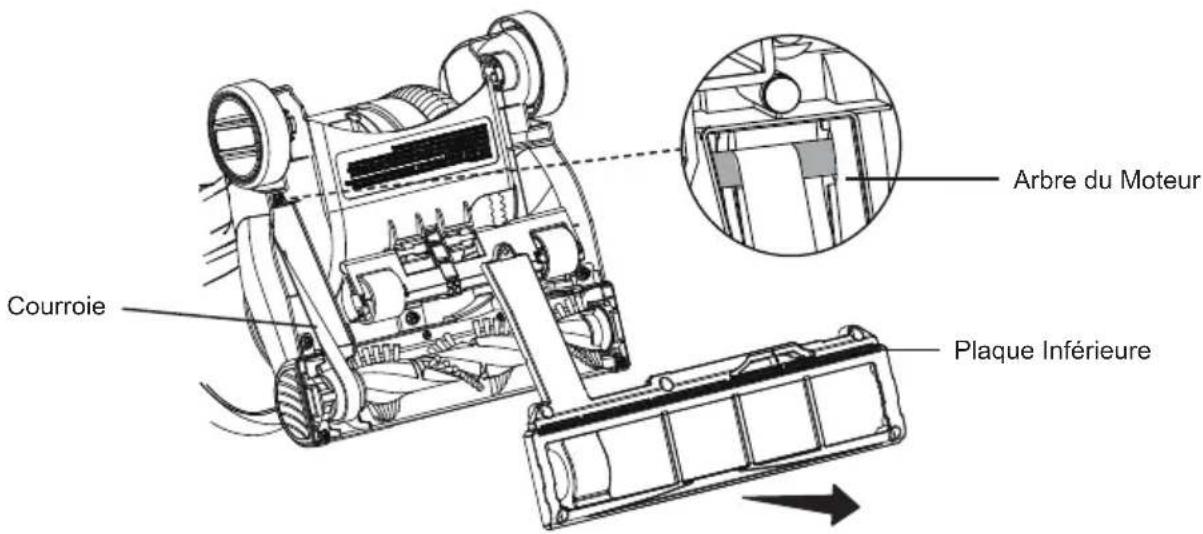

1. Carefully remove the lower plate from the floor nozzle. Be sure to only pry the middle section in the front of the lower plate as shown to avoid damaging the lower plate.

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Belt Motor Shaft Lower Plate AUTION

CAUTION

Motor shaft may be hot.

1. Remove the brushroll by carefully lifting it out.

1 2 Brushroll

1. Remove the worn or broken belt.
2. Use scissors to remove any entangled hair around the brushroll. Clean any debris from the floor nozzle.
3. Loop the new belt around motor shaft and the belt path on the brushroll.

Belt Path

Motor Shaft Belt Brushroll

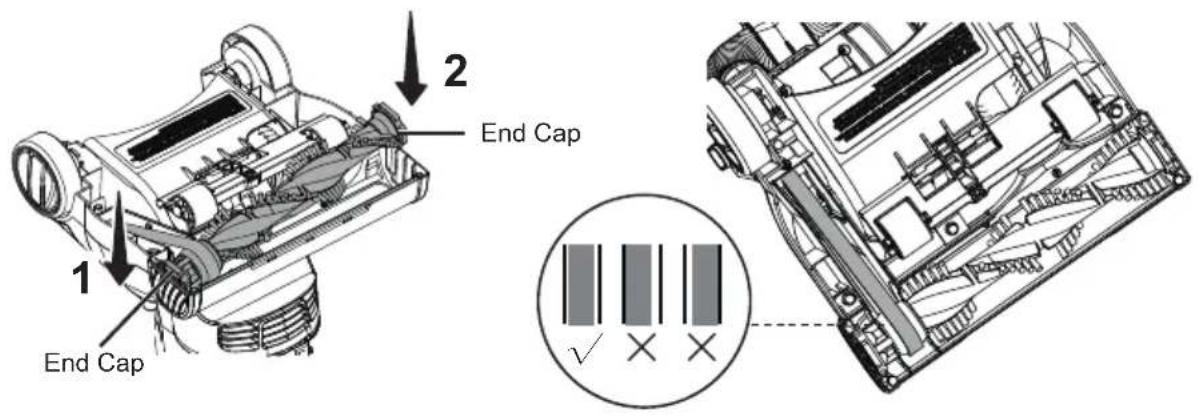

1. Reinstall the brushroll back into the floor nozzle by placing end caps into slots. First align the end cap of belt side of the brushroll with the slot and insert it into place. Then press down the end cap of the non-belt side firmly into the slot as shown below. Rotate the brushroll to make sure the belt is installed correctly.

NOTE: Make sure the belt is in the middle of the belt path as shown.

End Cap 1 End Cap 2 ✓ ✗ ✗

1. Reinstall the lower plate by aligning tabs on front edge of lower plate with slots in the nozzle first, and then press the lower plate into installed position.

NOTE: Check to make sure the small wheel bracket is properly fixed by the lower plate and cannot be lifted off.

Small Wheel Bracket

1. Reinstall six screws into the lower plate. Do not over-tighten the screws.

Cleaning the Brushroll

WARNING

Always unplug the power cord from an electrical outlet before performing maintenance to the vacuum cleaner.

To maintain efficient cleaning, the brushroll must be kept free of carpet fiber, string, or hair build-up. When it is dirty, unplug and turn vacuum cleaner off and check the brushroll for fiber and hair build-up. Use scissors to remove any build-up entangled around the brushroll.

Cleaning the brushroll periodically is recommended for best performance.

Line drawing of a hand using scissors to cut or install a mechanical device (no text or symbols visible)

Removing Clogs

WARNING

Disconnect electrical supply before removing clogs. Failure to do so could result in electrical shock or personal injury.

Checking the hose for clogs:

If there is noticeable abnormal noise when using the vacuum or the suction power suddenly drops, it is necessary to check the hose for clogs.

Frequently check air path to make sure it is free of obstructions.

1. Remove the hose end from the main body.

Technical diagram showing three stages of a mechanical device with labeled parts and directional arrows indicating movement.

1. Remove the other end of the hose from the lower hose connection by pressing the hose release latch.

Technical line drawing of a mechanical device with no visible text or symbols

Hose Release Latch

1. Check and remove any clogs in the hose.

2. Reinstall the hose to the vacuum cleaner. See GENERAL ASSEMBLY INSTRUCTIONS (page 7).

Checking the hose for clogs:

1. Check and remove any clogs in the connection hose.
2. If necessary, release the connection hose by removing one screw with a Phillips head screwdriver and check for clogs.

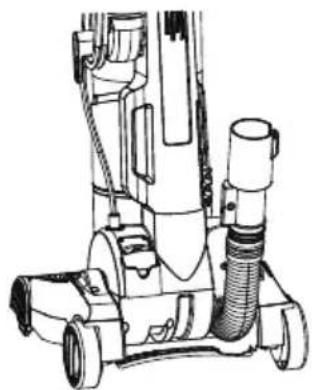

Connection Hose

Line drawing of a vacuum cleaner with hoses and wheels (no text or symbols)

1. Reinstall the connection hose and fix with the screw. Do not over-tighten the screw.

TROUBLESHOOTING

Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues.

WARNING

Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE	SOLUTION
Vacuum will not power on.	The plug is not plugged to the wall outlet.	Be sure power cord plug is fully plugged into outlet.
	The power button is not pressed to start the vacuum cleaner.	Press the power button to start the vacuum cleaner.
	The vacuum body is overheated.	Unplug the power cord and let the vacuum cool down for 50 minutes.
	The motor is damaged. Call 1-866-384-8432 for assistance.
Poor job of dirt pick-up.	The hose and accessories are not installed well.	Check the hose and accessories for correct installation and ensure they are snapped firmly in place.
	Dust cup is not installed correctly.	Check dust cup for correct installation and ensure it is snapped firmly in place.
	Full or clogged dust cup. Empty the dust cup.
	There is a clog in the hose or connection hose of the vacuum cleaner.	Check and remove all clogs. Follow instructions on page 25-26.
	The felt filter, primary filter or the pre-filter needs cleaning.	Follow filter cleaning instructions on page 17-20.
	The felt filter and primary filter need to be replaced.	Purchase online at www.vacmaster.com or call 1-866-384-8432.
	The foam filter needs to be cleaned or replaced.	Clean or replace the foam filter. Follow foam filter cleaning instructions on page 21.
Poor job of dirt pick-up.	The hose is worn.	Replace the hose. Purchase online at www.vacmaster.com or call 1-866-384-8432.
	The connection hose is worn.	Call 1-866-384-8432 for assistance.
	The brushroll is worn. Call 1-866-384-8432 for assistance.
	The belt is worn or broken.	Replace the belt. Purchase online at www.vacmaster.com or call 1-866-384-8432.
Dust escapes from vacuum.	Dust cup is installed incorrectly.	Position dust cup correctly and snap firmly into place.
	The felt filter and primary filter are missing or installed incorrectly.	Check filters for correct installation. Follow instructions on page 17-19.
	The felt filter or primary filter is damaged and needs to be replaced.	Replace the felt filter and primary filter. Purchase online at www.vacmaster.com or call 1-866-384-8432.
	The pre-filter is damaged. Call	1-866-384-8432 for assistance.
	The foam filter needs to be cleaned or replaced.	Clean or replace the foam filter. Follow the foam filter cleaning instructions on page 21.
Brushroll does not turn or produces a burning smell.	Brushroll is jammed.	Check brushroll for debris. Remove obstruction. Follow instructions on page 25.
	Brushroll is not installed correctly.	Remove the brushroll and reinstall following instructions on page 22-24.
	The belt is not routed correctly.	Check the belt routing on page 22-24.
	The belt is worn or broken.	Replace the broken or out of shape belt. Purchase online at www.vacmaster.com or call 1-866-384-8432.
Airflow restricted with accessories in use; sound changes.	Air path is blocked.	Check for and remove any clogs and clean the air path. Follow instructions on page 25-26.
	Accessories in use restrict air flow.	Check accessories for fuzz, lint, pet hair or other debris.
Vacuum turns off on its own.	The power cord plug is loose from the outlet when using the vacuum.	Reinsert the power cord plug fully into the outlet. Avoid pulling or dragging the power cord when using the vacuum.
	The motor is damaged. Call 1-866-384-8432 for assistance.

TABLA DE CONTENIDOS

SECCIÓN

PÁGINA

Diagram of a bicycle suspension system showing rope routing and directional arrows (no text or labels)

Illustration of a plug and two electrical outlets with directional arrows indicating charging (no text or symbols)

ADVERTENCIA

Line drawing of a vacuum cleaner's side arm and wheel (no text or symbols)

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

Line drawing of a vacuum cleaner with a circular prohibition symbol (no text or labels)

Illustration of a plug and outlet with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical clamp or connector (no text or symbols)

Cepillo Para Tapices

Diagram of a cylindrical device with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a vacuum cleaner with internal components and a close-up inset showing the interior detail (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Technical line drawing of a mechanical device with internal components and motion arrow (no text or symbols)

Correa Eje Del Motor Placa Inferior

PRECAUCIÓN

Line drawing of a mechanical device with scissors inserted, no text or symbols present

Technical diagram showing three stages of a mechanical assembly with labeled parts and directional arrows indicating motion.

Technical line drawing of a vacuum cleaner with hoses and control panel (no text or symbols)

INSTRUCTIONS RELATIVES AU MONTAGE GÉNÉRAL

Diagram of a mechanical linkage or cable assembly with directional arrows indicating motion (no text or symbols)

Illustration of a plug plugged into a socket with arrows indicating direction (no text or symbols)

AVERTISSEMENT

Line drawing of a vacuum cleaner's side arm and wheel (no text or symbols)

Line drawing of a vacuum cleaner with attached fan and wheels (no text or symbols)

Diagram of a robotic device with a prohibition symbol overlay (no text or symbols present)

Illustration of a plug plugged into a socket with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Mechanical diagram showing a lever mechanism with a rotating shaft and guide rail (no text or labels)

Diagram of a cylindrical device with a downward arrow indicating compression or reduction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical illustration of a portable air conditioner unit with internal components and a close-up view of its internal structure (no text or symbols present)

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Technical line drawing of a mechanical device with internal components and a rotation arrow (no text or symbols)

Line drawing of a hand using scissors to cut the interior of a mechanical device (no text or symbols present)

Élimination Des Obstructions

AVERTISSEMENT

Technical diagram showing three stages of a mechanical device with labeled parts and directional arrows indicating movement.

Technical line drawing of a vacuum cleaner with attached screw and hose (no text or symbols)

Tuyau de Raccordement

Line drawing of a vacuum cleaner with attached tubing (no text or symbols)
