VDMA2436BK - Mounting accessory Middle Atlantic - Free user manual and instructions
Find the device manual for free VDMA2436BK Middle Atlantic in PDF.
| Product Type | Vertical rack mount plate |
| Brand | Middle Atlantic |
| Model | VDMA2436BK |
| Color | Black (BK) |
| Dimensions (W x H x D) | 482 x 44 x 100 mm |
| Weight | 0.5 kg |
| Material | Steel |
| Maximum load capacity | 45 kg |
| Compatible rack depth | 24 to 36 inches |
| Mounting standard | 19 inches (EIA-310) |
| Usage | Indoor only |
| Maintenance | Clean with a dry cloth |
| Safety warnings | Do not exceed weight capacity; use only with specified accessories |
| Warranty | 1 year |
| Package contents | 1 mounting plate, mounting screws, installation guide |
| Repairability | Not user-repairable; contact an authorized center |
| Country of origin | United States (estimate) |
Frequently Asked Questions - VDMA2436BK Middle Atlantic
User questions about VDMA2436BK Middle Atlantic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mounting accessory in PDF format for free! Find your manual VDMA2436BK - Middle Atlantic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VDMA2436BK by Middle Atlantic.
USER MANUAL VDMA2436BK Middle Atlantic
Thank you for purchasing the VDM-A 12" to 72" adjustable pole series. Please read these instructions thoroughly before installing or assembling this product.
PRODUCT FEATURES
1 1/2" NPSM threads on both ends
- 500 lb. weight capacity
- Adjustable pole length
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions.
Heed all warnings.
Clean only with dry cloth.
-
Keep these instructions.
-
Follow all instructions.
-
Only use attachments/accessories specified by the manufacturer.
DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
WARNING: A warning alerts you to a situation that could result in serious personal injury or death.
CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property
NOTE: A note is used to highlight procedures pertaining to the installation, operation, or maintenance of the product.
WARNING: Failure to read, understand and follow the following information can result in serious personal injury, damage to the equipment or voiding of the warranty. It is the responsibility of the Installer/User to ensure that this product is loaded according to specifications.
WARNING: Failure to provide correct structural strength for the component may result in serious personal injury or damage the equipment.
WARNING: Exceeding the weight capacity may result in personal injury or equipment damage. The combined weight of all components attached to the mount must not exceed weights listed on page 3.
WARNING: Be aware of pinch points and do not place fingers in between moving parts.
WARNING: Use this product for its intended use and only use attachments recommended by the manufacturer.
WARNING: Do not use a damaged product. Return damaged products to a qualified service center for repair.
WARNING: Not intended for outdoor use.
INSTRUCTIONS IMPORTANTES SUR LA SECURITE
| Model Weight Rating | Product Weight | |
| VDM-A-12-18-BK 5000bss(226.8 kg)) Maximum Total Rated Load | ||
| VDM-A-18-24-BK | 6.0 lbs. (2.72 kg) | 500 lbs. (226.8 kg) Maximum Total Rated Load |
| VDM-A-24-36-BK | 8.0 lbs. (3.63 kg) | 500 lbs. (226.8 kg) Maximum Total Rated Load |
| VDM-A-36-60-BK | 12.0 lbs. (5.44 kg) | 500 lbs. (226.8 kg) Maximum Total Rated Load |
| VDM-A-48-72-BK | 15.0 lbs. (6.80kg) | 500 lbs. (226.8 kg) Maximum Total Rated Load |
SUPPLIED COMPONENTS AND HARDWARE
Extension Pipe A
Adjustment Tube B
Cable Access Cover C
Button Head Screw D
Security
Button Head Screw
(2x) Set Screw F
(2x) Security Set Screw G
4mm Security Hex Wrench H
2.5mm Security Hex Wrench J

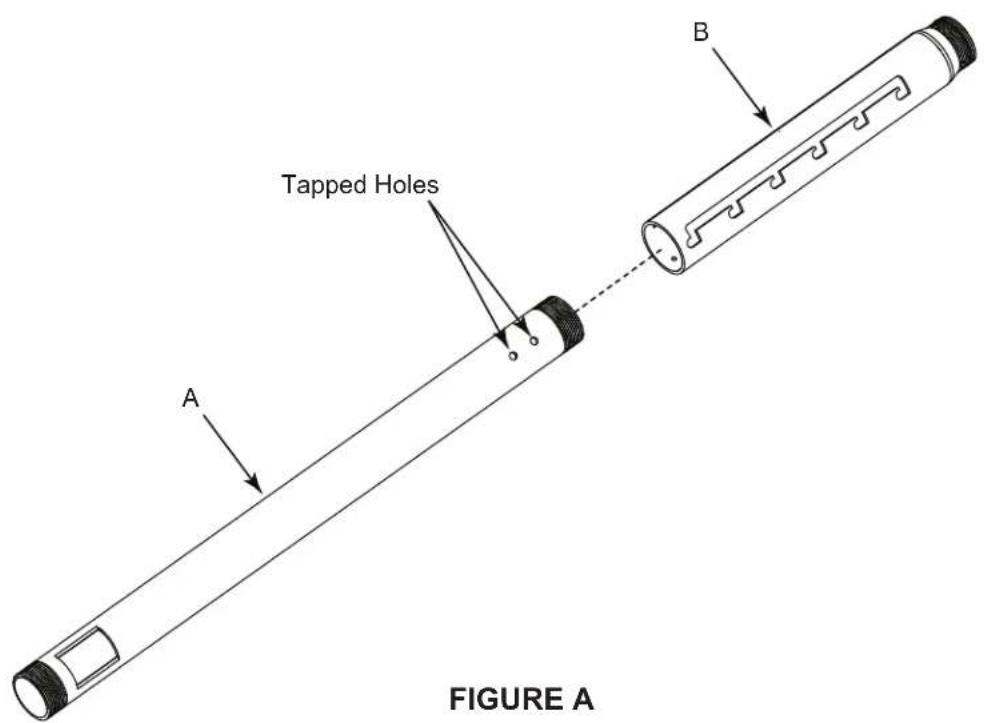

- Slide end of extension pipe (A) with tapped holes into adjustment tube (B). (FIGURE A)
NOTE: Hex wrench supplied can be used for both standard and security screws.

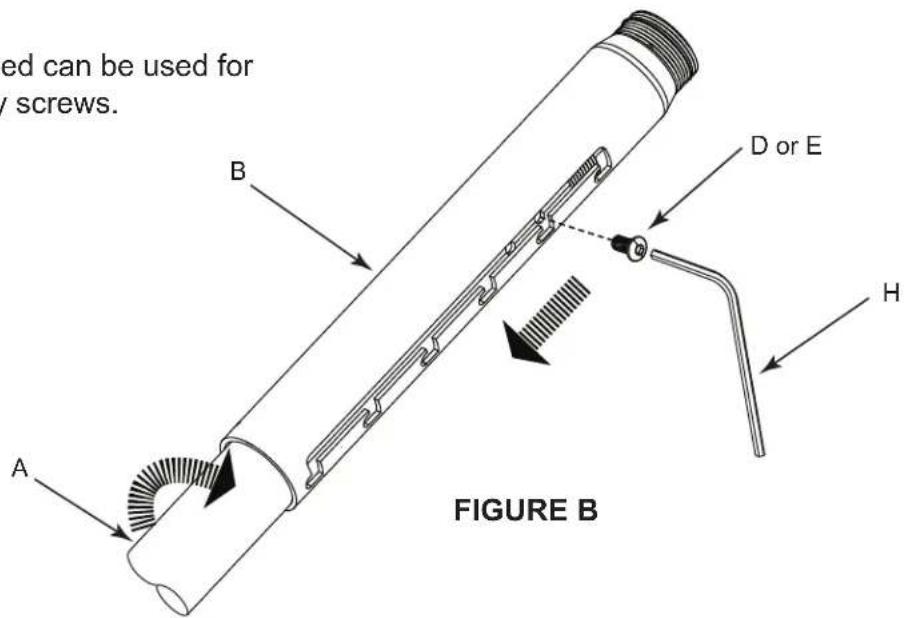

- Thread button head screw (D or E) into slot in adjustment tube (B), but do not tighten. (FIGURE B)
- Slide extension pipe (A) into adjustment tube to the desired length.
- Twist screw into slot and pull extension pipe down to hook screw into place.
- Tighten button head screw (D or E) using 4MM hex key (H).
ASSEMBLING ADJUSTMENT TUBE (CONTINUED)

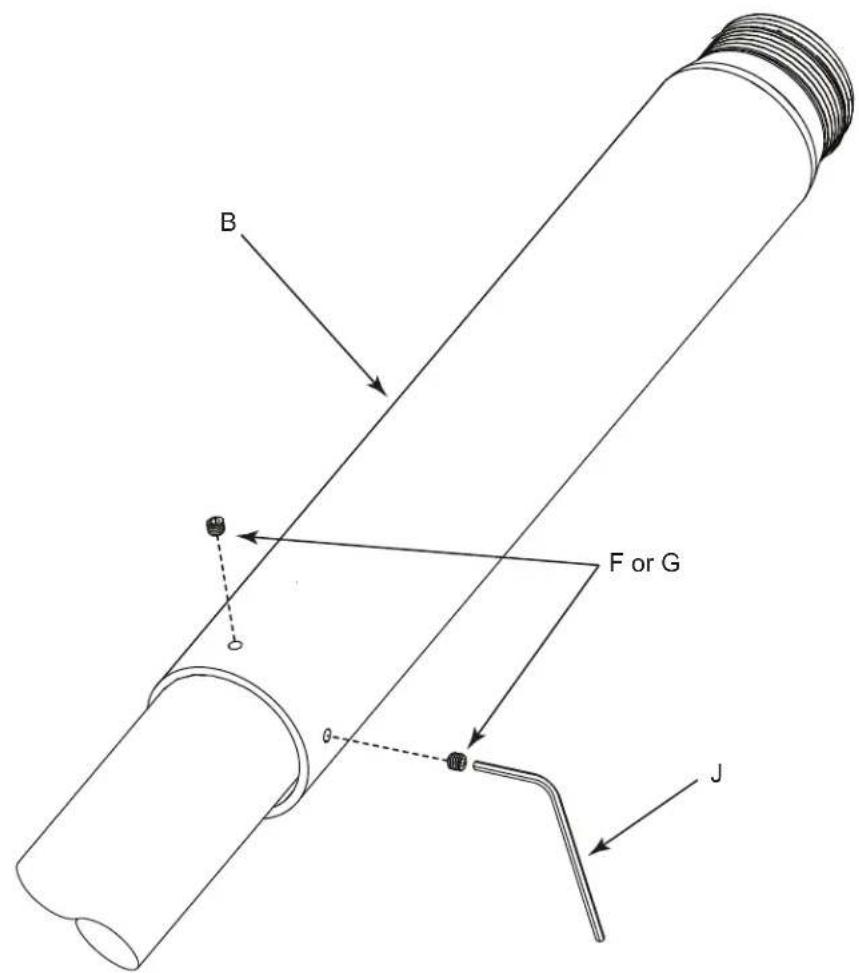

- Insert (2x) set screws (F or G) into adjustment tube (B) and tighten to secure extension pipe (A) in place. (FIGURE C)
NOTE: Hex wrench supplied can be used for both standard and security set screws.
FIGURE C
INSTALLING CABLE ACCESS COVER

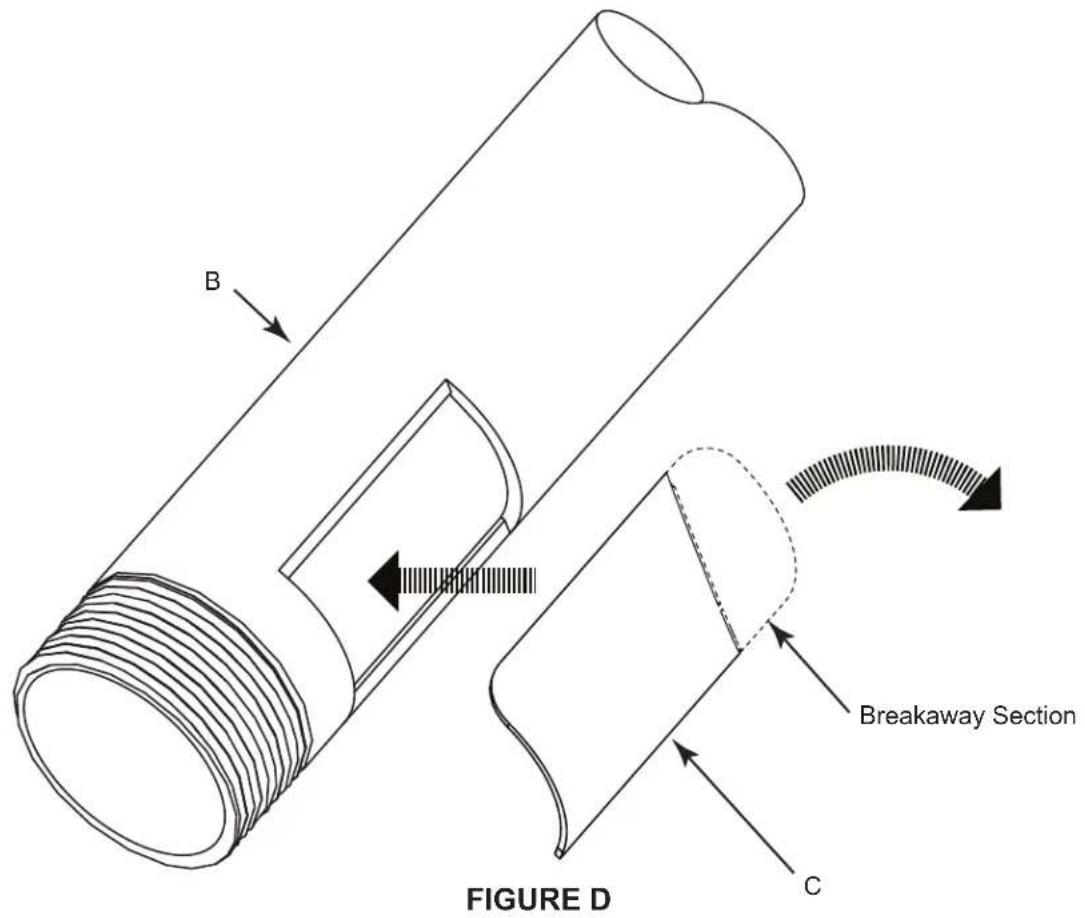

- Prior to installing extension pipe assembly when cabling will be passed through the inside of extension, snap off breakaway section of cable access cover (C) at the perforation line to provide clearance for cables. (FIGURE D)
- Once breakaway section is removed, cover can be snapped back in place over pipe opening.
