USER MANUAL VR1720W INVENTUM

Reversing the door opening page 4-9

1. Safety instructions page 20
   2.Product description page 23
2. Prior to first use page 24
3. Usage page 25
4. Tips page 26
5. Cleaning & maintenance page 27
6. Troubleshooting page 28

general terms and conditions of service and warranty page 50

Deutsch

List of tools to be provided by the user
	Cross screwdriver		Putty knife thin blade screwdriver
	5/16″ socket and ratchet		Masking tape

Reversing the door opening

The door of the appliance can be opened on the right or left side. In order to reverse the door opening, please observe the instructions below. It would be best to do this with two people.

Attention: remove the plug from the socket. Remove all items from the freezer before reversing the door opening.

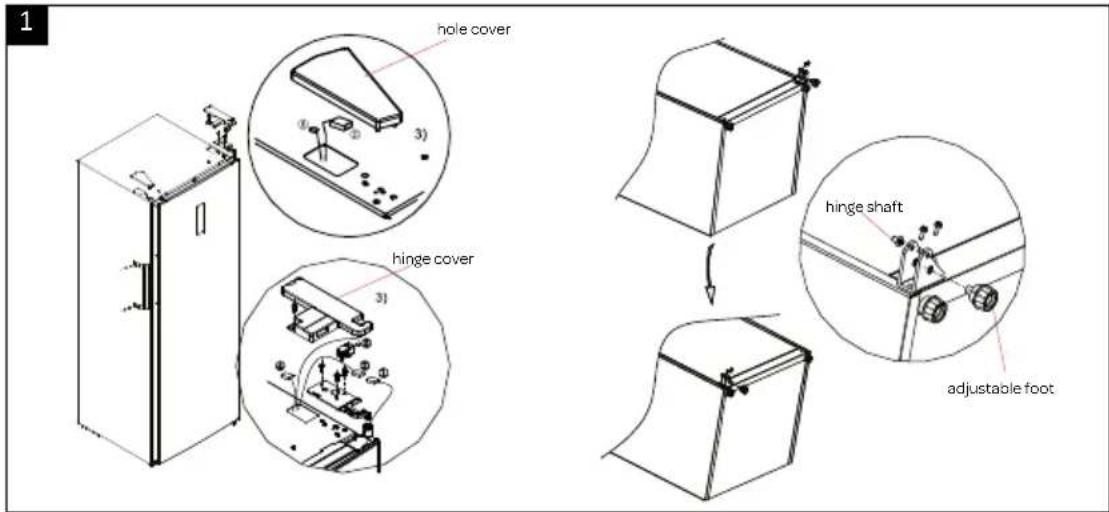

1. Remove the hole cover on the upper side opposite the hinge side.
2. Remove the hinge cover, disconnect all plug connections and unscrew the upper hinge.
3. Carefully lift the door off the lower hinge and place it on a blanket or something similar to prevent scratches.
4. Unscrew the screws from the lower hinge and remove both adjustable feet.
5. Screw the hinge shaft out of the lower hinge and turn the hinge around by 180 degrees. Then screw the hinge shaft back in the lower hinge.
6. Screw on the turned around hinge again on the opposite side and mount both adjustable feet.

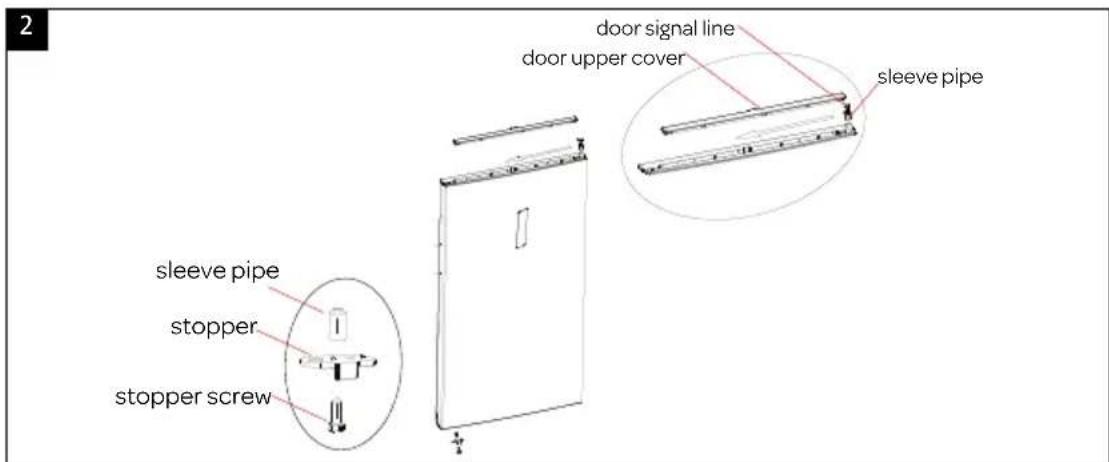

7. Remove the cover on the top of the door, lay the door signal line to the other side and press the cover back on the top of the door.
8. Remove the stopper at the bottom of the door and remove the sleeve pipe. Place the sleeve pipe back on the opposite side and mount the stopper for that side of the door (supplied as separate accessory). Store the removed stopper for future use.
9. Place the door against the appliance and make sure the bottom side is properly placed on the lower hinge. Make sure the door is straight in relation to the exterior of the freezer.
10. Screw on the top hinge for the opposite side (this hinge is supplied as separate accessory).

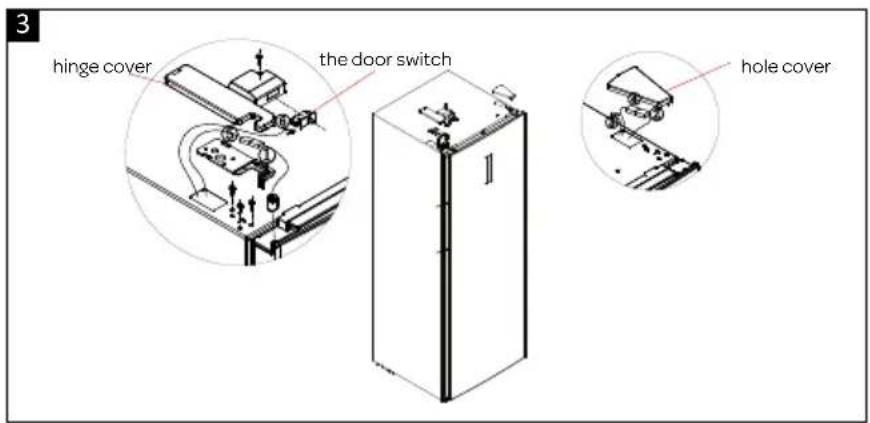

11. Remove the switch from the removed hinge cover and place the hinge in the hinge cover for the opposite side (supplied as separate accessory).
12. Reconnect all plug connections.
13. Place the hinge cover on the hinge and place the hole cover on the opposite side.
14. Unscrew the screws of the handle and remove the handle. Remove the screw caps for the handle on the opposite side of the door. Screw on the handle again on the opposite side and push the screw caps into the vacated, original openings.

Allow the appliance to rest for approx. 3 hours before inserting the plug in the socket.

1 Safety instructions

- First carefully read the instruction manual in full prior to using the appliance and store the manual in a safe place for future reference.

• Only use this appliance for the purposes described in the instruction manual. The appliance is suitable for storing food. It is possible to freeze fresh food in the freezer section.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Do not use single/multiple adapters or extension cords.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself.
• The appliance must be moved and installed by two or more persons.
• Be careful when moving the appliance to prevent the floor from getting damaged.
• During installation, do make sure the power cable is not damaged.
• Check that the appliance is not placed too close to a heat source.
• In order to ensure proper ventilation, a free space of 10cm should be maintained around the appliance.
• Never cover the ventilation holes.
• Make sure the cooling pipes do not get damaged.
• Install the appliance on a sturdy, flat and stable surface.
• Install the appliance in a dry and well ventilated room. The appliance is intended for use in a room where the ambient temperature falls within the applicable class, depending on the climate class found on the information plate on the back of the appliance.

Climate class Ambient temperature

SN From 10°C to 32°C

N From 16°C to 32°C

ST From 16°C to 38°C

T From 16°C to 43°C

• Do not store explosive or highly flammable substances in the appliance. The vapours could cause a fire hazard or an explosion.

• Do not store glass bottles or jars with liquids in the freezer, as they could break when frozen.

• Do not use mechanical, electrical or chemical agents to speed up the defrosting process.
• Make sure that children are unable to play with the appliance, such as hide in it. This is dangerous.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards it may involve.
  Note: Children between 3 and 8 years of age are permitted to place items in cooling appliances and remove them.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Repairs to electrical appliances should only be performed by skilled persons. It is dangerous to perform a repair whereby the base unit of the appliance must be opened.
• Only use and store the appliance indoors.
• Never bend the power cord sharply or allow it to run across hot parts.
• Always remove the plug from the socket when the appliance must be cleaned or repaired.
• Never use the appliance with parts that are not recommended or supplied by the manufacturer.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the plug with wet or moist hands.
• Be careful with ice cubes and ice pops. If these are consumed directly out of the freezer, there is a risk of frostbite.
• Never submerge the appliance, cord or plug in water.
• The appliance cannot be used with a timer or separate remote control.

• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Household appliances are not normal waste. Take the appliance to the waste processing department concerned of your municipality.

REFRIGERANT

The refrigerant isobutene (R600a) is located in the refrigerant circuit of the appliance. This is a natural and highly environmentally friendly gas, but it is still combustible. During transport and installation of the appliance, make sure that no parts of the refrigerant circuit are damaged. The refrigerant (R600a) is combustible.

WARNING: Refrigerators contain refrigerant and insulation gases. Refrigerants and gases must be disposed of professionally, as they can cause eye injuries or could ignite. Make sure the tubes of the refrigerant circuit do not get damaged before the appliance is disposed of as waste.

WARNING: Risk of fire / combustible material

When the refrigerant circuit gets damaged:

• Avoid open fire and ignition sources.
• Thoroughly ventilate the room in which the appliance is located. It is hazardous to change the specifications or adapt this product in any way. Damages to the mains cord could lead to short circuit, fire and/or electric shocks.

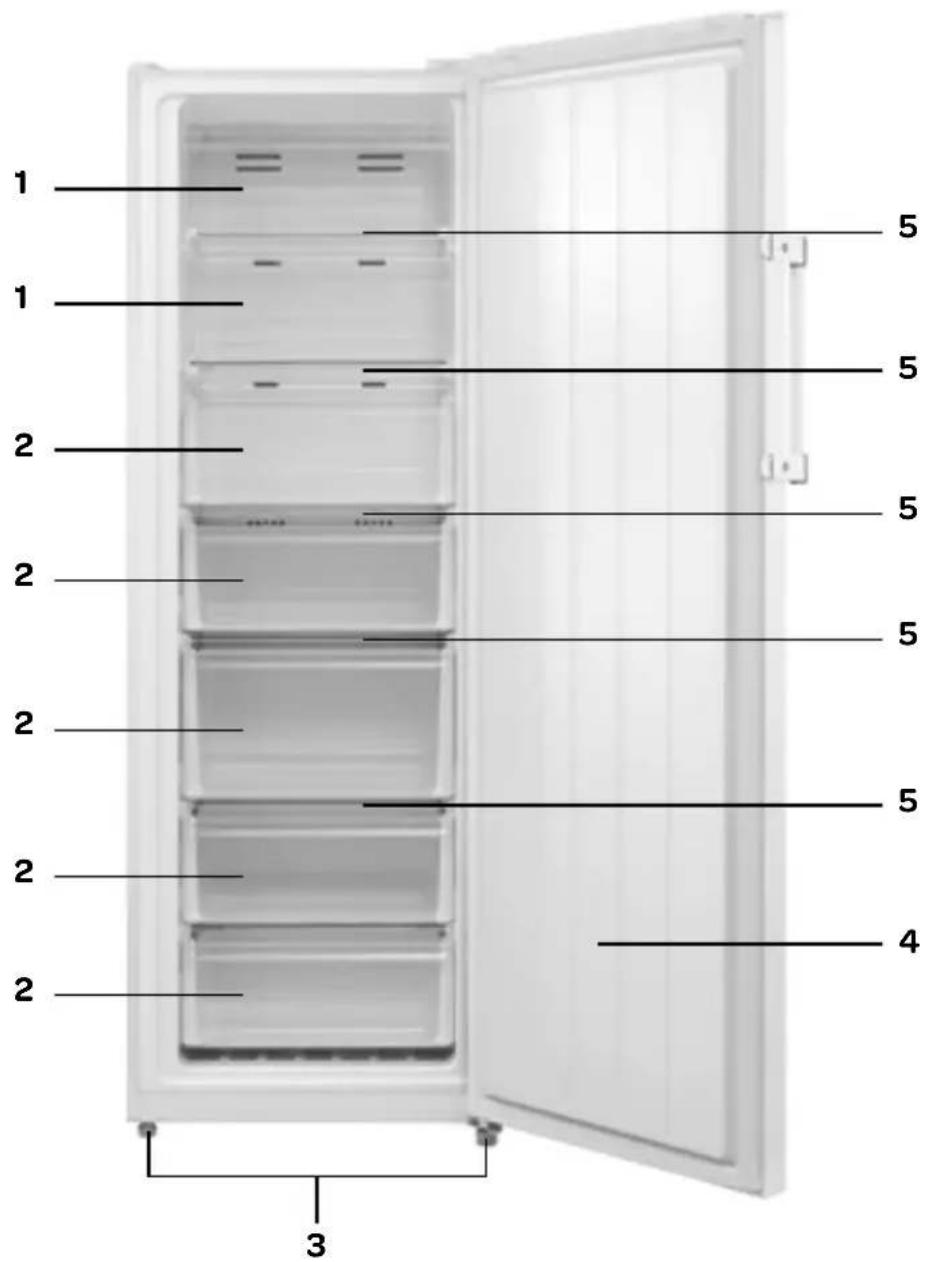

2 Product description

1. Freezer compartment with cover
2. Freezer drawer
3. Adjustable feet

4. Door
   5.Shelves*

5. If you remove the freezer drawers, you can also use this appliance as a refrigerator.

3 Using the appliance for the first time

Before using the appliance for the first time, proceed as follows: carefully unpack the appliance and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags, polystyrene and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the appliance on a sturdy, flat surface and make sure there is sufficient space around it for sufficient ventilation. A minimum space of 5cm is required between the appliance and the surrounding walls. In this way the appliance is able to release heat properly, cool well and function in an energy efficient way.

• You can use the adjustable feet to the left and right to level the appliance.
• Turn the adjustable feet clockwise to lower the appliance.
• Turn the adjustable feet counter-clockwise to raise the appliance.

Do not place the appliance near heat sources such as central heating or a stove. Do take note of the climate class of the appliance. When placed in a room that is too cold, the freezer will not function properly.

After placing the appliance, leave it for at least 3 hours before inserting the plug in the socket.

First clean the interior of the appliance. Use warm soapy water with, for instance, washing-up liquid, all-purpose cleaner or soda. Wipe the inside of the appliance after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours

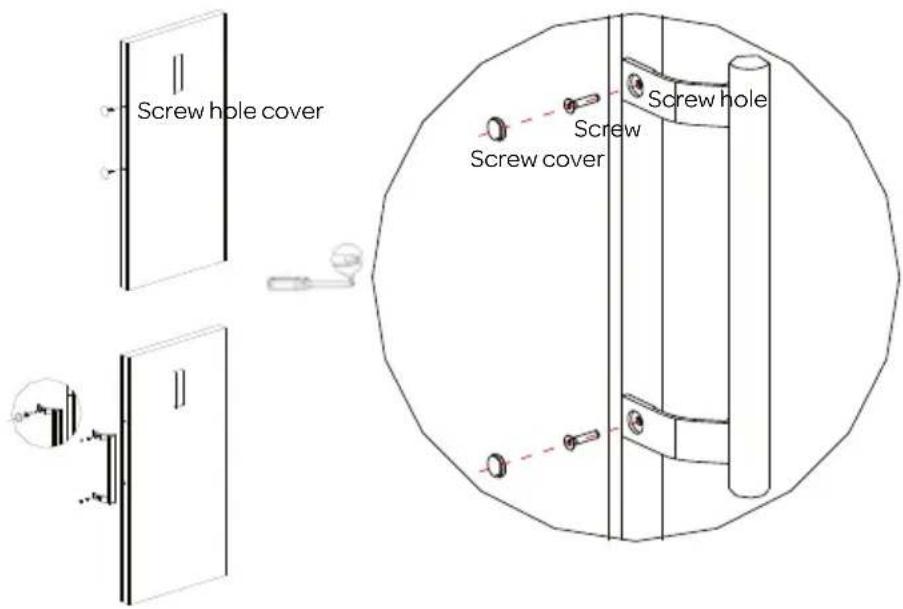

Installing the door handle

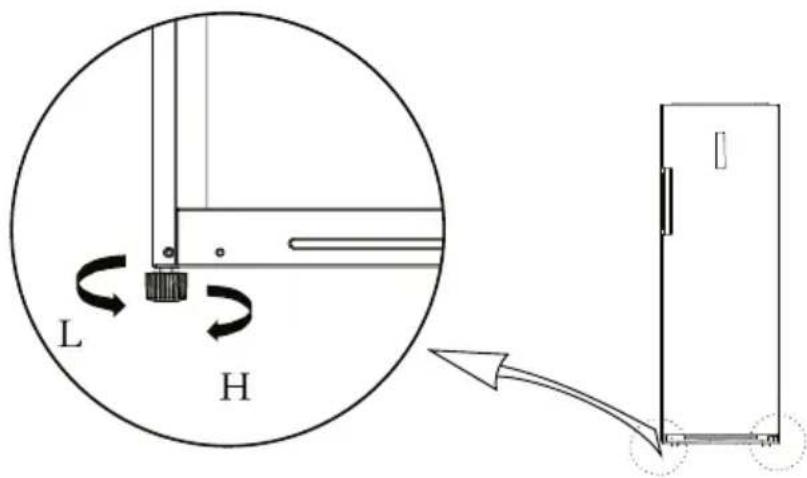

Adjustable feet

4 Use

Check that the voltage corresponds with the voltage stated on the information plate and insert the plug in the socket. The control unit of the freezer is on top of the appliance.

Adjusting the temperature

1. Cool mode symbol
2. Freeze mode symbol
3. Temperature indicator
4. Super cool symbol
5. Super freeze symbol

A. Temperature up key
B. Temperature down key
C. Freeze or cool selection key

Attention:

• You can decide if you want to use this appliance as a refrigerator or freezer. Hold down the freeze/cool selection key for 5 seconds to switch between cool and freeze mode.
• Set the cool mode temperature between 0^ and 4^ . For the freeze mode we recommend setting the temperature between -18^ and -24^ .

Setting the temperature for freeze mode

Press the temperature up or down key once or several times until the required temperature is shown on the display. The temperature can be set between -16^ and -24^ .

Super freeze

Use this mode to quickly freeze food that is not yet frozen. In order to be able to freeze fresh food quickly, the temperature of the freezer should be lowered timely in advance. It may be necessary to activate the super freeze mode 12 hours in advance. When this mode is activated, the temperature in the freezer automatically remains set to -24^ for a maximum period of 24 hours. After this, the temperature returns to the preset freezing temperature

To switch on the super freeze mode, hold the temperature down key until 24^ is shown on the display. Then press the temperature down key once more to activate the super freeze mode. The super freeze symbol lights up.

To switch off the mode, press the temperature up key.

Setting the temperature for cool mode

Press the temperature up or down key once or several times until the required temperature is shown on the display. The temperature can be set between 2^ and 8^ .

Super cool

Use this mode in case of extremely hot weather, when the doors are frequently opened or when placing a large quantity of food in the appliance at once. When this mode is activated, the temperature of the refrigerator automatically remains set to 2^ for a maximum period of 6 hours. After this period, the temperature returns to the preset cooling temperature

To switch on the super cool mode, hold the temperature down key until 2^ is shown on the display. Then press the temperature down key once more to activate the super cool mode. The super cool symbol lights up.

To switch off the mode, press the temperature up key.

Open door alarm

When the door remains open for more than 2 minutes, the open door alarm will sound. Close the door or press a key to switch off the open door alarm.

Attention:

The ambient temperature, the frequency of opening the door and the position of the appliance have an effect on the temperature in the appliance. Take this into account when setting the thermostat.

While setting the temperature, the temperature indication flashes on the display. After approximately 30 minutes the display switches off. The temperature is shown on the display when the door is opened or a key is pressed.
After setting the temperature, the appliance starts to cool continuously until the set temperature has been reached. Allow the appliance to reach the required temperature with no food. Usually this will take 2 to 3 hours. After this, you are able to fill the appliance with food.

Attention:

• Do not place hot food in the appliance.
• You should never place hazardous, highly flammable or explosive substances such as alcohol, acetone or petrol in the appliance, as this will pose an explosion hazard.
• Carefully package meat and fish to prevent unpleasant smells.
• Do not place food against the rear wall of the appliance.
• Leave sufficient space between the different foods, to allow the air to circulate properly.
• Do not leave the door open for longer than necessary.

5 Tips

• A high ambient temperature will have a negative effect on the energy consumption. Direct sunlight and other heat sources near the appliance also have a negative effect.
• Keep ventilation holes free. Covered and dirty holes cause a higher energy consumption. Ensure sufficient space around the freezer, so that a proper ventilation and air flow around the appliance is possible.
• Do not open the door of the appliance more often than necessary and leave the door open as briefly as possible.
• Set the thermostat to a lower setting if circumstances allow.
• Allow cooked food that you want to store in the appliance to cool down to room temperature before placing it in the appliance.
• Frost or ice will increase power consumption. Therefore, these should be removed regularly once they are 3 to 5mm thick.
• A door rubber that does not close properly could increase the power consumption. Therefore, have it replaced by a skilled person in time.
• If the instructions are not observed, this could lead to a higher power consumption.

Observe the following instructions to prevent food from getting contaminated

• When the door remains open for a longer period of time, the temperature in the compartments of the appliance could rise significantly.
• Clean surfaces that could come in contact with food and regularly clean accessible discharge systems.
• Store raw meat and raw fish in suitable packaging in the freezer, so they cannot come in contact with other food or leak liquid on other food.
  Freezer compartments with two stars are suitable for storing already frozen food, storing or making ice and making ice cubes.
• Compartments with one, two or three stars are not suitable for freezing fresh food.

Sequence	Compartments TYPE	Recommended storage temp. [°C]	Suitable food
1 Refrigerator	+2 ~ +8 Eggs, prepared food,	packaged food, fruit and vegetables, dairy, cakes, drinks and other food that is not suitable for freezing.
2 (***)* Freezer	≤-18 Seafood (sea fish, shrimps, shellfish), fresh	fresh water products and meat products (recommended storage time maximum 3 months, the longer the storage time, the more the taste and nutritional value deteriorate), suitable for frozen fresh food.
3 *** Freezer	≤-18 Seafood (sea fish, shrimps, shellfish), fresh	water products and meat products (recommended storage time maximum 3 months, the longer the storage time, the more the taste and nutritional value deteriorate), suitable for frozen fresh food.
4 ** Freezer	≤-12 Seafood (sea fish, shrimps, shellfish), fresh	water products and meat products (recommended storage time maximum 3 months, the longer the storage time, the more the taste and nutritional value deteriorate), suitable for frozen fresh food.
5* Freezer	≤-6 Seafood (sea fish, shrimps, shellfish), fresh	fresh water products and meat products (recommended storage time maximum 3 months, the longer the storage time, the more the taste and nutritional value deteriorate), suitable for frozen fresh food.

60 stars -6	~ 0 Fresh pork, beef, fish, chicken,	packaged processed food, etc. (consumption on the same day recommended, preferably within 3 days).Partly packaged processed food (not suitable for freezing).
7 Cooling -2	~ +3 Fresh/frozen pork, beef, chicken, fresh water	products, etc. (stored for 7 days below 0°C, above 0°C consumption on the same day is recommended, preferably no more than 2 days). Seafood (less than 0°C during 15 days, it is not recommended storing this above 0°C).
8 Fresh food	0 ~ +4 Fresh pork, beef, fish, chicken, prepared	processed food, etc. (consumption on the same day recommended, preferably within 3 days).
9 Wine +5	+20 Red wine, white wine, sparkling wine, etc.

Caution: store different types of food according to the instructions on the compartments or the recommended storage temperature of the products you bought.

• If the freezer remains empty for a longer period of time, switch it off, defrost, clean and dry it and leave the door open to prevent the formation of mould in the appliance.

6 Cleaning and maintenance

Before cleaning the appliance, switch it off by removing the plug from the socket.

Remove the food from the freezer. Clean the inside of the freezer. Use warm soapy water with a neutral cleaning agent to prevent nasty smells. Wipe the inside of the freezer after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours. The shelves and drawers can be removed from the freezer easily and washed by hand. These components may never be cleaned in the dishwasher.

For areas in the freezer that are difficult to clean, such as small openings or corners, it is recommended wiping them clean regularly with a soft cloth or brush. If necessary, a tool can be used, such as thin sticks (cocktail sticks, for example), to make sure no contamination can occur in these areas.

Clean the outside of the freezer and the door rubbers with a soft damp cloth.

Clean the back of the freezer and the surface on which it stands at least once a year with a vacuum cleaner, so that the ventilation holes remain clean and the freezer is able to function as well and energy efficient as possible.

Do not use hard brushes, steel wool, abrasives (such as toothpaste), organic solvents (such as alcohol, acetone, oil, etc.), boiling water, acid or alkaline product to clean the freezer, as this could damage the surface or interior of the freezer. Boiling water and benzene could deform or damage plastic components.

Defrosting

The freezer section of this appliance is free from frost - no-frost. If used correctly, no ice will be formed.

If an ice layer is created after all, defrost the freezer section when the ice layer has reached a thickness of 3mm . Remove all products from the freezer section. Store the frozen products on a cool location, packaged in newspapers and blankets. Remove the plug from the socket and keep the door of the cooler section closed while defrosting the freezer section.

Defrost the freezer section Defrosting can be accelerated by placing a tray with hot water in the freezer section. Do not use sharp metal objects to scrape the freezer section clean, use a plastic ice scraper.

Clean and dry the freezer section. Insert the plug in the socket and set the thermostat to the required setting. Place the frozen products back in the freezer section once it has reached the required temperature.

Warning: Never remove ice with sharp objects, defrosting sprays, a hair dryer, a heater or something similar.

This could lead to unsafe situations and cause irreparable damage to the appliance.

Replacing the LED lamp

This appliance has been provided with a LED lamp. This lamp lasts for a longer period of time. When the LED lamp in the appliance is broken, you are not able to replace it yourself. Contact the Inventum service department.

7 Resolving failures yourself

Failure Cause Solution
The appliance no longer works The plug is not in the socket. - check that the plug is properly inserted in the socket - check that the power cable is not damaged - check that there is voltage on the socket by connecting a different appliance, such as a night lamp
Temperature in the freezer is too high or too low	Wrong setting of the thermostat. Turn the thermostat to a different position.
	The ambient temperature is higher or lower than the temperature indicated in the table with technical data.	The appliance is intended for operation in an ambient temperature indicated in the table with technical data supplied with the appliance.
	The appliance is located in direct sunlight or near a heat source.	Change the location of the appliance according to the instructions in the instruction manual.
	The ventilation at the rear of the appliance is hindered.	Keep the appliance 10 cm away from the walls, for sufficient ventilation.
	The door of the freezer is opened too frequently or remains open for too long.	Open the door less often and/or reduce the time that the door remains open.
	In the past 24 hours, a large amount of warm food has been placed in the freezer.	Temporarily turn the thermostat to a lower position.
The side of the appliance is very warm.	The condenser of the appliance is located on the side.	It is normal for the side of the appliance to become warm.
Unusual or loud noises	The appliance is not level and stable.	Level the appliance with the adjustable feet.
	The appliance is standing against something.	Place the appliance in such a way that it is not standing against anything.

During normal use of the cooling appliance, different types of noises can occur that do not have any effect on the correct operation of the larder.

Noises that can be heard during normal use of the appliance are caused by the operation of the thermostat, compressor (activation), cooling system (shrinkage and expansion of the material under the influence of temperature differences and flow of cooling liquid).

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
  The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and errors reserved

INVENTUM

facebook.com/inventum1908

pinterest.com/inventum1908

youtube.com/inventum1908

instagram.com/inventum1908
