Type of vacuum cleaner	Canister vacuum cleaner
Suction power	3000 W
Tank capacity	3 liters
Filtration	HEPA filter
Cord length	8 meters
Included accessories	Hard floor brush, carpet brush, crevice tool
Weight	5 kg
Noise level	75 dB
Usage	Suitable for all types of surfaces
Maintenance	Empty the tank after each use, clean the filter regularly
Safety	Overheat protection, cable with anti-tangle protection
Warranty	2 years

Frequently Asked Questions - EB 301 TORNADO

How can I clean the filter of the TORNADO EB 301 vacuum cleaner?

To clean the filter, remove it from the vacuum cleaner, gently tap it to remove dust, then rinse it with lukewarm water. Make sure it is completely dry before putting it back in place.

The TORNADO EB 301 vacuum cleaner won\u0027t turn on, what should I do?

Check that the vacuum cleaner is properly plugged in and that the outlet is working. If the problem persists, check the power cord for any damage.

What type of bags can I use with the TORNADO EB 301 vacuum cleaner?

Use only bags compatible with the TORNADO EB 301 model to ensure optimal operation. Refer to the user manual for the exact bag model number.

How can I reduce the noise of the TORNADO EB 301 vacuum cleaner?

Make sure the brushes and filters are clean and in good condition. Regular maintenance can help reduce noise. If the noise persists, contact customer service.

The vacuum cleaner is losing suction, what should I do?

Check the filter and dust bag. A clogged filter or full bag can reduce suction. Replace or clean these components if necessary.

Can I use the TORNADO EB 301 vacuum cleaner on wet surfaces?

No, the TORNADO EB 301 vacuum cleaner is designed for use on dry surfaces only. Using it on wet surfaces may damage the device.

What is the warranty for the TORNADO EB 301 vacuum cleaner?

The TORNADO EB 301 vacuum cleaner is generally covered by a 2-year warranty from the date of purchase. Keep your proof of purchase for any claims.

How can I contact customer service for issues with the TORNADO EB 301 vacuum cleaner?

You can contact customer service via the TORNADO website or by phone. Full contact details are available in the user manual.

USER MANUAL EB 301 TORNADO

Operations & Maintenance Manual

For Commercial Use Only

TV2 SS DRY CANISTER VACUUM

MODEL NO: 93282/98283

Form No. L3282AA 06/16 ©Tornado Industries, LLC. All rights reserved

Tornado Industries, LLC. (Tornado) warrants to the end/user customer that the Tornado product(s) will be free from defects in material and workmanship for the duration(s) described below. This limited warranty DOES NOT cover machines and/or components subject to normal wear and tear, damage that occurs in shipping, failures resulting from modification, accident, unsuitable operating environment, misuse, abuse, neglect, or improper maintenance by you. For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service Department. Tornado sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of Tornado under the warranty.

10 Years* Plastic water tanks and Rotationally-molded bodies

2 Years*

Parts on all Tornado cleaning equipment

1 Year*

Labor on all Tornado cleaning equipment

1 Year*

Warranty on batteries, one year prorated

All battery warranties are handled directly by the battery manufacturer, on a one year prorated basis

Terms subject to change without notice

1. Except all Windshears™ Blowers, Storm, TV 2, TV2SS, Side and Downdraft, Insulation Blowers, CV 30, CV 38, CK14/1 PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CV 38/48 Dual, PV6, PV10, PV6 ROAM, Wall Mount Vacuum and all chargers are warranted for 1 (one) year for both parts and labor.
2. All non-wear item parts purchased after warranty expiration are warranted for 90 days.
3. Warranty starts from the date of sale to the consumer or, at Tornado's discretion, 6 months after the dealer purchased the unit from Tornado, whichever comes first.
4. The EB 30 is warranted for a period of 90 days for both parts and labor.
5. The warranty on engines used on propane powered equipment is limited to motor manufacturer's warranty.
6. Ride-on Scrubbers are warranted for 24 months, parts, 6 months labor or 1,000 hours, whichever occurs first.

Note: Tornado, The Latest Dirt, Floorkeeper,

Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,

Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer,

Windshear, Max-Vac and Trot-Mop are trademarks

of Tornado Industries

Website: www.tornadovac.com

Phone 1-800-VACUUMS

Fax [phone]

Address 3101 WICHITA COURT

FORTWORTH, TX 76140

1-800-VACUUMS 89 Years of Cleaning Innovation A Tacony Company

Form F2662. ©2016. All rights reserved

TIGNY

NOTES

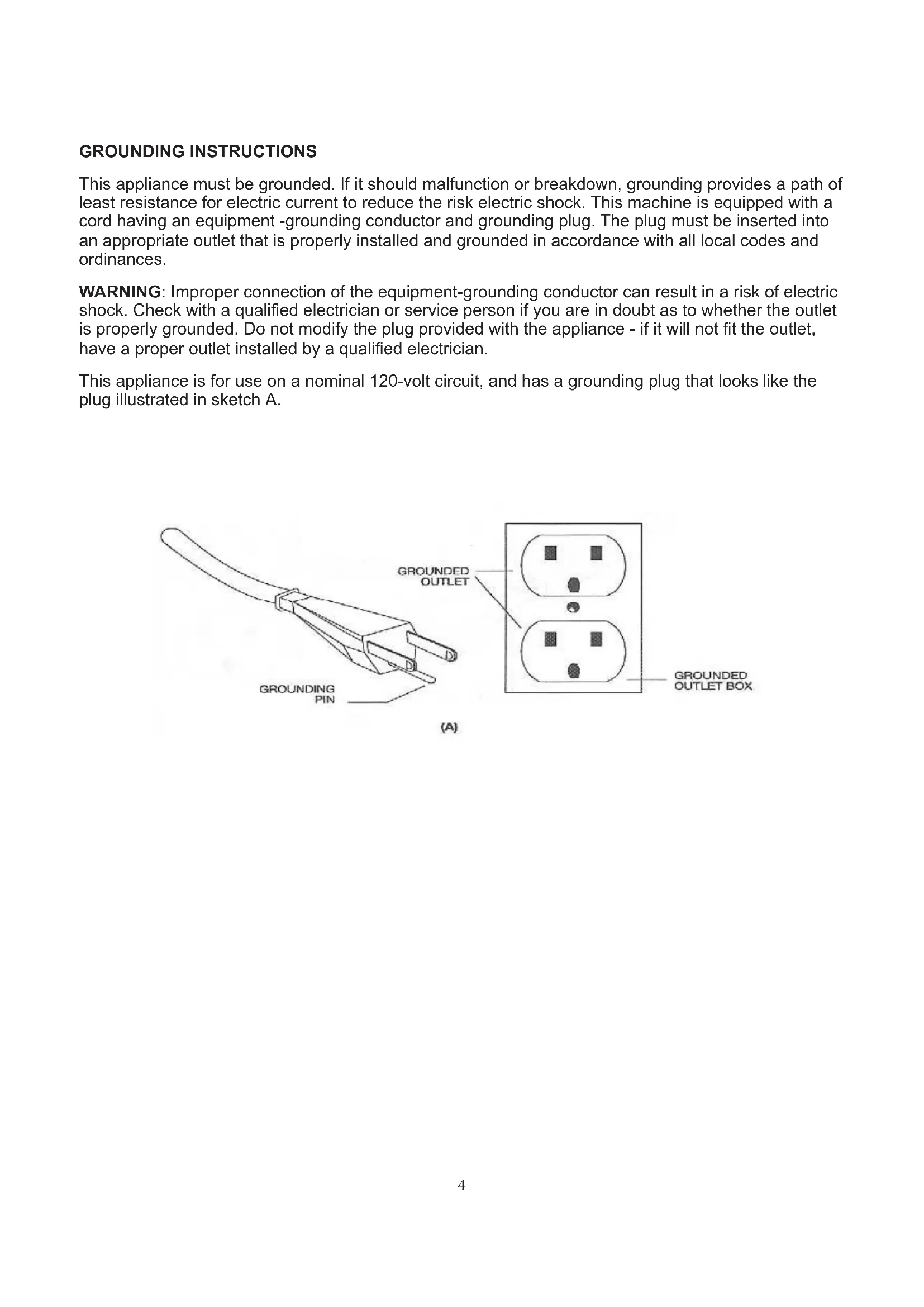

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

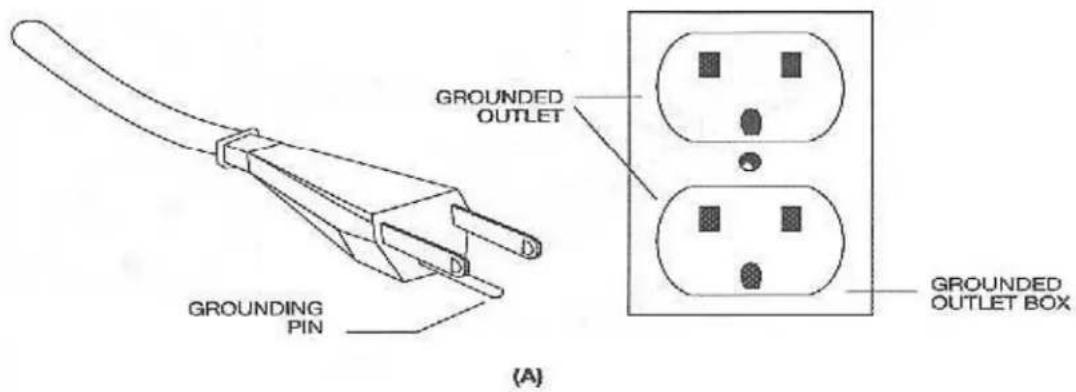

This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A.

Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.

IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner's manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer's recommended attachments. To reduce the risk of personal injury or damage to your unit use only Tornado recommended accessories.

This machine is intended for commercial use only. It is designed exclusively to pick up dirt, dry debris and dust in an indoor environment and is not constructed for any other use. The pick up of any type of fluid or dangerous / toxic materials is prohibited. Use only recommended accessories.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

When using an electrical appliance, basic precautions should always be followed, including the following:

SAVE THESE INSTRUCTIONS.

- WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES.

• WARNING! To reduce the risk of fire, electric shock, or injury:
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
• Do not put any object into openings. Do not use with any opening blocked, keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without vacuum bag and / or filters in place.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not attempt to service the unit while appliance is plugged in.
• For grounded models, connect to a properly grounded outlet only. See Grounding Instructions.
• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
• Keep children and unauthorized persons away from the machine when in use.

General information

When using electrical equipment basic safety precautions should be followed including the following.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS CAREFULLY BEFORE USE.

• This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.
• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
• Keep children and unauthorized persons away from the machine when in use.
  Children should be supervised to ensure that they do not play with the appliance.
• Before using the appliance, check that the mains power voltage corresponds with the voltage shown on the rating plate.
• All parts are to be positioned as indicated in the instructions before using the machine.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without vacuum bags and/or filters in place.
• Do not operate the machine if it malfunctions or is damaged in any way. Contact an authorised service agent for repair or adjustment.
• Do not operate switches or touch the mains plug with wet hands as this may cause electric shock.
• When unplugging pull the plug, not the supply cord.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull around sharp edges or corners.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Keep cord away from heated surfaces.
• Do not use where hazardous dust is present.
• Do not use in an explosive atmosphere.
• Do not pick up oil or other flammable material.
• Do not use to pick up moisture or any liquids.

• Do not leave the machine connected to the electricity supply when not in use; always remove the plug from the socket-outlet.

• Switch off the machine before removing the plug.

• Keep the power supply cord clear of moving parts. During operation hazard may occur when running the machine over the power supply cord.
• The power supply cord must be regularly inspected for signs of damage. If the power supply cord is damaged, it shall only be replaced by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.
• Only replace the supply cord with the type specified in the instruction manual.
• Do not operate the machine with a damaged supply cord or plug, or after the machine malfunctions or is damaged in any way. Contact an authorised Service Agent for repair or adjustment.
• The plug of the power supply cord must be removed from the socket-outlet before commencing cleaning of the machine or undertaking maintenance operations.
• Do not kink or twist the power cord.
  Take care when using a machine near the top of stairs to avoid overbalancing.

Guidelines for the operator

WARNING

Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform user maintenance and the correct selection of accessories.

• Operators should be physically capable to manoeuvre, transport and operate the machine.
• Operators should be able to recognise unusual operation of the machine and report any problems.
• Only use the machine on firm level surfaces.
• Wear suitable footwear to avoid slipping.
• Wear suitable clothing to keep dry and warm.
• Where possible implement job rotation and adequate rest periods to avoid continuous use of the same muscles.
• Do not leave machine running unattended
• Do not smoke when using the machine.
• Do not put any objects into openings. Do not use with any opening blocked: keep free of dust, debris, hair, or anything that may reduce air flow.

CAUTION - This machine is for indoor dry use only and should not be used or stored outdoors or in wet conditions.

CAUTION - If it is suspected that there is hazardous dust or flammable materials stop cleaning the area immediately and consult your superior.

WARNING Only use accessories and spare parts provided with the machine or those approved by the manufacturer. The use of other accessories may impair the safety of the machine.

• Ensure the machine is switched off before adding or changing accessories.

Transporting the machine

CAUTION - Incorrect lifting techniques may result in personal injury, where applicable do not lift large and heavy machines without assistance. We advise that the manual handling regulations are followed.

Please refer to the technical table for details on weight of machine.

When transporting the machine ensure that all components, tanks and removable parts are securely fastened, and that the supply cord and plug are not trailing. Detach hose and wand from machine where applicable.

Take extreme care when moving the machine up or down steps or stairs.

Preparing for use

Electrical connection

Before connecting the machine to the power supply, check that your supply voltage corresponds with that marked on the rating label.

The power supply cord plus any extension leads should not exceed 100 ft. (30 m) in total, otherwise you may experience problems starting up the machine. The cross-section of any extension cable wiring must be at least AWG 13 (2,5 mm²).

Should an extension cord be used, ensure cord rating is adequate for the equipment. Do not use extension cord in coiled condition as this could result in overheating of the cord.

IMPORTANT - If the supply cord is damaged, it must only be replaced by a special cord available from the manufacturer or an authorised service agent.

Symbols & Markings

WARNING

How to assemble the vacuum

WARNING - Before undertaking assembly or changing of accessories/tools switch off machine and unplug from the electricity supply.

• Insert the hose into the socket on the front of the vacuum cleaner (Fig 1).
• Twist in a clockwise direction until locked into position.

Fig 1

Fitting the handle, wand and floor tool

• Fit the handle to the wand connection (Fig 2).

Fig 2

• Fit the wand to the floor tool (Fig 3)

Fig 3

Controls

• The on off switch is positioned at the rear of the machine (Fig 4).

Fig 4

• To turn the machine on press the button.
• To switch off the machine press the button again
• When operating the unit in a noise sensitive area, the unit may be adjusted with the knob on the right rear of the unit (Fig 4). This will also decrease the suction power.

Operation

Starting the machine

• Ensure cable is fully extended before use.
• Ensure a dust bag is fitted before use.
• Press the on/off button to turn the vacuum cleaner on.
• Suction can be adjusted by sliding the airflow adjuster located on the hose handle (Fig 5).

Fig 5

• For maximum suction keep the adjuster closed.
  After you finish cleaning, turn the vacuum cleaner off by pressing the ON/OFF button.
• Only then unplug from the power socket.

Using the floor tool

• The floor tool can be used for cleaning carpets and hard floors. The floor heads pedal should be down when cleaning hard floors (Fig 6) and in the up position when cleaning carpets (Fig 7).

Fig 6

Fig 7

Storage

• Always unplug the machine after use.
  After use check the bag. If full, replace the bag.
• Wind the supply cord ensuring that the plug is not trailing on the floor.
• Store the machine in a dry indoor area only.

Maintenance

WARNING - Before undertaking maintenance operations or adjustments switch off machine and unplug from the electricity supply.

The machine requires minimum maintenance apart from the following checks by the operator.

• Supply cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
• Body of the vacuum - Clean with a damp cloth.
• Vacuum filter - Check the vacuum filters, clean and replace as appropriate.
• Hose, wand and vacuum accessories - Check and remove any debris or lint build-up from the head.

IMPORTANT - All other servicing and repairs should only be performed by a Tornado Industries engineer or Authorised Service Agent.
IMPORTANT - Should the machine fail to operate please refer to the fault diagnosis section in the back of the instruction manual. If the problem / remedy are not listed please contact Tornado Industries Customer Service Department.

Replacing the dust bag

• Lift the top latches on the top of the machine to release and open the top cover.
• Take out the dust bag and dispose of the full bag.
• Position new dust bag.
• Replace the top cover by fixing in position and securing the latches.
• The vacuum is now ready for operation.

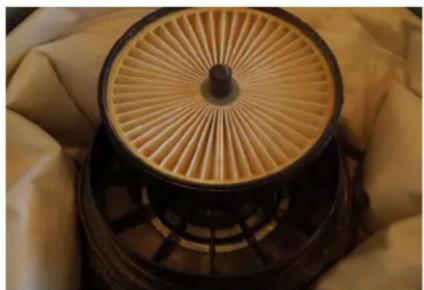

Maintaining and replacing the filter

After removing the top of the unit, remove the filter (Fig 8). Install new filter.

Fig 8

• It is very important to keep the filters clean to receive maximum performance from the vacuum. Not cleaning and replacing your filters regularly can reduce the suction power and cause overheating.

After Sales Service

Tornado machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing.

Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary. Use only original Tornado spare parts. Use of other spare parts will invalidate all warranty and liability claims.

Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Tornado products should only be performed by trained staff. Improper repairs can cause considerable dangers to the user.

Waste Electrical & Electronic Equipment (WEEE)

Do not dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

Technical specification
Accessories

Model Code		TV2 SS 93282	TV2 SS 93283
Voltage AC(∼) / Frequency	V / Hz 120/60 230/5	0/60
Vac motor rating W/A 12	00/10 1200/5.2
Airflow l/sec/cfm 30-33/6	3-70 30-33/63-70
Vacuum mm/wg/in water	lift 1829-2040/72-80	1829-2040/72-80
Dust bag capacity litres/gallons	gallons 7.5/2 7.5/2
Hose length	m/ft	2.5/8 2.5/8
Cable length	m/ft	12.2/40	12.2/40
Specification of power cord		18/3	18/3
Size (L x W x H)	mm/in 415x373x320	415x373x320	16x15x13
Sound pressure level	dB(A)	69	69
Weight empty	kg/lbs.	7.1/21	7.1/21

Accessory	Part No.	Description
CleanBreeze Filter Bag	90025	Pack of 10 bags
Hose	90028	Hose
Two Piece Wand	90027	Wand
Floor Tool	90029	For use on hard and carpeted floors
Crevice Tool	90030	For use in corners, cracks, etc.
Dusting Brush	90031	For use on upholstery
HEPA 12 Filter	90030	HEPA 12 Filter
Cloth Bag	90035	Reusable Bag

IMPORTANT: Genuine accessories are only available from authorised Service Agents or the Tornado Customer Service Department.

Fault Diagnosis

The following simple checks may be performed by the operator.

Problem Reason Remedy
Machine not working Lack of voltage/electrical supply. Check fuse	, supply cord, plug and socket outlet.
Loss of suction Bag full	Replace bag
	Blocked hose or wand
	Motor not working	Remove obstruction
		Contact Service Agent
Motor is not running Broken switch	Contact Service Agent
	Defective power cord
	Defective motor	Contact Service Agent
		Contact Service Agent

If the fuse blows several times, the machine should be checked by an authorised Service Agent.

Warranty Registration Form

Please provide additional information on Tornado equipment: (Check choices below)

Automatic Scrubbers Sweepers Propane Floor Machines Rotary Floor Machine High Speed Burnishers Carpet Vacums Carpet Extractors & Spotters Wet/Dry Vacs Steam Cleaners Jumbo Vacs Ride-On Equipment Pressure Washers

See complete product info at www.tornadovac.com

Selling Dealer:(Required)

Please Print Clearly

Company/Institution
Contact Name	Title
Address	City/State/Zip Code
Phone	Fax
Date of Purchase	Email

See white metal plate or sticker on unit for this information.

MACHINE TYPE/MODEL NUMBER: MACHINE SERIAL NUMBER:
1. 1.
2. 2.
3. 3.
4. 4.

Facility Description (please circle all that apply)

1. School

2. Hospital

3. U.S. Govt.

4. Retail Store

5. Nursing Home

6. Other Govt.

7. Restaurant

8. Religious Institution

9. Auto Service

10. Office Building

11. Airport

12. Airport

13. Contract Cleaning

14. Warehouse

15. Non-Profit

16. Light Manufacture

17. Apartment/Condo

18. Other (specify)

19. Heavy Manufacturing

20. Warehouse

21. College/University

22. Supermarket

How did you first learn about Tornado cleaning and maintenance equipment?	In square feet (meters)
	Total Hard Floor Area	Total Carpeted Area Square feet (square meters)
○ Contacted by local dealer	○ 0-10,000 (0-930)	○ 0-10,000 (0-930)
○ Previous experience with Tornado products	○ 10-50,000 (930-4,650)	○ 10-50,000 (930-4,650)
○ Reputation/ Recommendation	○ 50-250,000 (4,650-23,250)	○ 50-250,000 (4,650-23,250)
○ Advertising	○ Over 250,000 (over 23,260)	○ Over 250,000 (over 23,260)
○ Direct mail
○ Internet
○ Other

Damage or defect arising from abuse, neglect or other misuse is excluded from this warranty. Other items may or may not apply based on your specific machine. If any defect occurs, the warranty is voided if service is attempted by non-Authorized Tornado Service Centers.

©2016 Tornado Industries. All rights reserved. X8449-TOR 1/2016

Return to:
Tornado Industries
3101 WICHITA COURT
FORT WORTH, TX 76140
Fax: [phone]

Note: Tornado, The Latest Dirt, Floorkeeper,

Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,

Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer,

Windshear, Max-Vac y Trot-Mop son marcas registrasas de Tornado Industries.

Sizio web: www.tornadovac.com
