HDW1BN - Warming drawers and cabinets Hatco - Free user manual and instructions

Product Type	Narrow built-in warming drawer
Brand	Hatco
Model	HDW1BN
Dimensions (W x D x H)	523 mm x 680 mm x 276 mm
Weight	40 kg (packaging included)
Power supply	120 V, 450 W, 3.8 A (models available in 208-240 V)
Number of drawers	1
Material	Stainless steel
Temperature range	21 °C to 93 °C
Control type	Manual thermostat (digital control optional)
Holding capacity	Up to 8 dozen rolls
Humidity adjustment	Adjustable vents on each drawer
Key features	Keeping warm, individual temperature control, stainless steel slides
Installation	Built-in, requires cabinet and qualified electrician
Maintenance and cleaning	Daily cleaning with a soft cloth and non-abrasive cleaner
Safety	Automatic shut-off? Not specified; hot surfaces indicated
Warranty	1 year parts and labor + 1 additional year parts for heating elements
Optional accessories	Water/overflow pan, splash guard, additional plates, casters, adjustable legs
Certifications	NSF (National Sanitation Foundation) compliant

Frequently Asked Questions - HDW1BN Hatco

What is the capacity of the HDW1BN warming drawer?

The standard drawer can hold 6 to 8 dozen rolls or equivalent quantities of other foods.

How do I adjust the humidity in the drawer?

Use the adjustable vents located at the front of the drawer: slide the button to the right to open vents (less humidity) and to the left to close them (more humidity).

Can I use the warming drawer to reheat food?

No, this unit is designed only for holding pre-cooked foods warm. Do not use it to cook or reheat cold foods.

What is the recommended temperature for holding?

Recommended temperatures vary by food: for example, 160-185 °F (71-85 °C) for hard rolls, 150-175 °F (66-79 °C) for soft rolls, etc. Refer to the guide in the manual.

How do I clean the warming drawer?

Turn off and unplug the unit, let it cool. Remove the plates and wash them. Wipe surfaces with a damp cloth and non-abrasive cleaner. Do not immerse or use a steam cleaner.

What if the unit does not heat enough?

Check that the unit is plugged in and turned on, that the thermostat is set high enough, that the drawers are fully closed, and allow 15-20 minutes preheat time. If the issue persists, contact an authorized repair service.

Can I install the HDW1BN under a countertop?

Yes, this model is designed for built-in installation in a cabinet. Follow the cutout dimensions in the manual and use a qualified electrician for connection.

What is the warranty on the Hatco warming drawer?

Hatco offers a one-year warranty on parts and labor, plus an additional year on heating element parts. Online registration is recommended.

How do I descale the optional water pan?

Mix 75% water and 25% white vinegar in the pan, heat the unit for 30 minutes, then let it sit for 2 hours. Rinse thoroughly with clear water.

Can I order replacement parts for this model?

Yes, contact Hatco service at 800-558-0607 (USA) or your authorized distributor. Use only genuine Hatco parts.

USER MANUAL HDW1BN Hatco

Drawerer Warmers Tiroirs Chauffants

HDW and HDW-B Series/Série

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Safety Information. 3

Model Description. 4

Model Designation. 4

Specifications 5

Plug Configurations 5

Electrical Rating Chart. 7

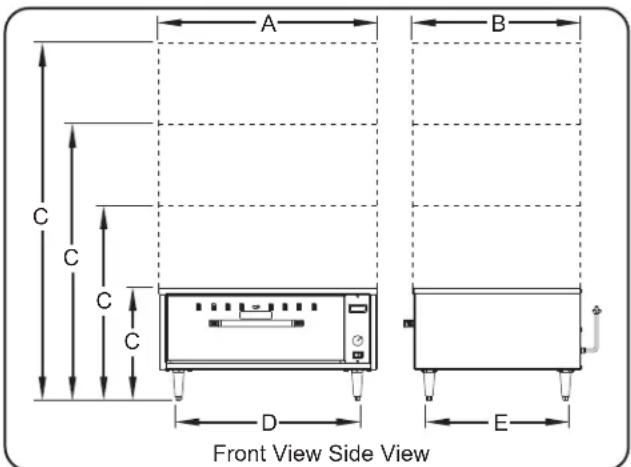

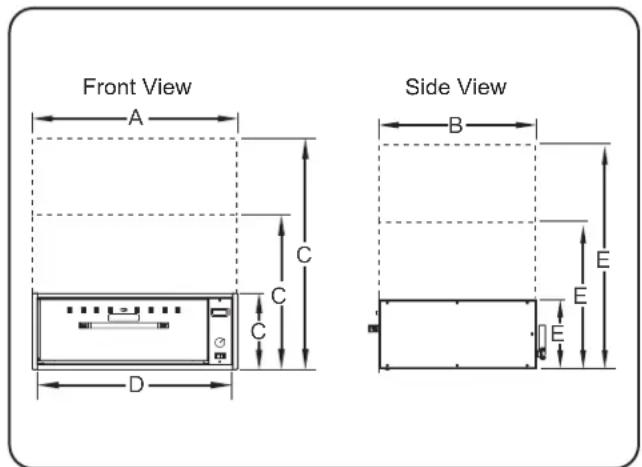

Food Holding Capacity 8

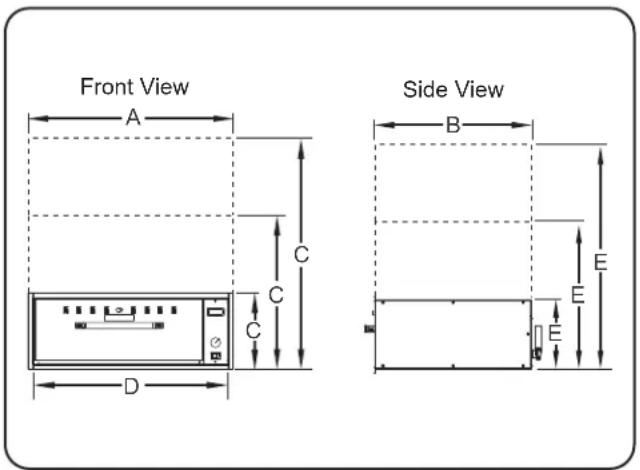

Dimensions. 9

Installation 11

General 11

Installing HDW-X and HDW-XN Models 11

Installing HDW-XB, HDW-XBN, and HDW-XBR Models....12

Operation. 13

General 13

Food Holding Guide 13

Maintenance 14

General 14

Cleaning 14

Removing Lime and Mineral Deposits 14

Troubleshooting Guide 15

Options and Accessories. 16

Limited Warranty. 18

Authorized Parts Distributors Back Page

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (located on the back of the unit for free-standing units and on the inside of the right panel for built-in units). Please have this information available when calling Hatco for service assistance.

Model No.

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Parts & Service pull-down menu, and click on "Warranty Registration".

Business

Hours: 8:00 AM to 5:00 PM Central Standard Time (CST)

(Summer Hours: June to September—8:00 AM to 5:00 PM CST Monday-Thursday 8:00 AM to 2:30 PM CST Friday)

Telephone: [phone]

e-mail: [e-mail]

Fax: [phone] (Parts and Service)

414-671-3976 (International)

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Hatco Drawer Warmers are designed to keep foods at optimum serving temperatures without affecting quality. They are built for tough kitchen duty with rugged stainless steel construction, heavy-duty hardware, stainless steel slides, and positive-closing drawers. Drawer Warmers keep everything from meat to vegetables to rolls hot and flavor-fresh until served.

On multiple drawer units, each drawer features individual controls for holding a wider variety of hot foods during peak serving periods.

Hatco Drawer Warmers are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Drawer Warmers. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of the unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Built-in units must be installed by a qualified electrician. Installation must conform to all local electrical codes. Installation by unqualified personnel will void unit warranty and may lead to electric shock or burn, as well as damage to unit and/or its surroundings.
• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ (21^) .
• Do not clean unit when it is energized or hot.
• Do not steam clean or use excessive water on the unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. Cord must be replaced by an Authorized Hatco Service Agent or a person with similar qualifications.
• Do not allow liquids to spill into the unit.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

WARNING

FIRE HAZARD:

• Locate unit a minimum of 1^ (25 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.
• Do not use harsh chemicals such as bleach (or cleaners containing bleach), oven cleaners, or flammable cleaning solutions to clean this unit.

Make sure food product has been heated to the proper food-safe temperature before placing in unit. Failure to heat food product properly may result in serious health risks. This unit is for holding preheated food product only.

Hatco Corporation is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a safe temperature.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.

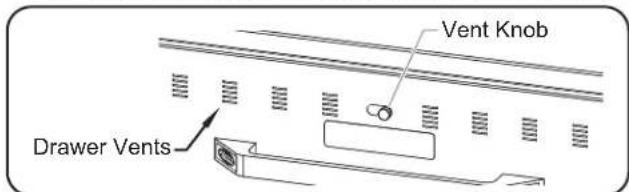

• Use caution when opening drawer. Hot air escapes when drawer is open.

Locate unit in an area that is convenient for use. The location should be level and strong enough to support the weight of the unit and contents.

NOTICE

Do not lay unit on the front or back side. Damage to the unit could occur.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

All Models

All Hatco Drawer Warmers are built of rugged aluminized and stainless steel with durable nylon rollers, 12 gauge stainless steel slides, and heavy-duty hardware. Each drawer features adjustable drawer vents for humidity control, a POWER ON/OFF (I/O) switch, TEMPERATURE control knob, and a TEMPERATURE monitor. Standard size pans 6'' (152 mm) deep are supplied with each drawer. The insulated top and sides provide maximum energy efficiency and the heating elements are warranted for two years.

HDW-X Models

HDW-X Models are freestanding units available in one, two, three, and four-drawer versions. The one, two, and three-drawer units are equipped with 4^ (102 mm) legs. The four-drawer unit is equipped with 6^ (152 mm) stainless steel legs. Freestanding models include an attached 6^ (1829 mm) power cord with plug.

HDW-XN Models

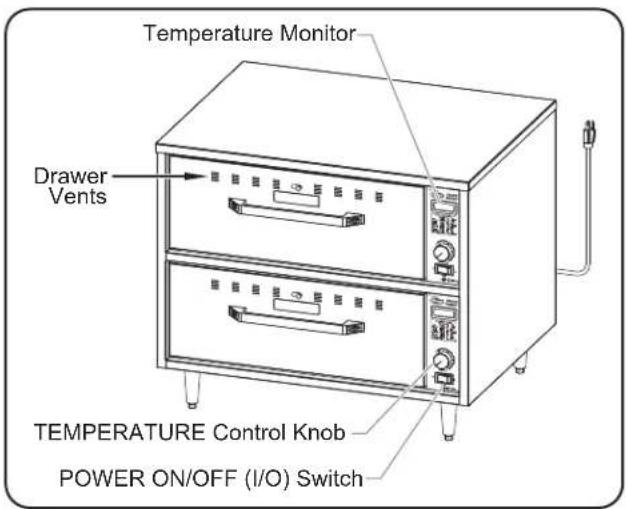

HDW-XN models have all the features of the HDW-X freestanding models but have a narrower profile for smaller space requirements. These units are available in one, two, and three-drawer versions.

Model HDW-2

NOTE: Additional caster and leg sizes are available for the freestanding units. Refer to the OPTIONS AND ACCESSORIES section for details.

HDW-XB Models

HDW-XB Models are built-in units available in one, two, and three-drawer versions. Built-in HDW-XB models include 4^ (1219 mm) of flexible conduit for direct power connection.

HDW-XBN Models

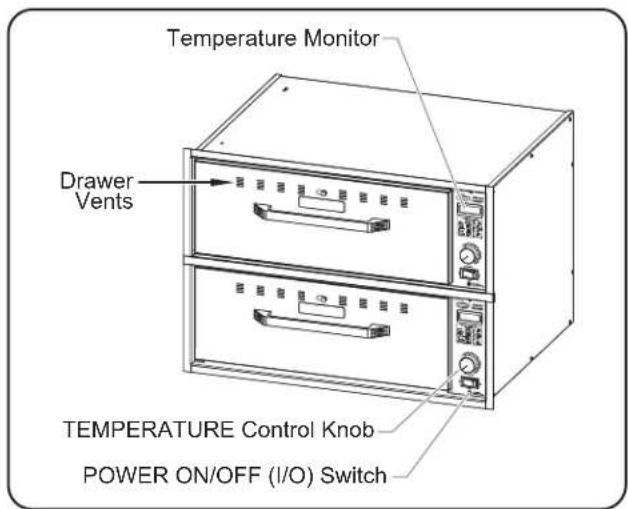

HDW-XBN Models have all the features of the HDW-XB models but have a narrower profile for smaller space requirements. These units are available in one, two, and three-drawer versions.

Model HDW-2B

HDW-XBR Models

HDW-XBR Models have all the features of the HDW-XB models but have a reduced depth for smaller space requirements. These units are available in one, two, three, and four-drawer versions.

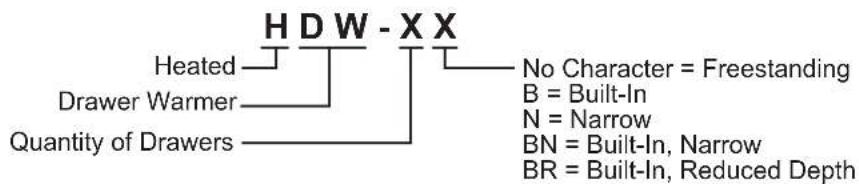

MODEL DESIGNATION

Plug Configurations

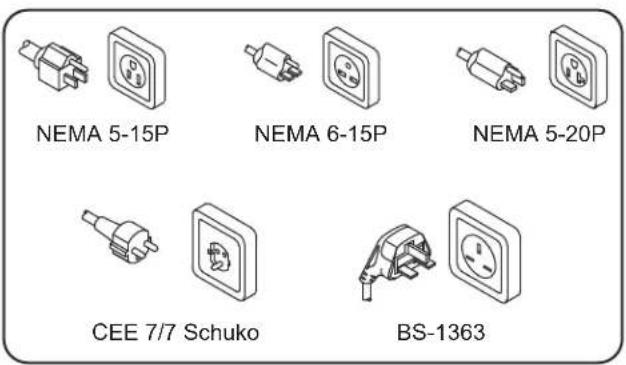

Freestanding units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the application.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NOTE: The specification label is located on the back of freestanding models and the inside left panel of built-in models (remove drawer to view built-in label). See label for serial number and verification of unit electrical information.

Plug Configurations

NOTE: Receptacle not supplied by Hatco.

Electrical Rating Chart — HDW-X Models

Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1	120 450 3.8 NEMA 5-15P 97 lbs. (44 kg)
	208 450 2.2 NEMA 6-15P			97 lbs. (44 kg)
	240 450 1.9 NEMA 6-15P			97 lbs. (44 kg)
	220 450 2.0 CEE 7/7 Schuko			97 lbs. (44 kg)
	240 450 1.9 BS-1363			97 lbs. (44 kg)
	220-230 (CE) 450-492 2.0-2.1 CEE 7/7 Schuko			97 lbs. (44 kg)
	230-240 (CE) 413-450 1.8-1.9 BS-1363			97 lbs. (44 kg)
HDW-2	120 900 7.5 NEMA 5-15P	168 lbs. (76 kg)
	208 900 4.3 NEMA 6-15P	168 lbs. (76 kg)
	240 900 3.8 NEMA 6-15P	168 lbs. (76 kg)
	220 900 4.1 CEE 7/7 Schuko	168 lbs. (76 kg)
	240 900 3.8 BS-1363	168 lbs. (76 kg)
	220-230 (CE) 900-984 4.1-4.3 CEE 7/7 Schuko		168 lbs. (76 kg)
	230-240 (CE)	826-900 3.6-3.8 BS-1363	168 lbs. (76 kg)
HDW-3	120	1350	11.3	NEMA 5-15P
	208	1350	6.5	NEMA 6-15P
	240	1350	5.6	NEMA 6-15P
	220	1350	6.1	CEE 7/7 Schuko
	240	1350	5.6 BS-1363	232 lbs. (106 kg)
	220-230 (CE)	1350-1476	6.1-6.4	CEE 7/7 Schuko
	230-240 (CE)	1239-1350	5.4-5.6	BS-1363
HDW-4	120	1800	15	NEMA 5-20P
	208	1800	8.7	NEMA 6-15P
	240	1800	7.5	NEMA 6-15P
	220	1800	8.2	CEE 7/7 Schuko
	240	1800	7.5 BS-1363	296 lbs. (135 kg)
	220-230 (CE)	1800-1968	8.2-8.6	CEE 7/7 Schuko
	230-240 (CE)	1653-1800	7.2-7.5	BS-1363

The shaded areas contain electrical information for International models only.

NOTE: Shipping weight includes packaging.

Electrical Rating Chart — HDW-XN Models

Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1N 120 450 3.8	NEMA 5-15P			83 lbs. (38 kg)
	208 450 2.2	NEMA 6-15P		83 lbs. (38 kg)
	240 450 1.9	NEMA 6-15P		83 lbs. (38 kg)
	220 450 2.0 CEE 7/7 Schuko			83 lbs. (38 kg)
	240 450 1.9	BS-1363		83 lbs. (38 kg)
	220-230 (CE) 450-492 2.0-2.1 CEE 7/7 Schuko			83 lbs. (38 kg)
	230-240 (CE) 413-450 1.8-1.9	BS-1363		83 lbs. (38 kg)
HDW-2N 120 900 7.5	NEMA 5-15P		168 lbs. (76 kg)
	208 900 4.3	NEMA 6-15P	168 lbs. (76 kg)
	240 900 3.8	NEMA 6-15P	168 lbs. (76 kg)
	220 900 4.1 CEE 7/7 Schuko		168 lbs. (76 kg)
	240 900 3.8	BS-1363	168 lbs. (76 kg)
	220-230 (CE) 900-984 4.1-4.3 CEE 7/7 Schuko		168 lbs. (76 kg)
	230-240 (CE) 826-900 3.6-3.8	BS-1363	168 lbs. (76 kg)
HDW-3N	120	1350	11.3	NEMA 5-15P	232 lbs. (106 kg)
	208	1350	6.5	NEMA 6-15P	232 lbs. (106 kg)
	240	1350	5.6	NEMA 6-15P	232 lbs. (106 kg)
	220	1350	6.1	CEE 7/7 Schuko	232 lbs. (106 kg)
	240	1350	5.6	BS-1363	232 lbs. (106 kg)
	220-230 (CE)	1350-1476	6.1-6.4	CEE 7/7 Schuko	232 lbs. (106 kg)
	230-240 (CE)	1239-1350	5.4-5.6	BS-1363	232 lbs. (106 kg)

Electrical Rating Chart — HDW-XB Models

Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1B 120 450 3.8 Hardwired w/Conduit 88 lbs. (40 kg)
208 450 2.2 Hardwired w/Conduit 88 lbs. (40 kg)
240 450 1.9 Hardwired w/Conduit 88 lbs. (40 kg)
220 450 2.0 Hardwired w/Conduit 88 lbs. (40 kg)
240 450 1.9 Hardwired w/Conduit 88 lbs. (40 kg)
220–230 (CE) 450–492 2.0–2.1 Hardwired w/Conduit 88 lbs. (40 kg)
230–240 (CE) 413–450 1.8–1.9 Hardwired w/Conduit 88 lbs. (40 kg)
HDW-2B 120 900 7.5 Hardwired w/Conduit 159 lbs. (72 kg)
208 900 4.3 Hardwired w/Conduit 159 lbs. (72 kg)
240 900 3.8 Hardwired w/Conduit 159 lbs. (72 kg)
220 900 4.1 Hardwired w/Conduit 159 lbs. (72 kg)
240 900 3.8 Hardwired w/Conduit 159 lbs. (72 kg)
220–230 (CE) 900–984 4.1–4.3 Hardwired w/Conduit 159 lbs. (72 kg)
230–240 (CE) 826–900 3.6–3.8 Hardwired w/Conduit 159 lbs. (72 kg)
HDW-3B	120	1350	11.3	Hardwired w/Conduit	232 lbs. (105 kg)
	208	1350	6.5	Hardwired w/Conduit	232 lbs. (105 kg)
	240	1350	5.6	Hardwired w/Conduit	232 lbs. (105 kg)
	220	1350	6.1	Hardwired w/Conduit	232 lbs. (105 kg)
	240	1350	5.6	Hardwired w/Conduit	232 lbs. (105 kg)
	220–230 (CE)	1350–1476	6.1–6.4	Hardwired w/Conduit	232 lbs. (105 kg)
	230–240 (CE)	1239–1350	5.4–5.6	Hardwired w/Conduit	232 lbs. (105 kg)

Electrical Rating Chart — HDW-XBN Models

Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1BN 120 450 3.8 Hardwired w/Conduit 88 lbs. (40 kg)
208 450 2.2 Hardwired w/Conduit 88 lbs. (40 kg)
240 450 1.9 Hardwired w/Conduit 88 lbs. (40 kg)
220 450 2.0 Hardwired w/Conduit 88 lbs. (40 kg)
240 450 1.9 Hardwired w/Conduit 88 lbs. (40 kg)
220–230 (CE) 450–492 2.0–2.1 Hardwired w/Conduit 88 lbs. (40 kg)
230–240 (CE) 413–450 1.8–1.9 Hardwired w/Conduit 88 lbs. (40 kg)
HDW-2BN 120 900 7.5 Hardwired w/Conduit 159 lbs. (72 kg)
208 900 4.3 Hardwired w/Conduit 159 lbs. (72 kg)
240 900 3.8 Hardwired w/Conduit 159 lbs. (72 kg)
220 900 4.1 Hardwired w/Conduit 159 lbs. (72 kg)
240 900 3.8 Hardwired w/Conduit 159 lbs. (72 kg)
220–230 (CE) 900–984 4.1–4.3 Hardwired w/Conduit 159 lbs. (72 kg)
230–240 (CE) 826–900 3.6–3.8 Hardwired w/Conduit 159 lbs. (72 kg)
HDW-3BN 120	1350 11.3 Hardwired w/Conduit	223 lbs. (101 kg)
	208 1350 6.5	Hardwired w/Conduit	223 lbs. (101 kg)
	240 1350 5.6	Hardwired w/Conduit	223 lbs. (101 kg)
	220 1350 6.1	Hardwired w/Conduit	223 lbs. (101 kg)
	240 1350 5.6	Hardwired w/Conduit	223 lbs. (101 kg)
	220–230 (CE) 1350–1476 6.1–6.4	Hardwired w/Conduit	223 lbs. (101 kg)
	230–240 (CE) 1239–1350 5.4–5.6	Hardwired w/Conduit	223 lbs. (101 kg)

The shaded areas contain electrical information for International models only.
NOTE: Shipping weight includes packaging.

Electrical Rating Chart — HDW-XBR Models

Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1BR	120 450 3.8 NEMA 5-15P 80 lbs. (36 kg)
	208 450 2.2 NEMA 6-15P			80 lbs. (36 kg)
	240 450 1.9 NEMA 6-15P			80 lbs. (36 kg)
	220 450 2.0 CEE 7/7 Schuko			80 lbs. (36 kg)
	240 450 1.9 BS-1363			80 lbs. (36 kg)
	220-230 (CE) 450-492 2.0-2.1 CEE 7/7 Schuko			80 lbs. (36 kg)
	230-240 (CE) 413-450 1.8-1.9 BS-1363			80 lbs. (36 kg)
HDW-2BR	120 900 7.5 NEMA 5-15P	168 lbs. (76 kg)
	208 900 4.3 NEMA 6-15P	168 lbs. (76 kg)
	240 900 3.8 NEMA 6-15P	168 lbs. (76 kg)
	220 900 4.1 CEE 7/7 Schuko	168 lbs. (76 kg)
	240 900 3.8 BS-1363	168 lbs. (76 kg)
	220-230 (CE) 900-984 4.1-4.3 CEE 7/7 Schuko		168 lbs. (76 kg)
	230-240 (CE) 826-900 3.6-3.8 BS-1363		168 lbs. (76 kg)
HDW-3BR	120	1350	11.3	NEMA 5-15P
	208	1350	6.5	NEMA 6-15P
	240	1350	5.6	NEMA 6-15P
	220	1350	6.1	CEE 7/7 Schuko
	240	1350	5.6 BS-1363	232 lbs. (106 kg)
	220-230 (CE)	1350-1476	6.1-6.4	CEE 7/7 Schuko
	230-240 (CE)	1239-1350	5.4-5.6	BS-1363
HDW-4BR	120	1800	15	NEMA 5-20P
	208	1800	8.7	NEMA 6-15P
	240	1800	7.5	NEMA 6-15P
	220	1800	8.2	CEE 7/7 Schuko
	240	1800	7.5 BS-1363	296 lbs. (135 kg)
	220-230 (CE)	1800-1968	8.2-8.6	CEE 7/7 Schuko
	230-240 (CE)	1653-1800	7.2-7.5	BS-1363

The shaded areas contain electrical information for International models only.
NOTE: Shipping weight includes packaging.

Food Holding Capacity

A standard drawer has the following capacity:

Dinner Rolls: 6-8 dozen

Ribs: 25-30 lbs. (11-14 kg)

Potatoes: 3-3-1/2 dozen

Dimensions — HDW-X and HDW-XN Models

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
HDW-1 29-1/2	" (749 mm)	22-5/8" (575 mm)	15-1/16" (381 mm)	24-3/4" (629 mm)	19-1/16" (484 mm)
HDW-2 29-1/2	" (749 mm)	22-5/8" (575 mm)	25-3/16" (639 mm)	24-3/4" (629 mm)	19-1/16" (484 mm)
HDW-3 29-1/2	" (749 mm)	22-5/8" (575 mm)	35-1/4" (896 mm)	24-3/4" (629 mm)	19-1/16" (484 mm)
HDW-4 29-1/2	" (749 mm)	22-5/8" (575 mm)	47-3/8" (1203 mm)	24-3/4" (629 mm)	19-1/16" (484 mm)
HDW-1N 20-7/8	" (530 mm)	27" (686 mm)	15-1/16" (381 mm)	16-1/8" (408 mm)	23-7/16" (594 mm)
HDW-2N 20-7/8	" (530 mm)	27" (686 mm)	25-3/16" (639 mm)	16-1/8" (408 mm)	23-7/16" (594 mm)
HDW-3N 20-7/8	" (530 mm)	27" (686 mm)	35-1/4" (896 mm)	16-1/8" (408 mm)	23-7/16" (594 mm)

NOTE: Add 4^ (102 mm) to Height (C) for units with standard 4^ (102 mm) plastic legs. For additional legs and casters information, refer to the OPTIONS AND ACCESSORIES section of this manual.

Dimensions — HDW-XB and HDW-XBN Models

Model	Width (A)	Depth (B)	Height (C)	Built-In Width (D)	Built-In Height (E)
HDW-1B 29-1/4	" (743 mm)	22-3/8" (568 mm)	10-7/8" (276 mm)	28-3/16" (715 mm)	9-13/16" (248 mm)
HDW-2B 29-1/4	" (743 mm)	22-3/8" (568 mm)	21" (534 mm)	28-3/16" (715 mm)	19-15/16" (506 mm)
HDW-3B 29-1/4	" (743 mm)	22-3/8" (568 mm)	31-1/8" (791 mm)	28-3/16" (715 mm)	30" (763 mm)
HDW-1BN 20-9/16	" (523 mm)	26-3/4" (680 mm)	10-7/8" (276 mm)	19-1/2" (494 mm)	9-13/16" (248 mm)
HDW-2BN 20-9/16	" (523 mm)	26-3/4" (680 mm)	21" (534 mm)	19-1/2" (494 mm)	19-15/16" (506 mm)
HDW-3BN 20-9/16	" (523 mm)	26-3/4" (680 mm)	31-1/8" (791 mm)	19-1/2" (494 mm)	30" (763 mm)

NOTE: Add 1-3/8" (35 mm) to Depth (B) for the unit depth dimension including the conduit connector.

HDW-X and HDW-XN Dimensions

HDW-XB and HDW-XBN Dimensions

Dimensions—HDW-XBR

Model	Width (A)	Depth (B)	Height (C)	Built-In Width (D)	Built-In Height (E)
HDW-1BR 29-1/8	" (740 mm)	16-1/2" (418 mm)	10-3/4" (273 mm)	28-3/16" (715 mm)	9-3/4" (248 mm)
HDW-2BR 29-1/8	" (740 mm)	16-1/2" (418 mm)	21-1/2" (546 mm)	28-3/16" (715 mm)	20-1/2" (521 mm)
HDW-3BR 29-1/8	" (740 mm)	16-1/2" (418 mm)	32-1/4" (819 mm)	28-3/16" (715 mm)	31-1/4" (794 mm)
HDW-3BR 29-1/8	" (740 mm)	16-1/2" (418 mm)	43" (1092 mm)	28-3/16" (715 mm)	42" (1067 mm)

NOTE: Add 1-3/8" (35 mm) to Depth (B) for the unit depth dimension including the conduit connector.

HDW-XBR Dimensions

General

Hatco Drawer Warmers are shipped with most components pre-assembled. Care should be taken when unpacking the shipping carton to avoid damage to the unit and components enclosed.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ (21^)

FIRE HAZARD: Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.

NOTICE

Do not lay unit on the front or back side. Damage to the unit could occur.

1. Remove the unit from the carton.
2. Remove the information packet from the drawer of the unit.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of unit.

2. Place the unit in the desired location.

3. Locate the unit in an area where the ambient air temperature is constant and a minimum of 70^ (21^) . Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/woods and air conditioning ducts).

4. Make sure the unit is located on solid, level flooring or in sturdy cabinetry.
   Make sure the unit is at the proper height in an area convenient for use.

5. Install the unit. Refer to the appropriate installation procedure in this section.

Installing HDW-X and HDW-XN Models

HDW-X and HDW-XN models are freestanding units that require the installation of 4^ (102 mm) legs or casters before operation.

1. Remove the plastic bag containing the four legs or casters from the drawer of the unit.
2. Carefully lay the unit on its side (requires two people).
3. Install each leg or caster. Refer to the appropriate procedure in this section.
4. Return the unit to its upright position (requires two people). For units on legs — If the unit is not level or rocks, turn the adjustable tip of the appropriate leg to level the unit.

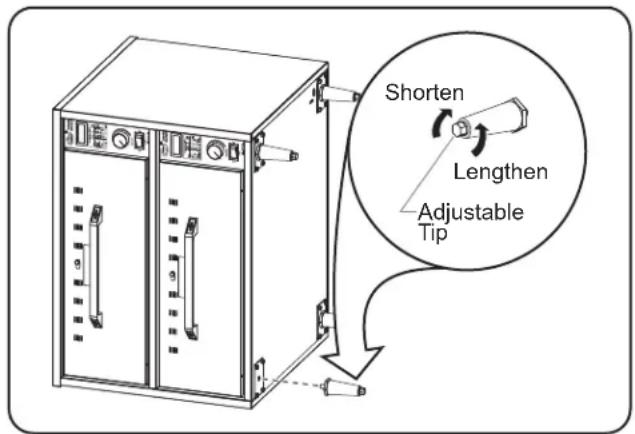

Installing Legs

1. Thread a leg into the hole located at one corner of the unit.
2. Hand-tighten the leg until snug. Do not over-tighten.
3. Repeat steps 1 and 2 for the remaining three legs.

Leg Installation on HDW-2 Model

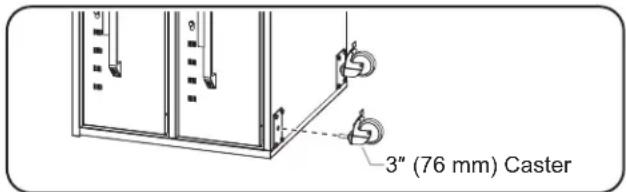

Installing Casters

1. Align the four holes on the caster plate with the four holes in the bottom of the unit at one corner of the unit.
2. Install a bolt through each of the holes in the caster plate and into the bottom of the unit. Tighten securely.
3. Repeat steps 1 and 2 for the remaining three casters.

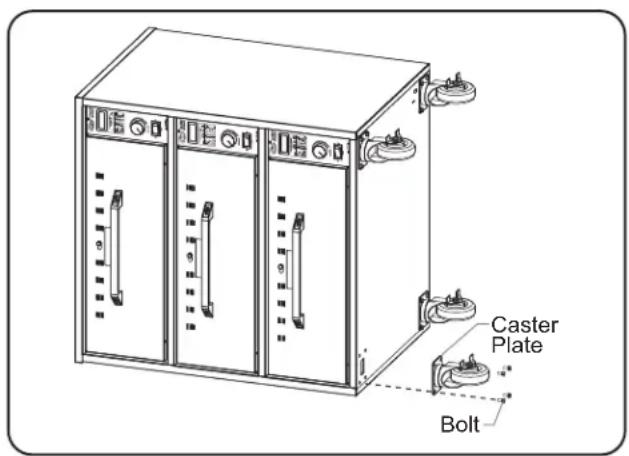

Caster Installation on HDW-3 Model

Installing HDW-XB, HDW-XBN, and HDW-XBR Models

HDW-XB, HDW-XBN, and HDW-XBR models are built-in units that require installation into a cabinet before operation.

WARNING

ELECTRIC SHOCK HAZARD: Built-in units must be installed by a qualified electrician. Installation must conform to all local electrical codes. Installation by unqualified personnel will void unit warranty and may lead to electric shock or burn, as well as damage to unit and/or its surroundings.

1. Cut the appropriate opening in the cabinet. Refer to the "Built-In Cutout Dimensions" chart and illustration for dimensions.

NOTE: Maintain a minimum clearance of 25mm (1") between the cutout opening and the floor.

1. Fasten a locking strip (not supplied) to the lower front inside lip of the cabinet opening.
2. Make sure a properly grounded electrical supply of the correct voltage and size is installed inside the cabinet cutout. See the SPECIFICATIONS section for details.
3. Partially insert the unit into the opening, making sure the conduit is fed into the opening first.
4. Have a qualified electrician connect the unit wires from the conduit to the electrical supply inside the cabinet.
5. Before installing the unit into the opening completely, apply a bead of National Sanitation Foundation-approved sealant between the heated drawer flange and the cabinet facing.
6. Slide the unit into the opening until the front locking studs drop behind the locking strip. To verify installation, pull out the bottom drawer completely and gently pull to ensure the unit is locked in place.

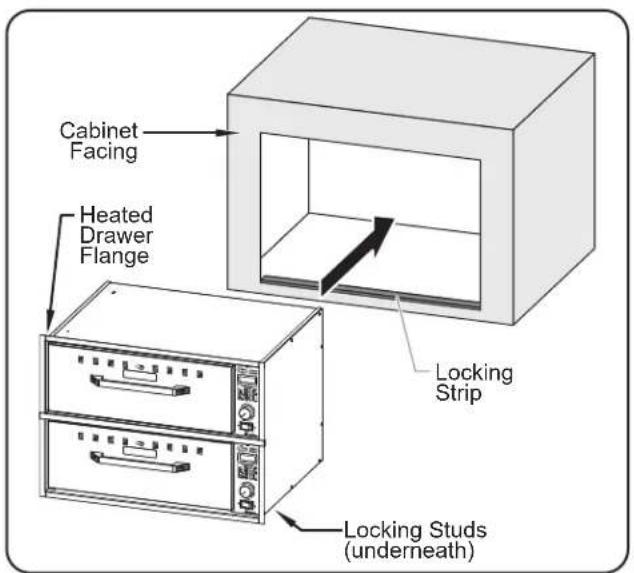

Built-In Installation (HDW-2B Model shown)

Built-In Cutout Dimensions

Model	Width (A)	Depth (B)	Height (C)
HDW-1B 28	3/8 " (720 mm)	24" (610 mm)	10-1/8" (257 mm)
HDW-2B 28	3/8 " (720 mm)	24" (610 mm)	20-1/4" (514 mm)
HDW-3B 28	3/8 " (720 mm)	24" (610 mm)	30-3/8" (771 mm)
HDW-1BN 19	3/4 " (502 mm)	28-3/8" (720 mm)	10-1/8" (257 mm)
HDW-2BN 19	3/4 " (502 mm)	28-3/8" (720 mm)	20-1/4" (514 mm)
HDW-3BN 19	3/4 " (502 mm)	28-3/8" (720 mm)	30-3/8" (771 mm)
HDW-1BR 28	7/16 " (722 mm)	18-1/8" (460 mm)	10-1/8" (257 mm)
HDW-2BR 28	7/16 " (722 mm)	18-1/8" (460 mm)	20-7/8" (530 mm)
HDW-3BR 28	7/16 " (722 mm)	18-1/8" (460 mm)	31-5/8" (803 mm)
HDW-4BR 28	7/16 " (722 mm)	18-1/8" (460 mm)	42-3/8" (1076 mm)

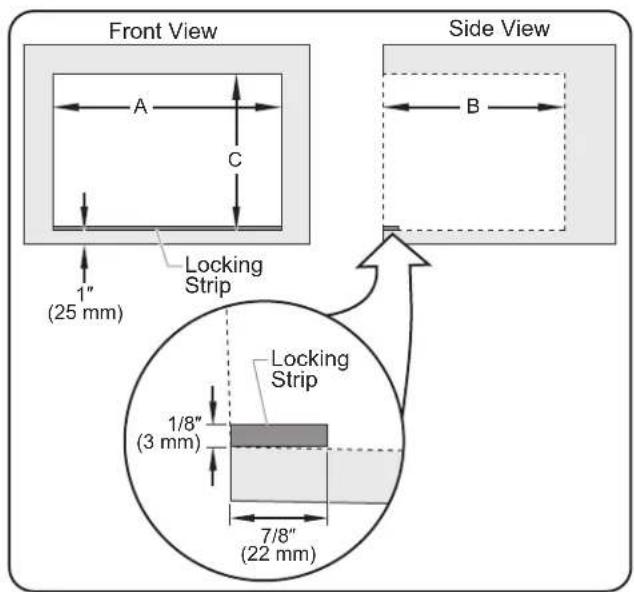

Cutout and Locking Strip Dimensions

General

Use the following procedure to operate a Hatco Drawer Warmer. Each drawer can be controlled and monitored individually using the adjustable drawer vents for humidity control as well as the POWER ON/OFF (I/O) switch, TEMPERATURE control knob, and temperature gauge.

WARNING

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

Startup

1. For freestanding units, plug the unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Move the POWER ON/OFF (I/O) switch(es) to the ON (I) position.
3. Turn the TEMPERATURE control knob(s) to the desired setting(s). See the RECOMMENDED SETTINGS chart on the control panel or the Food Holding Guide in this section.

CAUTION

Standard and approved manufacturing oils may smoke up to 30 minutes during initial startup. This is a temporary condition. Operate unit without food product until smoke dissipates.

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Use caution when opening drawer. Hot air escapes when drawer is open.
• Allow unit 15-20 minutes to reach operating temperature.
• Adjust the drawer vents for the desired humidity by sliding the vent knob on the drawer front. Move vent knob to the right to open the vents and to the left to close the vents. Opening the vents all the way allows maximum moisture to escape.

Drawer Vents

NOTE: Proper vent adjustment depends on the type and amount of food held, as well as the frequency of drawer opening.

NOTE: For additional moisture, water can be added (approximately 1/4'' [6 mm] of water) to the optional water/spillage pan before inserting the food pan into the drawer. Check water level periodically. Add water as necessary. Use of splash baffle is recommended to prevent water from splashing into the cabinet interior when opening and closing a drawer. If hard water is used, the pan will require periodic cleaning and deliming. See MAINTENANCE section for deliming instructions.

NOTE: Damage caused by water is not covered under warranty.

Shutdown

1. Move the POWER ON/OFF (I/O) switch(es) to the OFF (O) position.
2. Allow the unit to cool before performing any cleaning or maintenance.

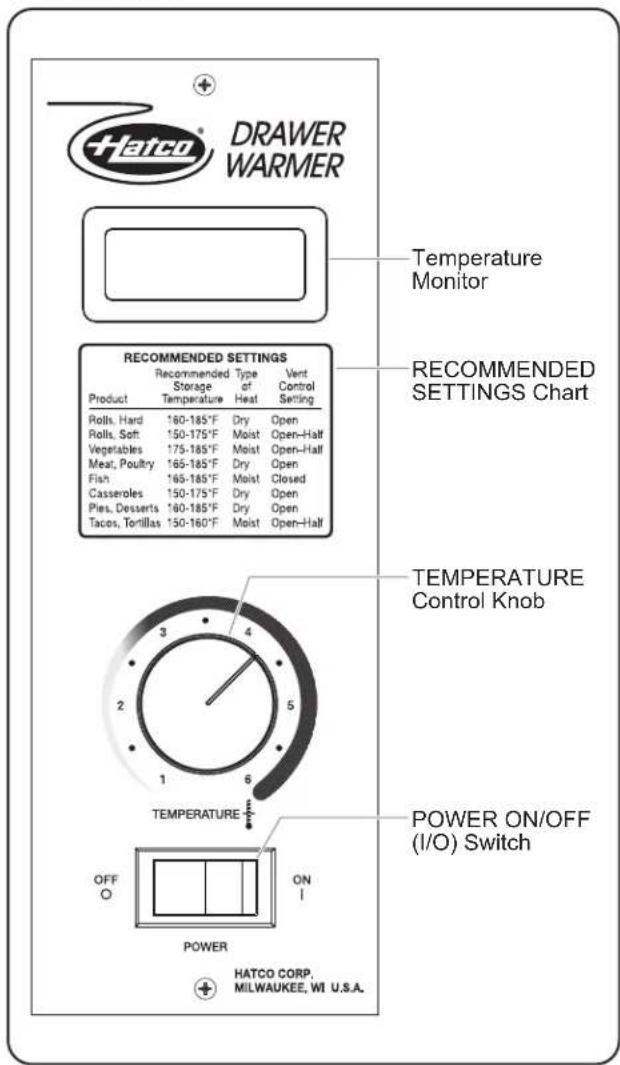

Drawer Warmer Control Panel

Food Holding Guide

Product	Recommended Storage Temperature	Type of Heat	Vent Setting
Rolls, Hard	160°-185°F (71°-85°C)	Dry	Open
Rolls, Soft	150°-175°F (66°-79°C)	Moist	Open-Half
Vegetables	175°-185°F (79°-85°C)	Moist	Open-Half
Meat, Poultry	165°-185°F (74°-85°C)	Dry	Open
Fish	165°-185°F (74°-85°C)	Moist	Closed
Casseroles	150°-175°F (66°-79°C)	Dry	Open
Pies, Desserts	160°-185°F (71°-85°C)	Dry	Open
Tacos, Tortillas	150°-160°F (66°-71°C)	Moist	Open-Half

General

Hatco Drawer Warmers are designed for maximum durability and performance with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
  DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not clean unit when it is energized or hot.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

Cleaning

To preserve the finish of the unit as well as maintain performance, it is recommended that the unit be cleaned daily.

1. Turn off the unit, unplug the power cord (freestanding models), and allow the unit to cool.
2. Remove and wash all food pans and accessories.

NOTICE

Use non-abrasive cleaners only. Abrasive cleaners could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

1. Wipe down surfaces using a damp cloth. A non-abrasive, cream cleaner may be used for difficult stains.
2. Make sure to check and clean the interior of the unit. Food pieces may fall from the food pans into the drawer cavity. CAUTION! Burn Hazard—Do not clean drawer cavity when unit is on!
3. Wipe the entire unit dry using a clean, dry cloth.

Removing Lime and Mineral Deposits (models with optional water pan)

Use the following procedure for periodic cleaning and deliming of the water pan.

NOTE: The lime and mineral content of the water used for daily operation will determine how often the deliming procedure must be performed.

NOTE: Perform this procedure when the unit will not be used for a period of time, such as the end of the day.

1. Turn off the unit, unplug the power cord (freestanding models), and allow the unit to cool.
2. After the unit has cooled, remove and empty the water pan.
3. Fill the water pan with a mixture of 75% water and 25% white vinegar to a level where it covers the lime and mineral deposits.
4. Install the water pan with deliming solution into the unit.
5. Plug in and turn on the unit. Allow the unit to run for 30 minutes.
6. Turn off the unit and unplug the power cord (freestanding models).
7. Allow the water pan to stand with the deliming solution for at least two hours (the time required will vary depending on the amount of deposits in the water pan).
8. Remove the water pan and empty the deliming solution.
9. Continue to fill and rinse the water pan with clean water until the pan is clean.
10. Install the clean water pan into the unit. Plug in the unit and fill the water pan as usual for daily operation (1/4" [6 mm] of water is recommended).

NOTE: If lime and mineral deposits are still present in the water pan, repeat this procedure and increase the amount of time the de-limiting mixture stands in the water pan.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable	Cause Corrective Action
Unit too hot. TEMPERATURE con- trol set too high. Change the temperature to a lower setting.
Unit connected to incorrect power supply. Cont- contact an Authorized Hatco Service Agent or Hatco for assistance.
Internal thermostat defective. Contact an Author- horized Hatco Service Agent or Hatco for assistance.
Unit not hot enough. Unit not allowed enough time to preheat. Allow unit 15-20 minutes to reach operating temperature.
Temperature control set too low. Change the temperature to a higher setting.
Drawer(s) not closed completely. Make sure all drawers are closed completely.
Internal thermostat defective. Contact an Author- horized Hatco Service Agent or Hatco for assistance.
Product too dry. Printer vent in open position. Move drawer vent to closed position.
Optional water pan empty or not installed. Install and/or fill water pan with clean water. Control level of moisture using drawer vents.
Product too moist.	Drawer vent in closed position.	Move drawer vent to open position.
	Optional water pan installed, but not needed.	Remove water pan from drawer.
Unit not working at all.	Unit not plugged in.	Plug unit into proper power supply.
	Unit not turned on.	Move POWER ON/OFF (I/O) switch to the ON position.
	Circuit breaker tripped. Reset circuit breaker.
	POWER ON/OFF (I/O) switch defective.	Contact an Authorized Hatco Service Agent or Hatco for assistance.
	Internal thermostat defective. Contact an Author- horized Hatco Service Agent or Hatco for assistance.
	Heating element burned out.	Contact an Authorized Hatco Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com and click on Find Service Agent, or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

Fax: [phone] or 414-671-3976

Digital Temperature Controller

The digital temperature controller is factory installed and takes the place of the standard drawer warmer control panel. Use the following procedure to operate the digital temperature controller.

Startup

1. Move the POWER ON/OFF (I/O) switch(es) to the ON position.
   The corresponding digital temperature controller will energize and the current temperature of the drawer or "LO" will appear on the TEMPERATURE display. "LO" indicates the drawer temperature is below 70^ (21^)
2. Press the on the digital temperature controller two times to verify the setpoint temperature. ("SP will be displayed after the first press.) See the RECOMMENDED SETTINGS chart on the control panel or the FOOD HOLDING GUIDE in this manual.
3. The setpoint temperature will be shown for 10 seconds. After 10 seconds, the TEMPERATURE display will revert to the current temperature of the unit. To change the setpoint temperature, refer to "Changing the Setpoint Temperature" in this section.

NOTE: The digital temperature controller is pre-set to a setpoint temperature of 185^ (85^) at the factory. Once the setpoint temperature is changed, the new setpoint temperature will remain in memory until it is changed again. The minimum to maximum setpoint temperature range is 70^ (21^) to 200^ (93^) .

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Use caution when opening drawer. Hot air escapes when drawer is open.
• Allow unit 15-20 minutes to reach operating temperature.

Shutdown

1. Move the Power ON/OFF (I/O) switch to the OFF (O) position. The digital temperature controller and heated drawer will shut off.

Changing the Setpoint Temperature

Use the following procedure to change the setpoint temperature.

1. Press the 567 key two times. The current setpoint temperature will be shown on the TEMPERATURE display ("SP" will be displayed after the first press).
2. Press the key or key within 15 seconds to change the setpoint temperature. Pressing and holding the key or key will scroll through the setpoints faster. If no key is pressed within 15 seconds, the TEMPERATURE display will revert to the current temperature of the drawer.
3. Press the key or wait 15 seconds to lock in the new setpoint temperature. The TEMPERATURE display will go blank for two seconds to show that the new setting has been accepted.

Control Panel with Digital Temperature Controller

3'' (76 mm) Locking Casters

3^ (76 mm) locking casters are available for the one, two, and three-drawer freestanding units in place of the legs. Use the following procedure to install casters onto the bottom of the unit.

NOTICE

Do not lay unit on the front or back side or damage to the unit could occur.

1. Remove any pans from the drawers of the unit.
2. Carefully lay the unit on its left or right side (requires two people).
3. Remove the legs, if installed.
4. Install the caster into a hole where a leg was removed. Tighten securely.

Installing 3^ Casters

1. Repeat steps 3 and 4 for the remaining three casters.
2. Return the unit to the upright position (requires two people).

2^ (51 mm) Locking Casters

2^ (51 mm) diameter locking casters are available for one, two, and three drawer freestanding units.

4" (102 mm) Locking Casters

4" (102 mm) diameter locking casters are available for one, two, three, and four drawer freestanding units.

5" (127 mm) Locking Casters

5^ (127 mm) diameter locking casters are available for one, two, three, and four drawer freestanding units.

6" (152 mm) Adjustable Legs

6" (152 mm) stainless steel adjustable legs are available for one, two, three, and four drawer freestanding units.

OversizedDrawer

An oversized drawer and pan is available as a factory installed option. The pan measures 20^ × 15^ × 5^ (508 x 381 x 127

Biscuit Drawer

A biscuit drawer is available as a factory installed option. Biscuit drawers accommodate two 18"W x 13"D (457 x 330 mm) half-size sheet pans (pans not included).

Food Pans

Accessory stainless steel food pans are available in various sizes.

$$ \begin{array}{l} \text {A L U M P A N} \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots (330mm) \ \text {S T P A N 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .} (64mm) \ \begin{array}{l} \text {S T P A N 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .}. \ \text {d e e p - 1 2 - 3 / 4 " W x 2 0 - 3 / 4 " D x 4 " H} \ \text {(3 2 4 \times 5 2 7 \times 1 0 2 m m)} \end{array} \ \begin{array}{l} \text {S T P A N 1 / 2 x 6 "} \dots \text {H a l f s i z e s t i n a l n e s s l e s t e i n g p a n a t 6 "} (1 5 2 m m) \ \text {d e e p - 1 2 - 3 / 4 " W x 1 0 - 3 / 8 " D x 6 " H} \ (3 2 4 \times 2 6 4 \times 1 5 2 m m) \end{array} \ \begin{array}{l} \text {H D W 6 ＂ P A N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .}. \ \text {d e e p - 1 2 - 3 / 4 ＂ W x 2 0 - 3 / 4 ＂ D x 6 ＂ H} \ \text {(3 2 4 \times 5 2 7 \times 1 5 2 m m)} \end{array} \ \end{array} $$

Full Pan, 2-1/2" Deep

Full Pan, 4" Deep

Full Pan, 6" Deep
Stainless Steel Food Pans

Water/Spillage Pan

The water/spillage pan fits in the drawer underneath the food pan and can be used to humidify the heating area or keep spillage from the cabinet interior. A Splash baffle is recommended for use with a water/spillage pan.

Splash Baffle

The splash baffle is used with the optional water/spillage pan. Fabricated of stainless steel, the baffle fits into the bottom of the water/spillage pan, over the water bath. The splash baffle prevents water from splashing into the cabinet interior when opening and closing a drawer, while allowing humidity to escape.

Chip Guard

The chip guard completely shields the heating element, preventing any food product, such as tortilla chips, from coming in contact with the heating element.

Trivet

A trivet (HDW-TRIVET) raises food product 1/2 (51 mm) off the bottom of a full size food pan.

1.PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Roller and Slides

Strip Heater Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements - HW and HWB Series (metal sheathed)

b) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

c) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

d) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTY ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTY DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatcoauthorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

Cotes: 25-30 lbs. (11-14 kg)

Pommes de terre: 3-3-1/2 douzaines

1. GARANTIE DU PRODUIT

Service Solutions Group

Phoenix 602-234-2443

Byassee Equipment Co.

Phoenix 602-252-0402

CALIFORNIA

Industrial Electric

Commercial Parts & Service, Inc.

Huntington Beach 714-379-7100

Chapman Appl. Service

San Diego 619-298-7106

P & D Appliance

Commercial Parts & Service, Inc.

S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance

Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair

Jacksonville 904-725-7800

3Wire Nass Service Co., Inc.

Orlando 407-425-2681

B.G.S.I

Pompano Beach 954-971-0456

Comm. Appliance Service

Tampa 813-663-0313

GEORGIA

TWC Services

Mableton 770-438-9797

Heritage Service Group

Norcross 866-388-9837

Southeastern Rest. Svc.

Norcross 770-446-6177

HAWAII

Burney's Comm. Service, Inc.

Honolulu 808-848-1466

Food Equip Parts & Service

Honolulu 808-847-4871

ILLINOIS

Parts Town

Lombard 708-865-7278

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service

Elmhurst 630-279-8000

Cone's Repair Service

Moline 309-797-5323

INDIANA

GCS Service

Indianapolis 317-545-9655

IOWA

Goodwin Tucker Group

Des Moines 515-262-9308

KENTUCKY

Service Solutions Group

Lexington 859-254-8854

Service Solutions Group

Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service

Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service

Baltimore 410-467-8080

GCS Service

Silver Spring

MASSACHUSETTS

Ace Service Co., Inc.

Needham 781-449-4220

MICHIGAN

Bildons Appliance Service

Detroit 248-478-3320

Commercial Kitchen Service

Bay City 517-893-4561

Midwest Food Equip. Service

Grandville 616-261-2000

MINNESOTA

GCS Service

Plymouth

MISSOURI

General Parts

Kansas City 816-421-5400

Commercial Kitchen Services

St. Louis 314-890-0700

Kaemmerlen Parts & Service

St. Louis 314-535-2222

NEBRASKA

Anderson Electric

Omaha 402-341-1414

NEVADA

Burney's Commercial

Las Vegas 702-736-0006

Hi. Tech Commercial Service

N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus

Flanders

973-691-6300

NEW YORK

Acme American Repairs, Inc.

Brooklyn 718-456-6544

Alpro Service Co.

Brooklyn

Appliance Installation

Buffalo 716-884-7425

Duffy's Equipment Services, Inc.

Buffalo 800-836-1014

3Wire Northern

Plattsburgh 800-634-5005

Duffy's Equipment Services, Inc.

Sauquoit 800-836-1014

J.B. Brady, Inc.

Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance

Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc.

Akron 330-753-6635

Service Solutions Group

Cincinnati 513-772-6600

Commercial Parts and Service

Columbus 614-221-0057

Electrical Appl. Repair Service

Brooklyn Heights 216-459-8700

E.A.Wichman Co.

Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc.

Oklahoma City 405-235-2184

Krueger, Inc.

Oklahoma City

OREGON

Ron's Service, Inc.

Portland

PENNSYLVANIA

Elmer Schultz Services

Philadelphia 215-627-5401

FAST Comm. Appl. Service

Philadelphia 215-288-4800

Appliance Installation & Service

Pittsburgh 412-809-0244

K & D Service Co.

Harrisburg 717-236-9039

Electric Repair Co.

Reading 610-376-5444

RHODE ISLAND

Marshall Electric

Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair

W.Columbia 803-791-4420

TENNESSEE

Camp Electric

Memphis

901-527-7543

TEXAS

GCS Service

Fort Worth 800-433-1804

Armstrong Repair Service

Houston 713-666-7100

Cooking Equipment Specialist

Mesquite 888-866-9276

Refrigerated Specialist, Inc.

Mesquite 888-866-9276

Commercial Kitchen Repair Co.

San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service

Murray 801-263-3221

VIRGINIA

Daubers

Norfolk 757-855-4097

Daubers

Springfield 703-866-3600

WASHINGTON

3Wire Restaurant Appliance

Seattle 800-207-3146

WISCONSIN

A.S.C., Inc.

Madison 608-246-3160

A.S.C., Inc.

Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service

Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service

Victoria 250-920-4888

MANITOBA

Air Rite, Inc.

Winnipeg

NEW BRUNSWICK

EMR Services, Ltd.

Moncton

ONTARIO

R.G.Henderson Ltd.

Toronto

Choquette - CKS, Inc.

Ottawa

204-895-2300

QUEBEC

Choquette - CKS, Inc.

Montreal

Choquette - CKS, Inc.

Québec City

204-895-2300

506-855-4228

ONTARIO

R.G. Henderson Ltd.

Toronto

Choquette - CKS, Inc.

Ottawa

416-422-5580

…

613-739-8458

QUEBEC

Choquette - CKS, Inc.

Montreal

Choquette - CKS, Inc.

UNITED KINGDOM

Marren Group

Northants

[phone]

HATCO CORPORATION P.O.Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

Parts and Service Fax [phone]

International Fax [phone]

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION

section for details.
