Product type	Filter coffee machine
Brand	WestBend
Model	SHCM100
Capacity	8 to 12 cups (approx. 1.2 L)
Filter type	Disposable filter (8-12 cups) or reusable nylon filter included
Pause and serve function	Yes, allows removing the carafe during brewing (max 30 seconds)
Carafe	Glass with handle, graduated
Warming plate	Yes, keeps coffee warm
Automatic shut-off	No, the appliance must be turned off manually
Indicator light	Blue light when the appliance is on
Cord storage	Yes, cord stores under the base
Power	120 V ~ 60 Hz, wattage not specified
Use	Household only, indoor
Care and cleaning	Hand wash removable parts; monthly descaling with white vinegar
Safety	Polarized plug; do not immerse base; exposed hot surface
Warranty	1 year limited (Focus Electrics)

Frequently Asked Questions - SHCM100 WestBend

How to prepare my Soho coffee maker for first use?

Before first use, wash the carafe and filter basket with warm soapy water, rinse and dry. Rinse the reusable filter with warm water only. Wipe the exterior with a damp cloth. Then run a brewing cycle with only water (no coffee) to rinse the appliance.

How to use the pause and serve function?

During brewing, you can remove the carafe to pour a cup. Replace it on the warming plate within 30 seconds to avoid overflow or burn risk. If you exceed this time, the filter basket may overflow.

What type of filter to use?

You can use disposable paper filters for 8 to 12 cups, or the reusable nylon filter included with the machine. The latter cleans with hot water only.

How to get a stronger or weaker coffee?

For a stronger coffee, use more ground coffee (one level tablespoon per cup is the base). For a weaker coffee, reduce the amount. Fine grind gives a richer extraction.

Why is the amount of brewed coffee less than the water poured?

Coffee grounds and filter absorb about 10% of the water. So plan for a little more water if you want exactly the desired amount of coffee.

How to clean and descale the coffee maker?

After each use, clean the carafe and basket with warm soapy water (not dishwasher). For monthly descaling, pour 500 ml of white vinegar into the reservoir, run a cycle without coffee, then discard the vinegar. Then rinse by running two cycles of clear water.

Is the glass carafe replaceable?

Yes, if the carafe is cracked or the handle is loose, it is recommended to replace it. Contact Focus Electrics customer service to order a replacement carafe.

How to store the power cord?

The cord can be wound under the coffee maker base. To lengthen, gently pull the cord out of the notch. To shorten, push excess into the opening and place it in the provided notch.

What to do if the coffee maker does not turn on?

First check that the appliance is plugged into a working outlet. Make sure the switch is set to 'ON'. If the blue light does not turn on, unplug the appliance and contact customer service.

What is the warranty of the WestBend SHCM100 coffee maker?

Focus Electrics offers a one-year limited warranty against defects in materials and workmanship, from the original purchase date. Keep your receipt as proof. The warranty does not cover cosmetic damage or damage from misuse.

USER MANUAL SHCM100 WestBend

SOHO® COFFEEMAKER Instruction Manual

soho -12 -10 -8 -6 -4

Register this and other Focus Electronics products through our website: www.focuselectronics.com

Important Safeguards. 2 Using Your Soho® Coffeemaker. 4 Cleaning Your Soho® Coffeemaker. 6 Warranty. 7

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• To protect against electrical shock, do not put the cord, plug or the motor assembly in water or other liquid.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use, before putting on or taking off parts and before cleaning.
• Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet. For service information see warranty page.
• The use of accessory attachments, not recommended or sold by Focus Electronics may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter.
• Do not let the cord come into contact with hot surfaces, including a stove.
• Do not place on or near a hot gas or electrical burner or in a heated oven.
• Do not use this appliance for other than its intended use.
• Be sure to turn switch to "OFF" position after each use.
• To disconnect, grip plug and pull from wall outlet. Never pull on cord to disconnect.
• Never leave the house while the appliance is on.
• Do not touch hot surfaces. Use handles or knobs where provided. Use hot pads or oven mitts when handling hot surfaces.
• Allow the appliance to cool before putting on or taking off parts and before cleaning.
• The carafe is designed for use with this appliance only. Do not use the carafe provided with this appliance for any other appliance or application.
• Do not place carafe on hot surface or in a heated oven.
• Do not put a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• For household use only.

SAVE THESE INSTRUCTIONS

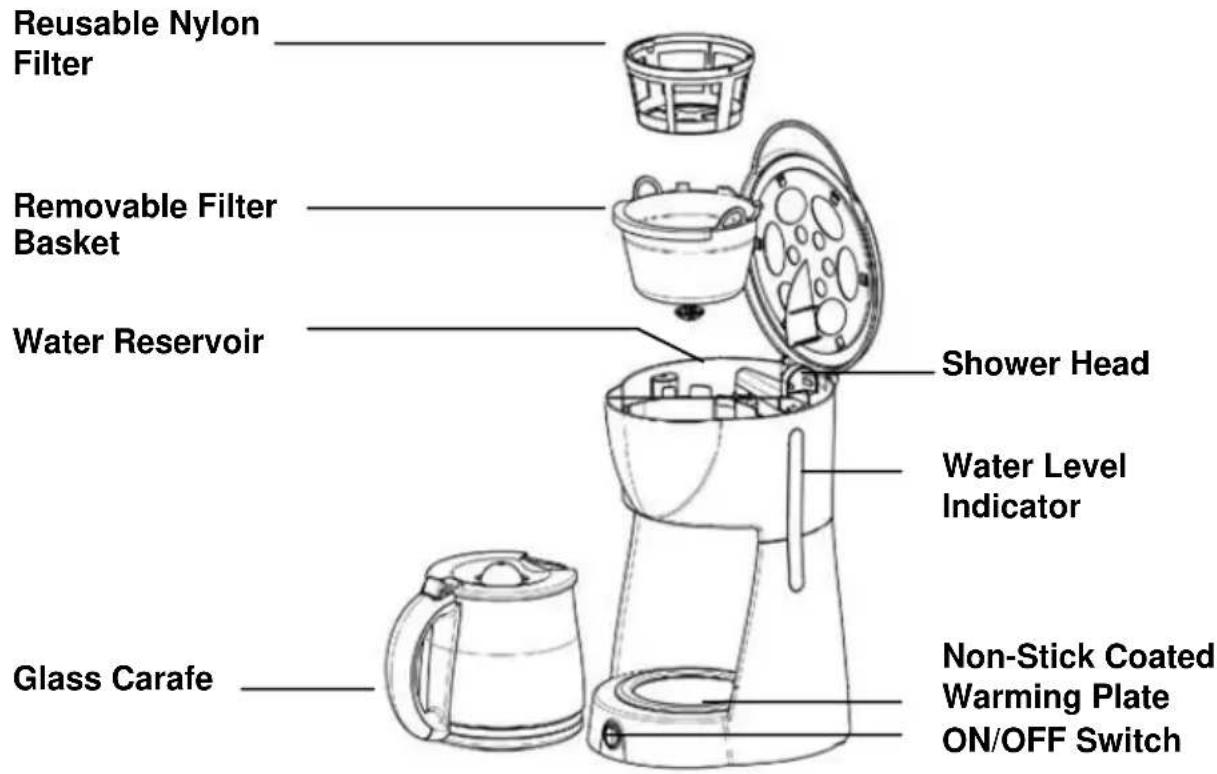

To use your Soho® Coffeemaker, begin by assembling the unit.

WARNING: The coffeemaker will remain "ON" until turned "OFF". Be sure to turn power off after each use and when carafe is empty.

1) Place the appliance on a clean, flat surface and plug into outlet. You can adjust the length of the power cord so that it is the exact length you desire.

a) To increase the length of the power cord: Grasp the power cord (not the power plug) and gently lift it out of the slot, then pull the cord away from the coffeemaker.
b) To decrease the length of the power cord: Grasp the power cord, lift out of the slot, then feed cord into the coffeemaker opening. Place cord in the slot when finished.

2) Prior to first use, clean coffeemaker per instructions on page #6.
3) Remove carafe from unit and fill with desired amount of cold water. Use the easy measuring marks on carafe to ensure correct amount of water. Open top lid and pour water into the water reservoir.

Note: The amount of brewed coffee will always be less than the amount of water placed into water reservoir; coffee grounds and the filter will absorb approximately 10% of the water.

4) With the lid still open, turn shower head to the back and remove the filter basket. Place filter in the filter basket. (Use quality disposable 8-12 cup filters or use reusable nylon filter provided.) Measure one tablespoon (level) of drip or regular grind coffee for each cup of coffee desired and place in filter. Be careful not to get any grounds on the filter basket.
5) Return filter basket to the unit. Make sure filter basket tab fits into slot on filter basket holder. Move the shower head toward front over the filter basket until shower head clicks into place. Close top lid of coffeemaker. Do not open lid during brewing cycle; leaving lid down preserves the coffee's flavor and heat and prevents steam burns.
6) Replace glass carafe on warming plate.
7) Press the switch to "ON". A BLUE light will illuminate during operation.
8) Upon completion of brew cycle, wait 1 minute before removing carafe from the unit to allow any remaining liquid to seep through.
9) Remove carafe and pour desired amount into cup(s). To keep coffee warm, place the carafe back on the warming plate of coffeemaker.

WARNING: With the carafe off the unit, the warming plate is exposed and HOT. Do not touch.

10) Wait 10 minutes before brewing a second pot of coffee. Turn unit off by pressing switch to "OFF"; the BLUE light will turn off.
11) This unit does not turn off automatically. Switch power to "OFF" when carafe is empty or when the unit is not in use. Unplug from wall outlet.

Tips for general operation

• To use Pause & Serve feature, remove carafe during brewing cycle and pour a cup of coffee. Replace carafe on warming plate within 30 seconds to avoid overflow or possible injury.
• For best results, always clean unit after every use and use fresh, cold water when brewing.
• Finer grinds will produce a fuller extraction and provide a richer, full-bodied coffee. Regular grinds will need more coffee per cup to produce the same coffee strength of a finer grind.
• For stronger coffee, use more grounds; for weaker coffee, use less grounds.
  Grinding whole beans immediately before use will produce optimum coffee flavor.
• Store coffee in a cool, dry place to maintain freshness. Do not reuse coffee grounds. This will impair the flavor of your coffee.

Initial Use: Before using your new Soho® Coffeemaker for the first time, be sure to thoroughly wash the glass carafe and filter basket in warm, soapy water. Rinse and dry. Thoroughly rinse reusable filter in WARM WATER ONLY as soap residue can leave a taste in your coffee. Wipe the exterior of unit with a damp cloth to remove any dust or packing residue. Run one cycle through with just water. Follow directions on page #4, leaving out coffee and using only water.

After Each Use

1. Before cleaning, make sure unit is turned off and is unplugged from the wall outlet.
2. Remove filter basket and dispose of coffee grounds and disposable filter, if used.
3. To clean carafe and filter basket, wash in warm, soapy water, rinse and dry. DO NOT WASH PARTS IN DISHWASHER. When cleaning the carafe, do not use abrasive materials as they may damage the carafe.
4. Thoroughly rinse reusable filter in warm water only.
5. When all parts are clean, return carafe and filter basket with reusable filter to the appliance.
6. To clean exterior of unit, wipe with a damp cloth.

DO NOT SUBMERGE APPLIANCE IN WATER.

Extensive Cleaning

Extensive cleaning of your unit is recommended once a month. Mineral deposits can build up over time in the water reservoir causing lengthy brew times and a decrease in the flavor of your coffee.

1. To clean, open top coffeemaker lid and pour 1 pint white vinegar into the water reservoir.
2. Place filter in filter basket - do not add coffee. Move shower head toward front over the filter basket until shower head clicks into place and close lid. Push the switch to "ON". The BLUE light will illuminate.
3. Run white vinegar through one brewing cycle. Once brewing cycle is finished, discard contents in carafe.
4. Remove carafe from the appliance and fill with 12 cups of cold water. Pour water into the water reservoir and repeat the brewing cycle using a fresh disposable filter or clean reusable filter. Do NOT add coffee; use only clear water. Once brewing cycle is finished, switch unit to "OFF", unplug from the wall and discard contents in carafe.
5. Wash carafe and filter basket in warm, soapy water, rinse and dry. Rinse reusable filter in warm water only. Replace in unit.
6. When the unit has cooled, clean the exterior with a damp cloth. Your unit is now clean and ready to brew.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electronics, LLC ("Focus Electronics") warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electronics discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electronics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCUSED. IN NO EVENT SHALL FOCUS ELECTRICS, LLC BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH ITS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electronics Customer Service Department at [phone] or e-mail us at [e-mail]. Return shipping fees are non-refundable. A receipt proving original purchase date will be required for all warranty claims. Hand-written receipts are not accepted. Focus Electronics, LLC is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electronics, LLC online at www.focuselectrics.com. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electronics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electronics, LLC product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product)
