X5 - Smartphone HONOR - Free user manual and instructions

Features	Details
Model	HONOR X5
Device type	Smartphone
Screen	6.5 inches, HD+ resolution
Processor	Octa-core processor
RAM	4 GB
Internal storage	128 GB, expandable via microSD
Rear camera	13 MP
Front camera	5 MP
Battery	5000 mAh
Operating system	Android with Magic UI user interface
Connectivity	4G, Wi-Fi, Bluetooth
Dimensions	160.4 x 75.1 x 8.6 mm
Weight	190 g
Maintenance	Regular cleaning, system updates
Security	Fingerprint unlocking, facial recognition
Warranty	1 year

Frequently Asked Questions - X5 HONOR

How do I reset my HONOR X5 to factory settings?

Go to \"Settings\" > \"System & update\" > \"Reset\" > \"Factory data reset\". Follow the on-screen instructions.

What should I do if my HONOR X5 won\'t turn on?

Make sure the phone is charged. Try holding the power button for 10 seconds. If the problem persists, try charging the phone with a different charger.

How do I fix Wi-Fi connection issues on my HONOR X5?

Check that Wi-Fi is enabled in \"Settings\" > \"Wi-Fi\". Try restarting your router. If the problem continues, forget the network and reconnect.

My HONOR X5 is overheating, what should I do?

Avoid using the phone while charging and do not expose it to high temperatures. If overheating persists, contact technical support.

How do I free up storage space on my HONOR X5?

Go to \"Settings\" > \"Storage\". Delete unused apps, clear the cache, or transfer files to external storage.

Why is my HONOR X5 slow?

Check if apps are running in the background. Try restarting the phone and freeing up storage space.

How do I update the operating system on my HONOR X5?

Go to \"Settings\" > \"System & update\" > \"Software update\". Follow the instructions to download and install available updates.

How do I recover deleted files on my HONOR X5?

Check if you have a cloud backup or use a data recovery app. Note that recovery is not always guaranteed.

My HONOR X5 won\'t charge, what should I do?

Check the charging cable and adapter. Try another port or outlet. If the problem persists, contact customer service.

How do I enable dark mode on my HONOR X5?

Go to \"Settings\" > \"Display\" > \"Dark mode\" and enable it.

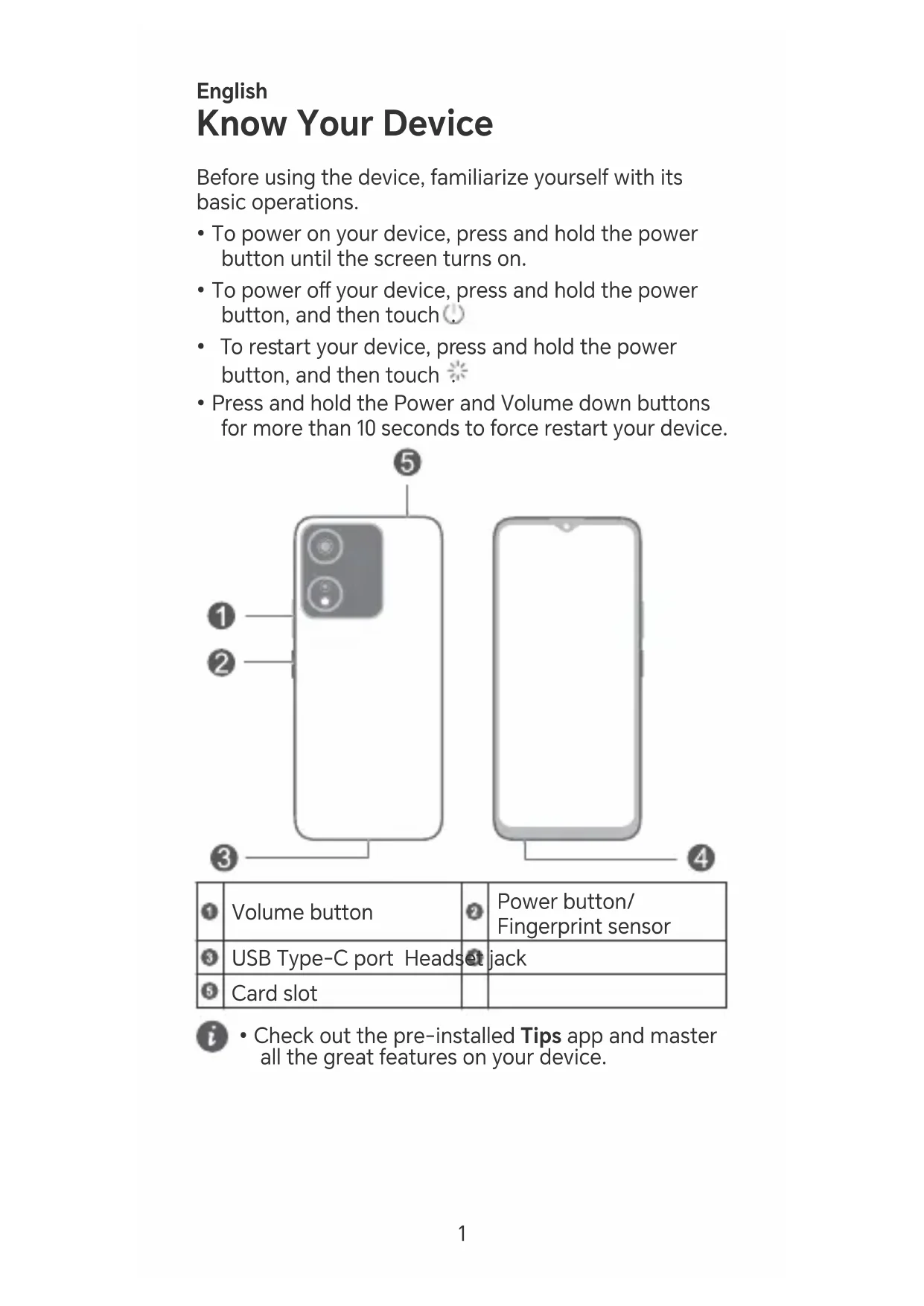

USER MANUAL X5 HONOR

Before using the device, familiarize yourself with its basic operations.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch
• To restart your device, press and hold the power button, and then touch
• Press and hold the Power and Volume down buttons for more than 10 seconds to force restart your device.

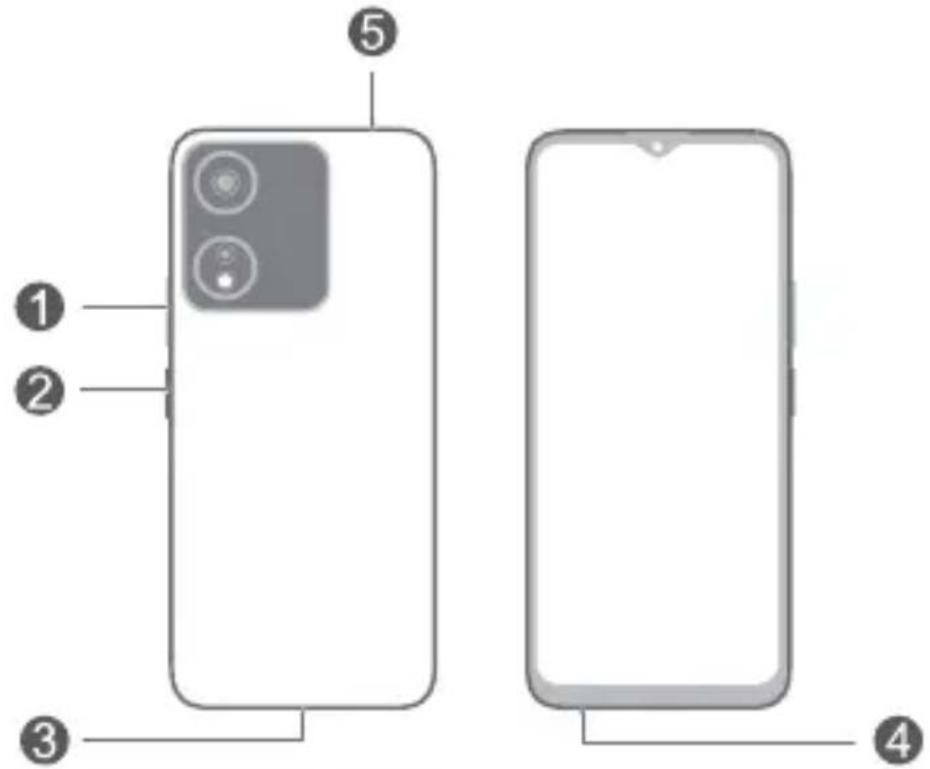

Volume button	Power button/Fingerprint sensor
USB Type-C port Headset jack
Card slot

• Check out the pre-installed Tips app and master all the great features on your device.

Getting Started

• Be careful not to scratch your device or hurt yourself when using the eject pin.
• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.
• Do not use cut or modified SIM or microSD cards with your device as these may not be recognized and could damage the card tray (slot).
• If your SIM card does not match your device, please contact your carrier.

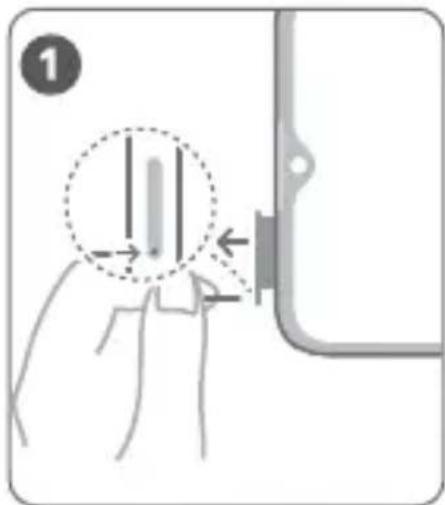

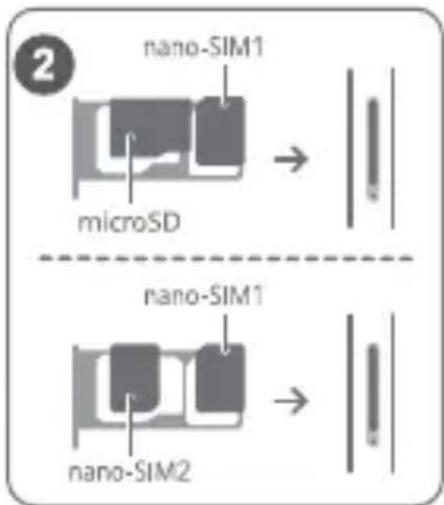

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.

SIM Card Management

Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app.

4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service.
4G service may be unavailable in certain areas due to network interference.
- If this guide is inconsistent with the description on the official website, the latter prevails.

For More Information

If you encounter any problems while using your device, you can obtain help from the following resources:

• Visit https://www.hihonor.com to view device information and other information.
• Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region.
• Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards.
• Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .
• Pacemaker manufacturers recommend that a minimum distance of 15cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

• Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators.

• Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.

• While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal.
• In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.
• When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
• Unplug the charger from electrical outlets and the device when not in use.
• Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire.
• Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.
• Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards.
• Please consult your doctor and the device manufacturer to determine if using your device may interfere with the operation of your medical device.
• Adhere to any rules or regulations set forth by hospitals and health care facilities.
• This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are

strongly advised to contact an authorized service center for a replacement.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and Recycling Information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/.

Reduction of hazardous substances

This device and its electrical accessories comply with local applicable rules on the restricted use of certain hazardous substances in electrical and electronic devices, such as the Restriction of Hazardous

Substances Directive (RoHS) and Batteries Directive (where batteries are included).

RF Exposure Information

The World Health Organization has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body.

Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For the countries that adopted the SAR limit 2.0 W/kg over 10 grams of tissue.

The device complies with RF specifications when used near your ear or at a distance of 0.50cm from your body. The highest reported SAR value: head SAR: 0.91 W/kg; body SAR: 1.02 W/kg.

EU Regulatory Compliance

Hereby, Honor Device Co., Ltd. declares that this device is in compliance with the Radio Equipment Directive 2014/53/EU (RED). For more details, please refer to the EU Declaration of Conformity at https://www.hihonor.com/global/legal/certification/.

Frequency Bands and Power

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

WOD-LX2

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40/41: 25.7dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 20dBm, 5470-5725MHz: 20dBm, 5725-5850MHz: 14dBm

Legal Notice

Trademarks and Permissions

Android is a trademark of Google LLC. LTE is a trademark of ETSI.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under license.

Wi-Fi, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Copyright © Honor Device Co., Ltd. 2023. All rights reserved.

ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at https://www.hihonor.com/privacy-policy/worldwide/.
