Technical specifications	RGV Mojito Junior 110150 Ice Crusher
Power	150 W
Production capacity	About 30 kg/h
Dimensions	40 x 26 x 30 cm
Weight	5 kg
Body material	Stainless steel
Usage	Ideal for bars, restaurants, and events
Maintenance	Regular cleaning of blades and reservoir
Repair	After-sales service recommended for internal parts
Safety	Automatic shutdown in case of overheating
General information	Easy to use, suitable for preparing cocktails and frozen desserts

Frequently Asked Questions - Mojito Junior 110150 RGV

How to use the RGV Mojito Junior 110150 ice crusher?

To use the RGV Mojito Junior 110150 ice crusher, plug in the device, place ice cubes in the reservoir, and press the start button. Adjust the ice size according to your preferences.

What to do if the ice crusher does not work?

Check that the device is properly plugged in and that the outlet is working. Also ensure that the ice reservoir is not too full and that the ice cubes are not blocking the mechanism.

How to clean the RGV Mojito Junior 110150 ice crusher?

Unplug the device and empty the reservoir. Use a damp cloth to clean the exterior surface and a brush to clean the interior. Do not immerse the device in water.

Can the ice crusher be used with ice cubes of different sizes?

Yes, the crusher can work with ice cubes of different sizes, but make sure the ice cubes are not too large to avoid damaging the device.

Is there a warranty for the RGV Mojito Junior 110150 ice crusher?

Yes, the RGV Mojito Junior 110150 ice crusher is generally covered by a 1-year warranty against manufacturing defects. Check the specific conditions of your purchase.

How to obtain spare parts for the ice crusher?

Spare parts can be ordered from the retailer where you purchased the device or directly from the manufacturer\'s website. Be sure to provide the model of the device when ordering.

What is the maximum ice cube capacity of the RGV Mojito Junior 110150?

The RGV Mojito Junior 110150 has a maximum ice cube capacity of 1.5 kg.

Is the ice crusher noisy?

The noise level of the RGV Mojito Junior 110150 is comparable to other ice crushers on the market. It may produce moderate noise during use.

Can the ice crusher be used for other foods?

The ice crusher is mainly designed to crush ice cubes. Using it for other foods is not recommended as it could damage the device.

What is the power of the RGV Mojito Junior 110150 ice crusher?

The RGV Mojito Junior 110150 ice crusher has a power of 300 watts.

USER MANUAL Mojito Junior 110150 RGV

Thank you for choosing our product and we are confident that this choice will meet your expectations in full.

Before using this equipment, please read carefully this "instruction manual" in order to optimize the functional characteristics and eliminate any problems that may arise from incorrect use.

Index

EN

Introduction.. 15
Technical specifications 16
Safety information. 17
-Warnings for use 18
Supplementary warnings 21
- Contents of the package. 22
- Ice crusher description 22
- Ice crusher commands. 23
- Ice crusher preparation. 23
- Utilisation of the ice crusher 23
- Cleaning and maintenance. 24
- Disposal of the ice crusher 25
- Possible problems 25
Guarantee agreement conditions 26
How to contact customer service support 26
Rating label 39

In order to improve the product and/or construction requirements, the manufacturer reserves the right to make changes in technology, design and dimensions without notice.

Technical Specifications

• Dimensions of the ice crusher (lxdxh)

• Dimensions of the motor unit: 17x27x35,5

• Dimensions of the complete unit: 17x27x46
• Dimensions of the container: 17x19x12,5

Theorical production: kg/h 20 ca.
Weight of the ice crusher (approximate): kg 3,6
Motor unit" electrical specifications

-Voltage: 220-240
- Frequency: Hz 50
- Power: Watt 80

Mojito

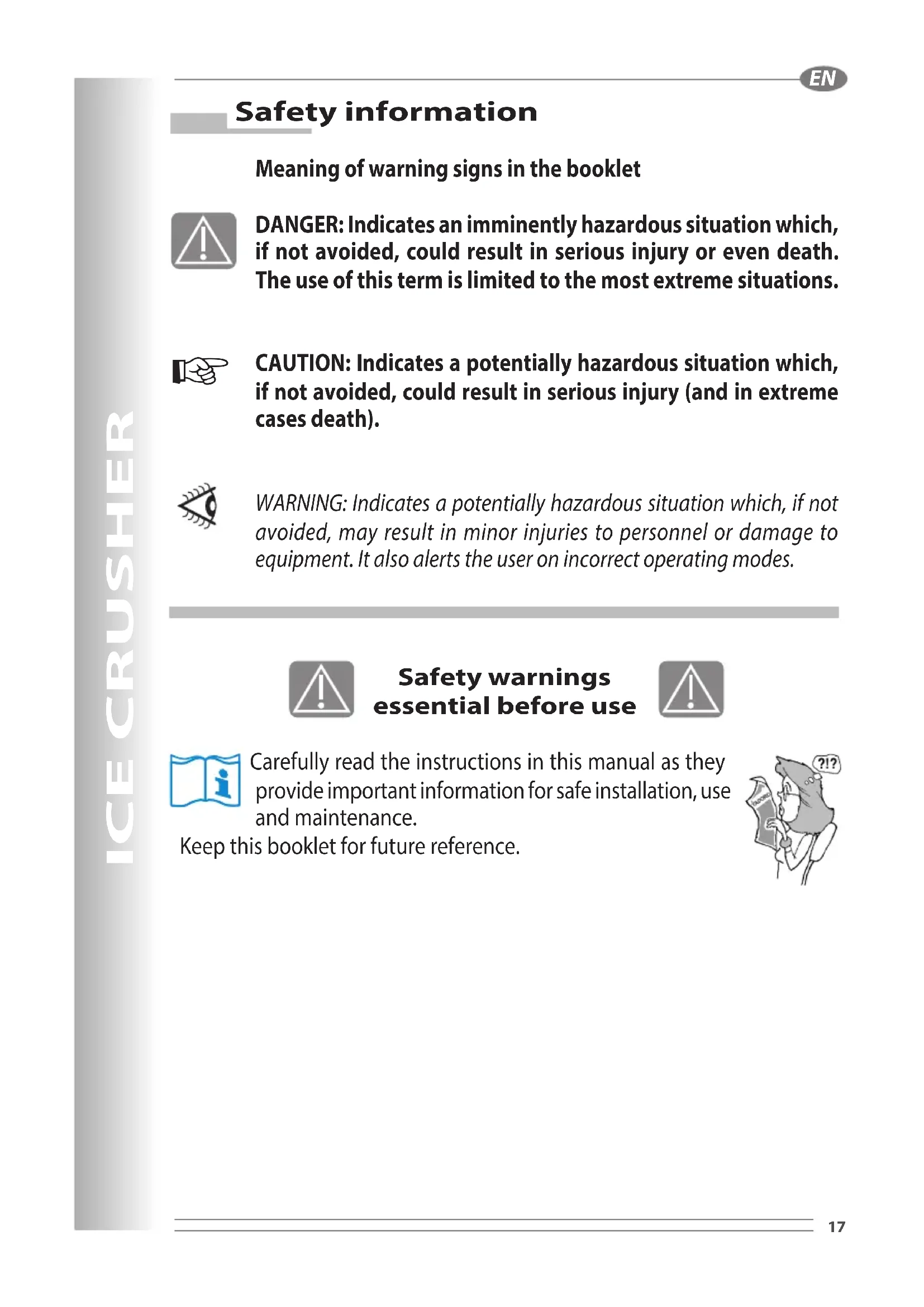

Safety information

Meaning of warning signs in the booklet

DANGER: Indicates an imminently hazardous situation which, if not avoided, could result in serious injury or even death. The use of this term is limited to the most extreme situations.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury (and in extreme cases death).

WARNING: Indicates a potentially hazardous situation which, if not avoided, may result in minor injuries to personnel or damage to equipment. It also alerts the user on incorrect operating modes.

Safety warnings essential before use

Carefully read the instructions in this manual as they provide important information for safe installation, use and maintenance.

Keep this booklet for future reference.

Warnings for Use

For the safe use of the ice crusher

As special precautions:

• Before each use check and verify the mechanical integrity of the unit and all of its components.

The motor unit (1), the funnel (2) and the container (3) must not show any breakage or cracks.

The plug and the insulation of the electrical power cord must not show any wear or breakage.

If there is any evidence of wear or breakage in the cord, immediately disconnect the plug from the outlet and take the ice crusher to your authorised reseller for the necessary inspections and repairs.

Do not insert your fingers or any other objects inside of the funnel or in the funnel seat (fig. D).

Before connecting the ice crusher to an electrical power source, make sure that the line voltage rating corresponds to that found on the ice crusher information tag.

• The packaging materials (plastic bags, polystyrene boxes, etc.) must not be left within reach of children as potential sources of danger.
• Before inserting the plug into the electrical power outlet in the wall, make sure that the ice crusher is turned off (the ON/OFF switch in the position "O").
• The electrical safety of the motor unit is guaranteed only when it is connected to an efficient earth connection system as indicated by the safety regulations in force.

Have this system verified by professionally qualified personnel.

The manufacturer cannot be considered responsible for damages caused by a faulty or non-existent earth connection.

• For your safety, it is recommended that the ice crusher be powered through a line with a delayed RCD breaker switch with trip current no greater than 30mA .

• Do not run the ice crusher continuously for a period exceeding 2 minutes. Alternate periods of operation with periods of pause of at least 10 minutes.

• Do not cover the ventilation grill in the motor unit (1) during operation.
• Never immerse the motor unit (1), the power cord or the plug in water or any other liquids.

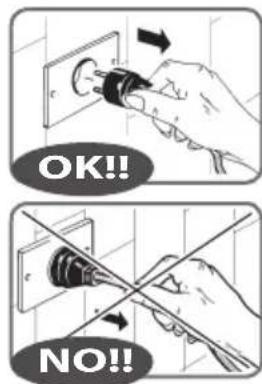

• Do not disconnect the ice crusher by pulling on the power cord to disconnect it from the wall outlet.
• Do not utilise or keep the ice crusher outdoors or in the proximity of water.
  After each use of the ice crusher disconnect the power cord from the electrical power source wall outlet.

This equipment can be used by children aged 8 years or above and by individuals with physical, sensory or mental disabilities as well as people without sufficient experience or knowledge of it ONLY if supervised by a person responsible for their safety or if instructed about the safe use of the device and aware of the possible risks arising from misuse.

Children should not use the device as a toy and should neither clean nor use the device themselves unless they are aged 8 years and above and assisted by an adult.

Keep children under 8 years away from the device and the power cord.

• Before cleaning the ice crusher or carrying out any other operation on it, always disconnect the device from the power outlet.
  Pay close attention that the ice crusher and its power cord are not too close to the edge of the table or the work surface and that they do not come into contact with heat sources or are not too close to a sink.

Make sure that the power cord is not laying on the floor in order to prevent someone from inadvertently overturning and pulling the unit.

• Never insert materials other than ice cubes into the funnel intake of the ice crusher.

Do not use "Cylindrical" (Spanish) ice cubes.

• Do not run the ice crusher dry, i.e., without ice.
• Never operate the ice crusher without having assembled it correctly.
• Never leave the ice crusher unattended while it is operating.
• Before using the ice crusher for the first time, or after a long period in which it has not been used, carefully wash the funnel (2) and the crushed ice container (6) with hot water and dish washing detergent, rinse thoroughly and dry carefully.

During operation, the power outlet should be easily accessible in the event that it is necessary to disconnect the equipment.

• Do not tamper with the ice crusher in any manner or for any reason.
  In the event of malfunction contact your reseller.
• To avoid useless and hazardous overheating of the ice crusher, DO NOT leave the device uselessly connected to the electrical power source. Disconnect the electrical power cord from the wall outlet when the ice crusher is not being used.
• Unwind the electrical power cord completely when the ice crusher is being used.
• Inspect and verify the state of wear of the electrical power cord. Its eventual substitution must be performed by specialised personnel.
• If the unit is to be disposed of, render it unusable by cutting the electrical power cord after having disconnected it from the electrical power outlet.

For domestic use only.

The ice crusher must be inspected and verified or repaired only by an authorised reseller.

Any repair procedure performed on the ice crusher by unauthorised persons automatically invalidates the guarantee.

This ice crusher must be put only to the use for which it was expressly designed and manufactured, that is, crushing ice.

Any other use is considered improper and therefore hazardous.

The manufacturer cannot be considered responsible for any eventual damages derived from improper, faulty or unreasonable use of the ice crusher.

Should there be problems with the appliance, contact an authorised service centres.

Avoid repairing the appliance on your own.

Any repairs carried out on the device by unauthorised personnel will automatically invalidate the warranty, even if it has not reached the expiry date.

SupplementaryWarnings

• Before connecting the ice crusher make sure that the information tag data corresponds to the electrical power distribution network (Mains) specifications. The tag is found on the back of the ice crusher.
• In the event of incompatibility between the outlet and the plug on the ice crusher power supply cord, have the plug substituted with another type that is suitable by professionally qualified personnel who will also have to verify that the wire gauge for the new plug is suitable for the power absorbed by the ice crusher.

It is strongly recommended that adapters, multiple outlets and/or extensions NOT BE USED.

If their use were to be unavoidable it is then necessary to use only simple, multiple or extension adapters that conform to the safety regulations in force, paying attention to not exceed load limits.

• The use of an electrical device includes the observance of some fundamental rules.

Namely:

• Do not touch or use the device with wet or humid hands or while bare foot.
• Do not pull on the power cord or on the device itself to disconnect it from the electrical power outlet.

• Do not allow that the device be used by children or the mentally incompetent without supervision.

• In the event of malfunction and/or breakage of the device, turn it off and do not tamper with it.

For any eventual repairs only authorised resellers should be contacted.

Lack of respect for what is referred to above may compromise the safety of the device.

• If the unit is not to be used any longer and therefore disposed of, render it unusable by cutting the electrical power cord after having disconnected it from the electrical power outlet.

It is additionally recommended to render harmless any parts of the device that may constitute a hazard, particularly for children who could use the discarded device as a toy.

• Installation must be carried out according to the manufacturer's instructions. An incorrect installation could cause damage to persons, animals or things, in the face of which the manufacturer will not be considered responsible.

Contents of the Package (fig. A)

1 - Motor Unit
2 - Funnel
3 - Crushed Ice Container

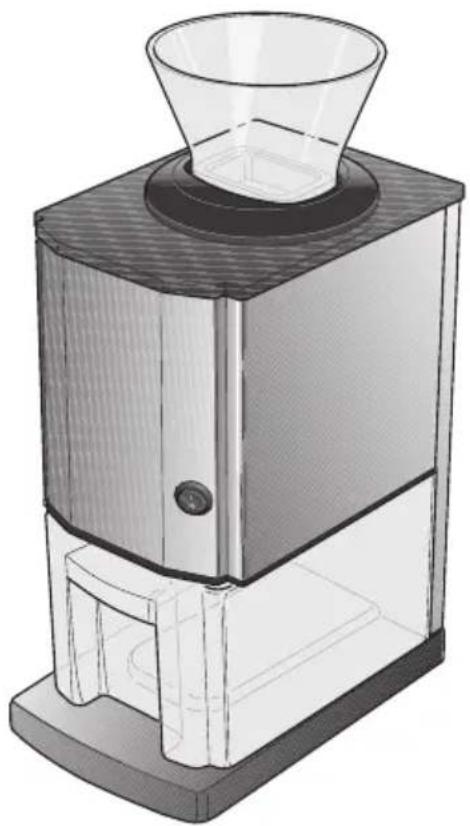

Ice crusher Description (fig. A)

1 - Motor Unit

1a - Funnel Seat
1b - Crushed ice output aperture
1c - Suction cup feet
1d - Motor cooling ventilation grill

2 - Funnel
3 - Crushed ice container

Ice Crusher Commands (fig. A)

4 - ON/OFF switch
5 - Safety switch

Ice Crusher Preparation

a1 - Place the motor unit (1) on a level, stable and dry surface. Make sure that all of the suction cup feet (1c) are correctly attached to the work surface.
a2 - Place the funnel (2) in its seat (1a) located in the upper part of the motor unit (fig. B).
a3 - Insert the crushed ice container (3) in its aperture (1b) and push it all the way in so that is correctly positioned (fig. C)

The safety switch (5) verifies the correct position of the crushed ice container in the motor unit(3); if it is not positioned correctly the ice crusher will not start (fig. C).

Utilisation of the Ice crusher

b1 - Pour the ice cubes into the funnel (2) (fig. D).

Do not use "Cylindrical" (Spanish) ice cubes.

b2 - Connect the power cord to the electrical power outlet.

b3 - Start the ice crusher by pushing the ON/OFF switch (4) to "I".

b4 - The ice cubes "will drop" down into the motor unit to "come out" finely crushed into the crushed ice container.

Do not push down on the ice cubes with your fingers or any other objects (fig. E).

Do not insert too many ice cubes in the funnel (4) to avoid their jamming. If this happens, empty the funnel (4) and then reinsert the cubes a little at a time.

b5 - After use, turn off the ice crusher pushing the ON/OFF switch (4) to "O" and disconnect the power cord from the electrical power outlet.

From one cup of ice cubes about 3/4 cup of crushed ice is obtained.

b6 - If during operation the ice crusher becomes jammed:

• Turn off the ice crusher by pushing the ON/OFF switch (4) to "O".

• Disconnect the power cord from the electrical power outlet.

• Pour a little bit of hot water into the funnel (2) to melt the "jammed" cube (fig. F).
• Wait a few moments.

• Connect the power cord to the electrical power outlet.

• Start the process again by pushing the ON/OFF switch (4) to "I".

Cleaning and Maintenance

Before performing cleaning operations, always disconnect the power cord from the electrical outlet.

c1 - Make sure that the funnel (2) and the crushed ice container (3) are correctly positioned in the motor unit (1).
c2 - Pour a cup of hot water into the funnel (fig. F) to eliminate ice residues and "wash" the ice crusher.
c3 - Remove the crushed ice container (3) from the motor unit (1) and empty it.
c4 - Remove the funnel (2) from the motor unit (1).
c5 - Wash the funnel (2) and the crushed ice container (3) with water and dish washing detergent without using any type of abrasive sponge or pad.
c6 - Rinse thoroughly and dry completely before putting away.

It is strongly suggested that the funnel (2) and the crushed ice container (3) not be washed in the dishwasher as the high temperatures could deform them.

c7 - Clean the motor unit (1) with a damp cloth WITHOUT EVER utilising abrasive products.

Never immerse the motor unit in water or any other liquids.

Disposal of the Ice crusher

The crossed-out wheeled bin symbol placed on the product and on the accompanying documentation indicates that the product itself is subject to Directive 2012/19/EU which regulates the collection, the management, the processing and the disposal of electrical and electronic equipment waste (WEEE).

When the product reaches the end of its lifetime must therefore not be disposed of as a common mixed urban waste but it must be subject to sorted collection at authorized collection centers.

Responsible disposal of electrical and electronic equipment waste helps to ease the material resources sustainable recycling and reuse, as well as to avoid possible damages to the environment and to human health caused by uncontrolled waste disposal.

The municipalities organize sorted collection centers specialized for WEEE. For more detailed information regarding the WEEE collection and pick-up systems, it is possible to refer to your own municipality or to the local household waste disposal service.

Moreover, at the time of purchase of a new equivalent equipment intended to be used in a household environment, the customer has the right to freely lend, at the rate of one on one, the used equipment to the distributor which will provide for its disposal as required by law.

Professional purchasers are exhorted to contact their own supplier to check the terms and conditions of the purchase contract.

Possible problems

• In case there is a malfunction contact an authorized dealer or contact the service (technical support).

Guarantee Agreement Conditions

The present Guarantee does not prejudice the rights of the purchaser established with the legislative decree number 02/022002, n. 24.

With this present guarantee, the manufacturer offers the purchaser who directly contacts the Sales Point, the recovery of the technical conformity of the ice crusher in a rapid and secure manner that is qualitatively irreproachable.

The present guarantee is operative independently from the proof that the defect derives from manufacturing faults present at the time of purchase of the ice crusher, with exception of what is indicated in point "d" of this text.

a) Duration of the guarantee: 24 months from the date of purchase.
Once the first 12 months of the guarantee have passed, any guarantee procedures to be carried out on the ice crusher will be handled by the Sales Points in the next 12 months of legal guarantee in strict application of the provision of the Leg. Dec. 02/022002, n. 24.
b) Validity of the guarantee: In the event of an assistance request, the guarantee is valid only if the certificate of guarantee is exhibited with a document, that is fiscally valid, which has on it the identification details of the reseller, the product and the date on which the purchase was made.
c) Extension of the guarantee: Repair DOES NOT interrupt or modify the duration of the guarantee, which will lapse on its legal expiry date.
d) Limits of the guarantee:

The guarantee does not cover under any circumstances malfunctions due to:

• Negligence, imprudence and carelessness in the use of the ice crusher (non-observance of what has been written in the manual "Instructions for Use").
• Maintenance not foreseen in the manual "Instructions for Use" carried out by unauthorised personnel.
• Alterations or procedures performed to increase the power or effectiveness of the ice crusher.
• Faulty installation (electrical power supply at a voltage different than that found on the information tag and in this manual).
• Improper use of the ice crusher.
• Damage due to normal wear of the components, shocks, falls, or transport damage.
• The guarantee does not include the repair/substitution of parts subject to wear during the normal operation of the ice crusher (hooks, blades, kneaders, transmission belts, connectors...).

e) Costs: In the cases not covered by the guarantee the manufacturer reserves the right to charge the client for the expenses relative to the repair or substitution of the ice crusher.
f) Manufacturer's responsibility: The manufacturer declines any and all responsibility for eventual damages to persons, domestic animals or things that may be, either directly or indirectly, a consequence of the failed observance of all of the recommendations indicated in the manual "Instructions for Use" and regarding in particular the warnings about the theme of installation, use and maintenance of the ice crusher.

How to Contact Customer Service Support

Tel. [phone]

Fax[phone]

[e-mail]

www.rgv.it

Introduction

Cher client,

Stamp and Signature of retailer:
