Technical Specifications	In-wall speaker, 2-way, 6.5 inches
Rated Power	75 Watts
Impedance	8 Ohms
Frequency Response	50 Hz - 30 kHz
Dimensions	Diameter: 20.3 cm, Depth: 9.5 cm
Usage	Ideal for home audio systems, home theater, and multiroom installations
Installation	Flush mount in walls or ceilings, requires adequate space for installation
Maintenance	Regular cleaning with a soft cloth, avoid excessive moisture
Safety	Do not expose to water or extreme temperatures, follow installation specifications
General Information	2-year warranty, technical support available

Frequently Asked Questions - Vertex II IWV62 ELAC

What are the dimensions of the ELAC Vertex II IWV62?

The dimensions of the ELAC Vertex II IWV62 are 600 mm x 250 mm x 120 mm.

How do I install the ELAC Vertex II IWV62 in a wall?

To install the ELAC Vertex II IWV62, cut a hole of 580 mm x 230 mm in the wall, attach the supplied bracket, and connect the wires to the speaker terminals.

What is the rated power of the ELAC Vertex II IWV62?

The rated power of the ELAC Vertex II IWV62 is 80 watts.

What type of cable should I use to connect the ELAC Vertex II IWV62?

It is recommended to use a 16 or 14 gauge speaker cable to connect the ELAC Vertex II IWV62.

Is the ELAC Vertex II IWV62 compatible with surround sound systems?

Yes, the ELAC Vertex II IWV62 is compatible with surround sound systems and can be used as a main or surround speaker.

How do I clean the ELAC Vertex II IWV62?

To clean the ELAC Vertex II IWV62, use a soft, dry cloth. Avoid harsh chemicals that could damage the surface.

What is the frequency response of the ELAC Vertex II IWV62?

The frequency response of the ELAC Vertex II IWV62 ranges from 50 Hz to 30 kHz.

Is the ELAC Vertex II IWV62 covered by a warranty?

Yes, the ELAC Vertex II IWV62 is covered by a limited 2-year warranty.

What should I do if the ELAC Vertex II IWV62 is not working?

First, check the cable connections, ensure the amplifier is functioning properly, and try testing the speaker with another audio source.

USER MANUAL Vertex II IWV62 ELAC

Technical line drawing of a speaker or audio component with concentric circles and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and concentric rings (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a three-tiered electronic device with circular components and mounting holes (no text or symbols)

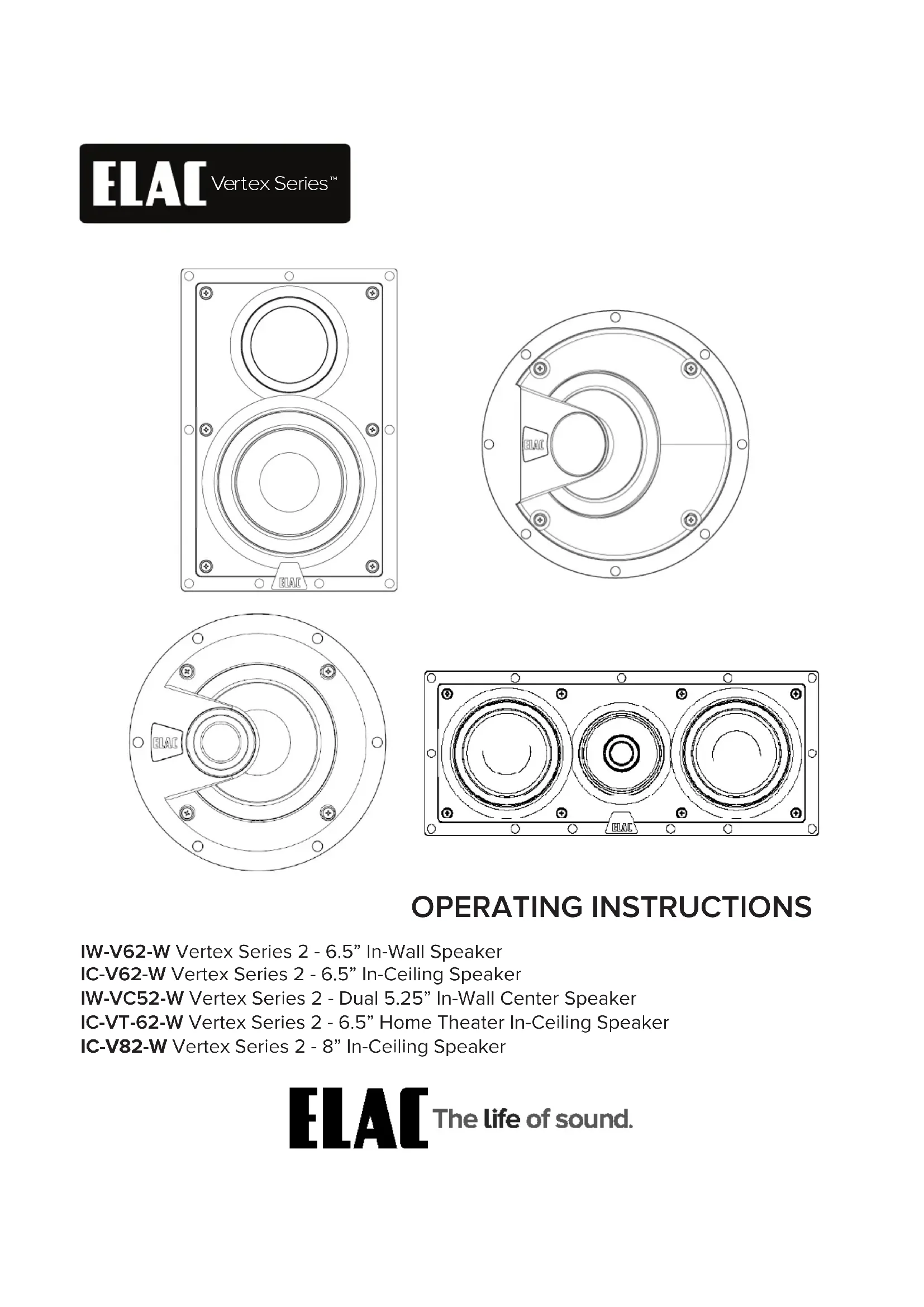

OPERATING INSTRUCTIONS

IW-V62-W Vertex Series 2 - 6.5" In-Wall Speaker

IC-V62-W Vertex Series 2 - 6.5" In-Ceiling Speaker

IW-VC52-W Vertex Series 2 - Dual 5.25" In-Wall Center Speaker

IC-VT-62-W Vertex Series 2 - 6.5" Home Theater In-Ceiling Speaker

IC-V82-W Vertex Series 2 - 8" In-Ceiling Speaker

ELAC

The life of sound.

INTRODUCTION

Congratulations on your purchase of these fine loudspeakers and welcome to the ELAC family. Ever since we started in 1926, we have striven to create the very best products available. Our passionate team members are always looking for ways to improve your listening enjoyment. We thank you for making this choice.

These ELAC Vertex Series 2 In-Wall speakers are designed to accurately reproduce the full range of music and film sound, while requiring absolutely no floor space. This compact format is ideal for applications where traditional loudspeakers would be impractical or impossible. In-Wall speakers are ideal for Surround Sound applications, anywhere space is a consideration, or to bring music into additional rooms of the house.

Please take a few minutes to carefully read this manual before you get started. Also, be sure to keep this manual in a safe place should you need to refer to it in the future.

The information contained in this manual is applicable to these five ELAC models

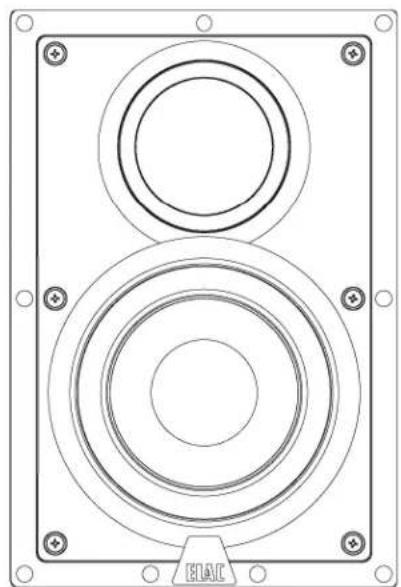

IW-V62-W Vertex Series 2 6.5" In-Wall Speaker

This speaker is perfect for most applications for Home Theater & Music, providing extremely accurate reproduction of the entire frequency range.

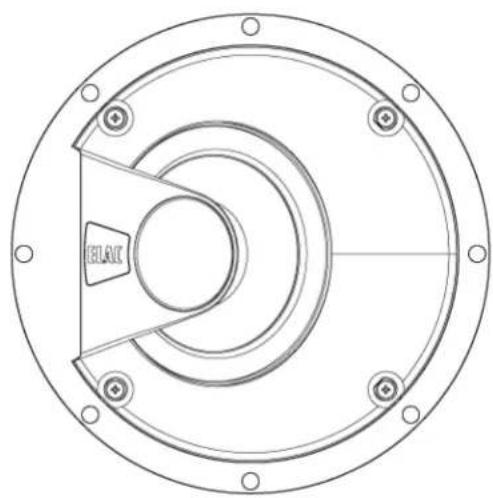

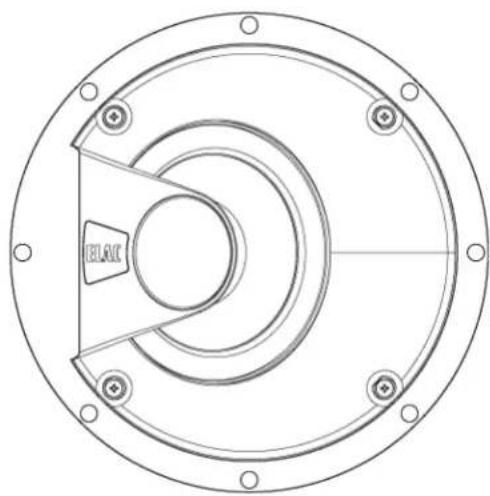

IC-V62-W Vertex Series 2 6.5" In-Ceiling Speaker

This speaker is perfect for installation in ceilings and provides the same exceptional sound reproduction as its in-wall counterpart.

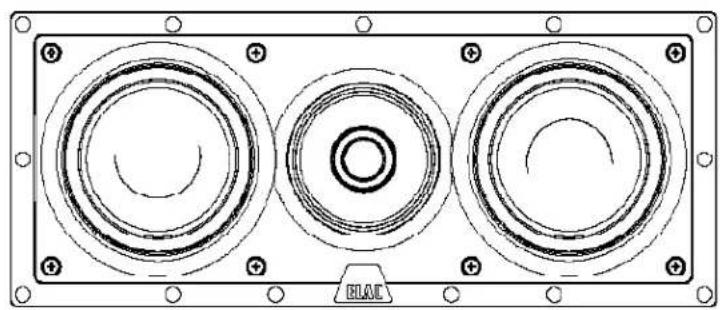

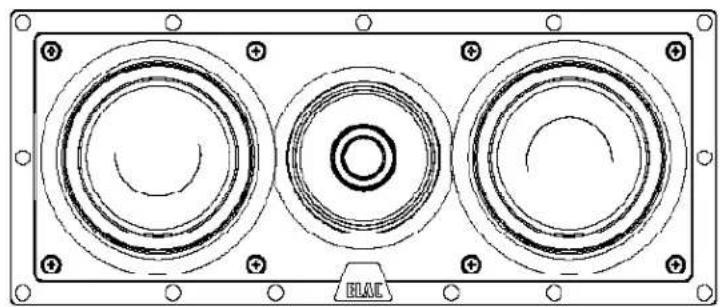

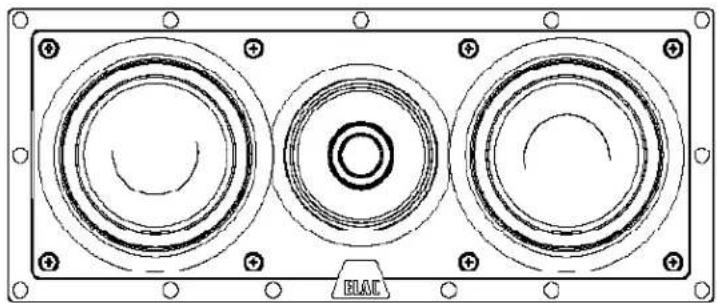

IW-VC52-W Vertex Series 2 Dual 5.25" In-Wall Center Speaker

This speaker is perfect for the exceptional reproduction of the dialogue in a TV broadcast, music, and the complex requirements of the Center Channel in a Home Theater system.

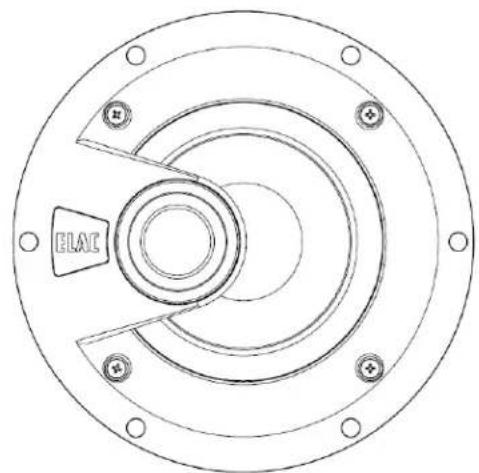

IC-VT62-W Vertex Series 2 6.5" Home Theater In-Ceiling Speaker

This Speaker is designed for use in ceiling base home theaters.

IC-V82-W Vertex Series 2 - 8" In-Ceiling Speaker

This speaker is perfect for installation in ceilings and provides the same exceptional sound reproduction as its in-wall counterpart.

One of the main challenges during installation is to overcome the narrow directivity of the woofer and tweeter by trying to aim the speaker towards the listener. Some speakers simply provide a swiveling tweeter that can be rotated through a narrow range to “aim” it at the listener. The typical range provided in practice produces almost no change in the sound balance, and does nothing to address the directivity of the woofer. The ELAC IC-VT62-W is designed so that both the woofer and tweeter are mounted at a 30 degree angle that allows the sound to be better directed toward the listening area.

SAFETY INSTRUCTIONS

Use Only As Directed

• Observe all warnings on the speaker and in this manual.
• Please check the speaker for damage before use.
• Carefully consider the proper location before beginning the installation
• Observe the correct polarity when connecting these speakers, according to the instructions in this manual.

Location

• Speakers should be mounted close to, or slightly above ear level whenever possible.
• Allow at least 1.5" of clearance between the wall "cut-out" and any studs or joists
• Please refer to the specification chart for the required depth for each model.
• Use the included template for proper "cut-out" of drywall
• Do not install the speaker near any heat sources such as radiators, heating valves, stoves or apparatus (including amplifiers), or in areas where there is a risk of explosion.
• Do not install the speaker near transformers. EMF fields can cause unwanted noise
• Do not install the speaker in locations that are extremely humid, exceptionally hot, cold or prone to vibrations

Overload

- Extreme overload of the device due to very high volume may cause damage to individual components. Because of the possible danger, you should never leave loudspeakers under extreme overload conditions unattended.

Volume

- CAUTION: Continuous high volume may cause severe damage to your hearing. Please listen responsibly.

Disposal

- The packaging is made from recyclable materials. Please be responsible & dispose of these packaging materials in an environmentally sensitive manner.

SPEAKER PLACEMENT

Once installed, In-Wall speakers are not easily repositioned or moved. Please take a bit of extra time to carefully consider the best speaker locations before you begin. Each room is unique, so decide what works best for you.

As a general rule

• Speakers should be mounted close to or above ear level whenever possible
• Speakers should always be directed toward the primary listening position.
• Speakers should be mounted at least two feet from the corners of the room or ceiling.
• Mounting a speaker too near the corner of the room will increase the low-frequency response, causing an unnatural “boominess” in the affected frequencies.

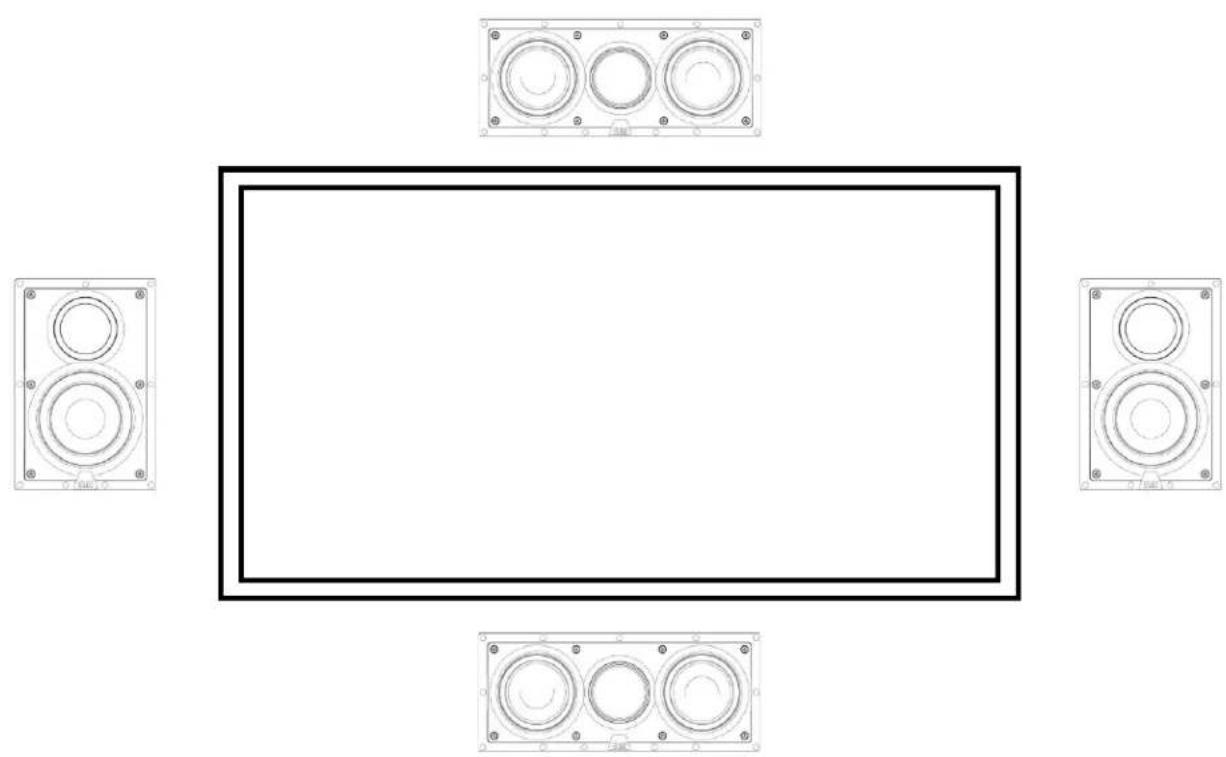

Set-up Diagram #1 – Center Channel & Front Left and Right Channel Speakers

The Center Channel speaker should be mounted close to ear level, above or below the video screen

Top-down schematic of a rectangular device with four circular speakers and mounting holes, no text or symbols present.

SPEAKER PLACEMENT - continued

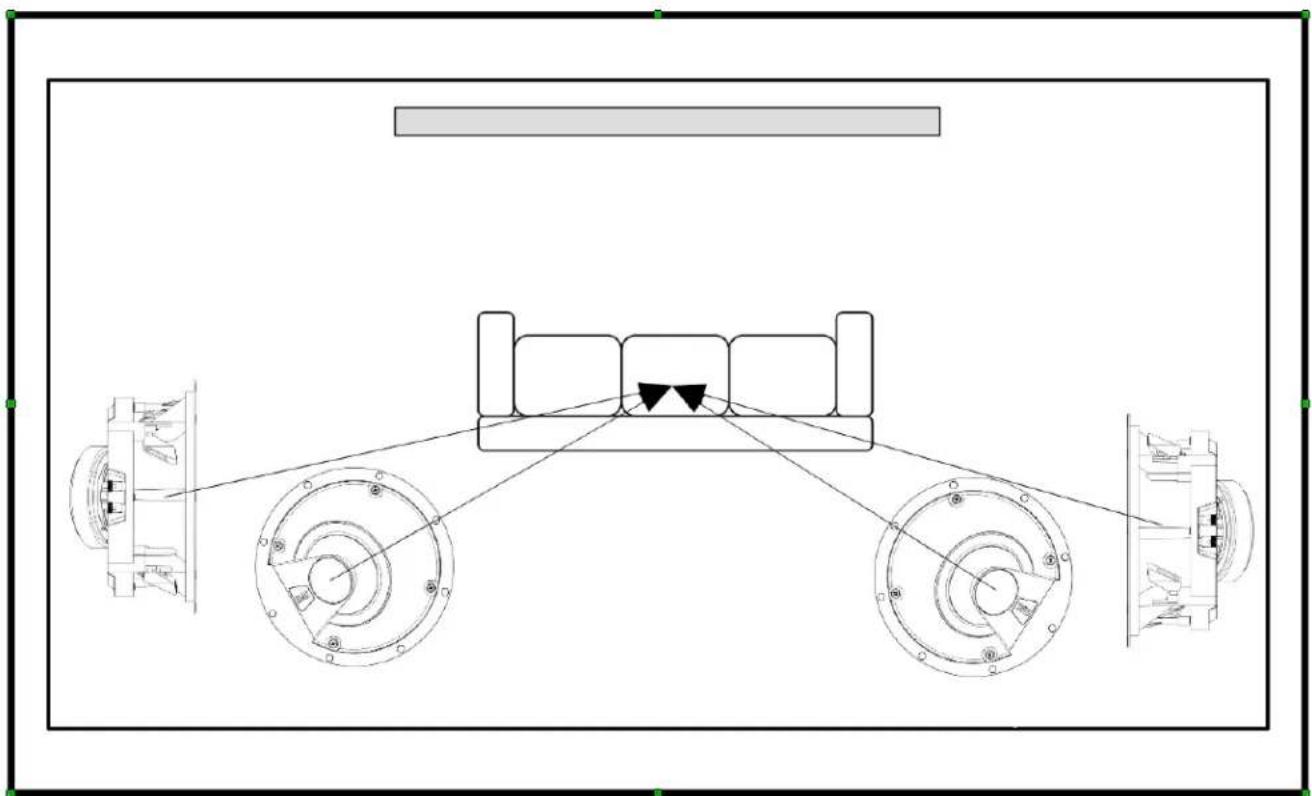

Set-up Diagram #2 – Rear Channel Left and Right Surround Speakers

• The rear-channel speakers should be located behind the main listening position and above ear level, if possible.
• These speakers can be either wall-mounted or ceiling mounted, depending on the specific requirements & limitations of your listening rooms design.
• These speakers should be mounted so the tweeter is "aimed" directly at the main listening position.
• The rear-channel speakers should be mounted at least 2 feet from the corners of the room. Placing these speakers too near the rooms corners will accentuate the low frequency response

Technical line drawing of a vehicle chassis with three wheels and a central body, no text or symbols present

INSTALLATION

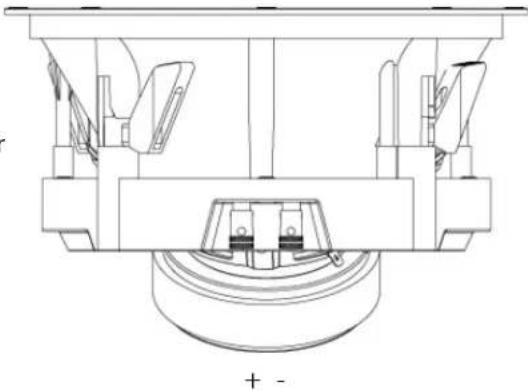

Hooking Up The Wires

- For shorter distances up to 25 feet, 18 gauge speaker wire will be sufficient. For longer distances, 16 gauge speaker wire should be used. The speaker terminals will accommodate up to a 14-gauge speaker wire. Leave two feet of extra speaker wire at the speaker end to make installation easier. Do not use nails, staples or other metal objects to secure the speaker wire. The resulting short-circuit could affect your system's performance & could also damage components in your system, especially the amplifier. To minimize interference & external hum keep the speaker wires away from other electrical wires and cables.

- When connecting the speaker wires it is important to retain the correct polarity. Be sure that the wire attached to the “+”, red, positive, or hot terminal on your ELAC speaker connects to the “+”, red, positive, or hot terminal on the other component.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mounting the speaker

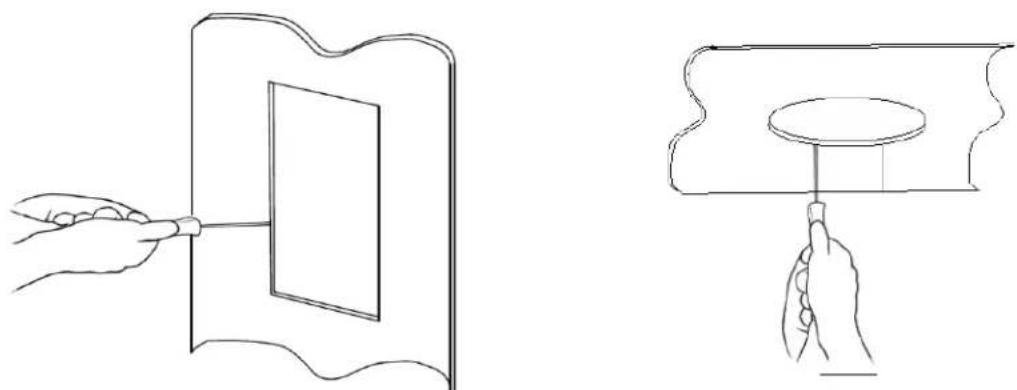

- Yes, you will be cutting a hole in the wall or ceiling. With the right tools and a little extra preparation & care, installing these in-wall speakers can be quick and easy.

Line drawings showing a hand holding a rectangular object and a magnifying glass over a circular object (no text or symbols)

- Carefully cut out the hole drawn on the paper template. (Note: the inside rectangle (or circle) of the template can be used to shield the woofer while you paint the frame.)

- Next, position the template where you have chosen to mount the speaker and trace along the inside edge. Make your cuts along this line. A utility knife will make clean cuts in drywall. A keyhole saw or electric jigsaw may also be used. Do your best to keep the cuts neat, however the frame will overlap the hole to hide any rough edges.

- At this point, with the wall open, run the speaker cables into position leaving about two feet of extra cable exposed at the opening. Strip the ends of the cable back by approximately 14 inch (6mm) to expose the bare wire.

INSTALLATION - continued

- Attach the speaker cables to the speaker terminals, observing the correct polarity

- Remove the grille from the speaker frame. The grille is held on by magnetic attraction. To remove simply hold the edge of the grille and gently pull toward you.

Technical line drawing of a mechanical component with circular features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

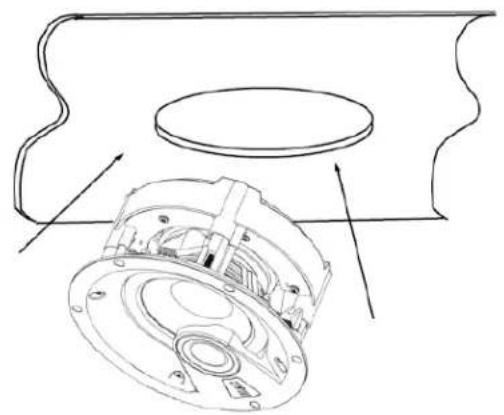

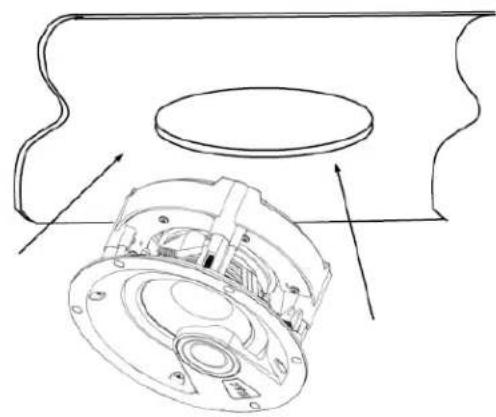

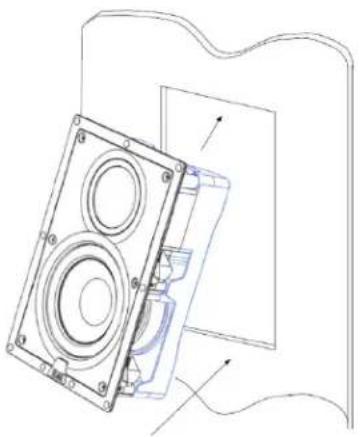

- With the grille removed, the speaker can be inserted into the mounting hole. First make sure all the tabs are rotated inwards and then connect the speaker wires. The connector posts are spring loaded so the bare ends of the speaker wire can be pushed into the holes on the side of the post after the end cap is depressed. Once inserted the end cap can be released and the wire will be held firm. Make sure no stray strands of wire are exposed that could short across between the two posts.

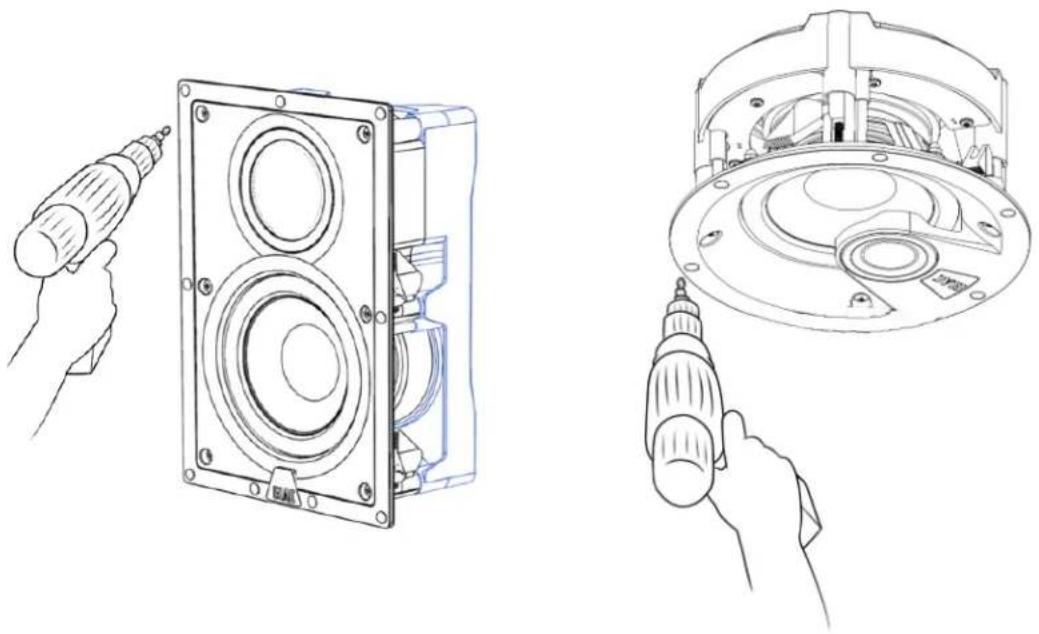

- Use a Phillips head screwdriver – Turn each mounting screw clockwise to rotate the quick-turn mounting bracket into place. Further turning of the screw will tighten the mounting bracket until it is firmly against the wall. DO NOT over-tighten the screw to prevent breakage of the mounting bracket.

- When the speaker is mounted firmly in place, replace the magnetic grill

Technical line drawings of a speaker and motor assembly, showing hand operating drill bits (no text or symbols)

SPECIFICATIONS

	IW-V62-W IW-VC5	2-W IC-V62-W IC	VT62-W IC-V82-W
Tweeter 1 x 1-inch cloth dome	1 x 1-inch cloth dome 1	1-inch cloth	dome	1 x 1-inch cloth dome 1 x 1-inch cloth dome
Woofer 1x 6.5-inch aluminum cone	2 x 5.25-inch alumi-num cone	1x 6.5-inch alumi-num cone	1x 6.5-inch aluminum cone	1x 8-inch aluminum cone
X-Over Frequency 2,100 Hz	Hz 2,100 Hz 2,100 Hz 2,100 Hz	Hz 2,100 Hz	00 Hz
Frequency Range	45 to 20,000 Hz	45 to 20,000 Hz	45 to 20,000 Hz	45 to 20,000 Hz
Sensitivity	87dB @ 2.83 v/1m	86dB @ 2.83 v/1m	87dB @ 2.83 v/1m	87dB @ 2.83 v/1m
Recommended Amplifier Power	30 to 120 wpc	30 to 120 wpc	30 to 120 wpc	30 to 120 wpc
Nominal/Peak Power Handling	50 / 120 wpc	50 / 120 wpc	50 / 120 wpc	50 / 120 wpc
Nominal Impedance	6 ohms	6 ohms	6 ohms	6 ohms
Binding Posts	Heavy Duty Metal Spring Clip	Heavy Duty Metal Spring Clip	Heavy Duty Metal Spring Clip	Heavy Duty Metal Spring Clip
Speaker Finishes	Black Baffle/White Grill. Magnetic Paintable Grills	Black Baffle/White Grill. Magnetic Paint-able Grills	Black Baffle/White Grill. Magnetic Paintable Grills	Black Baffle/White Grill. Magnetic Paintable Grills
Accessories Included	Cutout Template, manual	Cutout Template, manual	Cutout Template, manual	Cutout Template, manual
Dimensions (WxHxD)	215.3mm x 322.3mm x 102.5mm	448.3mm x 188.3mm x 85.6mm	236.5mm Diam-eter	265mm Diameter 285mm
Cut-Out (WxH)	187mm x 295 mm	417mm x 157mm	206mm Diameter	242mm Diameter
Mounting Depth	100 mm	84mm	111mm	173mm

ELAC Americas Inc

North America Limited Liability Warranty

Passive Speakers (No Built-in Amplifier)

ELAC Americas Inc. Warrants to the original purchaser that this product will be free from defects and or workmanship for a period of 3 (three) years from the original date of purchase. During this time, repair or replacement of parts will be free of charge to the original owner. (See below limitations.) Shipping to and return from the repair center will be the responsibility of the original purchaser.

Limitations

• Warranty begins on the date of original purchase from an authorized ELAC Americas Inc dealer.
• Product is warranted only if used in home applications within the maximum power rating specified in this manual. Commercial use of this product is not warranted.
• Product that has been modified or altered in any way will not be warranted.
• Product that has been abused or subjected to faulty equipment will not be warranted.
• Products with defaced or removed serial numbers will not be warranted.

If service is required

In the event that service is required, please contact ELAC America at 714-252-8843 or at [e-mail] to arrange for service or replacement. You will be responsible to provide proof of purchase (copy or original sales receipt). Shipping to and from our repair center will be the responsibility of the original purchaser.

Warranty Outside of North America

This warranty applies to products purchased in the United States and Canada. For warranty claims outside of North America, please contact the local dealer/distributor in the country of purchase.

ELAC

Vertex Series™

Technical line drawing of a speaker or speaker assembly with concentric circles and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and concentric rings (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and a central recessed feature (no text or symbols)

Technical diagram of a three-tier electronic component with concentric circular features and mounting holes (no text or symbols)

BEDIENUNGSANLEITUNG

Top-down schematic of a rectangular display unit with four circular speaker modules arranged around it (no text or symbols)

Technical line drawing of a vehicle chassis with three wheels and a central body, no text or symbols present

Installation Teil 1

Verkabelung

Technical line drawing of a mechanical assembly with no visible text or symbols

• -

Line drawing of a hand holding a tool near a blank rectangular panel (no text or symbols)

Line drawing of a hand holding a magnifying glass over a circular object, no text or symbols present

Technical line drawing of a mechanical component with circular features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Technical line drawing of a speaker or audio device with concentric circles and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and concentric rings (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and a central recessed ring (no text or symbols)

Technical diagram of a three-tiered speaker or audio component with mounting holes and concentric rings (no text or symbols)

MODE D'EMPLOI

Top-down schematic of a rectangular device with four circular speaker modules and mounting holes (no text or symbols)

EMPLACEMENT DES HAUT-PARLEURS - suite

Technical line drawing of a vehicle chassis with three wheels and a central load, no text or symbols present

INSTALLATION

Raccord électrique

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a tool near a rectangular panel (no text or symbols)

Line drawing of a hand holding a circular object above a wavy horizontal bar (no text or symbols)

Technical line drawing of a mechanical component with circular features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of a speaker assembly and internal components (no text or symbols)

FICHES TECHNIQUES
