UMC5225GZ - Microwave Oven MAYTAG - Free user manual and instructions

Product type	Microwave oven
Brand	Maytag
Model	UMC5225GZ
Width	68.6 cm (27 inches) or 76.2 cm (30 inches) depending on trim kit
Height	43.2 to 43.8 cm (17 to 17.25 inches)
Depth	Approximately 38 cm (15 inches)
Weight	Approximately 22 kg (48 lb)
Power supply	120 V, 60 Hz, 15 or 20 A, AC
Power output	Approximately 1000 W
Capacity	1.4 cu ft (approx. 40 L)
Installation type	Built-in, over a range or standalone in a cabinet
Main functions	Cooking, reheating, defrosting, timer
Control panel	Digital with keypad
Door	Opens to the left (depending on installation)
Safety	Child lock, grounding required
Maintenance and cleaning	Wipe with a soft damp cloth, do not use abrasive cleaners
Spare parts and repairability	Contact Maytag customer service for original parts
Certifications	UL Listed
General information	User and installation instructions available for download

Frequently Asked Questions - UMC5225GZ MAYTAG

How to connect the microwave oven?

Plug it into a grounded 3-prong outlet. Do not remove the grounding prong and do not use an adapter or extension cord. Failure to do so may result in electric shock.

What are the required built-in dimensions?

The opening height must be between 17 and 17 1/4 inches (43.2 to 43.8 cm). The width depends on the trim kit: 27 or 30 inches (68.6 or 76.2 cm). Allow at least 1 1/2 inches (3.8 cm) clearance below the opening and 2 inches (5.1 cm) above.

Can I install the microwave above a built-in oven?

Yes, with at least 3 inches (7.6 cm) clearance between the top of the lower oven and the bottom of the microwave opening.

How to clean the appliance?

Wipe the interior and exterior with a soft damp cloth. Do not use abrasive cleaners or harsh chemicals.

What to do in case of a short circuit or electrical problem?

Check that the outlet is properly grounded. If the problem persists, consult a qualified electrician. Do not attempt to repair the power cord yourself.

Can I use an extension cord?

No, use of an extension cord is prohibited. If the cord is too short, have an electrician install an outlet nearby.

How to install the trim kit?

Place the trim on the opening, drill 7/64-inch pilot holes in the corners, then attach it with the four long wood screws provided. Do not overtighten to avoid damaging the trim.

Where to find spare parts?

Contact Maytag customer service to order original parts. Use the model number UMC5225GZ to identify parts.

Does the microwave have a child lock?

Yes, most Maytag models include a child lock feature to prevent unsupervised use. Refer to the manual to activate this option.

What is the power of this microwave?

The power is not specified in the manual, but it is generally around 1000 W for this type of built-in appliance.

USER MANUAL UMC5225GZ MAYTAG

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MK2227 MK2220

UL listed for use over any electric or gas built-in oven, up to 30^ (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITUDE ENCASTRÉE POUR FOUR À MICRO-ONDES

MICROWAVE OVEN SAFETY 1
INSTALLATION INSTRUCTIONS. 2
Tools and Parts 2
Location Requirements. 2
Required Cutout Dimensions. 2
Trim Kit Frame Dimensions. 2
Electrical Requirements 3
Prepare Microwave Oven. 3
Prepare Cutout/Cabinet Opening. 3
Install the Microwave Oven. 4
Install Trim Kit Frame 5

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Measuring tape
■Drill
Pencil
7/64" drill bit
Phillips screwdriver

Parts Supplied (not shown to scale)

Rails (2) Bottom	duct Trim kit frame
Short screws (14) (11 + 3 extra)	Long wood screws (6 - painted) (4 + 2 extra)

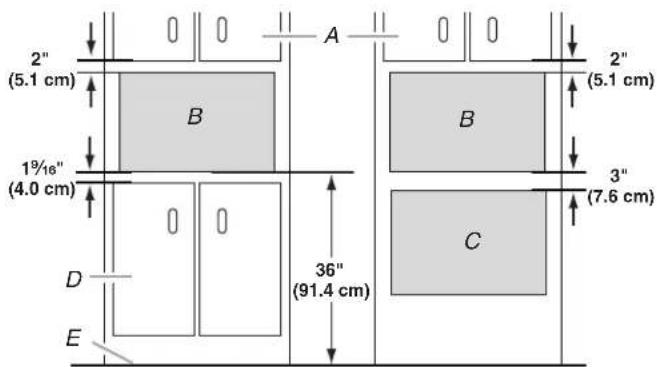

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3'' (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36^ (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1% (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

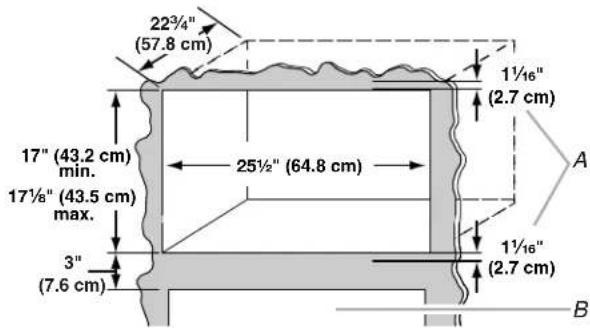

Required Cutout Dimensions

A. Trim kit frame overhang
B. Cutout for lower oven

NOTES:

Height dimension is critical: 17'' (43.2 cm) minimum, 17% (43.5 cm) maximum.
Width and depth measurements have ± 1 / 16'' (2 mm) tolerance.
3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

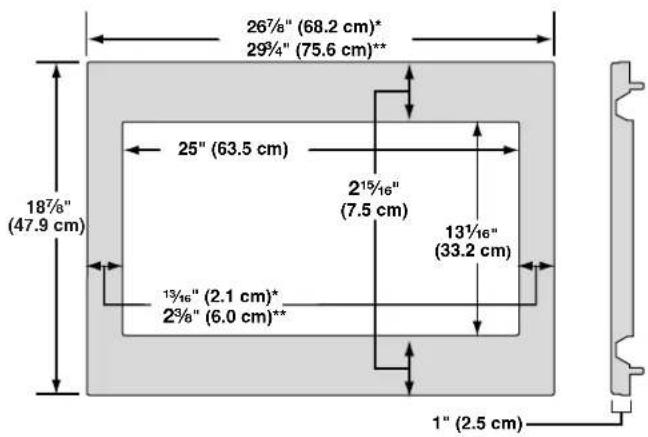

Trim Kit Frame Dimensions

*27" (68.6 cm) trim kit **30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

A 120 volt, 60Hz AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

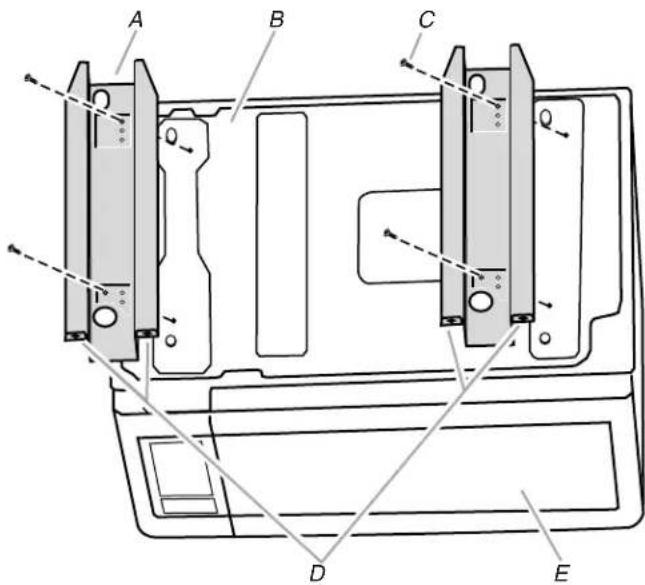

4. Align the #33 holes on the microwave oven bottom with the #33 holes on the rails, as shown, making sure the flanges are forward and pointing up.

A.Rails (2)
D. Flanges
B. Microwave oven bottom
E. Door

C. Short screws (4)

1. Secure the rails to the microwave oven bottom using four short screws through the #33 hole sets.

Prepare Cutout/Cabinet Opening

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

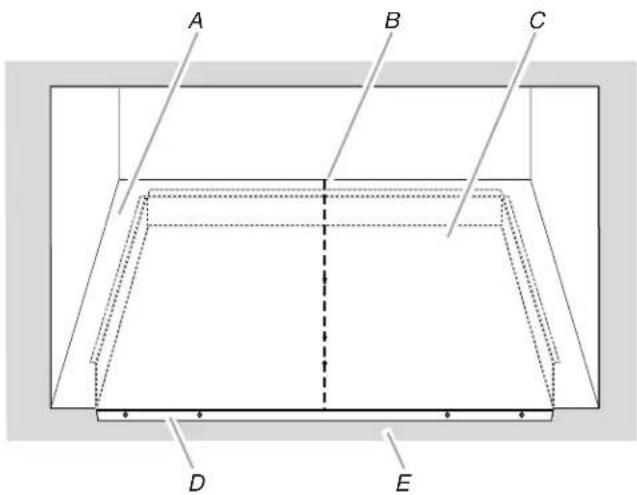

A. Cutout floor

D. Bottom duct flange

B. Centerline

E. Front facing

C. Bottom duct

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

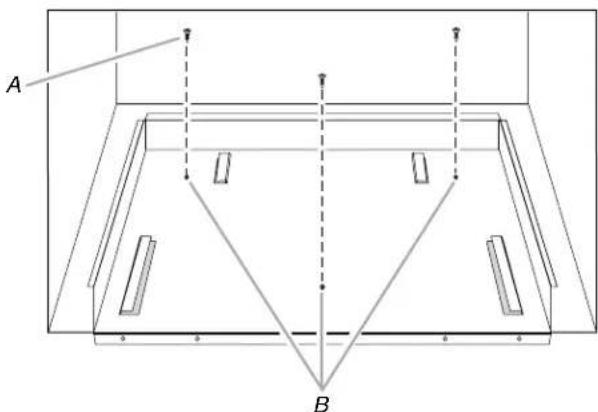

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Gently return microwave oven to its upright position.
2. Position microwave oven near cutout opening.

AWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.

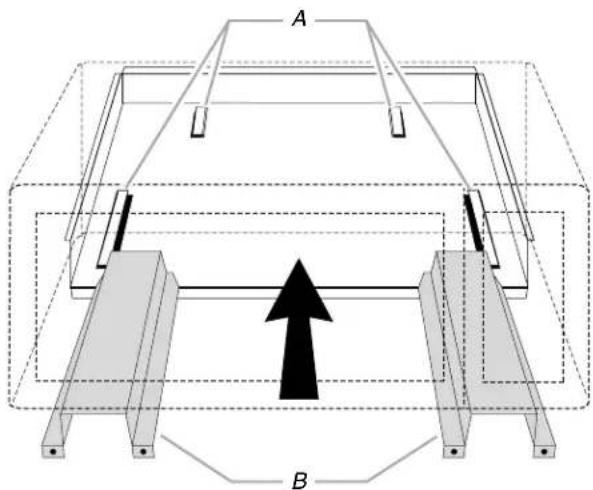

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B.Rails

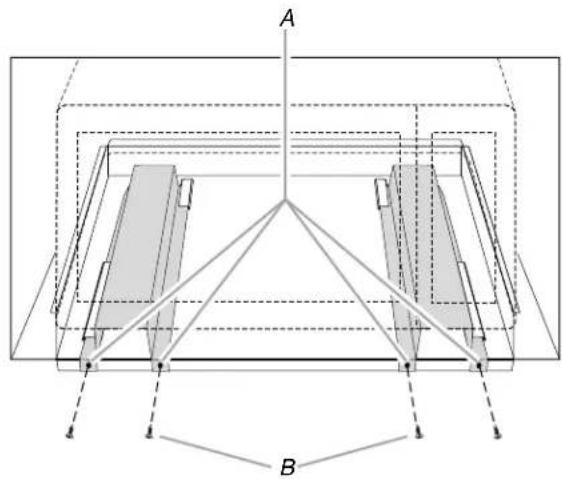

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor

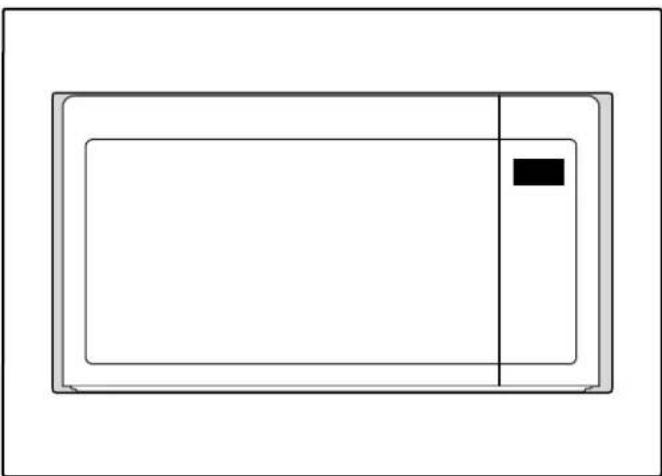

1. Holding the trim kit frame in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .
To avoid damage to the trim kit frame, do not overtighten screws.

B. Mounting hole guide

A. Trim kit frame

C. Long wood screw (4 - painted)

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 2 above.

D. Cutout ceiling

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.

Notes
