Product Type	Vacuum Sealer Machine
Brand	Ardes
Model	AR7000S2
Sealing Bar Width	3 mm
Suction Modes	Normal and Gentle
Food Modes	Dry and Moist
Functions	Automatic suction and sealing, sealing only, stop
Vacuum Sealing with Containers	Yes (rubber tube provided)
Control Buttons	Stop, Mode, Food, Seal, Vac Seal
Indicator Lights	Yes (for each mode and operation)
Locking System	Side hooks with click
Seals	Upper rubber seal and lower seal
Cooling Time Before Next Sealing	40 seconds
Cleaning	With a slightly damp cloth, do not immerse
Safety	Do not touch the sealing bar, do not vacuum liquids or solids
Recommended Storage Temperature	Ambient 25°C, refrigerator 5°C, freezer -18°C
Warranty	2 years

Frequently Asked Questions - AR7000S2 ARDES

How to use the AR7000S2 vacuum sealer?

Place the bag in the suction chamber, close the lid until it clicks, then press Vac Seal to automatically vacuum and seal. For sealing only, use the Seal button.

What to do if the device does not work?

Check that the power cord is plugged in, the outlet works, the hooks are properly engaged, and the bag is correctly positioned in the suction chamber. Let it cool down for 40 seconds if necessary.

Can I vacuum seal liquid foods?

No, never vacuum liquids as this would damage the pump. Use Moist mode for moist foods, but they should be solid.

How to clean the machine?

Unplug it and clean the exterior with a slightly damp cloth. Never immerse it in water and avoid liquids entering the suction nozzle.

What suction modes are available?

You can choose between Normal (standard suction) and Gentle (for soft foods). Select with the Mode button.

How to seal a bag without suction?

Place the bag in the chamber, close the lid and press the Seal button. The sealing bar will heat up and seal the bag.

Can I use the machine with containers?

Yes, use the provided rubber tube: insert it into the suction nozzle and into a special lid (not provided). Press the H button to vacuum the container.

What type of bag should I use?

Use bags specially designed for vacuum sealing. Ensure the opening is clean and dry for a better seal.

How long should I wait between two sealings?

It is recommended to wait 40 seconds to allow the device to cool down and avoid overheating.

What to do if the seal is imperfect?

Check that the bag opening is properly placed in the chamber, it is not wet, and the bag is flat. If the problem persists, wait 40 seconds and try again.

USER MANUAL AR7000S2 ARDES

A B C D E F H G

Tasti funzione.

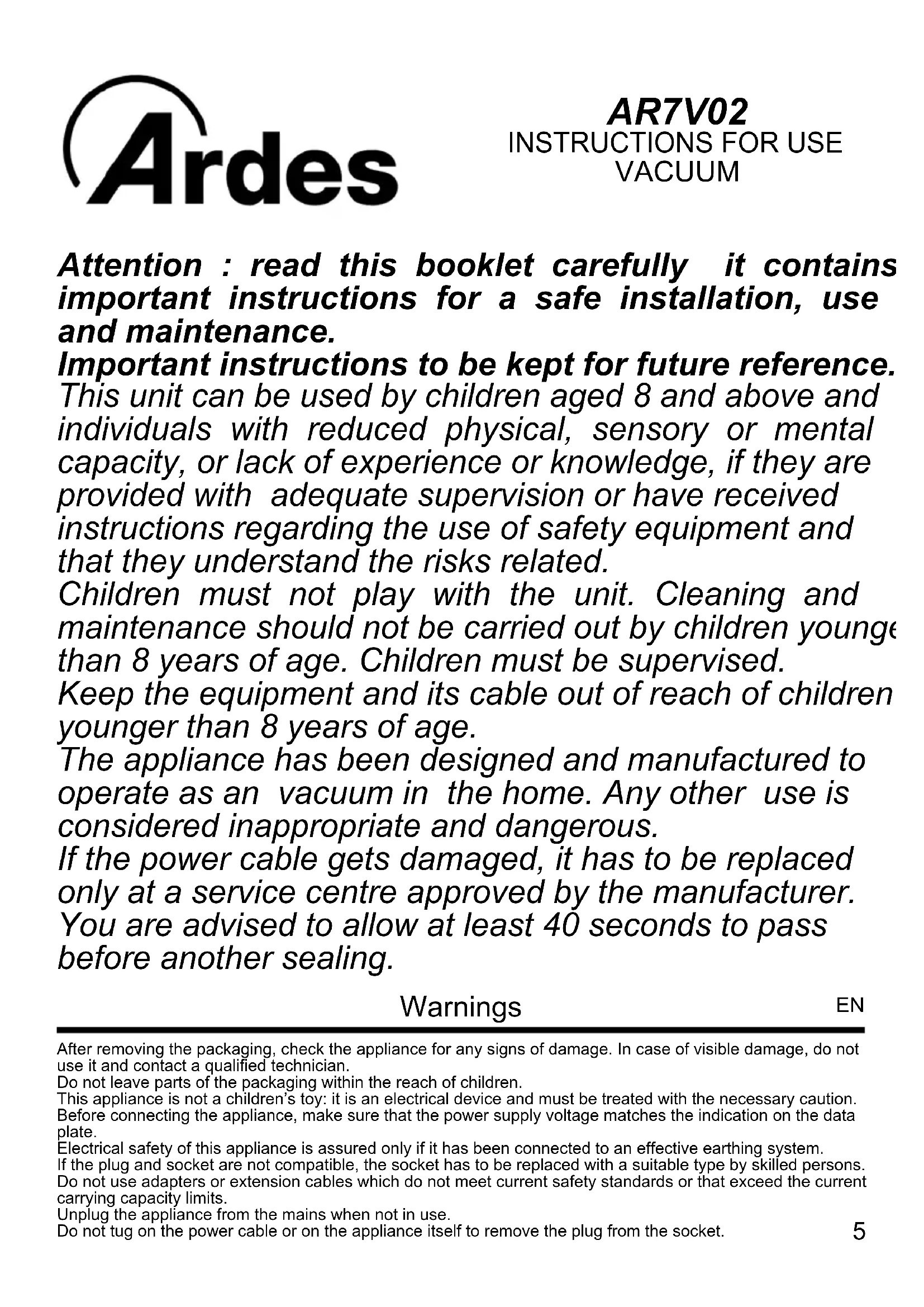

Attention : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they understand the risks related.

Children must not play with the unit. Cleaning and maintenance should not be carried out by children younger than 8 years of age. Children must be supervised.

Keep the equipment and its cable out of reach of children younger than 8 years of age.

The appliance has been designed and manufactured to operate as an vacuum in the home. Any other use is considered inappropriate and dangerous.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

You are advised to allow at least 40 seconds to pass before another sealing.

Warnings

EN

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Unplug the appliance from the mains when not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

• Never touch the appliance with wet or humid hands.
• Children must be supervised to make sure that they do not play with the appliance.
• Do not use the appliance when barefoot.
• Do not leave the appliance exposed to weathering (rain, sunlight).
• Do not subject it to rough handling.

In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

Do not use the appliance out of doors.

For safety reasons, the appliance should never be opened.

During use, rest the appliance on a flat surface.

The manufacturer cannot be held in any way liable for errors in using the product and defects in the products vacuum packed due to incapable or inexpert use.

To avoid consuming damaged food, because it was a vacuum packed for too long, you are advised to affix the packaging date and the presumed expiry date on the bags, using the table of approximate values for food preservation as a reference.

Do not suck in liquids, they will damage the suction pump.

Do not suck in solid substances, they will block the suction tube.

Remember the machine was designed only and exclusively to suck in air. Avoid sealing without the bag.

Avoid sealing with the bar open.

Do not touch the part sealed immediately after sealing the bag, you could get burned.

Avoid touching the sealed part, in any case.

Avoid touching the gaskets on the sealing bar to avoid damaging them.

Technical informations

GB

Lone 1 2 3 4 5

A B C D E F H G

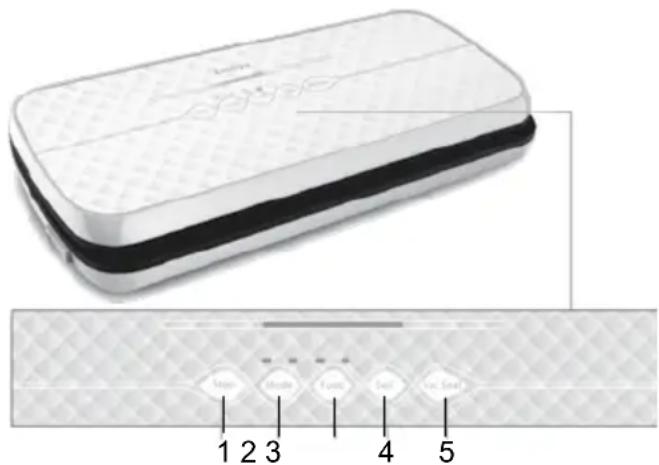

Function keys.

1 - to stop operation
2 - to set the type of suction
3 - to set the type of food
4 - to seal
5 - to suck in and seal

Technical data indicated on the appliance.

Instructions for use

GB

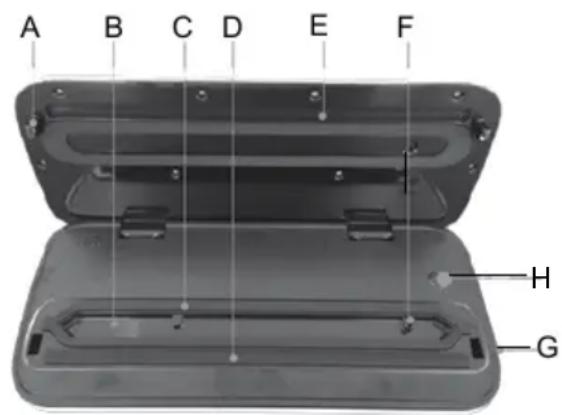

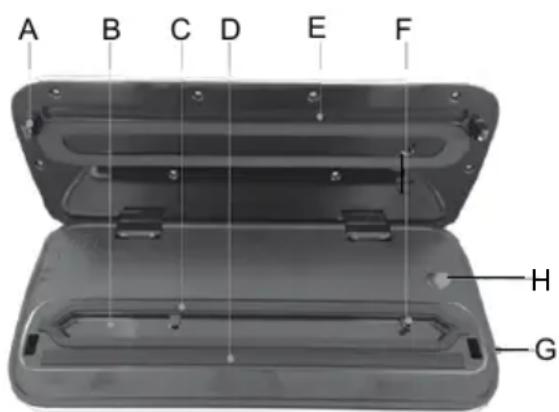

Description of the appliance.

A - Locking hook: press the cover down until it clicks to block the bag in position.
B - Suction chamber: the bag must be positioned inside the chamber
C - Lower gasket
D - Sealing bar: width 3 mm
E - Upper rubber gasket
F - Suction nozzle
G - Side opening buttons
H - Suction button for vacuum packing with containers

Operation.

Place the plug in the current socket.

If you wish to seal just one bag, position it in the suction chamber (B), close the appliance and ensure you hear the "click" of the two side stops.

Press the Seal (4) key which will light up indicating the appliance is on. When it switches off, press the release buttons (G) on the two sides and remove the bag.

If you want to vacuum pack food, place it inside the bag, position the opening in the suction chamber (B), close the appliance and ensure you hear the "click" of the two side stops.

Before starting suction, you can select the type of suction.

By default, the appliance is set to NORMAL. Pressing the MODE key (2) you can choose between the NORMAL options (standard suction) or GENTLE (for soft food); based on the selection, the corresponding light switches on for the option chosen.

Pressing the FOOD key (3) you can choose the most suitable suction for the type of food to be packaged.

By default, the appliance is set to DRY. For dry food, select DRY while for moist food select MOIST; also in this case, the light corresponding to the selection switches on.

At this point, press the Vac Seal (5) key. The key will light up; when it switches off the Seal key will automatically light up to carry out sealing; when it switches off, the process is complete.

Press the release buttons on the two sides and remove the sealed parts.

To stop the appliance from working at any time, press the Stop key (1).

To avoid excessive vacuum of delicate food, sealing can be anticipated by pressing the Seal key during suction.

ATTENTION: In this case, if the vacuum is too weak, the bag may not seal correctly.

Vacuum packing with containers.

If you want to use the appliance to preserve vacuum packed food in other containers, a rubber tube is supplied which must be positioned on one end (larger inlet) in the suction nozzle and the other end in the plug (not supplied) specifically for this type of operation.

Fill the container with the food leaving at least a centimetre between the food and the upper edge of the container.

If necessary, clean the edge and the seal of the container lid.

Once you have completed these preliminary actions, simply press the key (H) to start suction. Suction automatically stops when the maximum vacuum is reached. To stop, use the same STOP key on the command panel.

To facilitate the operation, ensure you have closed the lid on the container correctly. Mark the packaging date on the container.

Useful suggestions.

Leave a sufficient length on the opening to seal so it can be easily inserted in the vacuum chamber.

Before proceeding, check the opening of the bag is not wet because it may be difficult to seal it hermetically.

The appliance does not completely replace refrigeration or freezing, perishable foods must still be refrigerated or frozen.

Keep plastic bags flat, otherwise the seal may be less than optimal.

To avoid creases in the bag during suction, lay it in the suction chamber and keep it pressed until the appliance starts to work.

Before sealing fruit and vegetables, leave them to cool for a few minutes.

You are advised to allow at least 40 seconds to pass before sealing.

Problem solving

If the appliance does not work:

Check if the power supply cable is connected to the current socket.

Check if the power supply cable is damaged.

Check if the electric socket works by connecting it to another device.

Ensure the stops are in the locked position.

check the bag is positioned correctly inside the vacuum chamber.

Wait for the appliance to cool for 40 seconds before re-using it.

Maintenance

GB

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

Never use abrasive sponges.

Accurately avoid the substances used for cleaning ending up on the suction tube causing the suction pump to break.

Avoid use of substances that can damage the gasket on the fixed lower bar.

Avoid use of liquid substances which can detach the resistor protection.

Do not force or pull, during cleaning, the silicone gasket on the mobile upper bar to avoid damaging or removing it, even partially.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

PRESERVATION AT ROOM TEMPERATURE AT 25°C ± 2°C
Types of Food Preservation Times at atmospheric pressure Preservation Times vacuum packed
Bread 1-2 days 6-8 days
Packaged biscuits 4-6 months 12 months
Pasta 5-6 months 12 months
Rice 5-6 months 12 months
Flour 4-5 months 12 months
Dry fruit 3-4 3-4 months 12 months
Ground coffee 2-3 months 12 months
Powdered tea 5-6 months 12 months
Freeze-dried food 1-2 months 12 months
Powdered milk 1-2 months 12 months
PRESERVATION THROUGH REFRIGERATION AT 5°C ± 2°C
Types of Food Preservation Times at atmospheric pressure Preservation Times vacuum packed
Red meat 3-4 days 8-9 days
White meat	2-3 days 6-9 days
Whole fish	1-3 days 4-5 days
Game	2-3 days 5-7 days
Cured meats	7-15 days	25-40 days
Cold cuts	4-6 days	20-25 days
Soft cheese	5-7 days	14-20 days
Hard and semi-hard cheese	15-20 days	25-60 days
Vegetables	1-3 days	7-10 days
Fruit	5-7 days	14-20 days
PRESERVATION THROUGH COOKING AND SUBSEQUENT REFRIGERATION AT 5°C ± 2°C
Types of Food Preservation Times at atmospheric pressure Preservation Times vacuum packed
Purée and vegetable soup	2-3 days	8-10 days
Pasta and risotto	2-3 days 6-8 days
Boiled meat and roast	3-4 days	10-15 days
Filled desserts (cream and fruit)	2-3 days 6-8 days
Frying oil	10 -15 days	25-40 days
PRESERVATION THROUGH FREEZING AT -18°C ± 2°C
Types of Food Preservation Times at atmospheric pressure Preservation Times vacuum packed
Purée and vegetable soup	4-6 months	15-20 months
Pasta and risotto	3-4 months	10-12 months
Boiled meat and roast	8-10 months	18-24 months

Ardes

AR7V02

MODE D'EMPLOI

MACHINE À VIDE

Lemon 1 2 3 Eneral 4 Use Safe Show Monitor Seal

A B C D E F H G

Boutons fonction.

Mood 1 2 3 Front 4 my best 5

Funktionstasten.

A B C D E F H G

A B C D E F H G

Teclas función.

A B C D E F H G

Funkció gombok.

A B C D E F H G

Funkční tlačítka.

A B C D E F H G

Funkčné klávesy.

Product diagram of a white rectangular pillow with labeled buttons and a patterned band below showing numbered compartments.

A B C D E F H G

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio. Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
