EVTT121 - Freezer Everglades - Free user manual and instructions

Product Type	Freezer
Brand	Everglades
Model	EVTT121
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	Energy Class A+ (estimated)
Gross Capacity	121 liters (estimated)
Dimensions (H x W x D)	85 x 55 x 55 cm (estimated)
Net Weight	28 kg (estimated)
Refrigerant	R600a (isobutane)
Climate Category	N, ST, T (16 °C to 43 °C)
Temperature Setting	Rotary thermostat from 0 (off) to 8 (coldest)
Fast Freeze Function	Not specified, but recommended to run for 2 hours max before storing
Defrost Type	Manual (defrost when frost exceeds 10 cm thickness)
Door Reversal	Possible (from right to left)
Adjustable Feet	Yes (adjustable front foot for leveling)
Included Accessories	Ice cube tray, defrost tray, removable shelf(ves), rubber support (depending on model)
Child Safety	Not specific (recommendation to keep children away, no locking)
Cleaning	Warm soapy water, avoid abrasive products and steam
Repairability	Must be carried out by an authorized center, original parts required
Warranty	2 years on technical defects

Frequently Asked Questions - EVTT121 Everglades

How to set the temperature of my Everglades EVTT121 freezer?

The thermostat is located on the side of the freezer. Turn the knob from 0 (off) to 8 (coldest). A setting between 3 and 4 is recommended for normal use.

What to do if the freezer does not work?

Check that the appliance is plugged in and the socket works. Check the fuse. If the problem persists, contact a qualified electrician.

How to defrost the EVTT121 freezer?

Set the thermostat to 0, remove food, leave the door open or use a plastic scraper. Never use metal objects or steam. Defrost at least once a month or when the frost layer exceeds 10 cm.

Can I reverse the door opening direction?

Yes, the door can be reversed from right to left. You will need an 8 mm socket, a Phillips screwdriver, and a knife. Follow the steps described in the manual, making sure to unplug the appliance first.

What refrigerant is used?

The freezer uses R600a (isobutane), a flammable gas. In case of a leak, ventilate the room and avoid any flame.

How to clean the inside of the freezer?

Unplug the appliance, remove food and clean with a damp cloth soaked in warm soapy water. Rinse and dry thoroughly. Do not use abrasive products or steam.

What to do in case of abnormal noise?

Check that the appliance is level and that it does not touch a wall or object. If the noise persists, contact customer service.

How long after installation can I plug in the appliance?

It is recommended to wait at least 4 hours after transport for the compressor oil to settle, then plug in.

What is the after-sales service number for Belgium?

For Belgium, the number is 0032-(0)38080919. For the Netherlands, dial 0900-0404040.

What to do if water accumulates in the freezer?

This may be due to a blocked drain. Refer to the 'Cleaning and Maintenance' section of the manual to unclog the drain.

USER MANUAL EVTT121 Everglades

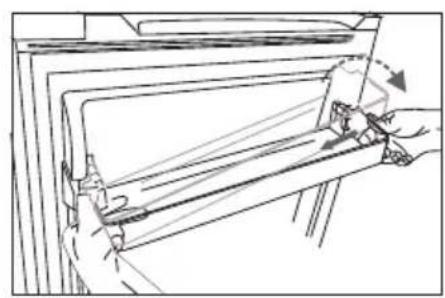

ljsmaker compartment

Safety and warning information

Climate class	Ambient temperature
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

• Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the lower rear section of the appliance, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight.

WARRANTY

You have 2 years warranty on technical defects after purchase

Not included in warranty :

• Other than normal domestic use (this appliance is for normal domestic use only).

• Causes not being related directly to the appliance such as;

Damage occurring during transport or because of wrong usage such as dents, scratches, broken parts.

Installation errors (such as wrong voltage).

• Malfunctioning because of improper usage, dust/fluff in and on the appliance, amongst others blocking of air circulation, as well as breaking of plastics, rubber, glass which other than by normal use has gone defect, such to be judged by the service man and or importer.

You have 2 year warranty on technical defects on the appliance after date of purchase, warranty is only valid if a valid notice of purchase/invoice can be shown.

Warranty rights are not transferable.

If appliance is offered for servicing it needs to be clean, otherwise service can be refused.

Servicenumber for the Netherlands: 0900-0404040

Servicenumber for Belgium: 0032-(0)38080919
