919SW - Monitor AOC - Free user manual and instructions

Brand	AOC
Model	919SW
Product Type	LCD Monitor
Screen Size	19.05 inches (diagonal)
Panel Technology	TFT LCD
Native Resolution	1440 x 900 (WXGA)
Refresh Rate	Up to 75 Hz
Pixel Pitch	0.285 x 0.285 mm
Active Display Area	410.4 x 256.5 mm
Tilt Angle	0° ~ 20°
Video Inputs	VGA (D-Sub)
Power Supply	100-240 V AC
Power Consumption	Energy Star compliant, < 1 W standby (DPMS)
Standards	UL, CE, FCC-B, Energy Star, ISO 13406-2
Operating Temperature	0°C ~ +40°C
Storage Temperature	-20°C ~ +60°C
OSD Functions	Contrast, Brightness, Color Adjustment, Image Adjustment, Setup, Memory Recall
Lock	OSD lock and power lock
Cleaning	Dry clean cloth, non-ammonia cleaner
Safety	Do not open rear panel, disconnect before cleaning
Included Accessories	Power cord, D-Sub cable, user guide, quick start guide
Wall Mount	VESA 100 mm compatible (screws not included)

Frequently Asked Questions - 919SW AOC

How to adjust brightness and contrast?

Outside the OSD menu, press the ▲ or ▼ buttons to directly activate the Contrast/Brightness adjustment. Use ▲ to increase and ▼ to decrease the value. You can also access these settings via the main menu.

How to reset to factory settings?

In the main menu, select Memory Recall and confirm with button 2. This will restore all video settings to default values.

What are the supported resolutions?

The monitor supports multiple resolutions, including 1440 x 900 @ 60/75 Hz (recommended), 1280 x 1024, 1024 x 768, etc. See the 'Timing Mode Support' section of the manual for the full list.

How to clean the screen?

Always disconnect the monitor before cleaning. Use a dry clean cloth. If necessary, apply a non-ammonia cleaner to the cloth, never directly on the screen.

The screen remains black while the monitor is on, what should I do?

Check that the video cable (D-Sub) is securely connected at the back of the computer and monitor. Make sure the computer is turned on. Also adjust brightness and contrast via the OSD menu.

How to lock the monitor buttons?

To lock OSD, press and hold the 1 + ▲ buttons simultaneously (outside OSD menu). To power lock, use 1 + ▼. To unlock, repeat the same combination.

What is the recommended resolution for this monitor?

The recommended resolution is 1440 x 900 at 60 Hz. For optimal image quality, set your graphics card to this resolution.

How to install a wall mount?

Turn off the monitor and disconnect cables. Remove the base by removing the 4 screws. Attach the wall mount (not included) to the back of the monitor aligning VESA 100 mm holes and tighten the 4 screws provided with the mount.

What does the FCC warning on the screen mean?

The FCC warning indicates that the monitor complies with Class B limits for digital devices. To avoid radio interference, use a grounded power cord and the shielded video cable provided.

How to connect the monitor to the computer?

Make sure both devices are off. Plug the power cord into the monitor and then into a power outlet. Connect the D-Sub cable from the computer's VGA output to the monitor's VGA input. Turn on the computer first, then the monitor.

USER MANUAL 919SW AOC

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it's not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this monitor does cause serious interference to radio or television reception, resetting the monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following:

● Reorient or relocate the receiving antenna.
- Move the monitor and the receiver further away from each other.
- Connect the monitor into an outlet on a circuit different from that to which the receiver is connected.
- Consult your local dealer or an qualified technician

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this monitor would void the user's authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the emission level limits.

Content

Safety Precautions....1

First Setup 2

Quick Installation....2-5

Front View of the Product ....6

Rear View of the Product....6

Using On Screen Display (OSD) Functions 7-9

Supporting Timing Modes....10

Technical Information....11

Care and Maintenance....12

Troubleshooting 12-13

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

WARNINGS:

This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you're unsure of the power supply in your residence, consult your local dealer or power company.
Do not try to repair the monitor yourself as it contains no user-serviceable parts. The monitor should only be repaired by a qualified technician.
Do not remove the monitor cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even when the power cord is disconnected.
◆ Stop using the monitor if the cabinet is damaged. Have it checked by a service technician.
◆ Put your monitor only in a clean, dry environment. Unplug the monitor immediately if gets wet and consult your service technician.
◆ Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
◆ Keep the monitor away from magnetic objects, motors, TV sets, and transformer.
◆ Do not place heavy objects on the cable or power cord.
◆ For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and shall be easily accessible.

First Setup

Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories :

• Power cable.
  D-Sub cable.
• User guide.
• Quick Start Guide.

Quick Installation

Installing & Removing the Base

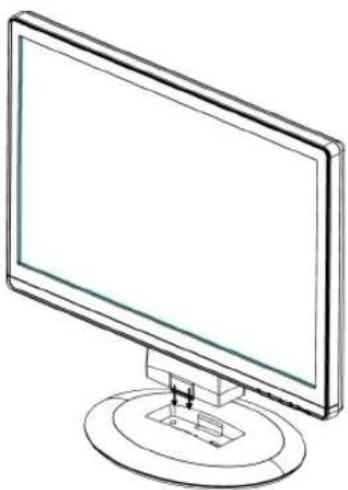

Install

Line drawing of a flat-screen monitor with a circular base and stand (no text or symbols)

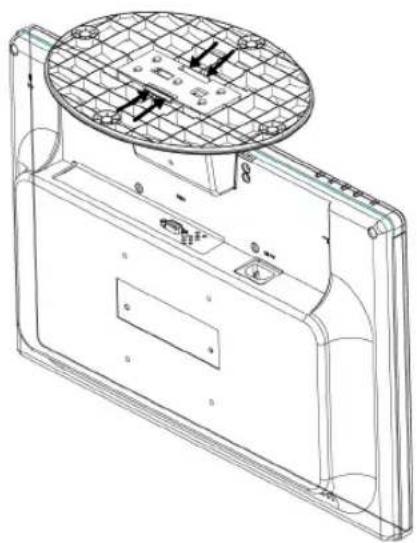

Remove

Technical line drawing of a mechanical component with grid pattern and mounting holes (no text or symbols)

Technical diagram of a device rear panel with labeled components and assembly lines

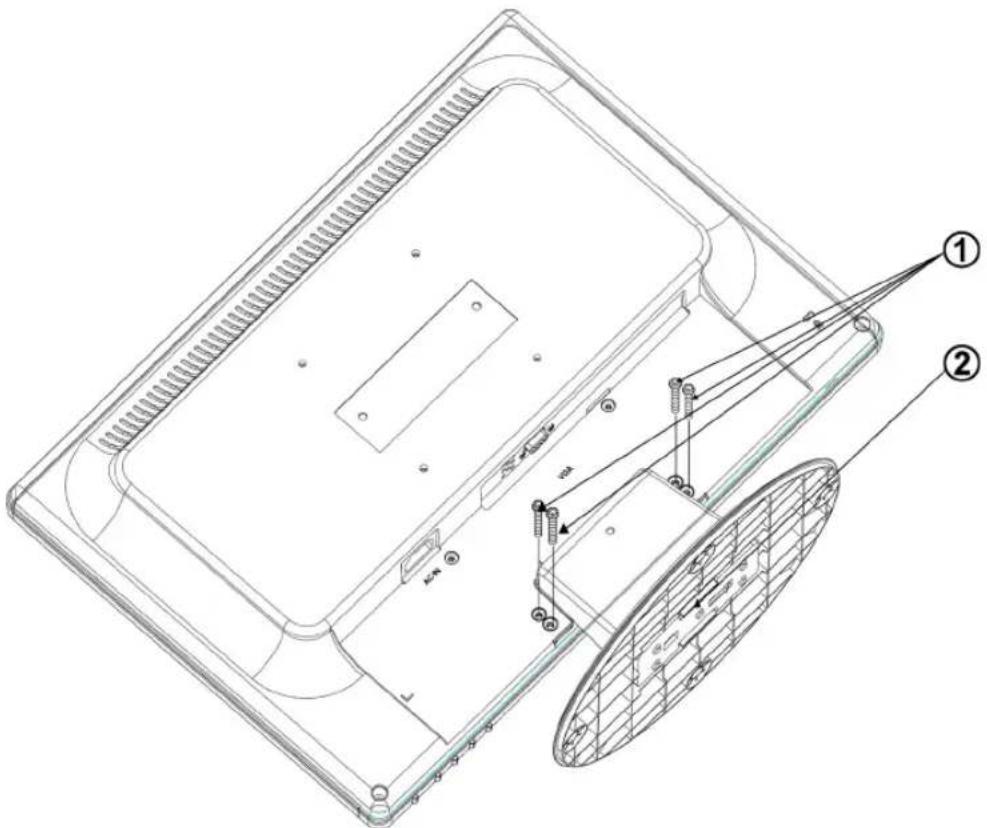

This monitor can be attached to a wall mounting arm you can purchase separately. Turn the power OFF then dis-connect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface.

1. Remove the 4 screws holding the stand to the hinge.
2. Remove the stand.

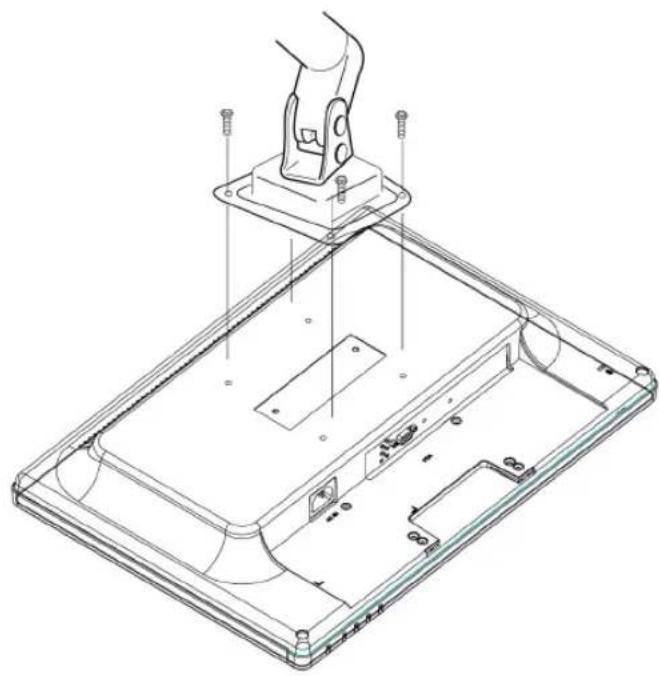

Attaching The Optional Wall Mount Arm (not supplied)

Technical line drawing of a device chassis with mounting bracket and internal components (no text or symbols)

Follow these steps to finish installing the wall mounting arm:

1. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

NOTE

The AOC 919Sw-1 is in compliance with the most current revision of the VESA 100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).

Connecting the Monitor

1. Connect Power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video cable (D-Sub cable) to the computer, then to the monitor.

3. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

4. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1440 x 900 @ 60 Hz

Resolution Right-click on the Windows desktop > Properties > Settings > "Desktop Area". Set the resolution.

Refresh Rate (vertical frequency) See your graphic card's user guide for instructions.

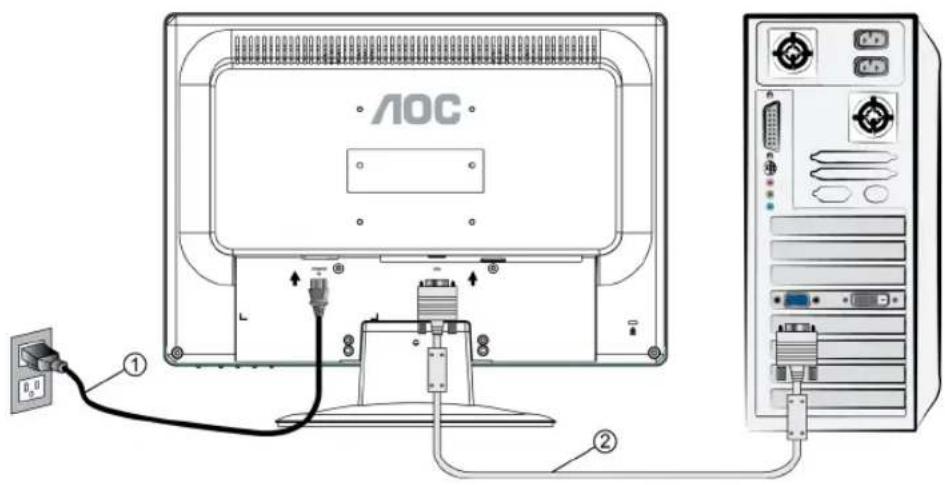

Connection Diagram:

Diagram showing connection between a computer monitor and a server tower, with labeled components and wiring connections.

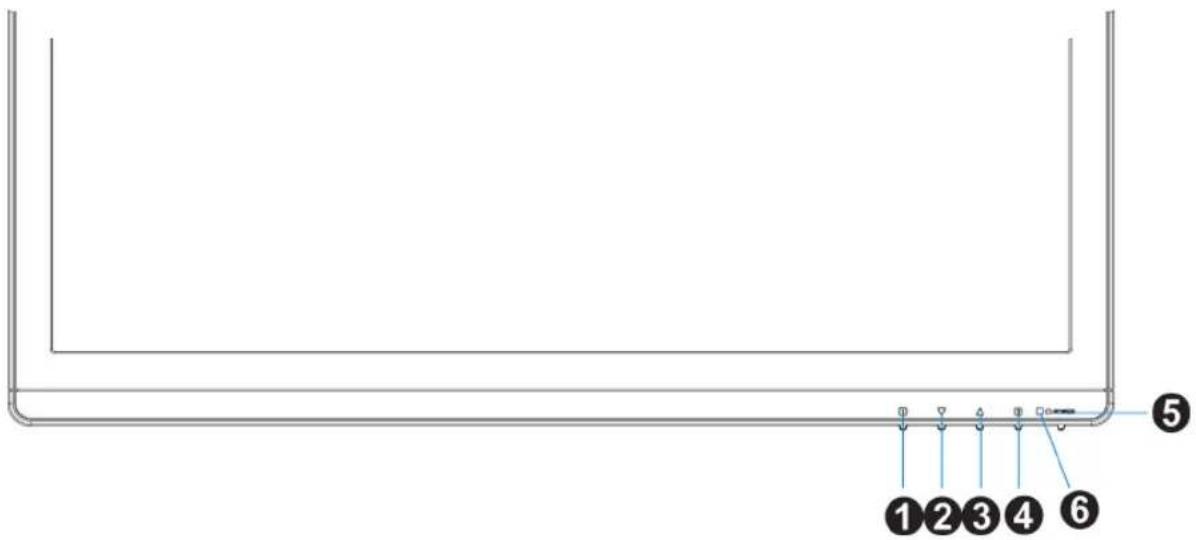

Front View of the Product

①②③④⑥ ⑤

① OSD TURN ON/OFF ④ CONFIRM SELECTION
② SCROLL DOWN/DECREASE ⑤ POWER ON/OFF
③ SCROLL UP/INCREASE ⑥ LED INDICATOR

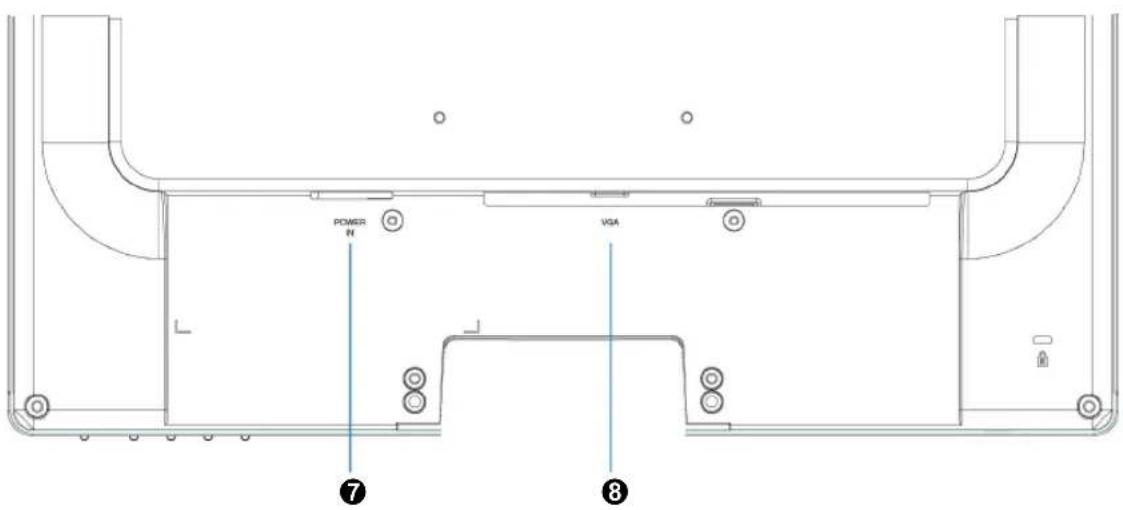

Rear View of the Product

POWER IN VGA ⑦ ⑧

⑦ POWER INPUT
⑧ VGA INPUT

Using On Screen Display (OSD) Functions

	Display main menu. 1
	Exit from OSD menu.
	Auto adjust the image when not in main menu. 2
	Confirm the selection.
▲ or ▼	Select the desired item when in OSD menu.
	When not in OSD menu, it is to immediately activate Contrast/ Brightness. It should be change to Contrast/ Brightness by pressing button 2.
▼ + ▲	Recall both of Contrast and Brightness.
1 + ▼	Power Lock (when not in OSD menu)
1 + ▲	OSD Lock (when not in OSD menu)

Main Menu

Main Menu

Auto Adjust

Contrast/Brightness

Color Adjust

Information

Image Adjust

Setup Menu

Memory Recall

1 : Exit

②: Select

Short Cuts Function from the button(s)

Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen.

Contrast : To adjust the foreground white level of screen image.

▲: increase contrast, ▼: decrease contrast.

Brightness : To adjust the luminance of the video.

▲ : increase brightness, ▼ : decrease brightness.

Color Adjust : To select the color for improving brightness and color saturation between 9300K, 6500K, 5400K, and User Color.

9300K : Adds blue to screen image for cooler white.

6500K : Adds red to screen image for warmer white and richer red.

5400K : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press ▼ or ▲ button to adjust selected color.

Information : To display the information, regarding the current input signal coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about changing the resolution and refresh rate.

Image Adjust : To manually adjust the Horizontal/ Vertical position, H. Size, Fine Tune and Sharpness.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : ▲ : move screen to the right, ▼ : move screen to the left.

V. Position : ▲ : move screen up, ▼ : move screen down.

H. Size : To adjust the width of the screen image.

▼ : decrease the width of screen image, ▲ : increase the width of screen image.

Fine Tune : To adjust the delay time of data and clock.

Press ▼ or ▲ to adjust to your preference.

Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with

▼ or ▲ button.

Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out.

Language Select : To allow users to choose from available languages.

Resolution Notice : Resolution Notice is to remind you set the best quality for the image.

• Choose "Enable": Every 30 seconds, it will show a window "For best picture quality change resolution to 1440 × 900 to remind you set the best quality for the image.
• Choose "Disable": It will not show a window to remind you set the best quality for the image if the resolution is lower than 1440 x 900.

OSD Position : Press 2 button to select between horizontal and vertical OSD Position adjustment.

Horizontal OSD Position : To horizontally adjust the OSD position.

▲ : move OSD to the right, ▼ : move OSD to the left.
Vertical OSD Position : To vertically adjust the OSD position.
▲ : move OSD up, ▼ : move OSD down.

OSD Time Out : To automatically turn off On Screen Display(OSD)after a preset period of time.

Memory Recall : To recall factory settings for Video controls.

Press button 2 to select the Memory Recall menu option.

Supporting Timing Modes

VGA	720 x 40	0 @ 70Hz
VGA	640 x 48	0 @ 60Hz
MAC	640 x 48	0 @ 67Hz
VESA	640 x 4	80 @ 75Hz
VESA	800 x 6	00 @ 56Hz
VESA	800 x 6	00 @ 60Hz
VESA	800 x 6	00 @ 72Hz
VESA	800 x 6	00 @ 75Hz
MAC	832 x 62	4 @ 75Hz
VESA	1024 x	768 @ 60Hz
VESA	1024 x	768 @ 70Hz
VESA	1024 x	768 @ 75Hz
VESA	1152 x	864 @ 75Hz
VESA	1280 x	960 @ 60Hz
VESA	1280 x	1024 @ 60Hz
VESA	1280 x	1024 @ 75Hz
VESA	1440 x	900 @ 60Hz
VESA	1440 x	900 @ 75Hz

Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor.

Technical Information

Technical Specification

LCD Panel 19.05" TFT
Power Management	Energy Star compliant VESADPMS compatible< 1 W
Displayable Resolution	WXGA 1440 x 900 max. Vertical Frequency 75Hz max.
Pixel Dimension 0.285 x 0.285 mm
Tilt 0°~20°
Active Display Area	410.4 mm x 256.5 mm
Temperature Operating: 0°C ~ +40°CStorage: -20°C ~ + 60°C
Compliance UL, CE, FCC-B, Energy Star, ISO 13406-2
Power Input Voltage AC100-240 V

Note: Product Specifications are subject to change without notice.

Care and Maintenance

Care

• Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare.
  ● Put your monitor in a well ventilated area.
• Do not place any heavy things on top of your monitor.
  ● Make certain your monitor is installed in a clean and moisture-free area.
• Keep your monitor away from magnets, motors, transformers, speakers, and TV sets.

Note

• Move the LCD out of the package and take off the plastic bag and Polystyrene Foam.
• Pull the base from Parallel versus Panel to Vertical.
• Adjust the Panel within 0 degree leaning forward and 20 degree leaning backward. You must bend harder to exceed 20 degree backward but this range is for packing the unit to a small size for storage only.

Safety Tips

• If smoke, abnormal noise or odor came out from your monitor, caution you should remove the power cord immediately and call your service center.
• Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies.
• Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it.

Troubleshooting

No power

• Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor.
• Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.
  ● Make sure all signal cables are installed.

Power on but no screen image

• Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.
• Adjust brightness.

Wrong or abnormal colors

• If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the monitor to another computer.

Informations Technique ....12

Line drawing of a flat-screen monitor with a stand and circular base (no text or symbols)

Technical line drawing of a device casing with grid pattern and mounting brackets (no text or symbols)

Technical diagram of a device with labeled components and structural annotations in Chinese

Technical line drawing of a device chassis with mounting bracket and internal components (no text or symbols)

Line drawing of a flat-screen monitor with a stand and base (no text or symbols)

Remover

Technical line drawing of a device casing with grid pattern and mounting holes (no text or symbols)

Technical diagram of a device rear panel with labeled components and structural annotations in Chinese

Technical line drawing of a device chassis with mounting bracket and internal components (no text or symbols)
