USER MANUAL GSC25C4EYW WHIRLPOOL

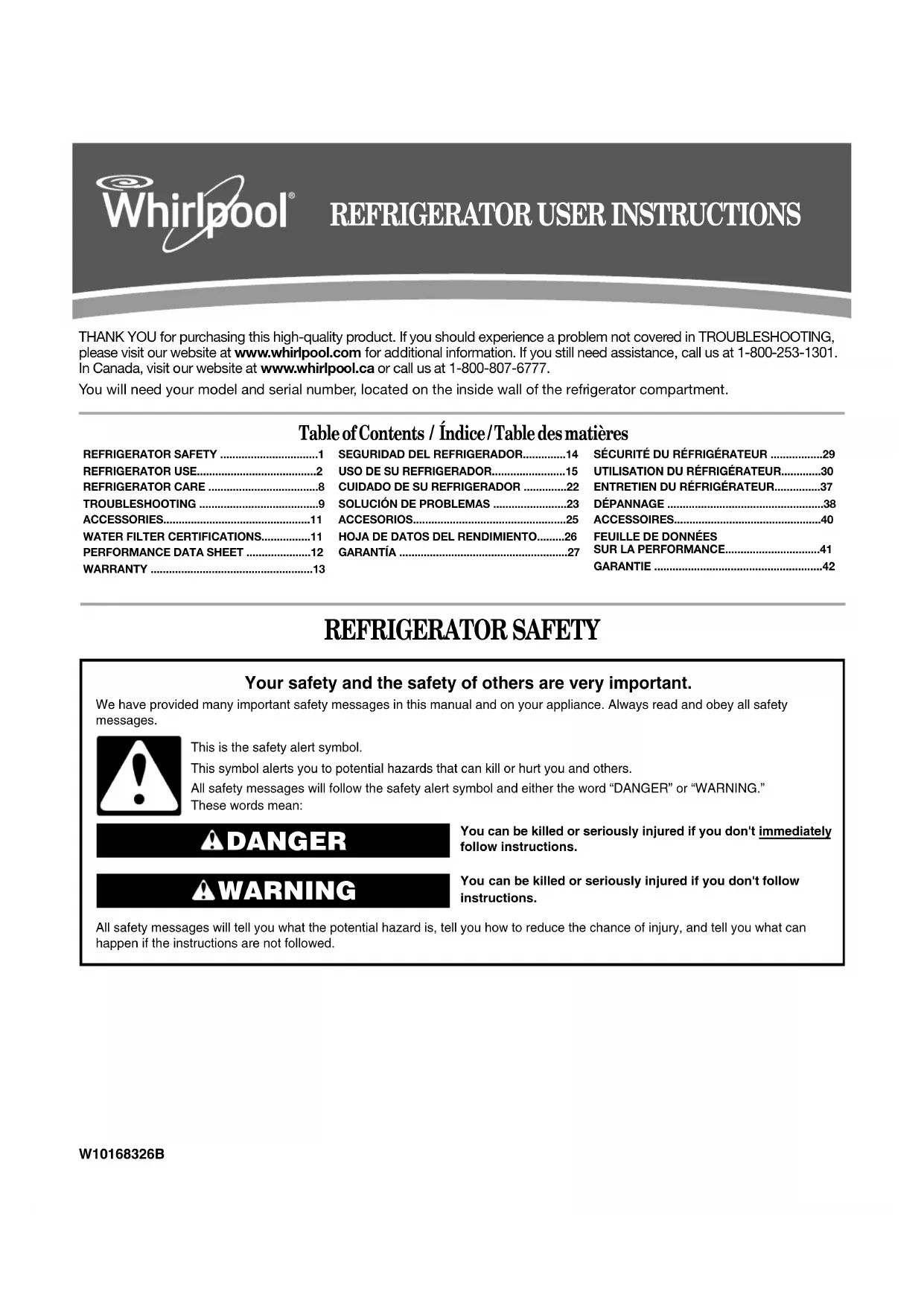

W10168326BYou can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING2 REFRIGERATOR USE Install Air Filter (on some models) On some models, your refrigerator's accessory packet includes an air filter, which must be installed prior to use. On some models, the air filter is already installed at the factory. The air filter reduces the buildup of odors. This helps to maintain a cleaner environment inside the refrigerator. Installing the Air Filter (on some models)The filter should be installed behind the vented door, which is located (depending on your model) along either the rear or left interior wall near the top of the refrigerator compartment. 1. Remove the air filter from its packaging.2. Lift open the vented door.3. Snap the filter into place. Proper Disposal of Your Old Refrigerator IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors.■ Leave the shelves in place so that children may not easily climb inside.

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Disconnect power before servicing. Replace all parts and panels before operating. Remove doors from your old refrigerator.■ Use nonflammable cleaner.■ Keep flammable materials and vapors, such as gasoline, away from refrigerator. ■ Use two or more people to move and install refrigerator.■ Disconnect power before installing ice maker (on ice maker kit ready models only). ■ Use a sturdy glass when dispensing ice (on some models).■ Do not hit the refrigerator glass doors (on some models). WARNING Suffocation HazardRemove doors from your old refrigerator. Failure to do so can result in death or brain damage.Important information to know about disposal of refrigerants:Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.3 Installing the Filter Status Indicator (on some models) The filter comes with a status indicator, which should be activated and installed at the same time the air filter is installed.

1. Place the indicator face-down on a firm, flat surface.

2. Apply pressure to the bubble on the back of the indicator, until

the bubble pops to activate the indicator.

3. Lift open the vented air filter door. On some models, there are

notches behind the door.

4. On models with notches:

■ Slide the indicator down into the notches, facing outward. NOTE: The indicator will not easily slide into the notches if the rear bubble has not been popped. ■ Close the air filter door, and check that the indicator is visible through the rectangular hole in the door. On models without notches: ■ Store the indicator in a visible place you will easily remember - either inside the refrigerator, or elsewhere in your kitchen or home. Replacing the Air Filter The disposable air filter should be replaced every 6 months, when the status indicator has completely changed from white to red. To order a replacement air filter, see “Accessories.”

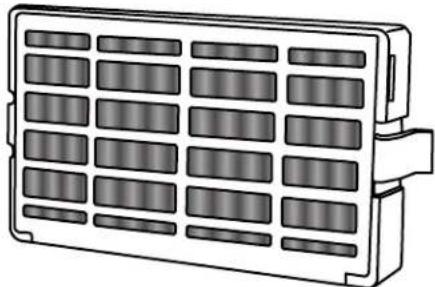

1. Remove the old air filter by squeezing in on the side tabs.

2. Remove the old status indicator.

3. Install the new air filter and status indicator using the

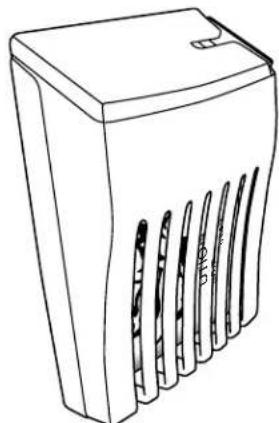

instructions in the previous sections. Install Produce Preserver (on some models) On some models, your refrigerator's accessory packet includes a Produce Preserver, which should be installed prior to use. On some models, the Produce Preserver is already installed at the factory. The Produce Preserver absorbs ethylene, allowing the ripening process of many produce items to slow down. As a result, certain produce items will stay fresh longer. Installing the Produce Preserver (on some models) The Produce Preserver pouches should be installed in their housing, which is located along an interior side wall of the crisper or convertible drawer. NOTE: For best performance, always use two pouches.

1. Remove the Produce Preserver pouches from their packaging.

2. Lift up on the housing in order to remove it from its mounting

3. Open the housing by pulling up and out on the back of the top

4. Place both pouches inside the housing, then snap the housing

5. Place the housing back on the mounting tab along the wall.

Installing the Status Indicator (on some models) The Produce Preserver comes with a status indicator, which should be activated and installed at the same time the pouch is installed.

1. Place the indicator face-down on a firm, flat surface.

2. Apply pressure to the bubble on the back of the indicator, until

the bubble pops to activate the indicator.

3. Slide open the cap on the Produce Preserver housing.

4. Place the indicator in the top of the housing, facing outward.

5. Slide the cap closed, and check that the indicator is visible

through the rectangular hole in the cap. NOTE: The cap will not easily close if the indicator’s rear bubble has not been popped. MONTHSREPLACE CAUTION: IRRITANT MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES FORM WHEN MIXED WITH OTHER PRODUCTS. Do not mix with cleaning products containing ammonia, bleach or acids. Do not get in eyes, on skin or clothing. Do not breathe dust. Keep out of reach of children. FIRST AID TREATMENT: Contains potassium permanganate. If swallowed, call a Poison Control Center or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. If on skin, rinse with water. CAUTIONIR

ANT Read cautions on back. ATTENTIONIRRITANT Lisez des prudences sur le revers. CAUTION IRRITANT Read cautions on back. ATTENTION IRRITANT Lire les mises en garde au dos. Whirlpool Corporation, Benton Harbor MI 49022 MONTHSREPLACE4 Replacing the Produce Preserver (on some models) The disposable pouches should be replaced every 6 months, when the status indicator has completely changed from white to red. To order replacements, see “Accessories.”

1. Remove the old pouches from the Produce Preserver housing.

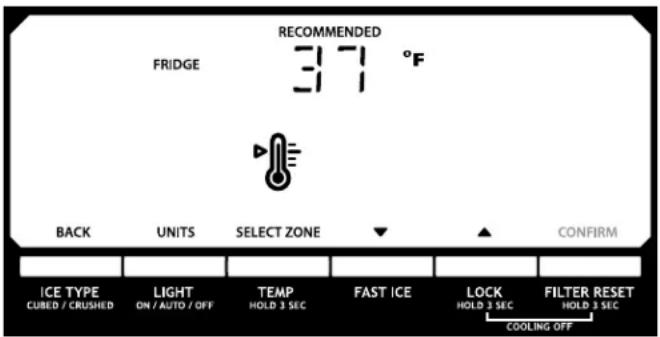

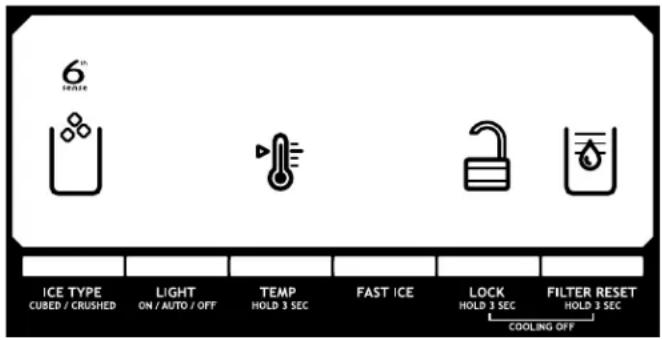

instructions in the previous sections. Using the Controls The refrigerator and freezer controls are located on the dispenser panel. IMPORTANT: The display screen on the dispenser control panel will turn off automatically and enter “sleep” mode when the control buttons and dispenser pads have not been used for 2 minutes or more. While in “sleep” mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter “sleep” mode. ■ Touch any control button on the dispenser panel to activate the display screen. The home screen will appear as shown. Adjusting the Controls For your convenience, your refrigerator and freezer controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still set to the “mid-settings.” The factory recommended set points are 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer. IMPORTANT: ■ Wait 24 hours before you put food into the refrigerator. If you add food before the refrigerator has cooled completely, your food may spoil. NOTE: Adjusting the set points to a colder than recommended setting will not cool the compartments any faster. ■ If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls. ■ The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm. ■ Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made. To view and adjust the set points, press and hold the TEMP button for 3 seconds. When adjust mode is activated, adjusting information will appear on the display screen. NOTE: To view Celsius temperatures, press the LIGHT button when adjust mode is activated. To return the display setting to Fahrenheit, press LIGHT again. ■ When adjust mode is activated, the display screen shows the refrigerator set point and “FRIDGE” appears. ■ Press LOCK to raise the set point, or press FAST ICE to lower the set point. ■ When you have finished viewing (and adjusting if desired) the refrigerator set point, press TEMP to change the display to show the freezer set point. When the zone has been changed, “FREEZER” appears on the display screen. ■ Press LOCK to raise the set point, or press FAST ICE to lower the set point. ■ When you have finished viewing (and adjusting if desired) both the refrigerator and freezer set points, press FILTER to save the settings. NOTE: To exit without saving changes, press ICE TYPE at any time while in adjust mode, or allow about 60 seconds of inactivity and adjust mode will turn off automatically. When adjusting temperature set points, use the following chart as a guide. The set point range for the refrigerator is 33°F to 45°F (0°C to 7°C). The set point range for the freezer is -5°F to 5°F (-21°C to -15°C). Cooling On/Off Your refrigerator and freezer will not cool when cooling is turned off. ■ To turn cooling off, press and hold the LOCK and FILTER buttons at the same time for 3 seconds. IMPORTANT: To avoid unintentionally locking the dispenser or changing other settings, be sure to press both buttons at exactly the same time. When cooling is off, “COOLING OFF” will appear on the display screen. ■ Press and hold LOCK and FILTER for 3 seconds again to turn cooling back on. CONDITION: TEMPERATURE ADJUSTMENT: REFRIGERATOR too cold REFRIGERATOR Setting 1° higher REFRIGERATOR too warm REFRIGERATOR Setting 1° lower FREEZER too cold FREEZER Setting 1° higher FREEZER too warm / Too little ice FREEZER Setting 1° lower5 Additional Features Fast Ice The Fast Ice feature assists with temporary periods of heavy ice use by increasing ice production over a 24-hour period. IMPORTANT: This feature only works if the ice maker is turned on. See “Ice Maker and Storage Bin.” ■ Press FAST ICE to turn on the Fast Ice feature. When the feature is on, the Fast Ice icon will appear on the dispenser display screen. The Fast Ice setting will remain on for 24 hours unless manually turned off. ■ To manually turn off the Fast Ice feature, press FAST ICE again or adjust the freezer temperature set point. The Fast Ice icon will disappear when the feature is off. NOTE: If increased ice production is desired at all times, change the freezer set point to a lower setting. Setting the freezer to a colder temperature may make some foods, such as ice cream, harder. 6th Sense™ Temperature Management The 6th Sense™ feature assists with regulating the temperature inside the refrigerator. If a large quantity of warm food is placed in the refrigerator or warm air enters the refrigerator while the door is held open, the 6th Sense™ system activates to quickly restore the temperature to the set point. NOTE: The 6th Sense™ system is always on when your refrigerator is operating. You do not need to press any buttons to activate it. The 6th Sense™ icon on the dispenser display screen indicates that the feature is functioning properly. Door Ajar Alarm The Door Ajar Alarm feature sounds an alarm when the refrigerator or freezer door is open for 5 minutes and the product cooling is turned on. The alarm will repeat every 2 minutes. Close both doors to turn it off. The feature then resets and will reactivate when either door is left open again for 5 minutes. NOTE: To mute the audible alarm while keeping the doors open, such as while cleaning the inside of the refrigerator, press any button on the control panel. The alarm sound will be temporarily turned off, but the Door Ajar icon will still be displayed on the dispenser control panel. Dual Evaporator (on some models) Some models come equipped with a dual sequential evaporation system, which includes two separate evaporators for the refrigerator and freezer compartments. Dual evaporation results in higher humidity, which helps keep foods in the refrigerator from spoiling as quickly and improves food quality and freshness in the freezer due to decreased freezer burn. In addition, the dual evaporation system helps keep food smells in the refrigerator from transferring to ice in the freezer. NOTE: The dual evaporation system is always activated when your refrigerator is operating. You do not need to press any buttons to turn it on. Convertible Drawer Temperature Control (on some models) The control can be adjusted to properly chill meats or vegetables. The air inside the pan is cooled to avoid “spot” freezing and can be set to keep meats at the National Livestock and Meat Board recommended storage temperatures of 28° to 32°F (-2° to 0°C). To store meat: Set the control to one of the three MEAT settings to store meat at its optimal storage temperature. To store vegetables: Set the control to VEG to store vegetables at their optimal storage temperatures. NOTE: If food starts to freeze, move the control to the right (less cold), toward the VEG setting. Remember to wait 24 hours between adjustments. Crisper Humidity Control (on some models) You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) for best storage of fruits and vegetables with skins. HIGH (closed) for best storage of fresh, leafy vegetables. Chilled Door Bin (on some models) Cool air from the freezer is directed to the refrigerator door bin directly beneath the vents. NOTE: The dairy compartment and can rack are not associated with the Chilled Door Bin feature. Chilled Door Bin Control The chilled door bin control is located on the left-hand side of the refrigerator compartment. ■ Slide the door chill control to the left to reduce the flow of cold air to the bin and make it less cold. ■ Slide the door chill control to the right to increase the flow of cold air to the bin and make it colder. A. Chilled door bin control

Water and Ice Dispensers IMPORTANT: After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser pad for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser pad (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser. NOTES: ■ The dispensing system will not operate when the freezer door is open. ■ Allow 24 hours for the refrigerator to cool down and chill water. ■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Wait 72 hours for full ice production. ■ The display screen on the dispenser control panel will turn off automatically and enter “sleep” mode when the control buttons and dispenser pads have not been used for 2 minutes or more. While in “sleep” mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter “sleep” mode. The Water Dispenser IMPORTANT: ■ Dispense at least 1 qt (1 L) of water every week to maintain a fresh supply. ■ If the flow of water from the dispenser decreases, it could be caused by low water pressure. ■ With the water filter removed, dispense 1 cup of water. If 1 cup of water is dispensed in 8 seconds or less, the water pressure to the refrigerator meets the minimum requirement. ■ If it takes longer than 8 seconds to dispense 1 cup of water, the water pressure to the refrigerator is lower than recommended. See “Water Supply Requirements” or “Troubleshooting” for suggestions. To Dispense Water:

1. Press a sturdy glass against the water dispenser pad.

2. Remove the glass to stop dispensing.

The Ice Dispenser Ice dispenses from the ice maker storage bin in the freezer when the dispenser pad is pressed. To turn off the ice maker, see “Ice Maker and Storage Bin.” Your ice maker can produce both crushed and cubed ice. Before dispensing ice, select which type of ice you prefer by pressing the ICE TYPE button. The display screen indicates which type of ice is selected. For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes. To Dispense Ice:

1. Make sure the desired type of ice is selected. To switch

between cubed and crushed, press ICE TYPE.

2. Press a sturdy glass against the ice dispenser pad. Hold the

glass close to the dispenser opening so ice does not fall outside of the glass. IMPORTANT: You do not need to apply a lot of pressure to the pad in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

3. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for several seconds after removing the glass from the pad. The dispenser may continue to make noise for a few seconds after dispensing. The Dispenser Light When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may choose either ON or DIM. The display screen indicates which mode is selected. ON: Press LIGHT to turn the dispenser light on. DIM: Press LIGHT a second time to select DIM mode. The dispenser light will remain on, but at a lower intensity. OFF: Press LIGHT a third time to turn the dispenser light off. The dispenser lights are LEDs that cannot be changed. If it appears that your dispenser lights are not working, see “Troubleshooting” for more information. The Dispenser Lock The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets. NOTE: The lock feature does not shut off power to the refrigerator, to the ice maker, or to the dispenser light. It simply deactivates the controls and dispenser pads. To turn off the ice maker, see “Ice Maker and Storage Bin.” ■ Press and hold LOCK for 3 seconds to lock the dispenser. ■ Press and hold LOCK a second time to unlock the dispenser.CRUSHED CUBEDON DIM Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts. WARNING7 The display screen indicates when the dispenser is locked. Ice Maker and Storage Bin (on some models) ■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. ■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained. ■ Do not use anything sharp to break up the ice in the storage bin. This can cause damage to the ice container and the dispenser mechanism. ■ Do not store anything on top of or in the ice maker or storage bin. Style 1 Turning the Ice Maker On/Off: The On/Off switch can only be accessed when the ice storage bin has been removed. The switch is located on the freezer door, on the left side of the wall that surrounds the ice storage bin. See the following section for bin removal instructions. ■ To turn on the ice maker, slide the control to the ON (left) position. ■ To manually turn off the ice maker, slide the control to the OFF (right) position. NOTE: The ice maker has an automatic shutoff to keep the storage bin from overfilling during normal operation. The ice maker sensors will automatically stop ice production, but the control will remain in the ON (left) position. Removing and Replacing Ice Storage Bin:

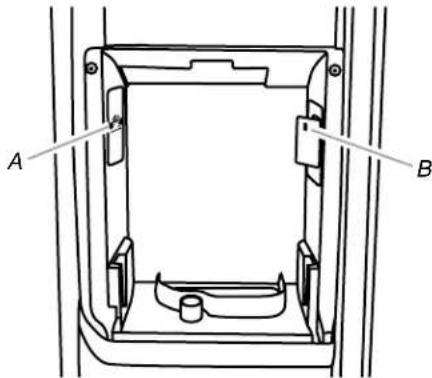

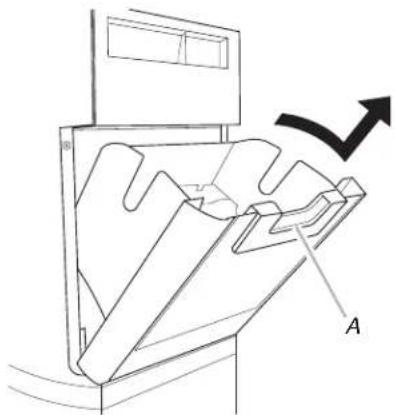

1. Press down the release lever and tilt the bucket outward. Use

both hands to hold the base of the storage bin, then lift it up and out. NOTE: It is not necessary to turn the ice maker control to the OFF (right) position when removing the storage bin. The sensor cover (“flipper door”), located on the right wall of the freezer door, stops the ice maker from producing ice if the door is open or the storage bin is removed.

2. Replace the bin by sliding it onto the door, then tilting it back

into an upright position. The release lever will click when the bin is securely in place. Style 2 Turning the Ice Maker On/Off: ■ To turn ON the ice maker, simply lower the wire shutoff arm.■ To manually turn off the ice maker, lift the wire shutoff arm to the OFF (arm up) position and listen for the click. Ice can still be dispensed, but no more can be made. NOTE: The ice maker has an automatic shutoff to keep the storage bin from overfilling during normal operation. As ice is made, the ice cubes will fill the ice storage bin, and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down. Removing and Replacing Ice Storage Bin:

1. Pull the covering panel up from the bottom.

2. Lift the wire shutoff arm so it clicks into the OFF (up) position.

3. Lift up the front of the storage bin and pull it out.

4. Replace the bin by pushing it in all the way or the dispenser will not work. 5. To restart ice production, push the wire shutoff arm down to the ON position. Make sure the door is closed tightly. Water Filtration System Water Filter Status LightThe water filter status light will help you know when to change your water filter. ■ When the dispenser control panel’s water filter status display changes to “ORDER,” this tells you that it is almost time to change the water filter cartridge. ■ Replace the water filter cartridge when the water filter status display changes to “REPLACE.” If water flow to your water dispenser or ice maker decreases noticeably, change the filter sooner. The filter should be replaced at least every 6 months, depending on your water quality and usage.■ After changing the water filter, reset the status light by pressing and holding the FILTER button for 3 seconds. When the system is reset, the “ORDER” and “REPLACE” icons will disappear from the display screen.Changing the Water Filter 1. Locate the water filter in the top-right corner of the refrigerator compartment.2. Lift open the filter cover door. The filter will be released and then eject as the door is opened.3. When the door is completely open, pull the filter straight out.NOTE: There may be some water in the filter. Some spilling may occur. Use a towel to wipe up any spills.

4. Take the new filter out of its packaging and remove the covers

from the O-rings. Be sure the O-rings are still in place after the covers are removed.5. With the arrow pointing up, align the new filter with the filter housing and slide it into place. The filter cover door will automatically begin to close as the new filter is inserted.6. Close the filter cover door completely in order to snap the filter into place. You may need to press hard.7. Flush the water system. See “Water and Ice Dispensers.” REFRIGERATOR CARE Cleaning Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly. To Clean Your Refrigerator: NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.1. Unplug refrigerator or disconnect power.2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. 3. Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water. 4. There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.If you need to clean the condenser:■ Remove the base grille. See the “Door Removal” instructions, either in the User Instructions or the separate instruction sheet provided with your refrigerator.■ Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.■ Replace the base grille when finished.5. Plug in refrigerator or reconnect power. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.9 Changing the Light Bulbs NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage. ■ The dispenser lights are LEDs that cannot be changed.■ On some models, the interior lights are LEDs that cannot be changed. ■ On some models, the interior lights require a 40-watt bulb.1. Unplug refrigerator or disconnect power.2. Remove light shield when applicable. NOTE: To clean the light shield, wash it with warm water and liquid detergent. Rinse and dry the shield well.3. Remove light bulb and replace with one of the same size, shape and wattage.4. Replace light shield when applicable.5. Plug in refrigerator or reconnect power. TROUBLESHOOTING First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call. In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca Refrigerator Operation The refrigerator will not operate ■ Power cord unplugged? Plug into a grounded 3 prong outlet. ■ Is outlet working? Plug in a lamp to see if the outlet is working. ■ Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Are controls on? Make sure the refrigerator controls are on. See “Using the Controls.” ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly.The motor seems to run too muchYour new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The refrigerator may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.The refrigerator is noisyRefrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation. ■ Buzzing - heard when the water valve opens to fill the ice maker■ Clicking/Snapping - valves opening or closing■ Pulsating - fans/compressor adjusting to optimize performance ■ Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator ■ Sizzling/Gurgling - water dripping on the heater during defrost cycle ■ Popping - contraction/expansion of inside walls, especially during initial cool-down■ Water running - may be heard when ice melts during the defrost cycle and water runs into the drain pan ■ Creaking/Cracking - occurs as ice is being ejected from the ice maker mold.The doors will not close completely ■ Door blocked open? Move food packages away from door. ■ Bin or shelf in the way? Push bin or shelf back in the correct position. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING10 The doors are difficult to open ■ Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water. The refrigerator rocks and is not stable ■ What do I do if the refrigerator rocks and is not stable? To stabilize the refrigerator, remove the base grille and lower the leveling feet until they touch the floor. See the “Door Removal” instructions, either in the User Instructions or the separate instruction sheet provided with your refrigerator. The lights do not work ■ Is a light bulb loose in the socket or burned out? See “Changing the Light Bulbs.” ■ Is the dispenser light set to OFF? On some models, the dispenser light will operate only when a dispenser lever/pad is pressed. If you want the dispenser light to stay on continuously, set the dispenser light to ON, or (on some models) NIGHT LIGHT or AUTO or HALF or DIM. See “Water and Ice Dispensers.” ■ Is the dispenser light set to NIGHT LIGHT or AUTO? On some models, if the dispenser is set to the NIGHT LIGHT or AUTO mode, be sure the dispenser light sensor is not blocked. See “Water and Ice Dispensers.” Temperature and Moisture Temperature is too warm ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. ■ Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed. ■ Large load of food added? Allow several hours for refrigerator to return to normal temperature. ■ Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.” There is interior moisture buildup NOTE: Some moisture buildup is normal. Clean with a dry cloth. ■ Humid room? Contributes to moisture buildup. ■ Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed. Ice and Water The ice maker is not producing ice or not enough ice ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production. ■ Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice. ■ Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil. (This does not apply to models with the ice maker mounted at the top of the freezer door.) ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” The ice cubes are hollow or small NOTE: This is an indication of low water pressure. ■ Water shutoff valve not fully open? Turn the water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” ■ Questions remain regarding water pressure? Call a licensed, qualified plumber. Off-taste, odor or gray color in the ice ■ New plumbing connections? New plumbing connections can cause discolored or off-flavored ice. ■ Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice. ■ Odor transfer from food? Use airtight, moisture-proof packaging to store food. ■ Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals. ■ Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing. The ice dispenser will not operate properly ■ Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.” ■ Ice bin installed correctly? Be sure the ice bin is firmly in position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production. WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.11 ■ Ice clogged in the ice storage bin or delivery chute? Remove clogged ice, using a plastic utensil if necessary. Clean chute and bottom of storage bin using a warm moist cloth, and dry both thoroughly. To avoid clogging and maintain a fresh supply of ice, empty the storage bin and clean both the bin and delivery chute every two weeks. ■ Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker. ■ Has the ice melted around the auger (metal spiral) in the ice bin? Empty the ice container. Use warm water to melt the ice if necessary. ■ Is the ice dispenser stalling while dispensing “crushed” ice? Change the ice button from “crushed” to “cubed.” If cubed ice dispenses correctly, depress the button for “crushed” ice and begin dispensing again. ■ Has the dispenser arm been held in too long? Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again. The water dispenser will not operate properly ■ Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.” ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Is the water pressure at least 30 psi (207 kPa)? The water pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.” ■ Kink in the home water source line? Straighten the water source line. ■ New installation? Flush and fill the water system. ■ Water filter installed on the refrigerator? The filter may be clogged or incorrectly installed. ■ Is a reverse osmosis water filtration system connected to your cold water supply? See “Water Supply Requirements.” Water is leaking from the dispenser NOTE: One or two drops of water after dispensing is normal. ■ Glass not being held under the dispenser long enough? Hold the glass under the dispenser for 2 to 3 seconds after releasing the dispenser lever/pad. ■ New installation? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.” ■ Recently changed water filter? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.” The dispenser water is not cool enough (on some models) NOTE: Water from the dispenser is chilled to only 50°F (10°C). ■ New installation? Allow 24 hours after installation for the water supply to cool completely. ■ Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely. ■ Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water. ■ Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.” ACCESSORIES To order replacement filters, call 1-800-442-9991 and ask for the part number listed below or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777. Stainless Steel Cleaner and Polish: Order Part #4396095 Water Filter: Order Part #W10295370 (P4RFWB) Air Filter: Order Part #W10311524 Produce Preserver: Order Part #W10346771

WATER FILTER CERTIFICATIONS

Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts. WARNING12

PERFORMANCE DATA SHEET

Water Filtration System Model P5WB2L/P4RFWB Capacity 200 Gallons (757 Liters) This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).■ It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised.■ Use replacement filter P4RFWB, part #W10295370. 2011 suggested retail price of $39.99 U.S.A./$49.99 Canada. Prices are subject to change without notice.Style 1 – When the water filter status display changes from “GOOD” to “ORDER,” order a new filter. When the filter indicator reads “REPLACE,” it is recommended that you replace the filter.Style 2 – When the filter indicator changes from green to yellow, order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Style 3 – When the filter indicator reads 10%, order a new filter. When the indicator reads 0%, it is recommended that you replace the filter. Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter.■ After changing the water filter, flush the water system. See “Water and Ice Dispensers” or “Water Dispenser.”■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.■ The product is for cold water use only.■ The water system must be installed in compliance with state and local laws and regulations.■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.■ Refer to the “Warranty” section for the Manufacturer’s name, address and telephone number.■ Refer to the “Warranty” section for the Manufacturer’s limited warranty. Application Guidelines/Water Supply ParametersSystem tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, and Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Live Cysts, Asbestos, Lead, Lindane, Toxaphene, Atrazine, and 2,4 - D. Substance ReductionAesthetic EffectsNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentMinimum %ReductionAverage % ReductionChlorine Taste/OdorParticulate Class I 50% reduction85% reduction2.0 mg/L7,300,000 #/mL2.0 mg/L ± 10%At least 10,000 particles/mL0.20 mg/L75,000 #/mL

0.5 gpm (1.9 Lpm) @ 60 psi

Class I particle size: >0.5 to <1 umTest requirement is at least 100,000 particles/mL of AC Fine Test Dust.Based on the use of Cryptosporidium parvum oocystsFibers greater than 10 um in length® NSF is a registered trademark of NSF International.13

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions. 11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.
