USER MANUAL Nostalgia SRCD838 SYLVANIA

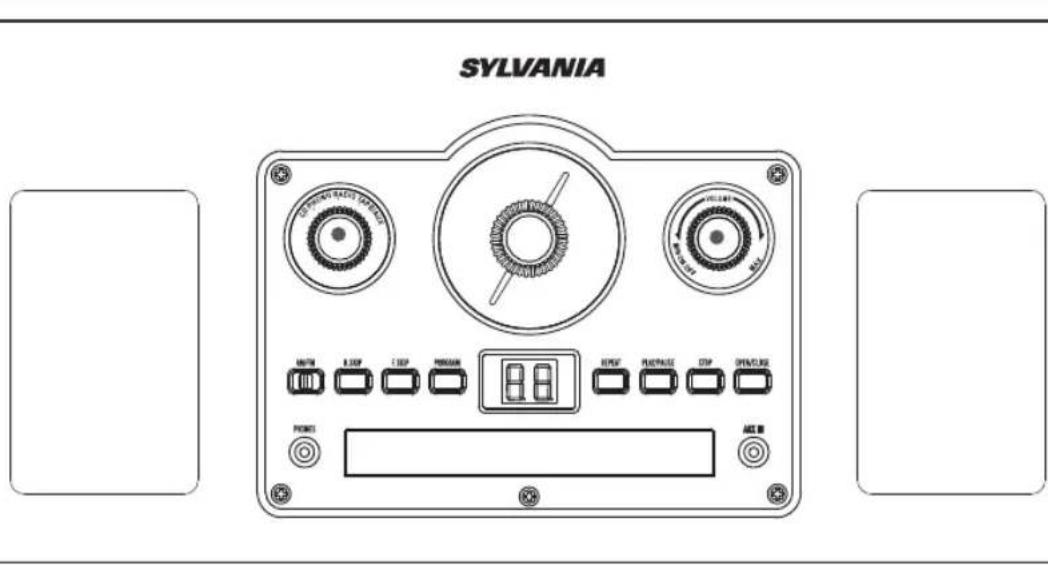

Nostalgia 5 in 1 Turntable Radio
MODEL:SRCD838
INSTRUCTION MANUAL
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT. PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
INDUSTRY CANADA CONFORMITY
CAN ICES-3(B)/NMB-3(B)
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.
DANGER:
Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifications not authorized by the manufacturer may void user's authority to operate this device.
WARNING: The mains plus is used as disconnected device, the disconnect device shall remian readily operable. The equipment is Class II or double insulated electrical appliance.
It has been designed in such a way that it does not require a safety connection to electrical earth.
IMPORTANT SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit.
For example, this unit may not have the capability to be connected to an outdoor antenna.
1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.
2) Keep these instructions
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.
6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care. Quick stop, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
15) Power source
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other source, refer to the operation instructions.
16) Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
IMPORTANT SAFETY INSTRUCTIONS
17) Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
18) Object and liquid entry
Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

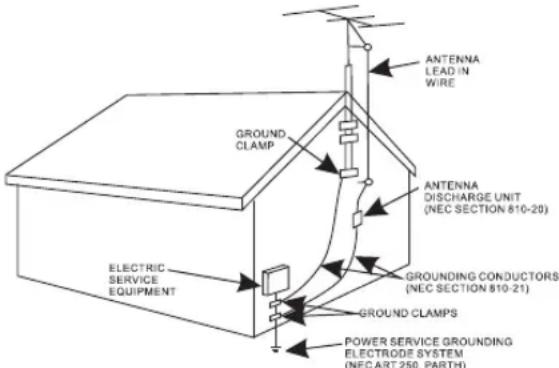

19) Outdoor antenna grounding
If an outside antenna is connected to the product, be sure the antenna system is grounded so as to Provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code ANSI/NFPA 70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna-discharge product, connection to grounding electrodes and requirements for the grounding electrodes.
20) Service
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
21) Replacement parts
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire or electric shock or other hazards.
22) Safety check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
23) Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance—this indicates a need for service.
24) Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
NOTE: Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way such as the following: the power-supply cord or plug has been damaged, liquid has been spilled into unit, the unit has been exposed to rain or moisture, the unit has been dropped or the unit does not operate norm

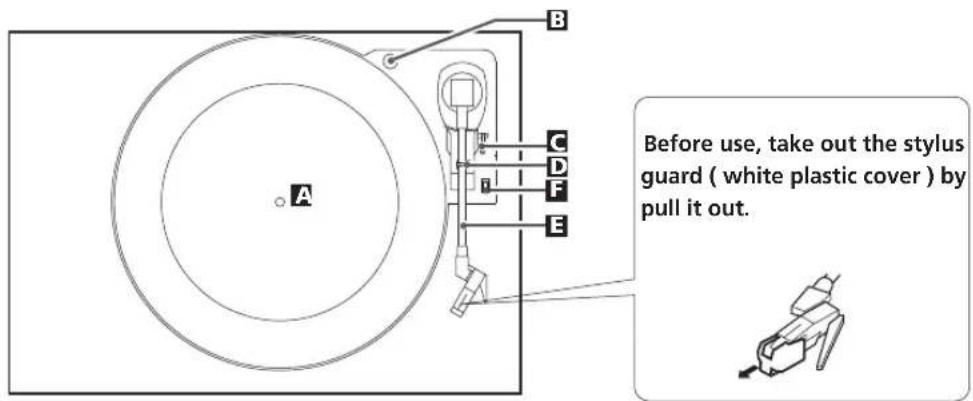

Turntable
A Turntable
Screw fixing the turntable for transportation Before use, completely loosen the screw by turning it clockwise.
When transport the unit again, turn the screw counterclockwise to secure the turntable.
Lever
Tone arm holder
E Tone arm
F Speed selector
Location of Controls

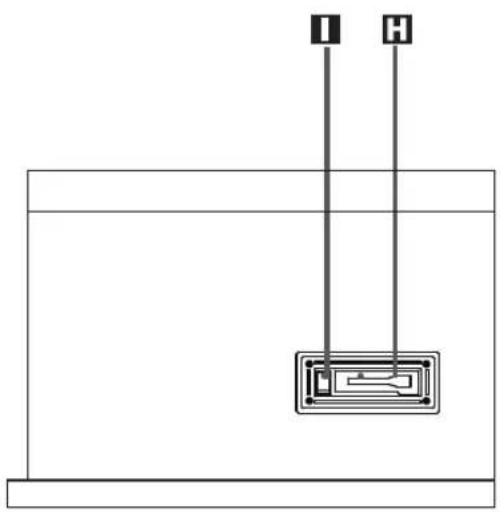

Side View

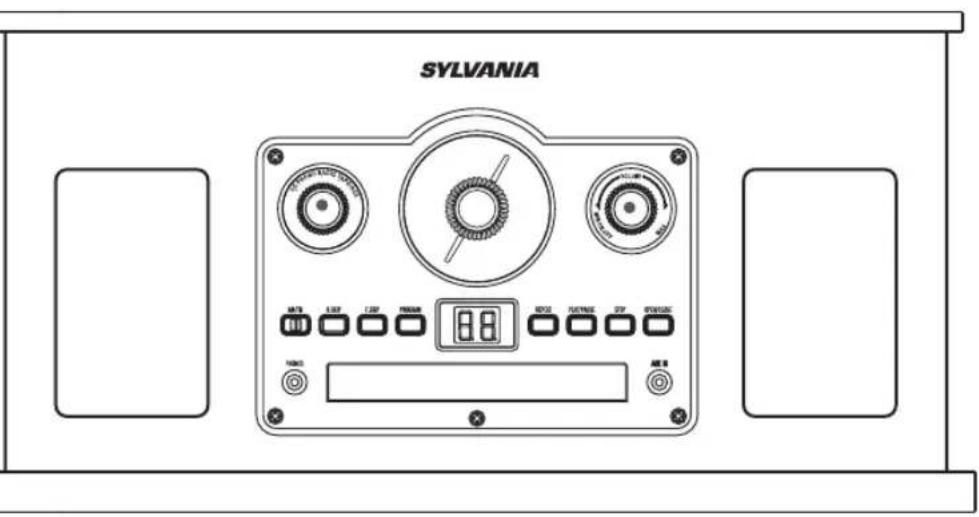

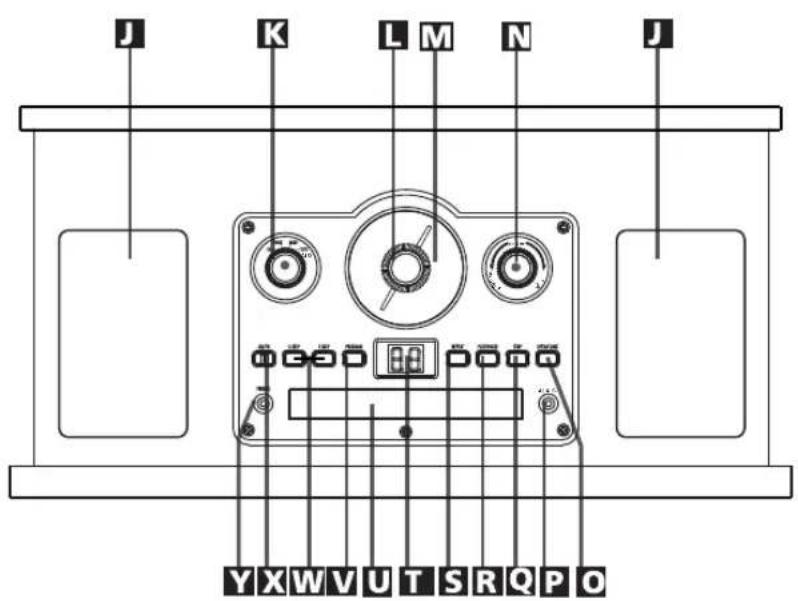

Front View
Cassette
Eject button
Speakers
Function selector
Tuning knob
Radio dial scale
N Power ON/OFF-Volume knob
OPEN/CLOSE button
AUX IN jack
STOP button
PLAY/PAUSE button
3 REPEAT button
LED display for CD
U Disc tray
PROGRAM button
B.SKIP and F.SKIP (Backward and Forward skip) buttons
AM/FMBANDSwitch
Y PHONE jack
Location of Controls

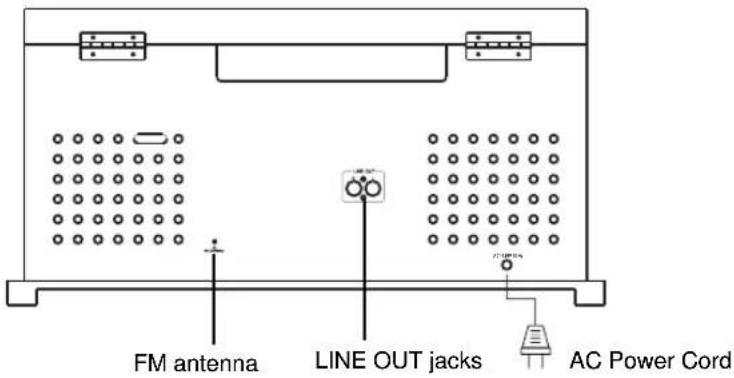

Back View

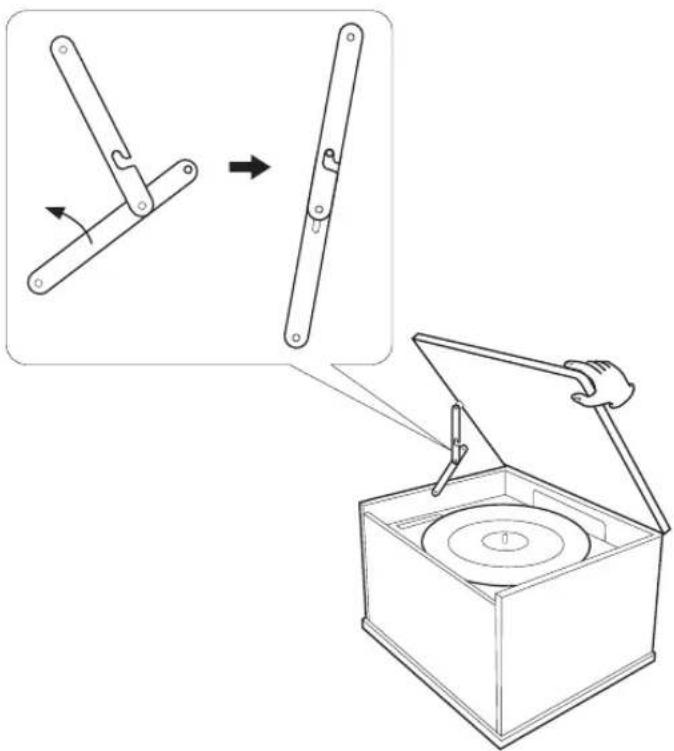

Open/close the turntable cover
To Open:
1.Lift the turntable cover.
2.Pull the arms to front to lock it as the figure on left.
To Close:
- Lift the cover.
- Push the arms to backward to release the lock.
- Close the cover.

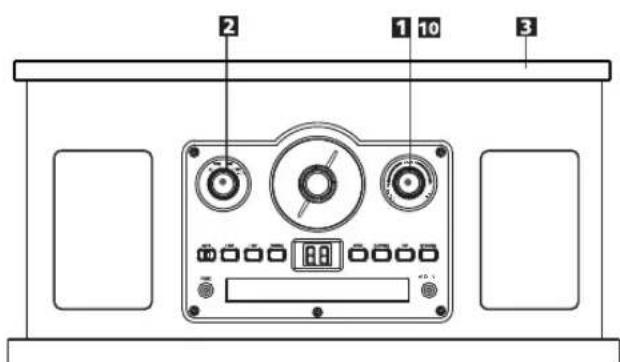

Listening to a Record
Before use, completely loosen the transportation screw by turn it clockwise.
Take out the stylus guard (white plastic cover).
4 Select the speed.
Turn the Power ON/OFF-VOLUME knob clockwise until a sound "click" was heard to turn on the unit.
Turn the Function selector to the PHONO position.
3 Open the cover.
Put the record on the turntable.

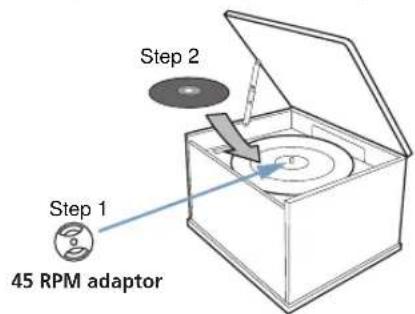

If plays the small size 45 rpm record, insert the supplied round adaptor to the center spindle before place the record.

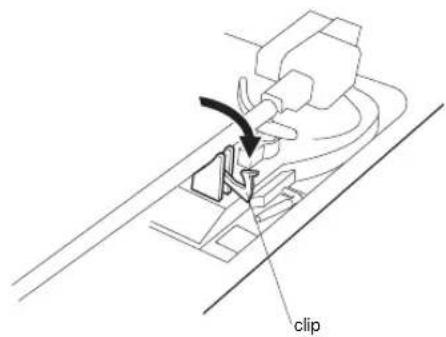

6 Unlock the clip to release the tone arm as the figure below.

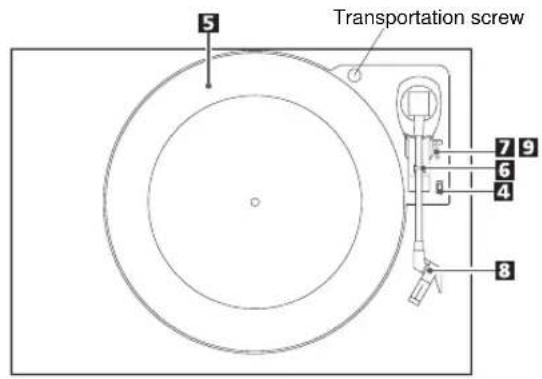

Listening to a Record
7 Raise the lever to lift the tone arm as the figure below.
10 Turn the Power ON/OFF-VOLUME knob to adjust the volume.
8 Move the tone arm to the top of the record. The turntable will start to turn.
16 When finished listening, replace the tone arm to the rest and lock it as previous procedures. Turn the Power ON/OFF-VOLUME knob counterclockwise until a "click" sound was heard to power off the unit.
9 Place the tone arm to the desired point on the record by turn the lever down as the figure below.

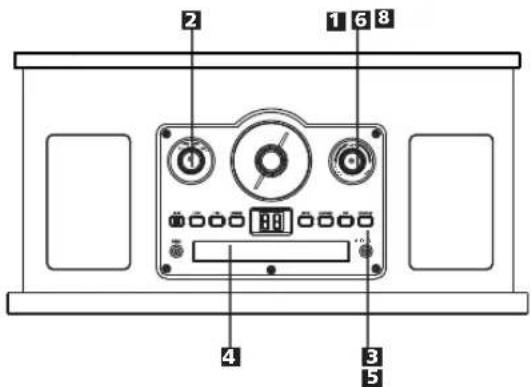

Listening to a CD
CDPlayback:
Turn the POWER ON/OFF-VOLUME knob clockwise until a "click sound was heard to turn on the unit.
Press the OPEN/CLOSE button to close the tray.
A few seconds later, the total number of tracks will appear on the LED display and play will start automatically.
Turn the Function selector to the CD position.
6 Turn the POWER ON/OFF-Volume knob to adjust volume level as desired.
Press the OPEN/CLOSE button to open the disc tray.
7 During playback:
Press the PLAY/PAUSE button to pause, press again to resume normal playback.
Press the B.SKIP or F.SKIP button repeatedly to skip the tracks.
Press and hold the B.SKIP or F.SKIP button to fast searching the desired section.
To stop, press the STOP button.
8 When finished listening
Turn the Power ON/OFF - VOLUME knob counterclockwise unit a "click" sound was heard to power off the unit.
- Never place more than one disc on the tray.
The disc must be placed on the center of the disc tray. If the disc is not correctly loaded, it may not be possible to open the tray again once it has closed.
Repeat Playback:
During playback:
- Press the REPEAT button once, the Repeat indicator will light and blinking. The current track will playback repeatedly until the STOP button was pressed.
- Press the REPEAT button twice, the Repeate indicator will light and stop blinking. All the tracks in the current disc will playback repeatedly until the STOP button was pressed.
- To cancel the repeat function during playback, press the REPEAT button repeatedly until the Repeat indicator not light.
Programme Playback:
Up to 20 tracks can be programmed playback as follows:
- In CD STOP mode, press the PROGRAM button. "01" will appear on the LED display and blinking.
- Select the first specific track to be programmed by pressing the B.SKIP or F.SKIP buttons.
- Press PROGRAM button again to store the selected track into the memory.
- Repeat steps 2 and 3 until all the specific tracks stored into the memory.
- Press the PLAY/PAUSE button to start playback.
- To stop and cancel program playback, press the STOP button.

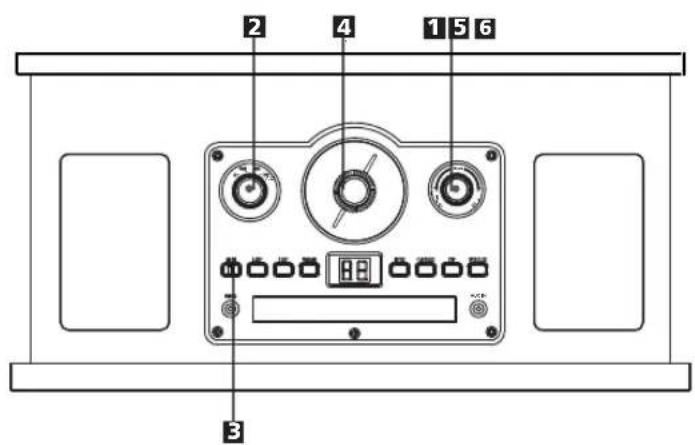

Listening to the Radio
1 Turn the Power ON/OFF-VOLUME knob clockwise until a "click" sound was heard to turn on the unit.
4 Turn the TUNING knob to receive the desired radio station.
2 Turn the Function selector to the RADIO position.
Turn the Power ON/OFF-VOLUME knob to adjust the volume level.
3 Slide the AM/FM band switch to AM or FM as desired.
6 When finished listening, turn the Power ON/OFF-VOLUME knob counterclockwise until a sound 'click' was heard to power off the unit.
Antennas:
AM- This unit has a build in ferrite rod antenna, which provides adequate reception in most areas. If reception is weak, turn the unit to improve reception.
FM - The FM Antenna wire is for FM reception. If reception is weak, unwound and extended the wire or relocation the wire to improve the radio reception.

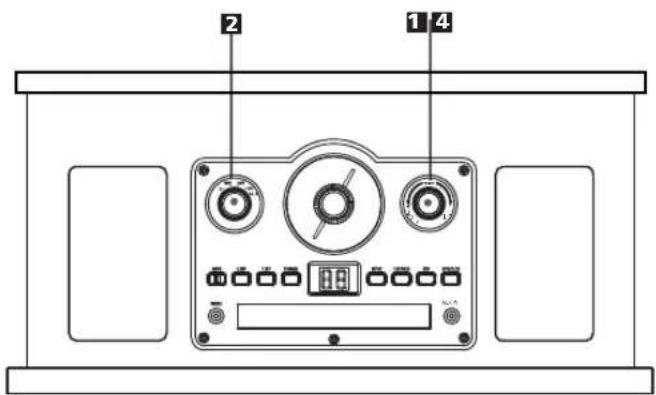

Listening to a Cassette Tape
Turn the Power ON/OFF-VOLUME knob clockwise until a "click" sound was heard to turn on the unit.
4 Turn the Power ON/OFF-VOLUME knob to adjust volume level.
Turn the Function selector to the TAPE/AUX position.
Fast forward
To fast foreword to desired point, press the Eject button to half position. When finished, press the button again to resume normal playback.
Note: When finish winding, please remember press the Eject button to stop winding and take out the tape. Otherwise, the unit will maintain on the winding mode.
6 To stop playback and eject the tape
Insert a pre-recorded cassette tape into the cassette compartment until the Eject button ejected. Play will start automatically.
When finished listening, press the Eject button to stop playback and take out the tape. Turn the Power ON/OFF - VOLUME button counterclockwise until a "Click" sound was heard to power off the unit.
Others Connection

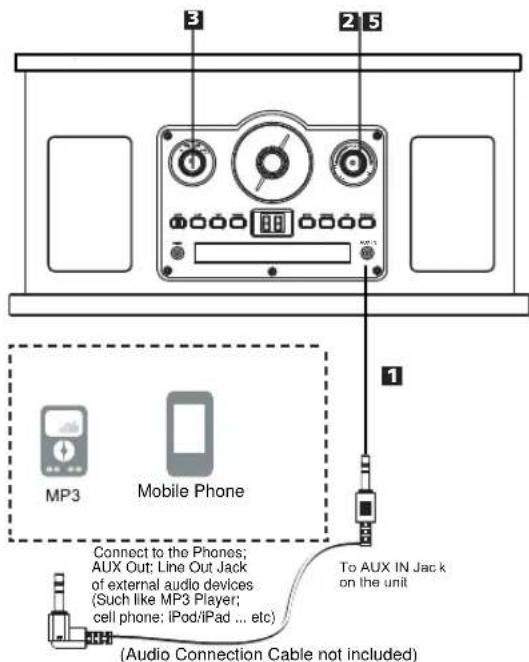

AUX IN:
- Connected the external audio device to the unit by an audio connection cable with 3.5mm stereo mini jacks (cable not included) as:
Insert one end to the Phone; Line Out or AUX Out Jack on the external audio device.
Insert the other end to the AUX IN jack on the front of unit.
- Turn the Power ON/OFF - VOLUME knob clockwise until a "click" sound was heard to turn on the unit.
- Turn the Function selector to the TAPE/AUX position.
- Plays the music on the connected external audio device as usual.
- When finished listening, turn the Power ON/OFF - VOLUME knob counterclockwise until a "click" sound was heard to power off the unit.
Notes:
Make sure the sound output level of the connected external audio device is in high level. Otherwise, sound will weak.
- If sound is distortion, reduce the sound output level of the connected external audio device or set the EQ mode of it to normal.

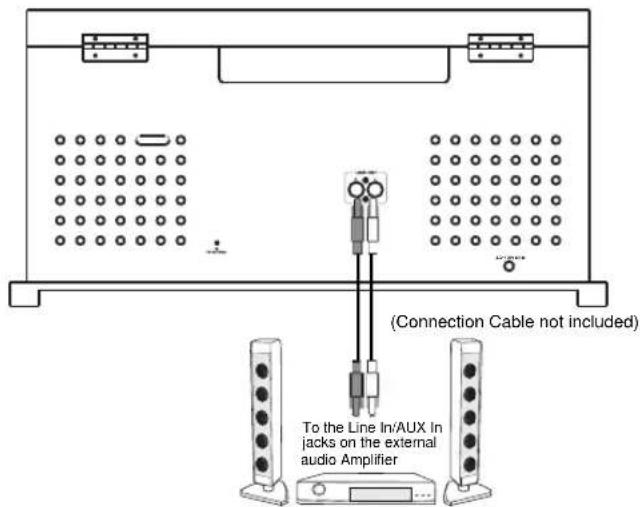

LINE OUT:
- Connected the external audio device by an audio connection cable with RCA plugs ( cable not included ) as:
Insert one end to the Line IN or AUX IN jacks on the external audio Amplifier.
Insert the other end to the LINE OUT jacks on the rear of unit.
- Turn the Power ON/OFF - VOLUME knob clockwise until a "click" sound was heard to turn on the unit.
- Plays the music/radio as previous procedures. Sound will hearing from the connected external audio Amplifier system. Adjust the volume level by the volume control on the connected external Amplifier.
(If do not want to hearing the sound from this unit at the same time, turn the Power ON/OFF - VOLUME knob to minimum position).
- When finished listening, turn the Power ON/OFF - VOLUME knob counterclockwise until a "click" sound was heard to power off the unit.
Phones jack:
For private listening, connect a headphone /earphone (not included) into the PHONE jack on the front of unit. The speakers will be disconnected when headphone /earphone is inserted into the jack.
About Disc
Discs which can be played on this unit:
- Conventional audio CDs bearing the CD-DA logo on the label:
- Properly finalized CD-R and CD-RW discs.
Always place the disc on the disc tray with the label side up. (Compact discs can be played or recorded only on one side.)
- To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.
How to remove the disc How to hold the disc
- Should the disc become dirty, wipe the surface radially (from the center hole outward towards the outer edge) with a soft, dry cloth:
- Never use such chemicals as record sprays, antistatic sprays or fluid, benzine or thinner to clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
-
Discs should be returned to their cases after use to avoid dust and scratches that could cause the laser pickup to "skip."
-
Do not expose discs to direct sunlight or high humidity and temperature for extended periods. Long exposure to high temperatures will warp the disc.
- Do not play any disc that is warped, deformed or damaged. Playing such discs may cause irreparable harm to the playing mechanisms.
- CD-R and CD-RW discs are more sensitive to the effects of heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location where direct sunlight will fall on them, and away from sources of heat such as radiators or heat-generating electrical devices.
- Printable CD-R and CD-RW discs aren't recommended, as the label side might be sticky and damage the unit.
- Do not stick papers or protective sheets on the discs and do not use any protective coating spray.
- Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.
- Never use a stabilizer. Using commercially available CD stabilizers with this unit will damage the mechanisms and cause them to malfunction.
- Do not use CDs with an irregular shape (octagonal, heart shaped, business card size, etc.). CDs of this sort can damage the unit:
If you are in any doubt as to the care and handling of a CDR/ CD-RW disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.
Cassette Tape
Tape Selection
Metal and chrome (cobalt) tapes have identification holes.
Tape Handling

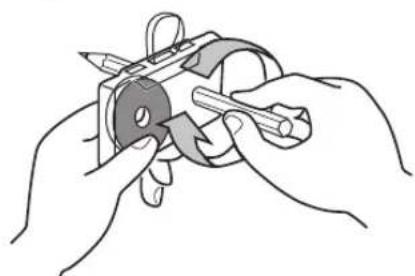

Use your finger or a pencil to turn the cassette's hub and take up any slack tape.
- Avoid touching the tape. Fingerprints attract dust and dirt.
- Avoid dropping or subjecting cassettes to excessive shocks.
As C-120 tapes are physically weak and could become entangled in the transport mechanism, do not use them.
Do not store tapes in the following places:
On top of heaters, exposed to direct sunlight or in any other places with high temperatures.
Near speakers, on TV sets or amplifiers or where they would be exposed to strong magnetic fields.
Where humidity is high and in dirty, dusty places.
Head Maintenance
The head and tape path should be cleaned and demagnetized periodically. Please use a cassette type head cleaning tape and demagnetizer. For specific details on the proper use of either item, please read each item's instruction manual.
Records Handling

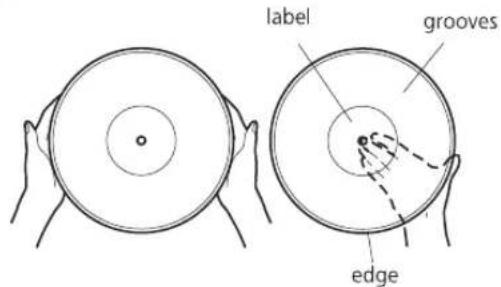

- Do not touch the record's grooves. Only handle records, by the edges or the label. Make sure your hands are clean. Skin oils from even clean hands can leave a residue on the record surface that will gradually deteriorate the quality of your record.
- Keep your records away from dust. Keep them in a cool, dry place.
- To avoid dust and scratches, keep records in their sleeves and jackets when not in use.
- Store records upright on their edges. Records stored horizontally will eventually bend and warp.
- Do not expose records to direct sunlight or high humidity and temperature. Long exposure to high temperatures will warp the record.
- Do not store your records in the trunk of your car. The temperature in a closed trunk can ruin your collection.
- Store records in an area with a stable temperature and low humidity.
- Should the record become dirty, gently wipe the surface in a circular motion, using a soft anti-static cloth.
How to replace the stylus
Replace the stylus
-
Use a screwdriver to push the stylus off then pull it out as the figures below:
-
Install the new stylus as figures below:
Troubleshooting
If you experience any problems with the unit, please take a moment to look through this chart and see if you can solve the problem yourself before you call your dealer.
No power
- Check the connection of AC wall outlet.
No sound.
Rising the volume level by turn the Power ON/OFF -VOLUME knob clockwise.
Noisy sound:
The unit is too close to a TV set or similar appliances. Relocate the unit.
Radio:
Can not listen to any station, or signal is too weak.
Tune the station properly.
The Function selector is in wrong position, turn it to RADIO position.
Relocation the unit.
CD Player
Not playing
The Function selector is in wrong position, turn it to CD position.
Load the disc with the label side face up.
If the disc is dirty, clean the surface of the disc.
Try again with another disc.
Cassette Tape Player
Not playing
The tape has not insert completely. Insert the tape tightly until the Eject button is ejected.
The Function selector is in wrong position, turn it to TAPE/AUX position.
Sound is distorted or noisy.
Clean and demagnetize the heads.
If the unit is halt or abnormal operation, unplug the power cord from the wall outlet and plug it again.
Maintenance:
Always keep the turntable clean.
If the surface of the unit gets dirty, wipe with a soft cloth or use a diluted mild liquid soap. Be sure to remove any excess liquid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit. Allow the surface of the unit to dry completely before using.
Turntable:
Not playing or sound distortion
The Function selector is in wrong position, turn it to PHONE position.
Loosen the screw, and take out the stylus guard.
(The stylus guard is a white plastic cover that protects the stylus during transportation.)
- Select the correct playback speed.
Specifications
General
Power Requirements AC 120V\~,60Hz
Power Consumption 20 W
Audio:
Impedance of speakers: .2 x 2W; 4Ohm
Radio:
Frequency range (FM) 88MHz~108MHz
Frequency range (AM) 530 kHz to 1710 kHz
Cassette:
Track System. 4 track, stereo
Tape Speed 4.8 cm/sec
Wow and Flutter. 0.15% (WRMS)
Frequency Response. 100-8,000Hz
Signal-to-Noise Ratio. 35dB
Turntable:
Motor . DC servo motor
Drive System. Belt Drive
Speed 33-1/3 rpm, 45 rpm, 78 rpm
- Wow and Flutter. less than 0.15% (WDT)
Ceramic Stereo Cartridge
Stylus. .CSC-015
- Design and specifications are subject to change without notice.
Accessories:
1 x User's manual
1xStylus
1 x 45rpm Adaptor
SYLVANIA
PLATINE Nostalgia 5 en 1
MODELE:SRCD838 MODED'EMPLOI
VEUILLEZ LIRE ATTENTIVEMENT AVANT LA MISE EN SERVICE
CONSIGNES DE SECURITÉ IMPORTANTES
ATTENTION
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
ATTENTION : AFIN DE RÉDUIRE LES RISQUES DE CHOC ÉLECTRIQUE, NE PAS RETIRER L'É COUVERCLE (OU LE CAPOT ARRÊRÈ) . NE CONTIENT AUCUNE PIECE REMPLACABLE PAR L'UTILISATEUR. CONTACTEZ LE PERSONNEL QUALIFIÉ POUR TOUTE OPÉRATION DE MAINTENANCE.
ATTENTION :
CE LECTEUR DE VIDEODISQUE NUMERIQUE UTILISE UN SYSTème LASER.
POUR S'ASSURER DU BON USAGE DE CE PRODUIT, VEUILLEZ LIRE ATTENTIVÉMENT
CE MANUEL D'UTILISATEUR ET LE CONSERVÈR POUR UN UTILISATION ULTÉRIÉURE.
POUR LA MAINTENANCE DE L'ÉQUIPEMENT, VEUILLEZ CONTACTER UN CENTRE DE SERVICE AGREE-VOIR LA PROCEDURE DE SERVICE.
L'UTILISATION DES COMMANDES, LES AJUSTEMENTS OU L'EXÉCUTION DES PROCÉURES AUTRES QUE CEUX/CELLES SPECIFIÉ(E)S DANS LE PRESENT MANUEL PEUT ENTRainer DES EXPOSITIONS DANGEREURES AUX RADIATIONS.
POUR EMPICHER UNE EXPOSITION DIRECTE AU RAYONNEMENT LASER, N'ESSAYEZ PAS D'OUVRIR LE COFFRET. UN RAYONNEMENT LASER VISIBLE PEUT SURVENIR LORSQUE LE COFFRET EST OUVERT. NE JAMAIS REGARDER DANS LE FAISCEAU.
AVERTISSEMENT :
POUR RÉDUIRE LE RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU À L'HUMIDITÉ.
AVERTISSEMENT:
POUR RÉDUIRE LE RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE ET PARASITES, UTILISER UNIQUÉMENT LES ACCESSOIRÉS RECOMMANDÉS.
CONFORMITE À L'INDUSTRIE DU CANADA
MOULEUX-3(B)/NMB-3(B)
