TO 3050 - Toaster Orbegozo - Free user manual and instructions

Features	Details
Device type	Toaster
Number of slots	2 slots
Power	800 W
Defrost function	Yes
Reheat function	Yes
Browning levels	7 adjustable levels
Material	Stainless steel
Dimensions	Approximately 26 x 15 x 18 cm
Weight	1.2 kg
Maintenance	Clean with a damp cloth, removable crumb tray
Safety	Overheat protection
Warranty	2 years
Included accessories	No specific accessories

Frequently Asked Questions - TO 3050 Orbegozo

The Orbegozo TO 3050 toaster won\u0027t turn on, what should I do?

Check that the device is properly plugged into a working outlet. Make sure the power cord is not damaged. If the problem persists, contact customer service.

Why does the bread toast unevenly?

This may be due to the position of the bread slices. Make sure the slices are well centered in the slot. Also check that the toaster is clean and free of debris.

How do I clean the Orbegozo TO 3050 toaster?

Unplug the device and let it cool down. Remove the crumb tray and empty it. Wipe the exterior with a damp cloth. Do not immerse the device in water or use abrasive cleaners.

The toaster emits an unpleasant smell during use, is this normal?

It is normal for a new toaster to emit a slight smell during the first uses. If the smell persists or becomes strong, turn off the device and contact customer service.

How do I adjust the bread browning level?

Use the browning adjustment knob on the control panel to choose the desired intensity. Test different levels to find the one that suits your preferences.

The toaster does not eject the bread automatically, what should I do?

Make sure the bread is properly inserted and the lever is fully pressed down. If the problem persists, unplug the device and contact customer service.

Can I use thick slices of bread in the Orbegozo TO 3050 toaster?

Yes, the toaster is designed to accommodate bread slices of different thicknesses. Just make sure they do not exceed the recommended maximum size to avoid any jamming.

The power cord is too short, what should I do?

Use an extension cord if necessary, but make sure it is suitable for the device\u0027s power. Never use non-certified extension cords.

USER MANUAL TO 3050 Orbegozo

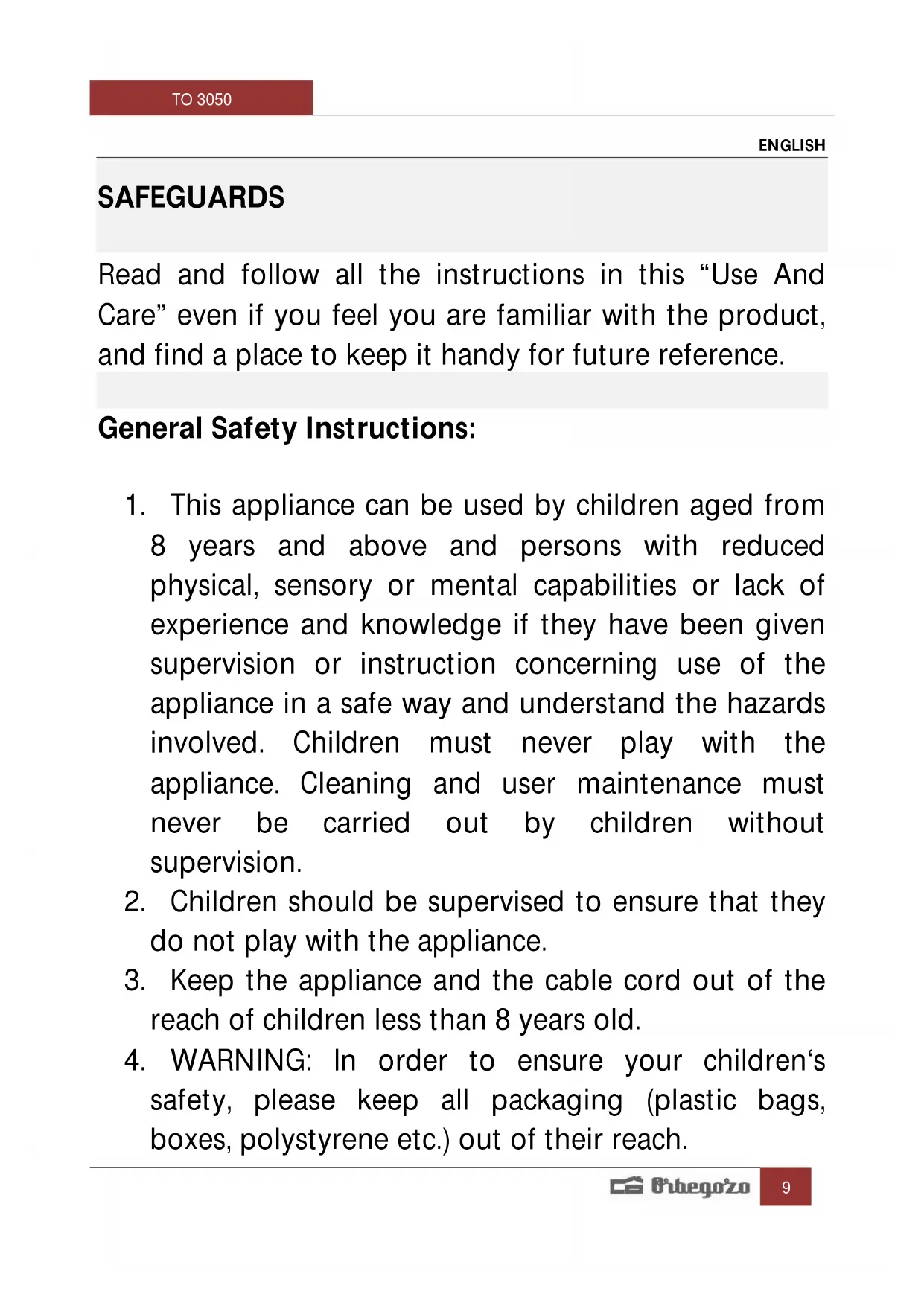

ENGLISH SAFEGUARDS Read and follow all the instructions in this “Use And Care” even if you feel you are familiar with the product, and find a place to keep it handy for future reference. General Safety Instructions:

1. This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they

do not play with the appliance.

3. Keep the appliance and the cable cord out of the

reach of children less than 8 years old.

4. WARNING: In order to ensure your children‘s

safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.TO 3050

5. If the supply cord is damaged it must be repaired

by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug,

or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged

11. This appliance must be installed following the

national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction

manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of

possible injury. Important:

1. ATTENTION. Hot surface. The surface can

become hot during operation.

2. Do not use the device connected to an external

3. The electrical safety of the appliance is only

guaranteed if it is connected to an efficient earth installation as specified in current electric safety regulations. The manufacturer does not accept responsibility for any damage resulting from a lack of earth installation.

4. We strongly advise against the use of adapters,

extension plugs and/or leads. In the case of these being necessary, use only simple or multiple adapters and extension leads which conform to current safety regulations, taking care not to exceed the voltage limit indicated on the adapter and/or extension lead.

5. Bread may burn; bread toasters must not be used

in the proximity of, or under curtains or other flammable materials.

6. Make sure the appliance never comes into contact

with inflammable materials, such as curtains, cloth, etc… when it is in use, as a fire might occur. Keep a distance of at least 1 meter between the appliance and the curtains.

7. Check if the voltage indicated on the bottom of

the appliance corresponds to the local mains voltage before you connect the appliance.

8. Only connect the appliance to an earthed wall

9. Always unplug the appliance after use.

10. Do not let the mains cord hang over the edge of

the table or worktop on which the appliance is standing and keep the cord away from hot surfaces.

11. Avoid touching the metal parts of the toaster as

they become very hot during toasting. Only touch the controls and lift the appliance by its plastic body.

12. To avoid the risk of fire, frequently remove crumbs

from the crumb tray. Make sure the crumb tray is correctly placed.

13. Immediately unplug the toaster if fire or smoke is

unplug the appliance and let it cool down before trying to remove the bread. Do not use a knife or a sharp tool, as these may cause damage to the heating elements.

15. The appliance is only meant for toasting bread. Do

not put any other ingredients in the appliance, as this may lead to a hazardous situation.

16. Oversized foods and metal foil packages must not

be inserted into the toaster, as this may cause fire or electric shock.

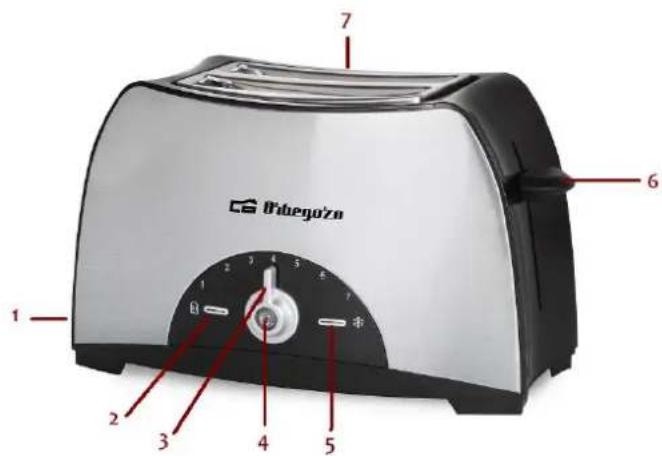

1. Pull out crumb tray: Removes easily to clean crumbs from bottom of toaster.

2. Reheat function: Reheats without browning. Indicator lights when selected.

3. Rotary electronic browning control: Sets desired toast color from light to dark.

4. Cancel function: Interrupts toasting process when pressed.

5. Defrost function: Defrosts and toasts frozen bread. Indicator lights when selected.

6. Bread carriage lever: To pull down the bread

7. Bread slots: To insert the bread.

USE & CARE Before first use, remove all packaging from toaster. Check inside toaster slots for packaging and remove. Note: Do not place any bread in toaster during the first toasting to allow the new elements to preheat and burn off any dust that may have accumulated during assembly.

1. Make sure the crumb tray is in place and the bread carriage lever is on the UP position.

2. Set up toaster on flat, stable countertop surface away from the edge and at least 3 inches

away from wall or rear of counter.

3. Unwind power cord and plug power cord into nearby outlet.

4. Insert slices of bread. Be sure the bread carriage lever is on UP position.

5. Turn the light/dark selector onto desired position. The higher the number (1-7), the darker

6. Press the bread carriage lever down until it locks into position.

7. When the toasting cycle is completed the toast is automatically ejected up. To terminate the

toasting cycle before it is completed, simply press the cancel button.

8. After use, unplug the toaster from electrical outlet.

TOASTING NOTES Toasting is a combination of cooking and drying the bread; moisture levels differ from one bread to another, which can result in varying toasting times.TO 3050

Preheating is not necessary before using toaster .while when put this unit in operation for the first time, do not place any bread into toaster, slight smoke or gas will come out of the unit ,which is normal situation DEFROST BUTTON The defrost button is designed to firstly defrost and then toast the bread, which extends the toasting cycle slightly.

1. Insert slices of bread into the bread slots.

2. Turn the light/dark selector onto the desired position:

3. Press the bread carriage lever down until it locks into position.

4. When the cycle is completed the bread carriage will raise the toast up. To terminate the cycle

before it is completed, simply press the cancel button. REHEAT BUTTON

1. Insert slices of bread into the bread slots.

2. Press the bread carriage lever down until it locks into position.

3. Press the reheat button.

4. When the cycle is completed the bread carriage will raise the toast up.

5. If you wish to stop the toasting before it is finished, simply press the cancel button.

MAINTENANCE AND CLEANING

1. Before attempting any cleaning operation make sure the toaster is unplugged from the

supply socket and fully cooled down.

2. To remove bread crumbs open the crumb tray situated on the side of the appliance/

3. Never use sharp objects to clean. Doing so could damage the appliance.

4. To clean the exterior surfaces, simply wipe over with a soft damp cloth.

5. All other maintenance and repair should be performed by a qualified technician.

Disposal of old electrical appliances. The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.TO 3050
