TO 5020 - Toaster Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	TO 5020
Appliance type	Toaster
Number of slots	2
Browning levels	7 (1-7)
Special functions	Defrost, reheat, emergency stop
Control	Adjustment knob + push buttons
Bread insertion lever	Yes, with automatic locking
Small roll support	Integrated, tiltable
Crumb tray	Removable, pull-out
Cord storage	Under the appliance
Outer material	Chrome-plated steel
Safety	Automatic shut-off at end of cycle, hot surface indicator
Cleaning	Exterior: damp cloth; tray: removable, washable
Power supply	230 V ~ 50-60 Hz
Power	800 W

Frequently Asked Questions - TO 5020 Orbegozo

How to adjust the toasting level?

Turn the Browning control knob from 1 (light) to 7 (dark). The higher the number, the toastier the bread.

How to use the defrost function?

Place the frozen bread, set the desired toasting level, then press the Defrost button before lowering the lever.

How to use the reheat function?

To reheat already toasted bread, press the Reheat button then lower the lever. The toasting time is automatic.

How to clean the toaster?

Unplug and let cool. Clean the exterior with a damp cloth (no abrasive products). Empty the crumb tray after each use.

What to do if bread gets stuck?

Never use a metal object. Unplug the appliance, let it cool, then gently turn it over to let the bread fall out. If necessary, dislodge with a wooden spatula.

Can I toast bagels?

Yes, cut them into two equal halves and set the toasting level darker than for standard bread.

Can the toaster be used by children?

Yes, from 8 years old under adult supervision. Children must not play with the appliance nor perform cleaning without supervision.

Should I preheat the toaster?

No, preheating is not necessary. You can insert the bread directly after setting.

What to do if the cord is damaged?

Do not use the appliance. Contact an authorized technical service to replace the cord to avoid any danger.

How to empty the crumb tray?

Pull out the crumb tray located under the appliance, empty it and replace it before any use. Never operate the toaster without the tray.

USER MANUAL TO 5020 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. Bun warmer handle
2. Removable crumb tray
3. Housing
4. Defrost button
5. Reheat button
6. Knob for controlling the toasting
7. Cancel button
8. Carriage handle
9. Rack for warming bun
10. Bread slot

FRANCAICE

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

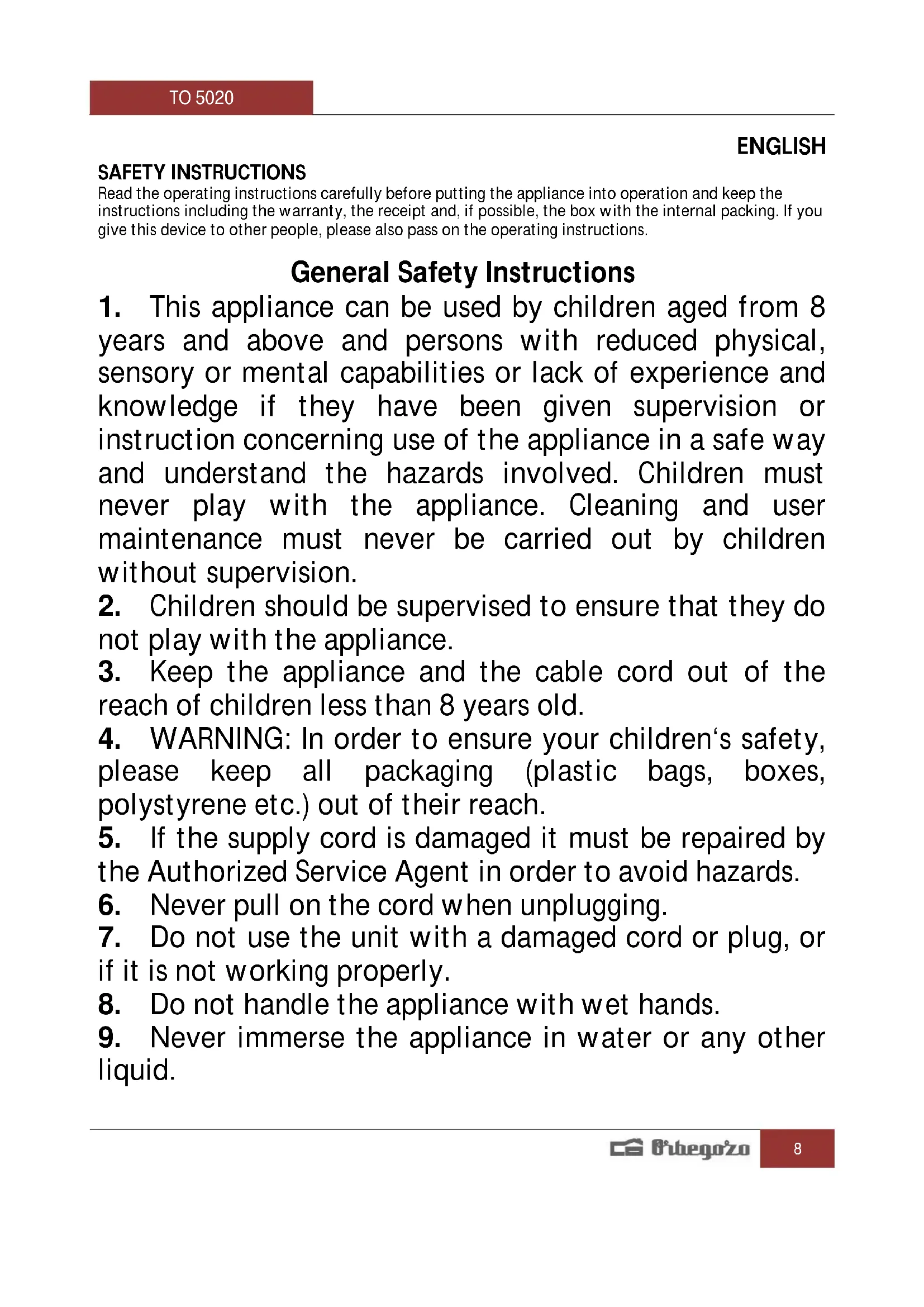

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
14. WARNING: In case of misuse, there is a risk of possible injury.

Special safety information for this unit

• Do not touch hot surfaces. Use handles or knobs, for chrome surfaces which become extremely hot.
• To prevent against electrical hazards, do not immerse cord, plug or toaster in water or other liquid, See instructions for cleaning.
• Close supervision is necessary when any appliance is used by or near children.
• Always unplug appliance from outlet when not in use and before cleaning. Allow to cool before cleaning and handling.
• The use of accessory attachments is not recommended by the appliance manufacturer. It may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.

• Do not place toaster on or near a hot gas or electric burner or a heated oven.

• To disconnect, grasp plug and remove it from outlet. Never unplug by pulling the cord.

• Do not use toaster for other than its intended use.
• Oversized foods. Metal foil packages or utensils must not be inserted in the toaster as they may involve a risk of fire or electric shock.
• A fire may occur if toasters are covered or touching flammable material including curtains, draperies, walls, etc. during operation.
• Do not attempt to dislodge food when the toaster is plugged into electrical outlet.
• To avoid possibility of fire, do not leave toaster unattended during use.
• Clean out accumulated crumbs frequently to avoid risk of fire or toaster malfunction. Do not use foods that will drip coatings or fillings when heated. Such accumulations inside the toaster create unsanitary conditions and the possibility of fire or toaster malfunction. Unplug when not in use and before cleaning.
• Bread may burn during toasting the bread. This must be watch.
• The appliance isn't destined for the use of children or person with physical or mental problems and without experience nor knowledge; unless they make it down control of a responsible or professional for the use of the appliance.

• Only connect the appliance to an earthed wall socket.

• Caution! The surface remains hot during and after its use.

• Stand the appliance on a table or flat surface
• Your appliance must never be switched on through an external timer or any kind of separate remote control system.
• Bread may burn; bread toasters must not be used in the proximity of, or under curtains or other flammable materials.

FIRSTUSE

Unpack carefully and check that there are no rests of packaging inside the toaster. Before the normal use of the toaster, make it work twice without bread inside at the maximum power. It will make that all the pieces get warm and eliminate rest of dust or residues accumulated during the manufacturing. Some odor or smoke is normal.

USE & CARE

1. Make sure the crumb tray is in place and the bread carriage lever is on the UP position.
2. Set up toaster on flat, stable countertop surface away from the edge and at least 3 inches away from wall or rear of counter.
3. Unwind power cord and plug power cord into nearby outlet.
4. Insert slices of bread. Be sure the bread carriage lever is on UP position.
5. Turn the toast selector to the desired position. The higher the number (1-7), the darker the toast color. Toasting color for one slice is darker than that for two bread slices at the same level.
6. Press the bread carriage lever down until it locks into position.
7. When the toasting cycle is completed the toast is automatically ejected up. To finish the toasting cycle before it is completed, simply press the stop button.
8. After using, unplug the toaster from electrical outlet.
   If you want to toast frozen bread, firstly press Defrost button and the indicator of Defrost button will be illuminated. Set the toasting controller to the desired level and then lower carriage handle down.
   If you want to warm cold toasted bread, firstly press the reheat button and the indicator of reheat button will be illuminated. Then push the carriage handle down. The toasting time in this mode is automatically established.

TOASTING NOTES

Toasting is a combination of cooking and drying the bread; moisture levels differ from one type of bread to another, which can result in varying tasting times. Preheating is not necessary before using toaster

• For slightly dry bread, use a lower lighter setting than normal.
• For fresh bread or whole wheat, use a higher setting than normal.
• Breads with very uneven surfaces (such as English muffins) will require a higher setting.

• Thickly cut pieces of bread (including bagels) will take longer to toast, sometimes significantly longer, since more moisture must be evaporated from the bread before toasting can occur.

• Very thick pieces may require two cycles.

• When toasting raisin or other fruit breads, remove any loose raisins from the surface of the bread before placing into the toaster. This will help prevent pieces from falling into the toaster or sticking on the guard wire in the slot.
• Before toasting bagels, slice each bagel into two equal halves.
• Pastries: Be cautious when toasting pastries. The filling can become quite hot long before the surface of the pastry becomes brown.

CLEANING AND MAINTENANCE

1. Always unplug the toaster from electrical outlet and let it cool before cleaning.
2. Do not use abrasive cleansers. Simply wipe the exterior with a clean damp cloth and dry thoroughly. Apply any cleaning agent to cloth, not directly onto the toaster.
3. To remove crumbs, slide out the crumb tray and discard crumbs. Never operate the toaster without the crumb tray in its place.
4. To remove any pieces of bread remaining in the toaster, turn the toaster upside down and shake gently. Never inset any hard or sharp instrument into the slots as this could damage the toaster and cause a safety hazard.
5. Never wrap the cord around the outsides of the toaster, use the cord storage cleats on the underside of the toaster.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

FRANÇAIS

CONSEILS DE SECURITE

LIMPEZA E MANUTENCAO
