USER MANUAL WB24SDEB1 Fisher & Paykel

Safety and warnings 2

Introduction 4

First use 5

Using your warming drawer 6

Care and cleaning 9

Troubleshooting 10

Warranty and service 11

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website fisherpaykel.com or contact your local Fisher & Paykel dealer.

Operation

Your warming draw has been carefully designed to operate safely during normal procedures. Please keep the following safety instructions in mind when you are using it:

WARNING!

Tipping Hazard

This product may tip. Keep children away and take care.

The supplied anti-tip bracket must be fitted:

• if the warming drawer is installed under a F&P coffee maker.
• if the warming drawer is not installed directly under another product whereby its weight is sitting directly ontop of the warming drawer.
• if there is no fixed shelf directly above the warming drawer acting as an anti-tip obstacle.

Failure to follow this advice may result in injury.

WARNING!

Hot Surface Hazard

Take care to avoid touching hot surfaces inside the warming drawer. During and after use, do not touch or let clothing or other flammable materials touch the interior surfaces of the warming drawer until it has had sufficient time to cool.

Use oven mitts or other protection when handling hot dishes.

Supervise children and keep them safely away until warming draw is cool.

Failure to follow this advice could result in burns and scalds.

IMPORTANT SAFETY INSTRUCTIONS!

To reduce the risk of fire, electrical shock, injury to person, or damage when using the warming drawer, read these instructions carefully before using this product.

• Proper Installation - Be sure your appliance is properly installed and grounded by a qualified technician.
• Use the warming drawer only for its intended purpose as described in these instructions.
• Your warming drawer is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.
  Children of less than 8 years old must be kept away from the appliance unless continuously supervised.
• This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and they understand the hazards involved.
• Cleaning and user maintenance shall not be done by children without supervision.
• WARNING: accessible parts may become hot when the warming drawer is used. It is advisable to keep children away from it when in use.
• This product is NOT designed for cooking food, or keeping foodstuffs warm. Do not use this warming drawer to reheat, cook or keep food or drinks warm. Condensation from food or drinks could cause damage to the product.
• Do not lean, step or sit on the opened warming drawer as this may result serious injury or damage to the warming drawer. Do not allow children to climb on or play around the warming drawer.
• Do not overload the warming drawer. The drawer itself can hold a maximum weight of 66lbs (30kg).
• Do not use the warming drawer for storage. Forgotten goods may melt or catch fire when the warming drawer is switched on.
• Do not use the warming drawer to heat up the room. Objects near to the warming drawer could catch fire. The life of the warming drawer could also be reduced.
• Only place dry dishes in the warming drawer. Damp dishes may cause condensation that may damage the warming drawer or create steam which may cause burns to the user.
• Do not modify or attempt to modify any of the characteristics of the warming drawer. This would be dangerous to your safety and will void the warranty.
• For your safety the warming drawer is equipped with an AUTOMATIC STOP.

After 12 hours of continuous use it will automatically switch off.

• During use the warming drawer becomes hot. Care should be taken to avoid touching heating elements inside the warming drawer.
• To minimise risk of burning yourself on the inside of the drawer, always pull the drawer out as far as it can go before removing the crockery.
• Do not insert any object into the fan element vents. Doing so may result in serious injury to yourself and damage to the warming drawer.
• If installed under a self-cleaning (pyrolytic) oven, do not use your warming drawer during the oven self-cleaning cycle.
• If the electrical supply cord is damaged, it must only be replaced by the manufacturer, its service agent or similarly qualified trades person in order to avoid a hazard.
• CAUTION: Do not operate your warming drawer by means of an external timer or separate remote-control system. Do not connect to a circuit that is regularly on and off the utility.

Introducing your warming drawer

Congratulations on your new purchase. Your Fisher & Paykel warming drawer has a number of features to help ensure that your dishes are always warmed in time for use. Features of your warming drawer include:

Three temperature settings
Two automatic timers
- Auto stop function

IMPORTANT!

Do not use the warming drawer to re-heat, cook or keep food or drinks warm.

Before using your warming drawer

• Make sure the installer has completed the installation checklist in the installation instructions and removed all packaging and disposed of it responsibly.
• Read this guide, taking special note of the 'Safety and warnings' section.

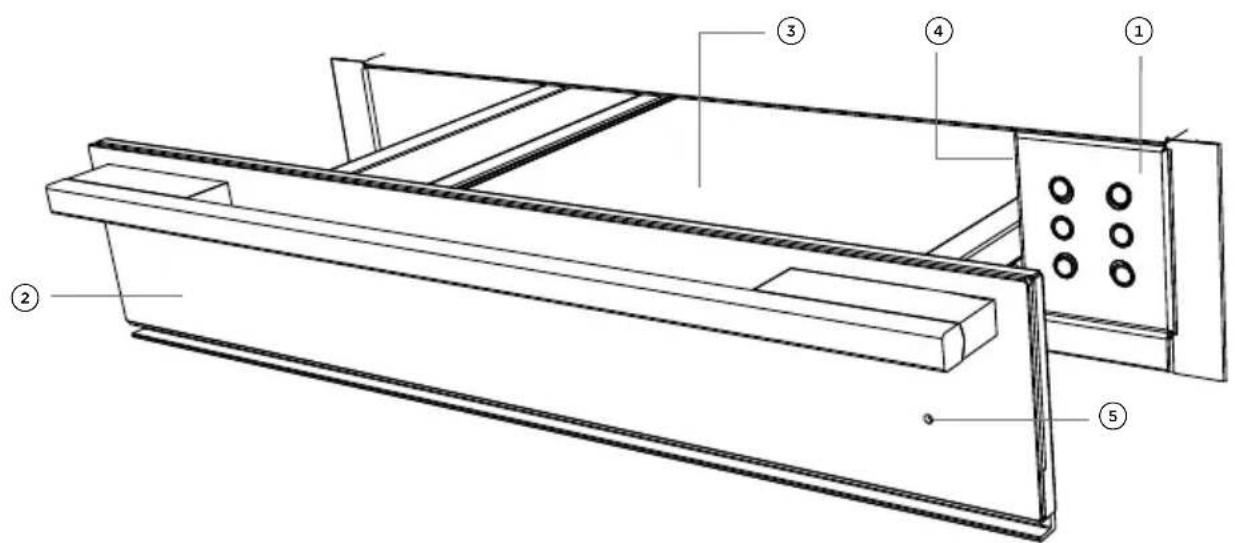

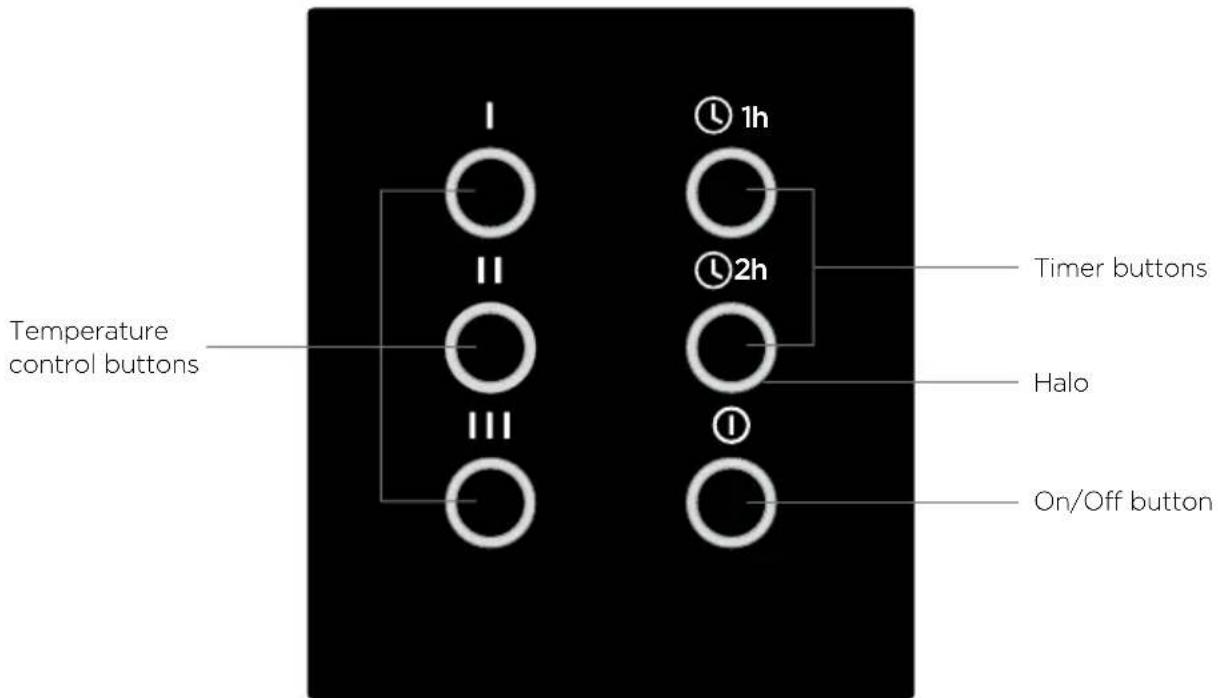

① Control panel
② Drawer front
③ Glass Base
④ Fan element (hidden)
⑤ On/Off indicator light

Before first use

Heat the empty drawer for 2 hours on temperature setting 3 (1).

Some warming drawer components have a protective coating which may give off a slight smell when heated for the first time. This is normal and does not indicate a fault. Make sure the room is well ventilated.

① Open the drawer.
② Press the① button to turn the warming drawer on.
③ Press the 131 button to set the drawer temperature to setting 3.
④ Close the drawer.

• Wait 2 hours and then press the button to turn the warming drawer off.

⑤ Once cooled, wipe the drawer with a damp cloth, and dry thoroughly.

To warm your crockery

① Load your crockery carefully into the drawer.

(see 'Loading' for suggestions on positioning of crockery)

Turn the warming drawer on

② Press the button to turn the warming drawer on.

The halo will glow red while the drawer is on.

Select a temperature

⑤ Select a temperature by pressing one of the temperature control buttons.

The halo will glow red while the drawer is on.

• The warming drawer has three temperature settings

(which are approximate depending on the load):

$$ 1 () = 1 1 3 ^ {\circ} F (4 5 ^ {\circ} C) \quad 2 () = 1 1 3 1 ^ {\circ} F (5 5 ^ {\circ} C) \quad 3 () = 1 4 9 1 F (6 5 ^ {\circ} C) $$

• Only one temperature can be selected at a time.
• If no temperature setting is selected the warming drawer will default to setting 2 ( ).1

Note: You may change the temperature setting during use.

Set the timer (optional)

The warming drawer has two pre-programmed timers (1 hour 1h)

and 2 hours (L2h).

• To start the timer press one of the timer buttons.
  The halo will glow red while the timer is on.
• Only one timer can be selected at a time.
• At the end of the timer period the warming drawer will switch off and both the on/off and timer halos will go out.
• To turn the timer off during use, press the timer button again.

The drawer will continue to operate until switched off.

NOTE: You may turn a timer on, or change the timer selection, at any stage during use.
- If no timer is selected the warming drawer will remain on until switched off.

However, for safety reasons, after 12 hours of continuous use the warming drawer

will automatically turn off.

Close the drawer

⑤ Close the drawer fully. This ensures the most efficient heating.

• Your warming drawer has a 'soft closing' mechanism.
• When the drawer is closed, the on/off light is visible through the drawer front.

Removing warm crockery

⑥ Crockery can be removed at any time. Refer to the following table for suggested

heating times.

IMPORTANT!

Always use oven mitts to remove heated crockery from the warming drawer.

Approximate heating times

Suggested heating times for an average crockery load*.

SETTING I II		III
TEMPERATURE LOW MEDIUM HIGH
Approximate time to heat crockery to selected temperature	40 minutes 40 minutes 40 minutes
Suggested uses Warming coffee cups	Warming plates and serving dishes	For extra hot plates or heating serving platters
	The cup is still cool enough to touch, but will keep drinks hot for longer	This is the default setting	For occasions when it will take time to 'plate up'. Crockery will be hot - use oven mitts to avoid burns.

*Times are approximate only. Times will vary according to the thickness and material of crockery used, and the layout of the crockery in the warming drawer. Full capacity loads will take longer.

IMPORTANT!

Heated crockery cools quickly.

Do not remove items from the drawer until just before you need them.

Suggested loading scenarios

IMPORTANT!

• Do not overload your warming drawer.
  The maximum allowable weight is 66lbs (30kg).
• Distribute the load evenly.
• Only place heat resistant crockery in the drawer
• Never place plastic or aluminum foil items in the drawer as these may melt and may catch fire.

General guidelines

• Place cups upside down on the drawer base.
  Maximum stack height of items is 3 5/32" (80mm).
• Ensure only dry dishes are loaded into the warming drawer to avoid problems with condensation or the possibility of steam burns.
• As much as possible always distribute dishes over the surface of the drawer. Stacks of dishes take longer to heat through.
  The number of plates or cups that can be loaded depends on the size of your dishes.
• Avoid placing large serving dishes next to the fan element vents as they will cover the warm air outlet and the crockery will not heat up evenly.

Suggested loading (maximum capacity)

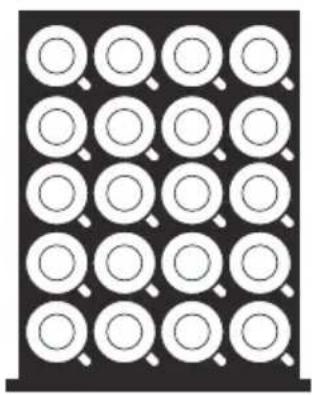

20 Cappuccino cups

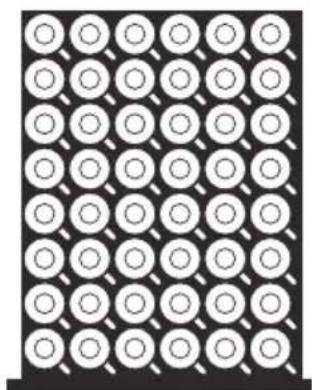

48 Espresso cups

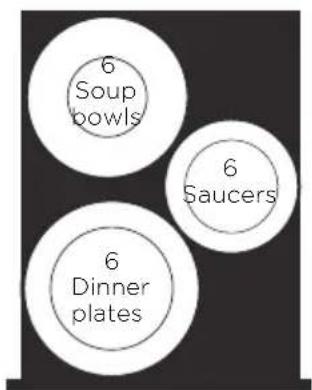

6 Std place settings

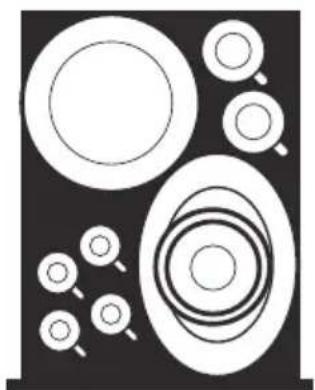

Mixed load

Diameter guide 20 × 035 / 8'' (92 mm)

Diameter guide 48x 02 9/32" (58mm)

Diameter guide 6x091/16"230mm) Bowls 6x0731/64"190mm)Saucers 6x0927/32"(250mm) Plates

Does

• Allow the warming drawer to cool before cleaning.
• Disconnect from power supply prior to cleaning.
• Read these cleaning instructions and the 'safety and warnings' section before cleaning.

Don'ts

• Don't use a steam cleaner.
• Don't use abrasive or harsh cleaners, scouring pads or steel wool. Some nylon scourers may also scratch. Check the label.
• Don't use oven cleaner on any part of the warming drawer.

WHAT? HOW? IMPORTANT!
Stainless steel drawer front*	- Clean with a solution of mild detergent and hot water, then wipe dry with a microfibre cloth. - If necessary, use a suitable stainless steel cleaner and polish.	- Always read the label to make sure that your stainless steel cleaner does not contain chlorine compounds as these are corrosive and may damage the appearance of your oven. - Always rub the stainless steel in the direction of the grain.
Control panel Wipe with a damp cloth Never spray detergent or liquid onto the buttons on the control panel. Liquid may seep behind the button and damage the electronics.
Glass drawer front*	- Clean with a solution of mild detergent and hot water, then wipe dry with a microfiber cloth. - If necessary use a suitable ceramic glass cooktop cleaner.	Do not use abrasive cleaners, cloths, or pads to clean the glass. Some nylon products may also scratch, check the label first.
Glass base of drawer	From time to time use the ceramic glass cooktop cleaner for a streak free look, following the cleaner manufacturer's instructions.
Aluminum drawer sides	Clean with a solution of mild detergent and hot water, then wipe dry with a microfiber cloth.	Do not use abrasive cleaners, cloths, or pads to clean the sides. Some nylon products may also scratch, check the label first.

• Some models only.

Warming drawer problems

If there is a problem, check the chart below to see if you can fix it. If the problem cannot be fixed or persists, call your Authorized Repairer or Customer Care.

PROBLEM POSSIBLE CAUSES WHAT TO DO
The warming drawer is cold and the ‘On/Off’ light does not work	The power supply is off - Check the warming drawer is plugged in and switched on. - Check the circuit breakers have not tripped. NOTE: if there is an interruption to the power supply (ie a power cut) the warming drawer will turn off. You will need to turn the warming drawer on again.
The halo does not come on when I press the button, but the warming drawer is still working	The light is faulty Call your Authorized Repairer or Customer Care
The crockery is not warm enough	- The wrong heat setting has been selected. - The crockery has not been warmed for long enough. - Cookware is covering the fan element vents and preventing the flow of warm air.	Various factors affect how long the crockery will take to heat, including: - material and thickness of the crockery - temperature setting - how the crockery is arranged - how much crockery is being heated. Quoted times are guidelines only.
The on/off halo is flashing	Drawer has overheated Press the button to turn the drawer off, wait 30 minutes to allow the drawer to cool down and switch on again. If the light begins to flash again, turn the drawer off at the mains and call your Authorized Repairer or Customer Care.
The warming drawer makes a ‘clicking’ sound when the drawer is open	This is normal The heating fan is on a thermostat. This will switch off and on to maintain the temperature at the correct setting. The ‘click’ is the sound of the fan turning on or off.

Before you call for service or assistance...

Check the things you can do yourself. Refer to the installation instructions and your user guide and check that:

1 Your product is correctly installed.
You are familiar with its normal operation.

If after checking these points you still need assistance or parts, please refer to the Service & Warranty book for warranty details and your nearest Authorized Service Centre, Customer Care, or contact us through our website fisherpaykel.com.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

City

State

Zip

Country

Fisher & Paykel Appliances 2017. All rights reserved.

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
