USER MANUAL DRCBT30 SONY

WARNING To reduce the risk of electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time. Excessive sound pressure from headphones can cause hearing loss. FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA,

INCLUDING IN THE PROVINCE OF

QUEBEC. Information If you have any questions about this product, you may call: Sony Customer Information Service Center 1-800-222-7669 or http://www. sony.com/ Declaration of Conformity Trade Name: SONY Model No.: DRC-BT30 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 USA Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). This Class B digital apparatus complies with Canadian ICES-003. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Other trademarks and trade names are those of their respective owners.DRC-BT30 [US, FR]_4-156-247-61(1)

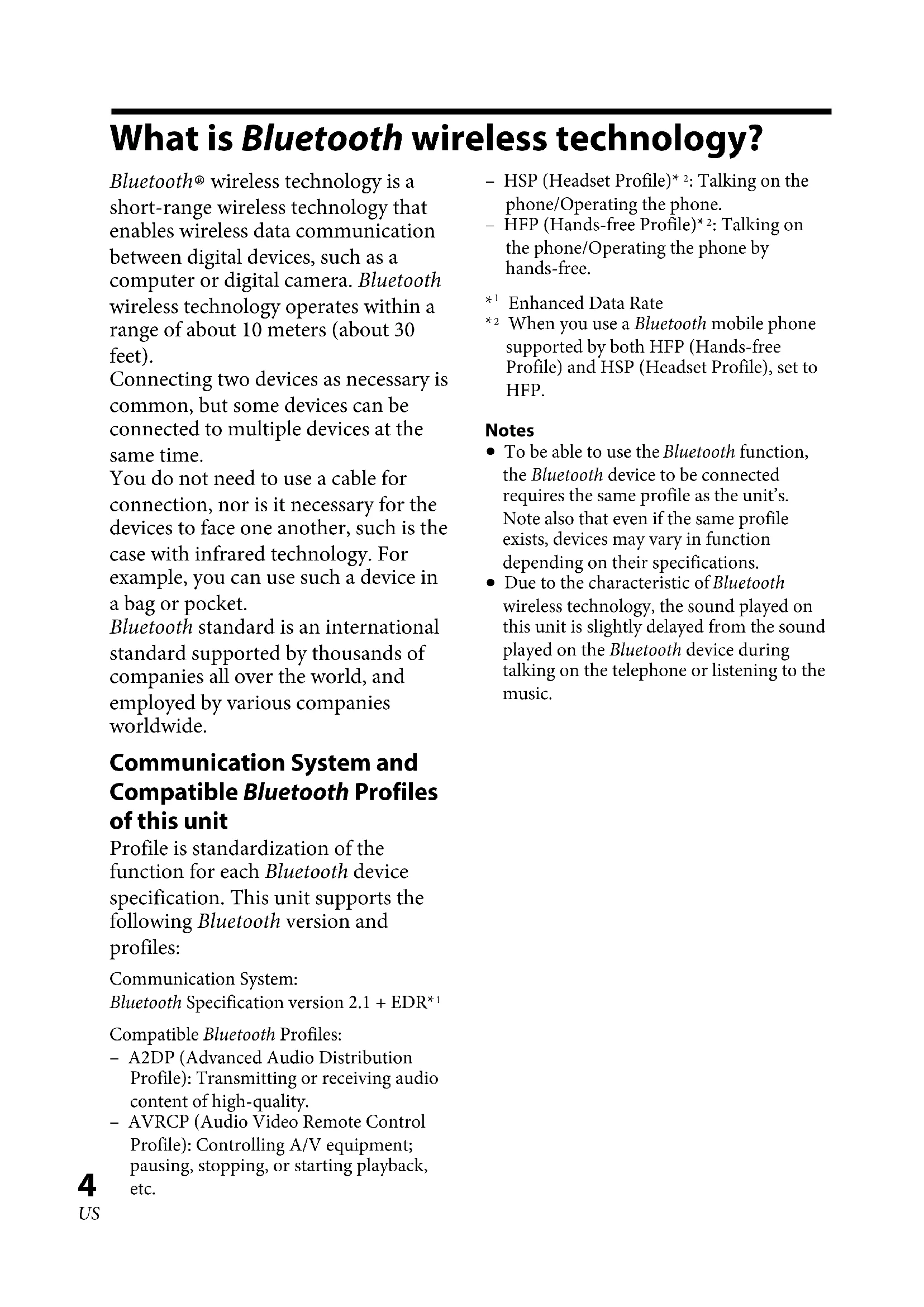

What is Bluetooth wireless technology? Bluetooth

wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a computer or digital camera. Bluetooth wireless technology operates within a range of about 10 meters (about 30 feet). Connecting two devices as necessary is common, but some devices can be connected to multiple devices at the same time. You do not need to use a cable for connection, nor is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket. Bluetooth standard is an international standard supported by thousands of companies all over the world, and employed by various companies worldwide. Communication System and Compatible Bluetooth Profiles of this unit Profile is standardization of the function for each Bluetooth device specification. This unit supports the following Bluetooth version and profiles: Communication System: Bluetooth Specification version 2.1 + EDR* Compatible Bluetooth Profiles:– A2DP (Advanced Audio Distribution Profile): Transmitting or receiving audio content of high-quality.– AVRCP (Audio Video Remote Control Profile): Controlling A/V equipment; pausing, stopping, or starting playback, etc. – HSP (Headset Profile)* : Talking on the phone/Operating the phone.– HFP (Hands-free Profile)* : Talking on the phone/Operating the phone by hands-free.

When you use a Bluetooth mobile phone supported by both HFP (Hands-free Profile) and HSP (Headset Profile), set to HFP. Notes To be able to use the Bluetooth function, the Bluetooth device to be connected requires the same profile as the unit’s. Note also that even if the same profile exists, devices may vary in function depending on their specifications. Due to the characteristic of Bluetooth wireless technology, the sound played on this unit is slightly delayed from the sound played on the Bluetooth device during talking on the telephone or listening to the music.DRC-BT30 [US, FR]_4-156-247-61(1)

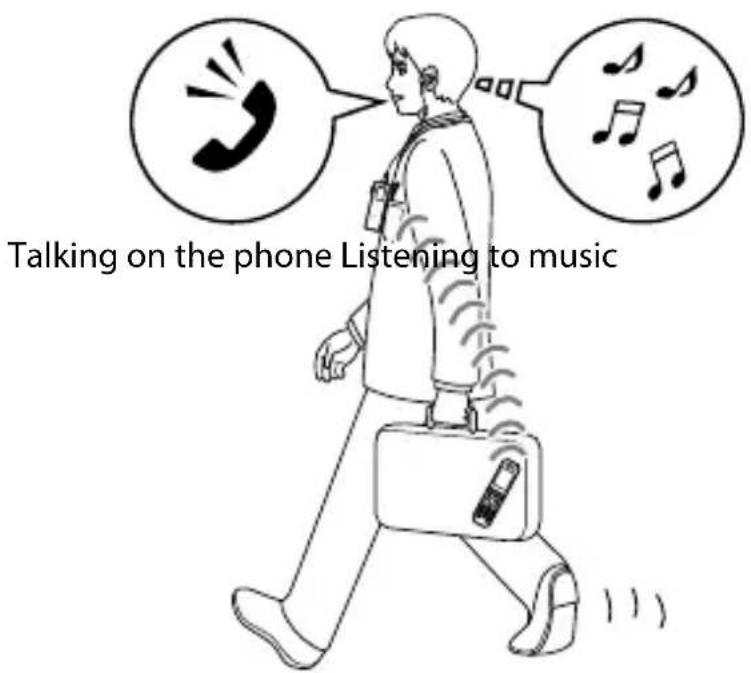

Welcome! Thank you for purchasing this Sony Wireless Audio Receiver. This unit uses Bluetooth wireless technology.

Enjoy music wirelessly from Bluetooth Stereo-enabled music players and mobile phones.*

Connect your favorite headphones*

via stereo mini jack (headphones are sold separately).

Enjoy basic remote control operation (play, stop, etc.) of music player functions via Bluetooth connection.*

for higher quality audio with less interference, lower power consumption and easy connection.

USB rechargeable function.

Noise suppression and echo cancellation functions for superior conversation sound quality. For details on Bluetooth wireless technology, see page 4. Talking on the phone Listening to music

The connected Bluetooth device is required to support A2DP (Advanced Audio Distribution Profile).

The plug of the headphones (sold separately) must be stereo mini type.

The connected Bluetooth device is required to support HFP (Hands-free Profile) or HSP (Headset Profile).

The connected Bluetooth device is required to support AVRCP (Audio Video Remote Control Profile).

Listening to music 3 steps to Bluetooth function Pairing First, register (“pair”) a Bluetooth device (mobile phone, etc.) and this unit with each other. Once pairing is established, there is no need for pairing again.Bluetooth mobile phone, etc. PairingWireless Audio Receiver Page 10-11 Bluetooth connection Operate the Bluetooth device to make the Bluetooth connection.ConnectionA2DP AVRCP Page 14 Bluetooth connection When the unit is turned on, the unit starts making the Bluetooth connection to the recognized mobile phone automatically.ConnectionHFP HSP Page 17-18 Listening to music You can listen to music played on the Bluetooth device.Playback, stop, or pause is possible from this unit.Music Page 15-16 Talking on the phone You can make and receive a call by operating this unit.Voice Page 19-20DRC-BT30 [US, FR]_4-156-247-61(1)

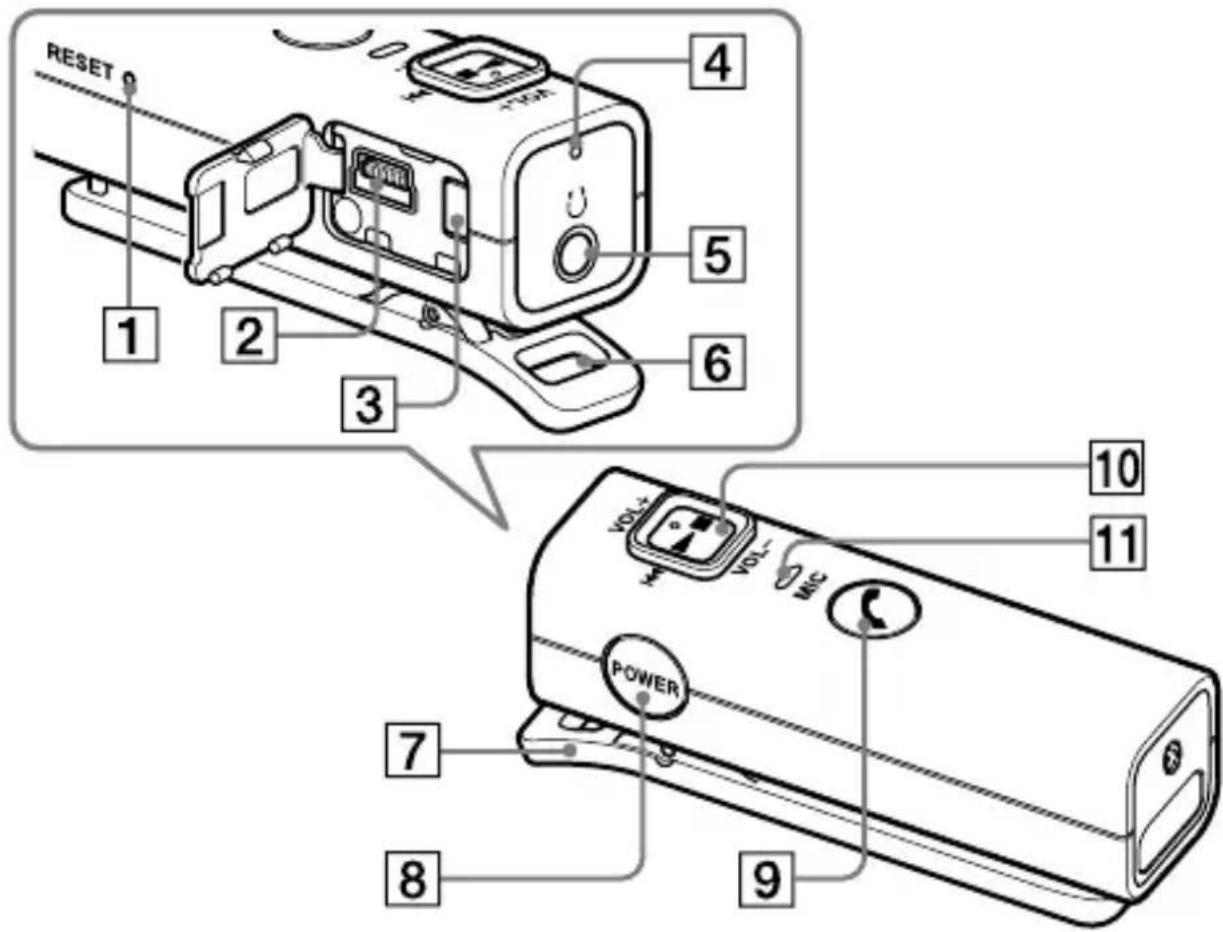

GETTING STARTED Location and Function of Parts RESET button USB (

) jack PAIRING button Indicator (blue) (red) Indicates the communication status (blue) or power status (red) of the unit. Headphones jack Strap hole Clip POWER button Multi function button Controls various call functions. Jog switch* Controls various functions when listening to music. Adjust the volume of this unit when talking over the telephone. Microphone

• This button has a tactile dot for ease of use.DRC-BT30 [US, FR]_4-156-247-61(1)

Charging the unit The unit contains a rechargeable Lithium-Ion battery, which should be charged before using for the first time. 1 Open the cover of the USB (

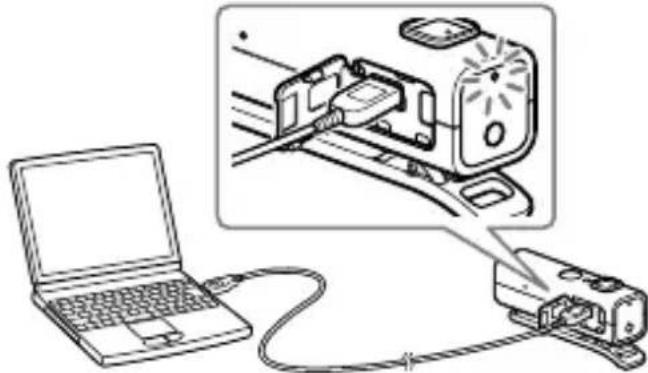

jack. 2 Connect the supplied USB cable to the unit, and then connect the other end to a computer. When connecting, insert the connector with facing down. Charging starts when the unit and the computer are connected. Make sure that the indicator (red) lights up. Charging is completed in about 2.5 hours* and the indicator (red) goes off automatically.

• Time required for empty battery to recharge.Notes If this unit is not used for a long time, the indicator (red) may not light up when you connect the USB cable to charge this unit. In this case, do not disconnect the USB cable from the unit and wait until the indicator (red) lights up. When you close the cover of the USB (

jack after charging, push the cover thoroughly until the tab is full inserted. For system requirements for a personal computer that can charge the battery using USB, see “System requirements for battery charge using USB” (page 27). Tips

If the USB cable is connected to a computer while the unit is turned on, the unit will be turned off automatically. To charge the unit from an AC outlet, use the USB charging AC power adaptor AC-U50AD (sold separately*) or AC-U501AD (sold separately*). For details, refer to the manuals supplied with the USB charging AC power adaptor. This unit cannot be turned on while charging.* The above optional accessories are not provided in some areas.DRC-BT30 [US, FR]_4-156-247-61(1)

Caution If this unit detects a problem while charging, the indicator (red) may turn off, although charging is not complete. Check for the following causes: – Ambient temperature exceeds the range of 0 °C – 40 °C (32 °F –104 °F). – There is a problem with the battery. In this case, charge again within the above-mentioned temperature range. If the problem persists, consult your nearest Sony dealer. Notes If the battery is not used for a long time, battery may be quickly depleted, however, after a few recharges, battery life will improve. If the life of the built-in rechargeable battery drops to half the normal length, the battery should be replaced. Consult your nearest Sony dealer for replacement of the rechargeable battery. Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust or mechanical shock. Never leave in a car parked in the sun. If the computer enters into hibernation mode while connected to the unit, charging will not be completed properly. Check the setting of the computer before charging. The indicator (red) will go off automatically even if the computer enters into hibernation mode. Charge the unit again in this case. Use the supplied USB cable only, and connect directly to a computer. Charging will not be completed properly by an indirect connection, such as via a USB hub. Usage hours* Status Approx. usage hours Communication time (including music playback time) (up to)7 hoursStandby time (up to) 120 hours* Time stated above may vary, depending on ambient temperature or conditions of use. Checking the remaining battery When pressing the POWER button while the unit is turned on, the indicator (red) flashes. You can check the remaining battery by the number of times the indicator (red) flashes. Indicator (red) Status 3 times Full2 times Mid1 time Low (needs to charge) Note You cannot check the remaining battery immediately after the unit is turned on, or while pairing.When the battery is almost empty Indications of the Bluetooth function that are stated by the indicator (blue) changes to the indicator (red). When the battery becomes empty, a beep sounds and the unit will turn off automatically.DRC-BT30 [US, FR]_4-156-247-61(1)

Pairing What is pairing? Bluetooth devices need to be “paired” with each other beforehand. Once Bluetooth devices are paired, there is no need for pairing again, except in the following cases:

Pairing information is deleted after repair, etc.

When you attempt to pair with 9 or more devices. This unit can be paired with up to 8 devices; if a new device is paired after 8 devices have been paired, the device whose latest connection time is the oldest among the 8 paired devices is replaced by the new one.

When recognition of the unit by the device to be connected is deleted.

This unit is initialized (page 25). All pairing information is deleted. Procedures of pairing 1 Place the Bluetooth device within 1 m (3 ft) of this unit. 2 Open the cover of the USB (

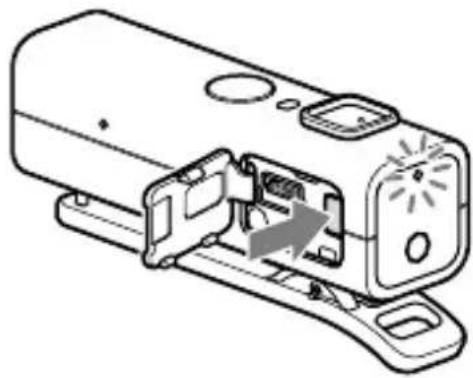

jack. Press and hold the PAIRING button for 2 seconds or more to standby for pairing while the unit is turned off. The indicator (blue) and indicator (red) flash in turn and the unit enters into pairing mode. Note If pairing is not established within about 5 minutes, pairing mode will be canceled and this unit will turn off. In this case, start over from step 1.DRC-BT30 [US, FR]_4-156-247-61(1)

3 Perform pairing procedure on the Bluetooth device to detect this unit. The list of detected devices appears on the display of the Bluetooth device. This unit is displayed as “DRC-BT30.” If “DRC-BT30” is not displayed, repeat from step 1. Notes

For details, refer to the operating instructions supplied with the Bluetooth device.

When pairing with a Bluetooth device that cannot display a list of detected devices or that has no display, you may pair the device by setting both this unit and the Bluetooth device to pairing mode. At this time, if passcode is set besides “0000” on the Bluetooth device, pairing cannot be done with this unit. 4 Select “DRC-BT30” on the display of the Bluetooth device. 5 If Passcode* input is required on the display of a Bluetooth device, input “0000.” Pairing is complete when the indicator (blue) flashes slowly. The message standing for “Pairing complete” appears on the display of some Bluetooth devices.

• Passcode may be called “Passkey,” “PIN code,” “PIN number,” or “Password.” Note Passcode may not be required depending on the connected Bluetooth device. For details, refer to the operating instructions supplied with the Bluetooth device. 6 Start the Bluetooth connection from the Bluetooth device. This unit memorizes the device as the last connected device. Some Bluetooth devices may connect with the unit automatically when pairing is complete. Tips

To pair with other Bluetooth devices, repeat steps 1 to 5 for each device.

To delete all pairing information, see “Initializing the unit” (page 25).DRC-BT30 [US, FR]_4-156-247-61(1)

Wearing the unit 1 Connect the headphones (sold separately) to this unit. 2 Clip this unit to a pocket, etc., of your clothes and then wear the headphones. Wear the earphone marked in your left ear, and the one marked in your right ear. Tip You can attach a strap (sold separately) to this unit through the strap hole.DRC-BT30 [US, FR]_4-156-247-61(1)

ConnectedHFP/HSP or A2DP (standby for receiving audio signal)

HFP/HSP and A2DP (standby for receiving audio signal) — ——————— — ———

Listening during standby for telephone call

Calling while playing back music

When the battery is almost empty Indications of the Bluetooth function that are stated by the indicator (blue) changes to the indicator (red).DRC-BT30 [US, FR]_4-156-247-61(1)

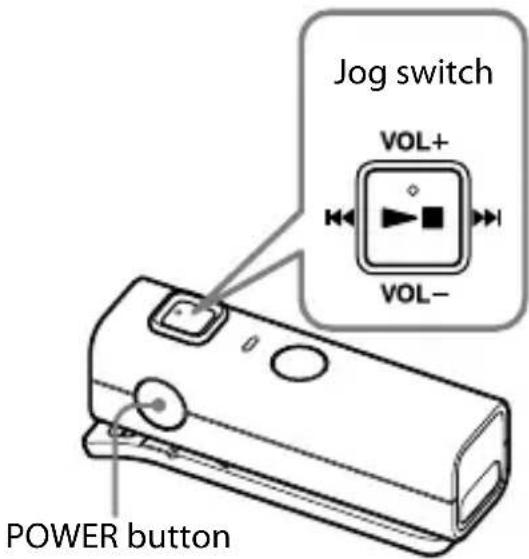

Listening to music POWER buttonJog switch This unit supports SCMS-T content protection. You can enjoy music, etc., from a device such as a mobile phone or portable TV that supports SCMS-T content protection. Check the following before operating the unit. – The Bluetooth device is turned on. – Pairing of this unit and the Bluetooth device is complete. – The Bluetooth device supports the transmitting music function (profile: A2DP*). 1 Press and hold the POWER button for about 2 seconds while the unit is turned off. The indicator (blue) flashes twice and the unit is turned on. Note After the unit is turned on, the unit attempts to connect to the last connected Bluetooth device automatically with HFP or HSP. When not calling with this unit, do not make the last connected Bluetooth device ready for HFP or HSP connection. To make or receive a call while playing back music, see page 20. 2 Make the Bluetooth connection (A2DP) from a Bluetooth device to this unit. Refer to the operating instructions supplied with the Bluetooth device on how to operate it. 3 Start playback on the Bluetooth device. Tip Bluetooth connection of A2DP (Advanced Audio Distribution Profile) can also be operated with the jog switch from this unit to the Bluetooth device except when making a call on this unit.Notes When you play music by connecting the unit to a Bluetooth device using HSP (Headset Profile), sound quality will not be high. For better sound, change the Bluetooth connection to A2DP by operating the Bluetooth device. If this unit is turned off while an A2DP Bluetooth connection is established, operate the unit again from step 1 to make the A2DP Bluetooth connection again.* For details on profiles, see page 4.DRC-BT30 [US, FR]_4-156-247-61(1)

To adjust the volume Push the jog switch up or down while listening to music to adjust the volume. Tips

Depending on the connected device, it may be necessary to adjust the volume on the connected device as well. Volume for calling and listening to music can be adjusted independently. Even if you change the volume while calling, the volume for music playback does not change. To stop use 1 Terminate the Bluetooth connection by operating the Bluetooth device. 2 Press and hold the POWER button for about 2 seconds. The indicator (blue) lights up, and the unit turns off. Tip When you finish playing music, the Bluetooth connection may terminate automatically, depending on the Bluetooth device. Controlling the audio device – AVRCP If the Bluetooth audio device connected with this unit supports AVRCP (Audio Video Remote Control Profile), you can control by using the unit buttons. Refer to the operating instructions supplied with the Bluetooth device on how to operate it. Note Operation of the Bluetooth connecting device by this unit will vary depending on its specification.Status: In stop or pause modeShort Press Long Press / Starts playback*

Stop Skip to next/previous Fast-forward/Fast-rewind*

Stop Skip to next/previous Fast-forward/Fast-rewind*

You may need to press the button twice depending on the Bluetooth device.

Tip Depending on the Bluetooth device, the fast- forward or fast-rewind operation can be done by performing the following procedures on this unit. 1 Press and hold the POWER button for about 2 seconds to turn off the unit. 2 Press and hold the POWER button and jog switch () for about 7 seconds. The indicator (blue) flashes once. The setting can be released by repeating the above procedures. At this time, the indicator (blue) flashes twice. Note You cannot adjust the volume of the Bluetooth device by pushing the jog switch of this unit up or down.DRC-BT30 [US, FR]_4-156-247-61(1)

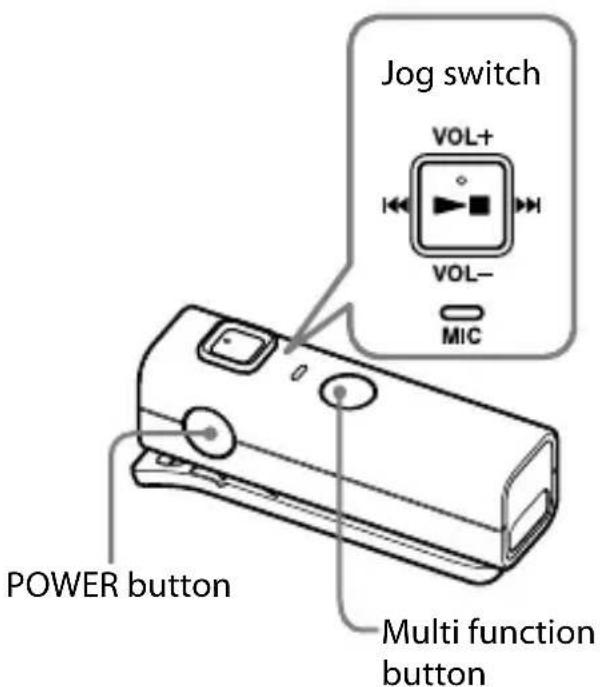

Calling Jog switchPOWER buttonMulti function buttonCheck the following before operating the unit.– The Bluetooth function is active on the mobile phone.– Pairing of this unit and the Bluetooth mobile phone is complete. 1 Press and hold the POWER button for about 2 seconds while the unit is turned off.The indicator (blue) flashes twice, the unit turns on and then this unit tries to connect to the last Bluetooth mobile phone that was used. Tip This unit will stop trying to connect to the Bluetooth mobile phone after 1 minute. In such a case, press the multi function button to try to connect again. When this unit does not connect to a Bluetooth mobile phone automatically You can make a connection by operating Bluetooth mobile phone or by operating this unit to connect the last connected Bluetooth device. To make a connection by operating Bluetooth mobile phone 1 Make the Bluetooth connection (HFP or HSP*) from the Bluetooth mobile phone to this unit.Refer to the manual supplied with your Bluetooth mobile phone for operation details.The list of recognized devices appears on the display of the Bluetooth mobile phone. This unit is displayed as “DRC-BT30.”When you use the Bluetooth mobile phone features both HFP (Hands-free Profile) and HSP (Headset Profile), set to HFP. Note When connecting to a Bluetooth mobile phone which is different from the last connected one, make the connection following the above procedure.* For details on profiles, see page 4.ContinuedDRC-BT30 [US, FR]_4-156-247-61(1)

To make a connection with the last connected Bluetooth device by operating this unit 1 Press the multi function button. The indicator (blue) starts flashing, and the unit performs the connection operation for about 5 seconds. Note When listening to music with this unit, a Bluetooth connection cannot be made with the multi function button. To call 1 Use the buttons on your mobile phone when making a call. If no dial tone is heard on this unit, press and hold the multi function button for about 2 seconds. Tip You can call in the following way, depending on the Bluetooth mobile phone. Refer to the manual supplied with your mobile phone on operating details.– When not communicating, you can call using the voice-dial function by pressing the multi function button.– You can call the last dialed number by pressing the multi function button for about 2 seconds. To receive a call When an incoming call arrives, a ring tone will be heard from the unit. 1 Press the multi function button on the unit. The ring tone differs in the following ways, depending on your mobile phone. – ring tone set on the unit – ring tone set on the mobile phone – ring tone set on the mobile phone only for Bluetooth connection Note If you received a call by pressing the button on the Bluetooth mobile phone, some Bluetooth mobile phones may have handset use priority. In this case, set to talk with the unit by pressing and holding the multi function button for about 2 seconds, or by operating the Bluetooth mobile phone. For details, refer to the manual supplied with your Bluetooth mobile phone. To adjust the volume Push the jog switch up or down to adjust the volume. Tips

You cannot adjust the volume when not communicating. Volume for calling and listening to music can be adjusted independently. Even if you change the volume while playing back the music, the volume of a call does not change. To terminate a call You can end a call by pressing the multi function button on the unit. To stop use 1 Terminate Bluetooth connection by the Bluetooth mobile phone. 2 Press and hold the POWER button for about 2 seconds to turn off the power. The indicator (blue) lights up, and the unit turns off.DRC-BT30 [US, FR]_4-156-247-61(1)

Controlling the Bluetooth mobile phone – HFP, HSP The operation of the buttons on this unit varies depending on your mobile phone. HFP (Hands-free Profile) or HSP (Headset Profile) is used for Bluetooth mobile phone. Refer to the operating instructions supplied with your Bluetooth mobile phone on supported Bluetooth profiles or how to operate. HFP (Hands-free Profile)Status Multi function buttonShort Press Long PressStandby Start Voice Dial* Last number redialVoice Dial activeCancel Voice Dial*

Outgoing call End outgoing call Change call deviceIncoming callAnswer RejectDuring call End call Change call deviceHSP (Headset Profile)Status Multi function buttonShort Press Long PressStandby — Dial* Outgoing call End outgoing call* End outgoing call or change call device to headset* Incoming callAnswer —During call End call* Change call device to headset

Some functions may not be supported depending on the Bluetooth mobile phone. Refer to the operating instructions supplied with your mobile phone.

This may vary, depending on the Bluetooth mobile phone.

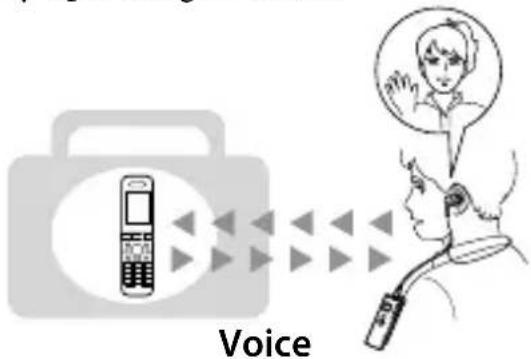

Calling while playing back music The Bluetooth connection using HFP or HSP as well as A2DP is necessary to make a call while playing back music. For example, to make a call using a Bluetooth mobile phone while listening to music on a Bluetooth compatible music player, this unit needs to be connected to the mobile phone using HFP or HSP. Make a Bluetooth connection between this unit and the device in use following the procedures outlined below. 1 Make a Bluetooth connection between this unit and the mobile phone in use with HFP or HSP following the procedures outlined in “Calling” (page 17). 2 Operate the Bluetooth device (music player or mobile phone) used for playing the music to make a Bluetooth connection to this unit using A2DP. To make a call while playing back music 1 Press the multi function button while playing back music (page 19), or operate your Bluetooth mobile phone to make a telephone call.If no dial tone is heard on this unit, press and hold the multi function button for about 2 seconds. To receive a call while playing back music When an incoming call arrives, the music pauses and the ring tone is heard from this unit. 1 Press the multi function button and talk.After finishing the call, press the multi function button. This unit is switched back to music playback. When no ring tone is heard even if an incoming call arrives 1 Stop music playback. 2 When ringing, press the multi function button and talk.DRC-BT30 [US, FR]_4-156-247-61(1)

Bluetooth wireless technology operates within a range of about 10 meters (about 30 feet). Maximum communication range may vary depending on obstacles (human body, metal, wall, etc.) or electromagnetic environment.

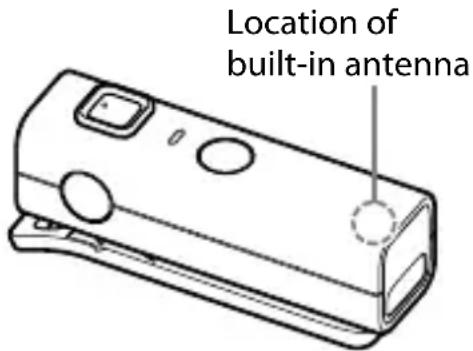

The antenna is built into the unit as illustrated in the dotted line. The sensitivity of the Bluetooth communication will improve by turning the direction of the built-in antenna to the connected Bluetooth device. The communication distance shortens when the obstacles are between the antenna of the connected device and this unit. Location of built-in antenna

The following conditions may affect the sensitivity of Bluetooth communication. – There is an obstacle such as a human body, metal, or wall between this unit and Bluetooth device. – A device using 2.4 GHz frequency, such as a wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.

Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and resulting in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following. – Use this unit at least 10 m (about 30 ft) away from the wireless LAN device. – If this unit is used within 10 m (about 30 ft) of a wireless LAN device, turn off the wireless LAN device. – Install this unit and Bluetooth device as near to each other as possible.

Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident: – where inflammable gas is present, in a hospital, train, airplane, or a petrol station – near automatic doors or a fire alarm

This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.

We do not take any responsibility for the leakage of information during Bluetooth communication.

Connection with all Bluetooth devices cannot be guaranteed. – A device featuring Bluetooth function is required to conform to the Bluetooth standard specified by Bluetooth SIG, Inc. and be authenticated. – Even if the connected device conforms to the above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device. – While talking on the phone hands free, noise may occur, depending on the device or communication environment.

Depending on the device to be connected, it may require some time to start communication. ContinuedDRC-BT30 [US, FR]_4-156-247-61(1)

Do not place this unit in a place exposed to humidity, dust, soot or steam, subject to direct sunlight, or in a car waiting at a traffic signal. It may cause a malfunction.

Using the Bluetooth device may not function on mobile phones, depending on radio wave conditions and location where the equipment is being used.

If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer.

Listening with this unit at high volume may affect your hearing. For traffic safety, do not use this unit while driving or cycling.

Do not put weight or pressure on this unit as it may cause the unit to deform during long storage.

Do not subject the unit to excessive shock.

Clean the unit with a soft dry cloth.

When using the unit, remember to follow the precautions below in order to avoid warping the cabinet or causing the unit to malfunction. – Make sure not to sit down with the unit in your back pocket. – Make sure not to put the unit into a bag with the headphones/earphones cord wrapped around it and then subject the bag to strong impact.

Do not expose the unit to water. The unit is not waterproof. Remember to follow the precautions below. – Be careful not to drop the unit into a sink or other container filled with water. – Do not use the unit in humid locations or bad weather, such as in the rain or snow. – Do not get the unit wet. If you touch the unit with wet hands, or put the unit in a damp article of clothing, the unit may get wet and this may cause a malfunction of the unit.

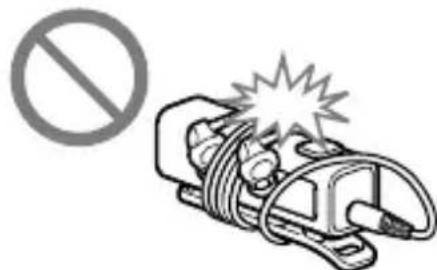

Do not use a strap in a place where it could be snagged, such as near a shredder or other machine equipment.

If you have any questions or problems concerning this unit that are not covered in this manual, please consult your nearest Sony dealer.DRC-BT30 [US, FR]_4-156-247-61(1)

Troubleshooting If you run into any problems using this unit, use the following checklist and read the product support information on our website.Should any problem persist, consult your nearest Sony dealer. Common The unit is not turned on.

Charge the battery of the unit. The unit cannot be turned on while charging. Remove the USB cable from the unit, and then turn on the power. Pairing cannot be done.

Bring this unit and the Bluetooth device closer together. Cannot make the Bluetooth connection.

Check that this unit is turned on. Check that the Bluetooth connecting device is turned on and the Bluetooth function is on. Connection with the Bluetooth device may not be memorized on this unit. Make the Bluetooth connection from the Bluetooth device to this unit soon after pairing is complete. This unit or Bluetooth connecting device is in sleep mode. The Bluetooth connection is terminated. Make the Bluetooth connection again (when listening to music: see page 14, when calling: see page 17). Distorted sound

Ensure that this unit is not receiving interference from a wireless LAN, other 2.4 GHz wireless device, or microwave oven. The correspondence distance is short. (Sound skips.)

If a device that generates electromagnetic radiation, such as a wireless LAN, other Bluetooth device(s), or a microwave oven is nearby, move away from such sources. Point the antenna of this unit (page 21) towards the Bluetooth device. Make sure no obstacles block the communication. The unit does not operate properly.

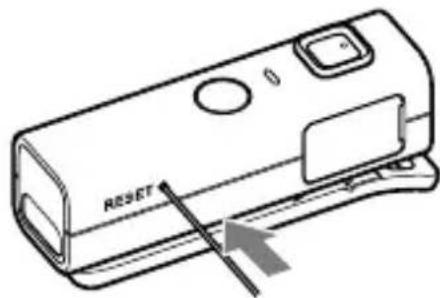

Reset the unit. Pairing information is not deleted by this operation. Insert a small pin, etc., into the hole, and push until you feel a click.DRC-BT30 [US, FR]_4-156-247-61(1)

When charging Charging cannot be done.

Check that the unit and the computer are firmly connected by the USB cable.

Check that the computer is turned on.

Check that the computer is not in standby, sleep or hibernation mode. Charging time is too long.

Check that the unit and the computer are directly connected, not via a USB hub. The unit cannot be recognized by a computer.

The USB cable is not connected properly to the USB port of the computer. Connect the USB cable again.

Check that the unit and the computer are directly connected, not via a USB hub.

A problem may occur with the connected USB port of the computer. Connect to another USB port if it is available.

Try the USB connection procedure again in cases other than those stated above. When listening to music No sound

Bluetooth device are turned on.

A2DP Bluetooth connection is not made between this unit and the Bluetooth device. Make an A2DP Bluetooth connection (page 14).

Check that music is being played back by the Bluetooth device.

Check that the volume of the unit is not set too low.

Turn up the volume on the connected device if necessary.

Pair this unit and Bluetooth device again (page 10). Low sound level

Turn up the volume on the connected device if necessary. Low sound quality

Switch the Bluetooth connection to A2DP (Advanced Audio Distribution Profile) by operating the Bluetooth device when HSP (Headset Profile) is set. Sound skips frequently during playback.

Reception condition of this unit may have become unstable due to improper matching of the bit-rate setting for the music transmitted from the Bluetooth device and the environment in which this unit is used. *

Terminate A2DP Bluetooth connection by operating the Bluetooth device. While this unit is turned on, press and hold for about 7 seconds to lower the setting of receivable bit rate. *

Bit rate is a numerical value which represents data transmission volume per second. The higher the bit rate, in general, the better quality the sound will be. This unit can receive high bit rate music but sound skipping may occur depending on the usage environment.

When bit rate setting is completed, the indicator (blue) flashes once. The above operations may not reduce the sound skip depending on the usage environment. To reset to the original setting, press and hold again for about 7 seconds. The indicator (blue) flashes twice.DRC-BT30 [US, FR]_4-156-247-61(1)

Initializing the unit You can reset this unit to its default (such as volume setting) and delete all pairing information. 1 If this unit is turned on, press and hold the POWER button for about 2 seconds to turn off this unit. 2 Press and hold the POWER button and multi function button together for about 7 seconds.The indicator (blue) flashes four times, and this unit is reset to the default setting. All pairing information is deleted. When calling The recipient’s voice cannot be heard.

Check that both this unit and the Bluetooth mobile phone are turned on. Check the connection between this unit and the Bluetooth mobile phone. Make a Bluetooth connection (HFP or HSP) again (page 17). Check that output of the Bluetooth mobile phone is set for this unit. Check that the volume of the unit is not set too low. Turn up the volume on the connected Bluetooth mobile phone if necessary. If you are listening to music using this unit, stop playback, press the multi function button and talk. Low sound from recipient

Specifications General Communication System Bluetooth Specification version 2.1 + EDR*

Output Bluetooth Specification Power Class 2 Maximum communication range Line of sight approx. 10 m (30 ft)*

Supported content protection method SCMS-T Transmission range (A2DP) 20 Hz - 20,000 Hz (Sampling frequency

Supplied accessories USB cable (1) Operating instructions (this book) (1) Recommended accessories Headphones: MDR-EX300SL (sold separately)*

USB charging AC power adaptor: AC-U50AD (sold separately) or AC-U501AD (sold separately)*

The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.

Bluetooth standard profiles indicate the purpose of Bluetooth communication between devices.

Codec: Audio signal compression and conversion format

The optional accessories are not provided in some areas.DRC-BT30 [US, FR]_4-156-247-61(1)

Wireless Audio Receiver Power source DC 3.7 V: Built-in lithium-ion rechargeable battery Dimension (w/h/d) (excluding projection parts and controls) Approx. 17.0 mm × 60.0 mm × 17.6 mm

/32 in.) Mass Approx. 20 g (0.7 oz) Headphones output Output jack Φ3.5 mm stereo mini jack Maximum output 18 mW + 18 mW (16 Ω) Microphone Type Electret condenser Direction characteristic Omni directional Effective frequency range 100 Hz – 4,000 Hz Operating temperature 0 °C to 45 °C (32 °F to 113 °F) System requirements for battery charge using USB Personal Computer with pre-installed with any of the following operating systems and USB port: Operating Systems (when using Windows) Windows
