CK1500RK - Kettle BLACK & DECKER - Free user manual and instructions

Product Type	Cordless Kettle
Brand	Black & Decker
Model	CK1500RK
Capacity	1.8 L (max 7 cups)
Power	1500 W
Voltage	120 V~
Frequency	60 Hz
Material	Plastic, stainless steel
Cord Length	0.7 m (short for safety)
Weight	Approximately 1 kg
Dimensions (L x W x H)	20 x 20 x 25 cm
Automatic Shut-Off	Yes, at boil and if operated empty
Dry Boil Protection	Yes
Descaling Filter	Yes, removable (ref. CK1500-05)
Swivel Base	Yes, 360 degrees (ref. CK1500-14)
Water Level Indicator	Yes, with MAX mark
Power Indicator Light	Yes, lights up during heating
Cool Touch Handle	Yes
Spout with Filter	Yes
Grounded Plug	Yes (3 prongs)
Warranty	1 year limited (United States and Canada)
Replacement Parts Available	Lid (CK1500-02 or CK1500R-02), descaling filter (CK1500-05), swivel base (CK1500-14)
Care and Cleaning	Clean with a damp cloth, descale regularly with vinegar or descaling product

Frequently Asked Questions - CK1500RK BLACK & DECKER

How to descale my kettle?

To descale, fill the kettle with 2 cups (0.5 L) of cold water and 1 cup (0.25 L) of white vinegar. Bring to a boil, then discard. Rinse with clear water. You can also use a commercial descaling product following the manufacturer's instructions.

Can I heat a small amount of water?

Yes, you can heat a minimum amount of 0.75 L (3 cups). Do not operate the kettle without water. The kettle turns off automatically if empty.

How to clean the descaling filter?

Remove the filter by pressing with a finger toward the inside of the spout. Wash it with soapy water and rinse. Reinsert by pushing until it clicks into place. Never put the kettle in the dishwasher.

Why does my kettle turn off before boiling?

This may be due to scale buildup or insufficient water. Check the water level and descale the kettle if necessary. The dry boil protection may also cut power if the kettle is empty.

Can I use the kettle outdoors?

No, the appliance is designed for indoor household use only. Do not use it outdoors to avoid fire or electric shock hazards.

The cord is short, can I use an extension cord?

Yes, you can use an extension cord, but it must be grounded (3 prongs) and have a power rating at least equal to the appliance (1500 W). Place it to avoid tripping hazards.

How to remove and replace the descaling filter?

Ensure the kettle is cool and unplugged. Press the filter from inside the spout with a finger to release it. To reinstall, place it with the tabs toward the spout and press until it clicks.

What to do if the kettle does not heat?

Check that the kettle is properly placed on the base and the switch is in the on (I) position. If the indicator does not light, check the electrical outlet. If the problem persists, contact customer service at 1-800-231-9786 (U.S./Canada).

Is the kettle under warranty?

Yes, it comes with a one-year limited warranty from the date of purchase, valid in the United States and Canada. Keep your sales receipt as proof of purchase. For more information, visit www.prodprotect.com/applica.

Can I brew tea in the kettle?

Yes, boil the water, then carefully remove the lid. Add tea bags or a tea infuser to the hot water, close, and let steep for about 4 minutes. Clean the kettle afterward to avoid residues.

USER MANUAL CK1500RK BLACK & DECKER

Please Read and Save this Use and Care Book

Register your product online at www.prodprotect.com/applica,

for a chance to WIN $100,000!

For US residents only

Accessories/Parts (USA/Canada)

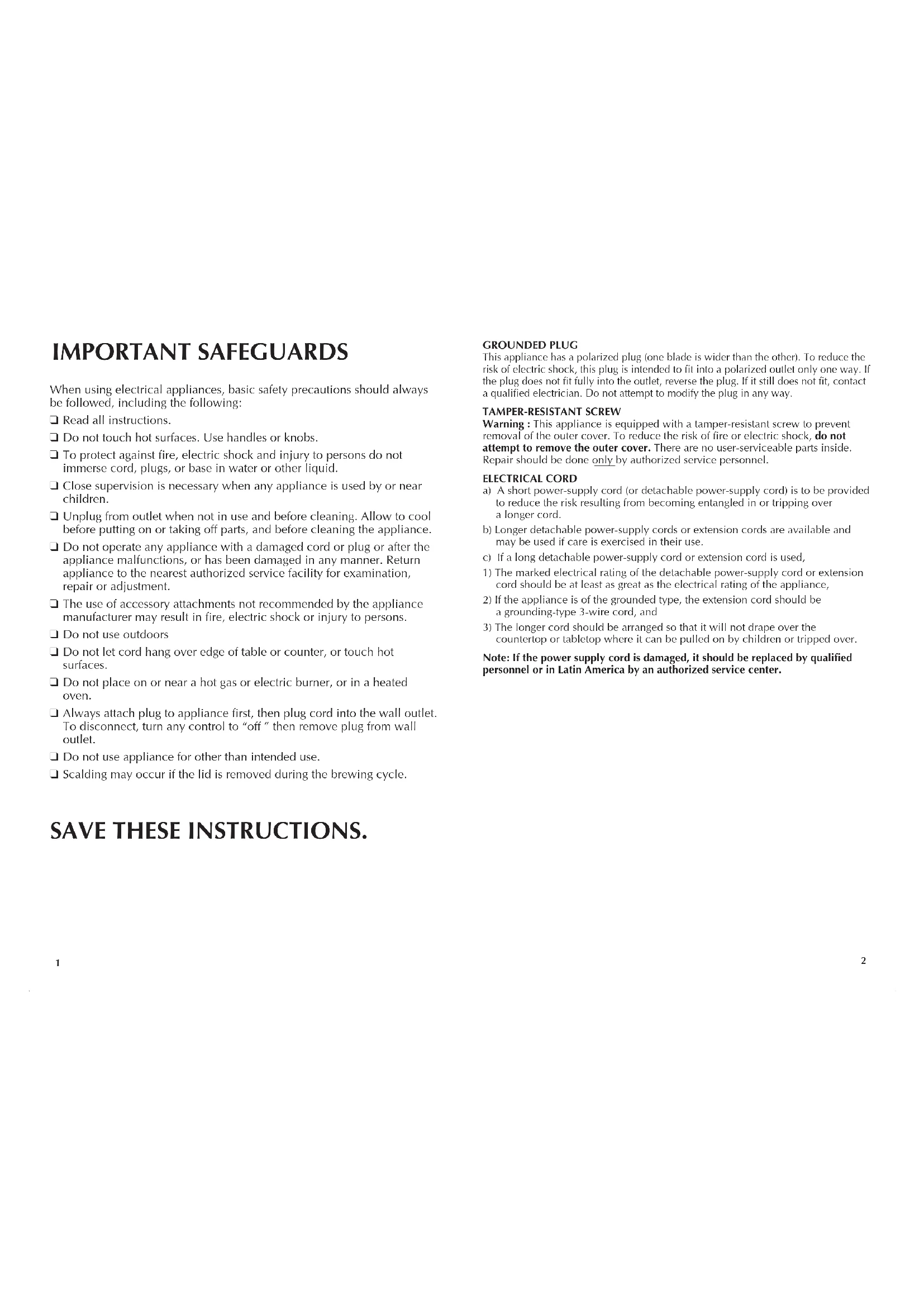

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or base in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
Do not use outdoors
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off" then remove plug from wall outlet.
Do not use appliance for other than intended use.
Scalding may occur if the lid is removed during the brewing cycle.

SAVE THESE INSTRUCTIONS.

GROUNDED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

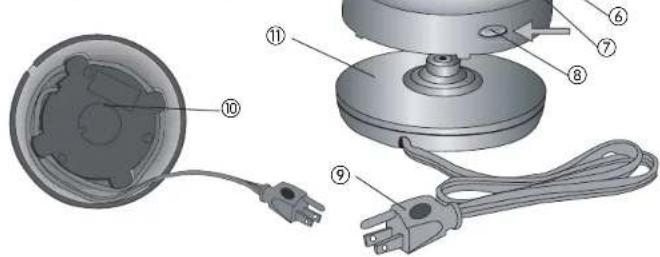

1. Spout
2. 1. Removable scale filter Models CK1500, CK1500R and CK1500RK (Part#CK1500-05)
3. Cool-touch handle
4. Lid Model CK1500 (Part#CK1500-02) Models CK1500R and CK1500RK (Part#CK1500R-02)
5. I/O (On/Off) switch
6. Kettle
7. Water window with MAX level
8. Power indicator light
9. Grounded (3-prong) plug
10. Cord storage (under the base)
    +11. 360° swivel power base Models CK1500, CK1500R and CK1500RK (Part#CK1500-14)
    † Consumer replaceable/removables parts

A

3

How to Use

This unit is for household use only.

GETTING STARTED

1. Remove all packing material and any stickers from the product.
2. This product has no removable parts.
3. Wash all parts as instructed in Care and Cleaning section of this manual.
4. Select a level surface where this unit is to be used allowing enough space for steam to escape without damage to counters, cabinets and walls.
5. Fill kettle with 2 cups of cold tap water and 1 cup of vinegar. Bring to boil and discard.
6. Fill kettle to maximum fill line with cold tap water. Bring to boil and discard. Repeat. Kettle is now ready for use.

Note: The kettle will only operate when placed on the power base with the "On/Off" (I/O) switch in the "On" (I) position. The kettle will automatically switch "Off" (O) once the water has boiled. Also, the kettle will automatically shut off if there is no water in the kettle.

FILLING THE KETTLE

1. Remove the kettle from the power base and remove the lid. Fill with desired amount of cold tap water (from 3 to 712 cups) through the opening at the top or fill directly through the pour spout (B).

Note: Do not:

• operate the kettle without water.
• overfill the kettle; keep water level below the maximum mark on the fill window.
  remove the lid while water is heating.

1. Replace the lid and place the kettle firmly on the 360^ swivel power base (C).

BOILING WATER

1. Plug in the base.
2. Press the "On/Off" (l/O) switch to "On" (l). The power light comes on and the water begins to heat (D).
3. When water boils the kettle will automatically shut off and the indicator light will go out. You can turn the appliance off at any time by pressing the "On/Off" (I/O) switch to "Off" (O).

Warning: Kettle filled with boiling water is hot on the outside. Use only the stay cool handle to pick it up. If taking kettle to the table set it on the swiveling base or a frivet to protect the wood or tablecloth.

1. Hold kettle level when pouring, especially when filled to maximum. Do not pour too fast.
2. To re-boil water it is necessary to wait several minutes for water to cool.
3. Unplug the kettle when not in use.

Note: This unit has a boil dry protection safety feature that automatically turns the kettle and indicator light off when water has boiled or if there is no water in the kettle.

STEEPING TEA

1. Follow directions in Boiling Water Section, page 4.
2. Once water has boiled, carefully remove cover from tea kettle using a potholder for protection from steam.

1. Add desired tea bags or loose tea in a tea ball or infuser.
2. Replace lid and allow kettle to stand at room temperature until steeping time is complete. (Allow about 4 minutes for regular teas, longer for herbal teas. Follow the package directions.) (E).

3. For stronger tea flavor add more tea; increasing the steeping time results in a stronger taste.

4. Steeping tea may leave residue in the kettle; to clean kettle follow directions in steps 5 and 6 of Getting Started.

SCALE PROTECTION

• Lime scale forms over time when water is heated. Though harmless it may be bothersome.
• The concealed heating element in the kettle is designed to help reduce scale buildup.
• The kettle has a scale filter at the bottom of the pour spout to prevent particles from pouring into your beverage.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

• Before cleaning, be sure the base is unplugged and the kettle has cooled completely. Empty any remaining water from the kettle.
• Wash the inside of the kettle and the scale filter with soapy water and rinse.
  NEVER IMMERSE THE KETTLE IN WATER OR OTHER LIQUIDS or place in a dishwasher.

Warning: Allow the unit to cool completely before removing the scale filter.

• You can remove the scale filter by pressing inward through the spout with a finger. The filter will drop inside the kettle. To insert the filter into spout, position the filter with labs toward the spout and press filter until it fits securely into position (F).
• Wipe the exterior of the kettle and base with a damp cloth or sponge and dry. The concealed heating element at the bottom of the interior may discolor. This will not affect performance. Do not use abrasive soaps, cleansers, or scouring pads.

Over time, the kettle may heat up but will not boil, depending on your use and the hardness of the water in your area. When this happens, it is time for descaling. Use a scale/lime remover and follow its manufacturer's directions.

CORD STORAGE

Conveniently store the cord beneath the base by wrapping it around the grooves on the base (G).

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase.

Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

BLACK&DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Applica Consumer Products, Inc.

R22007/1-24-80E/S/F

Printed on recycled paper. Impreso en papel reciclado

Copyright © 2007 - 2008 Applica Consumer Products, Inc.

Made in People's Republic of China Printed in People's Republic of China
