10028562 - Blender Klarstein - Free user manual and instructions

Brand	Klarstein
Model	10028562 / 10029868
Product Type	Blender
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Maximum Operating Time	2 minutes
Bowl Capacity	1.8 L
Functions	Smoothie, Speed MIN/MAX, Ice Crush, Auto-clean
Number of Speeds	2 (MIN/MAX) + 3 automatic programs
Bowl Material	Tritan Plastic
Blade Material	Stainless Steel
Safety	Automatic shut-off, overheat protection, safety lock
Cleaning	Auto-clean function
Dimensions (L x W x H)	20 x 20 x 40 cm
Weight	2.5 kg
Power Cord Length	1 m
Included Accessories	Blending bowl, lid, measuring cup, seal ring
Recycling	Compliant with WEEE directive (2012/19/EU)
Certifications	CE (EMC, LVD, RoHS)

Frequently Asked Questions - 10028562 Klarstein

How to use the Smoothie function?

Place fruits and liquids into the blending bowl, close the lid, then turn the adjustment knob to the Smoothie position. The appliance blends automatically for a programmed cycle.

What is the maximum bowl capacity?

The total bowl capacity is approximately 1.8 L. Do not exceed 720 g of carrots or 1800 g of total mixture for optimal results.

How to clean the blender?

Fill the bowl with water, place it on the motor unit, then select the Auto-clean function. Rinse thoroughly afterwards. Never immerse the motor unit in water.

Can I blend hot foods?

Yes, but with caution. Pour hot liquids slowly into the bowl and do not exceed the maximum capacity. Steam may escape, use the measuring cup.

What to do if the blender does not start?

Check that the bowl is properly locked onto the motor unit and that the knob is not set to OFF. If the appliance has overheated, let it cool down for a few minutes.

How long can I use the appliance continuously?

The maximum operating time is 2 minutes consecutive. Let it cool down before reuse to avoid overheating.

How to assemble the blending bowl?

Place the seal ring and the blade onto the bowl base. Screw the bowl onto the motor base until it clicks. Place the lid and the measuring cup.

Can I crush ice with this appliance?

Yes, use the Ice Crush function. Add ice cubes to the bowl, close the lid and select the program. Do not exceed the capacity.

How to replace the seal ring?

Unscrew the bowl base to access the seal. Remove the old seal and replace it with a new one of the same size. Screw it back tightly.

The appliance makes noise, is this normal?

Some noise level is normal during blending. If the noise is abnormal or jerky, check that the food is cut into small pieces and that the bowl is properly closed.

USER MANUAL 10028562 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 7

Security Instructions. 7

Equipment Overview 9

Before Use. 9

Usage 10

Cleaning and Care 11

Disposal Considerations 11

Declaration of Conformity 11

Technical Data

Item Number 10028562, 10029868
Voltage 220-240 V 50/60 Hz
Power consumption 1200 W
Operating times 2 minutes continuous operation

Security Instructions

Intended use

• Read all instructions before operating and only use the product as described in these instructions to avoid accidental injury or damage.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments.
• Do not use outdoors.

• No use by children intended and not allowed at all. Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Misuse may cause potential injury.

Connection to power supply

• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• To disconnect, turn the rotary switch to position „OFF“, then remove plug from wall outlet.

Technical Safety

• To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.
• A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like when in operation.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electrical shock.
• Extreme caution should be exercised when using containers constructed of other material other than metal or glass.
• Do not store any materials other than manufacturers recommended accessories in this unit when not in use.
• Do not place any of the following materials inside the unit: paper, cardboard, plastic and the like.
• Do not operate the appliance for longer than 2 minutes. After that the appliance needs to cool down for not overheating.
• Care is needed when handling cutting blades, especially when removing the blade from the bowl, emptying the bowl and during cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Do not touch hot surfaces. Use handles or knobs.
• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.
• Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.
• Ensure that the blender is switched off before removing it from the stand.

Positioning

• Do not place on or near a hot gas or electric burner, or in a heated oven.

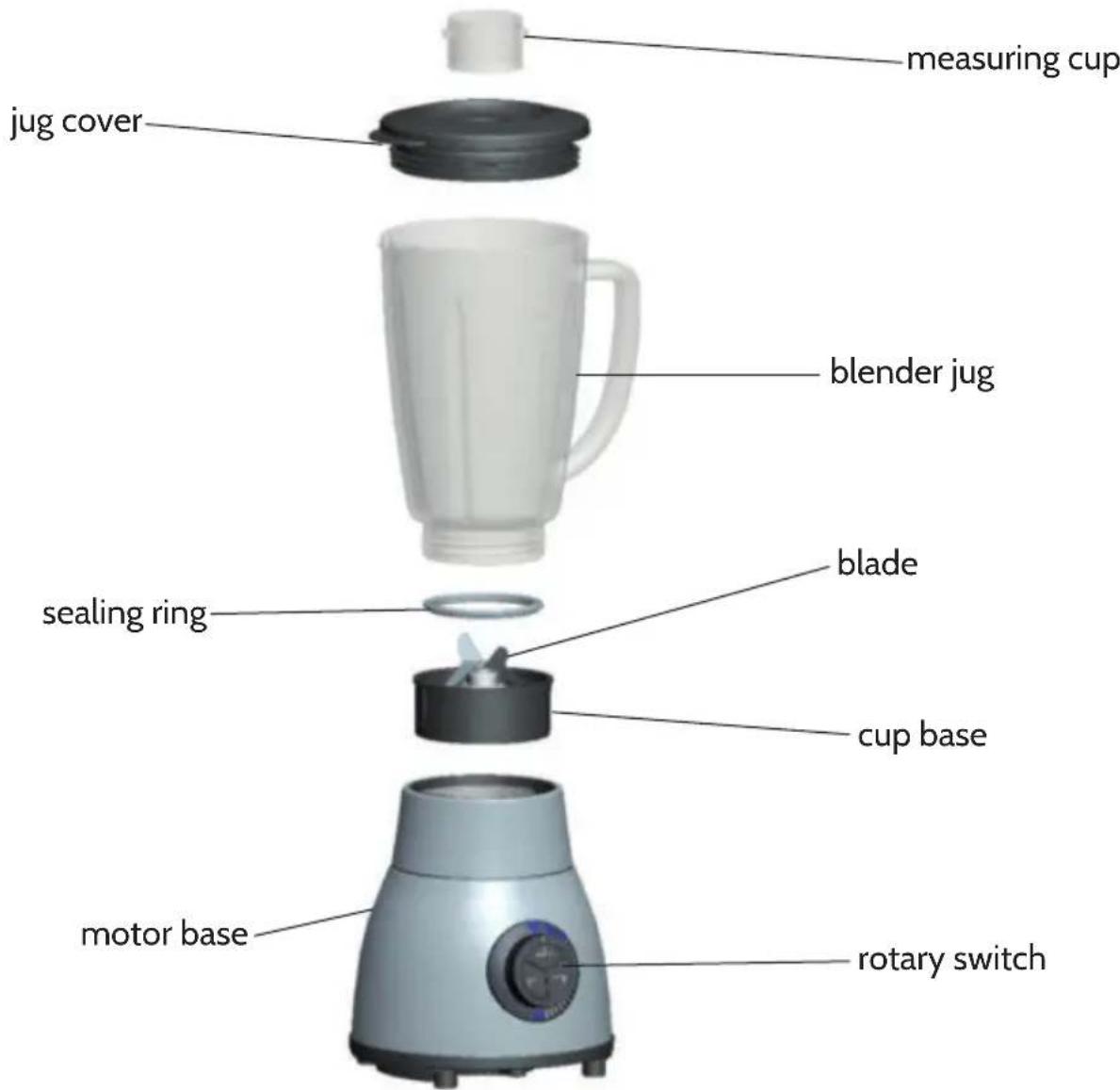

Equipment Overview

Before Use

Before first use

• All parts of the blender are to be thoroughly cleaned before being used for the first time.
• Take out the required length of cable from the cable tidy on the base of the blender and connect the device to the mains supply.

Assembling the blender jug:

1. Put the rubber sealing ring on the inner edge of the blade unit.

2. Put the blade unit with sealing ring into the cup base.

3. Mount the jug onto the cup base unit and tune the cup base unit, and turn clockwise until jar locks into place.
4. Mount the measure cup onto the jar cover.
5. Secure the lid onto jug and press down.

Inserting the jug:

1. Make sure that the blender is switched off (Switch to the 'OFF' setting).
2. Place the jug assembly on to the motor base unit it is fixed securely engaged.

Usage

1. Place the foodstuff you wish to process into the jug.
2. Put the lid on the jar and close securely. Place the measuring cap into the hole in the lid and turn clockwise to lock.
3. Mount the glass cup onto the cup base unit and tune the cup base unit, and tune the cup base unit in clockwise direction unit it is fixed.
4. Switch on the motor base:

Switch setting Use
Smoothie Fruit and yogurt or	fruit and milk based drinks; Fruit or vegetable drinks
Speed setting : MIN-MAX For	more solid consistency – for mixing liquids and solid foodstuffs
Ice Crush For ice crushing
OFF	Stop
Auto-clean For ice crushing &	short, powerful impulse movements

Useful tips

• To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by one instead of placing a large quantity all at once.
• If you are processing carrots or other solid ingredients cut them into small pieces (1-1.5 cm) first. The max carrots quantity no more than 720 g. Then add water total weight must be less than 1800 g.
• When mixing solid ingredients start off first with a small amount of liquid. Gradually add more and more liquid through the opening in the lid.
• Always place your hand on top of the blender when you are operating the device.
• For stirring solid or very thick liquid ingredients we recommend that you push the lid down repeatedly to prevent the blades from becoming stuck.

Cleaning and Care

Empty the glass jar and fill it with water. Place the glass jar on the motor base and turn the switch several times into the Auto-cleaning setting. Empty the glass jar and rinse until clean.

Disposal Considerations

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer:Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)
