Features	Details
Resolution	5 megapixels
Optical Zoom	3x
Screen	2.5-inch LCD screen
Memory Type	SD and MMC memory cards
Connectivity	USB 2.0
Power Supply	Rechargeable Li-ion battery
Weight	About 200 g
Dimensions	92 x 61 x 30 mm
Usage	Ideal for family photos and travel
Maintenance	Regular cleaning of the lens and screen
Safety	Avoid exposure to water and extreme temperatures
General Information	Compatible with HP photo editing software

Frequently Asked Questions - PhotoSmart M440 HP

How can I transfer photos from my HP PhotoSmart M440 to my computer?

To transfer photos, connect your camera to the computer using the supplied USB cable. Make sure the camera is turned on. Your computer should recognize the device and display a folder containing your photos.

What should I do if my HP PhotoSmart M440 won't turn on?

Check that the battery is properly installed and charged. If the battery is low, recharge it or replace it with a new battery. Also, make sure the camera is not in sleep mode.

How can I print photos directly from my HP PhotoSmart M440?

Make sure the printer is compatible with your camera. Connect them using a USB cable or via a wireless connection, then select the photos you want to print and follow the on-screen instructions.

Why do my photos appear blurry?

Blurry photos can be caused by camera movement during shooting. Try using a tripod or stabilizing the camera. Also, make sure the lens is clean.

How can I change the resolution settings on my HP PhotoSmart M440?

Access the camera's settings menu, then look for the "Resolution" or "Image Quality" option. You can choose from different resolutions according to your needs.

My HP PhotoSmart M440 does not recognize my memory card. What should I do?

Check that the memory card is properly inserted and compatible with your device. Try removing and reinserting it. If the problem persists, test the card on another device or replace it.

How do I reset my HP PhotoSmart M440 to factory settings?

Go to the settings menu, look for the "Reset" or "Factory Settings" option, and follow the on-screen instructions. This will erase all customizations and restore the original settings.

What should I do if the screen on my HP PhotoSmart M440 is black?

Check if the camera is turned on and the battery is charged. If the screen remains black, try resetting the camera or consult a technician if the problem persists.

How can I delete photos from my HP PhotoSmart M440?

Go to the photo gallery on the device, select the photo you want to delete, then choose the "Delete" option from the menu.

USER MANUAL PhotoSmart M440 HP

HP Photosmart M440/M540/M630 series

Legal and notice information

Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Windows® is a U.S. registered trademark of Microsoft Corporation.

SD Logo is a trademark of its proprietor.

Disposal of waste equipment by users in private households in the European Union

Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For future reference, enter the following information:

Model number:
Serial number:
Purchase date:

Contents

1 Getting started

Viewing the electronic User Guide 4

Camera top and back 6

Camera front, side, and bottom 7

2 Setting up your camera

Install the batteries 8

Turn on the camera 9

Choose the language 9

Set the region 9

Set the date and time 9

Install and format an optional memory card 10

Install the software 11

Windows 11

Macintosh 12

3 Taking pictures and recording video clips

Take a picture 13

Record a video clip 13

4 Reviewing and deleting images and video clips

Review images and video clips 15

Delete an image 15

5 Transferring and printing images

Transfer images 16

Print images from the camera 16

6 Camera quick reference 18

1 Getting started

This printed Quick Start Guide provides the information you need to get started using the essential features of your camera. For detailed information about camera features, see the electronic User Guide (see Viewing the electronic User Guide on page 4).

Quick Start Guide	Electronic User Guide
This printed guide will help you to: • Start using your camera quickly • Install the HP Photosmart Software • Become familiar with your camera's basic features	The electronic User Guide includes: • Descriptions of all the camera features • Battery information, including: • Extending battery life • Supported battery types • A description of the power indicator icons • Getting assistance from HP • Troubleshooting • Camera specifications

Viewing the electronic User Guide

The electronic User Guide is on the HP Photosmart Software CD.

4 HP Photosmart M440/M540/M630 series

To view the User Guide:

1. Insert the HP Photosmart Software CD into the CD drive of your computer.
2. Click View User Guide on the main page of the installation screen.

The electronic User Guide is also copied to your computer when you install the HP Photosmart Software. To view the User Guide after it has been installed on your computer:

• On Windows: Open the HP Solution Center and click help.
• On Macintosh: Open the HP Device Manager and select Camera User Guide from the Information and Settings pop-up menu.

Getting assistance

• For tips and tools to help you use your camera more effectively, visit www.hp.com. From here, click on Learn About: Digital Photography (English only).
• For product support, including firmware, software, and driver updates, visit www.hp.com/support.
• For help with the HP Photosmart Software, see the software's online help.

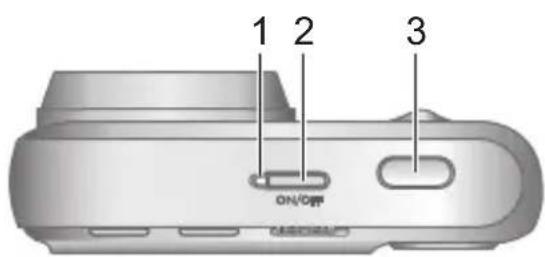

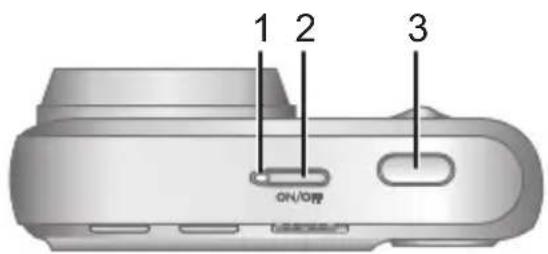

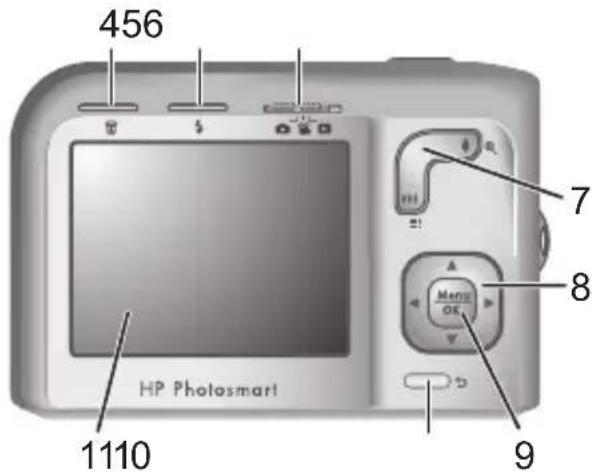

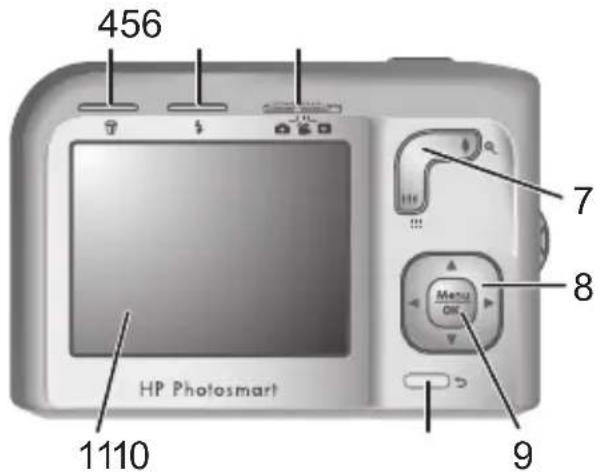

Camera top and back

1 Power light.
2 buttonOFF
3 Shutter button.
4	Delete button—Accesses the Delete function while in Playback.
5	Flash button—Accesses the flash settings while in Picture Capture. Settings are Auto, Red-Eye, Flash On, Flash Off.
6	selector—Switches between Picture Capture, Video Record, and Playback (see Picture Capture, Video Record, and Playback on page 18).

6 HP Photosmart M440/M540/M630 series

7	Zoom lever (Digital and Optical)-Accesses Zoom while in Picture Capture or Video Record; accesses Thumbsils and Magnify while in Playback
8	▲▼ and ◆ buttons-Scroll through menus and images.
9	Menu OK button-Displays camera menus, selects options, and confirms actions.
10	Back button-Returns you to a previous menu or view. Press and hold to back out of all menus.
11	mage Display.

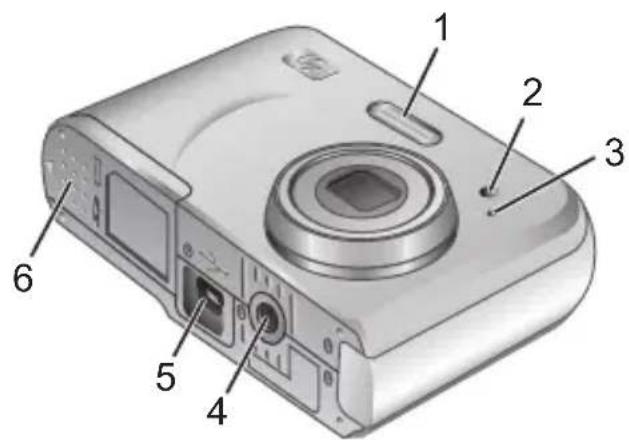

Camera front, side, and bottom

1 Flash.

2 Self-Timer light.

3 Microphone.

4 Tripod mount.

5 Dock/USB connector.

6 Battery/Memory Card door.

Getting started 7

2 Setting up your camera Install the batteries

1. Open the Battery/Memory Card door by sliding the door latch as indicated on the Battery/Memory Card door.
2. Insert the two AA batteries.
3. Close the Battery/Memory Card door.

NOTE: If using rechargeable NiMH batteries, fully charge the batteries before using them the first time. Turn off the camera before removing the batteries.

The batteries shipped with your camera are AA alkaline. These have a short life and are intended to let you begin using your camera immediately. When the camera warns that the battery charge is low, HP recommends replacing them with Photo Lithium or rechargeable NiMH batteries for longer battery life.

This graph shows the approximate average number of pictures you can take using Photo Lithium, NiMH, and Alkaline batteries. Actual performance may vary based on usage, battery type, and battery manufacturer. Many additional factors affect the actual number of pictures you can take (see Extending battery life on page 21).

8 HP Photosmart M440/M540/M630 series

Turn on the camera

To turn on the camera, press the button.

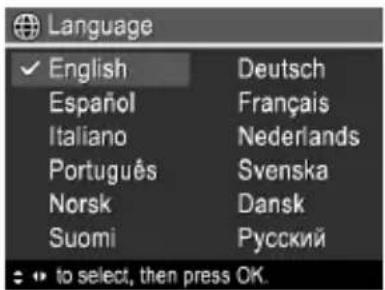

Choose the language

Use to choose the language you want, then press Menu OK.

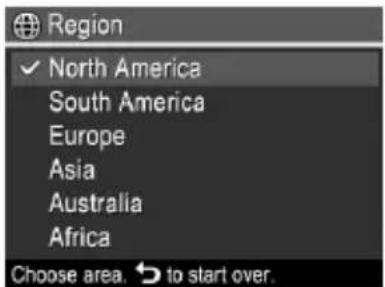

Set the region

Along with the language setting, the region setting determines the default date format.

Use to choose the region you want, then press Menu OK.

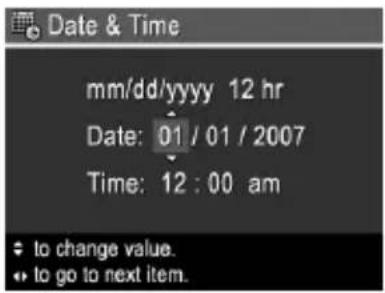

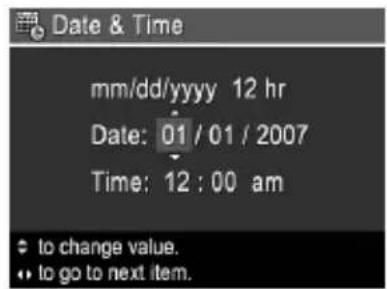

Set the date and time

Accurately setting the date and time will help you locate images once you have transferred them to your computer, and will ensure that images are accurately marked if you use the date and time imprint feature.

1. Use to adjust the highlighted value.

2. Use to move to the other selections and repeat Step 1 until the date and time are set correctly.

3. Press when the date,

Setting up your camera 9

time, and format settings are correct, then press Menu OK again to confirm.

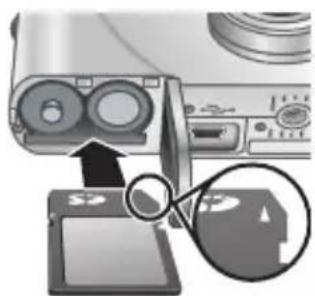

Install and format an optional memory card

This camera supports standard, high speed, and high capacity Secure Digital (SD and SDHC) memory cards, 32MB to 8GB.

1. Turn off the camera and open the Battery/Memory Card door.
2. Insert the optional memory card in the smaller slot as shown. Make sure the memory card snaps into place.
3. Close the Battery/Memory Card door and turn on the camera.

NOTE: When you turn on your camera with a memory card installed, the camera indicates the number of images you can store on the memory card at the current Image Quality setting. This camera supports storing a maximum of 2000 images on a memory card.

Always format new memory cards before first use. Formatting removes all images from the memory card, so make sure to transfer existing images before formatting.

1. With the camera turned on, slide to
2. Press
3. Use to select Format Card from the Deleted menu, then press OK
4. Use to select Yes, then press to format the card.

10 HP Photosmart M440/M540/M630 series

Once you install a memory card, all new images and video clips are stored on the card, rather than in internal memory.

To use internal memory and view images stored there, turn off the camera then remove the memory card.

Install the software

The HP Photosmart Software provides features for transferring images and video clips to your computer, as well as features for modifying stored images (remove red eyes, rotate, crop, resize, and more).

To install the HP Photosmart Software, your computer must meet the system requirements as stated on the camera packaging. To learn about Windows Vista support for your camera, see www.hp.com/go/windowsvista (English only).

If you have trouble installing or using the HP Photosmart Software, see the Hewlett-Packard Technical Support website for more information: www.hp.com/support.

Windows

1. Close all programs and temporarily disable any virus protection software.
2. Insert the HP Photosmart Software CD into the CD drive and follow the on-screen instructions. If the installation window does not appear, click Start, click Run, type D:\Setup.exe, where D is the letter of your CD drive, then click OK.
3. When the software has finished installing, re-enable virus protection software.

Macintosh

1. Insert the HP Photosmart Software CD into the CD drive.
2. Double-click the CD icon on the computer desktop.
3. Double-click the installer icon, then follow the on-screen instructions.

Once installation is complete and you have restarted your computer, System Preferences automatically opens to the HP Photosmart Camera settings. You may change settings so the HP Photosmart Software starts automatically when you connect your camera to your Macintosh (for more information, click the help button on the HP Photosmart Camera settings dialog).

12 HP Photosmart M440/M540/M630 series

3 Taking pictures and recording video clips

Slide to either to take pictures or to record video clips.

Take a picture

You can take a picture when you are in Picture Capture.

1. Slide to
2. Frame the subject in the Image Display.
3. Press the Shutter button halfway down to measure and lock the focus and exposure. The focus brackets in the Image Display turn solid green when focus is locked.
4. Press the Shutter button all the way down to take the picture.

After you have taken a picture, the camera displays it briefly in the Image Display.

Record a video clip

You can record a video when you are in Video Record.

1. Slide to
2. Frame the subject in the Image Display.
3. Press the Shutter button halfway down to measure and lock the focus. The focus brackets in the Image Display turn solid green when focus is locked.

Taking pictures and recording video clips 13

1. Press the Shutter button all the way down to start recording.
2. To stop recording video, press and release the Shutter button again.

After you have recorded a video clip, the camera displays it briefly in the Image Display.

14 HP Photosmart M440/M540/M630 series

4 Reviewing and deleting images and video clips

Review images and video clips

You can review images and video clips in playback.

1. Slide to

2. Use to scroll through your images and video clips. To play a video clip, press once the first screen of the clip appears on the Image Display.

NOTE: To hear audio associated with video clips, transfer them to your computer.

Delete an image

You can delete individual images during playback:

1. Slide to
   2.Use to select an image or video clip.
2. Press
3. Use to select This Image from the Delete menu, then press OK.

5 Transferring and printing images

Transfer images

Use this procedure to transfer images and video clips to your computer.

NOTE: Transferring a large number of high-resolution images from a memory card to your computer may take up to two hours. When transferring a large number of images, be sure your camera batteries are fully charged or use an optional HP Photosmart dock or memory card reader.

1. Turn off the camera.

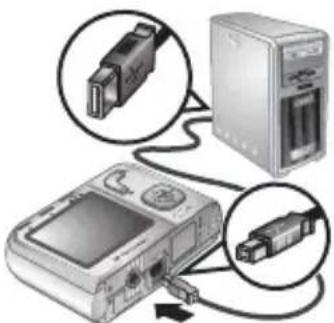

2. Connect the camera and computer using the USB cable that came with your camera.
3. Turn on the camera. When the Image Display indicates that the camera is connected to the computer, follow the instructions on the computer screen to

transfer the images. If you have installed the HP Photosmart Software and need more information, see the Help feature in the HP Photosmart Software.

Print images from the camera

You can connect the camera to any PictBridge-certified printer to print images.

1. Check that the printer is turned on, there is paper in the printer, and there are no printer error messages.

16 HP Photosmart M440/M540/M630 series

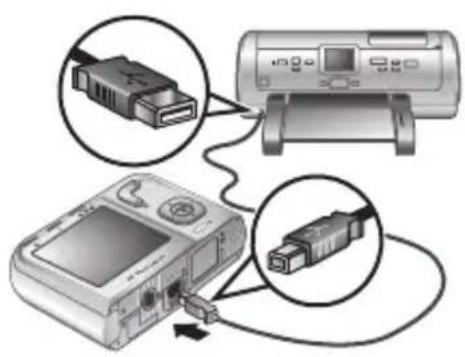

1. Turn off the camera, connect the camera and printer using the USB cable that came with your camera, then turn on the camera.

2. When the camera is connected to the printer, the Image Display shows an image. Use to select the image you want to print.

3. Press Menu OK

4. In the Print Options menu, select Print This Image Now and press to begin printing.

5. displays on the selected image in the Image Display to indicate that the image is being printed.

6. After the printer has printed the image, disconnect the camera from the printer.

To learn about other printing options, see either the electronic User Guide or? Camera Help located in any menu.

6 Camera quick reference

Use this chapter as a quick reference to camera features. To learn more about these camera features, refer to the electronic User Guide or on-camera Help.

Picture Capture, Video Record, and Playback

Picture Capture allows you to frame pictures in the Image Display and take pictures. To activate
Picture Capture, slide to
Video Record allows you to frame videos in the Image Display and record videos. To activate
Video Record, slide
- Playback allows you review and delete images and video clips. To activate Playback, slide
to

Camera Menus

Menu allow you to adjust camera settings, work with images, and access camera Help.

Within a menu, use to move to specific selections.
To exit the menu, press at any time.

Picture Capture Menu—Allows you to adjust camera settings that affect the characteristics of future images you capture with your camera. To access this menu, slide
to then press . You can select from the following options:
- Shooting Mode (Auto, Close-up, Steady Photo, Theatre, Landscape, Portrait, Action, Night Portrait, Sunset)
· S e l f - T i m e r

18 HP Photosmart M440/M540/M630 series

• Image Quality
  Burst
  Color (M440 series)
• Date & Time Imprint
• Camera Setup
• Camera Help

Video Record Menu—Allows you to adjust camera settings that affect the characteristics of future video clips you record with your camera. To access this menu, slide

to then press . You can select from the following options:

• S e l f - T i m e r
• Camera Setup
• Camera Help

Playback Menu—Allows you to work with images. To access this menu, slide to then press . OK You can select from the following options:

• Remove Red Eyes
• Rotate (M440 series)
• Crop (M440 series)
• Design Gallery (Modify Color, Add Borders, Rotate, Crop) (M540/M630 series)
  Photosmart Express (Print, Share, Buy Prints Online)
• Favorites
  View Slideshow
• Move Images to Card
• Camera Setup
• Camera Help

Camera Setup Menu—Allows you to change the camera's behavior. To access this menu, press from , , or , then select Camera Setup. You can select from the following options:

• Display Brightness
• Camera Sounds
• Date & Time
• USB Configuration
  Language

? Camera Help Menu—Provides descriptions of camera features and picture-taking tips. To access this menu, press from , , or , then select ? Camera Help. You can select from the following options:

• Top Ten Tips
• Camera Accessories
• Camera Buttons
  Using Shooting Modes
• Using Design Gallery (M540/M630 series)
  Using Photosmart Express
• Printing Images
• Recording Video Clips
• Reviewing Pictures and Video
• Tagging Favorites
• Deleting Images
• Transferring Images
• Managing Batteries
• Getting Assistance
• Tour Camera Features
• Camera Shortcuts

20 HP Photosmart M440/M540/M630 series

About

Extending battery life

To conserve battery power, the Image Display turns off after a period of inactivity. Pressing any button wakes up the camera. After five minutes of inactivity, the camera turns off.

To further extend battery life:

• S Display Brightness to Low (see the electronic User Guide for details).
• Set your camera to A4 Auto Flash (see the electronic User Guide for details).
• Use optical zoom, video recording, and Image Display sparingly.
• If you are turning on the camera only to view images, slide to then turn on the camera to start in Playback without extending the lens.
• When transferring or printing images, place your camera in an optional HP Photosmart dock connected to AC power.

For more information about batteries, go to www.hp.com/ support and search on the code AA-400 or see Appendix A in the electronic User Guide.

HP Photosmart séries M440/M540/M630

Copyright 2007 Hewlett-Packard Development Company, L.P.

HP Photosmart M440/M540/M630 series

Note legali

Copyright 2007 Hewlett-Packard Development Company, L.P.

4 HP Photosmart M440/M540/M630 series

6 HP Photosmart M440/M540/M630 series

10 HP Photosmart M440/M540/M630 series

12 HP Photosmart M440/M540/M630 series

18 HP Photosmart M440/M540/M630 series

20 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

HP Photosmart M440/M540/M630 series

i n v e n t

Rechtliche Hinweise

Copyright 2007 Hewlett-Packard Development Company, L.P.

4 HP Photosmart M440/M540/M630 series

6 HP Photosmart M440/M540/M630 series

8 HP Photosmart M440/M540/M630 series

10 HP Photosmart M440/M540/M630 series

12 HP Photosmart M440/M540/M630 series

14 HP Photosmart M440/M540/M630 series

16 HP Photosmart M440/M540/M630 series

18 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

24 HP Photosmart M440/M540/M630 series

HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

6 HP Photosmart M440/M540/M630 series

8 HP Photosmart M440/M540/M630 series

10 HP Photosmart M440/M540/M630 series

12 HP Photosmart M440/M540/M630 series

18 HP Photosmart M440/M540/M630 series

20 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

6 HP Photosmart M440/M540/M630 series

8 HP Photosmart M440/M540/M630 series

10 HP Photosmart M440/M540/M630 series

12 HP Photosmart M440/M540/M630 series

18 HP Photosmart M440/M540/M630 series

20 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

Instalar as bacterias 9

Ligar aamera 10

4 HP Photosmart M440/M540/M630 series

6 HP Photosmart M440/M540/M630 series

Instalar as bacterias

10 HP Photosmart M440/M540/M630 series

12 HP Photosmart M440/M540/M630 series

18 HP Photosmart M440/M540/M630 series

Imprimir imagens daamera

20 HP Photosmart M440/M540/M630 series

Menu Gravar video — permite ajustar as

22 HP Photosmart M440/M540/M630 series

(ηιπην) Deleting Images

(πιπην) Transferring Images

(yo n) Getting Assistance

(nnnnnn) Tour Camera Features

(nnnn nn n) Camera Shortcuts

(NITIN) About

nnonnn

79 77 nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

nion n nn nn nn

n) Display Brightness (n) Low- (unwn

Tn) Auto Flash A nwnn nn nnnn .(wnnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn.

on, nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

nnn nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn

www.hp.com/ nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nan

nynnnny

22

(nnnn) Camera Setup

(nnnn nn) Camera Help

(An) Display Brightness

(nnnn) Camera Sounds

(nnu) Date & Time

(USB nixn) USB Configuration

(nov) Language

790n-(nnnn nn nn) Camera Help Menu ?

(IXIy) Recording Video Clips

yui nnnn no) Reviewing Images and Videos (NTI

(D'NTyIn Jn'o) Tagging Favorites

21 HP Photosmart, nto M440/M540/M630

(yny nT-2x17) Self-Timer

(nnnn) Image Quality

(γηnn) Burst

(M440 nto) y

(nynynyn) Date & Time Imprint

(nnnn) Camera Setup

(nnnn nn) Camera Help

7 wonn - (NTT NTTO) Video Capture Menu

y7 w nn nnnn nnnn nnnn

NON,NTO'9n7nv7T.NN7o'pnuINT

n7 nwnx .(nwn/0n) Mnu 7yyn7pn nnx7,

:JINN JINN JNN

(Self-Timer

(nnnn) Camera Setup

(nnnn nn) Camera Help

7 w9n - (nnnn nn nn) Playback Menu

-7 00n,nto797nv7T. ninn by Tiy

n7 nwnx .(n/0) Menu OK yyn7 pn nn7

:JINAN JINWEN JINN

(ninirn nn) Remove Red Eyes

(M440 nTo)

(M440 nto) nn

) Modify Color ] (xynn) Design Gallery

, (n) Crop , (n)w n0in) Add Borders , (yM540/M630 mTo [ (n'o) Rotate

, (nunw) Share , (noon) Print ] Photosmart Express

[（n n n n n n) Buy Prints Online

(NTyIn)Favorites

View Slideshow

(0) Move Images to Card

nynnnnnnnnn 20

nynnnny 6

n77. n77nn 77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77 n77

ninn nnnn nn

Dinn7 w9nn (ninn n) Picture Capture Picture 1x y9n7 .ninn nn ninn ninn .-oon,(ninn n) Capture

yDINN7 wONn (INTI N) Video Record .
nx yonn .INTI yOwOnn nnnn nnnn INT
-7 0 nx oon, (IXTI N) Video Record

ninn nno7 woxn (nnin nn) Playback . (nirin nn) Playback nwn7 INI yni niinn . -7 0 0 0 nn nn

n

y Tiy7, nnnn nn nn np 7 7 ynnn Dinn

.090 7 7 △-wnwn, n

wn - (nnn nn) Picture Capture Menu 7y nynn y niynnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn. (nu/nu) Nnu OK yynn np nn,

Close-,(unuiX) Auto] (n) Shooting Mode ,(n) Steady Photo ,(n) up ,(T) Portrait ,(n) Landscape ,(n) Theatre ,(n) Night Portrait ,(n) Action [ (nu) Sunset

19 HP Photosmart, nto M440/M540/M630

n,nnnnn nn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

nno nnn nn nn nn nnn no nnn nn

y, n901 no97n nnx nTix yin n7y
y) Camera Help ?-ix unnnn?nynn.

ninn no9n 5

nynnn

wnnn nn nnnn nn nn nn nn

-0xnn nn nn ytnn, ninn nnn DIO O.3 .0n

Macintosh

HP Photosmart Software nnnn nn no .1

.2
.3
.

System, wnn nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn. (HP Photosmart Camera

11n nn n 197nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

.1

.2

Format Card n nn n 3
pn nn, (nn) Delete nn (o nn) .(n/0n)Menu OK yyn7
pn nn (p) Yes nn nn △-wnnn .4 .0nn (n/0n)Menu OK yyn7

IIN IN IIN 10000000000000000000000000000000000000000000000

n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

ninn nnn

nynn nnnn HP Photosmart Software ninn nnnn nn nnnn nn nnnn (TNIINN, INN, ININ, ININN) nNONIN

wnn ,HP Photosmart Software nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn nnn nn.

HP nnnn nn nnnn nn nnnn nn nnnn nn nnnn, Photosmart Software. nnnn, nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nnnn

nnnnnn 12

nynnn nn

n7 nnn nn 7 yon nyuyny npny nny uynnnn 7 ytnn n no nnuynn nyu .nyu nn nuon

JX pH7 T A-wnun .1

y7 1 2

TINXNI HYNN OAN NXYNN

.הכלה (.הכלה) ON/OFF (.הכלה)	1
.((הכלה)/(.הכלה)	2
.(.הכלה)	3
Delete .(.הכלה) - (הכלה) Delete .(.הכ怆) .((הכ怆) Playback .(.הכ怆)	4
Picture .((הכ怆) Auto .((הכ怆) Capture .((הכ怆) Flash On, (הכ怆) Red-Eye .((הכ怆) Flash Off	5
.((הכ怆) Picture .((הכ怆) - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . . . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - . - .	6

nynnn

6

(wnnnn nn nn) View User Guide y n7 .2

.

N NNNN NNNN NNNN NNNN

JTNnn nn nn n .HP Photosmart Software ninn

:wnn nn nynnnn

HP Solution Center Windows

.（nry）help yyn

HP Device Manager:Macintosh

Camera User (HP w nn)

yinn nn nnn (nnnn nnwnn nn) Guide

. Information and Settings

yio n

yixn nnynnnn 100 nny

Learn yyn7,nt qta. www.hp.com nnnn nn

(About: Digital Photography

,nnn nn nnnn nn nnnn

. www.hp.com/support

HP Photosmart Software

.

5

HP Photosmart, no to M440/M540/M630

1ninn

7 7777777777777777777777777777777777777

הכלהה כרל​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​ה​­​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

הכלה​ ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​ ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​ ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

הכperation​ ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

HP​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​⁄

Photosmart Software

HP​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​⁄

HP​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​⁄

HP-​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​⁄

wnnnn nn n nn

HP w nn nn nn nn nn nn

Photosmart Software

:wnnnn nn

HP Photosmart Software nnnn nn noon .1

.

nynnn

4

Dn D

1nnn

1. .wnwnn nn nnnn
3. 7

nynnn npnn

1. 17101
6. 12
   13.......Windows
7. Macintosh

INTYo7 no7n nn n 3

2. INTYU7N77

IXI YOJI NNIH W JNNI 4

1. 16.

nnn noonni 5

17
17.

1. 6

3 HP Photosmart, nto M440/M540/M630

NiyTNI 'uyn ytn

Copyright 2007 Hewlett-Packard Development Company, L.P.

n nn nnnn nn nnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn

.

Microsoft Corporation non Windows®

non xin SD non

917xTINX2D'079n'7un2D'unnun T-ty T'xy n'109 noyn

77777777777777777777777777777777777777777777777

n nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

n nn nn nnn nn nn nn nn nn nn nn nn nn nn

:OxAn O'Onn NxNn, nTny nn 7

:

170090

：

HP Photosmart, nto M M540/M630

ATLCU

i n v e n t
