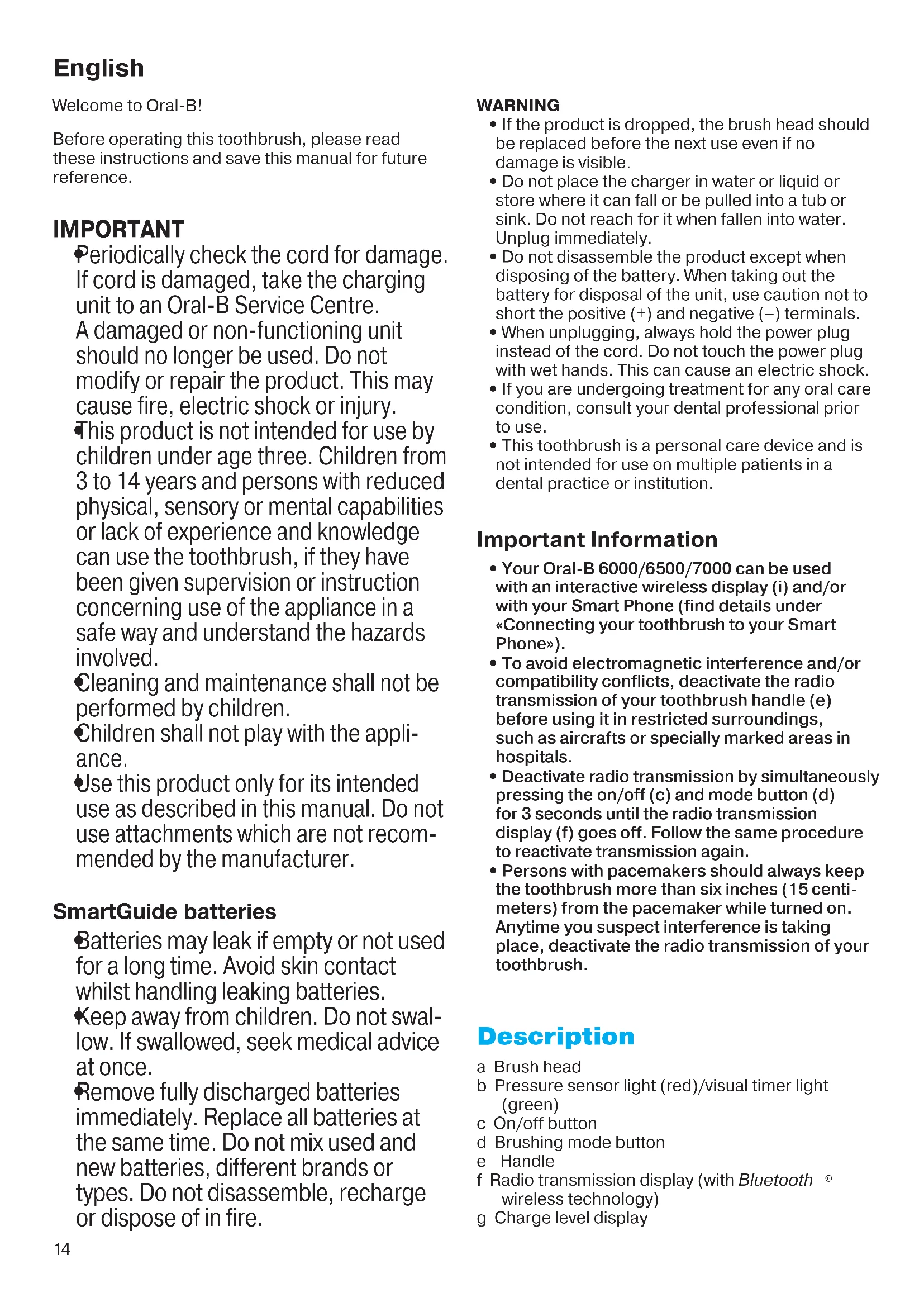

Periodically check the cord for damage. If cord is damaged, take the charging unit to an Oral-B Service Centre. A damaged or non-functioning unit should no longer be used. Do not modify or repair the product. This may cause fire, electric shock or injury.

This product is not intended for use by children under age three. Children from 3 to 14 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use the toothbrush, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and maintenance shall not be performed by children.

Children shall not play with the appli- ance.

Use this product only for its intended use as described in this manual. Do not use attachments which are not recom- mended by the manufacturer. SmartGuide batteries

Batteries may leak if empty or not used for a long time. Avoid skin contact whilst handling leaking batteries.

Keep away from children. Do not swal- low. If swallowed, seek medical advice at once.

Remove fully discharged batteries immediately. Replace all batteries at the same time. Do not mix used and new batteries, different brands or types. Do not disassemble, recharge or dispose of in fire. WARNING

• If the product is dropped, the brush head should be replaced before the next use even if no damage is visible.

• Do not place the charger in water or liquid or store where it can fall or be pulled into a tub or sink. Do not reach for it when fallen into water. Unplug immediately.

• Do not disassemble the product except when disposing of the battery. When taking out the battery for disposal of the unit, use caution not to short the positive (+) and negative (–) terminals.

• When unplugging, always hold the power plug instead of the cord. Do not touch the power plug with wet hands. This can cause an electric shock.

• If you are undergoing treatment for any oral care condition, consult your dental professional prior to use.

• This toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution. Important Information

• Your Oral-B 6000/6500/7000 can be used with an interactive wireless display (i) and/or with your Smart Phone (find details under «Connecting your toothbrush to your Smart Phone»).

• To avoid electromagnetic interference and/or compatibility conflicts, deactivate the radio transmission of your toothbrush handle (e) before using it in restricted surroundings, such as aircrafts or specially marked areas in hospitals.

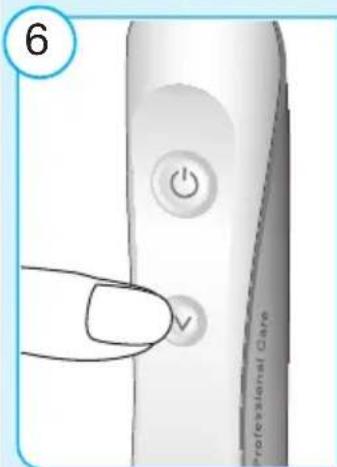

• Deactivate radio transmission by simultaneously pressing the on/off (c) and mode button (d) for 3 seconds until the radio transmission display (f) goes off. Follow the same procedure to reactivate transmission again.

• Persons with pacemakers should always keep the toothbrush more than six inches (15 centi- meters) from the pacemaker while turned on. Anytime you suspect interference is taking place, deactivate the radio transmission of your toothbrush. Description a Brush head b Pressure sensor light (red)/visual timer light (green) c On/off button d Brushing mode button e Handle f Radio transmission display (with Bluetooth

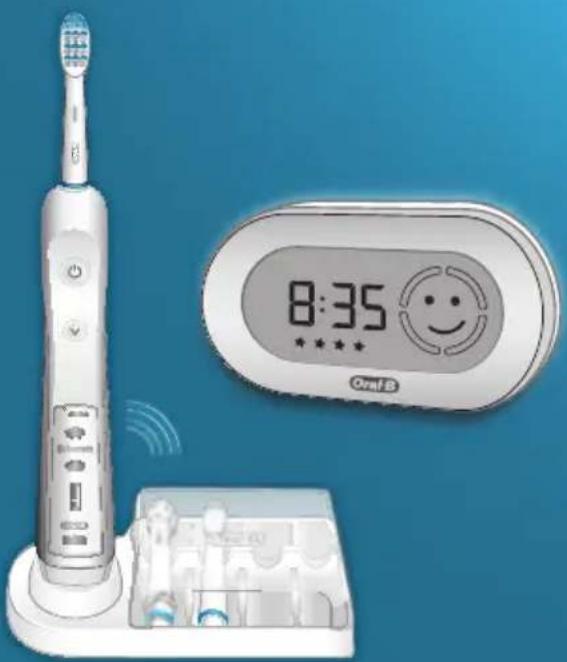

wireless technology) g Charge level display English 96507503_D36_WE_S6-92.indd 14 08.01.14 08:1815 h Charging unit (basic charger and brush head compartment with protective cover) i SmartGuide j SmartGuide holder k Wall mount l Adhesive ring m Travel case (depending on model) n Travel charger pouch (depending on model) Specification For voltage specifications refer to the bottom of the charging unit. Connecting and charging Your toothbrush has a waterproof handle, is electrically safe and designed for use in the bathroom.

• Plug the charger (h) into an electrical outlet and place the toothbrush handle (e) on the charging unit.

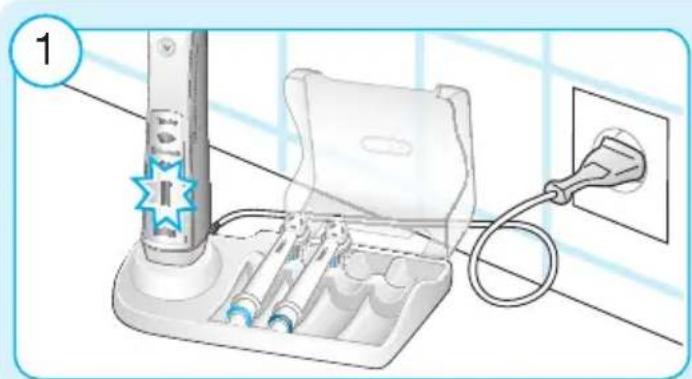

• The flashing blue lights indicate that the tooth- brush is charging (picture 1, page 5); once it is fully charged, the lights turn off. A full charge can take up to 24 hours and enables up to ten days of regular brushing (twice a day, 2 minutes). Note: After deep discharge, the blue lights might not flash immediately; it can take up to 10–15 minutes.

• If the rechargeable battery is low a blue light is flashing on the charge level display (g) for some seconds when turning your toothbrush on/off. If the rechargeable battery is empty the motor will stop and an orange light is flashing on the charge level display; it will need a 40-minute charge before you can use it for a 2-minute brushing.

• For everyday use, the toothbrush handle can be stored on the charging unit to maintain it at full power. Overcharging is impossible.

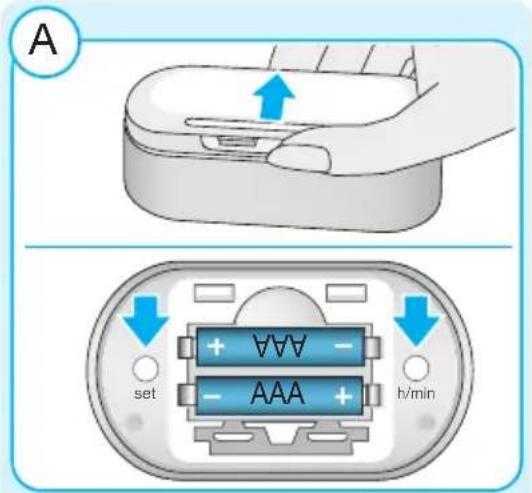

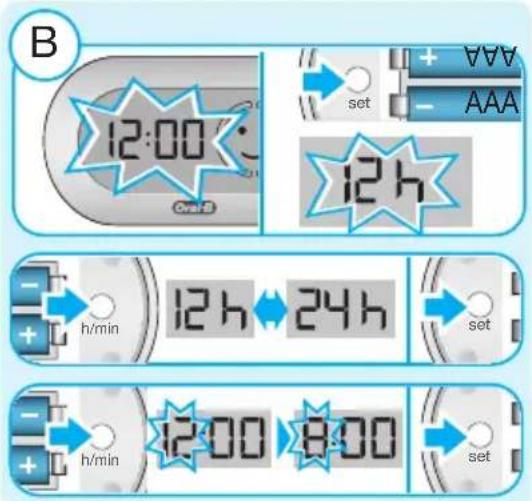

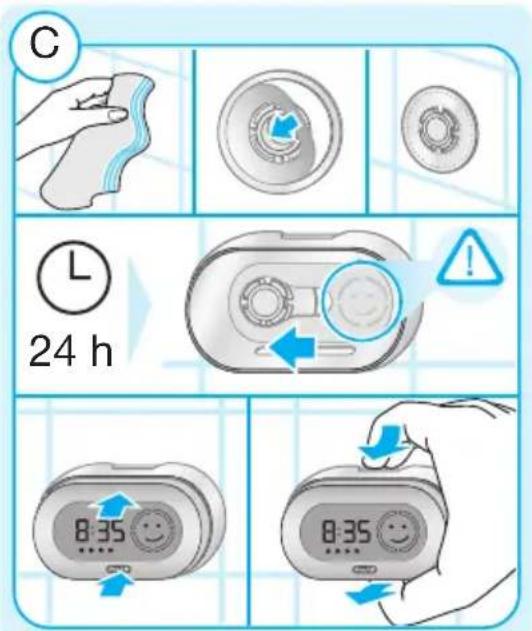

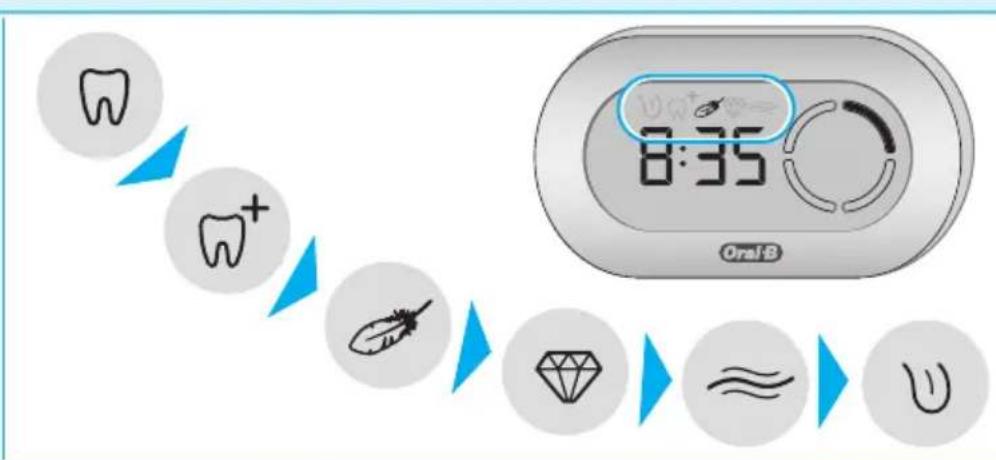

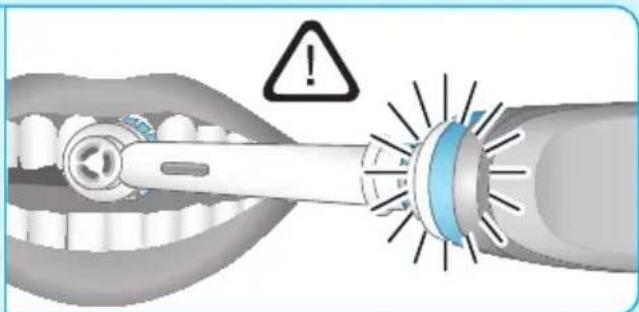

• To maintain the maximum capacity of the rechargeable battery, unplug the charging unit and fully discharge the handle with regular use at least every 6 months. SmartGuide adjustments The SmartGuide (i) comes with a demonstration mode. Deactivate this mode by removing the compartment cover in the back (picture A, page 4) and push the «set» or «h/min» button. A flashing «12:00» indicates that you can now adjust the clock time. Note: If the SmartGuide display is blank before first use (no active demonstration mode/no batteries inserted) the batteries will need to be replaced/ inserted before continuing. Batteries are supplied. Clock Time Press and hold the «set» button until «12h» is displayed. By briefly pressing the «h/min» button, you can toggle between «12h» or «24h» daytime format. Push «set» to confirm your choice. Then the hour digit starts flashing. Press the «h/min» button until the right hour appears and confirm with «set». Proceed same way to set both minute digits (picture B, page 4). SmartGuide Icons (depending on model) Displayed Icon Meaning «Daily Clean» mode «Deep Clean» mode «Sensitive» mode «Whitening» mode «Gum Care» mode «Tongue Cleaning» mode Too much pressure is applied. Reduce the brushing force. «Quadrant circle» Move to the next quadrant of your mouth when the relevant segment flashes. You reached the dentist recom- mended 2-minute brushing time (3-minute brushing time within the Deep Clean mode). After use your brushing time will be rewarded with stars. SmartGuide batteries are low. Change batteries of the SmartGuide. 96507503_D36_WE_S6-92.indd 15 08.01.14 08:1816 Using your toothbrush Brushing technique Wet brush head and apply any kind of toothpaste. To avoid splashing, guide the brush head to your teeth before switching on the appliance (picture 2, page 5). When brushing your teeth with one of the Oral-B oscillating-rotating brush heads guide the brush head slowly from tooth to tooth, spending a few seconds on each tooth surface (picture 3, page 5). When using the Oral-B «TriZone» brush head place the toothbrush bristles against the teeth at a slight angle towards the gumline. Apply light pressure and start brushing in back and forth motions, just like you would do with a manual toothbrush (picture 4, page 5). With any brush head start brushing the outsides, then the insides and finally the chewing surfaces. Brush all four quadrants of your mouth equally. You may also consult your dentist or dental hygienist about the right technique for you. In the first days of using any electric toothbrush, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or dental hygienist. If you have sensitive teeth and/or gums, Oral-B recommends using the «Sensitive» mode (optional in combination with an Oral-B «Sensitive» brush head). Timer You can choose between «Professional» or «2-Minute» timer. The «2-Minute» timer signals with a short stuttering sound and a green light (b) that the dentist recom- mended 2-minute brushing time has been reached. The «Professional» timer signals with a short stuttering sound and a green light at 30-seconds intervals to move to the next quadrant of your mouth (45 seconds intervals within «Deep Clean» mode) (picture 5, page 5). A long stuttering sound and a green light indicate the end of the profes- sionally recommended 2-minute brushing time (3-minute brushing time within «Deep Clean» mode. The timer memorizes the elapsed brushing time, even when the handle is briefly switched off during brushing. The timer resets if pausing longer than 30 seconds or briefly pressing the mode button (d) during pause. Personalizing the timer Your toothbrush comes with the «Professional» timer activated. To change this, press and hold the brushing mode button for 3 seconds until the SmartGuide shows «:30» and «timer». Briefly press the on/off button to switch to the «2-Minute» timer. Push the mode button to confirm. Pressure sensor If you put excessive pressure on your teeth, the red pressure sensor light (b) will light up (picture 5, page 5). Additionally, when brushing in «Daily Clean» or «Deep Clean» mode, the brushing mode will change to the «Sensitive» mode. Periodically check the operation of the pressure sensor by pressing moderately on the brush head during use. Note: In «Tongue Cleaning» mode the pressure sensor is turned off. Brushing modes (depending on model) Your toothbrush offers different brushing modes: «Daily Clean» – Standard mode for daily mouth cleaning «Deep Clean» – Mouth cleaning with extended brushing time of 45 seconds per quadrant (3 minute total brushing time) «Sensitive» – Gentle, yet thorough cleaning for sensitive areas «Whitening» – Polishing for occasional or everyday use «Gum Care» – Gentle massage of gums «Tongue Cleaning» – Tongue cleaning for occasional or everyday use When operating the «Tongue Cleaning» mode, we recommend using the «Sensitive» brush head. You can brush your tongue either with or without toothpaste. Brush the whole area of your tongue systematically in gentle movements. The recommended brushing time is 20 seconds; the SmartGuide will indicate completion with a smiley face. Your toothbrush automatically starts in the «Daily Clean» mode. To switch to the other modes, succes- sively press the mode button (picture 6, page 5). To return from any mode back to the «Daily Clean» mode, press and hold the mode button. The brushing mode is memorised even when the handle is briefly switched off during brushing. When pausing longer than 30 seconds or briefly pressing the mode button (d) during pause the brushing mode resets to the «Daily Clean» mode. Brush heads Oral-B offers you a variety of different Oral-B brush heads that fit your Oral-B toothbrush handle. Our oscillating-rotating brush heads can be used for tooth-by-tooth precision cleaning. 96507503_D36_WE_S6-92.indd 16 08.01.14 08:1817 Oral-B CrossAction brush head Our most advanced brush head. Angled bristles for a precise clean. Lifts and powers away plaque. Oral-B FlossAction brush head features micropulse bristles that allow for an outstanding plaque removal in the interdental areas. Oral-B 3D White brush head features a special polishing cup to naturally whiten your teeth. Please note that children under 12 years old should not use the Oral-B «3D White» brush head. Oral-B Sensitive brush head features an extra soft bristle structure that is gentle on teeth and gums. Our sweeping «TriZone» brush head can be used with all common brushing techniques. Oral-B TriZone brush head features triple zone cleaning action for outstanding plaque removal, even in between teeth. Oral-B brush heads feature light blue INDICATOR

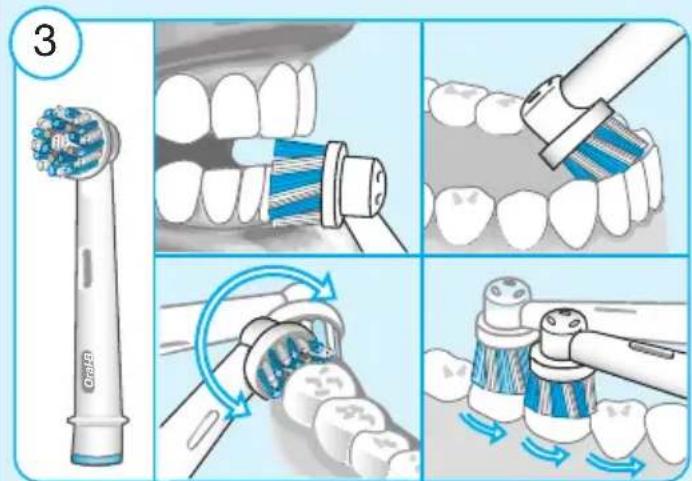

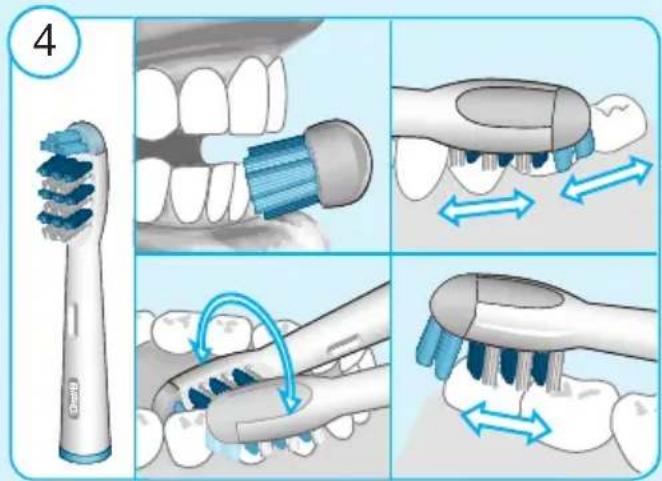

bristles to help you monitor brush head replace- ment need. With thorough brushing, twice a day for two minutes, the blue color will fade halfway approximately within 3 months, indicating the need to exchange your brush head. If the bristles splay before the color recedes, you may exert too much pressure on teeth and gums. We do not recommend using the Oral-B «FlossAction» or Oral-B «3D White» brush head with braces. You may use the Oral-B «Ortho» brush head, specifically designed to clean around braces and wires. Synchronizing your toothbrush To avoid interference of display messages when using more than one Oral-B toothbrush with radio transmission and SmartGuide in the same house- hold, you need to assign the handles to their respective SmartGuide. You can synchronize a maximum of 2 handles with one SmartGuide. To do so, push the «h/min» button in the battery compartment for at least 3 seconds. The SmartGuide shows «L---». Turn on your handle to start the synchronization process. It is finished when «L-1-» is displayed. Turn off the handle. To assign a second handle to the same SmartGuide turn on the other handle until «L-2-» is displayed. After having synchronized the second handle, «Full» will be displayed. Exit the synchronization mode by pressing the «h/min» or «set» button, otherwise it will end automatically after 30 seconds. Connecting your toothbrush to your Smart Phone Download the Oral-B™ app for free from App Store (SM) or Google Play™. The Oral-B™ app gives you the opportunity to use your time more efficiently, chart your brushing progress and customize your toothbrush settings (for more benefits see the Oral-B™ app instructions).

• Before using the Oral-B™ app make sure Bluetooth is activated on your smart phone (for directions please refer to your smart phone’s user manual). Your toothbrush will appear in the list of devices as: «Oral-B toothbrush». Note: Oral-B™ app functionality is limited if Bluetooth is deactivated.

• Start the Oral-B™ app. You can use the app and your SmartGuide (i) at the same time.

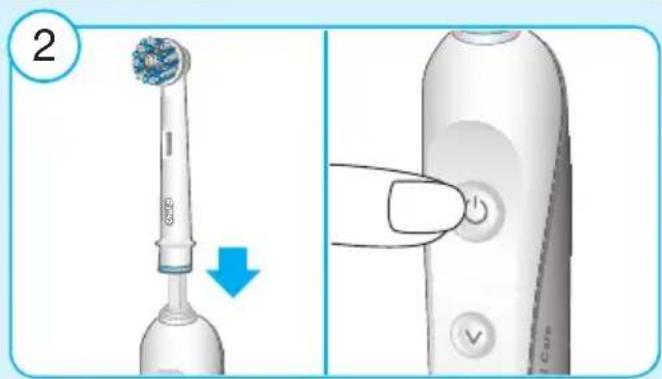

• Once you start using your toothbrush by lifting it off the plugged-in charger (h) or pressing any button (c)/(d), it automatically connects to the Oral-B™ app. If no connection has been established, briefly press the mode button (d) on your toothbrush handle and wait for a connection.

• Any further app instructions will be displayed on your smart phone.

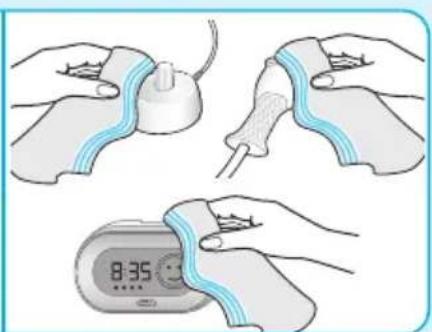

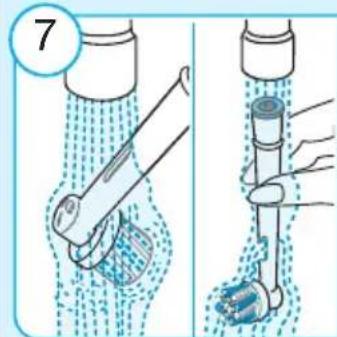

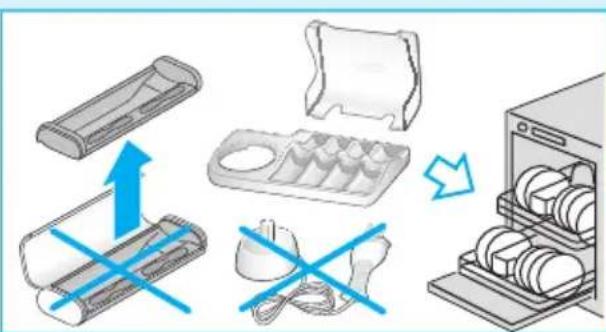

• Keep your smart phone in close proximity when using it with your toothbrush handle. Make sure the smart phone is safely positioned in a dry place. Note: Your smart phone must support Bluetooth 4.0 (or higher) in order to connect to your toothbrush handle. Cleaning recommendations After brushing, rinse your brush head under running water with the handle switched on. Switch off and remove the brush head. Clean handle and brush 96507503_D36_WE_S6-92.indd 17 08.01.14 08:1818 head separately; wipe them dry before reassembling. Disassemble the charging unit before cleaning. Brush head compartment and protective cover are dishwasher-safe. Both basic charger and SmartGuide should be cleaned with a damp cloth only. The removable inner part of the travel case (m) is dishwasher-safe. The outer case should only be wiped clean with a damp cloth (picture 7, page 5). Make sure that travel case parts are completely dry before reassembling and toothbrush/brush heads are dry before storing in the travel case. Note: Clean stains on the travel case surface imme- diately. Store travel case in a clean and dry place. Wall mount Use the adhesive ring (l) with the wall mount (k) if you prefer to mount the SmartGuide on a wall, mirror or other surface. Make sure the chosen surface is clean and dry before adhering. Stick the adhesive ring on the even side of the wall mount and press it firmly to the wall. Wait 24h before sliding the SmartGuide holder (j) into the fixed wall mount. Place the SmartGuide into its holder (picture C, page 4). The adhesive ring will not work on dirt-repellent surfaces. Subject to change without notice. This appliance complies with the require- ments covered by the European Directive 1999/5/EC. Receiver Class 3, Duty Cycle Class 3. To find the complete EC declaration of conformity, please visit www.oralb.com/ce. Environmental Notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at an Oral-B Braun Service Centre or at approved recycling or disposing locations in accordance with local regulations. Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use, especially regarding the brush heads, as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are under- taken by unauthorised persons and if original Braun parts are not used. This appliance is equipped with a Bluetooth Smart approved radio module. Failure to establish a Bluetooth Smart connection to specific smart phones is not covered under the device guarantee, unless the Bluetooth radio module of this appliance is damaged. The Bluetooth devices are warranted by their own manufacturers and not by Oral-B. Oral-B does not influence or make any recommendations to device manufacturers, and therefore Oral-B does not assume any responsibility for the number of com- patible devices with our Bluetooth systems. Oral-B reserves the right, without any prior notice, to make any technical modifications or changes to system implementation of device features, inter- face, and menu structure changes that are deemed necessary to ensure that Oral-B systems function reliably. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Oral-B Braun Customer Service Centre. This guarantee in no way affects your rights under statutory law. Important information on Bluetooth

radio module Although all indicated functions on the Bluetooth device are supported, Oral-B does not ensure 100% reliability in connection, and feature operation consistency. Operation performance and connection reliability are direct consequences of each individual Bluetooth device, software version, as well as the 96507503_D36_WE_S6-92.indd 18 08.01.14 08:1819 operating system of those Bluetooth devices and company security regulations implemented on the device. Oral-B adheres to and strictly implements the Bluetooth standard by which Bluetooth devices can communicate and function in Oral-B toothbrushes. However, if device manufacturers fail to implement this standard, Bluetooth compatibility and features will be further compromised and the user may experience functional and feature-related issues. Please note that the software on the Bluetooth device can significantly affect compatibility and operation. Warranty replacement brush heads Oral-B warranty will be voided if electric recharge- able handle damage is found to be attributed to the use of non-Oral-B replacement brush heads. Oral-B does not recommend the use of non Oral-B replacement brush heads.

• Oral-B has no control over the quality of non- Oral-B replacement brush heads. Therefore, we cannot ensure the cleaning performance of non-Oral-B replacement brush heads, as communicated with the electric rechargeable handle at time of initial purchase.

• Oral-B cannot ensure a good fit of non-Oral-B replacement brush heads.

• Oral-B cannot predict the long-term effect of non-Oral-B replacement brush heads on handle wear. All Oral-B replacement brush heads carry the Oral-B logo and meet Oral-B’s high quality standards. Oral-B does not sell replacement brush heads or handle parts under any other brand name. Satisfaction Guaranteed or your money back! Take the 30-day-challenge! Oral-B Pro/TriZone with SmartGuide is Oral-B’s most technologically advanced rechargeable toothbrush for outstanding cleaning and whitening, gentle gum care and freshening of your mouth. We are so convinced you’ll fall in love with your new toothbrush that we give you this risk-free offer. Try Oral-B Pro/TriZone with SmartGuide for 30 days, starting from the day of purchase. If you are not 100% satisfied, receive a full refund. No ques- tions asked. For a full refund, please return your handle, refills, SmartGuide and charging unit with your original cash register receipt to the address below within 30 days of purchase. Oral B Money Back Guarantee Dept. PX415 PO Box 10 Diss Norfolk IP98 3SP For further details, please contact our customer service 0800 7311 792 to be referred to the authorised Oral-B Braun Service Centre closest to you. 96507503_D36_WE_S6-92.indd 19 08.01.14 08:1820 Trouble Shooting Problem Possible reason Remedy TOOTHBRUSH Oral-B handle does not operate with SmartGuide

1. Synchronizing with

2. Radio transmission is

deactivated; radio trans- mission display (f) is turned off.

3. Handle has no radio

transmission installed

1. Synchronize your toothbrush(es) (again).

Follow steps under «Synchronizing your toothbrush»

2. Activate the radio transmission by

simultaneously pressing the on/off (c) and mode button (d) for 3 seconds until the radio transmission display (f) turns on

3. Oral-B handle with radio transmission

installed can operate with SmartGuide only

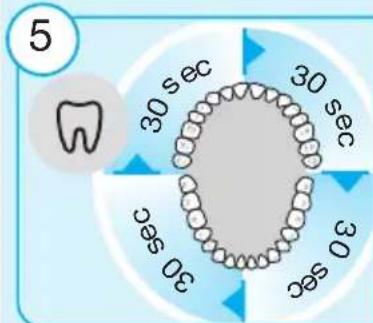

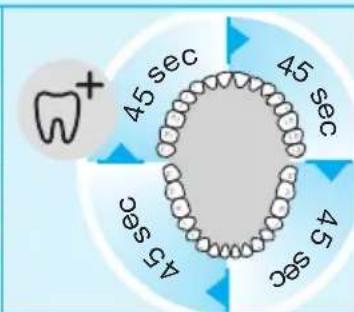

sounds/flashing green light every 30 seconds (45 seconds in Deep Clean mode)

2. Stuttering sound/

flashing green light only after 2 minutes (3 minutes in Deep Clean mode)

1. Set your timer to 2-Minute timer; follow

steps under «Personalizing the timer»

2. Set your timer to Professional timer

(stuttering sounds/flashing green light every 30 seconds); follow steps under «Personalizing the timer» Gums bleed slightly 1. May happen in first days of usage

1. Bleeding should stop after a few days.

Should it persist after 2 weeks, please consult your dentist or dental hygienist.

1. Oral-B app is turned off

2. Bluetooth is not activated

3. Radio transmission is

deactivated; radio transmission display (f) is turned off

4. Connection to Bluetooth

5. Your smart phone does

not support Bluetooth 4.0 (or higher)

1. Turn on Oral-B app

2. Activate Bluetooth on your smart phone;

described in its user manual

3. Activate the radio transmission by

simultaneously pressing the on/off (c) and mode button (d) for 3 seconds until the radio transmission display (f) turns on

4. Briefly press the mode button (d) to

re-connect. Keep your smart phone in close proximity when using it with the toothbrush handle

5. Your smart phone must support Bluetooth

4.0 (or higher) in order to connect to your
