Keratin Protect AC8002 - Hair dryer REMINGTON - Free user manual and instructions

Product Type	Hair Dryer
Brand	Remington
Model	Keratin Protect AC8002
Power	800 W
Power Source	Mains
Number of Speed/Temperature Settings	3 (BotaniCare, high, cool shot)
Rotation Function	Yes, with 50 mm brush (clockwise/counterclockwise)
Included Accessories	50 mm soft pin brush, rigid flat brush, pre-styling nozzle, protective cover
Rotating Brush Type	50 mm soft pin
Flat Brush	Rigid for smoothing
Pre-Styling Nozzle	For drying 80%
Removable Air Inlet Grille	Yes, for cleaning
Swivel Cord	Yes
Hanging Loop	Yes
Safety	Automatic shut-off if grilles obstructed, heat protection
Protection Recommendation	Use a residual current device (RCD) ≤ 30 mA in bathroom
Care and Cleaning	Wipe with damp cloth, clean filter regularly with soft brush
Weight	Approximately 0.5 kg (estimate)
Dimensions (L x W x H)	Approximately 25 x 10 x 10 cm (estimate)

Frequently Asked Questions - Keratin Protect AC8002 REMINGTON

How to use the brush rotation function?

To use rotation, first select a temperature setting (BotaniCare or high). Then, press the right arrow (▶) for clockwise rotation or the left arrow (◀) for counterclockwise rotation. Rotation only starts if a temperature is selected.

What accessories are included with the hair dryer?

The Keratin Protect AC8002 model comes with a 50 mm soft pin brush, a rigid flat brush, a pre-styling nozzle, and a protective cover to store the brush.

How do I clean the hair dryer filter?

To clean the filter, remove the removable air inlet grille (see figure C in the manual). Clean it with a cloth or a soft brush to remove dust and dirt. Replace it after drying.

What is the power of this device?

The Remington Keratin Protect AC8002 has a power of 800 W, allowing efficient drying while protecting hair thanks to BotaniCare technology.

How do I use the BotaniCare setting?

The BotaniCare setting is designed for gentle drying. Slide the speed/temperature selector to the BotaniCare position to benefit from a lower temperature, ideal for fragile hair or styling without damage.

Can I use this device in the bathroom?

Yes, but with caution. Do not use it near a bathtub or shower. Unplug it after use and, for optimal safety, install a residual current device (RCD) of 30 mA maximum.

How to create volume with the rotating brush?

Place the 50 mm brush under a section near the roots, hold for a few seconds while lifting the hair. Then, rotate the brush by pressing the appropriate arrow while moving down the section. For more volume, wrap the ends around the brush.

What if the brush rotates too fast?

If rotation is too fast, release the rotation direction selector switch and gently remove the brush from your hair. You can then resume at a slower pace by briefly pressing the switch.

How do I remove an accessory?

To remove an accessory, align the ☐ symbol with the ☐ mark on the body of the device, then pull to detach. Ensure the accessory has cooled down before removing.

Is this device suitable for thick hair?

Yes, the high heat setting (♂ symbol) is ideal for thick and difficult to style hair. Use the rigid flat brush for smoothing or the rotating brush to add volume.

USER MANUAL Keratin Protect AC8002 REMINGTON

Product photo of a Remington brand hairdryer with a black-and-white brush, no visible text or symbols on the tool itself.

Botanicals™ Rotating Air Styler AS5860

1 2 4 3 5 6

Diagram of a cylindrical mechanical component with evenly spaced teeth and central slots (no text or symbols)

7

Illustration of a hairbrush with bristles (no text or symbols)

8

Simple line drawing of a curved, elongated object resembling a bent tube or handle (no text or symbols)

9

A

B

Diagram of a hand holding a fan with an arrow pointing to it, no text or symbols present

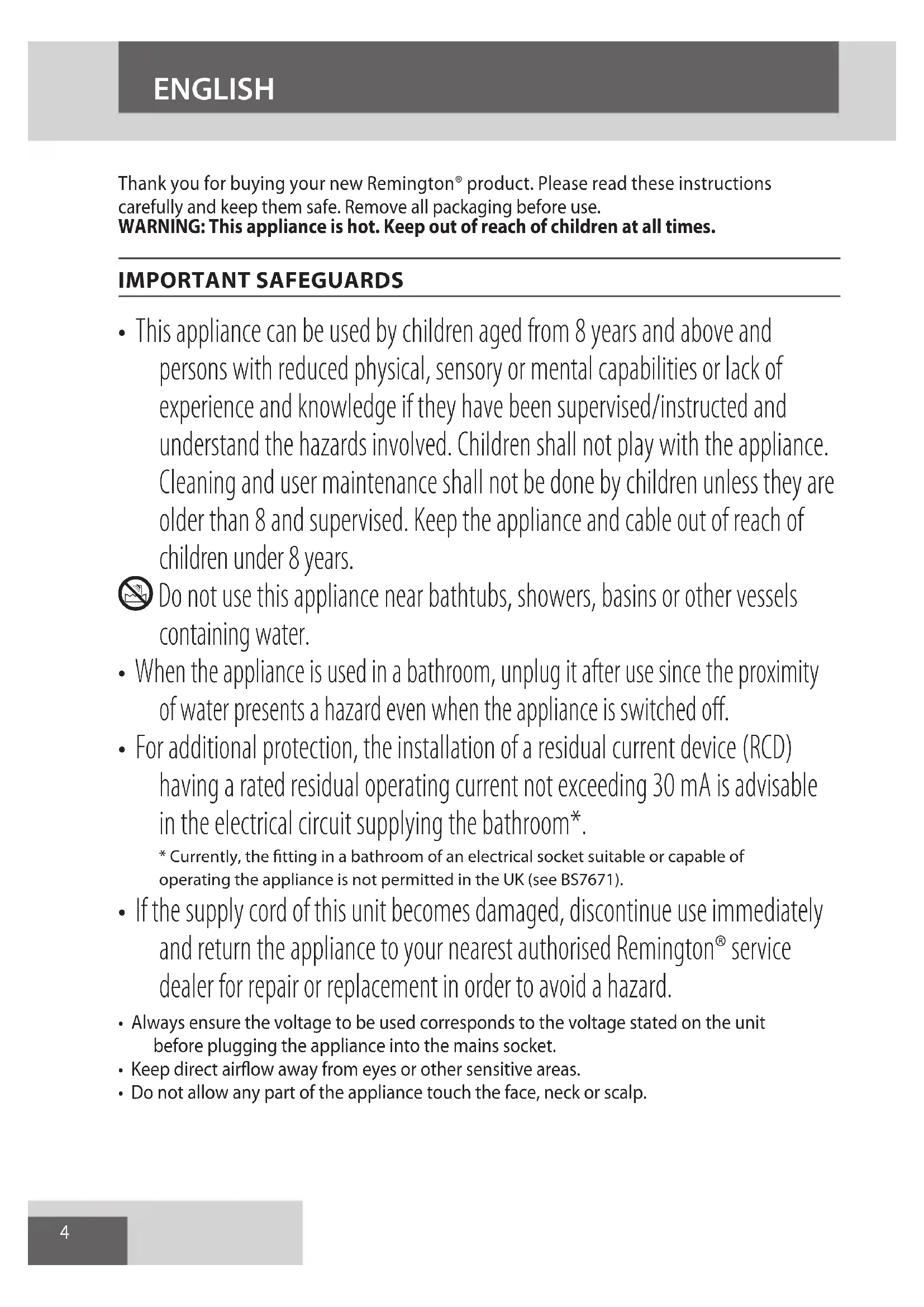

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

WARNING: This appliance is hot. Keep out of reach of children at all times.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom*.
  * Currently, the fitting in a bathroom of an electrical socket suitable or capable of operating the appliance is not permitted in the UK (see BS7671).
• If the supply cord of this unit becomes damaged, discontinue use immediately and return the appliance to your nearest authorised Remington® service dealer for repair or replacement in order to avoid a hazard.
• Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.
• Keep direct airflow away from eyes or other sensitive areas.

• Do not allow any part of the appliance touch the face, neck or scalp.

• During use, always ensure the inlet and outlet grilles are not blocked in any way as this will cause the unit to automatically stop. If this should occur, switch off and allow the unit to cool.

• Keep the power plug and cord away from heated surfaces.
• Do not leave the appliance unattended while plugged in.
• Do not place the appliance on any soft furnishings.
• Do not use attachments other than those we supply.
• Do not set the appliance down while still on.
• Do not twist or kink the cable, or wrap it round the appliance.
• Do not use the appliance if it is damaged or malfunctions.
• Check the cord regularly for any sign damage.
• This appliance is not intended for commercial or salon use.

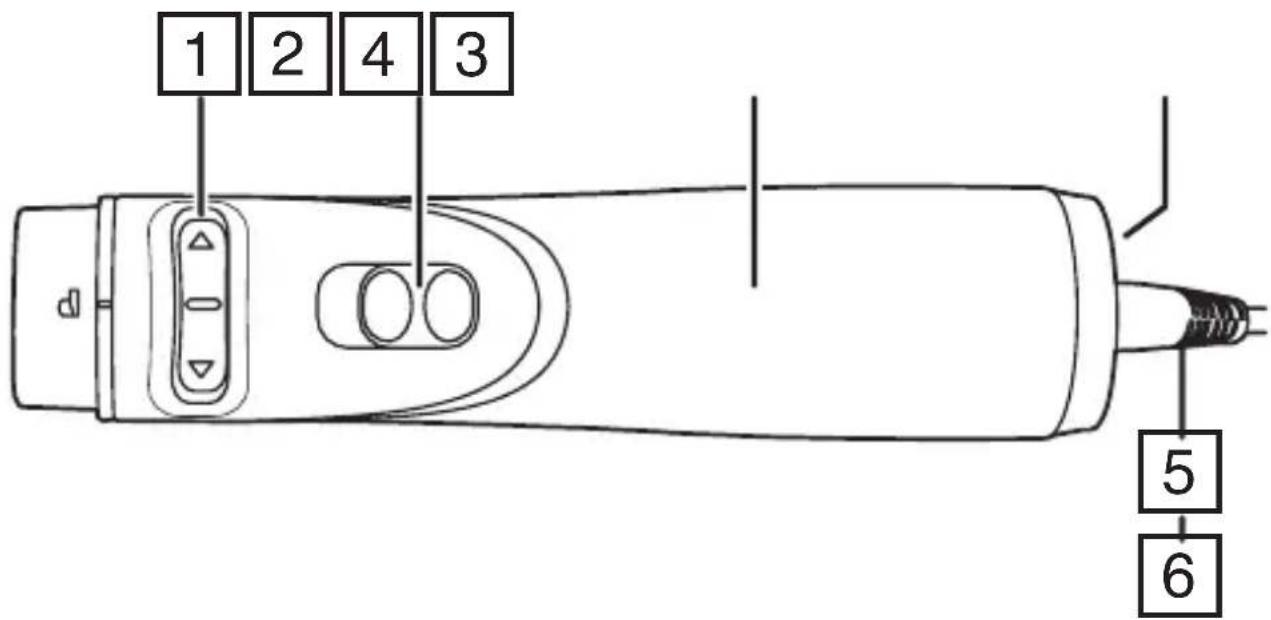

PARTS

1. Rotation switch
2. Speed/heat selector switch (”, ), *)
3. Handle
4. Removable inlet grille
5. Swivel cord

6. Hang up loop

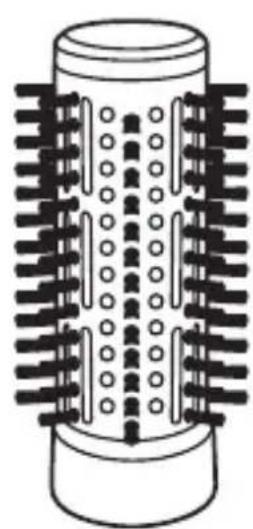

7. 50 mm soft bristle brush

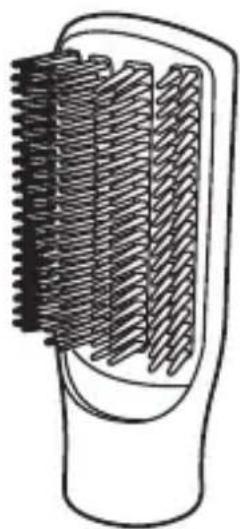

8. Firm paddle brush

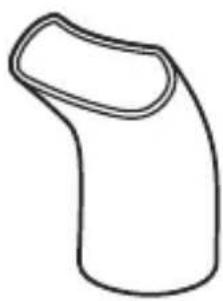

9. Pre-styling nozzle
   Not shown:
10. Protective cover

INSTRUCTIONS FOR USE

• Plug the product into the mains power supply.
• Select your attachment before you turn on the appliance.

To fit an attachment:

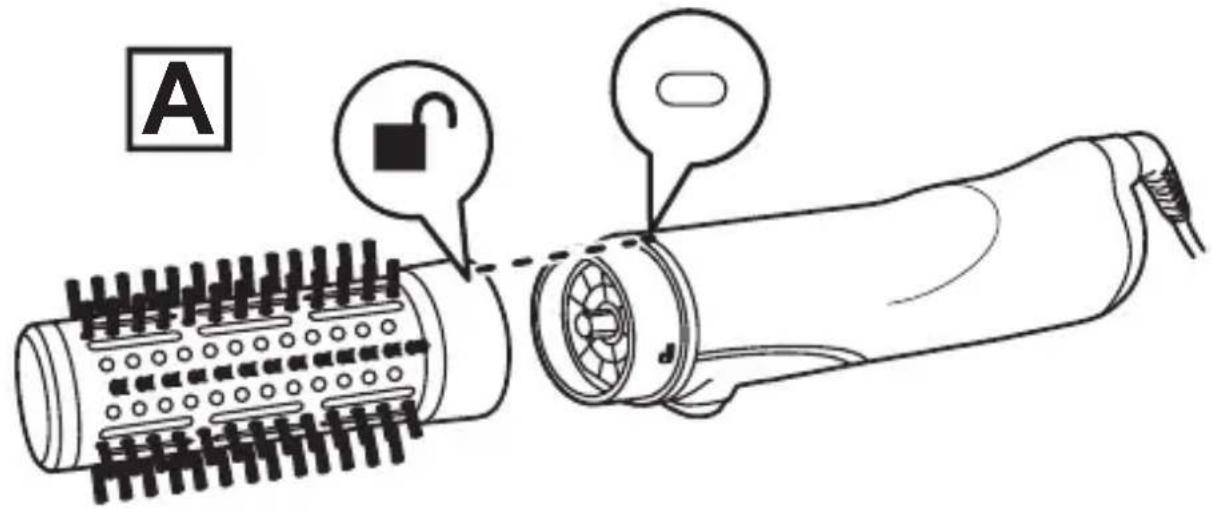

- Align the symbol on the attachment with the mark on the body (fig. A).

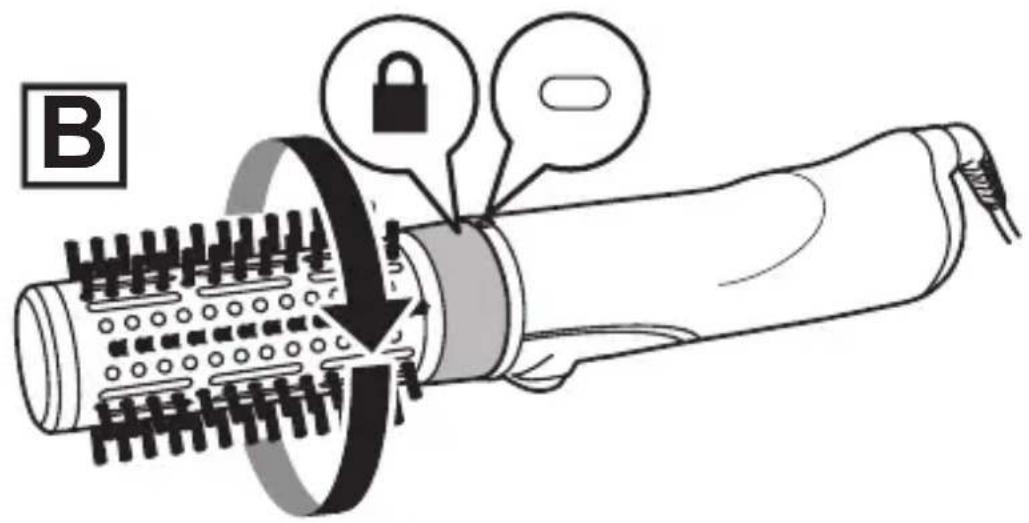

- Turn the ring on the 50mm brush, or the attachment itself (paddle brush or pre-styling nozzle) until the 🔒 symbol is aligned with the ☐ mark to secure (fig. B).

To remove an attachment

- Align the symbol with the mark and pull the attachment off the handle.

Speed and temperature settings

- To turn the appliance on slide the speed/heat selector switch to 📋 for the BotaniCare setting, 🌐 for high heat or ✉ for the cool setting.

Temperature Hair Type
BotaniCare 🎨	For gentle styling
High 🌐	Ideal for thick and difficult to style hair
Cool ✉	Helps to set your style with cool air

Rotation settings

• Only the 50 mm brush rotates.
• To use the rotating function press the right arrow (▶) on the rotation switch to rotate the attachments clockwise and the left arrow (◀) to rotate the attachments anti clockwise.
• NOTE: The brush attachment will only start rotating when a temperature setting has been selected.

Prepare the hair for styling

• Wash and condition the hair as normal.
• Squeeze out excess moisture with a towel and comb through.
  • Using the pre-styling nozzle rough dry the length and roots until 80% dry.
• Divide the hair into sections, style the lower layers first.

Create volume and shape using the 50mm rotating brush

• To dry your roots and add volume, place the brush underneath the section close to the roots and hold for a few seconds, lifting the hair as you dry.
• Move the stylist downwards through the hair section, at the same time rotate the brush away from the head by pressing and holding ◀or ▶ as required.
• Keep moving the stylist downwards to resist the brush rotation. Doing this will create tension through the section of hair.
• If the brush spins too quickly release the rotation switch and remove the brush from your hair.
• To create shape, continue rotating the brush until you reach the ends of the hair and then roll the ends under.
• For even more volume, wrap the bottom of the hair section around the brush. Press and hold the applicable rotation switch (◀▶) and wind the entire length of the section around the barrel, stopping at the roots. Release the rotation switch and hold the brush in the hair for a few seconds or until the section is dry.
• Repeat this around the head.
• Let the hair cool before styling.
• Let the attachment cool before removing.
• Place the protective cover over the brush head to protect the bristles from damage in storage.

Create smooth, sleek hair using the firm paddle brush

• Starting at the roots, slowly brush through each section just as you would with a normal brush.
• To add additional volume tip your head upside down and brush the underneath of your hair.
• When dry use your fingers to shape the hair and ends.
• Let the attachment cool before removing

STORAGE, CLEANING AND MAINTENANCE

• After use, turn the appliance off by moving the temperature control switch to the O position.
• Unplug the appliance and allow to cool before cleaning and storing away.
• Wipe all surfaces with a damp cloth
• Don't use harsh or abrasive cleaning agents or solvents,
• To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the inlet grille.

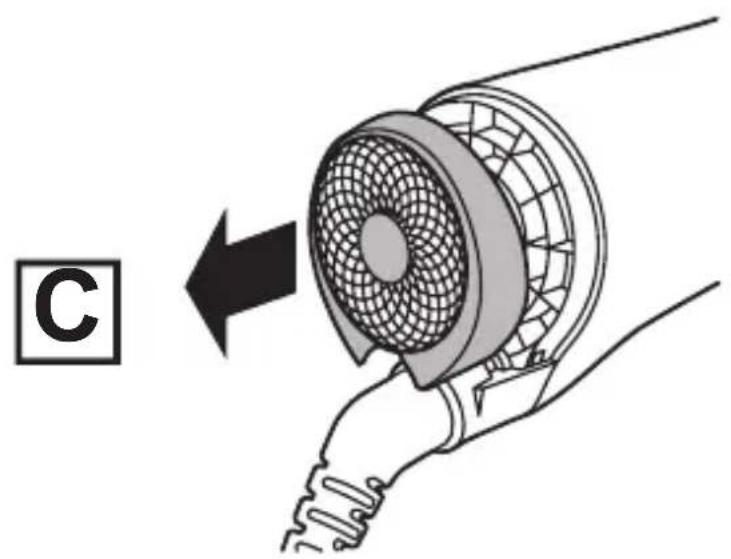

• Remove the grille as shown (fig. C), clean with a cloth or soft brush, then replace it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

Solid gray rectangular shape with no text, symbols, or discernible features

Ref. No. AS5860

Type No. AS13A

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
