Technical Specifications	Active subwoofer, 10-inch speaker, 300 watts power (peak), frequency response from 32 Hz to 120 Hz.
Connectivity	RCA inputs, LFE input, compatible with home theater audio systems.
Usage	Ideal for movies and music, enhances bass in home audio systems.
Dimensions	Dimensions: 36.2 x 35.6 x 35.6 cm, weight: 13.6 kg.
Maintenance	Clean with a soft cloth, avoid moisture, check connections regularly.
Safety	Do not expose to water, use in a dry environment, respect power limits.
General Information	2-year limited warranty, elegant wood design, available in black finish.

Frequently Asked Questions - R100SW KLIPSCH

The KLIPSCH R100SW subwoofer does not turn on, what should I do?

Check that the subwoofer is properly plugged into a working power outlet. Make sure the power switch is in the "ON" position. If the problem persists, try changing the power cable.

Why is the sound of the KLIPSCH R100SW weak?

Make sure the subwoofer volume is set correctly and that it is not in "standby" mode. Also check the settings of the receiver or amplifier it is connected to.

How do I connect the KLIPSCH R100SW to my audio system?

The R100SW can be connected via an RCA cable using the "Subwoofer" output of your receiver or amplifier. Make sure to select the correct input mode on the subwoofer.

The subwoofer makes strange noises, what should I do?

These noises may be caused by a poor connection. Check all connections and ensure there are no interferences from other devices. If the problem persists, contact technical support.

How do I adjust the frequency settings of the KLIPSCH R100SW?

Use the frequency adjustment knob located on the back of the subwoofer to adjust the crossover frequency according to your preferences. A frequency of 80 Hz is generally recommended for use with standard-sized speakers.

Is the subwoofer compatible with all audio systems?

Yes, the KLIPSCH R100SW is compatible with most audio systems that have a subwoofer output. Just make sure to use the appropriate cables.

How can I optimize the placement of the KLIPSCH R100SW in my room?

It is recommended to place the subwoofer in a corner of the room for better bass amplification. Avoid placing it near walls to minimize unwanted reflections.

Is the KLIPSCH R100SW portable?

The R100SW is a relatively lightweight subwoofer, but it is designed to be permanently installed in your audio setup. If you need to move it, do so carefully.

How do I know if the KLIPSCH R100SW is defective?

If the subwoofer does not turn on, makes abnormal noises, or produces no sound, it may be defective. First check all connections and settings. If the problem persists, contact customer service.

Can I use the KLIPSCH R100SW with a television?

Yes, the KLIPSCH R100SW can be used with a television by connecting it to a receiver or amplifier that is itself connected to the TV.

USER MANUAL R100SW KLIPSCH

W EST. 1946 HOPE, AR

USER MANUAL

Klipsch®

REFERENCE

SUBWOOFERS

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison

2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound ^8 .

Concentric circles diagram with no text or symbols, centered on a square frame (no readable labels or symbols)

Simple circular diagram with concentric rings and control points, no text or symbols present

ENGLISH

REFERENCE SUBWOOFERS

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

INSPECTION

We want your new speaker system to lock as good as it did leaving the factory! Please check promptly for any transit damage. Carefully unpack your new speaker system and verify the components against the packing list, in extreme circumstances, items may have become

damaged in transit. If any damage is discovered, notify the delivery service and dealer where the system was purchased. Make a request for inspection, and follow their instructions for evaluation. Be sure to keep the product's original shipping carlon.

POSITIONING YOUR REFERENCE SUBWOOFER

Kilpsch powered subcooters are designed to reproduce deep bass and deliver the impact that makes your mvins and music come alive. For optimum performance, place your subcooter in a corner of the room on the same wall as your front channel speakers, refer to Figure 16. Please note that room placement can have a dramatic effect on the performance of your powered subcooter. Corner placement, as suggested above, will increase the amount of bass output, while picking the subcooter along the middle of a well, or out in the room for the room. The number of different placements is in number of different placement options and control settings to find the one that beds its particular room and tasks. When choosing your subcooter's location, keep in mind that you will need to connect the subcooter's built-in amplifier to an AC power outlet.


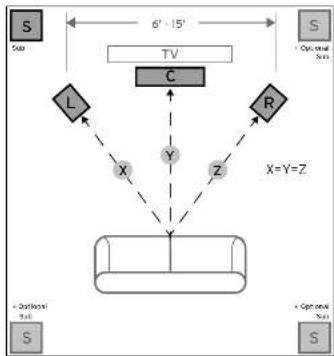

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA

CONNECTIONS AND CONTROLS

CAUTION: Ensure that the subwoofer is unplugged from the AC wall outlet before making any connections.

"LINE IN" Connection - Most of today's surround receivers (and pre-amplifiers) have a line level subwoofer output labeled Subwoofer Pre Out, Sub Out, SW Out, etc. If you have this output, connect one end of a subwoofer cable to it and connect the other end of the cable into the subwoofer line input labeled LEFT/LTE. This connection allows the subwoofer to operate with both music and surround sound movies (refer to your receiver manual). In absence of a subwoofer output on your receiver, as an alternative hookup, you can connect Left and Right channel Pre Amp Outputs from your receiver (if president is the Left/LTE and Right input on the subwoofer.

"LOWPASS" Control. The crossover point chosen determines where low bass frequencies are "handed off" from the speakers to the subwoofer. If setting the crossover point in the receiver, turn the Lowpass Filter "knock on the subwoofer to the farthest point right" (160Hz). Set the crossover point based on the size of the main left/right speakers you are using in the system. As a general rule, for larger, hollowstending speakers, set the crossover point between 50Hz-50Hz. If using small bookshell or "satellite" speakers for the mains, set the crossover point between 90Hz-150Hz. Then the speaker, the higher the setting until the bass frequency system is completely hooked up. If your receiver does not have a crossover point setting, set the Lowpass Filter on the subwoofer instead within the same recommended settings (see manual format for additional speaker setup info).

Level - If your subwoofer is connected to a Subwoofer Output of a surround receiver, first set the subwoofer volume level control in the receiver to the "half-way" or "0-DIP" position. Then increase the volume for gain of the subwoofer up until the subwoofer's volume level matches the output of your main speakers. After this setup is completed, the volume control on your system's main amplifier or pre-amplifier will be the volume control for both your subwoofer and speakers together. If your subwoofer is connected to the L/R Frei-Airia Outputs of a receiver there will be no subwoofer volume in that receiver to set before selling the subwoofer's again control.

"PHASE" 0/180 - This control is used to acoustically match the subwoofer's output to your main speakers. Select the position either 0^ or 180^ in which your subwoofer has more output at the listening position.

Off/Auto/On - When this switch is in the "AUTO" position, the subwoofer will automatically turn "on" when it senses a signal. It will automatically go into "standby mode" after 15-20 minutes with no signal. When the switch is set to the "On" position, the subwoofer will remain on until manually switched to another settings. When this switch is in the "OFF" position, the subwoofer will remain "off" until the switch is manually turned back to the "AUTO" or "ON" position.

Power LED Indicator - Located on the front battle, this LED indicates the operating status of the built-in amplifier. The LED will light green when the amplifier is on and receiving a signal, if the LED is dark and not ill, the amplifier is off. For more information on the controls mentioned in this manual and on bass management, see your dealer or visit www.klipsch.com

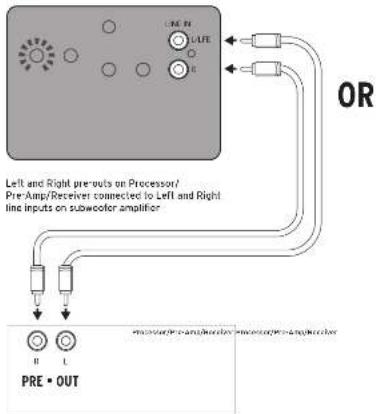

FIGURE 2
LIKE LEVEL CONNECTIONS

LINE IN LATE O R OR Left and Right pre-outs on Processor/ Pre-Amp/Receivers connected to Left and Right line inputs on subwoofer amplifier PRE • OUT

LFE-10 LIFE O LIFE LFE Output on Processor/Pre-Amp/Receiver connected to LFE input on subcooler amplifier LFE OUTPUT

CARE AND CLEANING

Your subwoofer has a durable vinyl finish that should only require dry dusting or cleaning with a dry cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents. The brush attachment of your vacuum should remove any dust from your subwoofer enclosure.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Keep up-to-date on new products and promotions

- Your personal information will never be resold.

- This registration information is not used for

warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Concentric circles diagram with no text or symbols, centered on a square frame (no readable labels or symbols)

Simple circular diagram with concentric rings and control points, no text or symbols present

FRENCH

CAISSONS DE GRAVES REFERENCE

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

INSPECTION

LINE IN LATE O R PRE • OUT acceptor A/B and receive interface A/B console

OU

LFE-N LFE LFE LFE

ENTRETIEN ET NETTOYAGE

Concentric circles diagram with no text or symbols, centered on a square frame (no readable labels or symbols)

Concentric circular diagram with radial lines and labeled points (no text or symbols)

GERMAN

REFERENCE-SUBWOOFER

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

INSPEKTION

Concentric circles diagram with no text or symbols, centered around a square frame (no readable labels or symbols)

Simple circular diagram with concentric rings and control points, no text or symbols present

SUBWOOFERS REFERENCE

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

INSPECCIÓN

Two identical circular mechanical components with concentric rings and mounting holes, shown from different angles (no text or symbols)

PORTGUESE

SUBWOOFERS REFERENCE

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

INSPEÇÃO

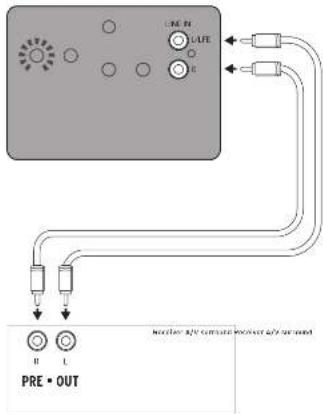

FIGURA 2
CONEXO DO SUBWOOFER R 100SW, R 120SW

LINE FI LATE O R PRE • OUT Nuclear APE current output APE output

OU

LFE-N LFE LFE LFE

CUIDADO E LIMPEZA

Two identical circular diagrams with concentric rings, no text or symbols present

ITALIAN

SUBWOOFER REFERENCE

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

ISPEZIONE

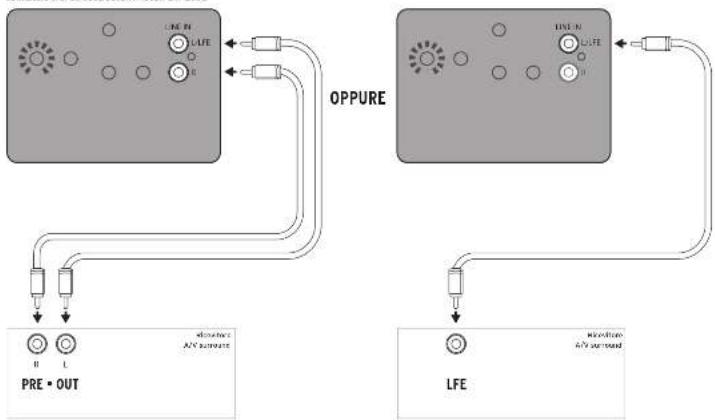

FIGURA 2
CONNECTION OF UN SUBWOOTER R-100SW OR 120SW
    note right of B: LFE
    note right of C: LFE IN
    note right of C: LFE IN
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE
    note right of C: LFE
    note right of D: LFE

CURA E PULIZIA

www.kipsch.com/register.

Two identical circular mechanical components with mounting holes, shown from top and bottom views (no text or symbols)

CHINESE

参考系列低音炮

R-100SWR-120SW

Pure geometric diagram of concentric circles with radial lines, no text or symbols present

开箱检查

Concentric circular diagram with radial lines and labeled points (no text or symbols)

ARABIC

Circular diagram with concentric rings and labeled 'Top' at top, no text or symbols present

R-100SWR-120SW

Pure geometric diagram of concentric circles with no text, numbers, or symbols

الفحص

إِنْ بِمْ نَوْ ظَقَةِ مُكُرْتَاتِ الْحُوتَّهُ الْجَبَّدِي كُمْ عَلَةٍ مِعَدَةٍ كُفْ خُرْجِسِ مِنْ عَلَةٍ أُرُحُّى الْحُغَّقِيُ الْجُرْمِنِ مِنْ عَلَةٍ أُرُحُّى الْحُغَّقِيُ الْجُرْمِنِ مِنْ عَلَةٍ أُرُحُّى الْحُغَّقِيُ الْجُرْمِنِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِنِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِنِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِينِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِينِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِينِ مِنْ عَلَةٍ أُرُحُّи الْحُغَّقِيُ الْجُرْمِينِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِينِ مِنْ عَلَةٍ أُرُحُّي الْحُغَّقِيُ الْجُرْمِيمٍ

مُوْرَ لِعَّةٍ، بِجَدْ حَيْلَ اَمْزَّهُ الْمَالْمِيُّةِ وَشِرْ هَا الْمُنْرُّى يُحَةٍ الْتُسْعَلُ لِمُكُرْ لِمُحْمِيُّةٍ مِبْسِيٍ LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

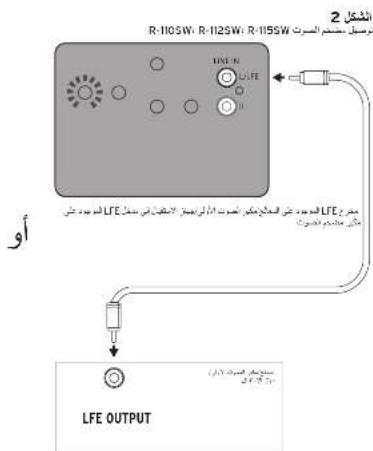

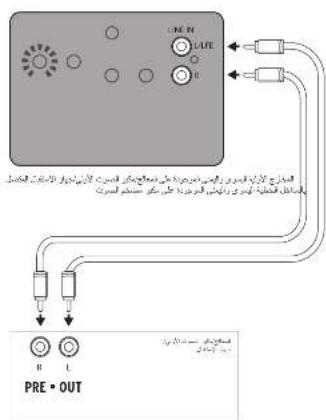

LME R LIFE R PRE • OUT PRE • OUT

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

©2018, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly owned subsidiary of Vox International Corporation.

Kipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries.
