DSCOPTRCA001 - Audio/video converter Gembird - Free user manual and instructions

Product type	Digital-to-analog audio converter (DAC)
Brand	Gembird
Model	DSCOPTRCA001
Dimensions (L x W x H)	60 x 40 x 20 mm (estimated)
Weight	50 g (estimated)
Power supply	5 V DC via USB cable (power adapter not included)
Digital audio input	Optical Toslink (SPDIF)
Analog audio output	2 x RCA (stereo)
Supported sampling rate	Up to 96 kHz
Resolution	24 bits (estimated)
Main functions	Conversion of optical signal to stereo analog signal; compatible with PCM 2.0
Maintenance and cleaning	Disconnect the device before cleaning; use a dry, soft cloth
Safety	Do not expose to moisture, rain, or extreme temperatures
Spare parts and repairability	No user-serviceable parts; contact customer service in case of malfunction
General information	24-month warranty (conditions in the manual)

Frequently Asked Questions - DSCOPTRCA001 Gembird

How do I connect the converter to my TV?

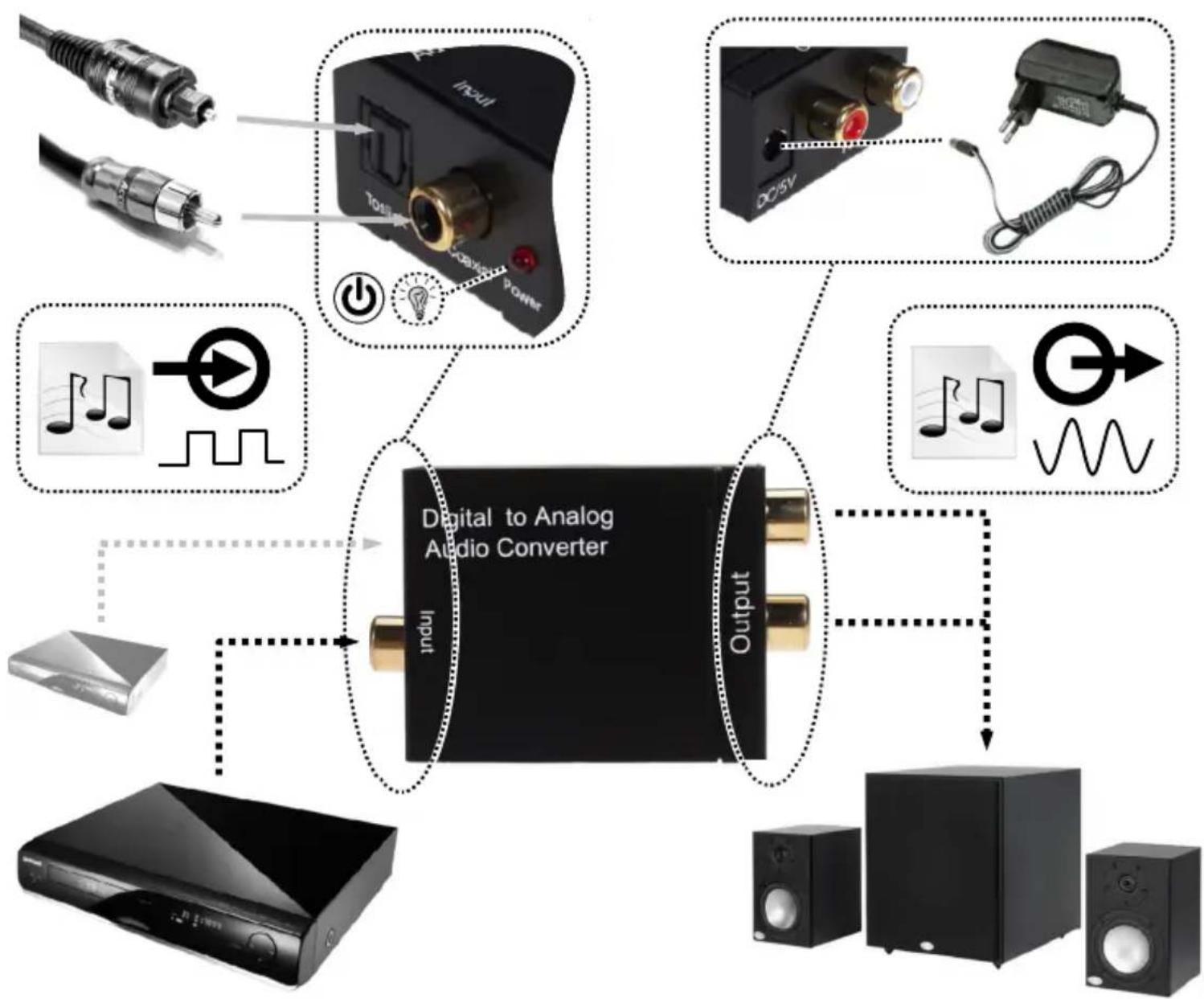

Connect the optical output of your TV to the optical input of the converter using a Toslink cable. Then connect the RCA outputs of the converter to your amplifier or speakers. Power the converter via the USB port (5 V).

What type of audio signal is supported?

The converter accepts PCM 2.0 (stereo) digital signals via the optical input. It does not decode Dolby Digital or multichannel DTS formats.

Can I use a coaxial cable instead of an optical cable?

No, the input is exclusively optical (Toslink). For a coaxial source, you will need an adapter or another converter.

Why is there no sound?

Check that the optical cable is fully inserted, the source is outputting a PCM signal (no encoded format), and the source volume is not muted. Also ensure the converter is powered.

Does the converter need a driver?

No, it is a plug-and-play device. No driver is needed.

What is the recommended maximum optical cable length?

To avoid signal degradation, use an optical cable shorter than 10 meters. Beyond that, a repeater may be necessary.

Can I connect the converter to headphones?

No, the RCA output is intended for an amplifier or active speakers. For headphones, use an adapter or a headphone amplifier with RCA input.

What to do in case of humming or noise?

Make sure the optical cable is not bent and all connections are secure. If the noise persists, try separating the power cable from the audio cables.

Can the converter work without external power?

It requires a 5 V power supply. The USB port can be plugged into a TV, charger, or power adapter (not included).

How to clean the converter?

Disconnect the device before any cleaning. Use a soft, dry cloth. Do not use chemical or abrasive products.

USER MANUAL DSCOPTRCA001 Gembird

DIGITAL TO ANALOG AUDIO

CONVERTER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

PYKOBODCTBO NOJb3OBATEJIa

KEPIBHIHTBO KOPNCTYBAU

Digital to analog audio converter Audio-Konverter, Digital auf Analog Digitalaar analogog audio converter Convertisseur Audio Numerique > Analogue Unpo-aHanoRObI KOHBeptOp ayDIO-CnHaJa Unpo-aHanoROBn KOHBeptOp ayDIO-CnHaJy

Features

• Allows using digital audio devices with analogue audio receivers or amplifiers
• Converts a digital Coaxial or Toslink audio signal to analogue stereo audio (L/R)
• Standard RCA (cinch) audio output connectors
• Electromagnetic noise-free transmission
• 5 V DC power supply included

All brands and logos are registered trademarks of their respective owners

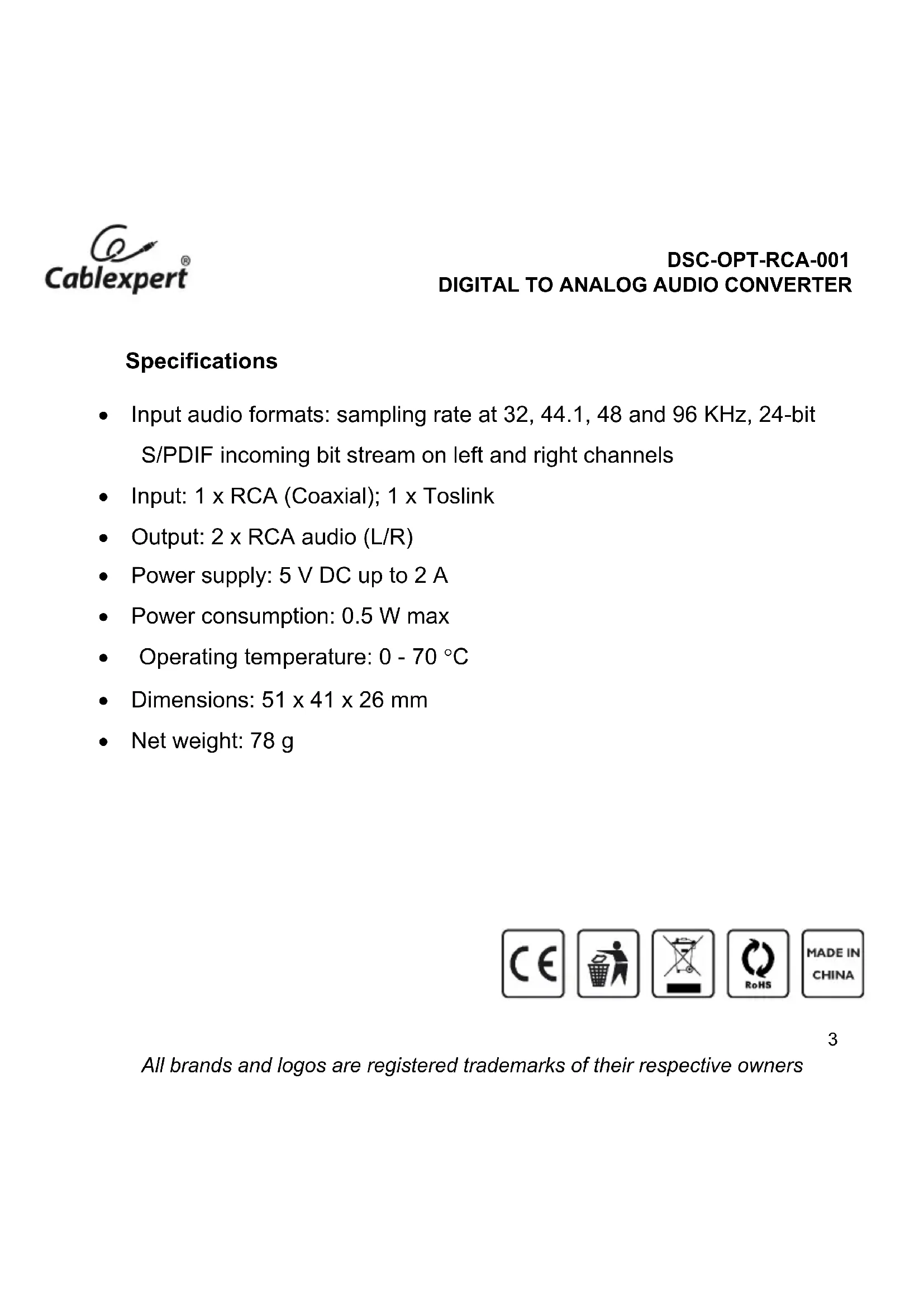

Specifications

• Input audio formats: sampling rate at 32, 44.1, 48 and 96KHz , 24-bit S/PDIF incoming bit stream on left and right channels
  Input: 1 × RCA (Coaxial); 1 × Toslink
  Output: 2 × RCA audio (L/R)
• Power supply: 5 ~V DC up to 2 ~A
  Power consumption: 0.5 W max
• Operating temperature: 0 - 70^ C
• Dimensions: 51 × 41 × 26 mm
  Net weight: 78 g

DSC-OPT-RCA-001 DIGITAL TO ANALOG AUDIO CONVERTER

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
