Product Type	EXIT InTerra Ground Level Trampoline
Dimensions	Available in multiple sizes (e.g., 305 cm, 366 cm, 427 cm)
Jump Height	Designed for ground-level access, making it easy for children to use
Materials	Galvanized steel frame, corrosion resistant
Safety Net	Included for optimal protection during use
Load Capacity	Up to 150 kg depending on the model
Usage	Ideal for children and families, recreational use
Maintenance	Regular inspection of springs and net, cleaning of surfaces
Safety	Recommended to allow only one user at a time
Warranty	2-year warranty on the frame
Accessories	Option to add ladders and additional protections
Recommended Age	From 3 years old with adult supervision

Frequently Asked Questions - InTerra Ground Level EXIT

How do I assemble the EXIT InTerra Ground Level trampoline?

To assemble the trampoline, follow the instructions provided in the user manual. Make sure to identify all parts and lay them out before starting assembly.

What is the maximum weight the trampoline can support?

The EXIT InTerra Ground Level trampoline can support a maximum weight of 150 kg.

How do I maintain my trampoline?

To maintain your trampoline, regularly check the springs, padding, and safety net. Clean the surface with water and mild soap, and avoid using harsh chemicals.

Is the trampoline weather resistant?

Yes, the EXIT InTerra Ground Level trampoline is designed to withstand weather conditions, but it is recommended to cover or store it during extreme weather.

How do I ensure the trampoline is safe before use?

Before using the trampoline, check that the safety net is properly in place, all springs are securely attached, and there are no visible damages to the frame.

Can I use the trampoline without the safety net?

It is strongly recommended to use the trampoline with the safety net to prevent accidents and ensure user safety.

What is the size of the EXIT InTerra Ground Level trampoline?

The EXIT InTerra Ground Level trampoline has a diameter of 305 cm.

How do I disassemble the trampoline for winter?

To disassemble the trampoline, first remove the safety net, then the springs. Next, dismantle the frame by following the assembly instructions in reverse order. Store it in a dry place.

Are spare parts available?

Yes, spare parts for the EXIT InTerra Ground Level trampoline are available from your local dealer or on the manufacturer27s official website.

What should I do if the trampoline is damaged?

If the trampoline is damaged, stop using it immediately and inspect the damage. Contact customer service for advice on repairs or part replacement.

USER MANUAL InTerra Ground Level EXIT

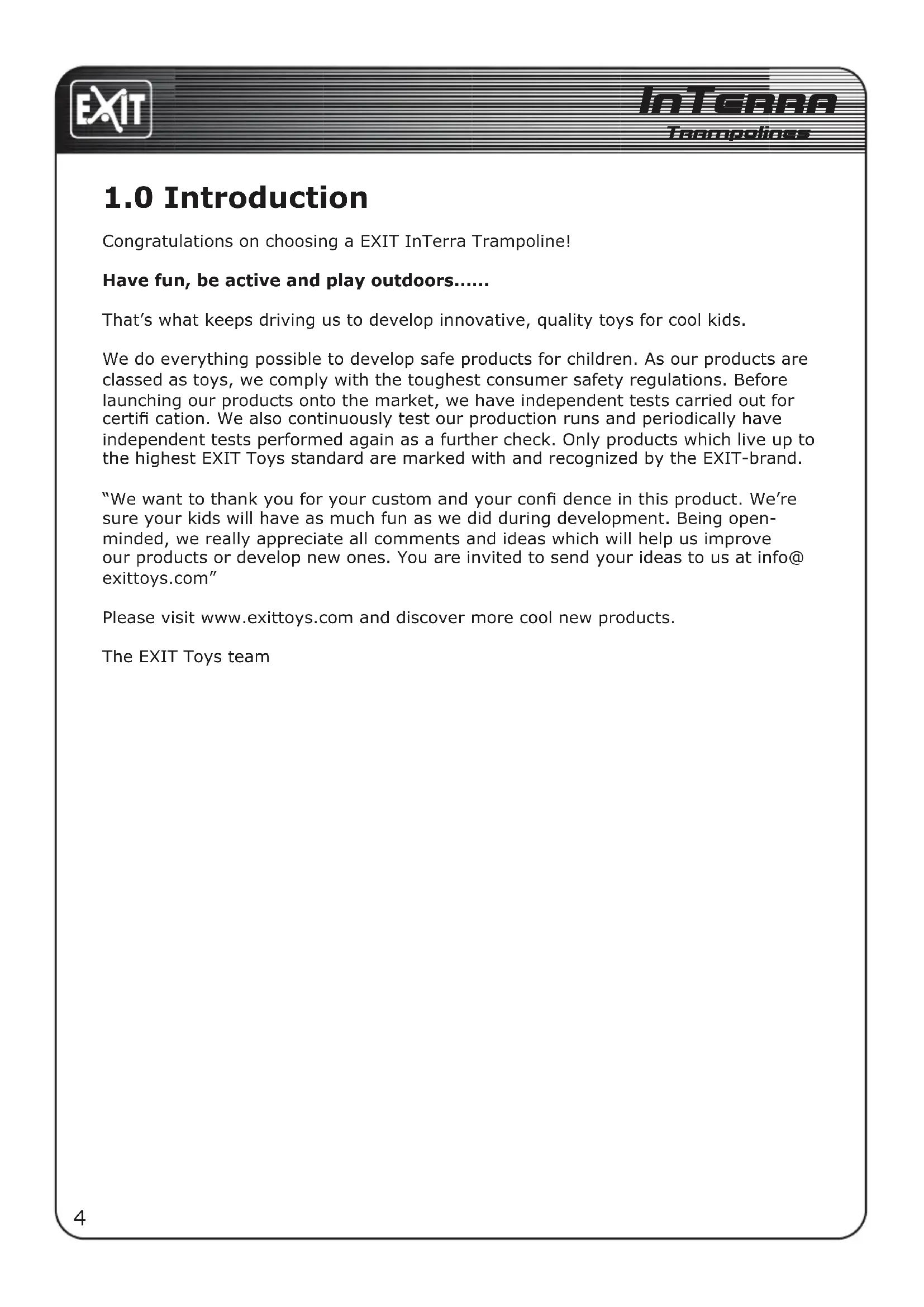

Congratulations on choosing a EXIT InTerra Trampoline!

Have fun, be active and play outdoors....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certifi cation. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confi dence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at info@ exittoys.com"

Please visit www EXITfoys.com and discover more cool new products.

The EXIT Toys team

2.0 Guidelines for safe use

Using your product as instructed in this manual will eliminate virtually all hazards. However, please bear in mind that children have a natural urge to play and that this may lead to unforeseen dangerous situations for which the manufacturer cannot be held responsible. Teach your children how to use the product and point out possible dangers to them.

Before assembling and using the product, please read and observe these main warnings:

WARNING

To avoid serious injury:

• Read and understand the manual before use.
  WARNING: For domestic and outdoor use only.
  WARNING: CHOKING HAZARD! - Small parts. Not for Children under 3 years old.
• Protect children
• Prevent falls and strangulation.
  WARNING: Only one user at a time; danger of collision!
  WARNING: Do not perform summersaults or other difficult jumps!
  WARNING: Empty your pockets before use of the trampoline! Continuous adult supervision is required. Don't use the trampoline when it's wet.
  WARNING. The trampoline shall be assembled by an adult in accordance with the assembly instructions and thereafter checked before the first use.
• In case of missing or broken parts, please contact place of purchase for assistance.
  WARNING: Do not eat while jumping.
  We are not liable for any injuries that may occur when using the trampoline.
• Modifications made by the consumer to the original trampoline (e.g. the adding of an accessory) shall be carried out according to the instructions of the manufacturer.
  Max. User weight: 120kg

2.2 Use of the trampoline

INITIALLY, you should get accustomed to your trampoline and understand how much spring is in each bounce. The focus at this point should be body position and technique until each skill can be completed with ease and control.

BEFORE YOU TRY TO JUMP TOO HIGH the technique for stopping should be learnt as this will help prevent injury should you feel you are jumping out of control.
- As the user lands on the bed, the knees should be bent so that they stop and absorb the spring in the mat. The position is shown in the image to the left. Arms are held out for increased level of balance.
- This skill is used when the trampoline user wishes to stop bouncing on the trampoline due to fatigue, loss of control, etc.

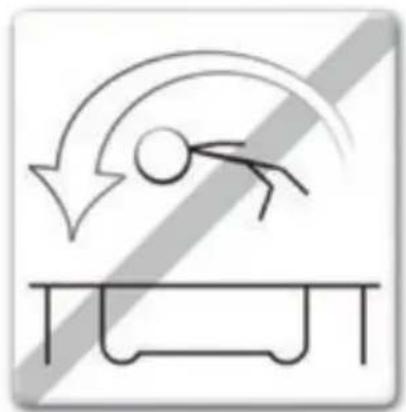

SOMERSAULTS (FLIPS): DO NOT PERFORM somersaults of any type (backwards or forwards) on this trampoline. If you make a mistake when trying to perform a somersault, you could land on your head or neck. This will increase your chances of your neck or back being broken, which could result in death or paralysis

FOREIGN OBJECTS: DO NOT use the trampoline if there are pets, other people, or any objects underneath the trampoline. This will increase the chances of an injury occurring, DO NOT hold any foreign objects in your hand and DO NOT place any objects on the trampoline while in use. DO NOT place the trampoline under over-hanging objects like tree branches, wires, etc as these will increase your chances of being injured.

POOR MAINTENANCE OF TRAMPOLINE: A trampoline in poor condition will increase your risk of being injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs and overall stability of the trampoline.

WEATHER CONDITIONS: Warning. Do not use in strong wind conditions and secure the trampoline. Please be aware of the weather conditions when using the trampoline. Don't use the trampoline when it's wet. If it is too windy, the user could lose control.

RESTRICTING ACCESS: When the trampoline is not in use, always store the access ladder in a secure place so that unsupervised children can not play on the trampoline.

2.3 Tips to reduce the risk of accidents

In order to reduce the risk of accident the "TRAMPOLINE USER" should:

• Always remain in control of their jumps and body position at all times.
• Not attempt to perform skills that are beyond their own level of competence.
• Read and understand the jump by taking off and landing in the middle of the trampoline.
• Always control their jump by taking off and landing in the middle of the trampoline.

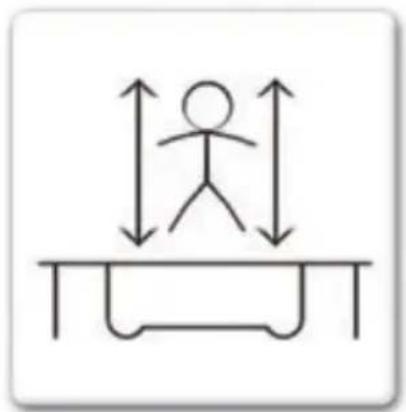

• Warning. Always Jump in the middle of the mat. Always jump vertically and refrain from bouncing towards the springs in any direction.
• Always consult a professionally certified trampoline instructor before attempting anything beyond basic techniques.

In order to reduce the risk of accident the "SUPERVISOR" should:

• Fully understand and enforce all the safety rules and guidelines.
• Advise the trampoline user and provide knowledge in what they are doing right and wrong to ensure the safety of trampoline user.
• Be aware and advise the trampoline user of all the safety warnings.
• Warning. Do not exit the trampoline by a jump.

IMPORTANT: If the Trampoline can not be supervised there should be a method for securing it and preventing anyone from using the product until supervision is available.

2.4 Trampoline Safety Instructions

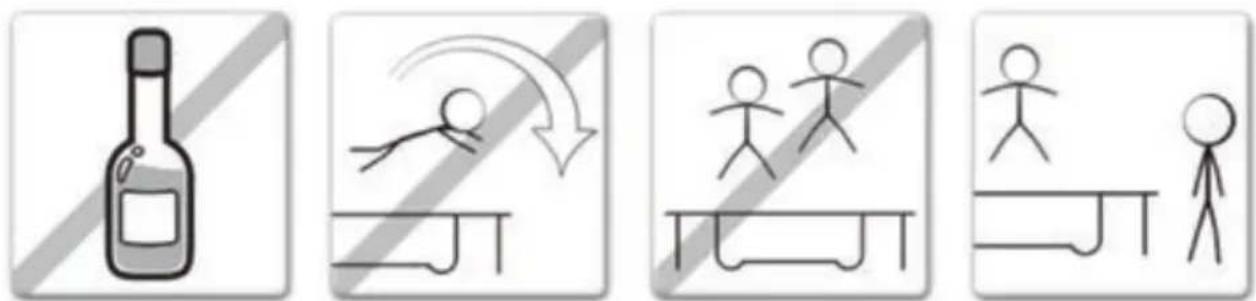

ADVISORY PRECAUTIONS WHILST USING THE TRAMPOLINE

• Do not use trampoline if you have consumed alcohol or narcotic substances
• You should climb on and off the trampoline in a controlled and careful manner. Never jump onto or off the trampoline and never use the trampoline as a means to bounce onto or into another object.
• Always learn the basic bounce and master each type of bounce before trying more difficult types of bounces. Review the basic skills section to learn how to do the basics.
  To stop your bounce, flex your knees when you land on your feet.
• Always be in control when you are bouncing on the trampoline. A controlled jump is when you land at the same spot that you took off from. If at any time you feel out of control, stop bouncing immediately.
• Do not jump or bounce for prolonged periods of time of too high for a number of jumps. Keep your eyes on the mat to maintain control. If you do not, you could lose your balance.
• Never have more than 1 person on the trampoline at any time. Collision hazard.

ADVISORY PRECAUTIONS WHILST SUPERVISING TRAMPOLINE

IMPORTANT: Familiarise yourself with the basic jumps and safety rules. To prevent and reduce the risk of injuries, ensure that all safety rules are enforced and the new users learn the basic bounces before trying more advanced techniques.

• ALL USERS need to be supervised, regardless of skill level or age.
• Never use the trampoline when it is wet, damaged, dirty or wore out. The trampoline should be inspected before use.
• Keep all objects that could interfere during use away from the trampoline at all times. Be aware of what is overhead, underneath and around the trampoline.
• To prevent unsupervised and unauthorized use, the trampoline should be secured at all time.

2.5 Accident classification & identification

USE OF ALCOHOL OR DRUGS:

DO NOT consume any alcohol or take any drugs (this includes medication that could affect the users co-ordination) when using this trampoline. This is considered highly dangerous since these foreign substances impair your judgements, reaction time and overall physical co-ordination.

MULTIPLE USERS:

Only one user at a time; danger of collision!

STRIKING THE SPRING FRAME:

When playing on the trampoline, STAY in the centre of the trampoline mat. This will reduce the risk of being injured by landing on the spring frame. Always keep the frame pads covering the frame of the trampoline. DO NOT jump or step onto the frame pad directly since it is not intended to support the weight of a person.

LOSS OF CONTROL:

DO NOT try difficult maneuvers until you have mastered the basics. If you do not follow these guidelines, you increase the risk of someone being injured.

WARNING: Take a break every 10 minutes.

3.0 Trampoline techniques

Basic Skills

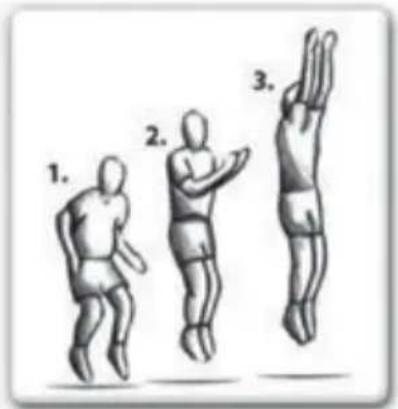

BASIC SKILL 1: The basic bounce

• Start from a standing position, with feet shoulder width apart head up and eyes on the trampoline bed.
• Swing arms forward and up above head in a circular motion.
• Bring legs and feet together in mid-air position and point toes.
• Land back on the mat with feet shoulder width apart (same as start position).
• Why not try moving onto the next skill once comfortable and profi cients.

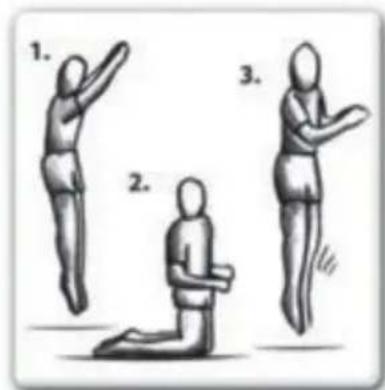

BASIC SKILL 2: The Knee Drop

• Start with a low basic bounce (as detailed in BASIC SKILL 1).
• Land on knees shoulder width apart, keeping back straight and a strong body position using arms out to the side or in front to maintain balance.
• Bounce back to basic bounce position by using bounce momentum and swinging arms above head.
  Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

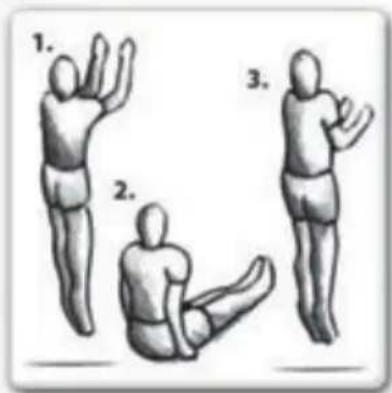

BASIC SKILL 3: The Seat Drop

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Land with legs out straight in front of you, with hands either side of your hips and back straight in a strong body position.
• Use the bounce momentum aided with a push from hands to return to a standing position.
  Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Please consult a trained trampoline instructor before attempting any more advanced skills to ensure highest possible safety

Advanced Skills

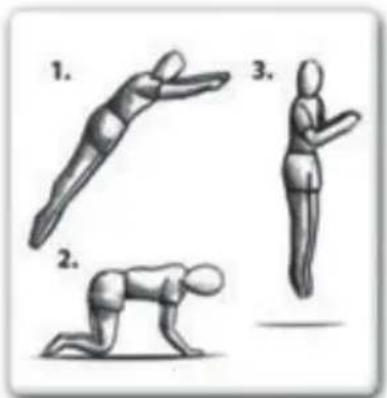

ADVANCED SKILL 1: The basic bounce

• Start with a low basic bounce (BASIC SKILL1) in the normal position.
• Land on your hands and knees at the same time, ensure that back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Use the momentum of bounce and push off hands to regain the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.
• Try moving onto the next skill once comfortable and profi cients.

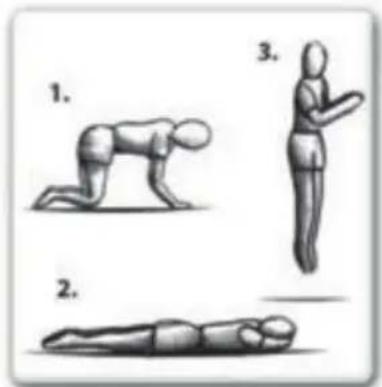

ADVANCED SKILL 2: Hands and Knees to Front Drop

• Land on your hands and knees at the same time, ensure the back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height. Trying moving onto the next skill once comfortable and profiient.

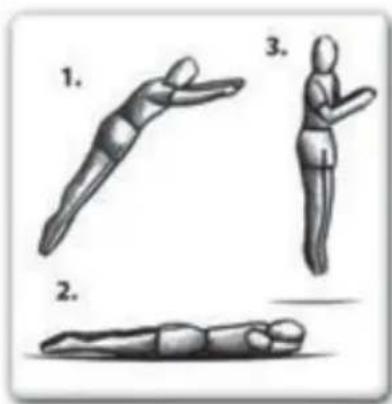

ADVANCED SKILL 3: The Front Drop

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at the same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Should you wish to progress any further and learn more advanced techniques for trampoline, please consult a qualifi ed and registered instructor.

4.0 General Information

• It is not necessary to break-down the trampoline during winter.
• Self-securing nuts and screws are suitable only for one time setting-up, and must be replaced after breakdown of the trampoline and/or safetynet.
• It is recommended to place the trampolines on a flat and level surface with at least 2m distance to other superstructures, or barriers, e.g. fence, garage, house, tree branches, washing lines, or electrical cables.
• The trampoline shall not be placed over hard surfaces like asphalt, concrete etc.
• Exchange defective parts according to the supplier's recommendation.
• Changes to the trampoline (e.g. addition of an accessory) must be done according to the supplier's instruction.

5.0 Trampoline Assembly

STEP BY STEP CONSTRUCTION

Only assemble by adult.

To assemble this trampoline all you need is our special spring loading tool provided with this product. During periods of non-use, this trampoline can be easily disassembled and stored. Please read the assembly instructions before beginning to assemble the product.

Please refer to the table for part descriptions and numbers. The assembly instruction use these descriptions and numbers as reference.

Make sure you have all parts listed. If you are missing any parts, please contact place of purchase.

Please use gloves to protect your hands from pinch points during assembly. When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly.

Parts list

Part.Nr.	Description #
1 Middle tube 4

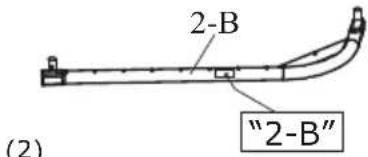

2 Corner tube (includes two corner tubes 2-A, two corner tubes 2-B)		4
3 Corner leg 4
4 Middle leg 4
5 T-joint (includes two adjustable T-joints 5-1, six T-joints 5-2) 8
6 Mat 1
7 Springs (includes 80 Big springs 7 A, 4 small springs 7-B) 84
8 Pad 1
9 Foam 32
10 Iron plate 8
11 Plastic plate 8
12 M8x40 mm bolt 16
13 M8x50 mm bolt 8
14 M8x20 mm bolt 16
15 M8 nut 24
16 M8 washer 24

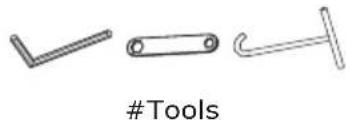

#	Tools

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

(6)

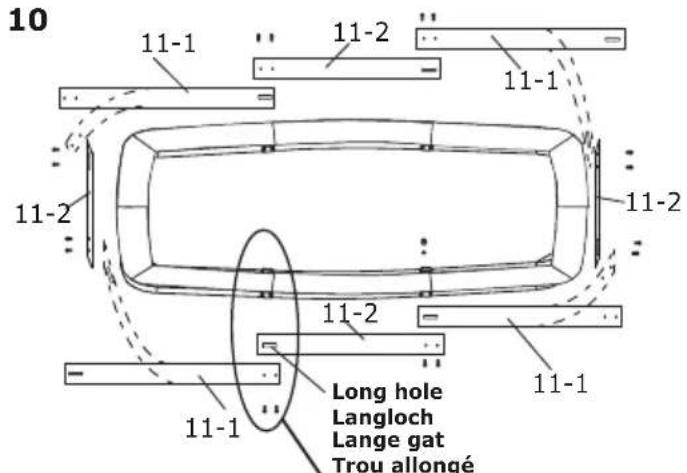

Longer Plastic Plate 11-1 (4x)

Shorter Plastic Plate 11-2 (4x)

(11)

(4)

(5)

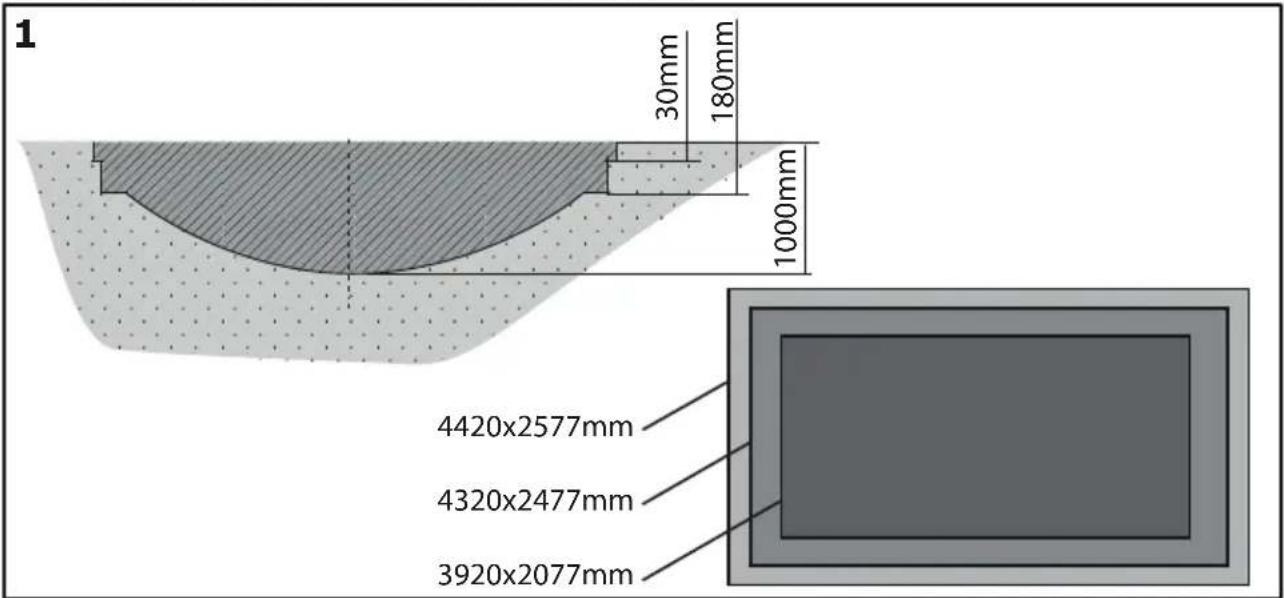

STEP1

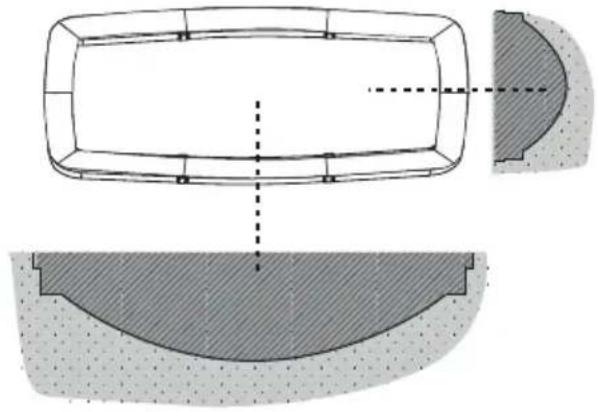

Before assembling your trampoline, dig a pit suitable for your trampo-line. Please refer to the table 1 for the further information.

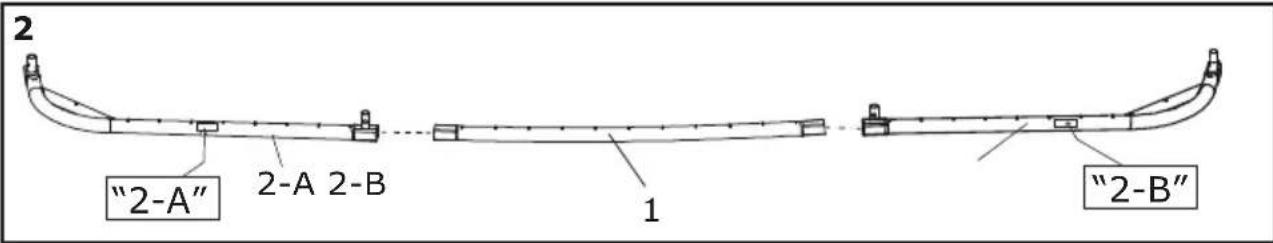

STEP 2

Insert the middle tube (1-B) into corner tube (2) as shown.

Repeat this step to assemble the remaining corner tubes (2) and one middle tube (1).

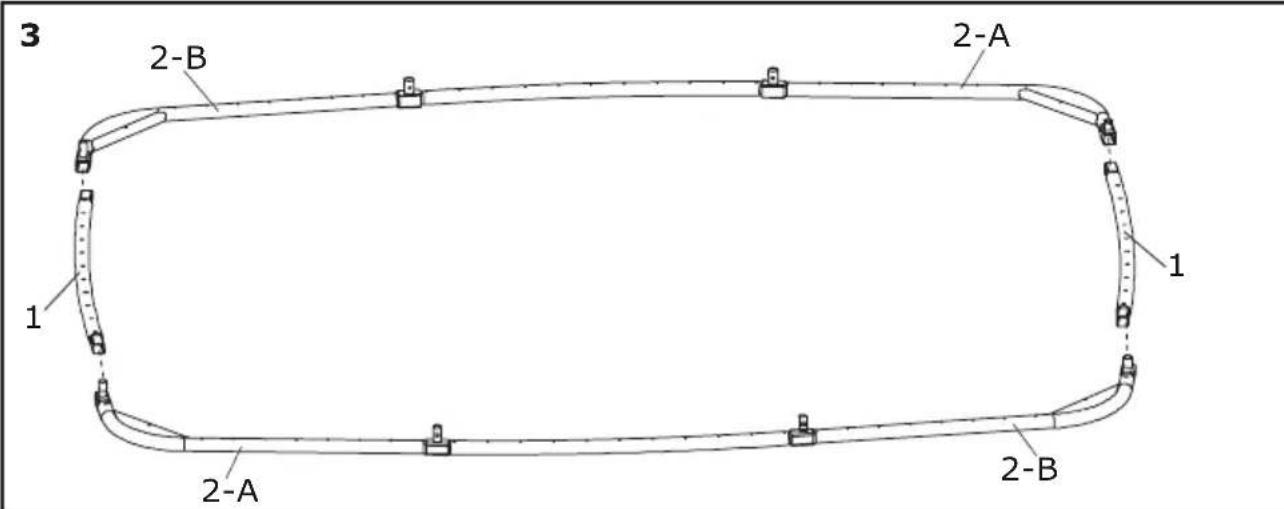

STEP3

Place the assembled tubes and two middle tubes (1-A) on the ground as shown. Insert the middle tube (1-A) into corner tube (2) as shown.

STEP4

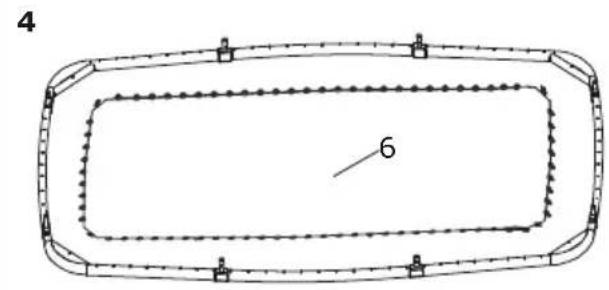

Place the mat (6) on the ground inside the frame.

Make sure the back side of the mat is facing up.

Caution: It is wise to wear leather gloves while attaching the springs. Be careful where you place your hands as the springs and frame joints can pinch.

1. Hook one end of a spring into a V-ring sewn on the jump mat.
2. Hook a spring tool shown in the inset drawing into the free end of the spring.
3. Pull it by using the spring tool until it reaches the frame.
4. Push the end of the spring into a hole in the frame. Unhook the spring tool.

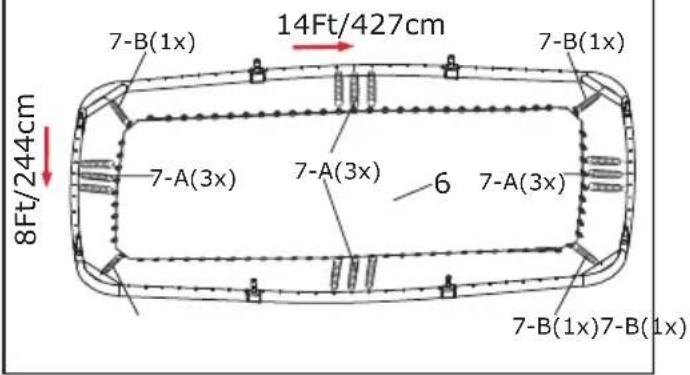

4.1

Attach the V-ring sewn to the corner of the mat to the tube welded to cor-nertube by a small spring as shown. You will then have four small springs (7-B) attached, one to each corner.

4.2

Count exactly 12 frame holes and 12 V-rings in the 14ft direction. Attach three big springs (7-A). Repeat on the opposite 14ft long side of the tram-poline. Count exactly 4 frame holes and 4 V-rings in the 8ft direction. Attach three big springs (7-A). Repeat on the opposite 8ft short side of the trampoline. You should now have 16 springs attached.

Continue to attach the remaining big springs between the previously attached springs, until all springs are attached.

Note:

As you attach springs, carefully count the V-rings and frame holes. If a V-ring or a hole is skipped, re-attach the spring in the proper position.

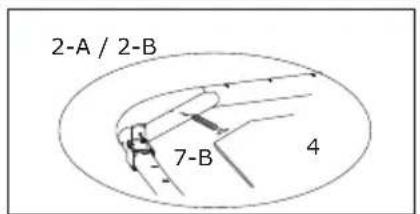

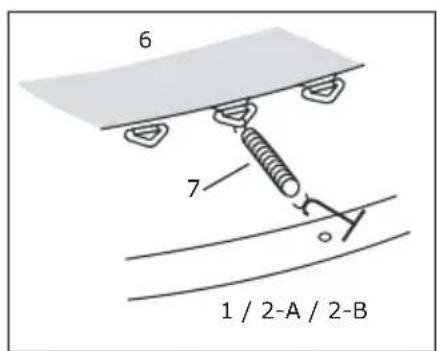

Note: The spring has a large hook that attaches to the frame and a small hook that attaches to the mat ring.

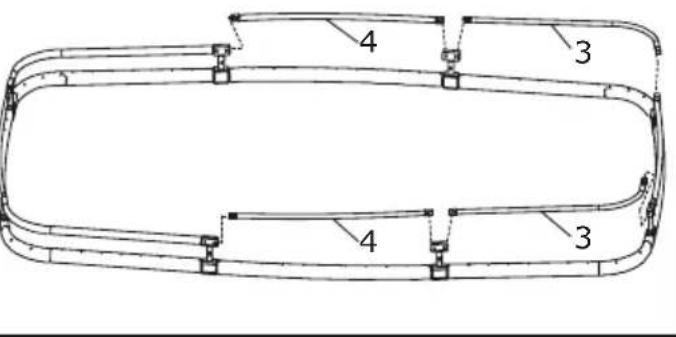

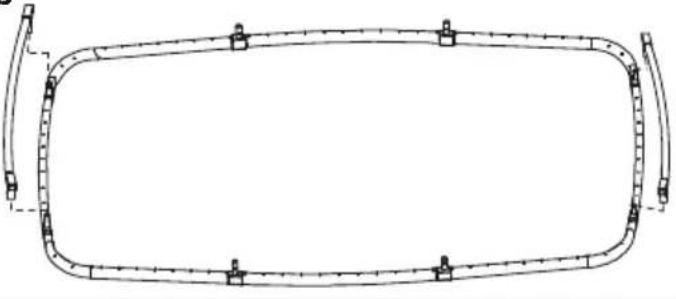

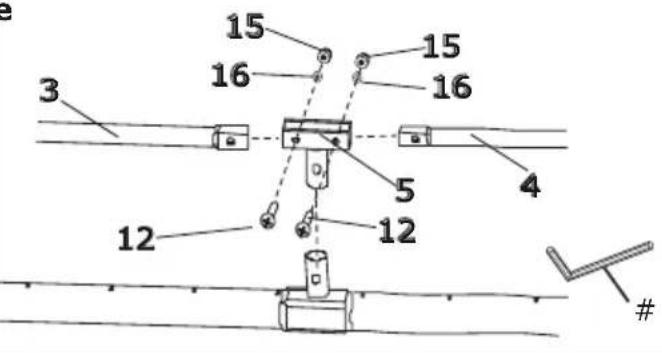

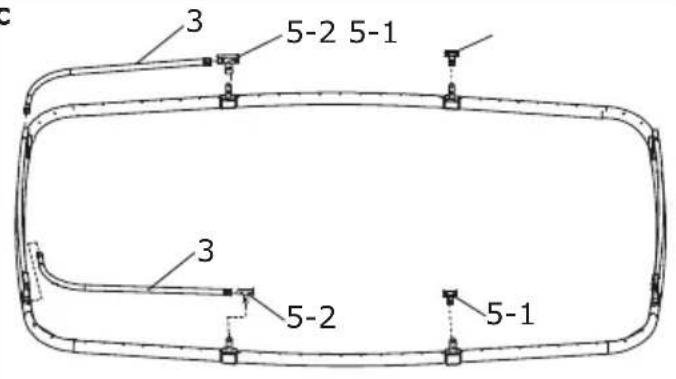

STEP 5

a.

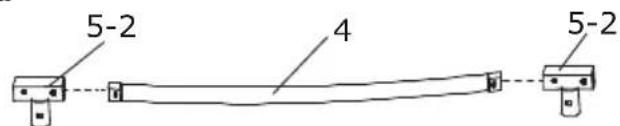

Insert the Middle Leg (4) into the two T-joints (5-2) as shown.

Repeat this step to assemble another Middle Leg (4).

b.

Insert the two assembled Middle Legs into the T-joints on the short side of frame

a

b

C.

Insert the corner leg (3) into T-joint (5-2) as shown.

Then insert the T-joint into the frame.

Insert the adjustable T-joints (5-1) into the frame as shown.

C

d.

Insert the remaining two middle legs (4) and two corner legs (3) into the T-joints (5-2) and the adjustable T-joints (5-1) as shown.

d

e.

Secure the leg to the T-joint with M8x40mm bolts (12), M8 nuts (15) and M8 washers (16) as shown.

Tighten with the wrench as shown.

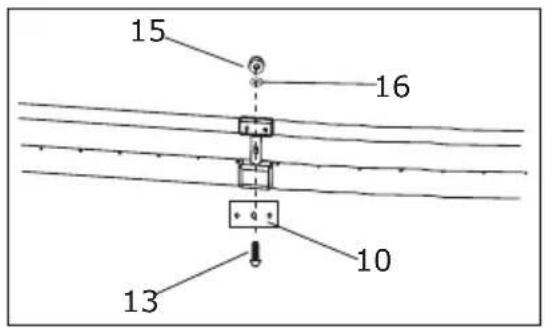

STEP6

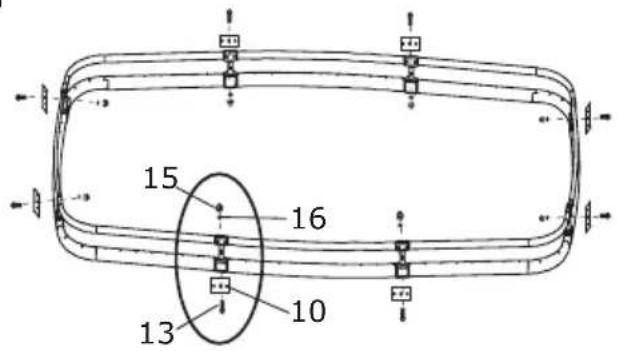

Put the iron plate (10) on the T-joints as shown.

Secure the iron plate (10) with an M8x50mm bolt (13), M8 washer (16) and M8 nut (15) as shown.

6

STEP7

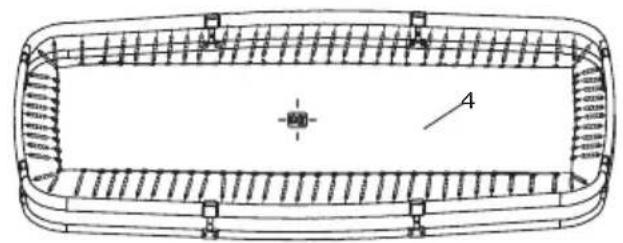

Reverse the trampoline so that the top side is facing up as shown.

7

STEP 8

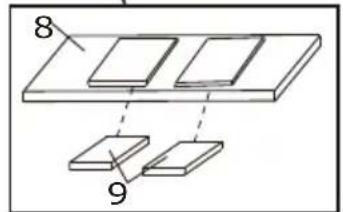

Insert the foam (9) into pad (8) as shown.

8

STEP 9

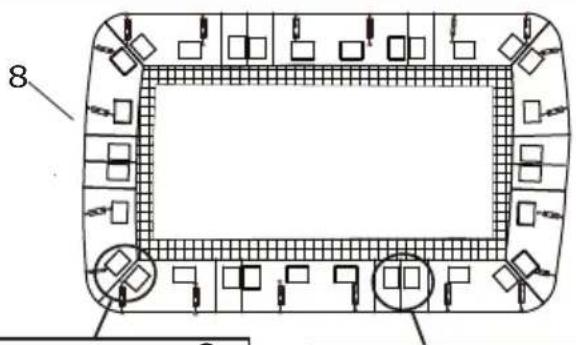

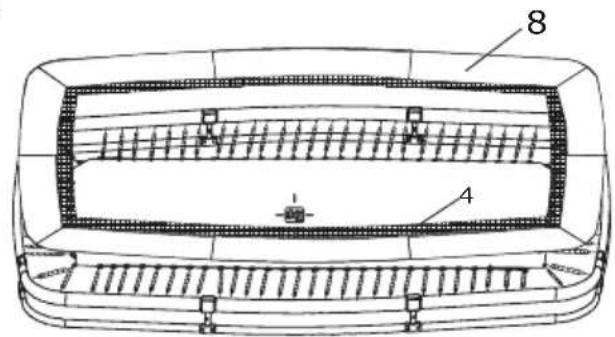

Lay the pad (8) on your trampoline.

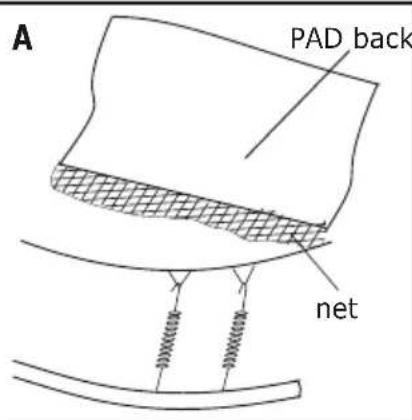

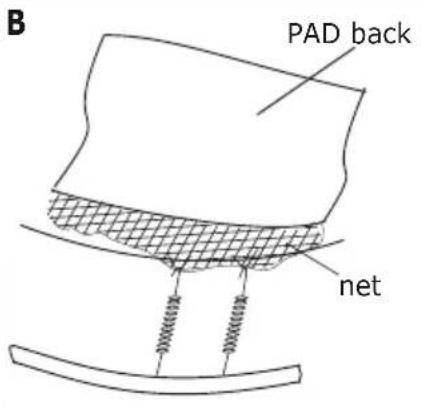

Look from the underside of the pad. The spring should be attached to the net and pad as shown in inset drawing A and B.

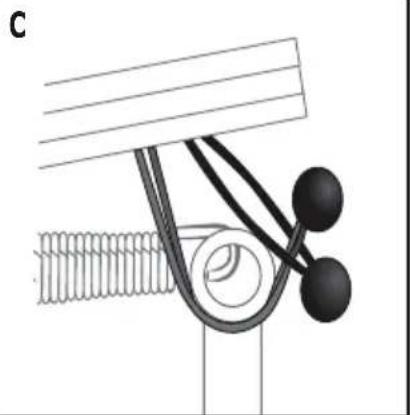

Attach pad to the frame using the elastic straps with balls as shown in inset drawing C.

9

STEP 10

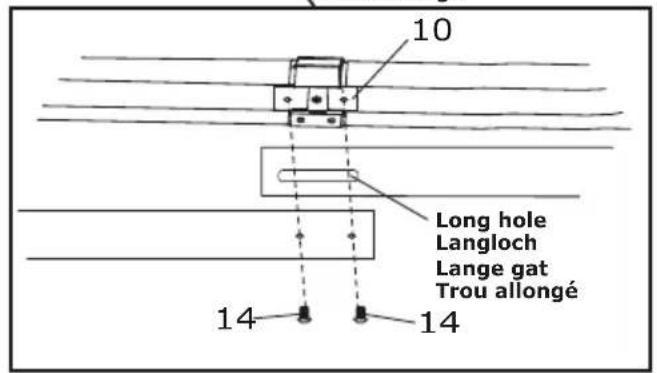

Put the plastic plates (11) on the iron plates (10) as shown.

Make sure that the long hole in the plastic plate (11) is next to the iron plate (10).

Then secure with M8x20mm (14) bolts as shown.

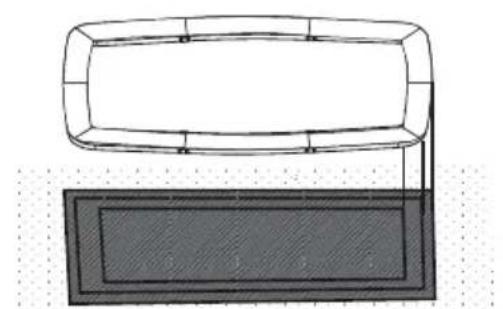

STEP 11

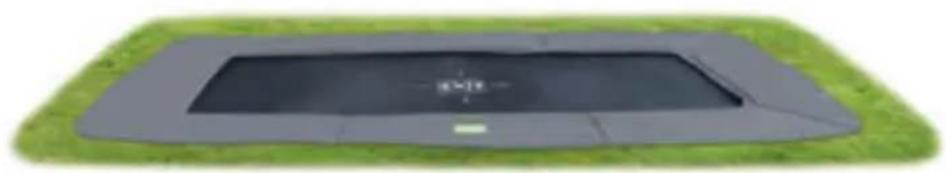

Place your trampoline in the pit.
Make sure that the center of the mat and pit are aligned.

Finally, fi II the gap between trampoline and ground with soil.

11

Congratulations! Your trampoline is now fully assembled (put together).

6.0 CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Maintenance instructions

Make sure to carry out checks and maintenance of the main parts (frame, suspension system, mat, padding, and enclosure) at the beginning of each season and also at regular intervals of every 2 weeks. If these checks are not carried out, the trampoline could become dangerous!

It is necessary to determine whether all nuts and bolts are tight, and if necessary they are tightened;
It shall be verified that all spring-loaded connections (locking pin) are undamaged and not move while playing;
- Any cover screws and sharp edges must be checked and replaced if necessary;
- The maintenance manual shall be kept

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

• Punctures, holes, or tears in the trampoline mat
• Sagging trampoline mat
• Loose stitching or any kind of deterioration of the mat
• Bent or broken frame parts, such as the legs
• Broken, missing, or damaged springs
• Damaged, missing, or insecurely attached frame pad
• Protrusions of any types (especially sharp types) on the frame, springs, or mat

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS, OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or disassembled. Another option is to tie the ground, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least three (3) tie downs should be used.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two people should be used. All connector points should be wrapped secured with weather resistant tape, such as duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating. When moving, lift the trampoline slightly of the ground and keep it horizontal to the ground. For any type of other move, you should disassemble the trampoline.

WINTER

In certain countries during winter period, the snow load and the very low temperature can damage the trampoline. It is recommended to remove the snow and store the mat and the enclosure indoors.

7.0 Warranty

1. After the date of the purchase invoice, the owner of the EXIT Toys InTerra has a:

2. 5-year warranty on the frame

3. 2-year warranty on the springs
4. 2-year warranty on the protective surround pad

5. 2-year warranty on the jump mat.

6. The warranty applies only to the material and construction defects with respect to this product or its components.

7. The warranty becomes defunct if:
8. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.
   This product is not assembled and maintained according to the instruction booklet.
9. Technical repairs to this product are not carried out professionally.
10. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
11. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.
12. The product is rented out or was made available to various unspecified persons in any other manner.
13. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.
14. The owner of the EXIT Toys Trampoline is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.
15. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced - according to its choice - free of charge during the warranty period mentioned in Article 1.
16. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.
17. This warranty cannot be transferred to third parties.
18. The trampoline is designed for personal use. It is not permitted to rent out or place the trampoline in public areas like schools or day-care centres. The guarantee and any other liabilities shall expire if the playhouse is rented out or used in public areas.

1.0 Einführung

WAARSCHUWING: neem elke 10 minuten even pauze.

3.0 TRAMPOLINETECHNIEKEN

BASISVAARDIGHEDEN

BASISVAARDIGHEID 1: de basissprong

STAP VOOR STAP OPBOUW

EXIT is a registered trade mark of Dutch Toys Group
