MK200B - Milk frother INVENTUM - Free user manual and instructions

Product type	Milk frother
Brand	Inventum
Model	MK200B
Power supply	2 AA batteries (not included)
Battery type	AA (LR6)
Functions	Preparing milk froth, dressings, cocktails, milkshakes, meringue
Recommended milk capacity	Fill the container to a quarter (approx. 100 ml)
Ideal milk temperature	Approximately 65 °C
Main unit material	Plastic
Approximate weight	200 g
Dimensions (height)	Approximately 20 cm
Dimensions (diameter)	Approximately 4 cm
Warranty	2 years comprehensive manufacturer warranty
Maintenance	Wash the whisk in warm water; wipe the unit with a damp cloth; do not immerse
Safety	Do not submerge in water; remove batteries if not used for a long time; do not use if the shaft is bent
Usage	Immerse the whisk in milk before turning on; hold the button down; move from top to bottom
Spare parts	AA batteries; whisk (manufacturer reference)
Repairability	Any repair must be carried out by a qualified technician
Usage conditions	Household use only
Included accessories	Batteries not included

Frequently Asked Questions - MK200B INVENTUM

How to prepare milk froth with the MK200B?

Pour hot or cold milk into a narrow container (e.g., a glass) filling it to a quarter. Fully immerse the whisk in the milk. Hold down the On/Off button, then move the appliance regularly from top to bottom until desired froth is obtained. Release the button to stop. Use a spoon to pour the froth into coffee.

What type of milk to use for the best froth?

Use preferably fresh whole milk for best results. Skimmed or semi-skimmed milk can also work but gives a less firm froth.

Can the appliance be used for something other than milk?

Yes, the MK200B can also prepare small quantities of dressings, cocktails, milkshakes and meringue. It is versatile for various liquid preparations.

How to clean the milk frother?

After each use, wash the whisk in warm water. You can run it briefly in water to facilitate cleaning. Wipe the appliance unit with a damp cloth. Do not use corrosive or abrasive detergents and never immerse the unit in water.

How to install batteries?

The battery compartment is under the On/Off button. Slide the cover sideways to open. Insert 2 AA batteries respecting the indicated polarity. Close the cover. Remove the batteries if the appliance is not used for an extended period.

Why does the appliance not work?

Check that the batteries are installed correctly and are not depleted. If the shaft is bent, the appliance may not work; in that case, stop using it. Also make sure the whisk is fully immersed in the liquid before starting.

Is the appliance under warranty?

Yes, Inventum offers a 2-year comprehensive manufacturer warranty from the date of purchase. To claim, return the product to the store or contact customer service via www.inventum.eu/service-aanvraag. Keep the proof of purchase.

Can I immerse the appliance in water?

No, never immerse the appliance unit in water or any other liquid. Only the whisk can be rinsed. Wipe the unit with a damp cloth. Failure to follow this instruction may damage the appliance and void the warranty.

What is the ideal milk temperature for frothing?

The ideal temperature is approximately 65 °C. The milk should not be too hot (boiling) as the froth would be less good. Luke warm to hot milk gives the best results.

How to get a better milk froth?

Use well-chilled whole milk. Make sure the container is only filled to a quarter to leave room for the froth. Fully immerse the whisk in the milk before starting and move the appliance regularly from top to bottom. Experiment with different milk brands if necessary.

USER MANUAL MK200B INVENTUM

1. safety instructions page 10
2. appliance description page 12
3. before first use page 13
4. foaming milk page 14
5. cleaning & maintenance page 15

general terms and conditions of service and warranty page 31

Deutsch

1 safety instructions

Please read the instructions carefully and completely before operating this appliance and retain for future use.
- The appliance is intended solely for domestic use within the home.
- An electrical appliance is not a toy and should therefore always be placed outside of the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Repairs may only be carried out by Inventum customer service or authorized dealers. Before submitting any complaint, first check the batteries and replace them if necessary.
- Never immerse the appliance in water or other liquids.
- Attention: do not use the appliance if the axle is bent.
- Always ensure that your hands are dry before handling the appliance.
- Leaky batteries can damage the appliance. Remove the batteries when the appliance is not being used for a prolonged period.
- If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
The appliance is only for private use and is not intended for commercial purposes. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

10 - English

English·11

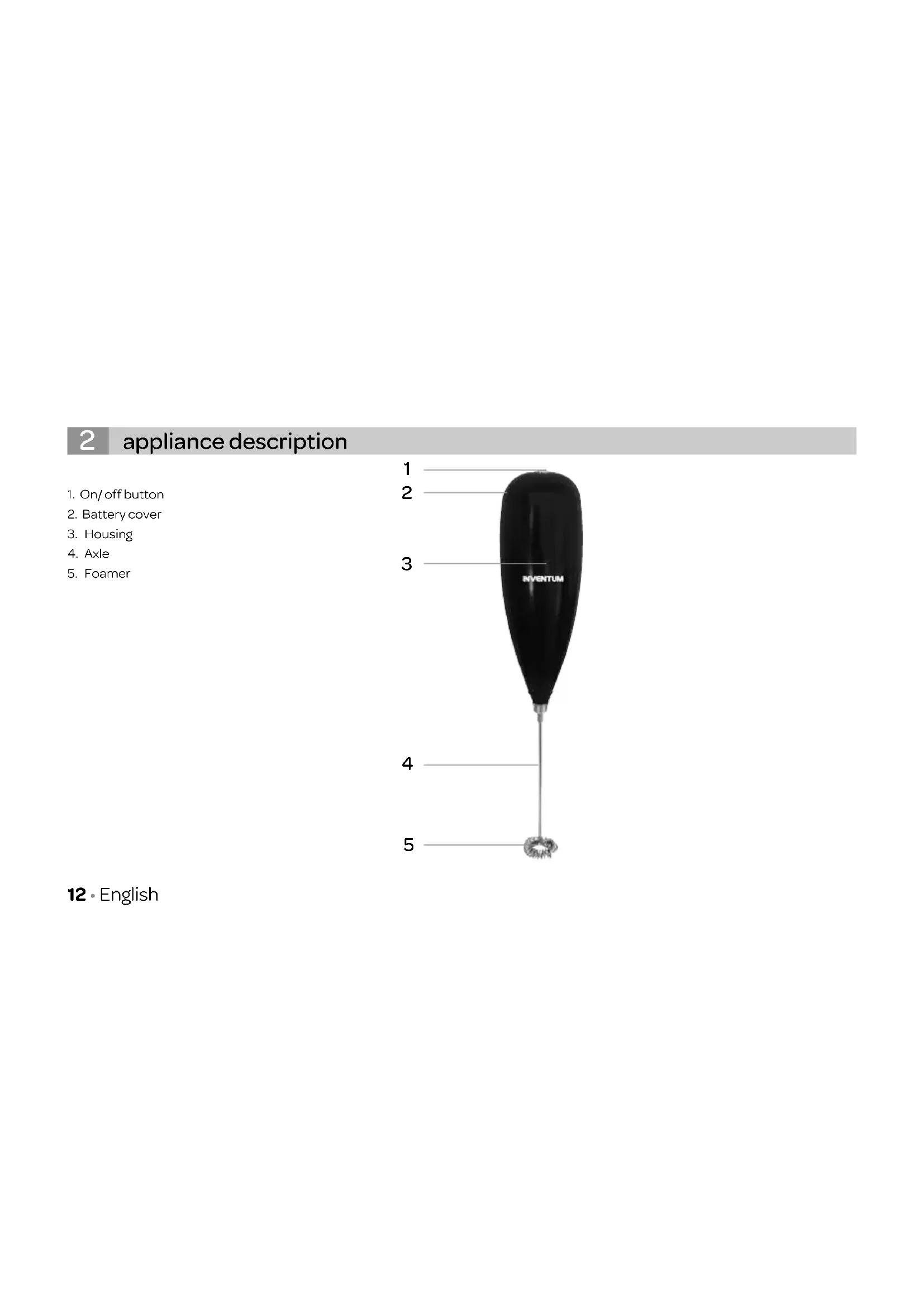

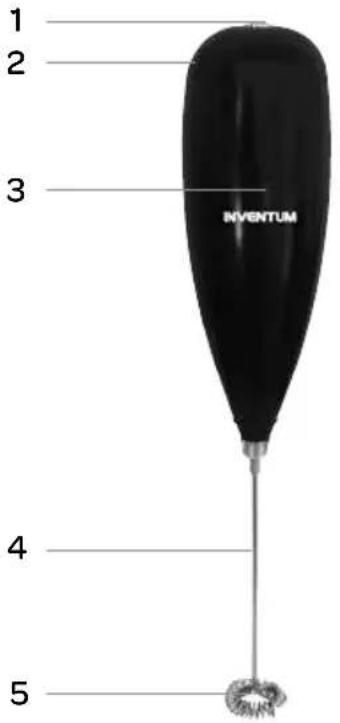

2 appliance description

1. On/off button
2. Battery cover
3. Housing
4. Axle
5. Foamer

12·English

3 before first use

Before you use the appliance for the first time, please do as follows: carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage which may have occurred during transport.

Placing the enclosed batteries

• Slide off the battery cover.
  Install the batteries by matching the correct polarity.
  Always use the correct battery type (2 x AA batteries).
• Replace the cover.

Clean the milk foamer with a moist cloth before initial use or when it has not been used for a prolonged period.

CAUTION:

• Remove the batteries if the device is not likely to be used for some time.
• The old batteries are harmful to the environment; do not dispose of them with other daily trash.
• Remove the old batteries from the device and follow your local recycling guidelines.
• Do not dispose of batteries in fire. Batteries may explode or leak.

English - 13

4 foaming milk

Please use only fresh milk, preferably full-cream milk. Pour the desired amount of warm of cold milk in a cup or glass. Ensure the cup or glass is only filled to a quarter. Frothed milk expands and causes the cup to overflow, if filled up too high. The milk foamer should always be immersed in the liquid before it is switched on.

Foaming milk

1. Pour some warm or cold milk into a suitable cup or glass.
2. Immerse the milk foamer completely in the milk.
3. Press and hold the on/off button on top of the appliance to start the milk frother.
4. Move the appliance smoothly up and down inside the cup until the milk is foamed sufficiently.

Please ensure that the foamer always remains immersed in the milk.

1. When the on/off button is released the appliance turns off automatically. Only remove the foamer when it has stopped completely.
2. Transfer the foam to the coffee using a spoon.

With the milk frother you can also prepare small quantities of salad dressings, mixed drinks, shakes and egg whites.

TIPS

The best result is achievement when using whole milk.
- When the milk is too hot, the result will be less. Lukewarm to warm milk (ca. 65^ ) is the ideal temperatur for the best milk foam.
- If the amount of milk of too low the result will not be good.
The quality of the milk foam can vary between different brands of milk. If necessary, experiment with other brands of milk for a better result.

1. English

5 cleaning & maintenance

Please clean the appliance immediately after use under warm running water. It is also possible to switch the appliance on briefly. In order to avoid splashes, hold the foaming spiral in the sink or wash basin.
- Carefully clean the housing only with a moist cloth.
- Never use any abrasives.
- Never immerse the appliance in water or any other liquid to protect against electrical hazards and damage.

Deutsch

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/ service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.

English - 31

1. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;

• failure to comply with the operating and maintenance instructions;

• unprofessional installation or repairs by third parties or the customer himself;

• non-original parts used by the customer;
• use for commercial or business purposes;

• removal of the serial number and/or rating label.

• In addition, the warranty does not apply to normal consumer goods, such as:

• dough hooks, baking tins, (carbon) filters, etc.;

• batteries, bulbs, carbon filters, fat filters etc.;
  external connection cables;

• glass accessories and glass parts such as oven doors;
  and similar items.

• Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

• The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

32 - English

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
