Product type	Wireless weather station
Brand	Cresta
Model	DTX355
Main unit power supply	2 AA/LR6 alkaline batteries, 1.5V (not included)
External sensor power supply	2 AAA/LR3 alkaline batteries, 1.5V (not included)
External sensor frequency	433 MHz
Maximum number of external sensors	3
Display	Blue LED screen with backlight
Clock	Radio-controlled DCF77, automatic reception, summer/winter time change
Time zones	24 (from -12 to +12 hours)
Calendar	Continuous until 2099, display day, date, month, week
Day languages	NL, DE, EN, IT, FR, ES, DK
Alarms	Double alarm (A1 Mon-Fri, A2 Sat-Sun) with snooze function (5 min)
Weather forecast	5 symbols: sunny, partly sunny, cloudy, rainy, stormy
Atmospheric pressure	Display in hPa and inHg, 12h history
Indoor temperature	Range 0°C to +50°C, display °C/°F
Outdoor temperature	Range -20°C to +60°C, display °C/°F
Indoor humidity	With comfort (comfortable/dry/humid)
Moon phase	12 phases displayed
Sunrise/sunset, moonrise/moonset	For 150 cities (list included)
Temperature alarm	Adjustable per channel, high and low thresholds
Additional functions	Max/min display, trends, low battery indicator
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - DTX355 Cresta

How to install batteries in the weather station and external sensor?

Open the battery compartment on the back of each device. Insert 2 AA (LR6) batteries into the station and 2 AAA (LR3) batteries into the sensor, respecting polarity (+ and -). After powering on, the station will automatically search for the sensor and the DCF signal.

How to connect the external sensor to the station?

After inserting the batteries, the station establishes the connection automatically in 3 minutes. If nothing appears, press and hold the CHANNEL button for 3 seconds to restart the search. You can connect up to 3 sensors on different channels.

What to do if the clock does not receive the DCF signal?

Place the station near a window, away from electronic devices (TV, computer). Reception is better at night. If the signal still does not appear, you can disable automatic reception by simultaneously pressing the + and - buttons for 3 seconds, then set the time manually.

How to set the time manually?

First disable the DCF signal (+ and - buttons for 3 seconds). Press and hold MODE for 3 seconds. Use + and - to adjust year, month, day, time zone, language, 12/24h format, hour, and minutes. Confirm each step with MODE. The setting ends automatically after 20 seconds of inactivity.

How to set the alarm?

Press MODE to switch to A1 or A2 display. Press and hold MODE for 3 seconds, the hour flashes. Adjust the hour with + and -, confirm with MODE, then do the same for minutes. To enable/disable the alarm, display A1 or A2 and press -. The alarm icon turns on or off.

How to use the snooze function (alarm repeat)?

When the alarm sounds, press the SNOOZE/LIGHT button. The alarm icon flashes and the sound stops for 5 minutes. To stop permanently, press any other button.

How to switch between °C and °F display?

Press the - button to toggle between °C and °F. The display changes immediately for indoor and outdoor temperature.

How to display maximum and minimum temperatures?

Press the + button multiple times to scroll through the MAX and MIN values for indoor and outdoor temperature and humidity. The records clear automatically every day at midnight.

How to set a temperature alarm?

Select the desired sensor channel with CHANNEL. Press and hold - to enable/disable the alarm. To set thresholds, press and hold CHANNEL until ON/OFF appears. Press MODE to make the high limit flash, adjust with + and -, confirm. Do the same for the low limit. The high limit must be at least 1°C higher than the low limit.

How to display sunrise/sunset or moonrise/moonset?

During initial setup, you can select a city from 150 available (see list on the back of the manual). Once the city is chosen, the sunrise/sunset and moonrise/moonset times are displayed automatically. To change the city, repeat the setup procedure.

USER MANUAL DTX355 Cresta

30.3°C 20% cresta

DTX 355

NL. WEERSTATION

GEBRUIKSAANWIJZING

FR. STATION MÉTÉOROLOGIQUE

MODE D'EMPLOI

DE. WETTERSTATION

BEDIENUNGSANLEITUNG

EN. WEATHER STATION

USER MANUAL

Line drawing of an electronic device with ports and connectors, no text or symbols present

Basis bediening

Line drawing of an electronic device with ports and connectors, connected by wires to a clip (no text or symbols)

Commandes de base

Line drawing of an electronic device with ports and connectors, showing wiring connections (no text or symbols)

Basisbedienung

Thank you for purchasing this device, Please read the operating instructions carefully to familiarize yourself with the features and modes of operation before using the instrument.

Technical Details

• Six keys: MODE, +, -, HISTORY, CHANNEL, SNOOZE/ LIGHT.
  • Radio controlled clock
  • Automatic receiving of time signal DCF77 to display exactest time
  • Automatically switches to/from daylight saving time (summer/winter time)
  • Time display in 12/24 format
  • +/-12 total 24 adjustable time zones
  • Continuous perpetual calendar up to 2099
  • Display of Date, Month and Day of week
• Day of week display available in 7 languages, i.e. German, English, Italian, French, Dutch Spanish, Danish.
• Weeks display
  • Dual alarm with snooze function (5 minutes alarm interruption)
• 5 weather forecast: sunny, partly sunny, cloudy, rainy, storm, weather symbol can be selected manually.
  • Barometer and bar and data of 12 hours history for air pressure
  • Altitude-setting for calculation of air pressure
• Indoor /outdoor temperature and humidity with trend
  • Max./min. of temperature and humidity
• Thermometer measuring range inside: 0^ C to +50^ C , outside -20^ C 60^ C
  • Temperature display elective in °C or F
  • Temperature alert
• Moon phase
  • Sun rise and sun set / moon rise and moon set for 150 cities.
  • Low battery indication
  • Blue background illumination LED.
  • Battery: 2 x AA, LR6, 1.5V

Outdoor sensor:

• Frequency: 433 MHz

• Battery: 2 x AAA, LR3, 1.5V

- Frequency: 433 MHz - Battery: 2 x AAA, LR3, 1.5V

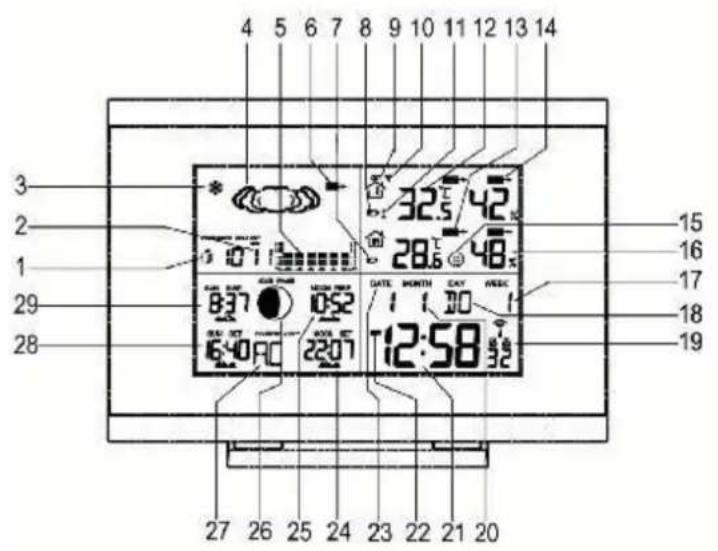

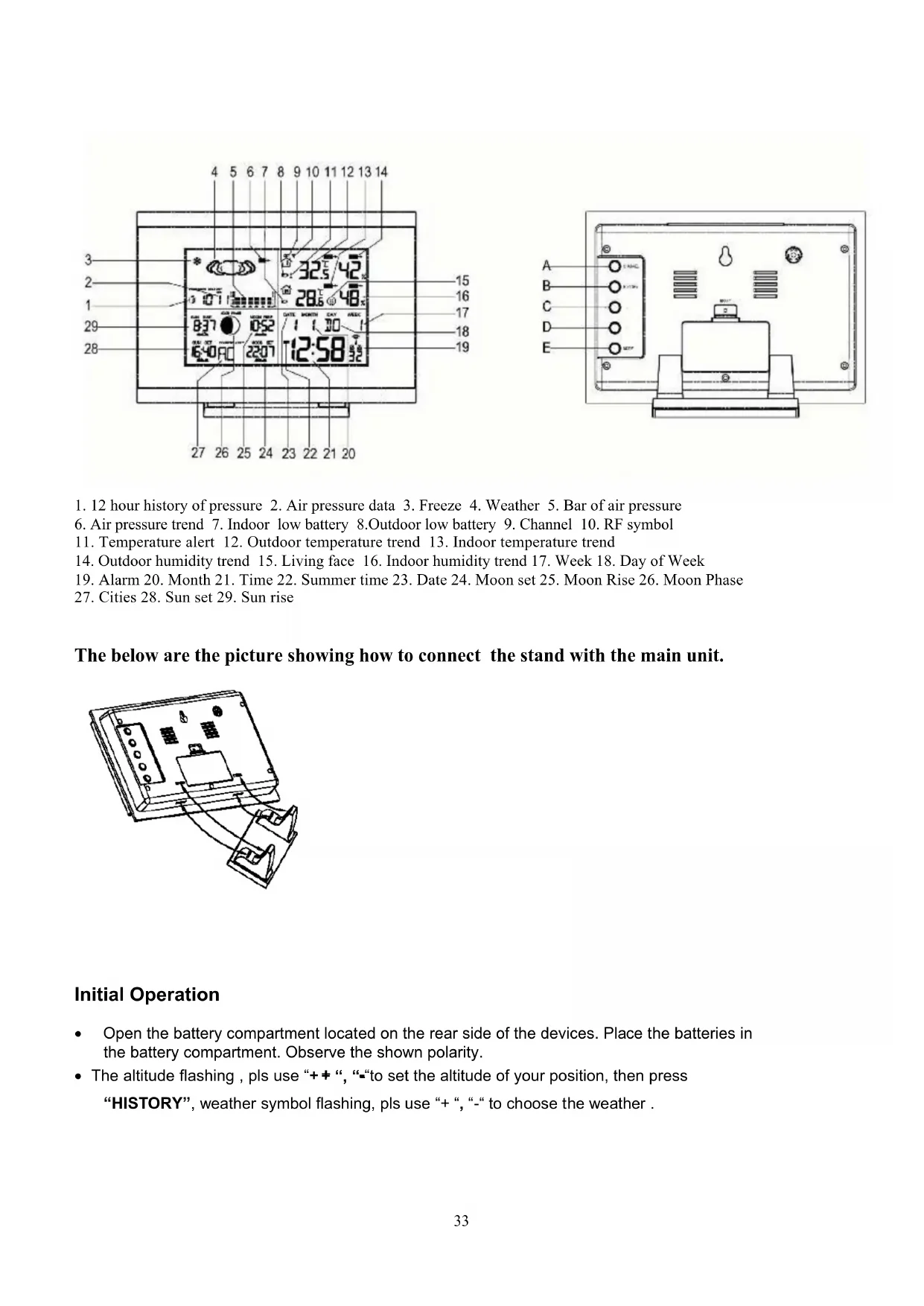

4 5 6 7 8 9 10 11 12 13 14 3 2 1 29 28 32.5 42 28.5 48 DATE MONTH DAY WEEK 1 1 30 12:58 15 16 17 18 19 27 26 25 24 23 22 21 20

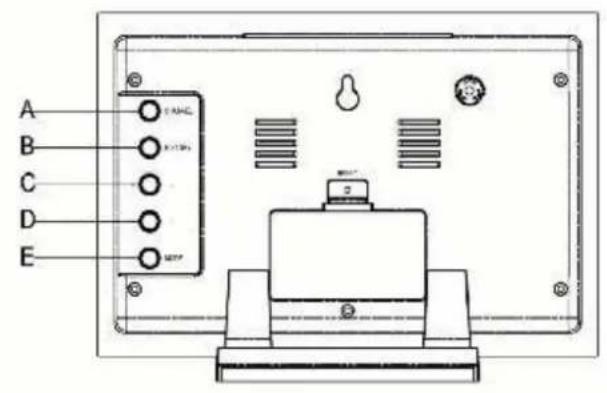

A B C D E

1. 12 hour history of pressure 2. Air pressure data 3. Freeze 4. Weather 5. Bar of air pressure
2. Air pressure trend 7. Indoor low battery 8. Outdoor low battery 9. Channel 10. RF symbol
3. Temperature alert 12. Outdoor temperature trend 13. Indoor temperature trend
4. Outdoor humidity trend 15. Living face 16. Indoor humidity trend 17. Week 18. Day of Week
5. Alarm 20. Month 21. Time 22. Summer time 23. Date 24. Moon set 25. Moon Rise 26. Moon Phase
6. Cities 28. Sun set 29. Sun rise

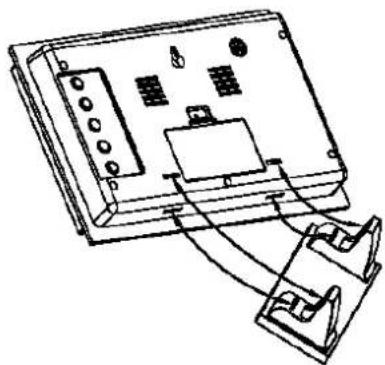

The below are the picture showing how to connect the stand with the main unit.

Line drawing of an electronic device with ports and connectors, no text or symbols present

Initial Operation

• Open the battery compartment located on the rear side of the devices. Place the batteries in the battery compartment. Observe the shown polarity.

• The altitude flashing, pls use “++”, “-” to set the altitude of your position, then press
  "HISTORY", weather symbol flashing, pls use "+ ", "-" to choose the weather.

• The station is now connecting to the outdoor sensor. This process takes about 3 minutes. Then the display shows the outdoor temperature and humidity, in case of failure of reception, pls press "CHANNEL" for more than 3 seconds to receive again.
  • the automatic receiving of the DCF radio signal begins after 3 minutes of outdoor reception.

• This RCC reception process is going on, the flashing symbol "radio tower" appears in the time display area at the same time.
• Once radio signal receiving is successful, the display shows the symbol "radio tower" continuously.no flashing.

If, due to bad reception, or no RCC automatic time reception is possible, follow the steps below manually.

Manual time set-up (the most important is to quit the reception of radio controlled signal by holding together “+ “and“-”” for 3 seconds in case of the “radio tower” symbol flashing before set-up)

• Press and hold key "MODE" for 3 seconds.
• The display for the year is flashing. Use “+” and “-” to select the year.
• Press "MODE" to confirm.
• The display for the month is flashing. Use “+” and “-” to select the month.
• Press "MODE" to confirm.
• The display for the date is flashing. Use “+” and “-” to select the date.
• Press "MODE" to confirm.
• The display for the time zone is flashing. Use “+” und “-” to select the time zone (-12 to +12).
• Press "MODE" to confirm.
• The language selection for the display of the weekdays is flashing. Use “+” and “-” to select the language.
• Press "MODE" to confirm.
  • The 12/24 hour flashing. Use “+” and “-” to select
• Press "MODE" to confirm
• The display for the hour is flashing. Use “+” and “-” to select the hour.
• Press "MODE" to confirm.
• The display for the minutes is flashing. Use “+” and “-” to select the minutes.
• Press "MODE" to confirm.
• The country /city flashing. Use “+” and “-” to select the city of Sunrise/Sunset and Moonrise/Moonset.
• Press "MODE" to confirm.

Information:

• The clock automatically changes from set-up mode to time display mode if no keys are pressed for 20 seconds.
• Explanation for the time zone display:

You can manually adjust the clock to the time zone of a country (up to 1500km distance to Frankfurt/Main) where the clock receives the DCF signal but where the actual time differs from the time received.

If, e.g. the time in a given country is 1 hour ahead of the German time, set the time zone display to 01. The clock is now DCF controlled but the time is one hour ahead.

Daily alarm set-up

• Press "MODE" to switch from time display to A1 display
• Press and hold the key "MODE" for 3 seconds, the flashing alarm time are shown
• The hour display of the alarm time is flashing. Use "+" and "-" to select the hour. Press "MODE" to confirm.
• then follow the minutes. Use “+” und “-” to select the minutes, Press “MODE” to confirm.
• Then press "MODE" to switch from A1 display to A2 display
  • The same setting as for A1.

Daily alarm on/off

• When showing A1 alarm time, press “-” to activate the alarm 1 with alarm symbol showing.
• Press "MODE" again cancel the alarm
• When showing A2 alarm time, press “-” to activate the alarm 2 with alarm symbol showing.
• Press "MODE" again cancel the alarm
  • A1 for alarm from Monday to Friday, A2 for alarm from Saturday to Sunday.

Information:

• The clock automatically changes from set-up mode to time mode if no keys are pressed for 20 seconds.
• The alarm sounds for 2 minutes if no key is pressed to stop it.

Snooze function

To activate the snooze function, follow the steps below

• Press the key "SNOOZE/LIGHT", while the alarm sounds, to activate the snooze function.
• If the snooze function is activated, alarm symbol is flashing.
• The alarm repeat after 5 minutes.
• The snooze function can be stopped by pressing any key.

12/24 hours mode

The time display can be in 12 (AM/PM) or 24 hours mode.

°C/°F temperature display

The temperature display can be in °C or F. Press t he key “-” to switch between the mode.

Max./ Min. for the indoor/outdoor temperature and humidity

Press “+” for displaying of indoor/outdoor max./min. of temperature and humidity.

Temperature alert set-up

• Press "Channel" to select the channel (CH1, CH2, CH3) if more than one outdoor sensor are within reach.
• Press and hold the key “-”, in the area of outdoor, select ON/OF when flashing.
• Press "MODE", the upper limit temperature is flashing, use "+" , "-" to set the maximum alert temperature.
• Press "MODE ", the lower limit temperature is flashing, use "+" , "-" to set the minimum alert temperature.
• When the alert is activated, the alert symbol will be shown.

Temperature alert on/off

Press and hold the key “-” to set the temperature alert on or off.

• Alert on: Temperature alert symbol shown in display
• Alert off: Temperature alert symbol goes out.

Information

• A temperature alert can be set-up for each channel.
• The set-up process cannot be completed if the maximum temperature selected is lower than the minimum selected temperature.
• The minimum temperature selected must at least be 1^ C below the maximum selected temperature.

Sunrise /Sunset and Moonrise /Moonset

There will be 150 cities' time for Sunrise /Sunset and Moonrise /Moonset

5 Weather forecast

Sunny

Slightly cloudy

Cloudy

Rainy

Storm

Remarks : as the weather is forecasted by temperature, air press only, . The display will have discrepancy with the actual weather sometime.

Barometer and bar and data of history for the past 12 hour of air press.

Air pressure can be in hPa and inHg, can check the past 12 hour air press by pressing " HISTORY"

Illumination

Press the key "SNOOZE/LIGHT" to activate the display illumination for 5 seconds.

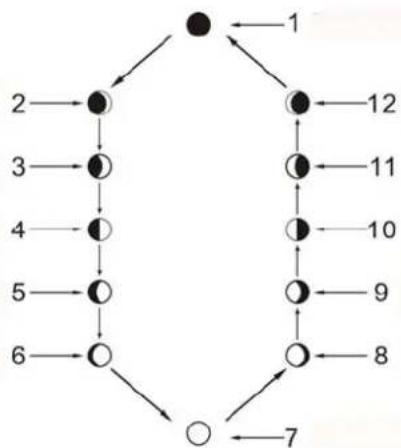

Moon phase display

1: New moon

2: increasing crescent

3: increasing 1/3

4: First half

5: increasing 2/3

6.increasing 5/6

7: Full moon

8: decreasing 5/6

9: decreasing 2/3

10: last half

11: decreasing crescent

1. decreasing crescent

Living space humidity

The weather station uses saved data to determine the humidity in the living space and shows the respective symbols.

comfortable, dry, humid

Low battery condition display

The weather station displays the low battery condition symbol to remind the batteries of the weather station or the outdoor sensor need to be exchanged.

• Weather station low battery condition display: within indoor area of the display
• Outdoor sensor low battery condition display: in the outdoor area of the display

Wireless connection to the outdoor sensor

• Press the key "CHANNEL" to select a channel. You can read the data of up to 3 sensors at one weather station.
• Press and hold the key "CHANNEL" for 3 seconds to search for outdoor sensor.

Reception of radio controlled signal

• DCF radio signal search starts automatically about 3 minutes after battery exchange. The "radio tower" signal is flashing.
• Press“+”“-” for more than 3 seconds to enter or quit the Radio controlled signal reception
• The clock synchronizes with the DCF radio signal automatically and daily from AM 1:00 to 3:00 to correct potential time deviations each hour. If the synchronization is unsuccessful (“radio tower” symbol disappears), a further synchronization attempt is made From 4:00 and 5:00 until success. This process is repeated up until 5:00 AM. If still not success, daily reception stop.

Information

• Flashing "radio tower" symbol stands for DCF radio signal reception started.
• Continuous "radio tower" symbol stands for DCF radio signal reception successful.
• Please observe a minimal distance of 2.5m to sources of interference such as televisions or computer screens.
• The radio signal reception is weaker in rooms with concrete walls (e.g. in the basement) and in office buildings. For extreme cases, please put the clock near a window.
• There are less atmospheric disturbances at night. A radio time signal reception is usually possible at that time. One synchronisation per day is sufficient to keep the time display accuracy at 1 second.

Tip

You can adjust the time manually in case the clock cannot receive the DCF radio signal (due to interferences, large distance to the sender, obstructions like mountains, etc.) As soon as the radio signal can be received, the clock will be adjusted automatically.

Radio signal sender coverage up to 1500km distance to Frankfurt/Main.

Declaration of Conformity

We, Sabre Nederland BV, hereby declare that the product

ITEM NO. DTX 355

Complies with the requirements of the

Council Directives

EN 301 489-1

EN 301 489-3

EN 300 220-2

EN 300 330-2

EN 60950

We hereby declare, in a legally binding way, that all products comply with the requirements of ROHS 2011/65/EU

Manufacturer : Sabre Nederland BV

Date : 17.09.2015
