Product type	Iron
Brand	Philips
Model	Azur GC4567
Power	2400 W (estimated)
Water tank capacity	300 ml (estimated)
Weight	1.5 kg (estimated)
Dimensions (L x W x H)	30 x 15 x 15 cm (estimated)
Soleplate	Soleplate with non-stick coating
Temperature setting	Thermostat with automatic steam control
Steam setting	Automatic steam, ECO, dry
Spray function	Yes
Pressing effect function	Yes, including vertical steaming
Automatic safety shut-off	Yes (on certain models)
Indicators	Temperature indicator, automatic shut-off indicator
Recommended water type	Tap water, distilled water if hard water
Anti-scale function	Yes, integrated scale container, monthly Calc Clean procedure
Cleaning	Clean the soleplate with a damp cloth and non-abrasive detergent
Safety	Automatic shut-off if inactive for 30 s on soleplate or 8 min on heel
Warranty	International warranty (see manual)
Spare parts	Contact Philips consumer service

Frequently Asked Questions - Azur GC4567 PHILIPS

How to fill the water tank?

Open the tank cap and fill with tap water up to the MAX indication. Do not exceed this level to avoid leaks.

Why does water leak from the soleplate?

This can happen if the steam slider is set to MAX or ECO while the iron is cold or in a horizontal position with water. Set the slider to dry and empty the tank before storing the iron.

How to use the anti-scale function?

Fill the tank to MAX, set the thermostat to MAX, wait for the light to go out, unplug, then press and hold the calc clean button while shaking the iron over the sink until water is empty. Repeat if necessary.

What does the automatic shut-off indicator mean?

If the iron remains inactive for more than 30 seconds on its soleplate or 8 minutes on its heel, it will automatically turn off and the indicator lights up. To reactivate, pick up the iron or move it slightly.

What steam settings are available?

The steam slider allows three settings: dry (no steam), ECO (economical), and automatic steam (auto-adaptation). Use the trigger for a powerful steam burst.

How to steam a hanging garment?

Use the pressing effect function by pressing and holding the trigger, then release it. Caution: do not direct steam at anyone and do not steam a garment being worn.

Which temperature to choose for each fabric?

Refer to the table: linen and cotton at MAX, wool at ●●●, silk at ●●, synthetics at ●. The automatic setting adjusts steam accordingly.

How to clean the soleplate?

Unplug the iron, allow it to cool, then wipe the soleplate with a damp cloth and non-abrasive detergent. Avoid scouring pads, vinegar, or chemicals.

What to do if the pressing effect function does not work?

Check that the temperature is set between ●●● and MAX. Wait a few seconds between uses to avoid water leaks.

Where to find after-sales service?

Refer to the international warranty leaflet for the consumer service contact details in your country, or visit www.philips.com/support.

USER MANUAL Azur GC4567 PHILIPS

All rights reserved.

473900104721

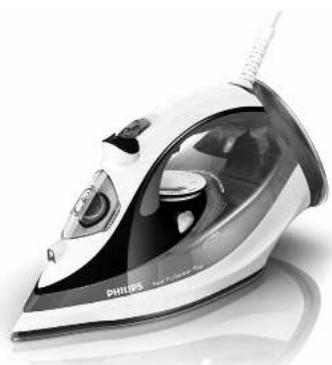

Close-up of a Philips air iron with black and white body, showing steam iron and handle (no text or symbols visible)

User manual

دليل المستخدم

Manual do utilizador

راهنماي کاریر

Mode d'emploi

Diagram of an iron iron with labeled parts and a magnified inset showing internal structure

Line drawing of a symmetrical mechanical or architectural component with a central base and top cylindrical protrusion (no text or symbols)

①

Quick Start Guide - Start here

Quick Start Guide - Calc clean

Quick Start Guide - Storage

GC4506, GC4515, GC4516, GC4517, GC4518, GC4519, GC4525, GC4526, GC4527, GC4528

ENGLISH 6

PORTUGUÊS 9

FRANÇAIS 12

17 العربية

20 فارسی

6 ENGLISH

Important

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Read the separate important information leaflet and this user manual carefully before you use the appliance. Keep both documents for future reference.

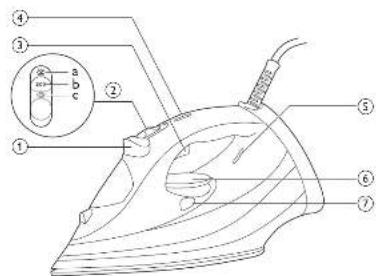

Product overview (Fig. 1)

1 Spray button
2 Steam slider
a. Dry setting
b. ECO setting
c. Auto steam setting
3 Steam boost trigger
4 Safety auto-off light (specific types only)
5 Temperature indicator light
6 Temperature dial with Auto steam control
7 Calc clean button
8 Built-in calc container

Type of water to use

Your appliance has been designed to be used with tap water. If you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use distilled or demineralized water to prolong the lifetime of your appliance.

Do not put perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.

Ironing

Please read the quick start guide in this user manual carefully to start using your appliance. (Fig. 2-10)

Temperature setting

Select the temperature to the appropriate setting for your garment according to table 1 below:

Table 1:

Fabric type Temperature setting Auto steam control Steam boost
Linen MAX		Automatically adjusted to the optimal amount	Yes
Cotton ●●● Yes
Wool ●● No
Silk ●● No
Synthetic fabric (e.g. acrylic, nylon, polyamide, polyester)	●	Automatically adjusted to no steam	No

Steam setting

• Auto steam: The iron automatically adjusts the steam output according to the selected temperature to provide the best ironing result.
• ECO: This steam setting enables you to reduce the steam output to save energy and still have sufficient steam to iron your garments.
• Dry: This steam setting enables you to iron without steam or to stop steam when the iron is not in use.
• Iron with extra steam: Press and hold the steam boost trigger to get more steam to remove stubborn creases.

Steam boost function and vertical steaming

- Press and release the steam boost trigger for a powerful boost steam. This can be used to remove targeted stubborn creases or creases from a hanged garment.

Note: The steam boost function should only be used at temperature setting between ●●● to MAX. Leaking may appear if you use steam boost at too low a temperature.

Hot steam comes out of the iron. Do not remove wrinkles from a garment while some one is wearing it. To prevent burns, do not direct the steam at people.

Safety auto-off (specific types only)

The safety auto-off function automatically switches off the iron if it has not been used for 30 seconds resting on its soleplate or 8 minutes resting on its backplate. The auto-off light will light up.

- To let the iron heat up again, pick up the iron or move it slightly. The auto-off light goes out.

Cleaning and maintenance

Cleaning

1 Unplug the iron and let it cool down.
2 Pour any remaining water out of the water tank from the water filling door.
3 Wipe flakes and any other deposit off the soleplate with a damp cloth and a non-abrasive (liquid) cleaning agent.

To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Calc clean function

IMPORTANT: This iron comes with a Built-in calc container, which collects loose scale particles during ironing. The calc container is not meant for removal by the user. The scale particles are flushed out of the iron during calc clean process. Perform calc clean once every 1 month to maintain good steam performance and prolong the life of your iron. If water in your area is hard, or you see scales coming out from the soleplate during ironing, use calc clean more frequently.

1 Make sure the iron is unplugged and the steam slider is set to dry setting (Fig. 11).
2 Fill the water tank to the MAX indication (Fig. 12).

Do not pour vinegar or other descaling agents into the water tank.

8 ENGLISH

3 Plug in the iron and set the temperature dial to MAX (Fig. 13-14).
4 Unplug the iron when the temperature light goes out (Fig. 15-17).
5 Hold the iron over the sink. Keep pushing the calc clean button and gently shake the iron forth and back until all water in the water tank has been used up (Fig. 18).

Scales is flushed out, steam and boiling water also come out of the soleplate.

Note: Repeat steps 2 to 5 if the water that comes out of the iron still contains scale particles.

6 Plug in the iron and let the iron heat up to dry the soleplate (Fig. 19).
7 Unplug the iron when the temperature indicator light goes out.
8 Move the iron gently over a piece of cloth to remove any water stains on the soleplate.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Problem Possible cause Solution
Water leaks from the water filling door.	You have overfilled the water tank.	Do not fill the water tank beyond the MAX indication. Pour excess water out of the water tank.
Water drips from the soleplate after the iron has been unplugged or has been stored.	The steam slider is set to MAX or ECO.	Set the steam slider to dry setting.
	You have put the iron in horizontal position with water still left in the water tank.	Empty the water tank.
The steam boost function does not work properly (water leaks out of the soleplate).	You have used the steam boost function too often within a very short period.	Wait for a few seconds before you use the steam boost function again.
	You have used the steam boost function at too low a temperature.	Set an ironing temperature at which the steam boost function can be used (●●● to MAX).
Flakes and impurities come out of the soleplate during ironing.	Calc are formed inside the soleplate.	Use the calc clean function (see chapter ‘Cleaning and maintenance’, section ‘Calc clean function’).
