44M112 - Wristwatch Caravelle - Free user manual and instructions

Brand	Caravelle
Model	44M112
Product type	Quartz watch
Power source	1.5 V battery (Bulova recommended type)
Battery life	Approximately 1 year under normal conditions
Main functions	Time, minutes, seconds; date and day (depending on model); elapsed time indicator (with rotating bezel)
Time setting	Via winding crown: 3 positions (inner, intermediate, outer)
Day and date setting	Via crown in intermediate position; day in two languages (English/Spanish or French/English)
Battery performance indicator	Second hand jumps intermittently for a few seconds instead of rotating normally
Screw-down winding crown	Present on certain models; unscrew to adjust, rescrew to ensure water resistance
Water resistance	Depending on model: "Water resistant" marking or depth (50 m, 100 m, 200 m)
Limited warranty	Basic warranty included; extension for dive watches
After-sales service	Send the watch postage paid with $10 for evaluation fee; visit www.bulova.com
Maintenance and cleaning	Check water resistance regularly; avoid manipulating the crown underwater
Precautions	Do not leave a depleted battery in the watch; remove the battery if storing for extended period
Battery recycling	Contains mercury (Hg); return to an authorized Bulova dealer

Frequently Asked Questions - 44M112 Caravelle

How do I set the time on my Caravelle 44M112 without a second hand?

Pull the winding button to the outer position. Turn the hands forward to set the time. Set the minute hand 5 minutes later than the desired time, then gently turn back. Push the button to the inner position when the reference time reaches the 60th second.

How do I set the date and day on the 44M112 model?

Pull the crown to the outer position. Turn the hands until the date (and day) change (midnight). To set the time, advance to the desired time. Then push the crown to the inner position to start. To correct the date only, use the intermediate position and turn the crown.

What does the jumping battery performance indicator mean?

If the second hand jumps intermittently for a few seconds, it indicates the battery is low. It is recommended to change the battery within the following week to avoid complete stop.

How do I use the rotating bezel to measure elapsed time?

Turn the outer ring to align the triangle with the minute hand at the start of the event. The minute hand then indicates on the ring the elapsed time. Useful for diving or timing.

My watch has a screw-down crown, how do I use it?

Unscrew the crown by turning it toward you until the thread is clear. Make the adjustments. Then push the crown to position 1, then screw it back by turning in the opposite direction until it is tight.

Is my Caravelle 44M112 water resistant for swimming?

It depends on the marking on the dial. If only 'Water resistant' is written, it is not suitable for swimming. Models with '50m', '100m' or '200m' can be used for swimming, but avoid manipulating the crown underwater.

How do I change the watch battery?

The battery contains mercury (Hg). Entrust the replacement to an authorized Bulova dealer to ensure proper recycling. Use only a recommended 1.5 V battery.

What should I do if my watch stops suddenly?

First check the battery: if it is depleted, replace it. If the problem persists, send the watch postage paid with a description of the problem and $10 for evaluation fee to the address indicated in the manual.

Can I set the date between 9 PM and 6 AM?

On some models, the calendar cannot be changed manually between 9 PM and 6 AM to avoid damaging the mechanism. However, accidental adjustment will not cause damage.

How can I extend battery life if I don't wear the watch?

Leave the winding button in the outer position (for models with a second hand). This stops the motor while allowing the quartz to vibrate, saving the battery.

USER MANUAL 44M112 Caravelle

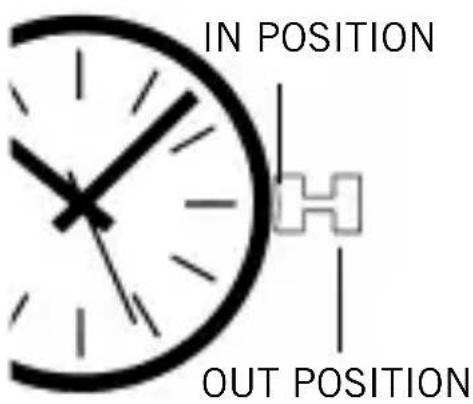

SETTING NON-DATE MODELS

If the watch has no second hand, merely pull out the crown and proceed to step 2.

Step 1: When the second hand reaches the 60th second mark, pull the crown to the "OUT" position. All hands will stop.

Step 2: Turn the hands forward (clockwise) to set the time. In order to prevent the hands from jumping when the crown is pushed in, set the minute hand approximately 5 minutes ahead of the desired minute marker; then, gently turn back to the same minute marker.

Step 3: When the time standard by which you are setting your watch reaches the 60th second, push the crown to the "IN" position without turning. All hands will start instantly.

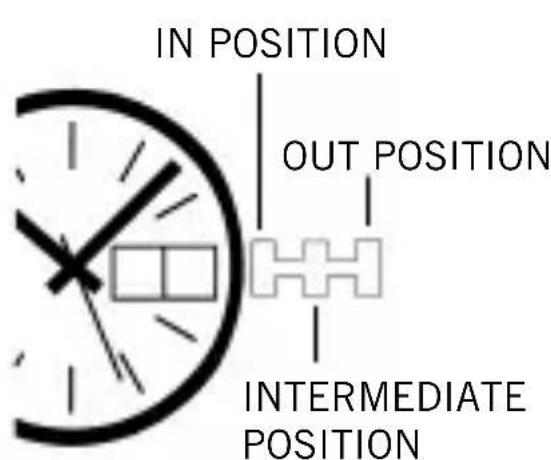

SETTING DATE AND DAY/DATE MODELS

Step 1: When the second hand reaches the 60th second mark, pull the crown all the way to the "OUT" position (you will hear two tiny "click" sounds). All hands will stop.

Step 2: With the crown still in the “OUT” position, move hands forward (clockwise) until you see the date (for date only) or both day and date change. This establishes midnight.

Step 3: For AM time, continue to move the hands forward until the minute hand is approximately 5

minutes ahead of the desired minute marker; then, gently turn back to the same minute marker. For PM time, follow the same procedure, but first advance the hands past 12 o'clock.

Note: The date will advance automatically at midnight, provided that AM and PM have been established (steps 2 and 3). The watch calendar is programmed for a 31-day cycle. Therefore, on the first day of any month following a month with less than 31 days, the date must be advanced manually (see Step 5).

Step 4: When the time standard by which you are setting your watch reaches the 60th second, push the crown all the way to the “IN” position without turning. All hands will start instantly.

Step 5: Pull the crown to the "INTERMEDIATE" position (one "click"). Your watch will continue to tell time. Slowly turn crown one way until correct date appears. Then, for day/date models, slowly turn crown the other way until correct day appears.

Note: The day is printed in two successive positions on the day indicator: in English and in Spanish on U.S. models; in English and in French, depending on the models. It is possible to make use of either position. The display will automatically

remain in the language chosen.

In some models, the calendar cannot be changed manually between 9:00pm and 6:00am. However, the mechanism will not be damaged if the crown is turned accidentally during this period of time.

Step 6: Push the crown to the "IN" position. Your watch is now operating normally.

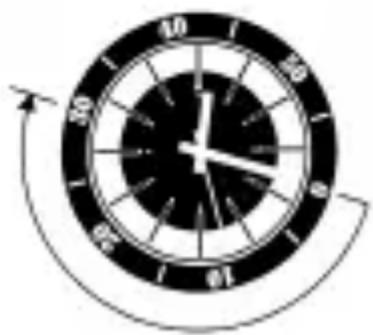

HOW TO USE THE ELAPSED TIME INDICATOR

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air sup

ply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges. The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain watertight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it.

The watch should be brought to an authorized Bulova dealer for replacement of the power cell and recycling since the exhausted cell contains mercury (Hg) . For best performance, the proper power cell should be used.

ABOUT THE BATTERY LIFE INDICATOR

Some models are equipped with a battery life indicator. This is a novel device that will alert you to the need to replace the battery before the watch actually stops. At least a week prior to exhaustion of the battery, the second hand will jump a few seconds at a time. Timekeeping will not be affected.

Note: When the crown is in the "OUT" position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the "OUT" position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened.

In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary. In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch modelsmarked only "Water Resistant on the case back, without additional depth markings on the dial, are not to be used for swimming. For swimming, models that have the additional marking of "50m," "100m" or "200m" on the dial are recommended.

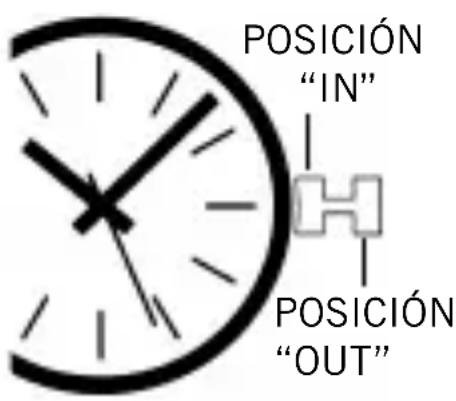

CÓM O AJUSTAR A LOS MODELOS SIN FECHA

IF SERVICE IS REQUIRED: Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, send a statement outlining the specific nature of the problem along with the timepiece in a durable, protective wrapping, postage prepaid and with a $10.00 shipping/handling fee.

IMPORTANT REMINDERS FOR SERVICE

• Do not show the name "Bulova" as part of the address
• Use registered mail or insured mail.
• Carefully wrap the timepiece in protective wrapping. Do not send in original box.

POST-WARRANTY SERVICE: Bulova's staff of watchmakers is expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, a $10.00 charge will be assessed to cover cost of evaluation, postage and handling if repair authorization is refused. Post-warranty repairs should be mailed to the appropriate address.

For additional information please visit our Web Site at www.bulova.com
