43B152 - Wristwatch Caravelle - Free user manual and instructions

Brand	Caravelle
Model	43B152
Product type	Quartz wristwatch
Power source	1.5V battery, approximately 1 year battery life
Main functions	Time display, date, day and date (depending on model), elapsed time indicator on rotating bezel
Time setting	By crown: precise time setting to the second
Date adjustment	Manual via crown in middle position, 31-day cycle
Low battery indicator	Second hand jumps in increments of a few seconds one week before depletion
Water resistance	Varies by model: not suitable for swimming if only marked "Water resistant"; recommended 50m/100m/200m for swimming
Screw-down crown	On some models, ensures better water resistance if tightly screwed
Maintenance	Clean with a soft cloth, periodic check by a watchmaker
Battery replacement	By an authorized Bulova retailer
Warranty	Limited warranty, particularly for deep water use under conditions
Repairs	Send to an authorized center with problem description and cost contribution
Out-of-warranty service	Possibility of out-of-warranty repair with paid evaluation
Part number	43B152
Country of origin	Made by Bulova (Caravelle is a brand of Bulova)

Frequently Asked Questions - 43B152 Caravelle

How to set the time on my Caravelle 43B152?

Make sure the second hand is at 60, pull the crown out to the outer position, turn the hands forward. Set the minutes 5 minutes ahead of the desired time, then turn back. Refer to a time source (telephone beep) and push the crown in to the inner position at the 60th second.

How to set the date and day on my watch?

Pull the crown out to the outer position, turn the hands until the date changes (midnight). To set the time, advance or reverse depending on morning/afternoon. To manually adjust the date, pull the crown out to the middle position and turn it until the correct date. For the day, turn in the opposite direction.

What does the elapsed time indicator on the rotating bezel mean?

If your watch has a rotating outer bezel, you can use it to measure elapsed time. For example, align the triangle with the minute hand at the start, then the hand will indicate elapsed time on the bezel.

How do I know if the battery in my watch is low?

A low battery indicator makes the second hand jump a few seconds at a time, about one week before it stops completely. The movement remains accurate. Replace the battery as soon as possible.

Is my Caravelle watch water resistant?

Water resistance depends on the marking on the dial. A watch marked only "Water resistant" should not be used for swimming. Models with 50m, 100m or 200m are suitable for swimming. The crown must be properly screwed down to ensure water resistance.

How to use the screw-down crown?

To activate the crown, unscrew it towards you until the thread releases. Make the adjustments then screw it back in by pushing and turning in the opposite direction. The watch is only water resistant if the crown is correctly screwed down.

What should I do if my watch stops working?

First check the battery. If it is depleted, have it replaced by an authorized retailer. If the battery is good and the watch doesn't work, send it for repair with a description of the problem and $10 for shipping and evaluation (out of warranty). Use protective packaging without mentioning 'Bulova' in the address.

Can I change the battery myself?

It is highly recommended to have the battery replaced by an authorized Bulova watchmaker, as the battery contains mercury (Hg) and must be recycled properly. Additionally, opening the case may compromise water resistance.

How to store my watch for a long period?

Leave the crown in the outer position to stop the hands and save the battery. This extends battery life. Avoid storing a watch with a used battery to prevent leakage.

Where can I download the manual for my Caravelle 43B152?

You can download the manual for free in PDF format from notice-facile.com by searching for model 43B152 or selecting the Caravelle brand.

USER MANUAL 43B152 Caravelle

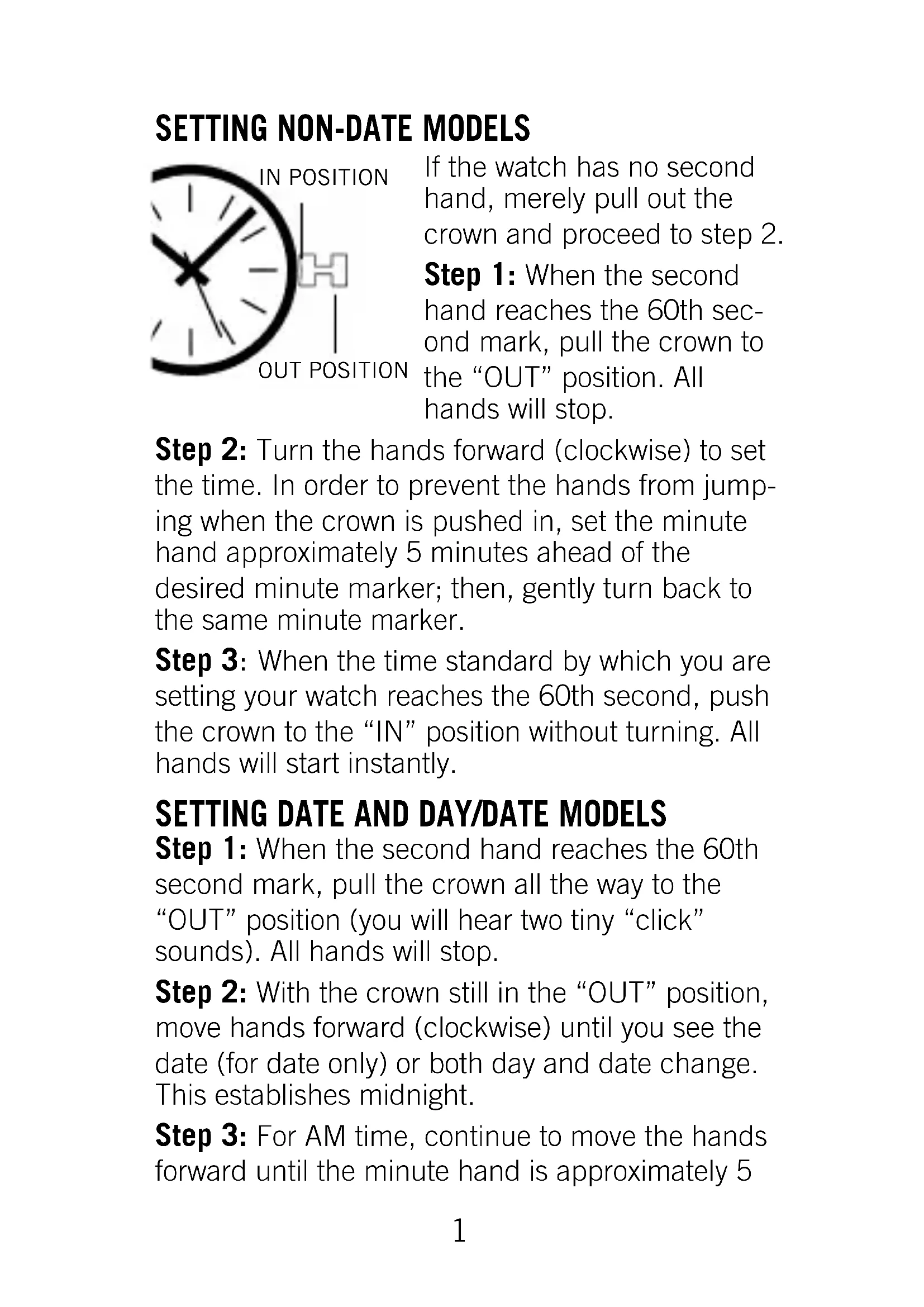

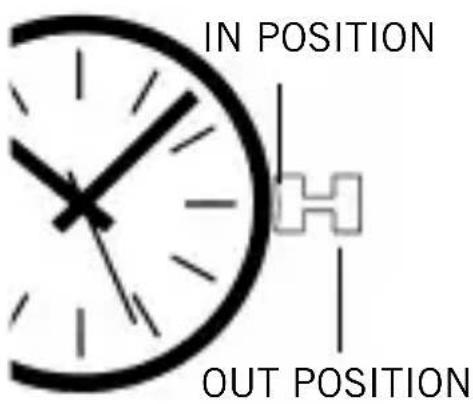

SETTING NON-DATE MODELS

If the watch has no second hand, merely pull out the crown and proceed to step 2.

Step 1: When the second hand reaches the 60th second mark, pull the crown to the "OUT" position. All hands will stop.

Step 2: Turn the hands forward (clockwise) to set the time. In order to prevent the hands from jumping when the crown is pushed in, set the minute hand approximately 5 minutes ahead of the desired minute marker; then, gently turn back to the same minute marker.

Step 3: When the time standard by which you are setting your watch reaches the 60th second, push the crown to the "IN" position without turning. All hands will start instantly.

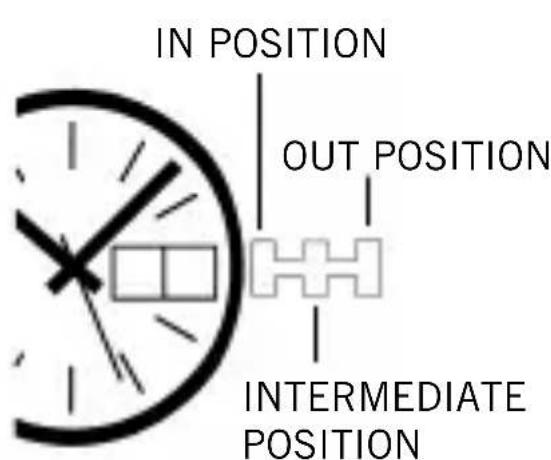

SETTING DATE AND DAY/DATE MODELS

Step 1: When the second hand reaches the 60th second mark, pull the crown all the way to the "OUT" position (you will hear two tiny "click" sounds). All hands will stop.

Step 2: With the crown still in the “OUT” position, move hands forward (clockwise) until you see the date (for date only) or both day and date change. This establishes midnight.

Step 3: For AM time, continue to move the hands forward until the minute hand is approximately 5

minutes ahead of the desired minute marker; then, gently turn back to the same minute marker. For PM time, follow the same procedure, but first advance the hands past 12 o'clock.

Note: The date will advance automatically at midnight, provided that AM and PM have been established (steps 2 and 3). The watch calendar is programmed for a 31-day cycle. Therefore, on the first day of any month following a month with less than 31 days, the date must be advanced manually (see Step 5).

Step 4: When the time standard by which you are setting your watch reaches the 60th second, push the crown all the way to the “IN” position without turning. All hands will start instantly.

Step 5: Pull the crown to the "INTERMEDIATE" position (one "click"). Your watch will continue to tell time. Slowly turn crown one way until correct date appears. Then, for day/date models, slowly turn crown the other way until correct day appears.

Note: The day is printed in two successive positions on the day indicator: in English and in Spanish on U.S. models; in English and in French, depending on the models. It is possible to make use of either position. The display will automatically

remain in the language chosen.

In some models, the calendar cannot be changed manually between 9:00pm and 6:00am. However, the mechanism will not be damaged if the crown is turned accidentally during this period of time.

Step 6: Push the crown to the "IN" position. Your watch is now operating normally.

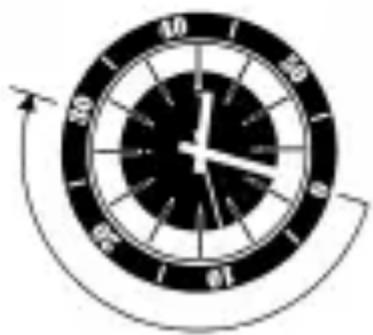

HOW TO USE THE ELAPSED TIME INDICATOR

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air sup

ply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges. The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain watertight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it.

The watch should be brought to an authorized Bulova dealer for replacement of the power cell and recycling since the exhausted cell contains mercury (Hg) . For best performance, the proper power cell should be used.

ABOUT THE BATTERY LIFE INDICATOR

Some models are equipped with a battery life indicator. This is a novel device that will alert you to the need to replace the battery before the watch actually stops. At least a week prior to exhaustion of the battery, the second hand will jump a few seconds at a time. Timekeeping will not be affected.

Note: When the crown is in the "OUT" position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the "OUT" position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened.

In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary. In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch modelsmarked only "Water Resistant on the case back, without additional depth markings on the dial, are not to be used for swimming. For swimming, models that have the additional marking of "50m," "100m" or "200m" on the dial are recommended.

CÓM O AJUSTAR A LOS MODELOS SIN FECHA

IF SERVICE IS REQUIRED: Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, send a statement outlining the specific nature of the problem along with the timepiece in a durable, protective wrapping, postage prepaid and with a $10.00 shipping/handling fee.

IMPORTANT REMINDERS FOR SERVICE

• Do not show the name "Bulova" as part of the address
• Use registered mail or insured mail.
• Carefully wrap the timepiece in protective wrapping. Do not send in original box.

POST-WARRANTY SERVICE: Bulova's staff of watchmakers is expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, a $10.00 charge will be assessed to cover cost of evaluation, postage and handling if repair authorization is refused. Post-warranty repairs should be mailed to the appropriate address.

For additional information please visit our Web Site at www.bulova.com
