Product type	Quartz wristwatch
Brand	Caravelle
Model	45M112
Power supply	1.5V battery
Battery life	Approximately 1 year under normal conditions
Display	Hours, minutes, seconds with sweep second hand
Additional functions	Date and day (depending on model), elapsed time indicator with rotating bezel
Time setting	By crown with inner, intermediate, and outer positions
Date and day setting	By crown in intermediate position
Low battery indicator	Second hand jumps every few seconds
Water resistance	Varies by model; models marked "Water resistant" not suitable for swimming
Crown	Screwed-down on some models to improve water resistance
Case material	Not specified
Crystal material	Not specified
Strap	Not specified
Case dimensions	Not specified
Weight	Not specified
Warranty	Limited Bulova warranty
After-sales service	Repair at an authorized Bulova watchmaker
Battery recycling	Contains mercury (Hg); return to an authorized dealer

Frequently Asked Questions - 45M112 Caravelle

How to set the time on my Caravelle 45M112 watch?

Pull the crown out to the outer position (you will hear a click). Turn the hands forward to set the time. For precise synchronization, set the minute hand 5 minutes ahead of the desired time, then gently turn back. Push the crown back to the inner position when the time reference reaches the 60th second.

How to set the date and day on models with date/day?

Pull the crown to the outer position. Turn the hands forward until the date changes (midnight). Then set the time. To adjust the date or day, pull the crown to the intermediate position and turn it slowly: one direction for date, the other for day (on bilingual models). Caution: do not perform this adjustment between 9 PM and 6 AM on some models.

What to do if the second hand jumps several seconds?

This is the low battery indicator. Replace the battery as soon as possible at an authorized Bulova dealer. The watch will continue to run for at least a week before stopping completely.

How to use the rotating bezel to measure elapsed time?

Rotate the bezel (outer dial) to align the triangle with the minute hand at the start of the event. The minute hand then indicates the elapsed time on the bezel. Ideal for diving or timing.

Is my watch water-resistant? Can I swim with it?

Check the markings on the dial. If only the word 'Water resistant' appears without depth, avoid swimming. Models with '50m', '100m', or '200m' are suitable for swimming. Also ensure the crown is properly screwed down (if present) before any immersion.

How to screw/unscrew the screw-down crown?

Unscrew the crown by turning it toward you until it releases. Set your watch according to the instructions. Then push the crown to the inner position and screw it firmly in the opposite direction until locked. The watch is only water-resistant if the crown is properly screwed down.

Where can I have the battery replaced?

Have the replacement done by an authorized Bulova dealer or a competent watchmaker. The battery contains mercury (Hg) and must be recycled according to regulations.

What to do if my watch stops suddenly?

First check the battery. If it is dead, replace it. If the battery is in good condition, contact an authorized repair service. For warranty repair, follow the procedure described in the manual.

How to store my watch when not in use?

If you do not wear the watch for a long time, pull the crown to the outer position to stop the hands. This extends battery life. Avoid storing it with a used battery to prevent leaks.

Where can I find contact information for out-of-warranty repair?

Visit the website www.bulova.com to get the address of the appropriate service center. Include a text describing the problem and $10 for shipping and evaluation fees if you decline the repair.

USER MANUAL 45M112 Caravelle

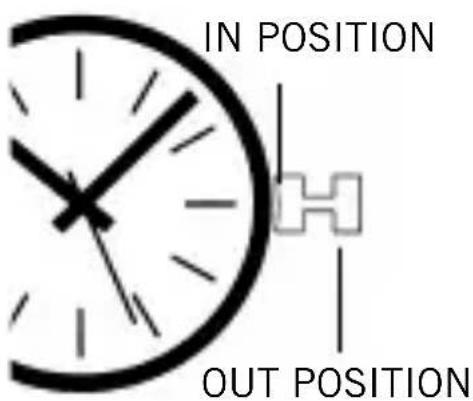

SETTING NON-DATE MODELS

IN POSITION OUT POSITION

If the watch has no second hand, merely pull out the crown and proceed to step 2.

Step 1: When the second hand reaches the 60th second mark, pull the crown to the “OUT” position. All hands will stop.

Step 2: Turn the hands forward (clockwise) to set the time. In order to prevent the hands from jumping when the crown is pushed in, set the minute hand approximately 5 minutes ahead of the desired minute marker; then, gently turn back to the same minute marker.

Step 3: When the time standard by which you are setting your watch reaches the 60th second, push the crown to the “IN” position without turning. All hands will start instantly.

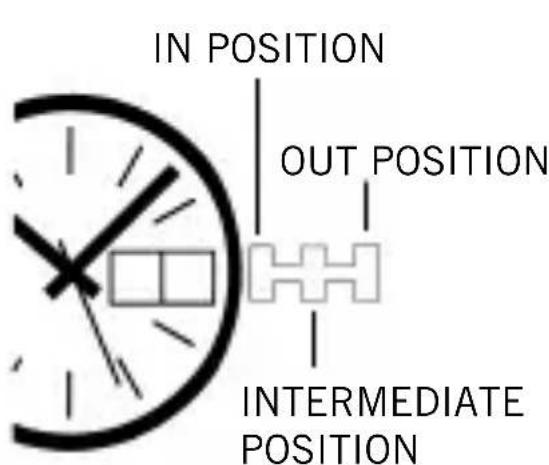

SETTING DATE AND DAY/DATE MODELS

Step 1: When the second hand reaches the 60th second mark, pull the crown all the way to the "OUT" position (you will hear two tiny "click" sounds). All hands will stop.

Step 2: With the crown still in the “OUT” position, move hands forward (clockwise) until you see the date (for date only) or both day and date change. This establishes midnight.

Step 3: For AM time, continue to move the hands forward until the minute hand is approximately 5

IN POSITION OUT POSITION INTERMEDIATE POSITION

minutes ahead of the desired minute marker; then, gently turn back to the same minute marker. For PM time, follow the same procedure, but first advance the hands past 12 o'clock.

Note: The date will advance automatically at midnight, provided that AM and PM have been established (steps 2 and 3). The watch calendar is programmed for a 31-day cycle. Therefore, on the first day of any month following a month with less than 31 days, the date must be advanced manually (see Step 5).

Step 4: When the time standard by which you are setting your watch reaches the 60th second, push the crown all the way to the “IN” position without turning. All hands will start instantly.

Step 5: Pull the crown to the “INTERMEDIATE” position (one “click”). Your watch will continue to tell time. Slowly turn crown one way until correct date appears. Then, for day/date models, slowly turn crown the other way until correct day appears.

Note: The day is printed in two successive positions on the day indicator: in English and in Spanish on U.S. models; in English and in French, depending on the models. It is possible to make use of either position. The display will automatically

remain in the language chosen.

In some models, the calendar cannot be changed manually between 9:00pm and 6:00am. However, the mechanism will not be damaged if the crown is turned accidentally during this period of time.

Step 6: Push the crown to the “IN” position. Your watch is now operating normally.

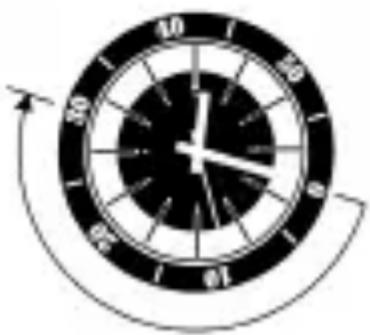

HOW TO USE THE ELAPSED TIME INDICATOR

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air supply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges.

The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain water-tight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it.

The watch should be brought to an authorized Bulova dealer for replacement of the power cell and recycling since the exhausted cell contains mercury(Hg). For best performance, the proper power cell should be used.

ABOUT THE BATTERY LIFE INDICATOR

Some models are equipped with a battery life indicator. This is a novel device that will alert you to the need to replace the battery before the watch actually stops. At least a week prior to exhaustion of the battery, the second hand will jump a few seconds at a time. Timekeeping will not be affected.

Note: When the crown is in the “OUT” position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the “OUT” position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened.

In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary. In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch modelsmarked only “Water Resistant on the case back, without additional depth markings on the dial, are not to be used for swimming.

For swimming, models that have the additional marking of “50m,” “100m” or “200m” on the dial are recommended.

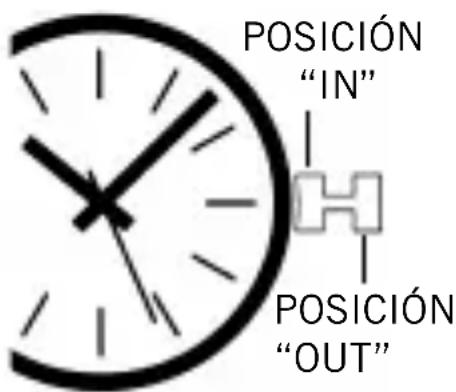

CÓMO AJUSTAR A LOS MODELOS SIN FECHA

Analog clock face showing 12 o'clock with hour and minute hands, no text or symbols present.

IF SERVICE IS REQUIRED: Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, send a statement outlining the specific nature of the problem along with the timepiece in a durable, protective wrapping, postage prepaid and with a \$10.00 shipping/handling fee.

IMPORTANT REMINDERS FOR SERVICE

• Do not show the name “Bulova” as part of the address
• Use registered mail or insured mail.
• Carefully wrap the timepiece in protective wrapping. Do not send in original box.

POST-WARRANTY SERVICE: Bulova's staff of watch-makers is expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, a \$10.00 charge will be assessed to cover cost of evaluation, postage and handling if repair authorization is refused. Post-warranty repairs should be mailed to the appropriate address.

For additional information please visit our Web Site at www.bulova.com
