HWD722 - Tea maker INVENTUM - Free user manual and instructions

Technical specifications	Tea device with temperature control, 1.7-liter capacity, 2200-watt power.
Usage	Designed to brew different types of tea at specific temperatures, with a digital display for easy adjustment.
Maintenance and repair	Regular cleaning recommended, descaling depending on usage. Check the power cord for signs of wear.
Safety	Automatic shut-off in case of overheating, protection against dry running. Do not immerse the device in water.
General information	2-year warranty, user instructions included, compatible with standard outlets.

Frequently Asked Questions - HWD722 INVENTUM

How do I clean the INVENTUM HWD722 tea device?

To clean the device, unplug it and let it cool down. Use a soft, damp cloth to wipe the exterior. For the interior, fill the reservoir with water and add some white vinegar, let it sit for 30 minutes, then rinse with clear water.

Why is the device not heating the water?

Check if the device is properly plugged in and if the power indicator is on. Also make sure the reservoir is filled with water, as the device will not operate without water.

The device makes a strange noise during use, what should I do?

A noise may indicate mineral deposits have accumulated. Try descaling the device with a mixture of water and vinegar. If the noise persists, contact customer service.

How do I set the temperature for different types of tea?

The INVENTUM HWD722 has several temperature settings. Refer to the user manual for recommended temperatures for each type of tea, then use the adjustment button to select the desired temperature.

What should I do if water overflows during use?

Make sure not to exceed the maximum level indicated on the reservoir. If the device overflows, turn it off immediately and empty some of the water.

The water level indicator is broken, can I still use the device?

Yes, you can still use the device. Just be sure to fill the reservoir based on external measurements without exceeding the maximum level.

How do I set the tea infusion time?

The INVENTUM HWD722 does not have a built-in timer. You will need to monitor the infusion time manually according to the recommendations for the type of tea you are preparing.

The device has a strange smell during first use, is this normal?

Yes, it is normal for manufacturing residues or material odors to emit a slight smell during first use. This will disappear after a few uses and a good cleaning.

How do I know if the water has reached the desired temperature?

The device is equipped with an indicator light that turns off when the water reaches the set temperature. Also watch for the sound signal indicating the end of the heating process.

USER MANUAL HWD722 INVENTUM

1. safety instructions page 9
2. appliance description page 11
3. before using the first time page 11
4. using the appliance page 12
5. cleaning & maintenance page 12

General terms and conditions of service and warranty

page 25

Deutsch

1 safety instructions

• Carefully and fully read the user manual prior to using the appliance and carefully store the manual for future reference.
• Only use this appliance for the purposes described in the user manual. Only fill the appliance with water, not with other liquids.
• Caution! Avoid contact with hot surfaces when the appliance is switched on. The outside can become very hot.
• Avoid burns due to hot steam. Do not block the steam outlet and carefully open the water reservoir lid when the appliance is on.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other object that could catch flame, such as curtains, towels (cotton or paper), etc.
• Always make sure the appliance is placed on an even, flat surface and is only used indoors.
• Do not leave the appliance unsupervised if the appliance is operational.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service.
• Never replace the plug or cord yourself. Repairs to electrical appliances should only be

performed by professionals. Incorrect repairs could cause considerable hazards for the user. Never use the appliance with parts that are not recommended or supplied by the manufacturer.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.

• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.
  Children are not allowed to play with the appliance.

• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.
• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.
• In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.
• Never submerge the appliance, cord or plug in water.

• This appliance is intended for household and similar use, such as:

• in staff kitchens, shops, offices and other work environments;

• by guests of hotels, motels and other residential environments;
• in Bed&Breakfast type environments;
  -farms.
• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.

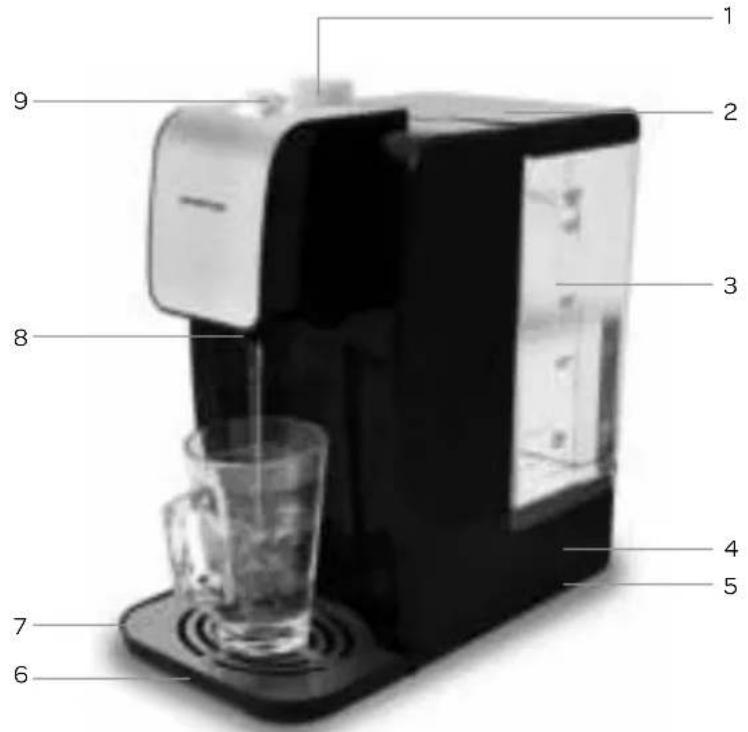

2 appliance description

1. Temperature knob
2. Lid
3. Water reservoir
4. Base unit
5. Bottom
6. Drip tray
7. Cup grille
8. Water outlet
9. On/off button
10. Reset button (behind the water reservoir)
11. Rubber cap for water drain (bottom side)

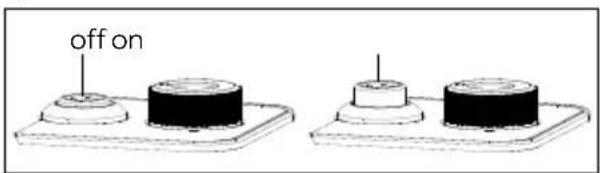

3 before using for the first time

Follow these instructions when using the hot water dispenser for the first time: Carefully unpack the hot water dispenser and all accessories and remove all packaging and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the machine, check it for external damage that may have occurred during transport. Place the hot water dispenser on a heat-resistant flat surface.

The minimum water filling volume is 0.5 litres. The maximum filling volume is 2.2 litres.

Clean the water reservoir and rinse it thoroughly. Rinse the appliance two times, prior to use.

• Place a large mug or bowl under the water outlet.
• Fill the water reservoir to its maximum level and switch the appliance on.
• Caution: switch off the appliance when the mug or bowl is full. Empty the full mug in the sink and place it back under the water outlet.
• Switch the appliance on again.
• Repeat these steps until the appliance has been rinsed with a full water reservoir twice.
  The appliance is now ready for use.

The hot water dispenser is only suitable for boiling water. Never fill the hot water dispenser with milk, tea, coffee or other liquids.

Placing the anti-scale filter

Open the lid of the water reservoir and place the filter bucket. It will fit in the water reservoir in only one way. Place the filter in the opening of the filter bucket and close the lid of the water reservoir.

4 using the appliance

Check that the voltage stated on the information plate matches the voltage used in your region.

Place the appliance on a heat-resistant, flat surface. Insert the plug in an earthed wall socket.

FILLING THE HOT WATER DISPENSER

1. Open the lid of the water reservoir.
2. Lift the water reservoir from the appliance and use a measuring cup or bottle to fill the water reservoir.
3. Fill the water reservoir with maximum 2.2 litres of cold water.
4. Place the water reservoir back on the appliance and close the lid.

TAKING HOT WATER

1. Place a glass or cup under the water outlet on the cup grille.
2. Turn the temperature knob to the required temperature.
3. Press the on/off button once.
4. The hot water flows from the water outlet.
5. Press the on/off button once more to stop the water flow.
6. When filling several glasses, repeat the above steps.

Caution: the water and steam are hot and could cause burns in case of contact with your skin.

5 cleaning and maintenance

We recommend cleaning the hot water dispenser regularly, e.g. once per month. This is not only beneficial for the life span of the appliance, but also ensures optimum use and, of course, nice water.

Prior to cleaning, always remove the plug from the wall socket and allow the appliance to cool down.

CLEANING

Regularly wipe the outside with a moist cloth. Never use detergents or abrasive cleaning agents!

Clean separate components such as the water reservoir, drip tray and cup grille with warm water and a mild washing-up liquid.

Dry these components thoroughly.

After cleaning the hot water dispenser, also remove any excess water via the water drain at the bottom. Unscrew the rubber cap [11] of the water drain at the bottom of the appliance and allow the excess water to run out of the appliance above the sink.

Properly re-tighten the rubber cap.

Attach the separate components and the appliance will be ready for use again.

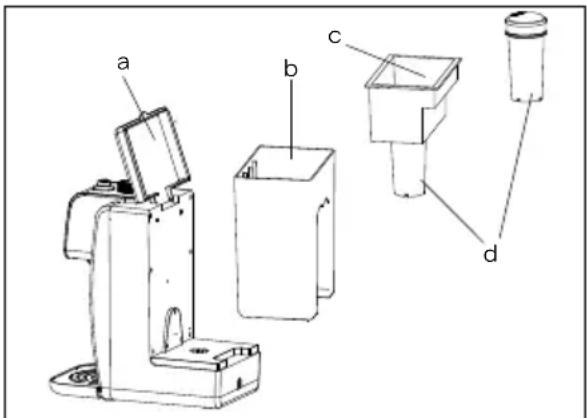

REPLACING THE ANTI-SCALE FILTER

After every 150 litres of water, the anti-scale filter must be replaced. In case of moderate use, this will be approximately 3 times per year. A new anti-scale filter is available via the Inventum webshop.

Open the lid [a] of the water reservoir [b] and remove the filter bucket [c] with the filter [d]. Remove the filter [d] from the filter bucket and place a new filter. The old anti-scale filter can be disposed of. Place the filter bucket back in the water reservoir.

DE-SCALING

In spite of using an anti-scale filter, it is necessary to de-scale the appliance each month. Also if the flow speed of the water is not as it was, the appliance may have to be de-scaled. Use a de-scaling agent without chemicals, such as kitchen grade vinegar or citric acid.

• Fill the water reservoir with 2 litres of water and add 50ml of de-scaling agent.
• Place a large mug or bowl under the water outlet.
• Switch the appliance on.
• Caution: switch off the appliance when the mug or bowl is full. Empty the full mug in the sink and place it back under the water outlet.
• Switch the appliance on again.
• Repeat this until the water reservoir with de-scaling agent is empty.
• Fill the water reservoir with clean water and allow all this water to flow through the appliance.
• Fill the appliance once more with clean water.
• The hot water dispenser is ready for use again.

STORAGE

Empty the water reservoir and clean the hot water dispenser before storing it.

TROUBLESHOOTING

If there is a problem, you should first check the following solutions before contacting customer service.

Problem Possible cause Solution
The flow speed is reduced. Scaling reduces the heating speed. The appliance must be de-scaled.
Water is leaking from under the appliance.	The rubber cap on the bottom has not been properly tightened.	Properly tighten the rubber cap at the bottom.
The appliance no longer works. It is possible that the overheating safety device has been activated.		Use a small pin to press the reset button at the back of the appliance in order to reset it.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
- non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   external connection cables;

4. glass accessories and glass parts such as oven doors;
   and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
