Technical features	Stainless steel conical burr coffee grinder
Capacity	Capacity of 85 grams of coffee
Grind adjustment	15 grind levels for a personalized coffee
Power	250 Watts
Usage	Easy to use with a simple start button
Maintenance	Easy to clean with a supplied brush
Safety	Safety system that prevents operation if the lid is not in place
Dimensions	Compact dimensions for easy storage
Weight	1.2 kg
Warranty	2-year warranty

Frequently Asked Questions - BCG211OB KITCHENAID

How do I clean my KITCHENAID BCG211OB coffee grinder?

To clean your coffee grinder, unplug it and remove the bowl. Use a soft brush or a dry cloth to remove coffee residues. Do not immerse the appliance in water.

Why isn\u0027t my coffee grinder working?

Check that the appliance is properly plugged in and that the lid is correctly closed. If the problem persists, make sure the motor is not overheated. Let it cool down before trying again.

What is the capacity of the KITCHENAID BCG211OB coffee grinder bowl?

The bowl of your KITCHENAID BCG211OB coffee grinder has a capacity of 85 grams, enough to prepare up to 12 cups of coffee.

Can I grind spices in the KITCHENAID BCG211OB grinder?

Yes, you can grind spices, but make sure to clean the grinder thoroughly after use to avoid mixing flavors.

How do I adjust the grind fineness?

The KITCHENAID BCG211OB coffee grinder has 15 grind settings. Turn the adjustment knob according to your preferences, ranging from a fine grind to a coarser grind.

What should I do if the coffee grinder makes strange noises?

Unusual noises may indicate a stuck object or a motor problem. Unplug the appliance, check that nothing is stuck, and let it cool down before turning it on again.

Is the coffee grinder covered by a warranty?

Yes, the KITCHENAID BCG211OB coffee grinder is generally covered by a limited 2-year warranty. For more details, consult the user manual or the KITCHENAID website.

Can I grind coffee in large quantities?

The grinder has a maximum capacity of 85 grams. For larger quantities, it is recommended to grind in several batches.

USER MANUAL BCG211OB KITCHENAID

A. Clear Top Cover with fingertip control

Push down on the clear top cover to begin grinding and release to stop grinding. Top cover must be in place to operate grinder. Cover can be washed in the top rack of a dishwasher.

B. Dual Safety Switch System

Dual switch mechanism keeps the Coffee Grinding from operating until the top cover is correctly positioned over side guides on the motor housing.

C. Stainless Steel Coffee Grinding Blade

Blade is mounted inside the stainless steel bowl.

D. Stainless Steel 4-oz. (125 mL) Capacity Bowl

Bowl has measurement markings etched inside for ease of processing the amount of beans needed for 4, 8, 10, or 12 cups of coffee. It locks into the motor housing with a clockwise turn. Bowl can be washed in a dishwasher.

E. Heavy-Duty Motor Housing

Keeps grinder stable during operation.

F. Round Power Cord (not shown)

Cleans easily.

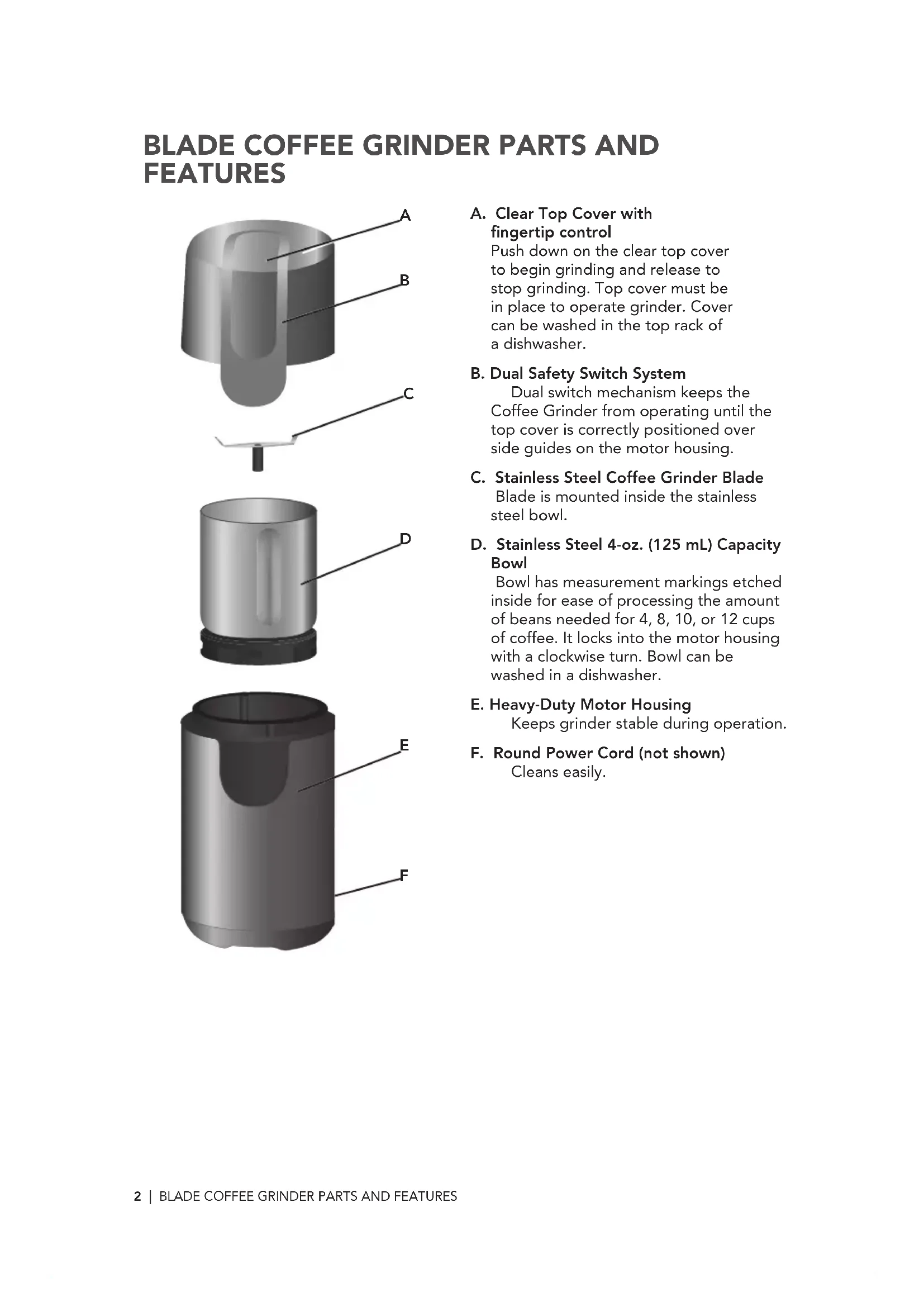

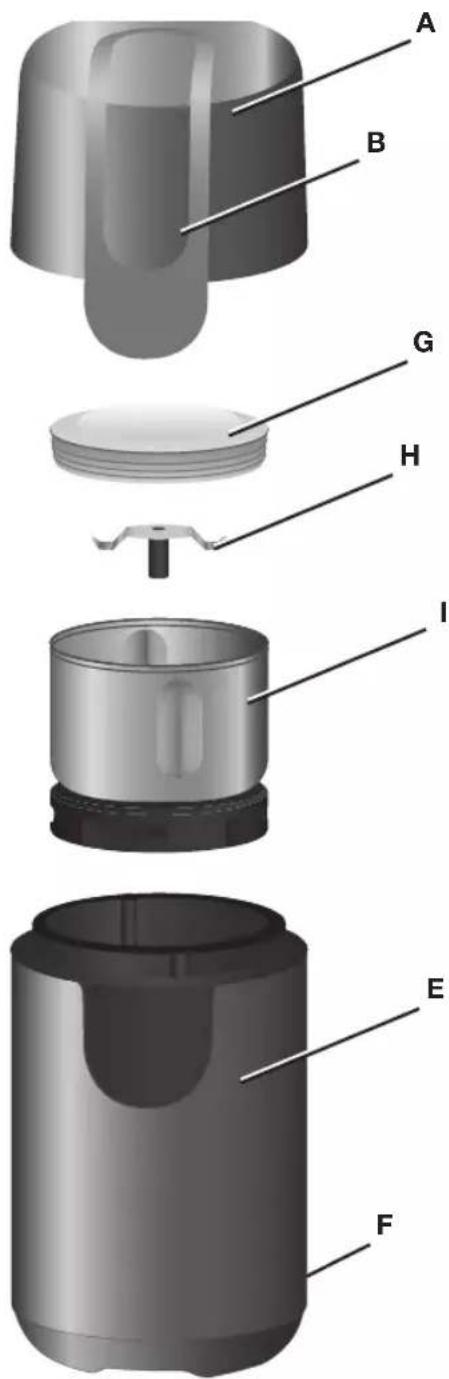

BLADE COFFEE GRINDER PARTS AND FEATURES

G. Solid Spice Grinding Bowl Lid Place this lid on the spice grinder bowl before placing the clear top cover when grinding spices.
H. Stainless Steel Blade Blade is mounted inside the stainless steel bowl.
1. Stainless Steel 2-oz. (62 ml) Capacity Bowl Bowl can be used for up to 2 oz. of spices. (See the "Spice Grinding Tips" section for suggested amounts.) The bowl locks into the motor housing with a clockwise turn. Bowl can be washed in a dishwasher.

*The Spice Grinding accessory (BCGSGA) can only be used with Coffee Grinding models BCG111 and BCG211.

BLADE COFFEE GRINDER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put Blade Coffee Grinding in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with appliance.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Center for examination, repair or adjustment.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter.

BLADE COFFEE GRINDER SAFETY

1. Keep hands and utensils away from moving blade while grinding food to reduce the risk of severe injury to persons or damage to the Blade Coffee Grinding. A scraper may be used only when the Blade Coffee Grinding is not running.
2. Blade is sharp. Care should be taken when emptying the bowl and during cleaning.
3. Be certain cover is securely locked in place before operating Blade Coffee Grinding.
4. Do not attempt to defeat the cover interlock mechanism.
5. Refer to the "Care and Cleaning" section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only

ELECTRICAL REQUIREMENT

Voltage: 120 Volts AC only

Frequency: 60Hz

NOTE: This Coffee Grinding has a grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) is supplied to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Wash bowl and top cover in hot, soapy water. Rinse and dry. Handle the blade gently. Bowl and top cover can also be washed in the dishwasher (top rack only).

To Use Blade Coffee Grinding:

1. Be sure the Coffee Grinding is unplugged. Make sure the inside of the top cover is free of coffee grinds or residue.

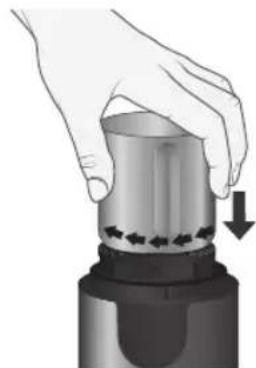

2. Secure the bowl to the motor housing by placing the bowl on top and turning clockwise to lock into place.

1. A scale is provided inside the bowl for the KitchenAid recommended amount of beans to grind for 4, 8, 10, and 12 cups of coffee. Fill the bowl to your desired cup size with 4 cups minimum or 12 cups maximum level. Various bean blends and bean sizes can cause differences in fill level and grind times.
2. Position the top cover over the bowl so that the lid's latch aligns with the motor housing base and the side guides fall into place.

NOTE: Make sure both cover and bowl are in position; otherwise, the Coffee Grinding will not operate.

1. Plug power cord into electrical outlet.
2. Press down on the top cover to start processing. For optimum grinding results, do not pulse the top cover.

Continue grinding until all the beans are ground to the desired consistency, or see the "Suggested Grinding Chart" in the "Coffee Grinding Tips" section.

1. To stop processing, release pressure on the top cover.
2. Unplug the Coffee Grinding.
3. Wait until the blade has stopped rotating and remove top cover.

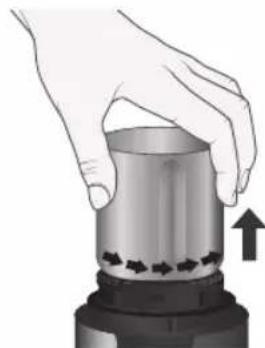

4. Unlock bowl by turning it counterclockwise. Remove bowl from the motor housing.

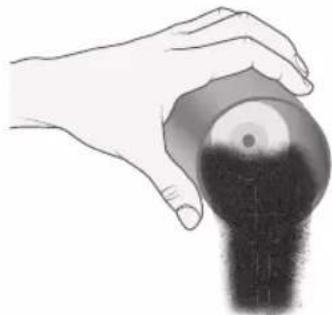

1. Pour out ground coffee.

OPERATING INSTRUCTIONS* SPICE GRINDER (OPTIONAL)

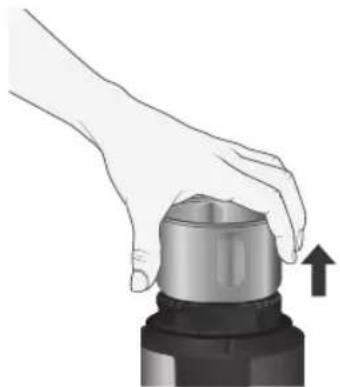

1. Remove the coffee bowl from the grinder base.

1. Fill the spice grinder with the desired spices, then put on the solid spice grinder lid.

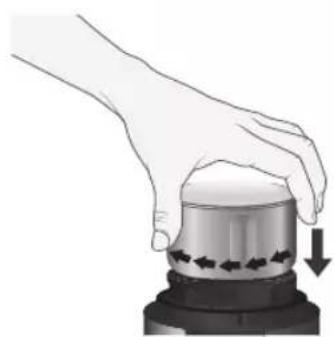

1. Place the spice grinder bowl into the grinder base and twist clockwise to lock into place.

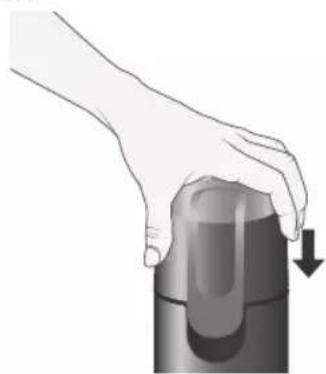

1. Place the top cover of the coffee grinder over the solid spice grinder lid, making sure the top cover aligns with the motor housing base in the same way it does when grinding coffee. Then, press down on the top cover to run the coffee grinder to grind spices to the desired consistency. For optimum grinding results, do not pulse the top cover.

1. After grinding, remove the top cover and solid spice grinder lid. Then place the shaker lid and dispense your freshly ground spices.

*The Spice Grinding accessory (BCGSGA) can only be used with Coffee Grinding models BCG111 and BCG211.

TIPS FOR GREAT RESULTS

COFFEE GRINDING TIPS

1. Grind only beans you will immediately use for freshest-tasting coffee.
2. Adjust amount of coffee beans and grinding time to suit your own personal taste. Shorter grinding times result in coarser grinds. Longer grinding times result in finer grinds, but can overheat the coffee grinds and valuable coffee flavors can be lost. (For optimum grinding results, do not pulse top cover.)

3. KitchenAid does not recommend using this grinder to grind beans for pump espresso-type machines.

4. The Suggested Grinding Chart shows recommended grinding times at various levels for automatic drip coffeemakers and French press machines.

5. A scale is provided inside the bowl for the KitchenAid recommended amount of beans to grind for 4, 8, 10, and 12 cups of coffee. Fill the bowl to your desired cup size with 4 cups minimum or 12 cups maximum level. Various bean blends and bean sizes can cause differences in fill level and grind times.

Suggested Grinding Chart

For automatic drip coffee makers and French press machines*

Fill to Max. amount Suggested grinding time

12-Cup Fill Line 14 Tbsp. Process for 21 seconds

10-Cup Fill Line 12 Tbsp. Process for 19 seconds

8-Cup Fill Line 9 Tbsp. Process for 17 seconds

4-Cup Fill Line 5 Tbsp. Process for 14 seconds

*French press machines require a coarse grind. For optimum results, process beans continuously until desired grind size is achieved.

SPICE GRINDING TIPS

Suggested Grinding Chart
Spice/Nut Max.	amount Suggested grinding time
Black peppercorns 2	oz. Process for 25 seconds
Cumin seeds 2 oz.	Process for 30 seconds
Whole allspice 1.5 oz.	Process for 25 seconds
Szechuan peppercorns	1 oz. Process for 30 seconds
Coriander seeds	0.5 oz.	Process for 10 seconds

CARE AND CLEANING

1. Always unplug Coffee Grinding before cleaning.
2. Remove the bowl and top cover. Wash in hot, soapy water, rinse, and dry. Bowl and top cover can also be washed in the dishwasher (top rack only). After removing from the dishwasher, allow to cool before reassembling.
3. Wipe the motor housing clean with a damp, soft cloth.

NOTE: Do not use abrasive cleaners. Do not immerse the motor housing in water.

1. Wipe cord with warm, sudsy cloth; then wipe clean with a damp cloth. Dry with a soft cloth.
2. Reassemble your Coffee Grinding after cleaning.

WARRANTY AND SERVICE

KITCHENAID® COFFEE GRINDER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Coffee Grinding operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Coffee Grinding. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390. OR The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Coffee Grinding is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Coffee Grinding to an Authorized Service Center. D. Replacement parts or repair labor costs for Coffee Grinding operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES IMPLIED WARRANTYES, INCLUDING TO THE EXTENT APPLICABLE WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDING TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTYES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY - 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Coffee Grinding should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Coffee Grinding returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Coffee Grinding should fail within the first year of ownership, simply call our toll

free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call.

Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please.).

When you receive your replacement Coffee Grinding, use the carton, packing materials, and prepaid shipping label to pack up your original Coffee Grinding and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY - CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Coffee Grinding should fail within the first year of ownership, we will replace your Coffee Grinding with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Coffee Grinding should fail within the first year of ownership, simply call our toll-free Customer eXperience Centre at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Coffee Grinding, use the carton, packing materials, and prepaid shipping label to pack up your original Coffee Grinding and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O.Box 218,St. Joseph,MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Coffee Grinding for information on how to obtain service.

For service information in Canada: Call toll-free 1-800-807-6777.

For service information in Mexico: Call toll-free 01-800-0022-767.

Volts: 120 volts C.A. uniquely

Hertz: 60 Hz

Customer Satisfaction Center, KitchenAid Portable Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Customer eXperience Centre

KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7.

CÓM O B T E N E R S E R V I C I O T E C N I C O D E S P U E S DE QUE EXPI R L A GARANTÍA O CÓ M O P E D I R A C C E S O R I O S Y P I E Z A S DE R P U E S T O

Customer eXperience Centre

KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7

©2019 KitchenAid. All rights reserved. Used under license in Canada.
