ACP1C - Compressor Tacklife - Free user manual and instructions

Product Type	Portable Air Compressor
Brand	Tacklife
Model	ACP1C
Power Supply	12V DC (10-15A) via cigarette lighter socket
Pressure Units	PSI, KPA, BAR
Auto Shut-off Function	Yes, shuts off when desired pressure is reached
Lighting	Built-in LED
Included Accessories	Hose, 3 nozzles, 1 sports needle, 12V adapter, spare fuse
Uses	Car tires, bikes, trucks, SUVs, balls, inflatables
Operating Temperature	-30°C to 60°C
Overheat Protection	Automatic shutdown in case of overheating; recommended 30 minutes cooling time
Hose Length	Not specified (estimated: approx. 1 m)
Weight	Not specified (estimated: approx. 1 kg)
Dimensions	Not specified (estimated: 25 x 15 x 10 cm)
Housing Material	Robust plastic
Maintenance	Clean terminals, check cable condition, store away from moisture
Repairability	Repair by qualified technician; do not disassemble yourself
Safety Instructions	Do not use on people/animals, do not leave unattended, avoid moisture and flammable environments
Warranty	Not specified

Frequently Asked Questions - ACP1C Tacklife

How to use the Tacklife ACP1C compressor?

Make sure the vehicle engine is running. Remove the tire valve cap and screw on the air connector. Plug the cord into a 12V socket. Set the unit (PSI, KPA, BAR) with the Set button, then adjust the pressure with + or -. Press the • button to start. It will shut off automatically at the desired pressure. Then unscrew and unplug.

What to do if the compressor does not start?

Check the plug connection in the cigarette lighter socket. Clean the terminals if necessary. Make sure the vehicle's fuse is at least 10A (15A recommended). Insert and remove the plug vertically without shaking. Use the compressor with the engine running to avoid draining the battery.

The compressor works but does not inflate, what to do?

Make sure the connector is fully pressed onto the valve stem. Check that the hose is not punctured and the fittings are not leaking. If the problem persists, inspect the tire valve.

How to avoid compressor overheating?

This compressor is designed for occasional use. Do not run it continuously for too long. If abnormal noise or excessive heat occurs, turn it off and let it cool for 30 minutes before reuse.

What types of tires can I inflate with this compressor?

It is suitable for car tires, bikes, light trucks, and SUVs. Do not use on large truck tires (high pressure). Always check the recommended pressure from the vehicle manufacturer.

Can I use the compressor while driving?

No, it is prohibited to use the device while the vehicle is moving. Use it only when stationary, with the engine running.

How to maintain the Tacklife ACP1C compressor?

After each use, unplug and store it in a dry place. Clean the plug terminals if dirty. Regularly check the condition of the cable and hose. Do not expose to moisture or extreme temperatures.

What to do if the compressor fuse blows?

The compressor comes with a spare fuse. Replace it with an identical fuse. Make sure the plug is properly inserted and the vehicle's circuit supports at least 10A. Avoid using multi-socket adapters.

Can I inflate balloons or air mattresses with this compressor?

Yes, the device comes with adapters for balloons and inflatables. Use the sports needle for balloons and the appropriate nozzles for mattresses. Set a low pressure to avoid damaging the items.

What does the LED indicator on the compressor mean?

The compressor is equipped with a bright LED to illuminate the work area in the dark. It turns on when you press the work light switch (if present). Refer to the manual for precise use.

USER MANUAL ACP1C Tacklife

TACKLIFE ACPTE CE RoHS air intake time from 0-35pctc d.5min e/kgp Pressure at 35pct can be work inness the mode ≤ 30ab +/i display units: PCL/CPA/MAR

Model: ACP1C

Contents

English 01\~04

Deutsch 05\~09

Français 10\~14

Españo 15\~19

Italiano 20\~23

日本語 24\~27

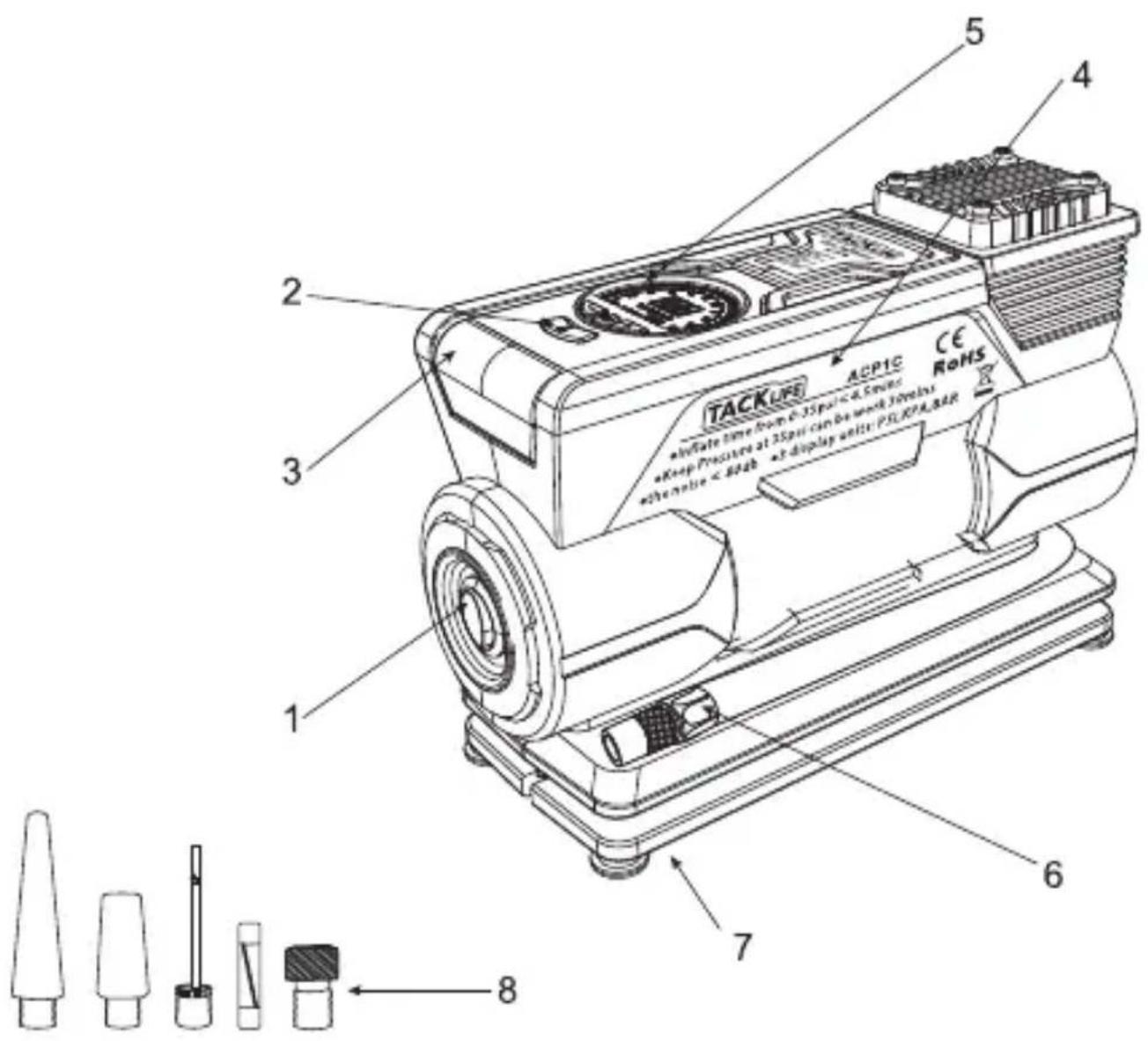

Feature

TACK LIFE ACP1C a=lnfate time from 0-35psr < 4.5msec a=Keep Pressure at 35psr can be work 30mIns a=neutral < 60dB a2-display unit PELKPA.ADR CE RoHS

1. Compressor Switch

2. Carry Handle

3. 12V adaptor

4. 1 sports needle

3 nozzles and 1pc spare fuse

1. Work Light Switch

2. Tire Gauge With Presetting

3. Led Light

4. Hose

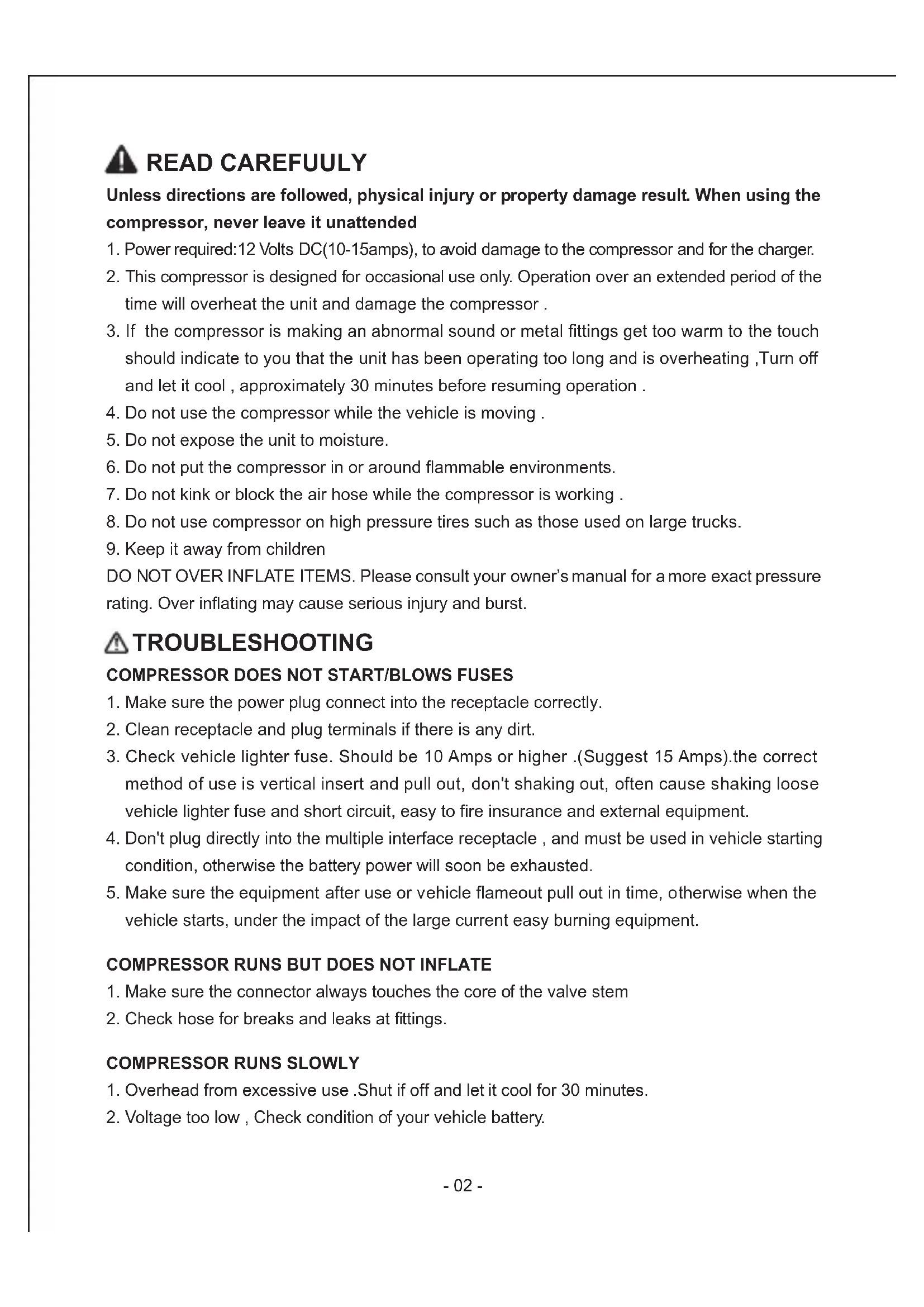

READ CAREFUULY

Unless directions are followed, physical injury or property damage result. When using the compressor, never leave it unattended

1. Power required: 12 Volts DC(10-15amps), to avoid damage to the compressor and for the charger.
2. This compressor is designed for occasional use only. Operation over an extended period of the time will overheat the unit and damage the compressor.
3. If the compressor is making an abnormal sound or metal fittings get too warm to the touch should indicate to you that the unit has been operating too long and is overheating, Turn off and let it cool, approximately 30 minutes before resuming operation.
4. Do not use the compressor while the vehicle is moving.
5. Do not expose the unit to moisture.
6. Do not put the compressor in or around flammable environments.
7. Do not kink or block the air hose while the compressor is working.
8. Do not use compressor on high pressure tires such as those used on large trucks.
9. Keep it away from children

DO NOT OVER INFLATE ITEMS. Please consult your owner's manual for a more exact pressure rating. Over inflating may cause serious injury and burst.

TROUBLESHOOTING

COMPRESSOR DOES NOT START/BLOWS FUSES

1. Make sure the power plug connect into the receptacle correctly.
2. Clean receptacle and plug terminals if there is any dirt.
3. Check vehicle lighter fuse. Should be 10 Amps or higher .(Suggest 15 Amps).the correct method of use is vertical insert and pull out, don't shaking out, often cause shaking loose vehicle lighter fuse and short circuit, easy to fire insurance and external equipment.
4. Don't plug directly into the multiple interface receptacle, and must be used in vehicle starting condition, otherwise the battery power will soon be exhausted.
5. Make sure the equipment after use or vehicle flameout pull out in time, otherwise when the vehicle starts, under the impact of the large current easy burning equipment.

COMPRESSOR RUNS BUT DOES NOT INFLATE

1. Make sure the connector always touches the core of the valve stem
2. Check hose for breaks and leaks at fittings.

COMPRESSOR RUNS SLOWLY

1. Overhead from excessive use. Shut if off and let it cool for 30 minutes.
2. Voltage too low, Check condition of your vehicle battery.

Operating Instructions

1. Make sure the vehicle engine is running.
2. Remove the dust cap from the tire value, and then attached the air chuck to the tire valve stem, and screw onto tire's valve stem
3. Plug the power cord into a 12V cigarette lighter socket.
4. Press (set) button to choose the display unit. (3 units available: PSI, KPA, BAR)
   Press (-)or (+) button to set the desired pressure, and then wait until it stops flashing or press (set) button to stop flashing.
5. Press (●) button to turn on the power switch. The compressor will automatically stop inflating once the desired pressure is reached.
6. Unscrew the valve connector, place the tire valve dust cap back to the tire & disconnect the power cord from a 12V cigarette lighter socket.

Note: To avoid over-inflation of tires, please check the recommended car tire pressure in the vehicle's owner's manual. For bicycle tires, please check the tire marking.

Features

1. CONVENIENCE: Plug directly into cigarette lighter socket.12V
2. MULTIPLE USES: Inflate tires on cars, bikes, truck and SUV. Adaptors for balls and inflatables included for sport
3. EASY TO READ: 3 display units: PSI, KPA, BAR
4. LED LIGHT
5. PREVENT OVER INFLATION : Auto shut off when reaching the desired tire pressure.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

WARNING

Please read the manual included with this product carefully. Be thoroughly familiar with the proper use of the unit. Any misuse of the unit could cause property or equipment damage and personal injury.

1. Do not over inflate products beyond manufactures' recommendations.
2. Do not allow the compressor or its components to get wet.
3. Do not leave the air compressor unattended while in operation. Do not allow children to handle or operate this compressor.
4. Do not use this product for purposes other than its intended use.
5. Do not disassemble or tamper with this compressor.
6. Do not use this compressor in extremely hot conditions.
7. If the air compressor emits abnormal sounds or overheats, turn it off immediately and let it cool off for minimum 30 minutes.
8. Inspect air compressor before use. If cracked, broken or damaged parts are found, qualified technicians should repair damaged parts.
9. Never expose the air compressor to rain, frost or temperatures above 60^ C or temperatures below -30^ C.

10. Never use on people or animals.

11. Make sure the cord is not exposed to hot objects, oil or sharp edges.

12. Warning! For your own safety, you should only use accessories and parts specified in the instructions book, or recommended for use by the manufacturer. Use of accessories and other parts that are not mentioned in the instructions book may cause an increased risk to the user of the air compressor.

Warning

Do not over-inflate objects. Over-inflation could cause damage and/or personal injury. Always stay with the air compressor while in use. Allow air compressor to cool for 10 minutes after 10 minutes of continuous operation. Read instructions before use.

They will give you information on the features and performance that will bring you continuous enjoyment for many years. Please keep this manual on file for future reference. First check contents of the box to ensure all parts are included and undamaged.

Eigenschaft

TACKLIFE ACP1C CE RoHS a=5ate time from 0.35pain d.5meers a=Keep Pressure at 35pain can be work 30m/s alternative < 824b a=f display unit PSLKPA.BAR 1 2 3 4 5 6 7 8

TACKUPS ACP1C CE RoHS a=Safe time from 0.35ps ≤ 4.5ms; a=Keep Pressure at 35ps can be work 20ms; a=value ≤ 80kb a2=display units:PSU/OPA,BAR

TACKLIFE AGPIC CE RoHS weffaze time from 2-35psi < 4.5min eKeep freeze at 35psi can be work designed at the room < 80db e3 display units: PSLKPA BAR 1 2 3 4 5 6 7 8

TACKLIFE AGPSC minimize time from 0.55psi < 4.5min/yr eKeep Pressure at 35psi can be work 36min/yr the wire = 20db e3 display units: FSTKPA Box

TACKLIFE ACPHC CE RoHS windate once from 0.15pm & 5m/s keep Pressure at 25psi can be more 10min ethanode < 6x84 +J display units: PZL07A,84R
