USER MANUAL LFP316X ELECTROLUX

Thank you for choosing this Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Let put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

Subject to change without notice.

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and per sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user main te nance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instruc tions provided in this user guide regarding the cleaning of the

hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

⚠ WARNING! Do not connect the appliance to the mains until the installation is fully complete.

When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

1.SAFETY INSTRUCTIONS

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. Never use the hood without effectively mounted grids. The hood must NEVER be used as a support surface unless specifically indicated. Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the

model you have, the suction version with external evacuation or filtering with internal recirculation.

In some models ONLY:

As optional accessory is supplied a Non return valve.

This should be installed inside the proper outlet hole housing in same cases only (i.e: in any case there's no protection against accidental backdraft air current from the outside).

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

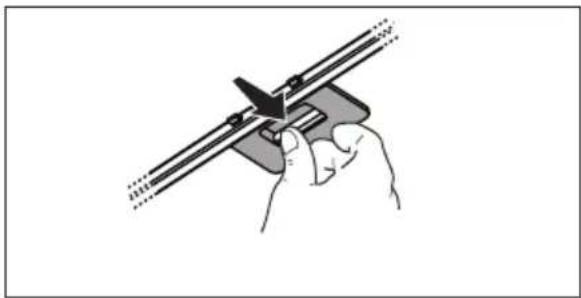

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration of a hand holding a mechanical clamp or bracket with a tool, no text or symbols present

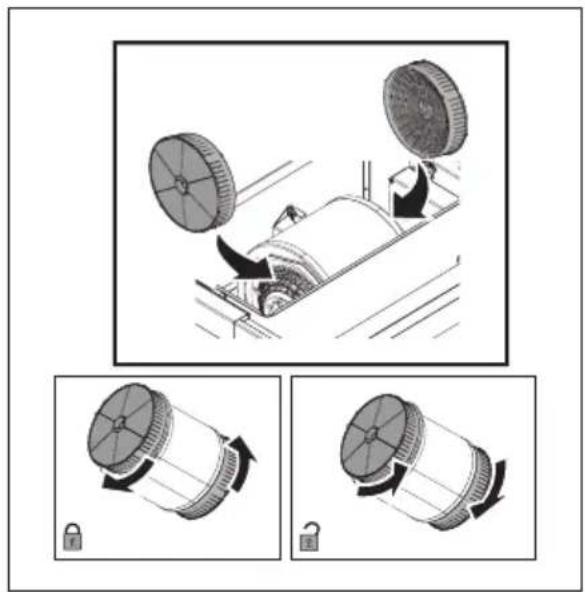

4.2 Charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

Three-panel illustration showing mechanical assembly steps: wheel rolling, pulley rotation, and lock mechanism (no text or symbols)

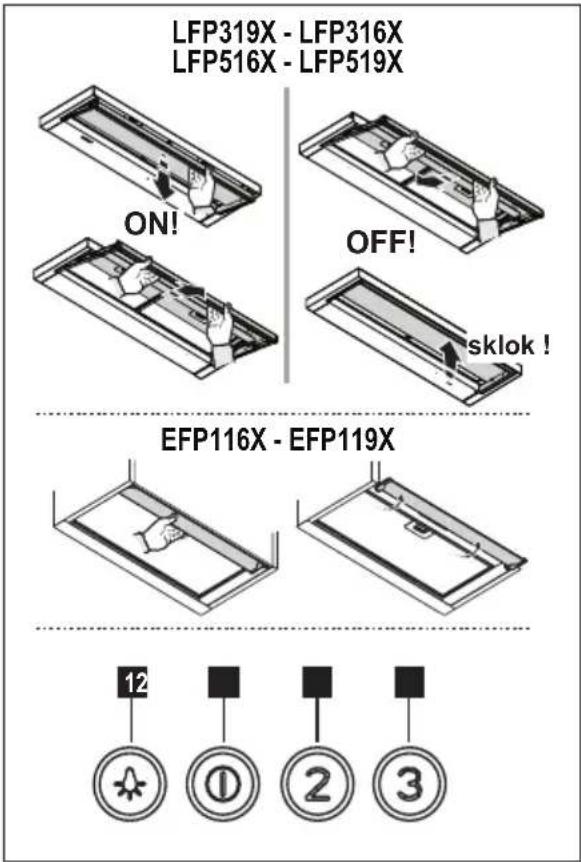

5. CONTROLS

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The speed control is on the front of the hood.

LFP319X - LFP316X LFP516X - LFP519X ON! OFF! sklok ! EFP116X - EFP119X 12 ① ② ③

1 ON/OFF lights
2 ON/OFF motors
Minimum suction power
3 Medium suction power
4 Maximum suction power

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.

www.electrolux.com/productregistration

Illustration of a hand holding a metal tool with a triangular blade (no text or symbols)

Three-step diagram showing mechanical assembly with rotating parts and lock mechanism (no text or symbols)

5. BEDIENELEMENTE

Illustration of a hand holding a metal tool with a triangular blade (no text or symbols)

Three-step diagram showing mechanical assembly with rotating parts and a lock mechanism (no text or symbols)

5. COMMANDES

Hand holding a mechanical tool with a triangular component inserted, no visible text or symbols

4.2 Koolstofffilter

Three-panel illustration showing mechanical assembly steps: wheel switch, pulley mechanism, and lock mechanism (no text or symbols)

5. BEDIENINGSELEMENTEN

Illustration of a hand holding a mechanical clamp or bracket with a tool, no text or symbols present

Three-panel illustration showing a mechanical device with rotating parts and directional arrows, no text or symbols present.

5. MANDOS

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Filtro de carvão

Three-panel illustration showing mechanical components with rotating parts and directional arrows, no text or symbols present.

5. COMANDOS

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a pointed tip, no text or symbols visible

Three-step diagram showing a mechanical device with rotating components and directional arrows, no text or symbols present.

5. COMANDI

Illustration of a hand holding a mechanical clamp or bracket with a tool, no text or symbols present

4.2 Aktivt kolfilter

Three-step diagram showing mechanical assembly with pulleys and lock mechanism (no text or symbols)

5. KOMMANDON

Illustration of a hand holding a metal tool with a triangular blade (no text or symbols)

Three-panel illustration showing mechanical components with rotating parts and directional arrows, no text or symbols present.

5. KONTROLLER

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no text or symbols visible

Three-step diagram showing mechanical assembly with pulleys and a lock mechanism (no text or symbols)

5. OHJAIMET

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

Three-panel illustration showing a mechanical device with rotating wheels and a lock mechanism, no text or symbols present.

5. BETJENING

Hand holding a mechanical component with a tool, no visible text or symbols

4.2 Угольный фильтр

Three-step diagram showing mechanical assembly with rotating parts and directional arrows (no text or symbols)

Hand holding a mechanical clamp or bracket with a pointed tool, no visible text or symbols

4.2 Aktiivsöefilter

Three-step diagram showing mechanical assembly with rotating parts and directional arrows (no text or symbols)

5. JUHIKUD

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Aktivo oglu filtrs

Three-panel illustration showing a mechanical device with rotating parts and directional arrows, no text or symbols present.

5. VADĪBAS ELEMENTI

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Anglies filtras

Three-step diagram showing mechanical assembly with rotating parts and lock mechanism (no text or symbols)

5. VALDYMAS

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Three-panel illustration showing mechanical components with rotating parts, no text or symbols present

Hand holding a mechanical clamp or bracket with a pointed tool, no text or symbols visible

Three-step diagram showing mechanical assembly with rotating parts and directional arrows (no text or symbols)

5. KEZELŐSZERVEK

Hand holding a mechanical clamp or bracket with a pointed tool, no text or symbols visible

Three-step diagram showing a mechanical device with rotating wheels and a lock mechanism, no text or symbols present.

5. PŘÍKAZY

Illustration of a hand holding a metal clamp or bracket with a triangular tool inserted (no text or symbols)

4.2 Uhol'ný filter

Three-step diagram showing a mechanical assembly with rotating parts and directional arrows, no text or symbols present.

5. OVLÁDAČE

www.electrolux.com/productregistration

1. INSTRUCTIUNI DE SIGU- RANTĂ

Use the correct length for the screws which are identified in the Installation Guide.

Illustration of a hand holding a mechanical component with a tool, no text or symbols present

Three-step diagram showing a car rolling down with a padlock, illustrating the motion of the wheel (no text or symbols present)

5. COMENZI

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Filtr na węgiel

Three-step diagram showing mechanical assembly with pulleys and a lock mechanism (no text or symbols)

5. STEROWANIE

www.electrolux.com/productregistration

Kupovinu dodatne opreme, potrošnog materijala i originalnih rezervnih dijelova za vaš uređaj:

www.electrolux.com/shop

BRIGA ZA OKOLIŠ

Reciklirajte materijale sa simbolom . Ambalažu za recikliranje odložite u prikladne spremnike.

Pomozite u zaštiti okoliša i ljudskog zdravlja, kao i u recikliranju otpada od električnih

i elektroničkih uređaja. Uređaje označene simbolom ne bacajte zajedno s kućnim otpadom. Proizvod odnesite na lokalno reciklažno mjesto ili kontaktiraje nadležnu službu.

BRIGA O KUPCIMA I SERVIS

Illustration of a hand holding a mechanical component with a tool, no text or symbols present

Three-panel illustration showing mechanical assembly steps: rolling wheel, moving gear, and rotating disk (no text or symbols)

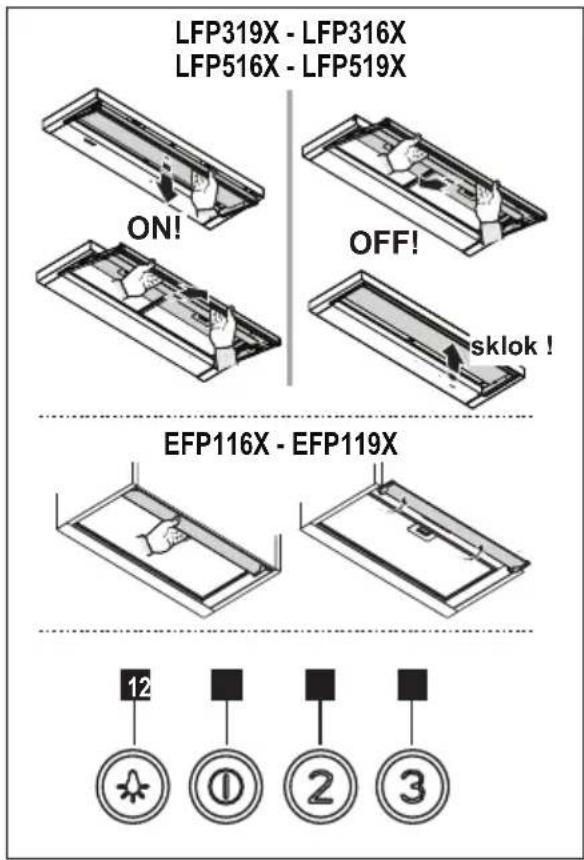

5. NAREDBI

Upotrebljavajte veću brzinu u slučaju velikog prisustva pare u kuhinji.

Savjetujemo da uključite usisavanje 5 minuta prije nego što počnete s kuhanjem i da ostavite da djeluje nakon što ste završili s kuhanjem za još otprilike 15 minuti.

Komande se nalaze na prednjoj strani kuhinjske nape:

LFP319X - LFP316X LFP516X - LFP519X ON! OFF! sklok ! EFP116X - EFP119X 12 ① ② ③

1 ON/OFF svjetla
2 ON/OFF motori
Jačina isisavanja minimalna
3 Jačina isisavanja srednja
4 Jačina isisavanja maksimalna

6. RASVJETA

www.electrolux.com/productregistration

Kupite dodatke, potrošni material in originalne nadomestne dele za vaš aparat:

www.electrolux.com/shop

SKRB ZA VARSTVO OKOLJA

Reciklirajte materiale, ki jih označuje simbol Čembalažo odložite v ustrezne zabojnike za reciklažo.

Pomagajte zaščititi okolje in zdravje ljudi ter reciklirati odpadke električnih in elektronskih

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 Filter z aktivnim ogljem

Three-panel illustration showing a mechanical device with rotating wheels and a lock mechanism (no text or symbols)

5. UPRAVLJALNI GUMBI

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 Φιλτρο ανθρακα

Diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with rotating arrows and a lock icon (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

5. XEIPISTHPIA

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Aktif karbon filtre

Three-step diagram showing a mechanical device with rotating wheels and a lock mechanism, no text or symbols present.

5. KONTROLLER

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a triangular load applied (no text or symbols visible)

Three-step diagram showing mechanical assembly with rotating parts and directional arrows (no text or symbols)

5. УПРАВЛЕНИЯ

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Көмір сүзгіш

Three-step diagram showing mechanical assembly with pulleys and a lock mechanism (no text or symbols)

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

Three-panel illustration showing a mechanical device with rotating wheels and a lock mechanism (no text or symbols)

5. КОНТРОЛИ

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

4.2 Filtër prej karboni aktiv

Diagram illustrating three steps of tire rolling process: moving, rotating, and locking mechanism

5. KOMANDIMET

www.electrolux.com/productregistration

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

Three-step diagram showing mechanical assembly with pulleys and lock mechanism (no text or symbols)

5. КОМАНДЕ

Mechanical assembly diagram showing two wheel components moving a moving component (no text or labels)

Diagram of a mechanical component with rotating arrows and a lock icon (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating motion, no text or symbols present

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols
